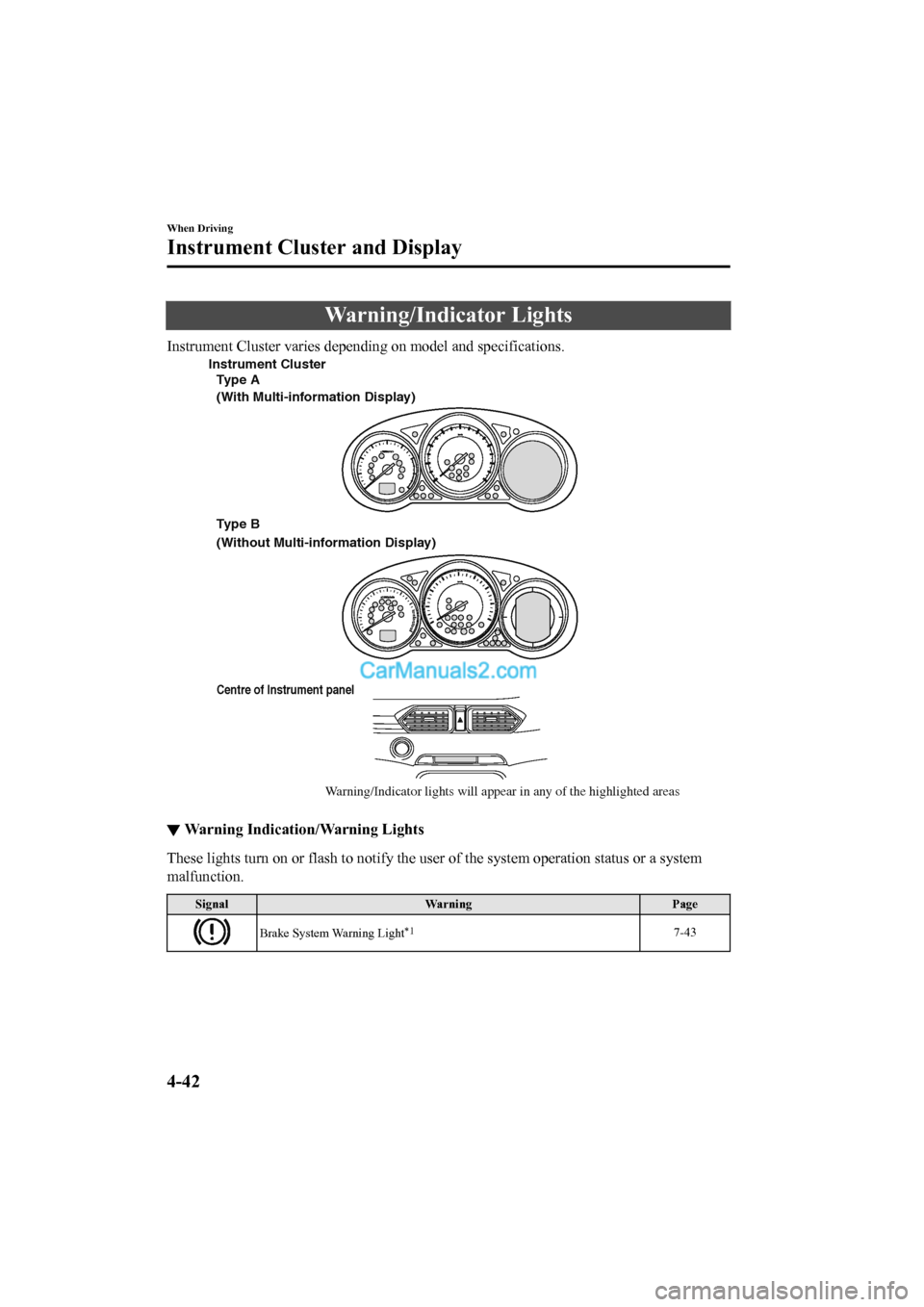

Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Centre of Instrument panel
Warning/Indicator lights will appear in any of the highlighted areas
Type A
(With Multi-information Display)
(Without Multi-information Display)
Instrument Cluster
Type B
▼ Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Warning Page

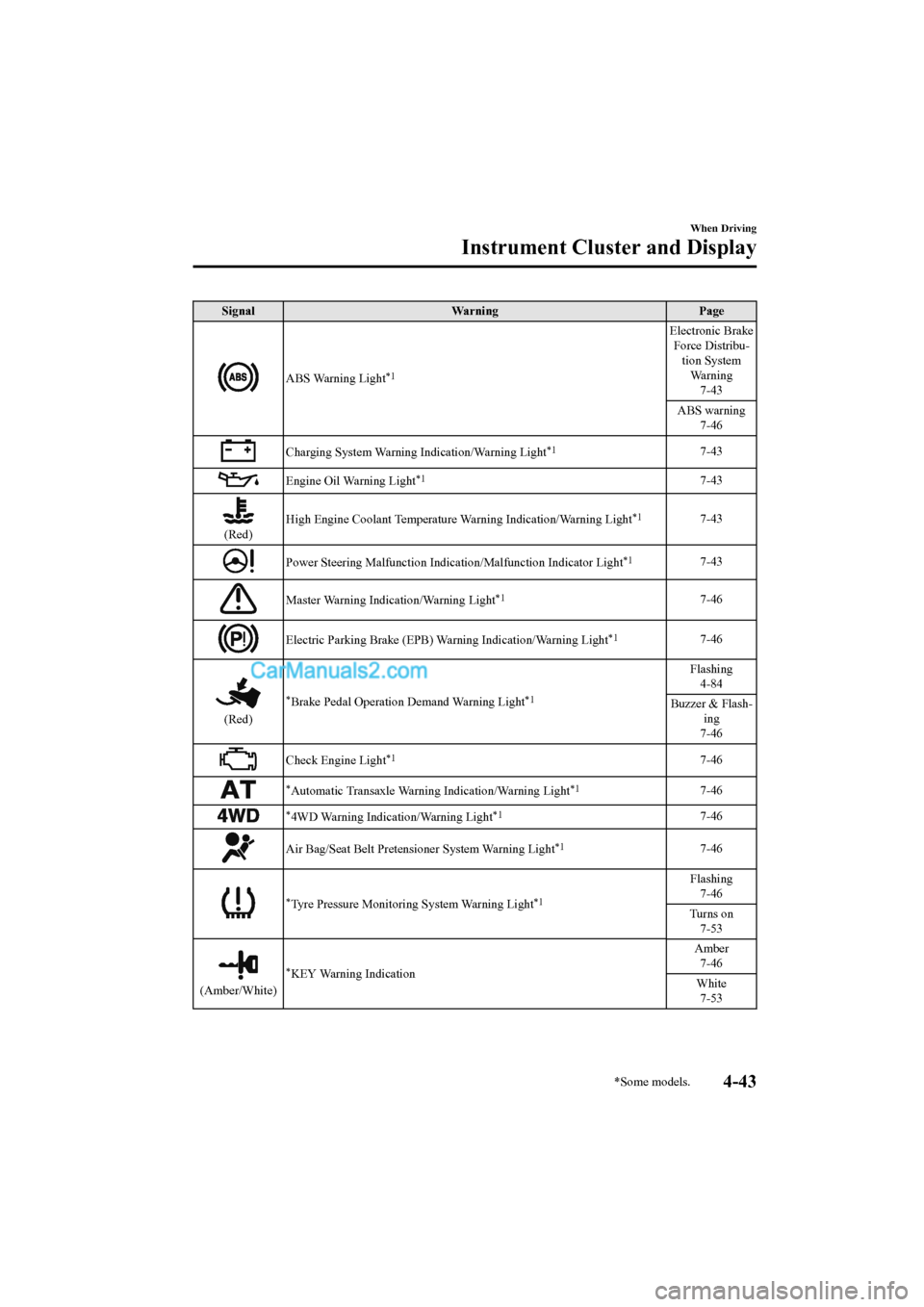

Brake System Warning Light*17-43
When Driving
Instrument Cluster and Display
4-42
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning Page
ABS Warning Light*1
Electronic Brake
Force Distribu- tion System
Wa r n i n g 7-43
ABS warning 7-46
Charging System Warning Indication/Warning Light*17-43
Engine Oil Warning Light*17-43
(Red) High Engine Coolant Temperature
Warning Indication/Warning Light
*17-43
Power Steering Malfunction Indication/Malfunction Indicator Light*17-43
Master Warning Indication/Warning Light*17-46
Electric Parking Brake (EPB) Warning Indication/Warning Light*17-46
(Red)
*Brake Pedal Operation Demand Warning Light*1
Flashing
4-84
Buzzer & Flash- ing
7-46
Check Engine Light*17-46
*Automatic Transaxle Warning Indication/Warning Light*17-46
*4WD Warning Indication/Warning Light*17-46
Air Bag/Seat Belt Pretensioner System Warning Light*17-46
*Tyre Pressure Monitoring System Warning Light*1
Flashing
7-46
Turns on 7-53
(Amber/White)
*KEY Warning Indication Amber
7-46
White 7-53
When Driving
Instrument Cluster and Display
*Some models.4-43
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning Page
(Red)
*KEY Warning Light*1
Turns on
7-46
Flashing 7-53
(Amber)
*i-stop Warning Light*17-46
(Amber)*i-ELOOP Warning Indication 7-46
(Amber)
*High Beam Control System (HBC) W
arning Indication/Warning Light*17-46
*Adaptive LED Headlights (ALH) Warning Indication/Warning Light*17-46
*Blind Spot Monitoring (BSM) Warning Indication 7-46
(Amber)
*Driver Attention Alert (D
AA) Warning Indication 7-46
(Amber)
*Mazda Radar Cruise Control (MRCC) Warning
Indication7-46
*Mazda Radar Cruise Control with Stop & Go func
tion (MRCC with Stop
& Go function) Warning Indication 7-46
(Amber)
*Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Warning Indication 7-46
LED Headlight Warning Light*17-46
(Amber)
*Smart Brake Support/Sma
rt City Brake Support (SBS/SCBS) Warning In-
dication/Warning Light*17-53
Low Fuel Warning Indication/Warning Light 7-53
*120 km/h Warning Light*17-53
Seat Belt Warning Light (Front seat) 7-53
(Red)*Seat Belt Warning Light (Rear seat)7-53
*Low Washer Fluid Level Warning Indication/Warning Light
7-53
When Driving
Instrument Cluster and Display
4-44*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning Page

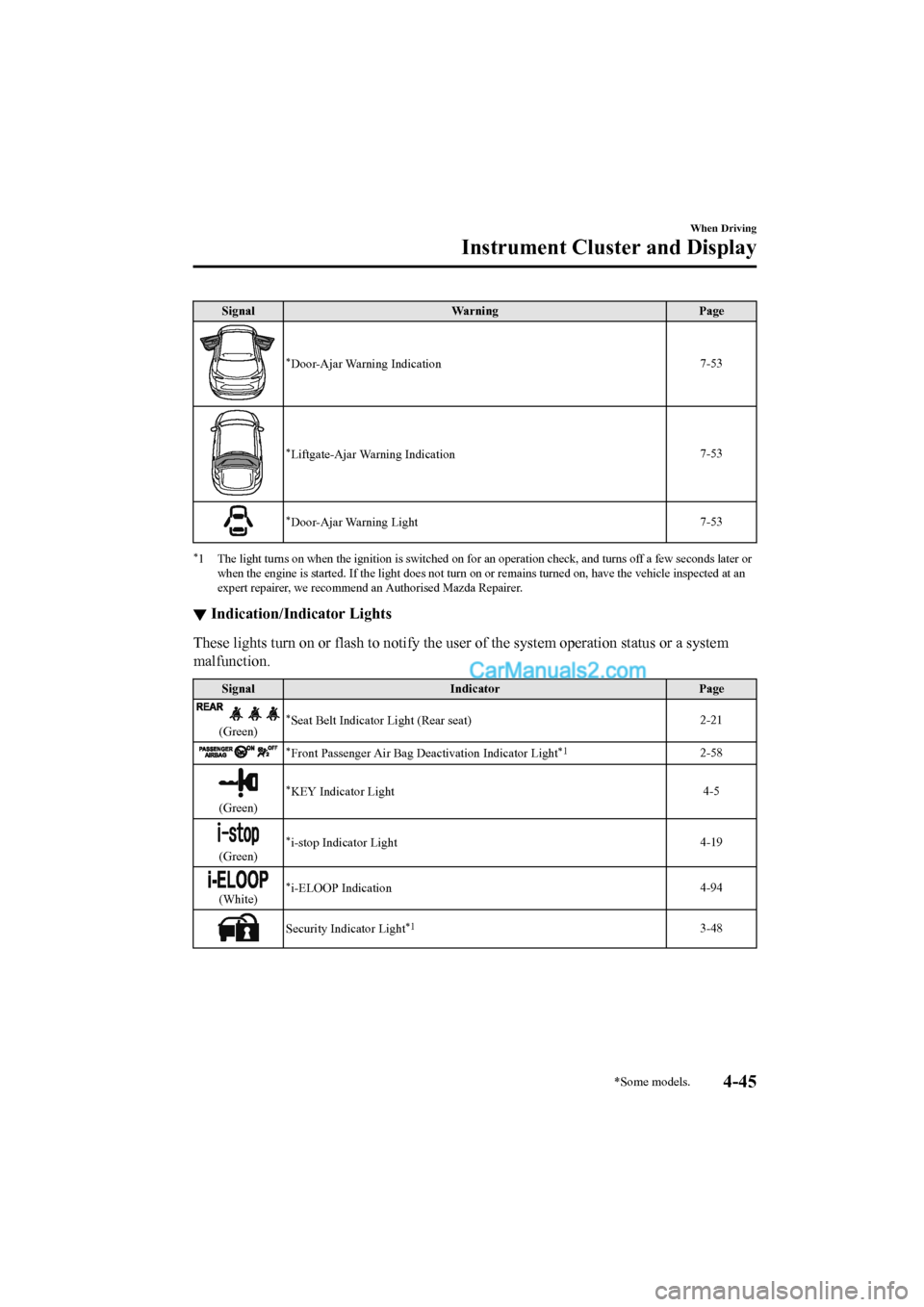

*Door-Ajar Warning Indication 7-53
*Liftgate-Ajar Warning Indication7-53
*Door-Ajar Warning Light
7-53
*1 The light turns on when the i
gnition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If t he light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.
▼ Indication/Indicator Lights
These lights turn on or flash to
notify the user of the system operation status or a system
malfunction.
Signal Indicator Page
(Green)*Seat Belt Indicator Light (Rear seat) 2-21
*Front Passenger Air Bag Deactivation Indicator Light*12-58
(Green)
*KEY Indicator Light
4-5
(Green)
*i-stop Indicator Light4-19
(White)*i-ELOOP Indication4-94
Security Indicator Light*13-48
When Driving
Instrument Cluster and Display
*Some models.4-45
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalIndicator Page
(White/Amber)
*Vehicle Speed Alarm Indication Without mul-
ti-information display
4-30
With multi-in- formation dis- play
4-38
Wrench Indication/Indicator Light*14-50
*Glow Indicator Light*14-50
*Diesel Particulate Filter Indication/Indicator Light*14-216
(Blue)
*Low Engine Coolant Temperature Indicator Light 4-50
Shift Position Indication
4-57
Lights-On Indication/Indicator Light 4-63
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-66
Flashing the Headlights 4-66
*Front Fog Light Indicator Light 4-68
*Rear Fog Light Indicator Light4-69
Direction Indicator/Hazard Warning Indicator LightsTurn and
Lane-Change Signals4-70
Hazard Warning Flasher4-78
Electric Parking Brake (EPB ) Indication/Indicator Light*1*27-46
When Driving
Instrument Cluster and Display
4-46*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalIndicator Page
(Green)

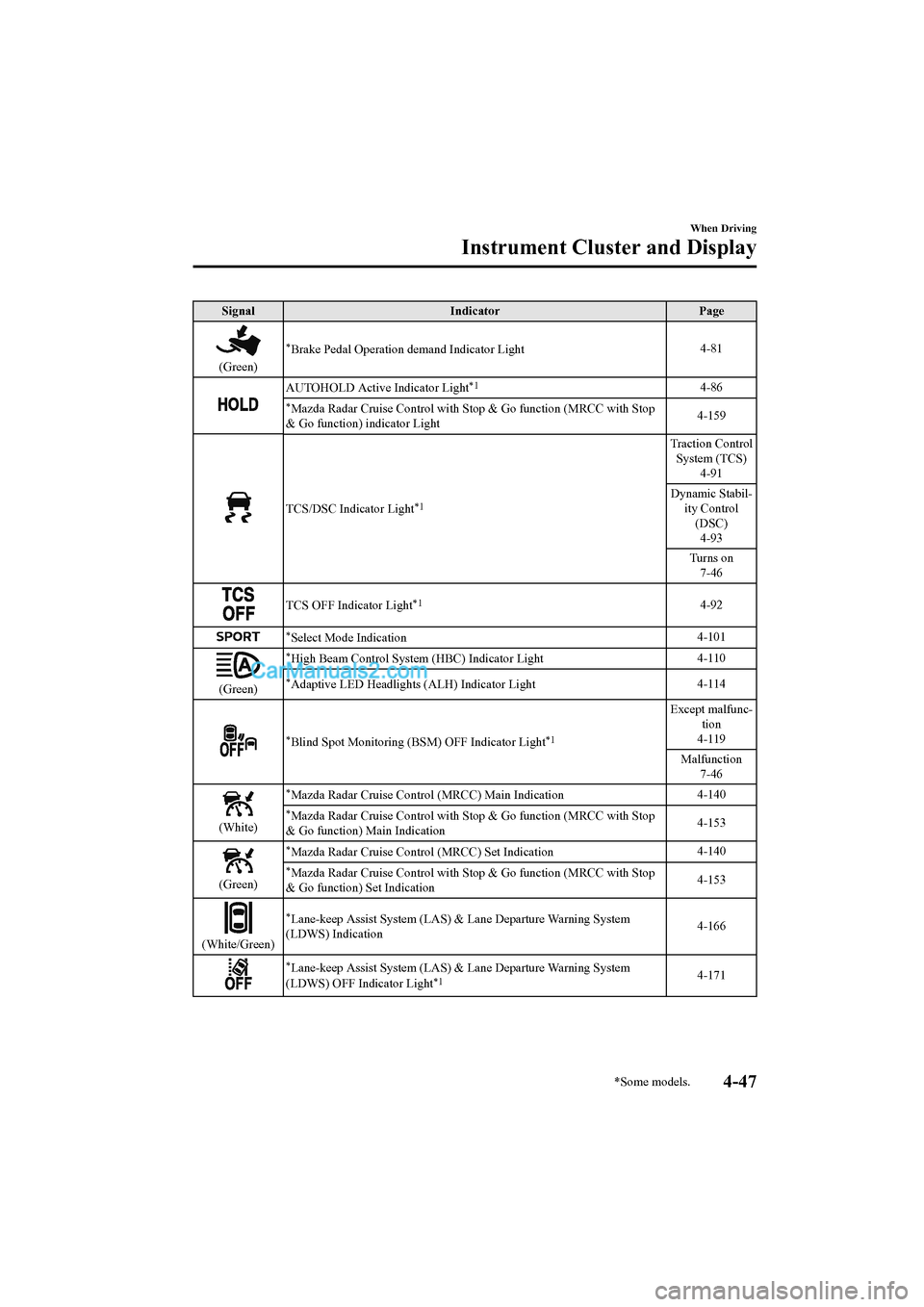

*Brake Pedal Operation demand Indicator Light 4-81
AUTOHOLD Active Indicator Light*14-86
*Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function) indicator Light 4-159
TCS/DSC Indicator Light*1
Traction Control
System (TCS) 4-91
Dynamic Stabil- ity Control(DSC)4-93
Turns on 7-46
TCS OFF Indicator Light*14-92
*Select Mode Indication 4-101
(Green)
*High Beam Control System (HBC) Indicator Light 4-110
*Adaptive LED Headlights (ALH) Indicator Light4-114
*Blind Spot Monitoring (BSM) OFF Indicator Light*1
Except malfunc-
tion
4-119
Malfunction 7-46
(White)
*Mazda Radar Cruise Contr ol (MRCC) Main Indication 4-140
*Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function) Main Indication 4-153
(Green)
*Mazda Radar Cruise Control (MRCC) Set Indication
4-140
*Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function) Set Indication 4-153
(White/Green)
*Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Indication 4-166
*Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) OFF Indicator Light*14-171
When Driving
Instrument Cluster and Display
*Some models.4-47
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalIndicator Page

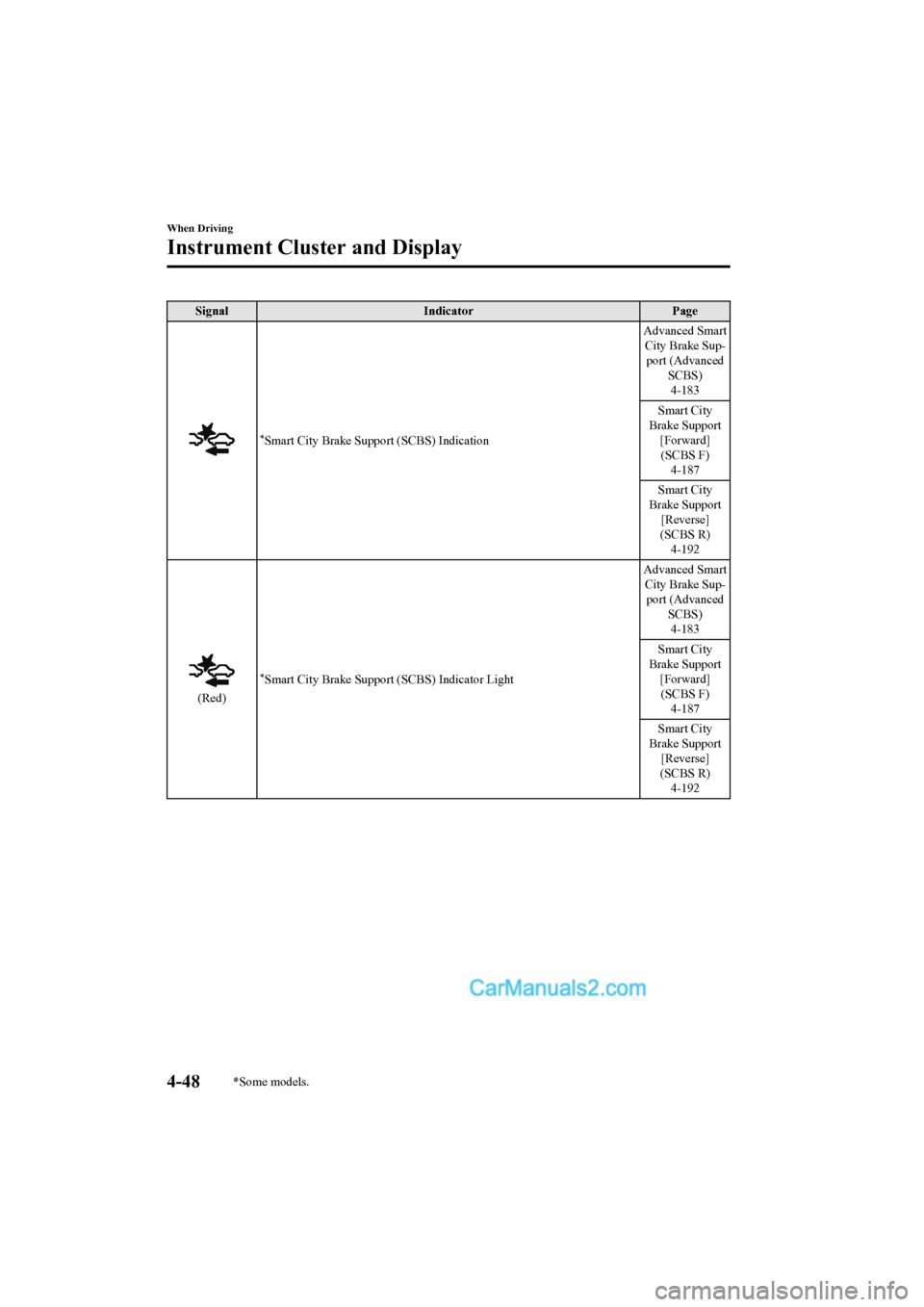

*Smart City Brake Support (SCBS) Indication Advanced Smart
City Brake Sup- port (Advanced
SCBS)4-183
Smart City
Brake Support [Forward](SCBS F) 4-187
Smart City
Brake Support [Reverse]
(SCBS R) 4-192
(Red)
*Smart City Brake Support (SCBS) Indicator Light Advanced Smart
City Brake Sup- port (Advanced
SCBS)4-183
Smart City
Brake Support [Forward](SCBS F) 4-187
Smart City
Brake Support [Reverse]
(SCBS R) 4-192
When Driving
Instrument Cluster and Display
4-48*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalIndicator Page

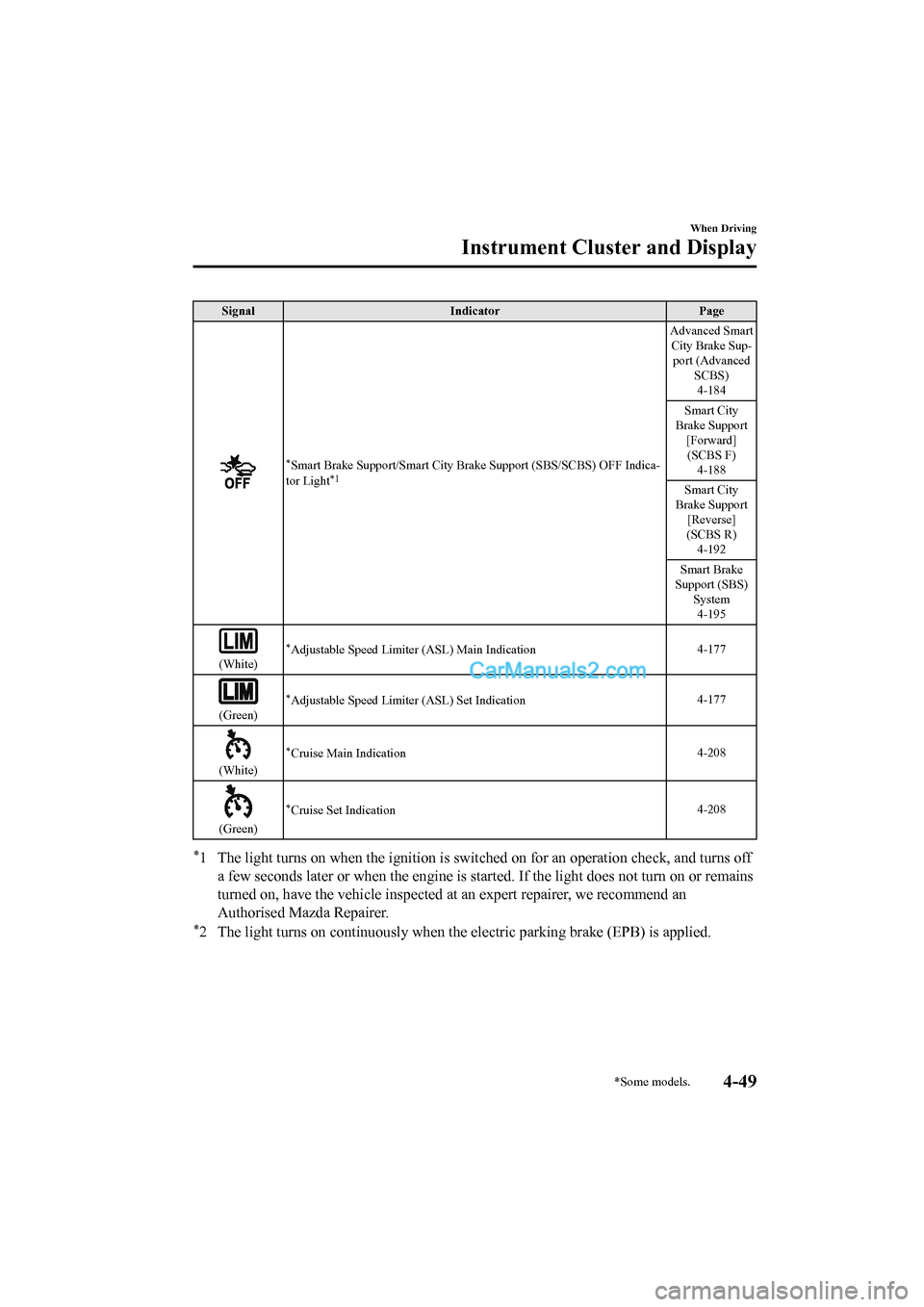

*Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Ind ica-
tor Light*1
Advanced Smart City Brake Sup- port (Advanced
SCBS)4-184
Smart City
Brake Support [Forward](SCBS F) 4-188
Smart City
Brake Support [Reverse]
(SCBS R) 4-192
Smart Brake
Support (SBS) System
4-195
(White)
*Adjustable Speed Limiter (ASL) Main Indication 4-177
(Green)
*Adjustable Speed Limiter
(ASL) Set Indication 4-177
(White)
*Cruise Main Indication 4-208
(Green)
*Cruise Set Indication4-208
*1 The light turns on when the ignition is switched on for an ope
ration check, and turns off
a few seconds later or when the engine is started. If the light does not turn on or remains
turned on, have the vehicle inspected at an expert repairer, we recommend an
Authorised Mazda Repairer.
*2 The light turns on continuously when the electric parking brak e (EPB) is applied.
When Driving
Instrument Cluster and Display
*Some models.4-49
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

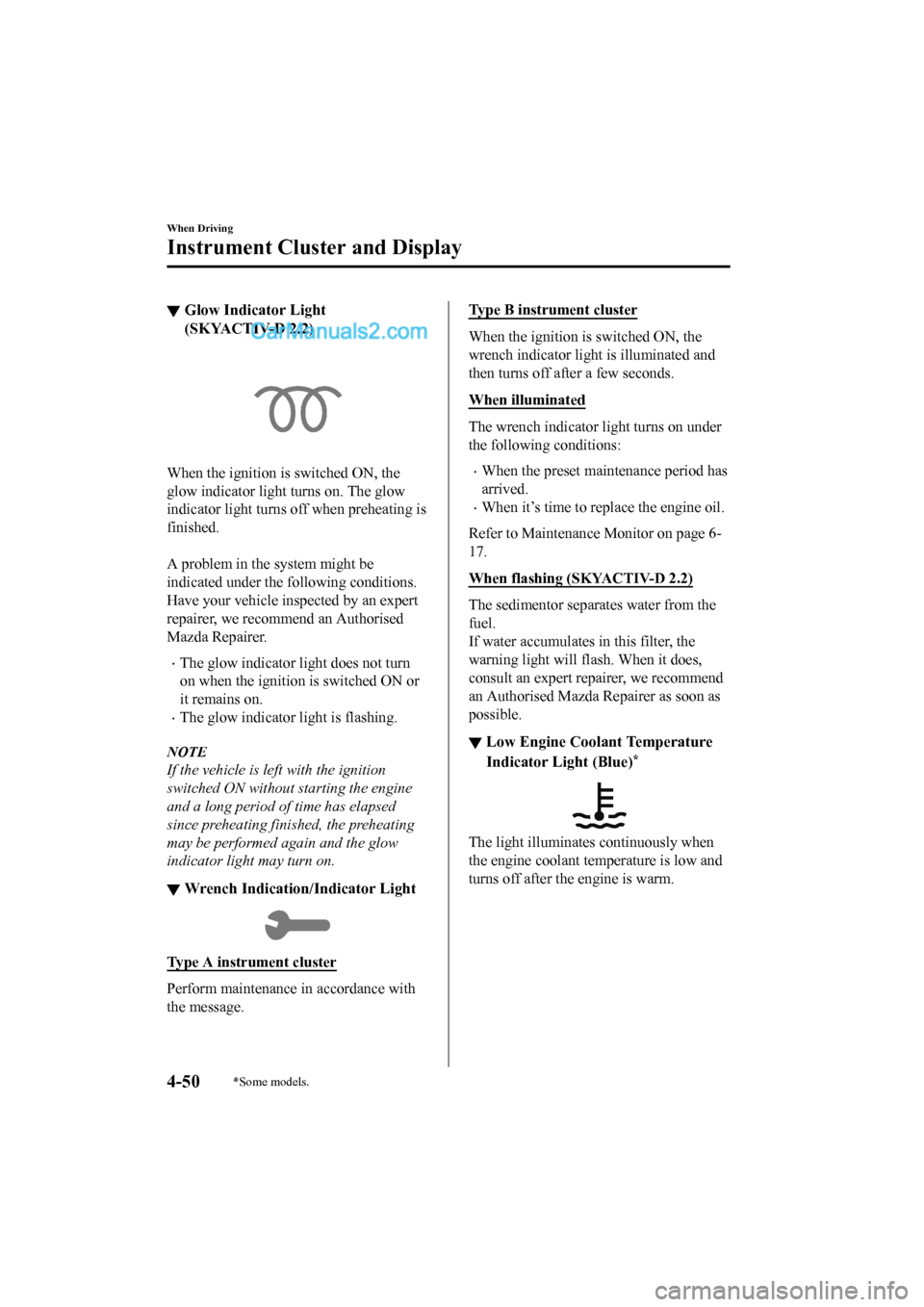

▼Glow Indicator Light
(SKYACTIV-D 2.2)
When the ignition is switched ON, the
glow indicator light turns on. The glow
indicator light turns
off when preheating is
finished.

A problem in the system might be
indicated under the following conditions.
Have your vehicle inspected by an expert
repairer, we recommend an Authorised
Mazda Repairer.
•The glow indicator light does not turn
on when the ignition is switched ON or
it remains on.
•The glow indicator light is flashing.
NOTE
If the vehicle is left with the ignition
switched ON without starting the engine
and a long period of time has elapsed
since preheating finished, the preheating
may be performed again and the glow
indicator light may turn on.
▼ Wrench Indication/Indicator Light
Type A instrument cluster
Perform maintenance in accordance with
the message.
Type B instrument cluster
When the ignition is switched ON, the
wrench indicator ligh
t is illuminated and
then turns off afte r a few seconds.
When illuminated
The wrench indicator light turns on under
the following conditions:
•When the preset maintenance period has
arrived.
•When it’s time to replace the engine oil.
Refer to Maintenance Monitor on page 6-
17.
When flashing (SKYACTIV-D 2.2)
The sedimentor separates water from the
fuel.
If water accumulates in this filter, the
warning light will flash. When it does,
consult an expert repairer, we recommend
an Authorised Mazda Repairer as soon as
possible.
▼ Low Engine Coolant Temperature
Indicator Light (Blue)*
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.

When Driving
Instrument Cluster and Display
4-50*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

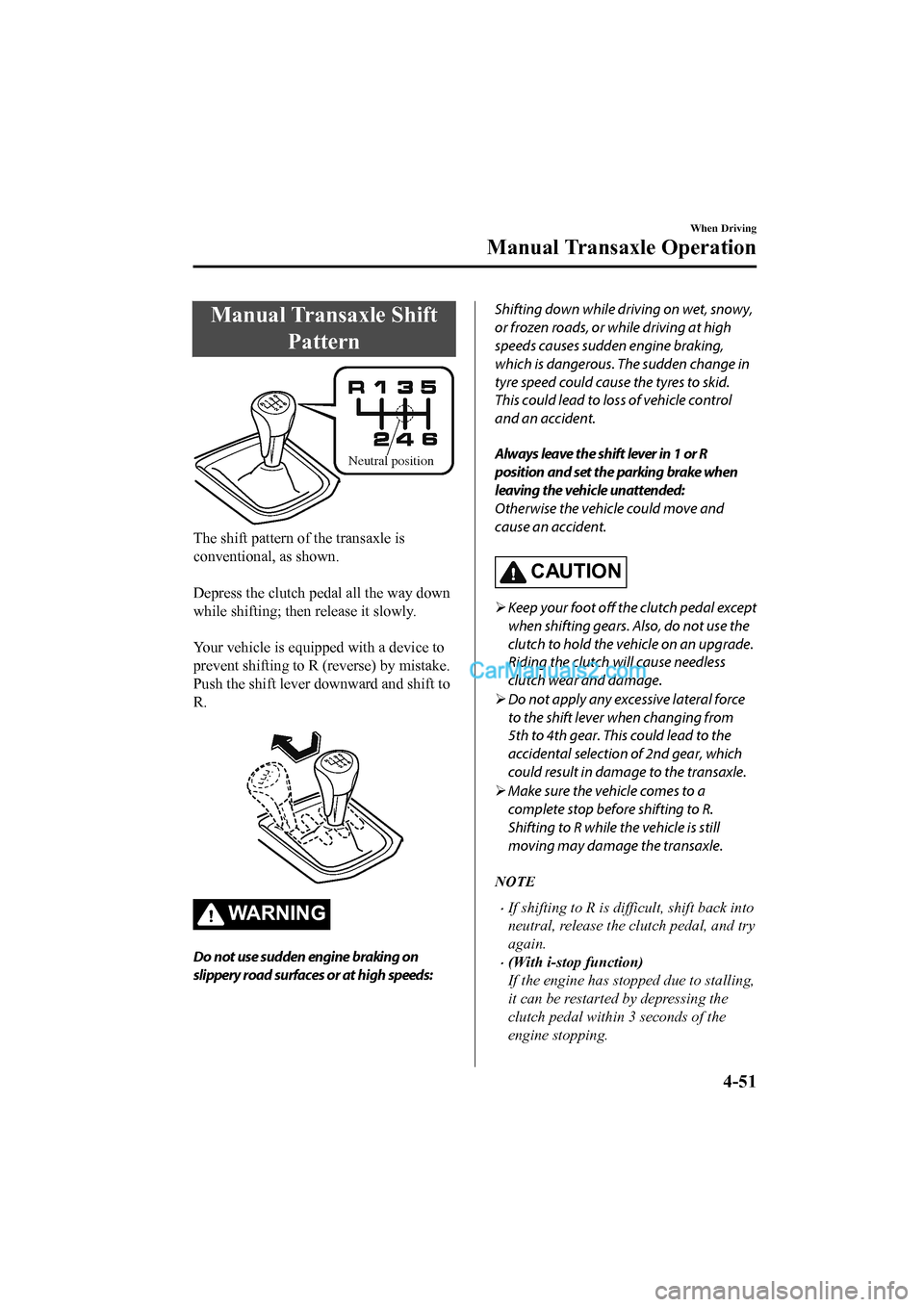

Manual Transaxle ShiftPattern
Neutral position
The shift pattern o f the transaxle is
conventional, as shown.

Depress the clutch pedal all the way down
while shifting; then release it slowly.

Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift to
R.

WA R N I N G
Do not use sudden engine braking on
slippery road surfaces or at high speeds:
Shifting down while driving on wet, snowy,
or frozen roads, or while driving at high
speeds causes sudden engine braking,
which is dangerous. The sudden change in
tyre speed could cause the tyres to skid.
This could lead to loss of vehicle control
and an accident.
Always leave the shift lever in 1 or R
position and set the parking brake when
leaving the vehicle unattended:
Otherwise the vehicle could move and
cause an accident.
CAUTION
 Keep your foot off the clutch pedal except
when shifting gears. Also, do not use the
clutch to hold the vehicle on an upgrade.
Riding the clutch will cause needless
clutch wear and damage.
 Do not apply any excessive lateral force
to the shift lever when changing from
5th to 4th gear. This could lead to the
accidental selection of 2nd gear, which
could result in damage to the transaxle.
 Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the transaxle.
NOTE
•If shifting to R is di fficult, shift back into
neutral, release the clutch pedal, and try
again.
•(With i-stop function)
If the engine has stopped due to stalling,
it can be restarted by depressing the
clutch pedal within 3 seconds of the
engine stopping.
When Driving
Manual Transaxle Operation
4-51
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
