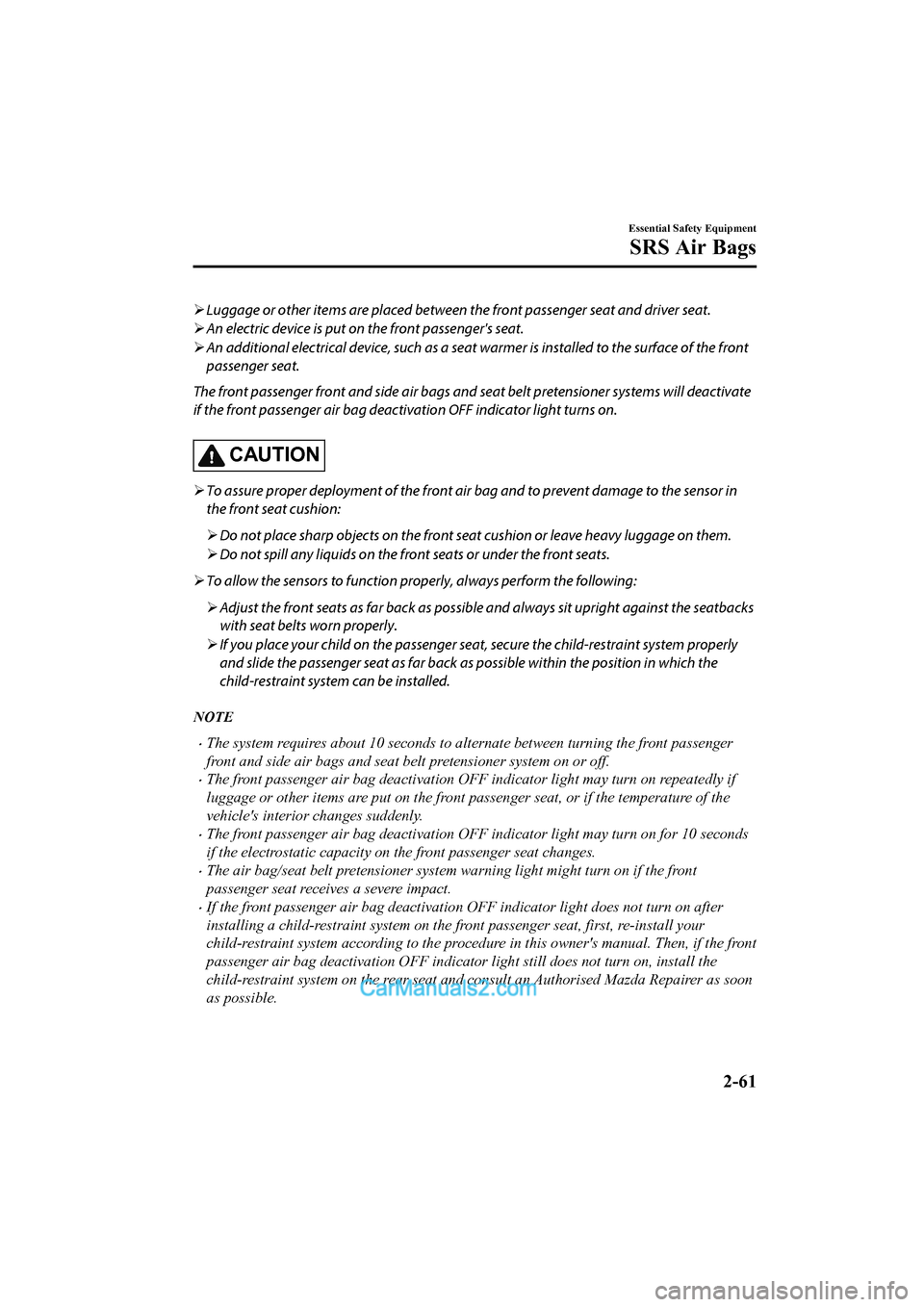

Luggage or other items are placed between the front passenger seat and driver seat.
 An electric device is put on the front passenger's seat.
 An additional electrical device, such as a seat warmer is installed to the surface of the front
passenger seat.
The front passenger front and side air bags an d seat belt pretensioner systems will deactivate
if the front passenger air bag deacti vation OFF indicator light turns on.
CAUTION
To assure proper deployment of the front air bag and to prevent damage to the sensor in
the front seat cushion:
 Do not place sharp objects on the front seat cushion or leave heavy luggage on them.
 Do not spill any liquids on the fr ont seats or under the front seats.
 To allow the sensors to function pr operly, always perform the following:
 Adjust the front seats as far back as possibl e and always sit upright against the seatbacks
with seat belts worn properly.
 If you place your child on the passenger seat , secure the child-restraint system properly
and slide the passenger seat as far back as possible within the position in which the
child-restraint system can be installed.
NOTE
•The system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat be lt pretensioner system on or off.
•The front passenger air bag deactivation OFF indicator light may turn on repeatedly if
luggage or other items are put on the front passenger seat, or if the temperature of the
vehicle's interior changes suddenly.
•The front passenger air bag deactivation OFF indicator light may turn on for 10 seconds
if the electrostatic capacity on the front passenger seat changes.
•The air bag/seat belt pretensioner system warning light might turn on if the front
passenger seat receives a severe impact.
•If the front passenger air bag deactivation OFF indicator light does not turn on after
installing a child-restraint system on the front passenger seat, first, re-install your
child-restraint system ac cording to the procedure in this owner's manua l. Then, if the front
passenger air bag deactivation OFF indicato r light still does not turn on, install the
child-restraint system on the rear seat and consult an Authorised Mazda Repairer as soon
as possible.
Essential Safety Equipment
SRS Air Bags
2-61
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Constant Monitoring
The following components of the air bag systems are monitored by a diagnostic system:

•Front air bag sensors
•Crash sensors, and diagnostic module (SAS unit)
•Side crash sensors
•Air bag modules
•Seat belt pretensioners
•Air bag/Seat belt pretensioner system warning light
•Related wiring
(With Front Passenger Occupa nt Classification System)
•Driver seat slide position sensor
•Front passenger occupant classification sensor
•Front passenger occupant classification module
•Front passenger air bag deactivation indicator light

The diagnostic module continuously monitors the system's readin ess. This begins when the
ignition is switched ON and contin ues while the vehicle is being driven.
Essential Safety Equipment
SRS Air Bags
2-63
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

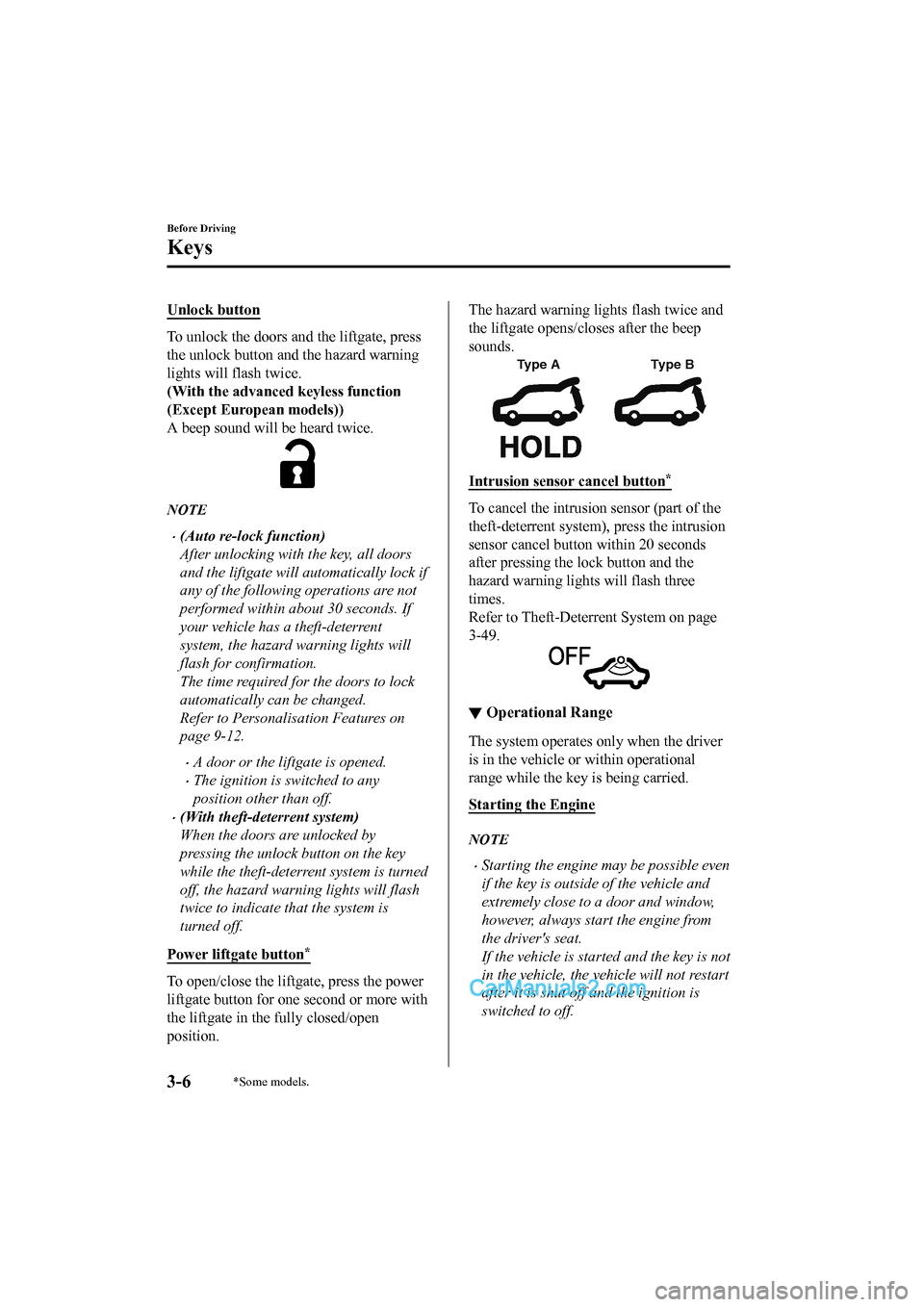

Unlock button
To unlock the doors and the liftgate, press
the unlock button and the hazard warning
lights will flash twice.
(With the advanced keyless function
(Except European models))
A beep sound will be heard twice.
NOTE
•(Auto re-lock function)
After unlocking with the key, all doors
and the liftgate will automatically lock if
any of the following operations are not
performed within about 30 seconds. If
your vehicle has a theft-deterrent
system, the hazard warning lights will
flash for confirmation.
The time required fo r the doors to lock
automatically can be changed.
Refer to Personalisation Features on
page 9-12.
•A door or the liftgate is opened.
•The ignition is switched to any
position other than off.
•(With theft-deterrent system)
When the doors are unlocked by
pressing the unlock button on the key
while the theft-deterrent system is turned
off, the hazard warning lights will flash
twice to indicate that the system is
turned off.
Power liftgate button
*
To open/close the liftgate, press the power
liftgate button for one second or more with
the liftgate in the fully closed/open
position.
The hazard warning lights flash twice and
the liftgate opens/closes after the beep
sounds.
Type A Type B
Intrusion sensor cancel button*
To cancel the intrusion sensor (part of the
theft-deterrent system), press the intrusion
sensor cancel button within 20 seconds
after pressing the lock button and the
hazard warning lights will flash three
times.
Refer to Theft-Deterrent System on page
3-49.
▼ Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
•Starting the engine may be possible even
if the key is outside of the vehicle and
extremely close to a door and window,
however, always start the engine from
the driver's seat.
If the vehicle is started and the key is not
in the vehicle, the vehic
le will not restart
after it is shut off and the ignition is
switched to off.
Before Driving
Keys
3-6*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

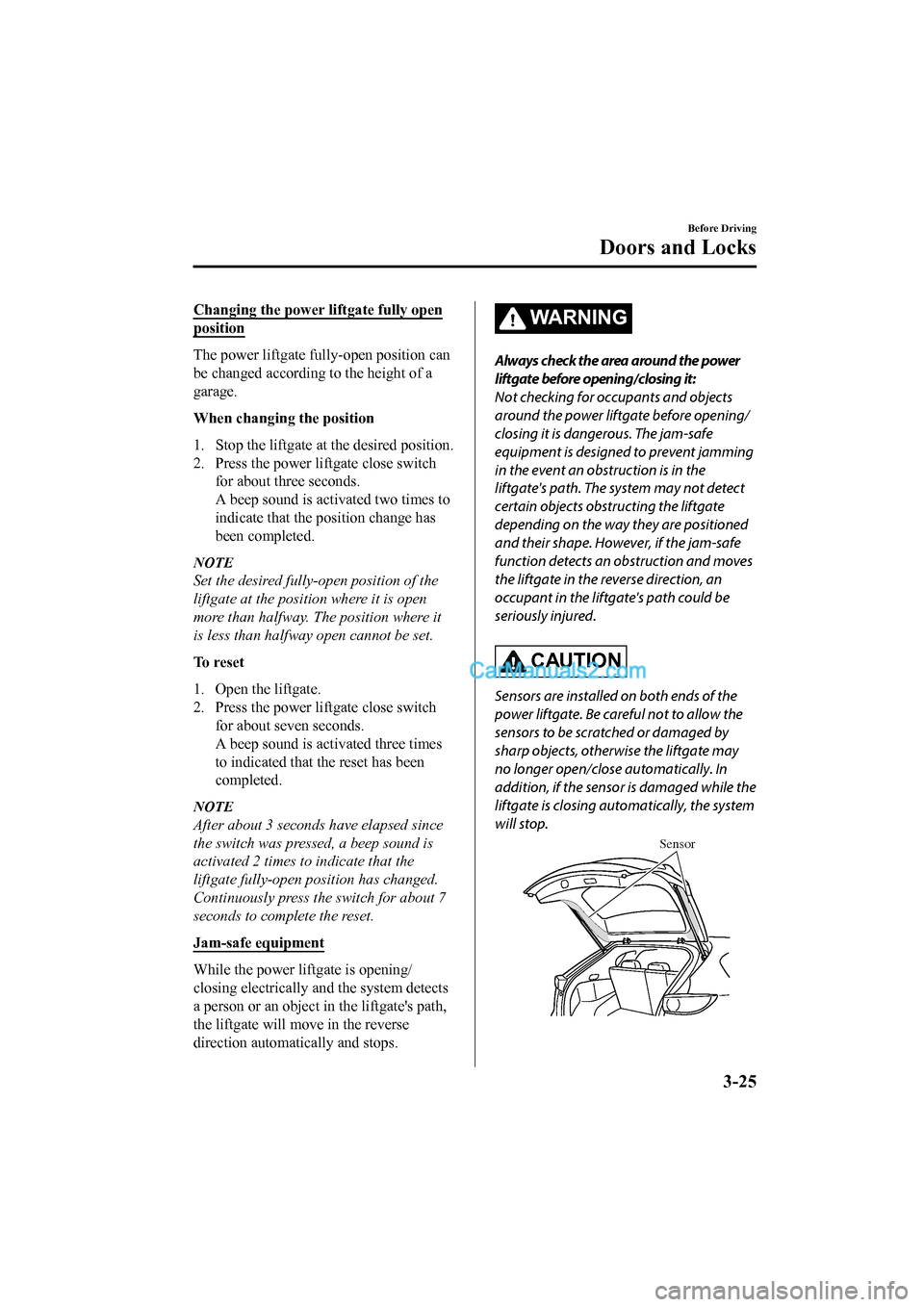

Changing the power liftgate fully open
position
The power liftgate fully-open position can
be changed according to the height of a
garage.
When changing the position
1. Stop the liftgate at the desired position.
2. Press the power liftgate close switch for about three seconds.
A beep sound is activated two times to
indicate that the position change has
been completed.
NOTE
Set the desired fully-open position of the
liftgate at the position where it is open
more than halfway. The position where it
is less than halfway open cannot be set.
To reset
1. Open the liftgate.
2. Press the power liftgate close switchfor about seven seconds.
A beep sound is activated three times
to indicated that the reset has been
completed.
NOTE
After about 3 seconds have elapsed since
the switch was pressed, a beep sound is
activated 2 times to indicate that the
liftgate fully-open position has changed.
Continuously press the switch for about 7
seconds to complete the reset.
Jam-safe equipment
While the power liftgate is opening/
closing electrically and the system detects
a person or an object in the liftgate's path,
the liftgate will move in the reverse
direction automatically and stops.
WA R N I N G
Always check the area around the power
liftgate before opening/closing it:
Not checking for occupants and objects
around the power liftgate before opening/
closing it is dangerous. The jam-safe
equipment is designed to prevent jamming
in the event an obstruction is in the
liftgate's path. The system may not detect
certain objects obstructing the liftgate
depending on the way they are positioned
and their shape. However, if the jam-safe
function detects an obstruction and moves
the liftgate in the reverse direction, an
occupant in the liftgate's path could be
seriously injured.
CAUTION
Sensors are installed on both ends of the
power liftgate. Be careful not to allow the
sensors to be scratched or damaged by
sharp objects, otherwise the liftgate may
no longer open/close automatically. In
addition, if the sensor is damaged while the
liftgate is closing automatically, the system
will stop.
Sensor
Before Driving
Doors and Locks
3-25
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

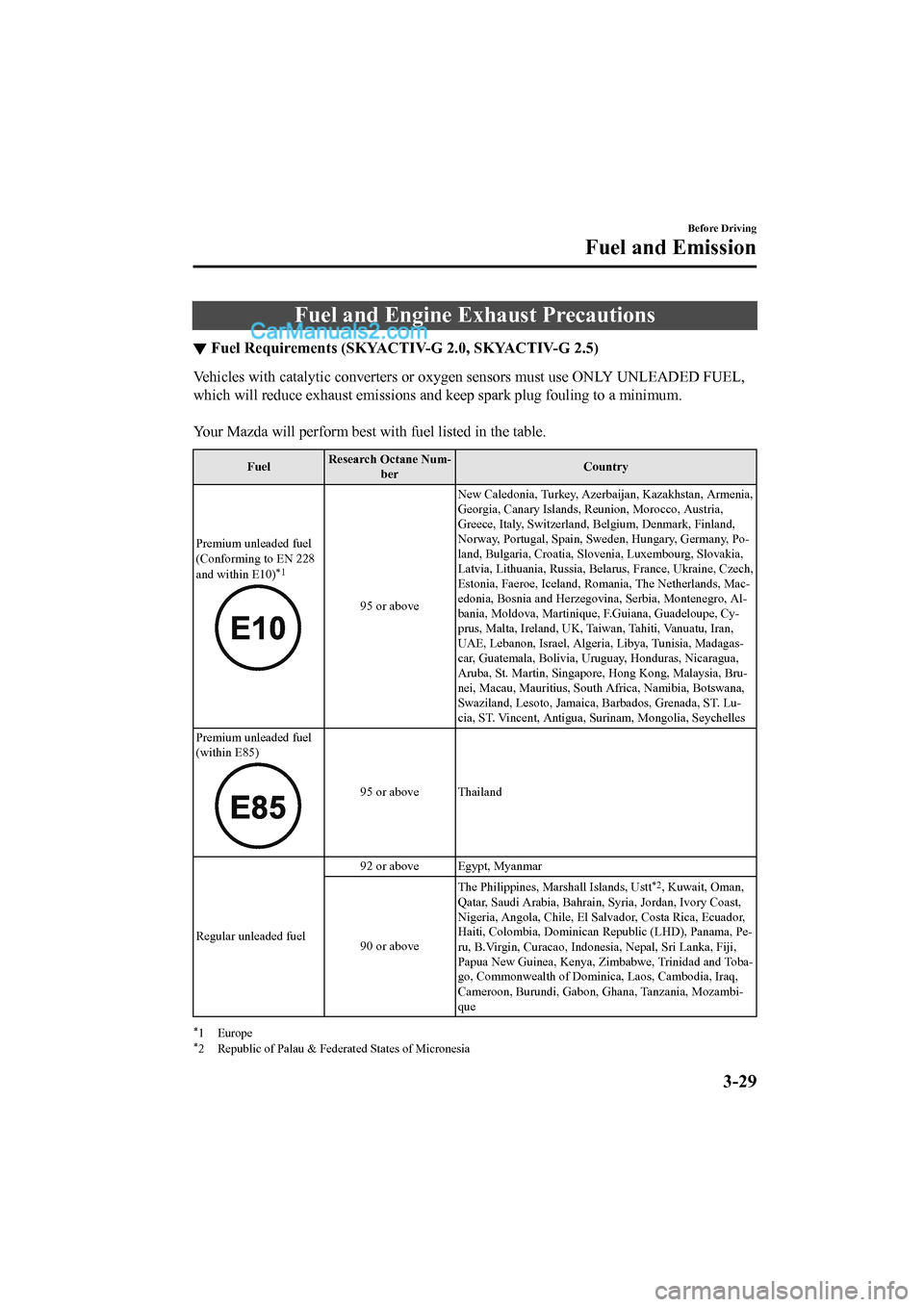

Fuel and Engine Exhaust Precautions
▼Fuel Requirements (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
Vehicles with catalytic converters or oxygen sensors must use O
NLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.

Your Mazda will perform best with fuel listed in the table.
Fuel Research Octane Num-
ber Country
Premium unleaded fuel
(Conforming to EN 228
and within E10)
*1
95 or above New Caledonia, Turkey, Azerbaijan, Kazakhstan, Armenia,
Georgia, Canary Islands, Reunion, Morocco, Austria,
Greece, Italy, Switzerland, Belgium, Denmark, Finland,
Norway, Portugal, Spain, Swe
den, Hungary, Germany, Po-
land, Bulgaria, Croatia, Slove nia, Luxembourg, Slovakia,
Latvia, Lithuania, Russia, Belarus, France, Ukraine, Czech,
Estonia, Faeroe, Iceland, Romania, The Netherlands, Mac-
edonia, Bosnia and Herzegovin a, Serbia, Montenegro, Al-
bania, Moldova, Martinique, F.Guiana, Guadeloupe, Cy-
prus, Malta, Ireland, UK, Taiwan, Tahiti, Vanuatu, Iran,
UAE, Lebanon, Israel, Algeri a, Libya, Tunisia, Madagas-
car, Guatemala, Bolivia, Uruguay, Honduras, Nicaragua,
Aruba, St. Martin, Singapore, Hong Kong, Malaysia, Bru-
nei, Macau, Mauritius, South Africa, Namibia, Botswana,
Swaziland, Lesoto, Jamaica, Barbados, Grenada, ST. Lu-
cia, ST. Vincent, Antigua, Surinam, Mongolia, Seychelles
Premium unleaded fuel
(within E85)
95 or above Thailand
Regular unleaded fuel 92 or above Egypt, Myanmar
90 or above
The Philippines, Mar
shall Islands, Ustt
*2, Kuwait, Oman,
Qatar, Saudi Arabia, Bahrain , Syria, Jordan, Ivory Coast,
Nigeria, Angola, Chile, El Salvador, Costa Rica, Ecuador,
Haiti, Colombia, Dominican Republic (LHD), Panama, Pe-
ru, B.Virgin, Curacao, Indonesia, Nepal, Sri Lanka, Fiji,
Papua New Guinea, Kenya, Zimbabwe, Trinidad and Toba-
go, Commonwealth of Dominica, Laos, Cambodia, Iraq,
Cameroon, Burundi, Gabon, Ghana, Tanzania, Mozambi-
que
*1 Europe*2 Republic of Palau & Federated States of Micronesia
Before Driving
Fuel and Emission
3-29
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

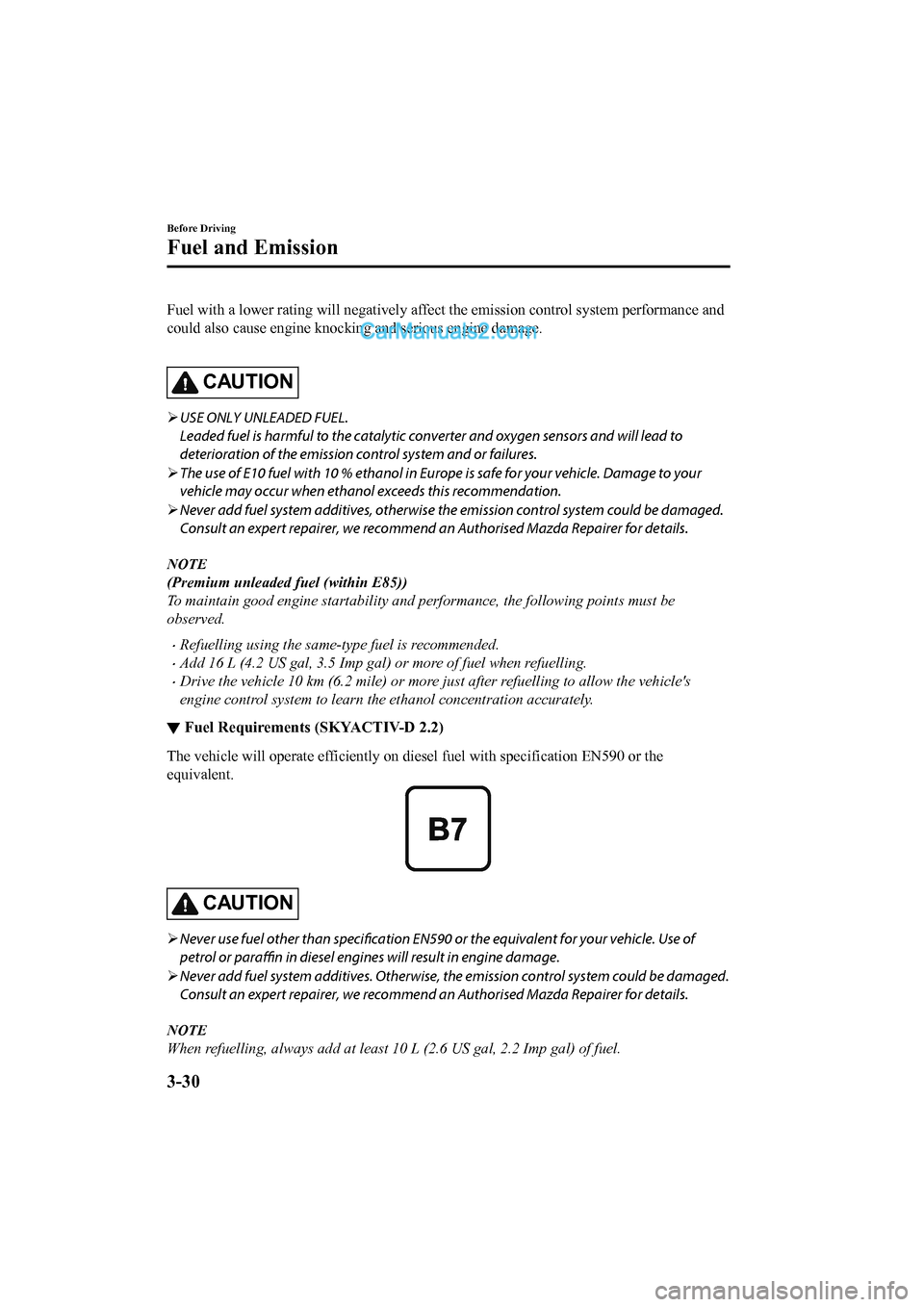

Fuel with a lower rating will negatively affect the emission co ntrol system performance and
could also cause engine knocking and serious engine damage.

CAUTION
 USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic co nverter and oxygen sensors and will lead to
deterioration of the emission control system and or failures.
 The use of E10 fuel with 10 % ethanol in Euro pe is safe for your vehicle. Damage to your
vehicle may occur when ethanol exceeds this recommendation.
 Never add fuel system additives, otherwise the emission control system could be damaged.
Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.
NOTE
(Premium unleaded fuel (within E85))
To maintain good engine startability and performance, the following points must be
observed.
•Refuelling using the same-type fuel is recommended.
•Add 16 L (4.2 US gal, 3.5 Imp gal) or more of fuel when refuelling.
•Drive the vehicle 10 km (6.2 mile) or more just after refuelling to allow the vehicle's
engine control system to learn the ethanol concentration accurately.
▼ Fuel Requirements
(SKYACTIV-D 2.2)
The vehicle will operate efficiently on diesel fuel with specif ication EN590 or the
equivalent.
CAUTION
 Never use fuel other than specification EN590 or the equivalent for your vehicle. Use of
petrol or paraffin in diesel engines will result in engine damage.
 Never add fuel system additives. Otherwise, the emission control system could be damaged.
Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.
NOTE
When refuelling, always add at least 10 L (2.6 US gal, 2.2 Imp gal) of fuel.
Before Driving
Fuel and Emission
3-30
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

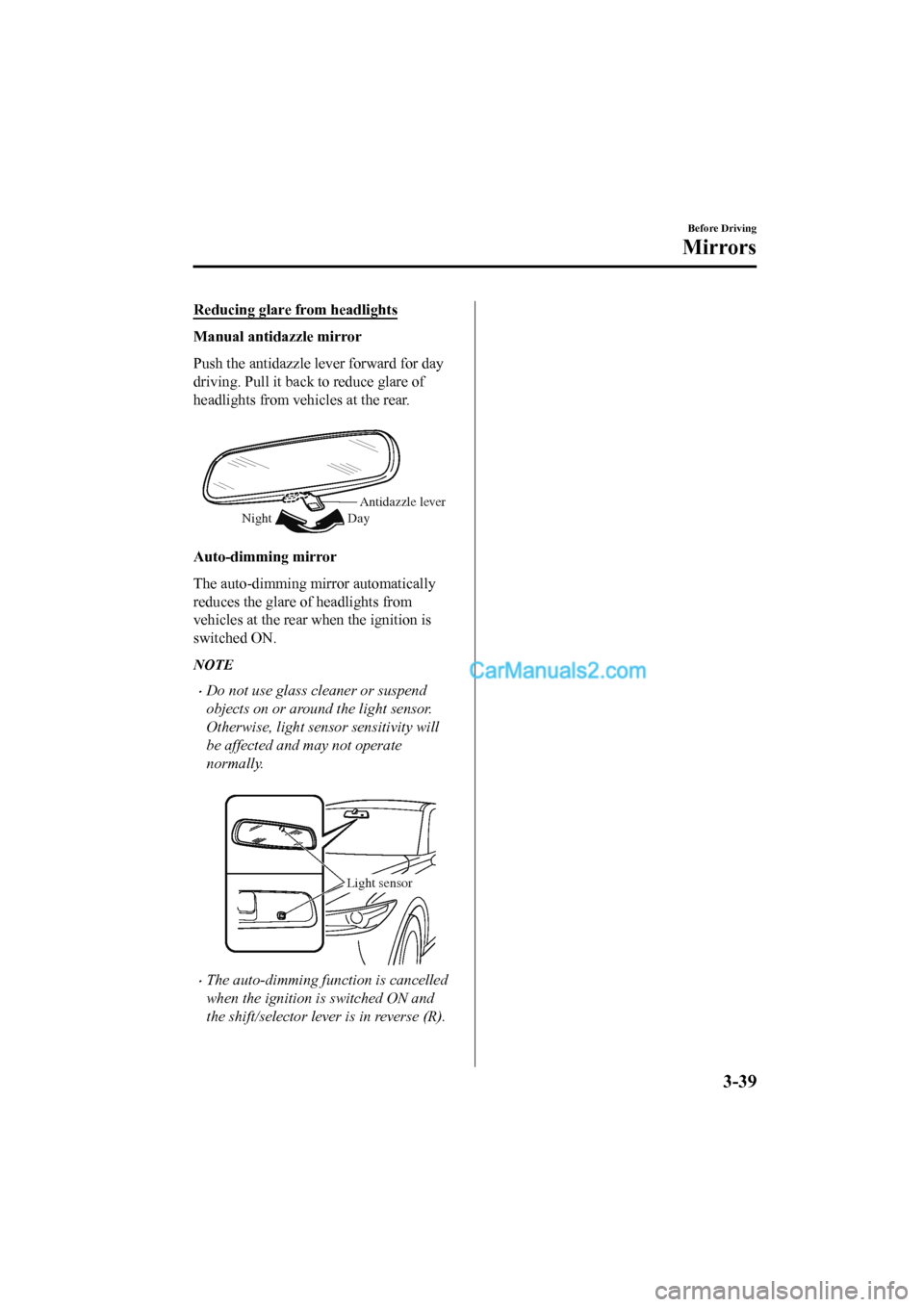

Reducing glare from headlights
Manual antidazzle mirror
Push the antidazzle lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.

Antidazzle lever
Day
Night
Auto-dimming mirror
The auto-dimming m irror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.
NOTE
•Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity will
be affected and may not operate
normally.

Light sensor
•The auto-dimming function is cancelled
when the ignition is switched ON and
the shift/selector lever is in reverse (R).
Before Driving
Mirrors
3-39
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry in to the vehicle or the
intrusion sensor detects movement in the
vehicle which could result in the vehicle
(with the intrusion sensor) or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the siren/horn and flashing the
hazard warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Intrusion sensor
*
The intrusion s ensor uses ultrasonic waves
to detect movement inside the vehicle and
to raise an alert of an intrusion into the
vehicle.

The intrusion s ensor detects certain kinds
of movement inside the vehicle, however,
it may also respond to phenomenon
outside the vehicle such as vibrations, loud
noise, wind, and air currents.
CAUTION
In order for the intrusion sensor to operate
appropriately, be aware of the following:
 Do not hang clothing or objects from a
head restraint or a coat hook.
 Return the extension sunvisors to their
original positions.
 Do not blind the intrusion sensor by
covering it or placing objects over it.
 Do not allow the intrusion sensor to get
soiled or wipe it with a liquid.
Do not shock or cause an impact to the
intrusion sensor or the intrusion sensor
bezel.
 Do not install seats that are not Mazda
genuine products.
 To prevent obstruction of intrusion
sensor, do not place objects or cargo
near the intrusion sensor that are higher
than the head restraints.

Intrusion sensor and
intrusion sensor bezel
▼ Operation
Siren/Horn triggering conditions
The siren/horn sounds intermittently and
the hazard warning lights flash for about
30 seconds when the system is triggered
by any one of the following:
•Unlocking a door with the auxiliary key
or an inside door-lock knob.
•Forcing open a door, the bonnet or the
liftgate.
•Opening the bonnet by operating the
bonnet release handle.
•Switching the ignition ON without using
the push button start.
•(With the intr
usion sensor)
The intrusion sensor detects a movement
in the vehicle.
Before Driving
Security System
*Some models.3-49
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

The system will be triggered again (up to
10 times) if one of the above conditions
remains.
•(With the intrusion sensor)
Disconnecting the battery terminal (the
hazard warning lights do not flash).
The system will be triggered about 10
times.
NOTE
•The liftgate does not open while the
theft-deterrent system is operating.
•For vehicles equipped with the power
liftgate, the liftgate can be opened even
while the theft-deterrent system is
operating by pressing the power liftgate
button on the transmitter or the electric
liftgate opener switc h while carrying the
key.
•If the battery goes dead while the
theft-deterrent system is armed, the
siren/horn will activate and the hazard
warning lights will flash when the
battery is charged or replaced.
▼ How to Arm the System
1. Close the windows and the sunroof*
securely.
NOTE
(With the intrusion sensor)
Even with a window or the sunroof
*
open, the system can be armed,
however, leaving the windows and the
sunroof
* even partially open can invite
theft, and wind blowing into the
vehicle could trigger the alarm.
The intrusion sensor function can also
be cancelled.
Refer to Cancelling the Intrusion
Sensor (With Intrusion Sensor) on
page 3-51.
2. Switch the ignition OFF.
3. Make sure the bonnet, the doors, and the liftgate are closed.
4. Press the lock butto n on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.

5. After 20 seconds, the system is fully armed.
NOTE
•The theft-deterrent system can also
be armed by activating the auto
relock function with all the doors,
the liftgate and the bonnet closed.
Refer to Transmitter on page 3-4.
•The system will disarm if one of the
following operations takes place
within 20 seconds after pressing the
lock button:
•Unlocking any door.
•Opening any door.
•Opening the bonnet.
•Switching the ignition ON.
To rearm the system, do the arming
procedure again.
Before Driving
Security System
3-50*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

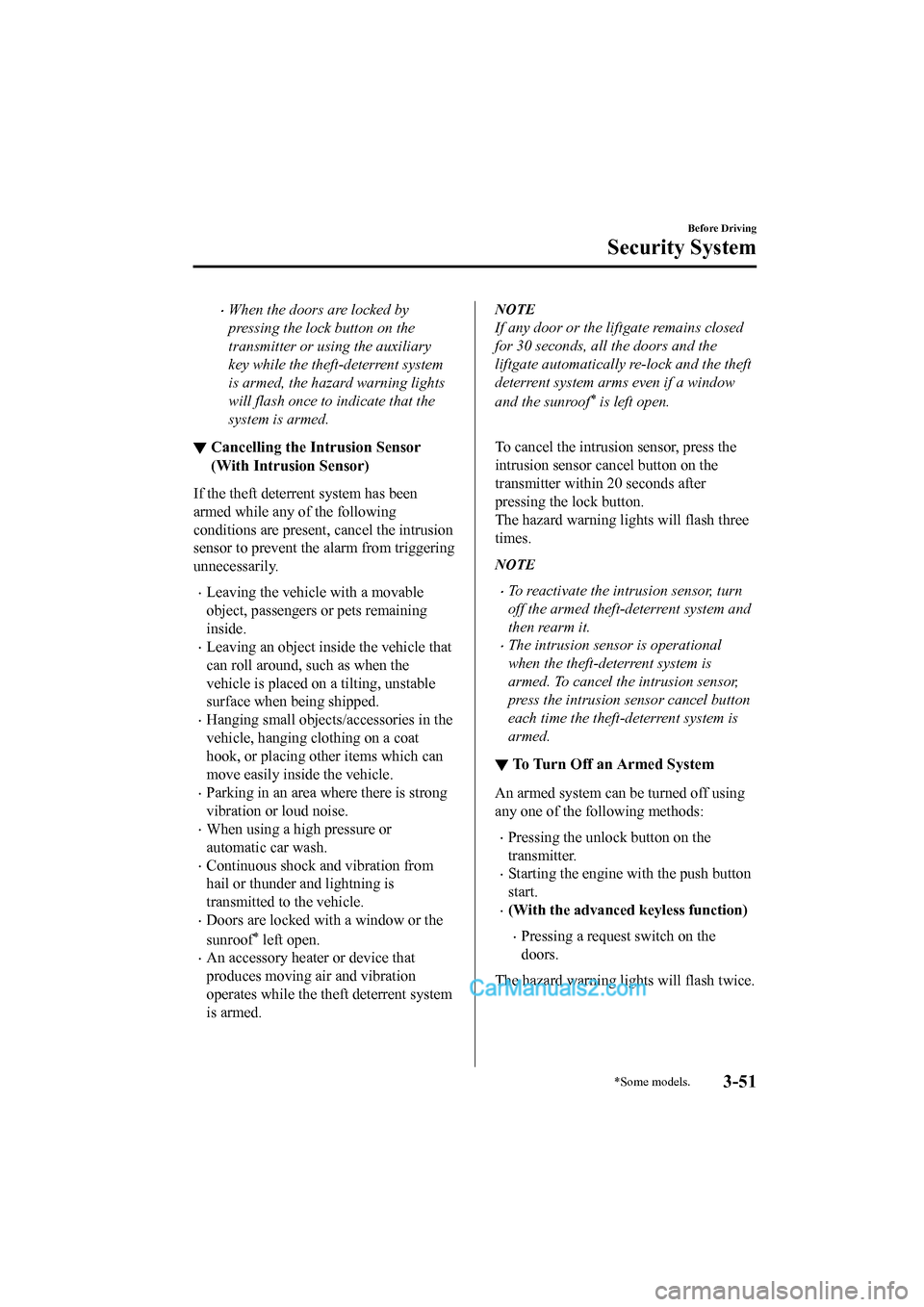

•When the doors are locked by
pressing the lock button on the
transmitter or using the auxiliary
key while the theft-deterrent system
is armed, the hazard warning lights
will flash once to indicate that the
system is armed.
▼Cancelling the Intrusion Sensor
(With Intrusion Sensor)
If the theft deterrent system has been
armed while any of the following
conditions are present, cancel the intrusion
sensor to prevent the
alarm from triggering
unnecessarily.
•Leaving the vehicle with a movable
object, passengers or pets remaining
inside.
•Leaving an object inside the vehicle that
can roll around, such as when the
vehicle is placed on a tilting, unstable
surface when being shipped.
•Hanging small objects/accessories in the
vehicle, hanging clothing on a coat
hook, or placing other items which can
move easily inside the vehicle.
•Parking in an area where there is strong
vibration or loud noise.
•When using a high pressure or
automatic car wash.
•Continuous shock and vibration from
hail or thunder and lightning is
transmitted to the vehicle.
•Doors are locked with a window or the
sunroof
* left open.
•An accessory heater or device that
produces moving air and vibration
operates while the theft deterrent system
is armed.
NOTE
If any door or the liftgate remains closed
for 30 seconds, all the doors and the
liftgate automatically re-lock and the theft
deterrent system arms even if a window
and the sunroof
* is left open.

To cancel the intrusion sensor, press the
intrusion sensor cancel button on the
transmitter within 20 seconds after
pressing the lock button.
The hazard warning lights will flash three
times.
NOTE
•To reactivate the intrusion sensor, turn
off the armed theft-deterrent system and
then rearm it.
•The intrusion sensor is operational
when the theft-deterrent system is
armed. To cancel the intrusion sensor,
press the intrusion sensor cancel button
each time the theft-deterrent system is
armed.
▼ To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
•Pressing the unlock button on the
transmitter.
•Starting the engine with the push button
start.
•(With the advanced keyless function)
•Pressing a request switch on the
doors.
The hazard warning lights will flash twice.
Before Driving
Security System
*Some models.3-51
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
