MAZDA MODEL CX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)

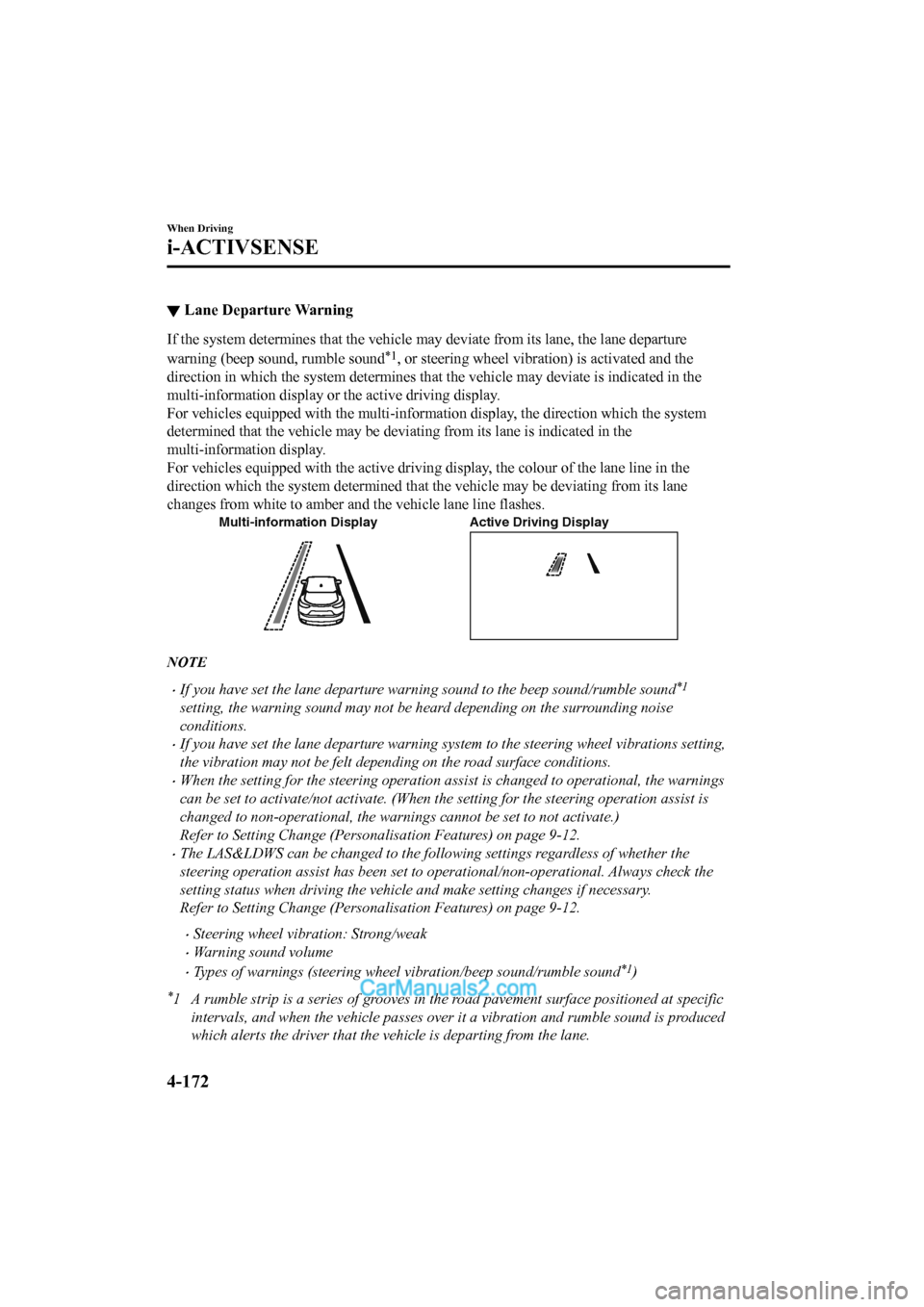

▼Lane Departure Warning
If the system determines that the vehicle may deviate from its
lane, the lane departure
warning (beep sound, rumble sound
*1, or steering wheel vibration) is activated and the
direction in which the system determines that the vehicle may d eviate is indicated in the
multi-information display or the active driving display.
For vehicles equipped with the m ulti-information display, the direction which the system
determined that the vehicle may be deviating from its lane is indicated in the
multi-information display.
For vehicles equipped with the act ive driving display, the colour of the lane line in the
direction which the system determined that the vehicle may be d eviating from its lane
changes from white to amber and the vehicle lane line flashes.
Multi-information Display Active Driving Display
NOTE
•If you have set the lane departure warning sound to the beep sound/rumble sound*1
setting, the warning sound may not be heard depending on the surrounding noise
conditions.
•If you have set the lane departure warning system to the steering wheel vibrations setting,
the vibration may not be felt dependi ng on the road surface conditions.
•When the setting for the steering operation assist is changed to operational, the warnings
can be set to activate/not activate. (When the setting for the steering operation assist is
changed to non-operational, the warnings cannot be set to not activate.)
Refer to Setting Change (Personalisation Features) on page 9-12.
•The LAS&LDWS can be changed to the following settings regardless of whether the
steering operation assist has been set to operational/non-operational. Always check the
setting status when driving the vehicle and make setting changes if necessary.
Refer to Setting Change (Personalisation Features) on page 9-12.
•Steering wheel vibr ation: Strong/weak
•Warning sound volume
•Types of warnings (steering wheel vibration/beep sound/rumble sound*1)
*1 A rumble strip is a series of grooves in the road pavement surface positioned at specific
intervals, and when the vehicle passes over it a vibration and rumble sound is produced
which alerts the driver that the vehicle is departing from the lane.
When Driving
i-ACTIVSENSE
4-172
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

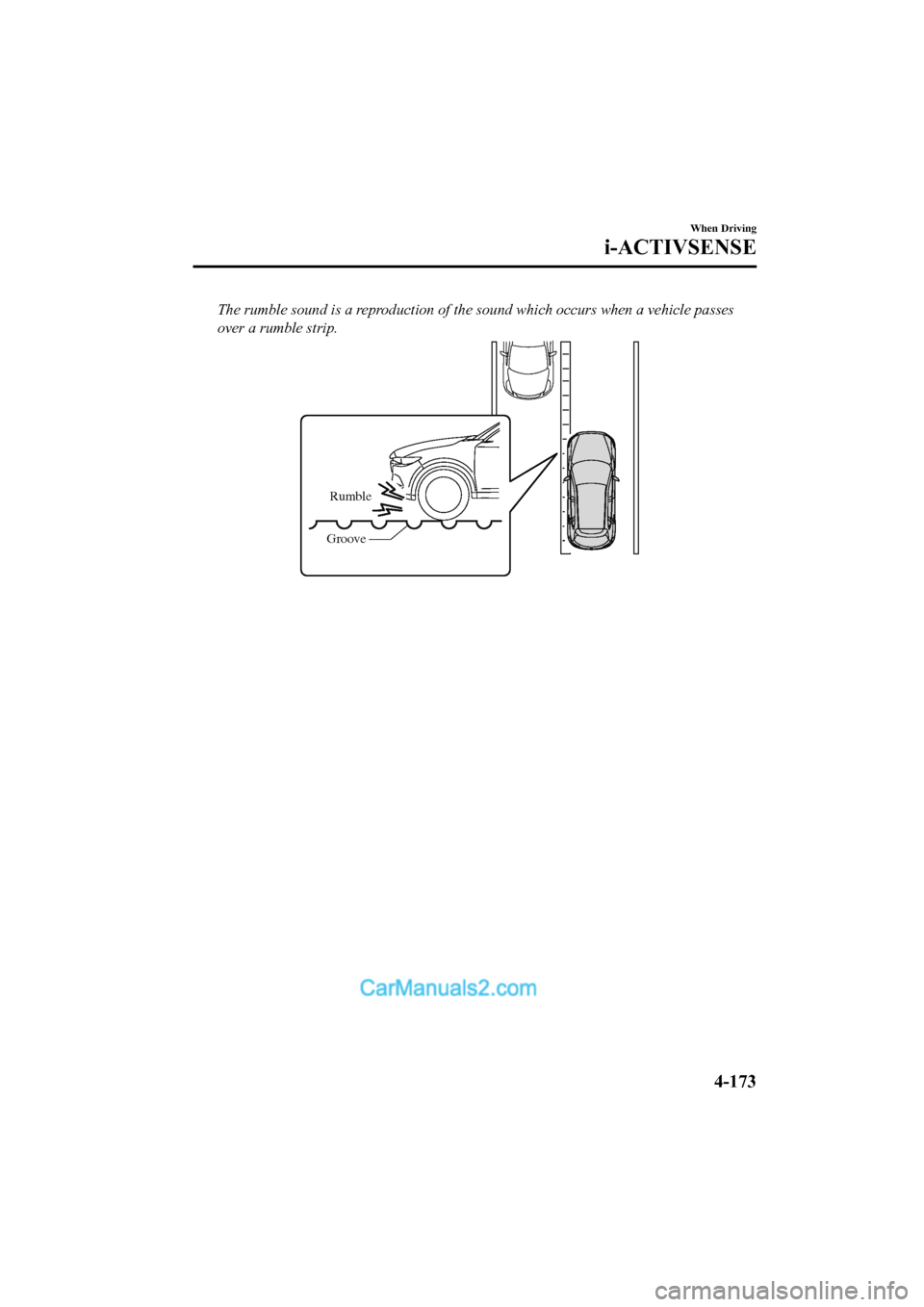

The rumble sound is a reproduction of the sound which occurs when a vehicle passes
over a rumble strip.
Rumble
Groove
When Driving
i-ACTIVSENSE
4-173
2017-6-7 7:51:19Form No. CX-5 8FY4-EE-17E+L_Edition2

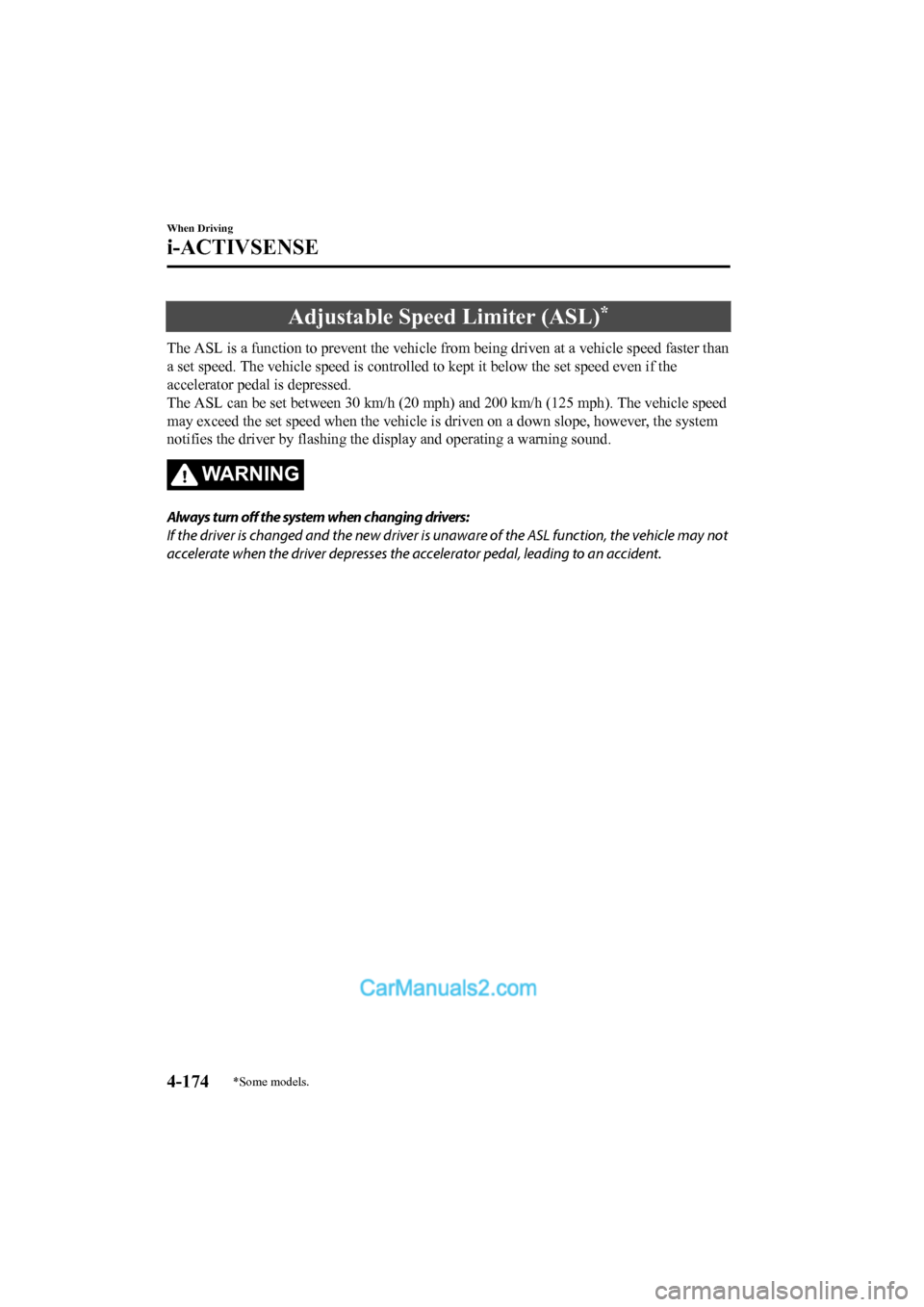

Adjustable Speed Limiter (ASL)*
The ASL is a function to prevent the vehicle from being driven at a vehicle speed faster than
a set speed. The vehicle speed is controlled to kept it below t he set speed even if the
accelerator pedal is depressed.
The ASL can be set between 30 km/h (20 mph) and 200 km/h (125 m ph). The vehicle speed
may exceed the set speed when the vehicle is driven on a down s lope, however, the system
notifies the driver by flashing the display and operating a war ning sound.
WA R N I N G
Always turn
off the system when changing drivers:
If the driver is changed and the new driver is unaware of the ASL function, the vehicle may not
accelerate when the driver depresses the accelerator pedal, leading to an accident.
When Driving
i-ACTIVSENSE
4-174*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

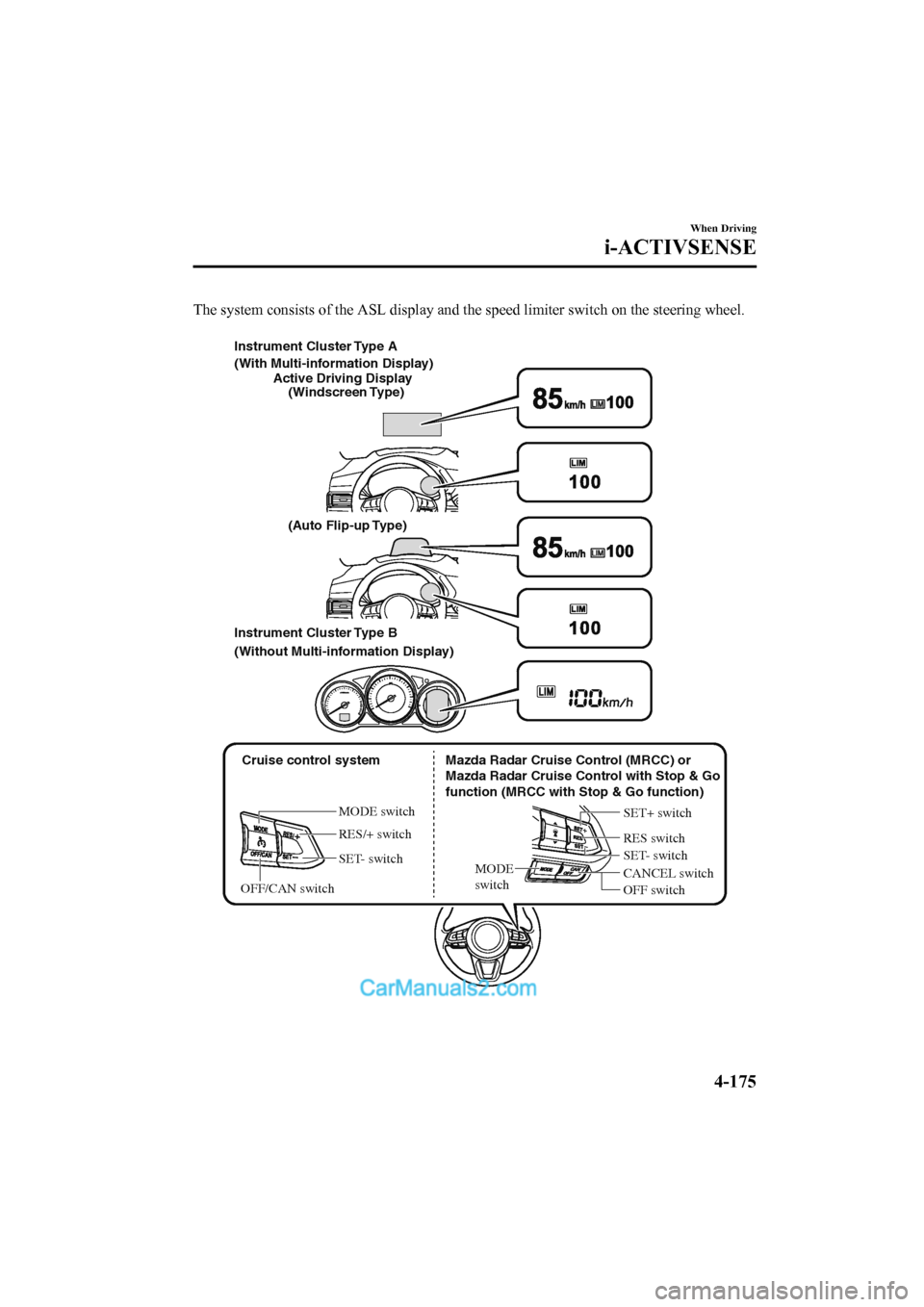

The system consists of the ASL display and the speed limiter switch on the steering wheel.

Cruise control system
MODE switch
RES/+ switch
SET- switch
OFF/CAN switch CANCEL switch RES switch
OFF switch
MODE
switch
SET- switch SET+ switch
Active Driving Display
(Windscreen Type)
(Auto Flip-up Type)
Instrument Cluster Type A
(With Multi-information Display)
(Without Multi-information Display) Instrument Cluster Type B
Mazda Radar Cruise Control (MRCC) or
Mazda Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go function)
When Driving
i-ACTIVSENSE
4-175
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

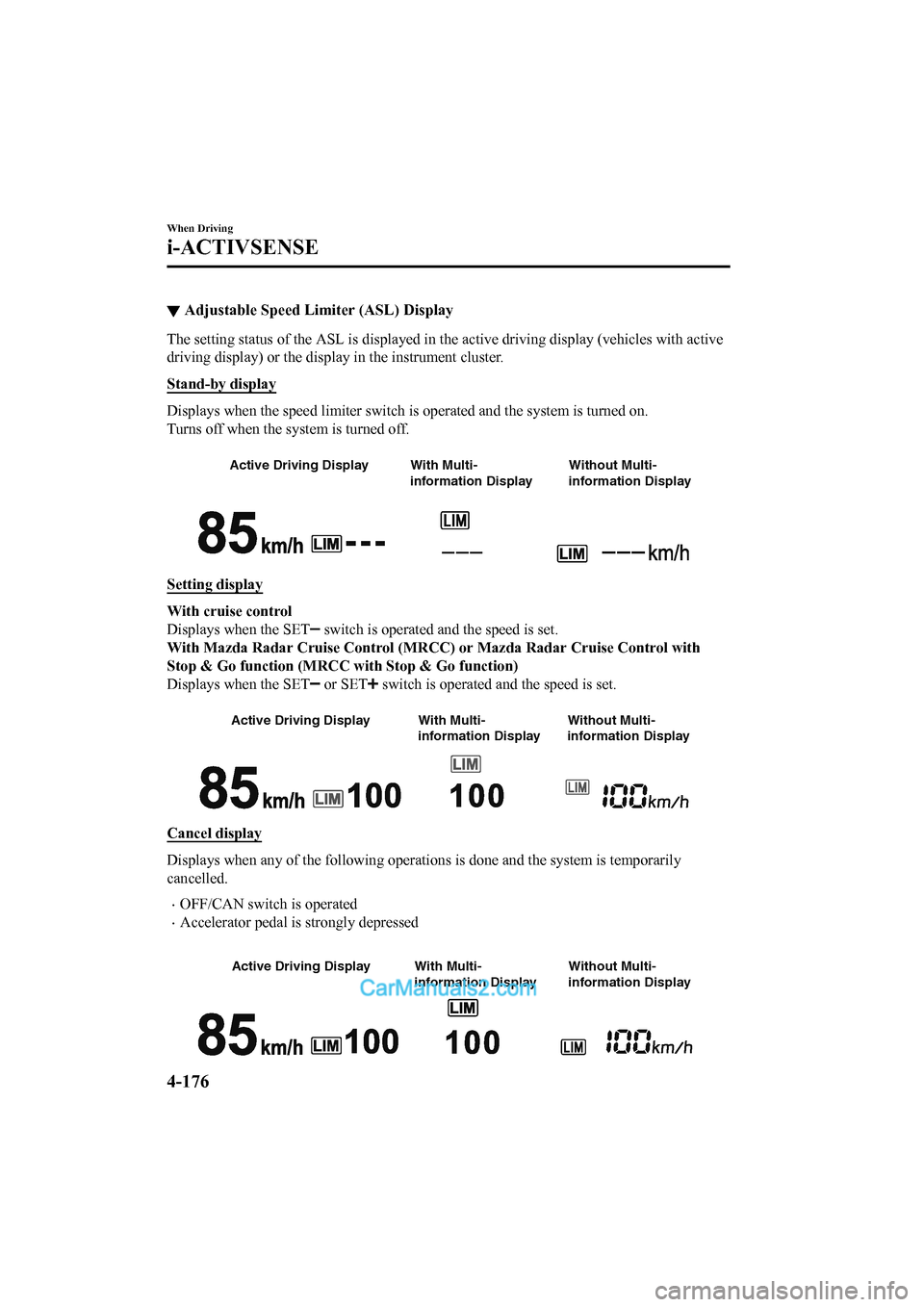

▼Adjustable Speed Limiter (ASL) Display
The setting status of the ASL is
displayed in the active driving display (vehicles with active
driving display) or the displa y in the instrument cluster.
Stand-by display
Displays when the spee d limiter switch is operated and the system is turned on.
Turns off when the system is turned off.

Active Driving Display With Multi- information DisplayWithout Multi-
information Display
Setting display
With cruise control
Displays when the SET
switch is operated
and the speed is set.
With Mazda Radar Cruise Control (MRCC) or Mazda Radar Cruise Co ntrol with
Stop & Go function (MRCC with Stop & Go function)
Displays when the SET
or SET switch is operated an d the speed is set.

Active Driving Display With Multi-
information DisplayWithout Multi-
information Display
Cancel display
Displays when any of the follo
wing operations is done and the s ystem is temporarily
cancelled.
•OFF/CAN switch is operated
•Accelerator pedal is strongly depressed

Active Driving Display With Multi- information DisplayWithout Multi-
information Display
When Driving
i-ACTIVSENSE
4-176
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

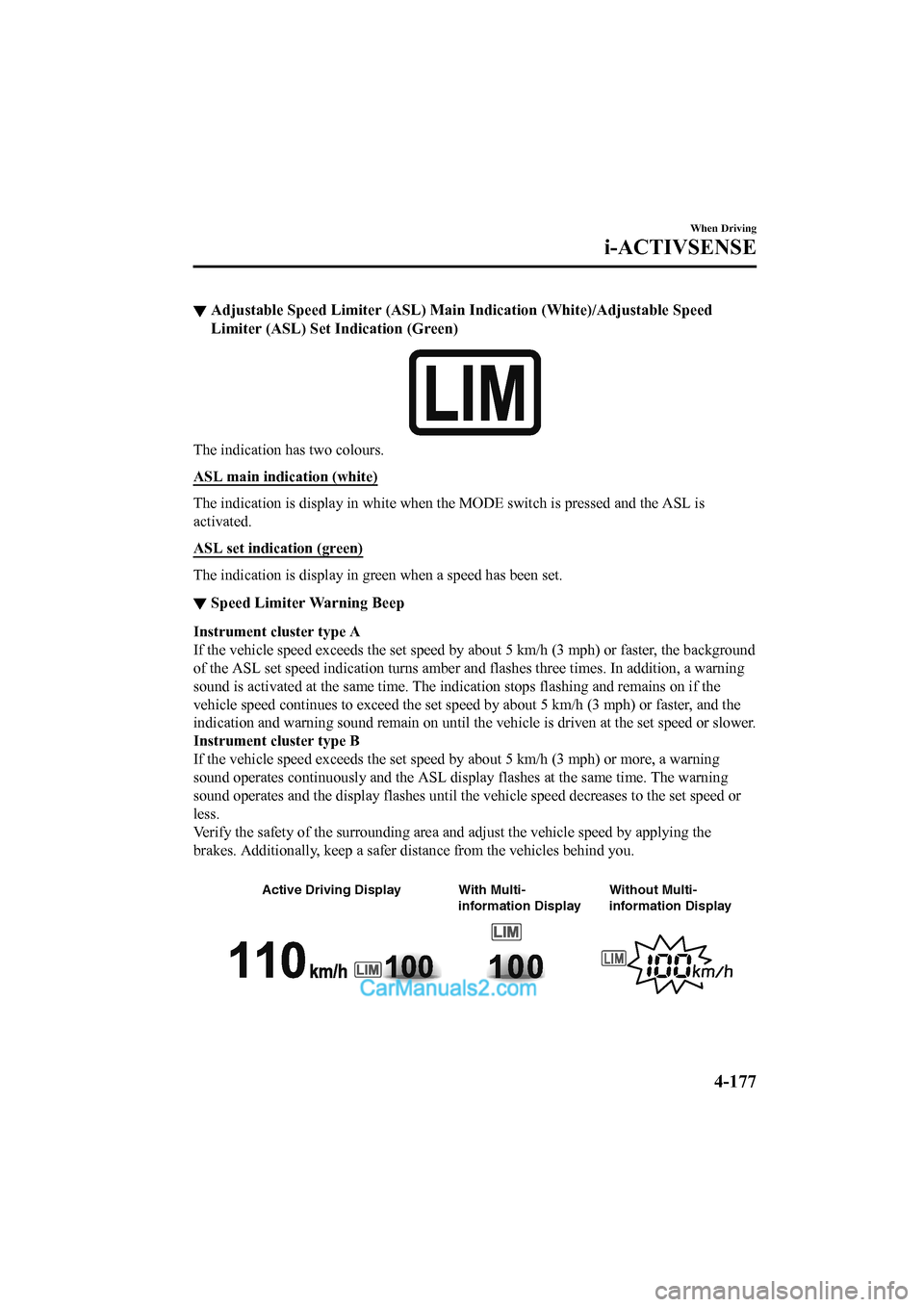

▼Adjustable Speed Limiter (ASL) M
ain Indication (White)/Adjustable Speed
Limiter (ASL) Set Indication (Green)
The indication has two colours.
ASL main indication (white)
The indication is display in white when the MODE switch is pres sed and the ASL is
activated.
ASL set indication (green)
The indication is display in green when a speed has been set.
▼ Speed Limiter Warning Beep
Instrument cluster type A
If the vehicle speed exceeds the set speed by about 5 km/h (3 mph) or faster, the background
of the ASL set speed indication turns amber and flashes three t
imes. In addition, a warning
sound is activated at the same time. The indication stops flash ing and remains on if the
vehicle speed continues to exceed the set speed by about 5 km/h (3 mph) or faster, and the
indication and warning sound remain on until the vehicle is dri ven at the set speed or slower.
Instrument cluster type B
If the vehicle speed exceeds the set speed by about 5 km/h (3 mph) or more, a warning
sound operates continuously and the ASL display flashes at the same time. The warning
sound operates and the display flashes until the vehicle speed decreases to the set speed or
less.
Verify the safety of the surrounding area and adjust the vehicl e speed by applying the
brakes. Additionally, keep a safer distance from the vehicles b ehind you.

Active Driving Display With Multi-
information DisplayWithout Multi-
information Display
When Driving
i-ACTIVSENSE
4-177
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

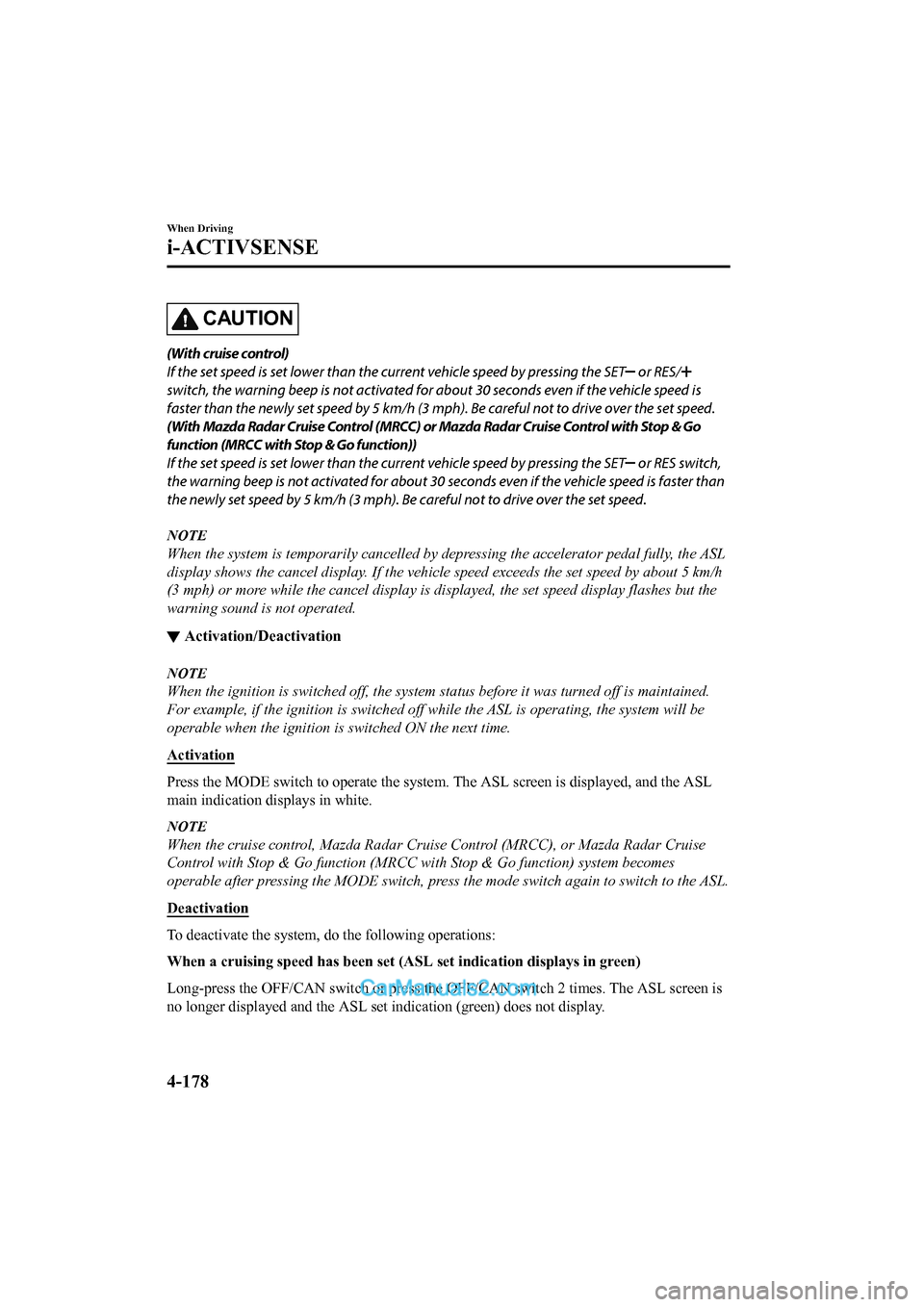

CAUTION
(With cruise control)
If the set speed is set lower than the current vehicle speed by pressing the SET
or RES/
switch, the warning beep is not activated for about 30 seconds even if the vehicle speed is
faster than the newly set speed by 5 km/h (3 mph). Be careful not to drive over the set speed.
(With Mazda Radar Cruise Control (MRCC) or Mazda Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go function))
If the set speed is set lower than the current vehicle speed by pressing the SET
or RES switch,
the warning beep is not activated for about 30 se conds even if the vehicle speed is faster than
the newly set speed by 5 km/h (3 mph). Be careful not to drive over the set speed.
NOTE
When the system is temporarily cancelled by depressing the accelerator pedal fully, the ASL
display shows the cancel display. If the vehicle speed exceeds the set speed by about 5 km/h
(3 mph) or more while the cancel display is displayed, the set speed display flashes but the
warning sound is not operated.
▼ Activation/Deactivation
NOTE
When the ignition is switched of
f, the system status before it was turned off is maintained.
For example, if the ignition is switched off while the ASL is operating, the system will be
operable when the ignition is switched ON the next time.
Activation
Press the MODE switch to operate the system. The ASL screen is displayed, and the ASL
main indication displays in white.
NOTE
When the cruise control, Mazda Radar Cruise Control (MRCC), or Mazda Radar Cruise
Control with Stop & Go function (MRCC with Stop & Go function) system becomes
operable after pressing the MODE switch, press the mode switch again to switch to the ASL.
Deactivation
To deactivate the system, do the following operations:
When a cruising speed h as been set (ASL set indication displays in green)
Long-press the OFF/CAN switch or press the OFF/CAN switch 2 times. The ASL screen is
no longer displayed and the ASL set indication (green) does not display.
When Driving
i-ACTIVSENSE
4-178
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

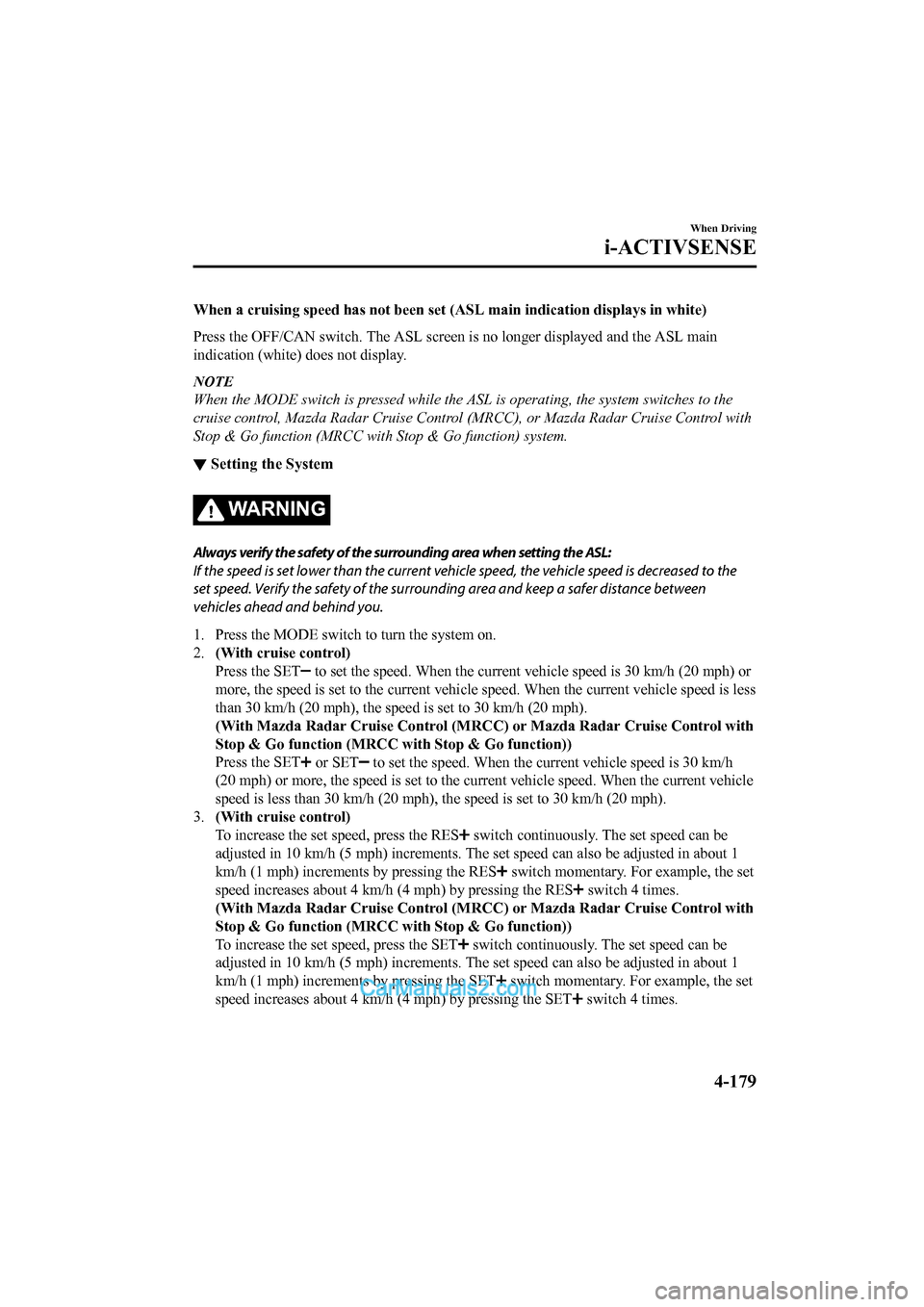

When a cruising speed has not been set (ASL main indication displays in white)
Press the OFF/CAN switch. The ASL screen is no longer displayed and the ASL main
indication (white) does not display.
NOTE
When the MODE switch is presse d while the ASL is operating, the system switches to the
cruise control, Mazda Radar Cruise Control (MRCC), or Mazda Radar Cruise Control with
Stop & Go function (M RCC with Stop & Go function) system.
▼Setting the System
WA R N I N G
Always verify the safety of the surrounding area when setting the ASL:
If the speed is set lower than the current vehicle speed, the vehicle speed is decreased to the
set speed. Verify the safety of the surroundi
ng area and keep a safer distance between
vehicles ahead and behind you.
1. Press the MODE switch to turn the system on.
2. (With cruise control)
Press the SET
to set the speed. When the current vehicle speed is 30 km/h (2 0 mph) or
more, the speed is set to the cu rrent vehicle speed. When the c urrent vehicle speed is less
than 30 km/h (20 mph), the speed is set to 30 km/h (20 mph).
(With Mazda Radar Cruise Control (MRCC) or Mazda Radar Cruise C ontrol with
Stop & Go function (MRCC with Stop & Go function))
Press the SET
or SET to set the speed. When the current vehicle speed is 30 km/h
(20 mph) or more, the speed is set to the current vehicle speed . When the current vehicle
speed is less than 30 km/h (20 mph), the speed is set to 30 km/ h (20 mph).
3. (With cruise control)
To increase the set speed, press the RES
switch continuously. The set speed can be
adjusted in 10 km/h (5 mph) increments. The set speed can also be adjusted in about 1
km/h (1 mph) increments by pressing the RES
switch momentary. For example, the set
speed increases about 4 km/h (4 mph) by pressing the RES
switch 4 times.
(With Mazda Radar Cruise Control (MRCC) or Mazda Radar Cruise C ontrol with
Stop & Go function (MRCC with Stop & Go function))
To increase the set speed, press the SET
switch continuously. The set speed can be
adjusted in 10 km/h (5 mph) increments. The set speed can also be adjusted in about 1
km/h (1 mph) increments by pressing the SET
switch momentary. For example, the set
speed increases about 4 km/h (4 mph) by pressing the SET
switch 4 times.
When Driving
i-ACTIVSENSE
4-179
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

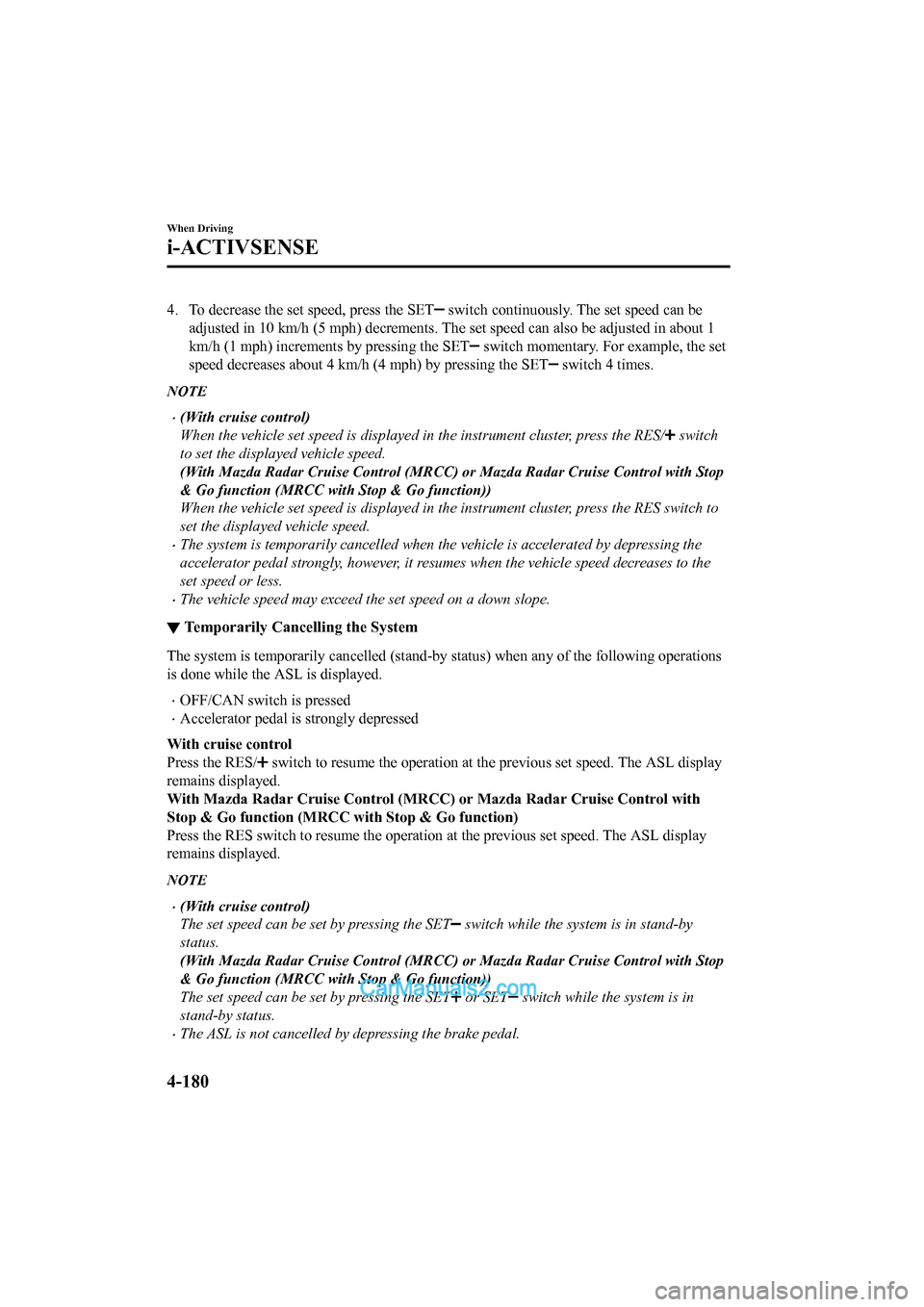

4. To decrease the set speed, press the SET switch continuously. The set speed can be
adjusted in 10 km/h (5 mph) decrements. The set speed can also be adjusted in about 1
km/h (1 mph) increments by pressing the SET
switch momentary. For example, the set
speed decreases about 4 km/h (4 mph) by pressing the SET
switch 4 times.
NOTE
•(With cruise control)
When the vehicle set speed is displayed in the instrument cluster, press the RES/
switch
to set the displayed vehicle speed.
(With Mazda Radar Cruise Control (MRCC) or Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go function))
When the vehicle set speed is displayed in the instrument cluster, press the RES switch to
set the displayed vehicle speed.
•The system is temporarily cancelled when the vehicle is accelerated by depressing the
accelerator pedal strongly, however, it resumes when the vehicle speed decreases to the
set speed or less.
•The vehicle speed may exceed the set speed on a down slope.
▼ Temporarily Cancelling the System
The system is temporarily cancelled (stand-by status) when any
of the following operations
is done while the ASL is displayed.
•OFF/CAN switch is pressed
•Accelerator pedal is strongly depressed
With cruise control
Press the RES/
switch to resume the operation at the previous set speed. The ASL display
remains displayed.
With Mazda Radar Cruise Control (MRCC) or Mazda Radar Cruise Co ntrol with
Stop & Go function (MRCC with Stop & Go function)
Press the RES switch to resume the operation at the previous se t speed. The ASL display
remains displayed.
NOTE
•(With cruise control)
The set speed can be set by pressing the SET
switch while the system is in stand-by
status.
(With Mazda Radar Cruise Control (MRCC) or Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go function))
The set speed can be set by pressing the SET
or SET switch while the system is in
stand-by status.
•The ASL is not cancelled by depressing the brake pedal.
When Driving
i-ACTIVSENSE
4-180
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

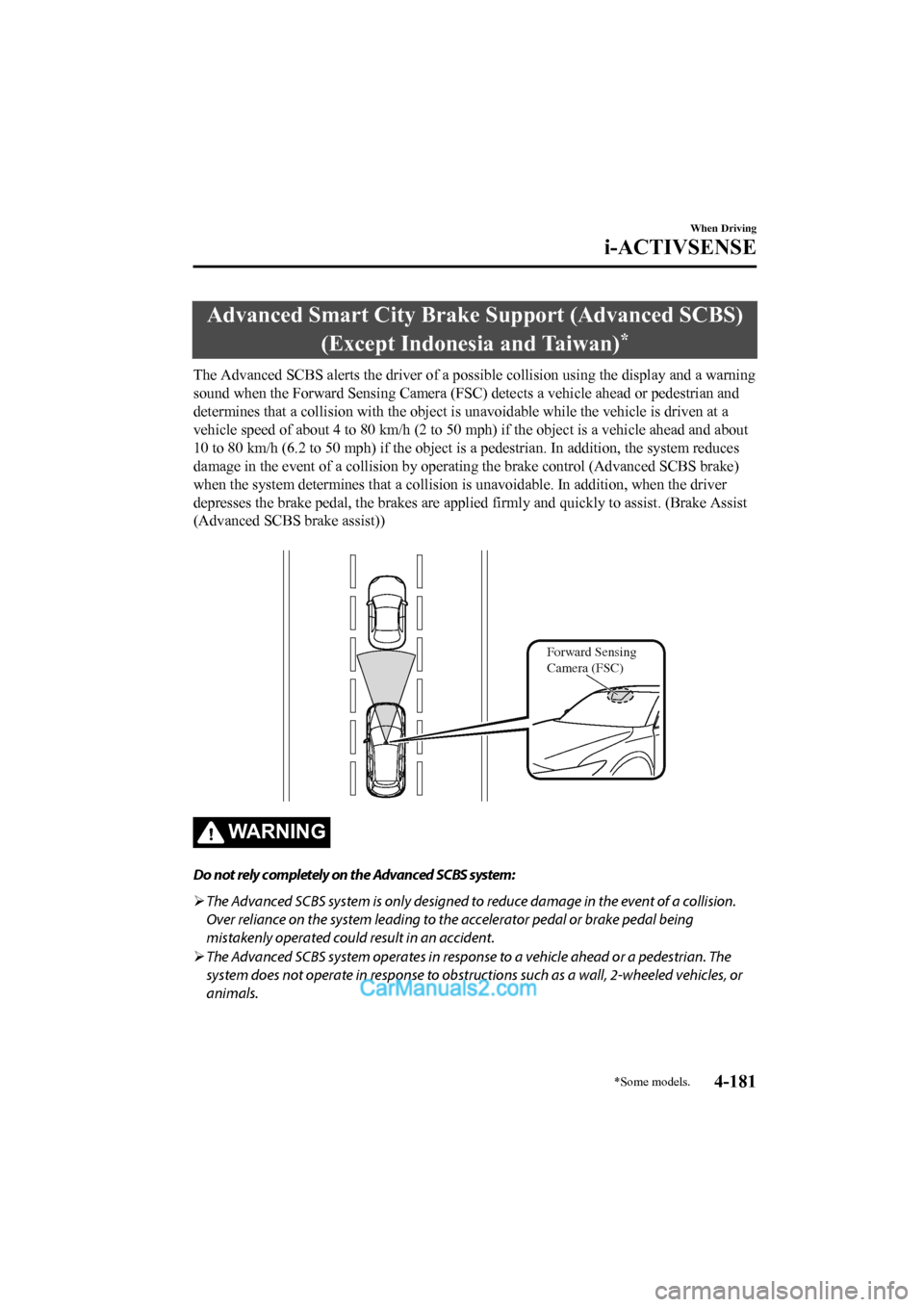

Advanced Smart City Brake Support (Advanced SCBS)
(Except Indonesia and Taiwan)
*
The Advanced SCBS alerts the driver of a possible collision usi ng the display and a warning
sound when the Forward Sensing Camera (FSC) detects a vehicle a head or pedestrian and
determines that a collision with the object is unavoidable whil e the vehicle is driven at a
vehicle speed of about 4 to 80 km/h (2 to 50 mph) if the object is a vehicle ahead and about
10 to 80 km/h (6.2 to 50 mph) if the object is a pedestrian. In addition, the system reduces
damage in the event of a collision by operating the brake contr ol (Advanced SCBS brake)
when the system determines that a collision is unavoidable. In addition, when the driver
depresses the brake pedal, the brakes are applied firmly and qu ickly to assist. (Brake Assist
(Advanced SCBS brake assist))

Forward Sensing
Camera (FSC)
WA R N I N G
Do not rely completely on the Advanced SCBS system:
 The Advanced SCBS system is only designed to reduce damage in the event of a collision.
Over reliance on the system leading to the accelerator pedal or brake pedal being
mistakenly operated could result in an accident.
 The Advanced SCBS system operates in response to a vehicle ahead or a pedestrian. The
system does not operate in response to obstru ctions such as a wall, 2-wheeled vehicles, or
animals.
When Driving
i-ACTIVSENSE
*Some models.4-181
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
