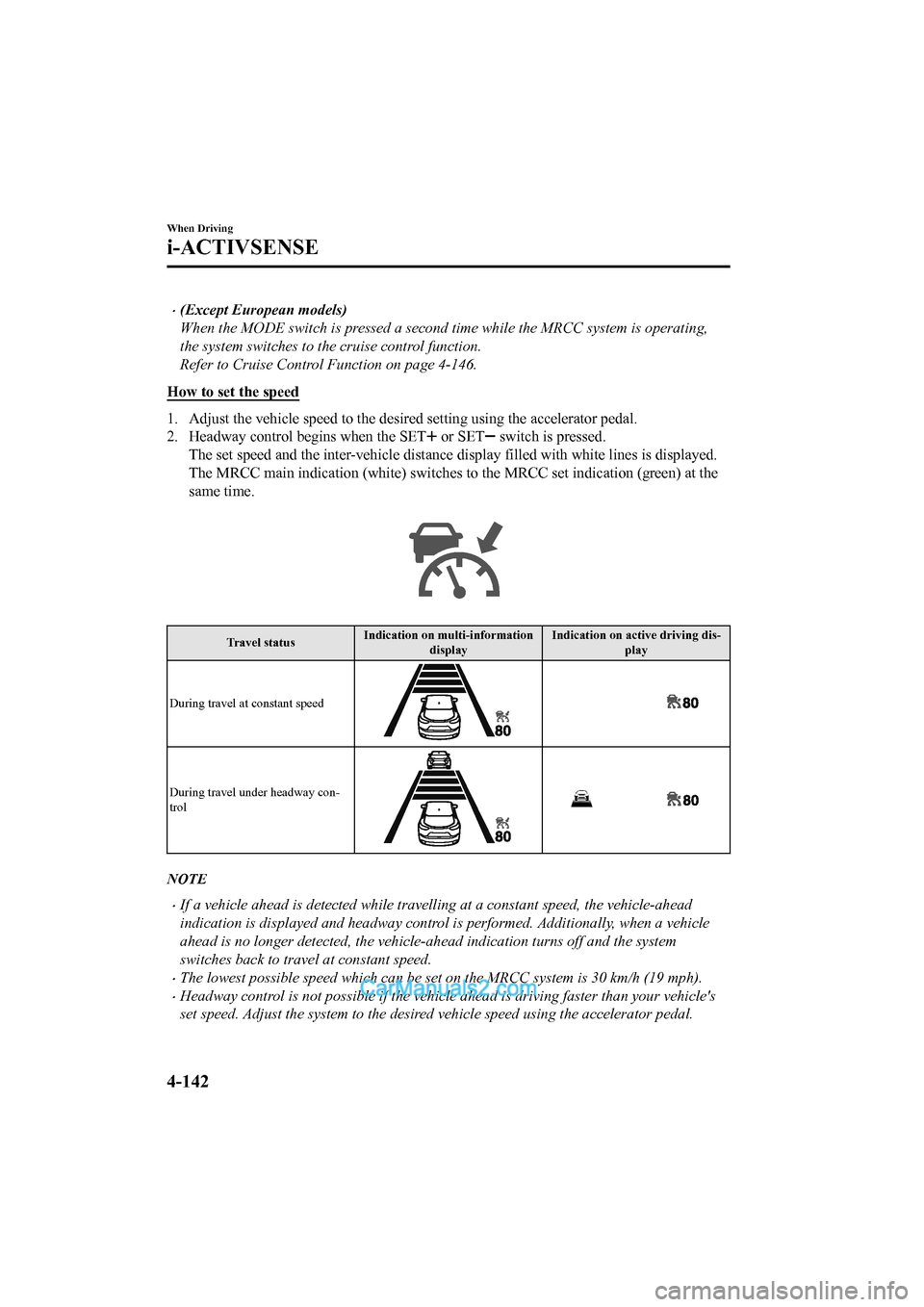

When the MODE switch is pressed a second time while the MRCC system is operating,
the system switches to the cruise control function.
Refer to Cruise Control Function on page 4-146.
How to set the speed
1. Adjust the vehicle speed to the desired setting using the acc elerator pedal.
2. Headway control begins when the SET
or SET switch is pressed.
The set speed and the inter-vehicle distance display filled wit h white lines is displayed.
The MRCC main indication (white) switches to the MRCC set indication (green) at the
same time.
Travel status Indication on multi-information
display Indication on active driving dis-
play
During travel at constant speed
During travel under headway con-
trol
NOTE
•If a vehicle ahead is detected while travel ling at a constant speed, the vehicle-ahead
indication is displayed and headway control is performed. Additionally, when a vehicle
ahead is no longer detected, the vehicle-ahead indication turns off and the system
switches back to travel at constant speed.
•The lowest possible speed which can be set on the MRCC system is 30 km/h (19 mph).
•Headway control is not possible if the vehicle ahead is driving faster than your vehicle's
set speed. Adjust the system to the desired vehicle speed using the accelerator pedal.
When Driving
i-ACTIVSENSE
4-142
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

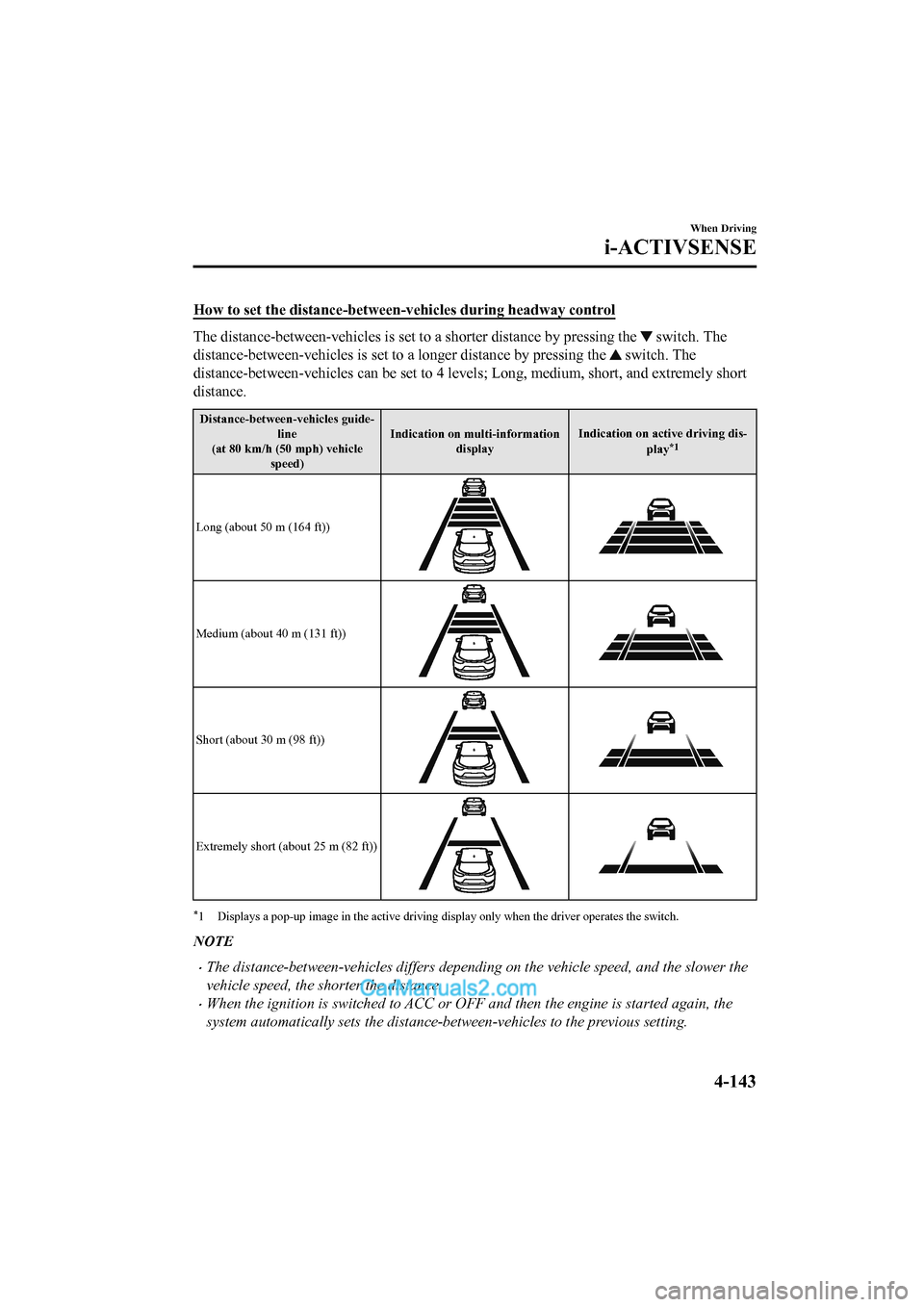

How to set the distance-between-vehicles during headway control
The distance-between-vehicles is set to a shorter distance by pressing the switch. The
distance-between-vehicles is set to a longer distance by pressi ng the
switch. The
distance-between-vehicles can be set to 4 levels; Long, medium, short, and extremely short
distance.
Distance-between-vehicles guide-
line
(at 80 km/h (50 mph) vehicle
speed) Indication on multi-information
display Indication on active driving dis-
play
*1
Long (about 50 m (164 ft))
Medium (about 40 m (131 ft))
Short (about 30 m (98 ft))
Extremely short (about 25 m (82 ft))
*1 Displays a pop-up image in the a ctive driving display only when the driver operates the switch.
NOTE
•The distance-between-vehicles differs depending on the vehicle speed, and the slower the
vehicle speed, the shorter the distance.
•When the ignition is switched to ACC or OFF and then the engine is started again, the
system automatically sets the distance-between-vehicles to the previous setting.
When Driving
i-ACTIVSENSE
4-143
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

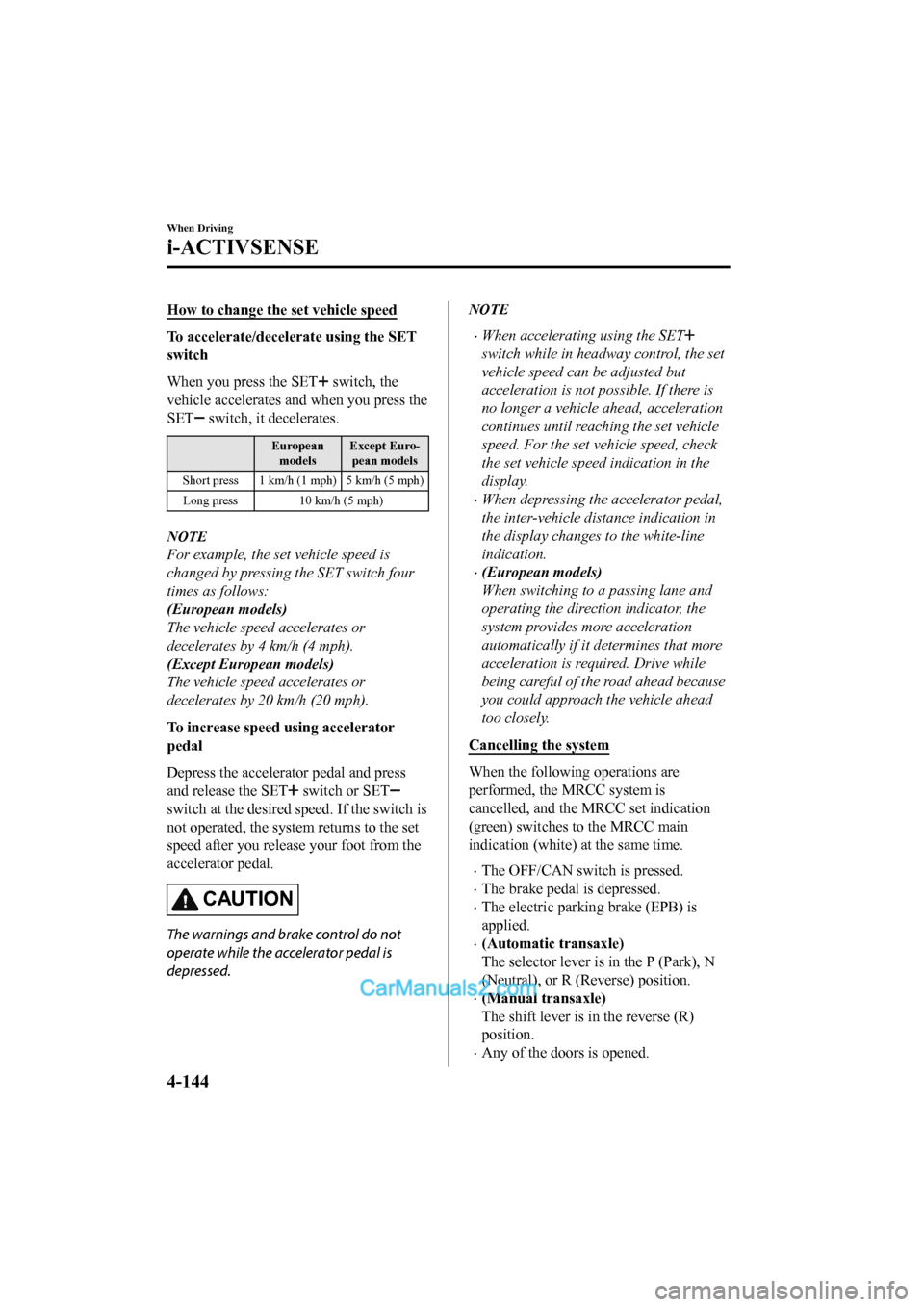

How to change the set vehicle speed
To accelerate/decelerate using the SET
switch
When you press the SET
switch, the
vehicle accelerates and when you press the
SET
switch, it decelerates.
European
models Except Euro-
pean models
Short press 1 km/h (1 mph) 5 km/h (5 mph)
Long press 10 km/h (5 mph)
NOTE
For example, the set vehicle speed is
changed by pressing the SET switch four
times as follows:
(European models)
The vehicle speed accelerates or
decelerates by 4 km/h (4 mph).
(Except European models)
The vehicle speed accelerates or
decelerates by 20 km/h (20 mph).
To increase speed using accelerator
pedal
Depress the accelerator pedal and press
and release the SET
switch or SET
switch at the desired speed. If the switch is
not operated, the system returns to the set
speed after you release your foot from the
accelerator pedal.
CAUTION
The warnings and brake control do not
operate while the accelerator pedal is
depressed.
NOTE
•When accelerating using the SET
switch while in headway control, the set
vehicle speed can be adjusted but
acceleration is not possible. If there is
no longer a vehicle ahead, acceleration
continues until reaching the set vehicle
speed. For the set vehicle speed, check
the set vehicle speed indication in the
display.
•When depressing the accelerator pedal,
the inter-vehicle distance indication in
the display changes to the white-line
indication.
•(European models)
When switching to a passing lane and
operating the direction indicator, the
system provides more acceleration
automatically if it determines that more
acceleration is required. Drive while
being careful of the road ahead because
you could approach the vehicle ahead
too closely.
Cancelling the system
When the following operations are
performed, the MRCC system is
cancelled, and the MRCC set indication
(green) switches to the MRCC main
indication (white) at the same time.
•The OFF/CAN switch is pressed.
•The brake pedal is depressed.
•The electric parkin g brake (EPB) is
applied.
•(Automatic transaxle)
The selector lever i s in the P (Park), N
(Neutral), or R (R everse) position.
•(Manual transaxle)
The shift lever is in the reverse (R)
position.
•Any of the doors is opened.
When Driving
i-ACTIVSENSE
4-144
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•The driver's seat belt is unfastened.

Under the following conditions, the
MRCC cancel indication is displayed in
the multi-inform ation display and a single
beep sound is heard.
•The DSC has operated.
•The Smart Brake Support (SBS) has
operated.
•The Smart City Brake Support
[Forward] (SCBS F) or Advanced Smart
City Brake Support (Advanced SCBS)
has operated.
•When travelling on a downslope for a
long period of time.
•There is a problem with the system.
•The radar sensor (front) cannot detect
target objects (during rain, fog, snow or
other inclement weather conditions, or
when the radiator grille is dirty).
•The vehicle speed decreases to less than
25 km (16 mph).
•(Manual transaxle)
•The shift lever is sh ifted to neutral (N)
for a certain period of time.
•The clutch is depressed for a certain
period of time.
•The engine stalls.
Resuming control
If the MRCC system is cancelled, you can
resume control at the previously set speed
by pressing the RES switch and after all of
the operation conditions have been met.
NOTE
If the set speed is not indicated in the
display, the control does not resume even
if the RES switch is pressed.
Turning off the system
Press the OFF/CAN switch two times
while the MRCC system is operating to
switch off the system.
When Driving
i-ACTIVSENSE
4-145
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

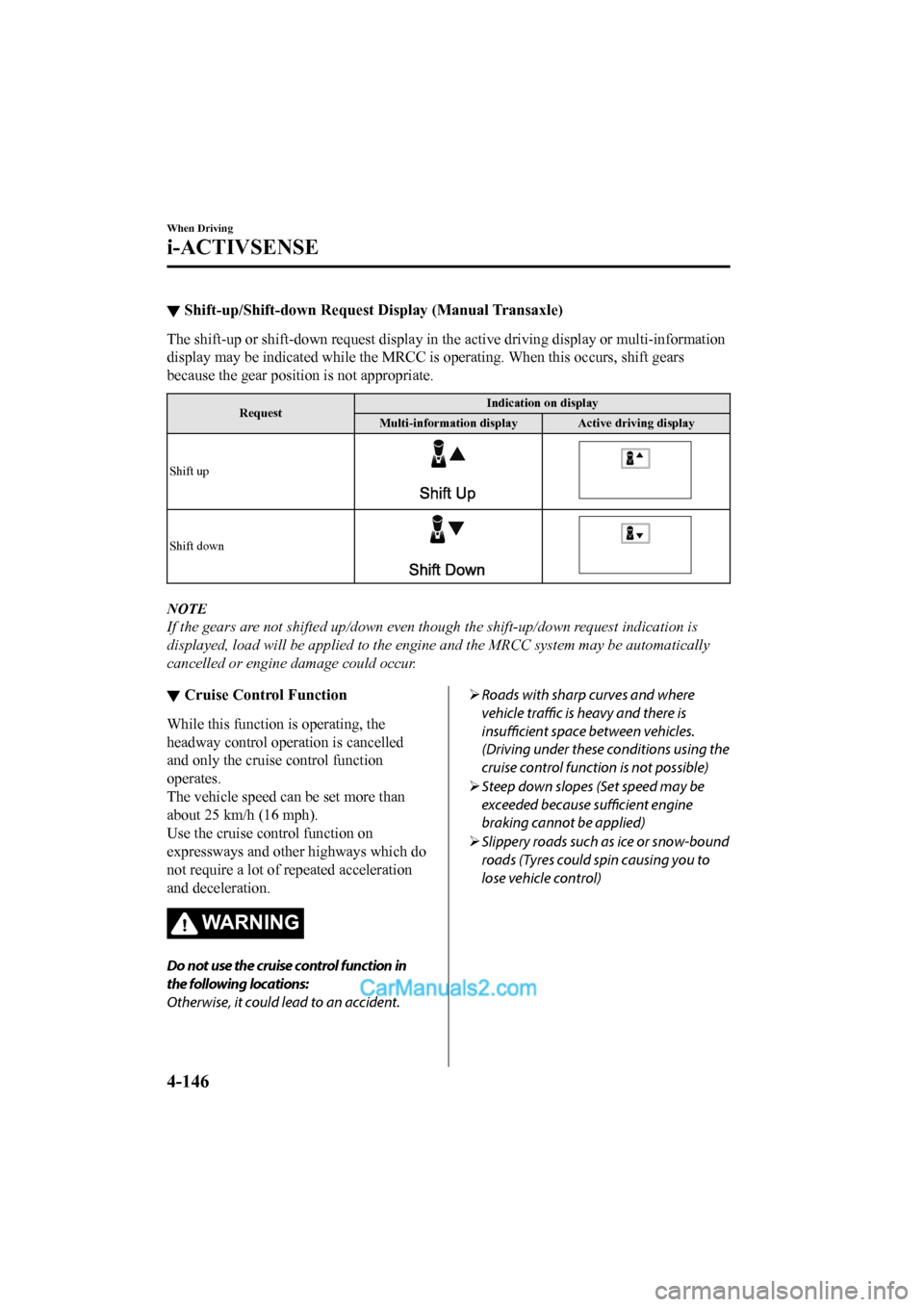

▼Shift-up/Shift-down Request Display (Manual Transaxle)
The shift-up or shift-down reque
st display in the active driving display or multi-information
display may be indicated while the MRCC is operating. When this occurs, shift gears
because the gear position is not appropriate.
Request Indication on display
Multi-information displa y Active driving display
Shift up
Shift down
NOTE
If the gears are not shifted up/down even t hough the shift-up/down request indication is
displayed, load will be applied to the engine and the MRCC system may be automatically
cancelled or engine damage could occur.
▼ Cruise Control Function
While this function is operating, the
headway control operation is cancelled
and only the cruise control function
operates.
The vehicle speed can be set more than
about 25 km/h (16 mph).
Use the cruise c
ontrol function on
expressways and other highways which do
not require a lot of repeated acceleration
and deceleration.
WA R N I N G
Do not use the cruise control function in
the following locations:
Otherwise, it could lead to an accident.
 Roads with sharp curves and where
vehicle traffic is heavy and there is
insufficient space between vehicles.
(Driving under these conditions using the
cruise control function is not possible)
 Steep down slopes (Set speed may be
exceeded because sufficient engine
braking cannot be applied)
 Slippery roads such as ice or snow-bound
roads (Tyres could spin causing you to
lose vehicle control)
When Driving
i-ACTIVSENSE
4-146
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

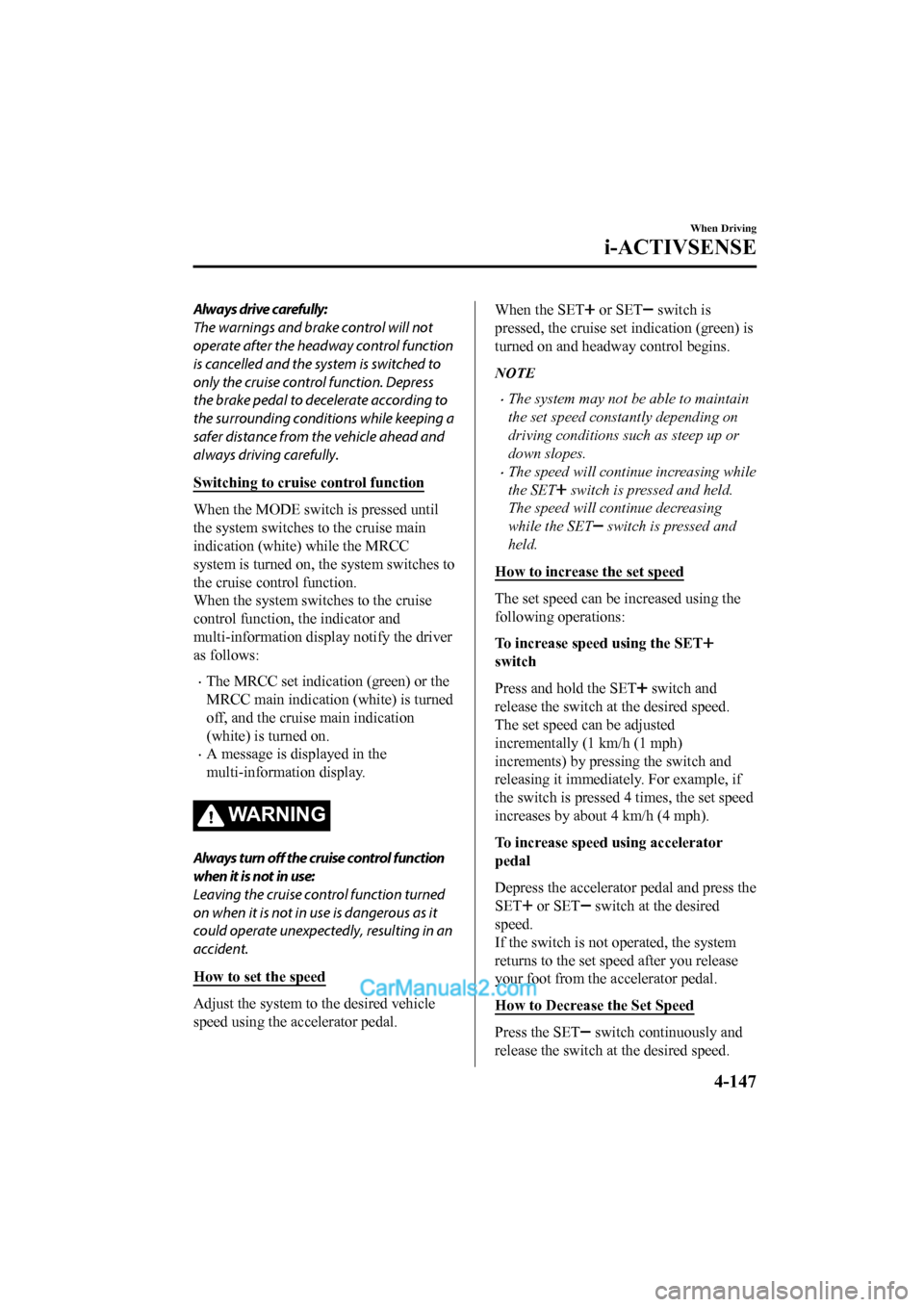

Always drive carefully:
The warnings and brake control will not
operate after the headway control function
is cancelled and the system is switched to
only the cruise control function. Depress
the brake pedal to decelerate according to
the surrounding conditions while keeping a
safer distance from the vehicle ahead and
always driving carefully.
Switching to cruise control function
When the MODE switch is pressed until
the system switches to the cruise main
indication (white) while the MRCC
system is turned on, the system switches to
the cruise control function.
When the system switches to the cruise
control function, the indicator and
multi-information display notify the driver
as follows:
•The MRCC set indication (green) or the
MRCC main indication (white) is turned
off, and the cruis e main indication
(white) is turned on.
•A message is displayed in the
multi-information display.
WA R N I N G
Always turn off the cruise control function
when it is not in use:
Leaving the cruise control function turned
on when it is not in use is dangerous as it
could operate unexpectedly, resulting in an
accident.
How to set the speed
Adjust the system to the desired vehicle
speed using the accelerator pedal.
When the SET or SET switch is
pressed, the cruise set indication (green) is
turned on and headway control begins.
NOTE
•The system may not be able to maintain
the set speed constantly depending on
driving conditions such as steep up or
down slopes.
•The speed will continue increasing while
the SET
switch is pressed and held.
The speed will continue decreasing
while the SET
switch is pressed and
held.
How to increase the set speed
The set speed can be increased using the
following operations:
To increase speed using the SET
switch
Press and hold the SET
switch and
release the switch a t the desired speed.
The set speed can be adjusted
incrementally (1 km/h (1 mph)
increments) by press ing the switch and
releasing it immediately. For example, if
the switch is pressed 4 times, the set speed
increases by about 4 km/h (4 mph).
To increase speed using accelerator
pedal
Depress the accelerator pedal and press the
SET
or SET switch at t he desired
speed.
If the switch is not operated, the system
returns to the set speed after you release
your foot from the accelerator pedal.
How to Decrease the Set Speed
Press the SET switch continuously and
release the switch a t the desired speed.
When Driving
i-ACTIVSENSE
4-147
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

The set speed can be adjusted
incrementally (1 km/h (1 mph)
increments) by pressing the switch and
releasing it immediately. For example, if
the switch is press ed 4 times, the set
vehicle speed decreases by about 4 km/h
(4 mph).
Cancelling the function
Cancelling using OFF/CAN switch
When the OFF/CAN switch is pressed
once, the cruise control function is
cancelled.
Cancelling using MODE switch
When the MODE switch is pressed, the
cruise control function is cancelled and the
headway control function is made
available for operation.
The cruise control fu nction is cancelled
automatically in the following cases. If the
RES switch is pressed while the vehicle
speed is 25 km/h (16 mph) or higher, the
speed returns to the original set speed.
•The OFF/CAN switch is pressed once.
•The brake pedal is depressed.
•The parking brake is applied.
(Manual transaxle)
•The clutch pedal is depressed.
•The shift lever is shifted to neutral
position.
(Automatic transaxle)
•The selector lever is shifted to P or N
position.
NOTE
•If the vehicle speed decreases by about
15 km/h (9.4 mph) or more than the set
speed, the cruise control function may
be cancelled.
•When the vehicle speed is less than 21
km/h (13 mph), the cruise control
function is cancelled. In this case, the
vehicle speed will not return to the
original set speed even if the vehicle is
accelerated to 25 km/h (16 mph) or
higher and the RES switch is pressed.
Reset the cruise control function.
When Driving
i-ACTIVSENSE
4-148
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

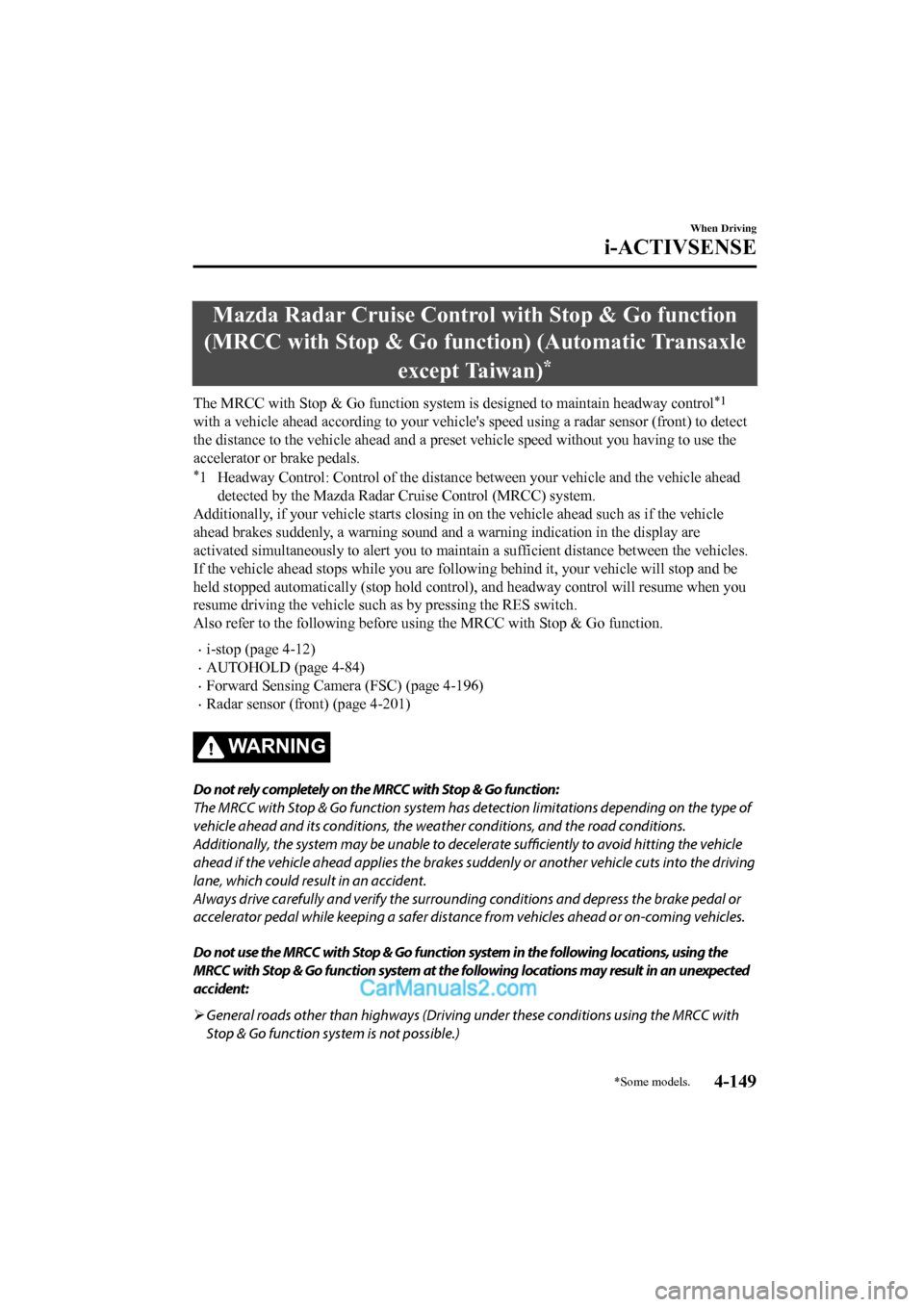

Mazda Radar Cruise Control with Stop & Go function
(MRCC with Stop & Go functi on) (Automatic Transaxle
except Taiwan)
*
The MRCC with Stop & Go function system is designed to maintain headway control*1
with a vehicle ahead according to your vehicle's speed using a radar sensor (front) to detect
the distance to the vehicle ahead and a preset vehicle speed without you having to use the
accelerator or brake pedals.
*1 Headway Control: Control of the distance between your vehicle and the vehicle ahead
detected by the Mazda Radar Cr uise Control (MRCC) system.
Additionally, if your vehicle s tarts closing in on the vehicle ahead such as if the vehicle
ahead brakes suddenly, a warning sound and a warning indication in the display are
activated simultaneously to alert you to maintain a sufficient distance between the vehicles.
If the vehicle ahead stops while you are following behind it, your vehicle will stop and be
held stopped automatically (stop hold control), and headway con trol will resume when you
resume driving the vehicle such a s by pressing the RES switch.
Also refer to the following before using the MRCC with Stop & G o function.
•i-stop (page 4-12)
•AUTOHOLD (page 4-84)
•Forward Sensing Camera (FSC) (page 4-196)
•Radar sensor (front) (page 4-201)
WA R N I N G
Do not rely completely on the MRCC with Stop & Go function:
The MRCC with Stop & Go function system has detection limitations depending on the type of
vehicle ahead and its conditions, the weat her conditions, and the road conditions.
Additionally, the system may be unable to decelerate sufficiently to avoid hitting the vehicle
ahead if the vehicle ahead applies the brakes sudd enly or another vehicle cuts into the driving
lane, which could result in an accident.
Always drive carefully and verify the surrounding conditions and depress the brake pedal or
accelerator pedal while keeping a safer distance from vehicles ahead or on-coming vehicles.
Do not use the MRCC with Stop & Go function system in the following locations, using the
MRCC with Stop & Go function system at the following locations may result in an unexpected
accident:
 General roads other than highways (Driving under these conditions using the MRCC with
Stop & Go function system is not possible.)
When Driving
i-ACTIVSENSE
*Some models.4-149
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

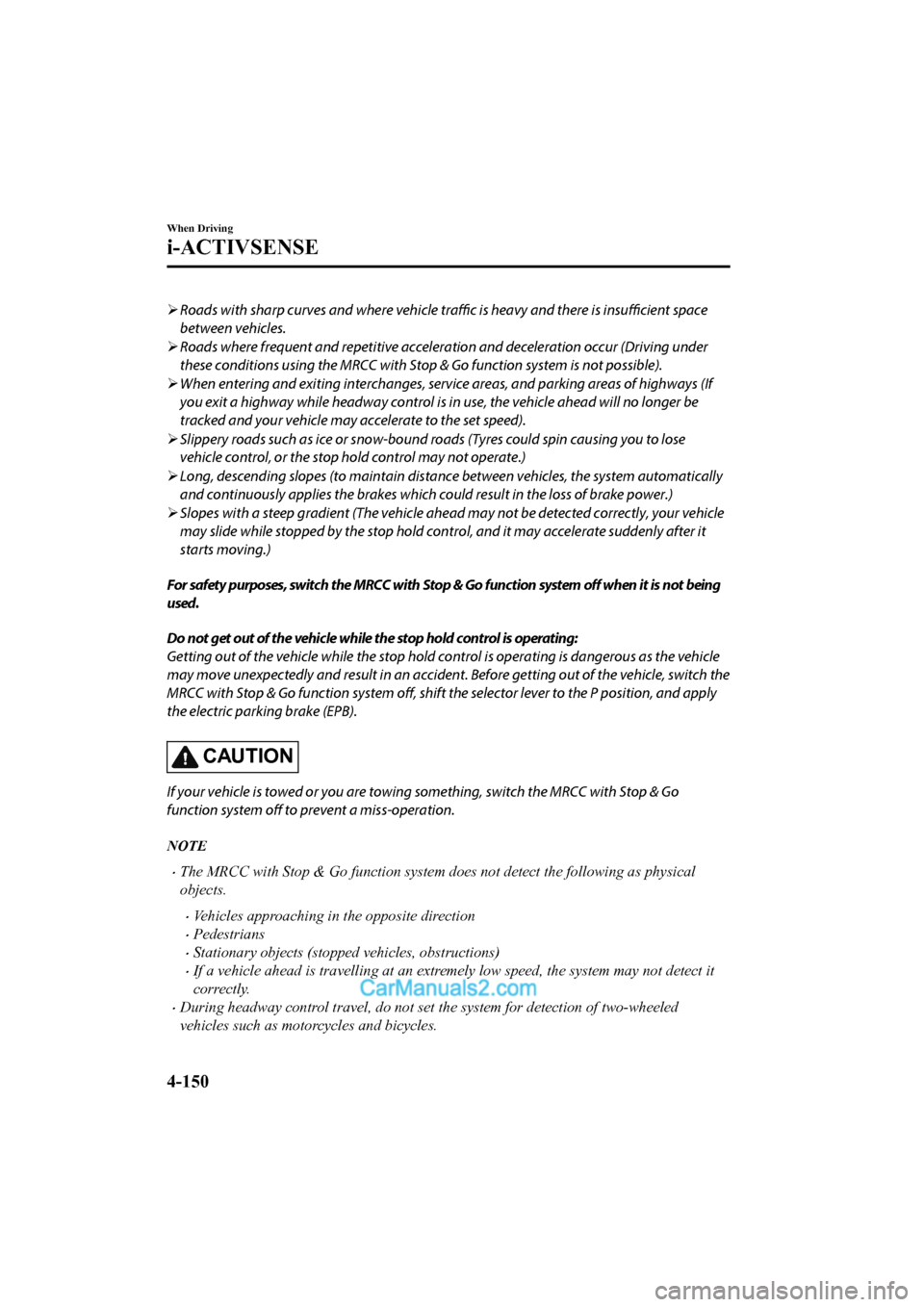

Roads with sharp curves and where vehicle
traffic is heavy and there is
insufficient space
between vehicles.
 Roads where frequent and repetitive accelerati on and deceleration occur (Driving under
these conditions using the MRCC with Stop & Go function system is not possible).
 When entering and exiting interchanges, servic e areas, and parking areas of highways (If
you exit a highway while headway control is in use, the vehicle ahead will no longer be
tracked and your vehicle may accelerate to the set speed).
 Slippery roads such as ice or snow-bound roads (Tyres could spin causing you to lose
vehicle control, or the stop hold control may not operate.)
 Long, descending slopes (to maintain distance between vehicles, the system automatically
and continuously applies the brakes which could result in the loss of brake power.)
 Slopes with a steep gradient (The vehicle ahea d may not be detected correctly, your vehicle
may slide while stopped by the stop hold control, and it may accelerate suddenly after it
starts moving.)
For safety purposes, switch the MRCC with Stop & Go function system off when it is not being
used.
Do not get out of the vehicle while the stop hold control is operating:
Getting out of the vehicle while the stop hold co ntrol is operating is dangerous as the vehicle
may move unexpectedly and result in an accident. Before getting out of the vehicle, switch the
MRCC with Stop & Go function system off, shift the selector lever to the P position, and apply
the electric parking brake (EPB).
CAUTION
If your vehicle is towed or you are towing something, switch the MRCC with Stop & Go
function system off to prevent a miss-operation.
NOTE
•The MRCC with Stop & Go function system does not detect the following as physical
objects.
•Vehicles approaching in the opposite direction
•Pedestrians
•Stationary objects (stopped vehicles, obstructions)
•If a vehicle ahead is travelling at an extre mely low speed, the system may not detect it
correctly.
•During headway control travel, do not set the system for detection of two-wheeled
vehicles such as motorcycles and bicycles.
When Driving
i-ACTIVSENSE
4-150
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

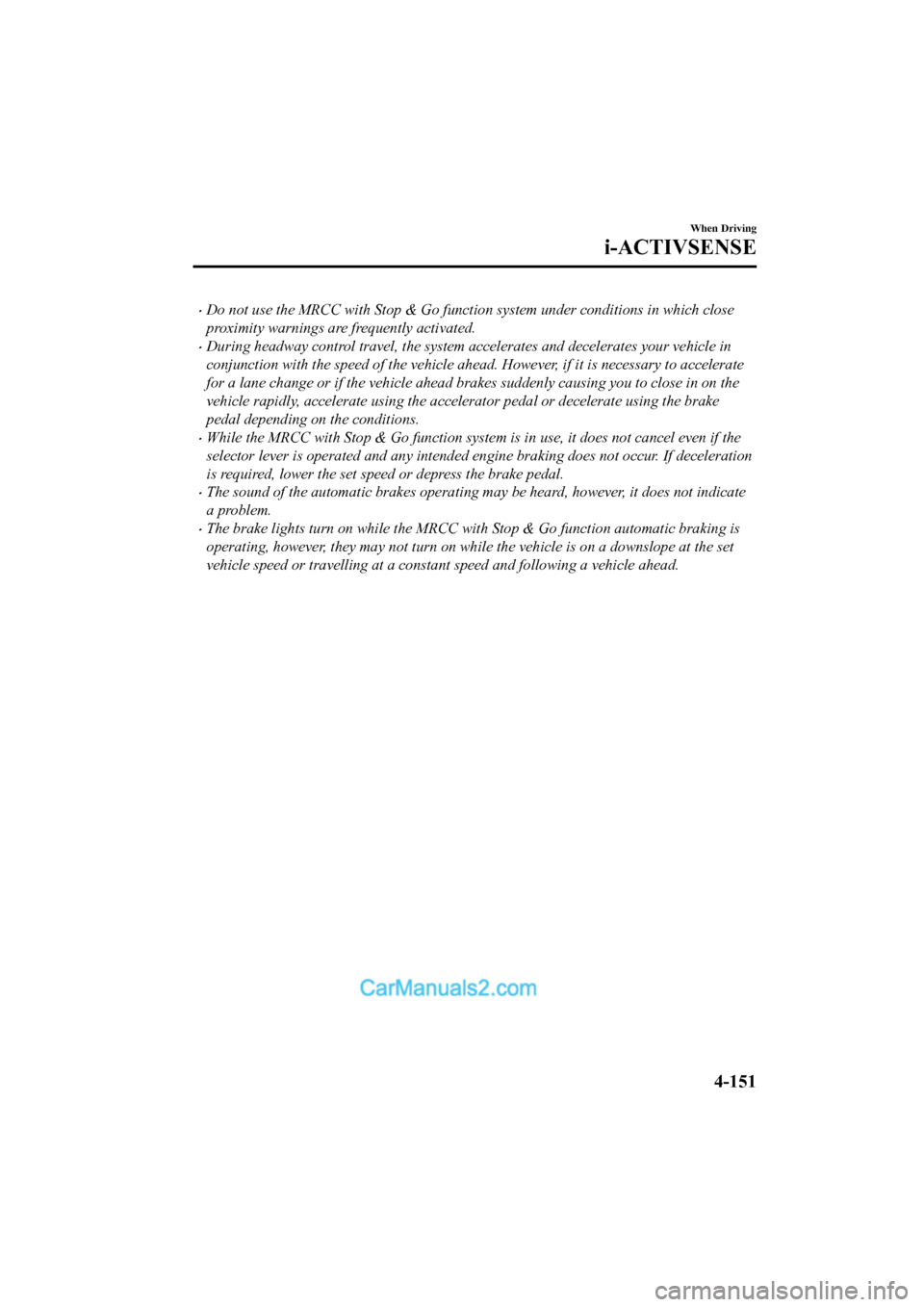

•Do not use the MRCC with Stop & Go function system under conditions in which close
proximity warnings are frequently activated.
•During headway control travel, the system accelerates and decelerates your vehicle in
conjunction with the speed of the vehicle ahead. However, if it is necessary to accelerate
for a lane change or if the vehicle ahead brakes suddenly causing you to close in on the
vehicle rapidly, accelerate using the accelerator pedal or decelerate using the brake
pedal depending on the conditions.
•While the MRCC with Stop & Go function system is in use, it does not cancel even if the
selector lever is operated and any intended engine braking does not occur. If deceleration
is required, lower the set speed or depress the brake pedal.
•The sound of the automatic brakes operating may be heard, however, it does not indicate
a problem.
•The brake lights turn on while the MRCC with Stop & Go function automatic braking is
operating, however, they may not turn on while the vehicle is on a downslope at the set
vehicle speed or travelling at a constant speed and following a vehicle ahead.
When Driving
i-ACTIVSENSE
4-151
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
