NOTE
•(Automatic transaxle vehicle)
The detection indicator and buzzer of the front sensors/front corner sensors do not
operate when the selector lever is in the P position.
•The detection indicator and buzzer sound do not activate when the parking brake is
applied.
▼Obstruction Detection Indication
The position of a sensor which has detected an obstruction is i
ndicated. The gauge
illuminates in different areas d epending on the distance to an obstruction detected by the
sensor.
As the vehicle approaches closer to an obstruction, the zone in the gauge closer to the
vehicle illuminates.

Front left corner
sensor gauge Front right corner
sensor gauge
Rear right corner
sensor gauge
Rear left corner
sensor gauge Front sensor gauge
Rear sensor gauge
NOTE
The detection indicator can switch between display and non-display.
Refer to Personalisation Features on page 9-12.
System problem notification
If any of the pr oblems indicated in the table occurs, the driver is notified of the problem
depending on the type of system as shown.
Detection Indicator Solution
Disconnection
The system may have a ma lfunction. Have the ve-
hicle inspected at an expert repairer, we recom-
mend an Authorised Mazda Repairer as soon as
possible.
When Driving
Parking Sensor System
4-232
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Detection IndicatorSolution
System mal- function
The system may have a ma lfunction. Have the ve-
hicle inspected at an expert repairer, we recom-
mend an Authorised Mazda Repairer as soon as
possible.
Frost/soiling
Foreign matter may be on the sensor area corre-
sponding to the obstructio n detection indication
shown. If the system does not recover, have the ve-
hicle inspected at an expert repairer, we recom-
mend an Authorised Mazda Repairer.
▼ Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Front Sensor, Rear Sensor
Distance Detec-
tion area Distance between vehicle and obstruction
Beeper sound*1Front SensorRear Sensor
Farthest distance Approx. 100―60 cm (39.3―23.6
in)
Approx. 150―60 cm (59.0―23.6in)
Slow intermittent
sound
Far distance Approx. 60―45 cm (23.6―17.7
in)
Approx. 60―45 cm (23.6―17.7in)
Medium intermit-
tent sound
When Driving
Parking Sensor System
4-233
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Distance Detec-tion area Distance between vehicle and obstruction
Beeper sound*1Front SensorRear Sensor
Middle distance Approx. 45―35 cm (17.7―13.7
in)
Approx. 45―35 cm (17.7―13.7in)
Fast intermittent
sound
Close distance Within approx. 35 cm (13.7 in)
Within approx. 35 cm (13.7 in)
Continuous sound
*1 The rate at which the interm
ittent sound beeps increases as the vehicle approaches the obstruction.
Front Corner Sensor, Rear Corner Sensor
Distance Detection areaDistance between vehicle and obstruction
Beeper sound*1Front/Rear Corner Sensor
Far distance Approx. 55―38 cm (21.7―15.0 in)
Medium intermittent sound
Middle distance Approx. 38―25 cm (15.0―9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the interm
ittent sound beeps increases as the vehicle approaches the obstruction.
When Driving
Parking Sensor System
4-234
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone, the
corresponding beep sound is heard.
▼ When Warning Indicator/Beep is Activated
The system notifies th
e driver of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep How to check
The beep sound is not heard. The system may have a malfuncti
on. Have the vehicle inspected at an expert
repairer, we recommend an Authoris ed Mazda Repairer as soon as possible.
The intermittent sound of the
buzzer is heard five times. Remove any foreign material from the sensor area. If the system does not re-
cover, have the vehicle inspected at an expert repairer, we rec
ommend an Au-
thorised Mazda Repairer.
A certain obstruc tion detection
indicator is con tinuously dis-
played. Refer to Obstruction Detection Indication on page 4-232.
When Driving
Parking Sensor System
4-235
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

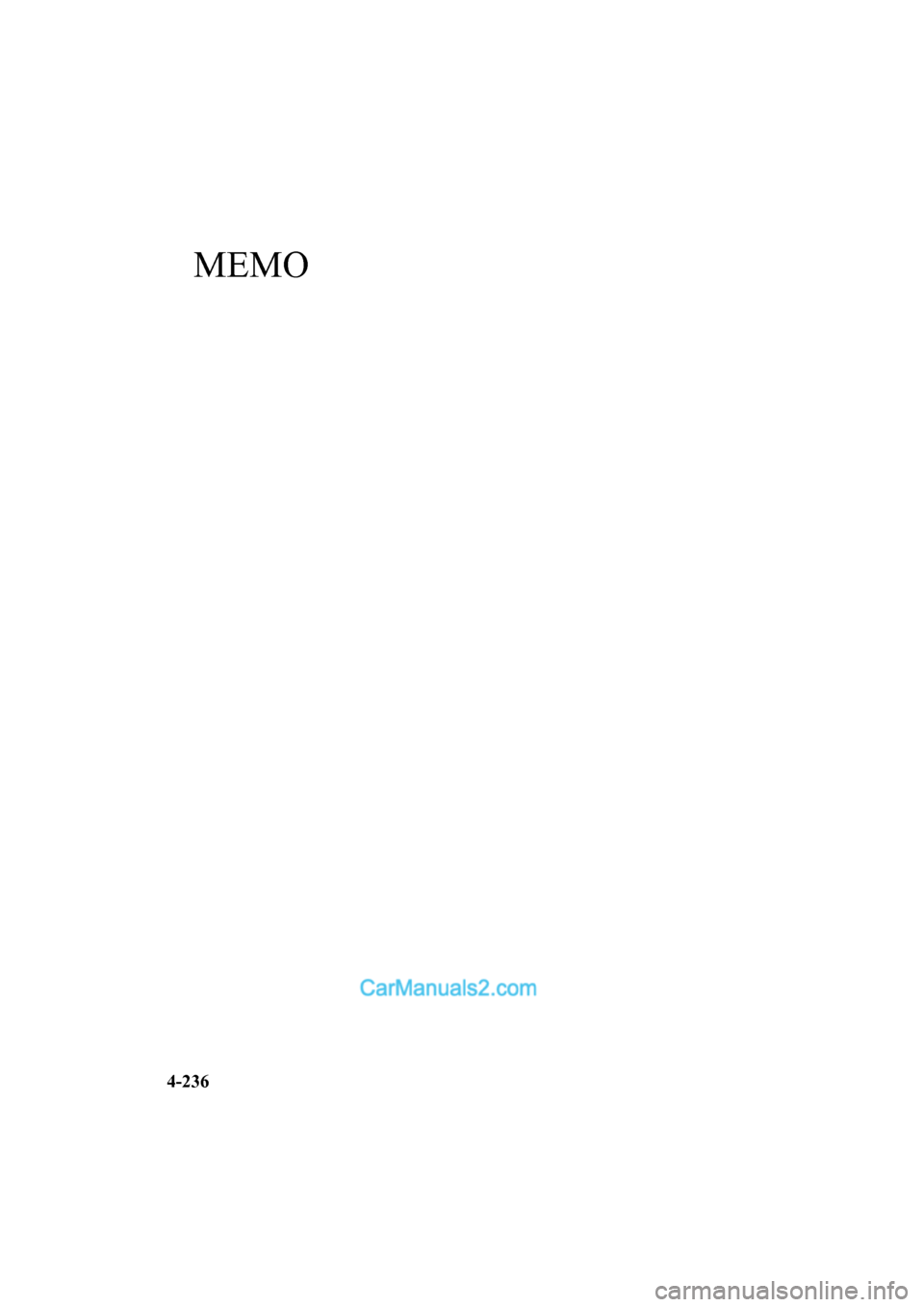

MEMO
4-236
2017-6-7 7:51:19Form No. CX-5 8FY4-EE-17E+L_Edition2

5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.
Air-Conditioning System.................. 5-4 Operating Tips.............................. 5-4
Vent Operation.............................. 5-5
Manual Type................................. 5-7
Fully Automatic Type................. 5-11
Before Using the Audio System...... 5-15 Audio Control Swit ch................. 5-15
AUX/USB mode.........................5-17
Aerial.......................................... 5-19
Audio Set [Type A (non-
touchscreen)].................................... 5-20 Power/Volume/Sound
Controls...................................... 5-20
Clock...........................................5-22
Operating the Radio....................5-23
Operating the Compact Disc (CD)
Player
*........................................ 5-27
How to use AUX m ode.............. 5-31
How to use USB mode ............... 5-32
How to use iPod mode................5-35
Error Indications......................... 5-37
Bluetooth
®*................................ 5-38
Bluetooth
® Preparation*............. 5-41
Available Language
*.................. 5-51
Security Setting
*......................... 5-52
Bluetooth
® Audio*..................... 5-53
Bluetooth
® Hands-Free*.............5-56
Voice Recognition
*..................... 5-63
Voice Recognition Learning
Function (Speaker Enrolment)
*.........
.................................................... 5-65
Troubleshooting
*........................ 5-67
*Some models.5-1
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

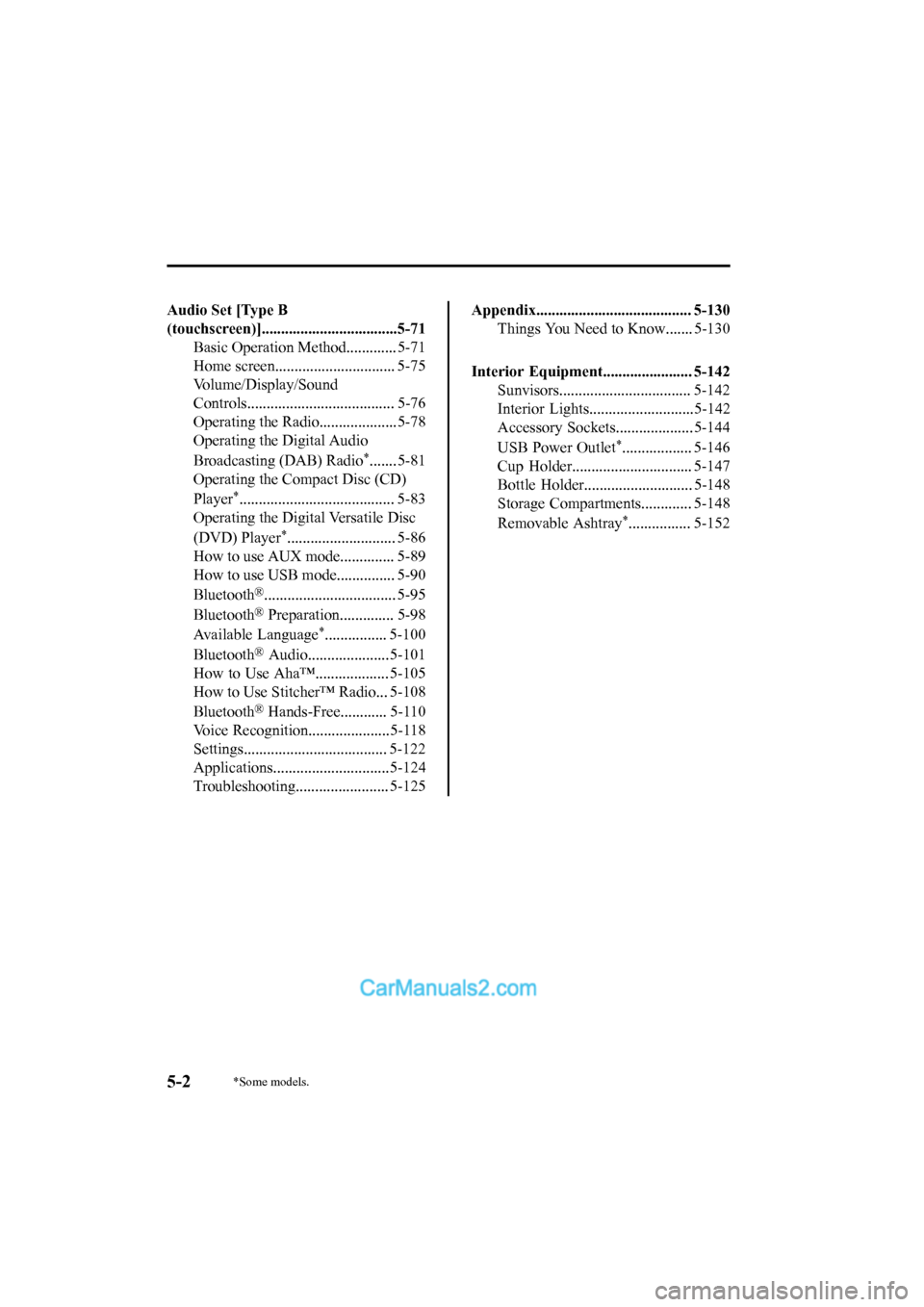

Audio Set [Type B
(touchscreen)]...................................5-71Basic Operation Method............. 5-71
Home screen............................... 5-75
Volume/Display/Sound
Controls...................................... 5-76
Operating the Radio. ...................5-78
Operating the Digital Audio
Broadcasting (DAB) Radio
*....... 5-81
Operating the Compact Disc (CD)
Player
*........................................ 5-83
Operating the Digi tal Versatile Disc
(DVD) Player
*............................ 5-86
How to use AUX mode.............. 5-89
How to use USB mode............... 5-90
Bluetooth
®.................................. 5-95
Bluetooth
® Preparation.............. 5-98
Available Language
*................ 5-100
Bluetooth
® Audio.....................5-101
How to Use Aha™................... 5-105
How to Use Stitcher ™ Radio... 5-108
Bluetooth
® Hands-Free............ 5-110
Voice Recognition.. ...................5-118
Settings..................................... 5-122
Applications..............................5-124
Troubleshooting. ....................... 5-125
Appendix........................................ 5-130
Things You Need to Know....... 5-130
Interior Equipment....................... 5-142 Sunvisors.................................. 5-142
Interior Lights...........................5-142
Accessory Sockets.................... 5-144
USB Power Outlet
*.................. 5-146
Cup Holder............................... 5-147
Bottle Holder............................ 5-148
Storage Compartmen ts............. 5-148
Removable Ashtray
*................ 5-152
5-2*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

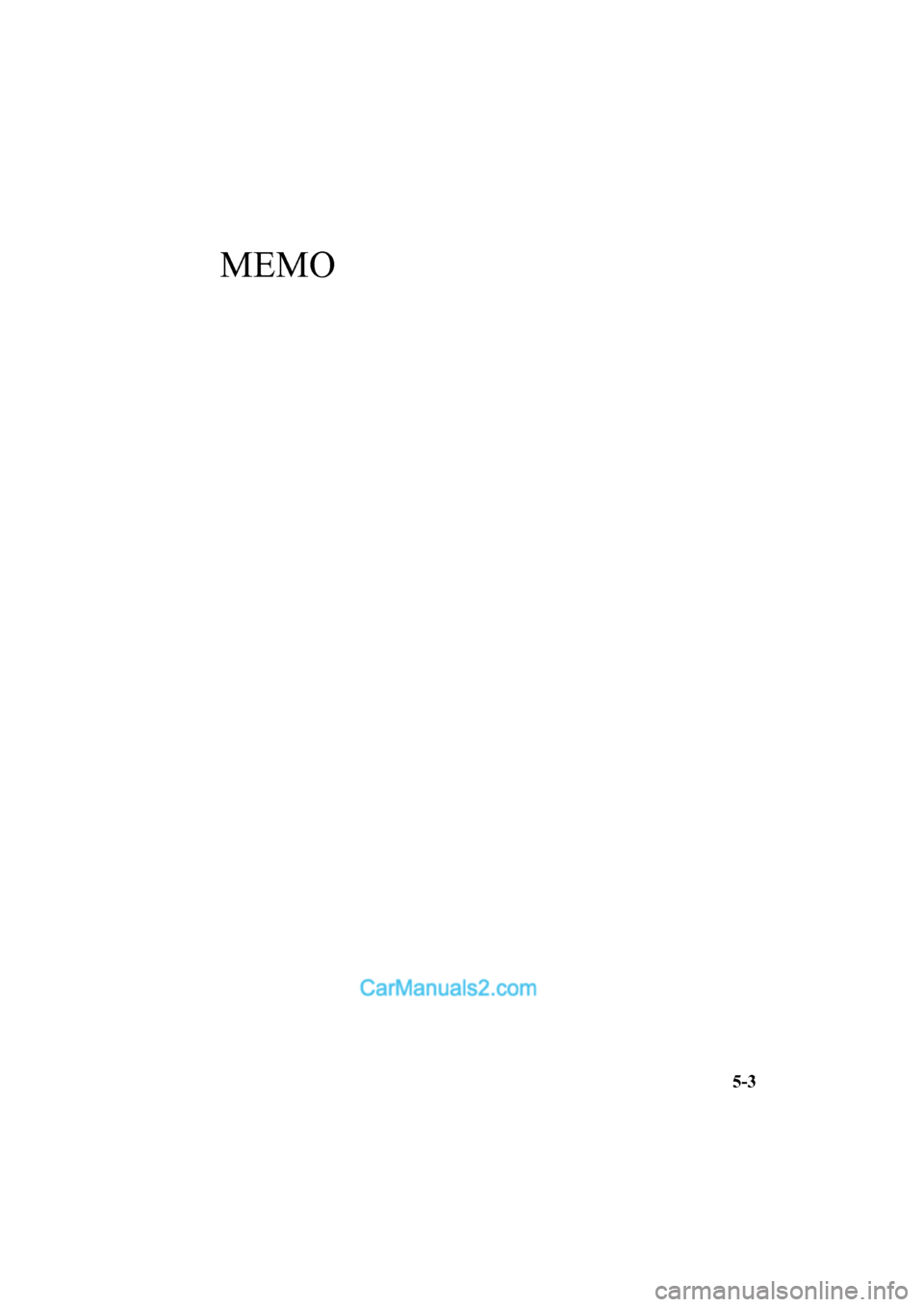

MEMO
5-3
2017-6-7 7:51:19Form No. CX-5 8FY4-EE-17E+L_Edition2

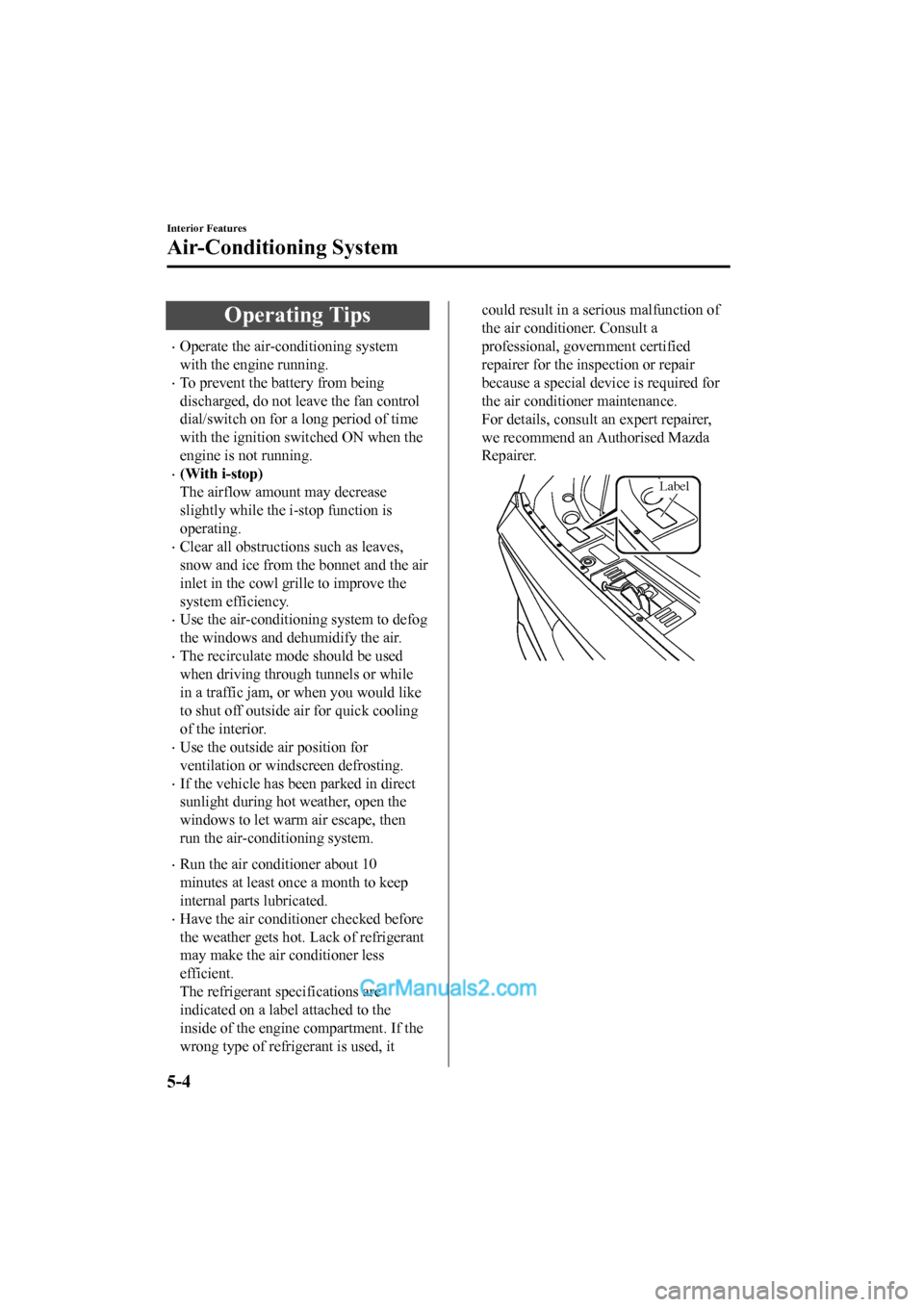

Operating Tips
•Operate the air-conditioning system
with the engine running.
•To prevent the battery from being
discharged, do not leave the fan control
dial/switch on for a long period of time
with the ignition switched ON when the
engine is not running.
•(With i-stop)
The airflow amount may decrease
slightly while the i-stop function is
operating.
•Clear all obstructions such as leaves,
snow and ice from the bonnet and the air
inlet in the cowl grille to improve the
system efficiency.
•Use the air-conditioning system to defog
the windows and dehumidify the air.
•The recirculate mode should be used
when driving through tunnels or while
in a traffic jam, or when you would like
to shut off outside air for quick cooling
of the interior.
•Use the outside air position for
ventilation or windscreen defrosting.
•If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the air-conditioning system.
•Run the air cond itioner about 10
minutes at least once a month to keep
internal parts lubricated.
•Have the air conditioner checked before
the weather gets hot . Lack of refrigerant
may make the air conditioner less
efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. If the
wrong type of refrigerant is used, it
could result in a ser ious malfunction of
the air conditioner. Consult a
professional, government certified
repairer for the inspection or repair
because a special device is required for
the air conditi oner maintenance.
For details, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
Label
Interior Features
Air-Conditioning System
5-4
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

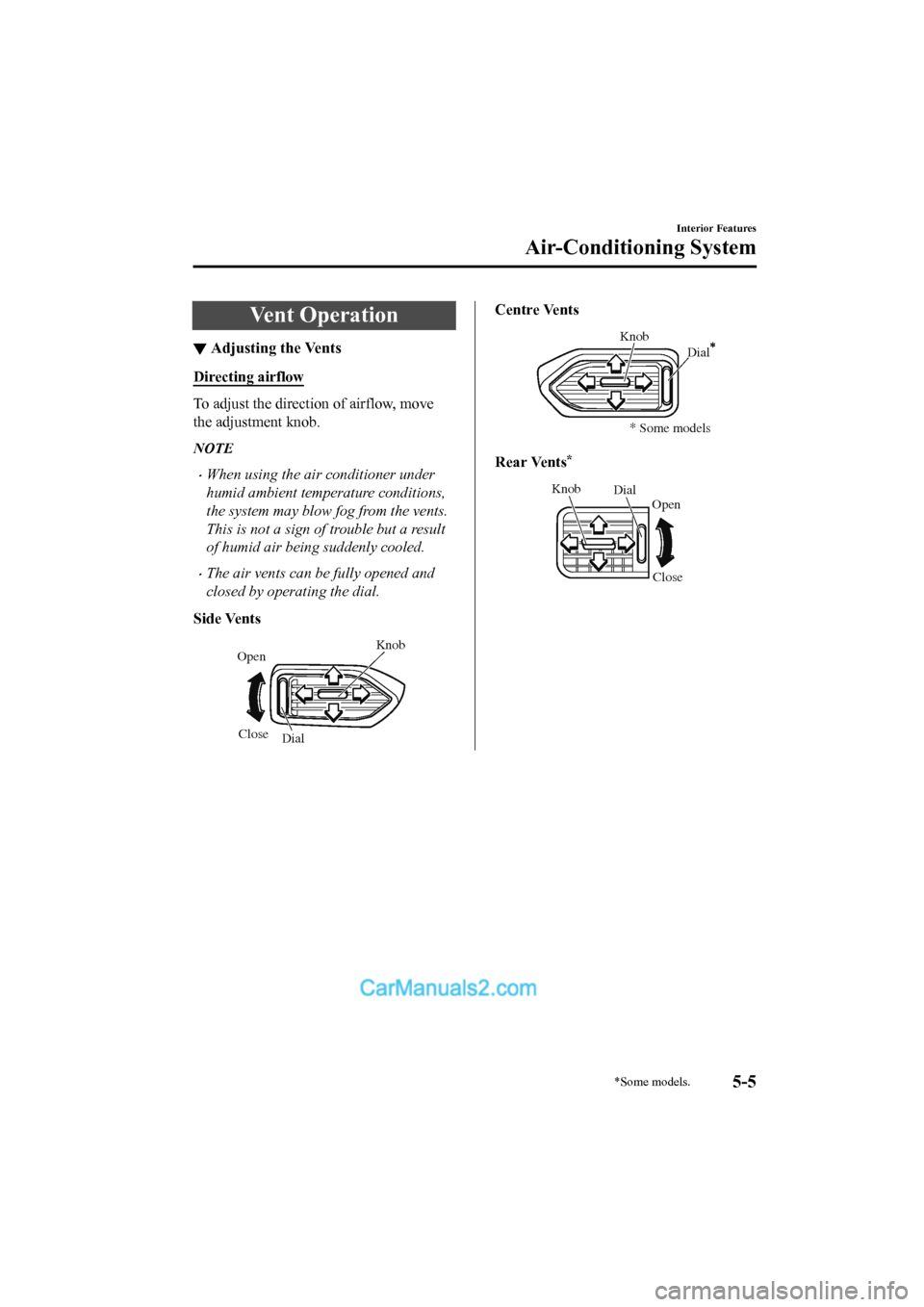

Vent Operation
▼Adjusting the Vents
Directing airflow
To adjust the direction of airflow, move
the adjustment knob.
NOTE
•When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result
of humid air being suddenly cooled.
•The air vents can be fully opened and
closed by operating the dial.
Side Vents
Knob
DialOpen
Close
Centre Vents
Knob
Dial
* Some models
Rear Vents*
KnobDial
Close
Open
Interior Features
Air-Conditioning System
*Some models.5-5
