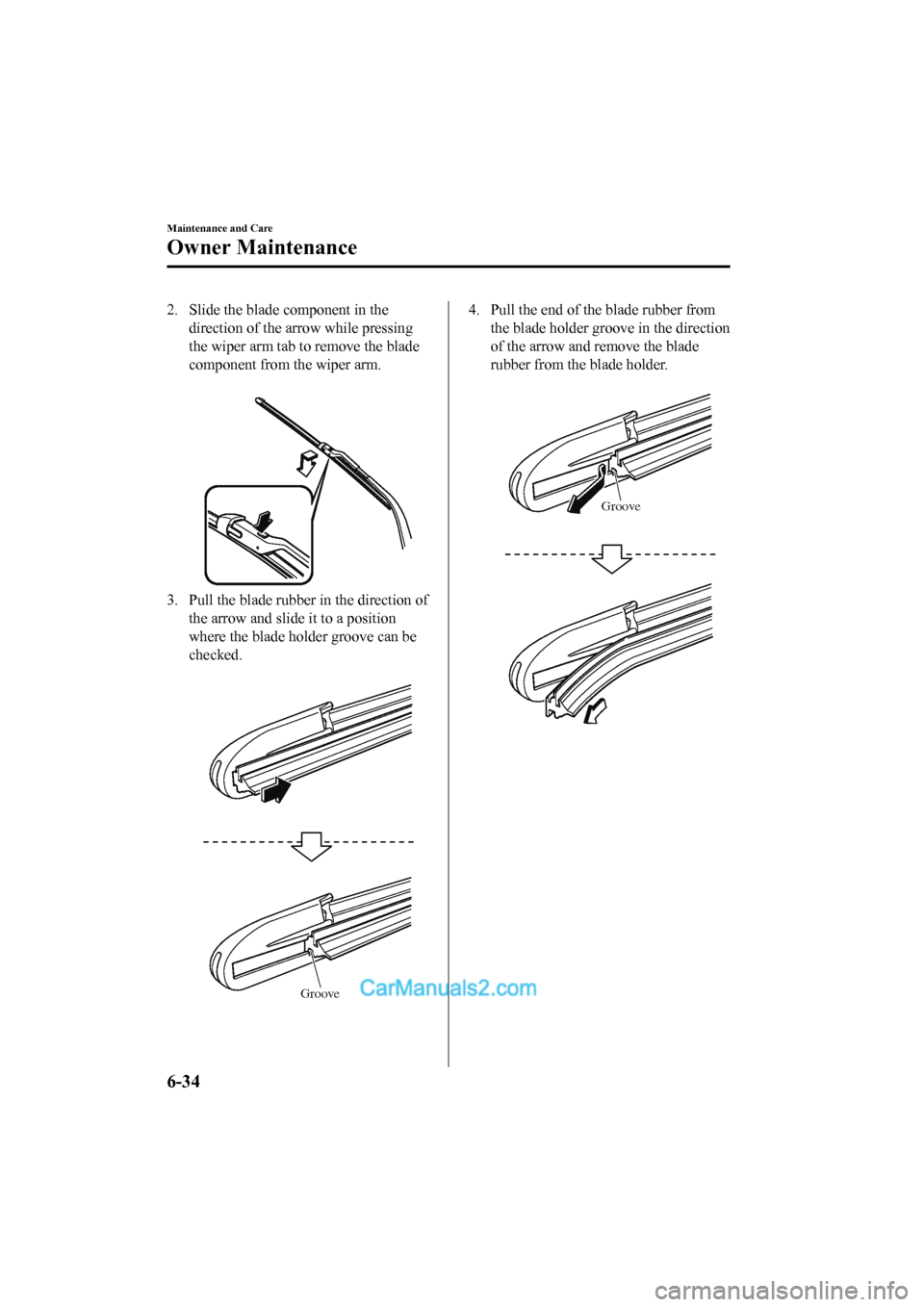

2. Slide the blade component in thedirection of the arrow while pressing
the wiper arm tab to remove the blade
component from the wiper arm.

3. Pull the blade rubber in the direction ofthe arrow and slide it to a position
where the blade holder groove can be
checked.

Groove
4. Pull the end of the blade rubber fromthe blade holder groove in the direction
of the arrow and remove the blade
rubber from the blade holder.

Groove
Maintenance and Care
Owner Maintenance
6-34
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

5. Insert the end of the new blade rubberinto the groove of the blade holder
until it contacts the end of the blade
holder.

Groove
6. After pulling the blade rubber in thedirection of the arrow and sliding the
blade rubber to a position to check the
blade holder groove, slide the blade
rubber end in the opposite direction.

Groove
7. Make sure that the blade rubber iscorrectly installed to the blade holder.
8. Align the wiper arm tabs with the blade component grooves.

Tabs
Grooves
Maintenance and Care
Owner Maintenance
6-35
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

9. Align the blade component projectionwith the wiper arm notch.

Notch
Projection
10. Slide the blade component and install it to the wiper arm.

11. Slowly lower the wiper arm onto thewindscreen.
▼Replacing Rear Window Wiper
Blade
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm and
other components, do not move the wiper
by hand.
1. Raise the wiper arm and rotate the
wiper blade to the right until it
unlocks, then remove the blade.

CAUTION
To prevent damage to the rear window,
do not let the wiper arm fall on it.
2. Pull down the blade rubber and slide it
out of the blade holder.

Maintenance and Care
Owner Maintenance
6-36
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

3. Remove the metal stiffeners from theblade rubber and in stall them in the
new blade.

CAUTION
Do not bend or discard the stiffeners.
You need to use them again.
4. Carefully insert th e new blade rubber.
Then install the blade assembly in the
reverse order of removal.

Maintenance and Care
Owner Maintenance
6-37
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Battery
WA R N I N G
Read the following precautions carefully before using the battery or inspecting to
ensure safe and correct handling:
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULPHURIC ACID which
could cause blindness if splashed into your ey es. Also, hydrogen gas produced during normal
battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULPHURIC ACID which could cause serious injuries if it gets in eyes, or
on the skin or clothing. If this happens, immediately
flush your eyes with water for 15 minutes
or wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is da ngerous. Battery fluid could cause serious injuries
if it gets in the eyes or on the skin.
Keep flames and sparks away from open battery cells and do not allow metal tools to
contact the positive (
) or negative () terminal of the battery when working near a battery.
Do not allow the positive (
) terminal to contact the vehicle body:
Flames and sparks near open battery cells a re dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.
Maintenance and Care
Owner Maintenance
6-38
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

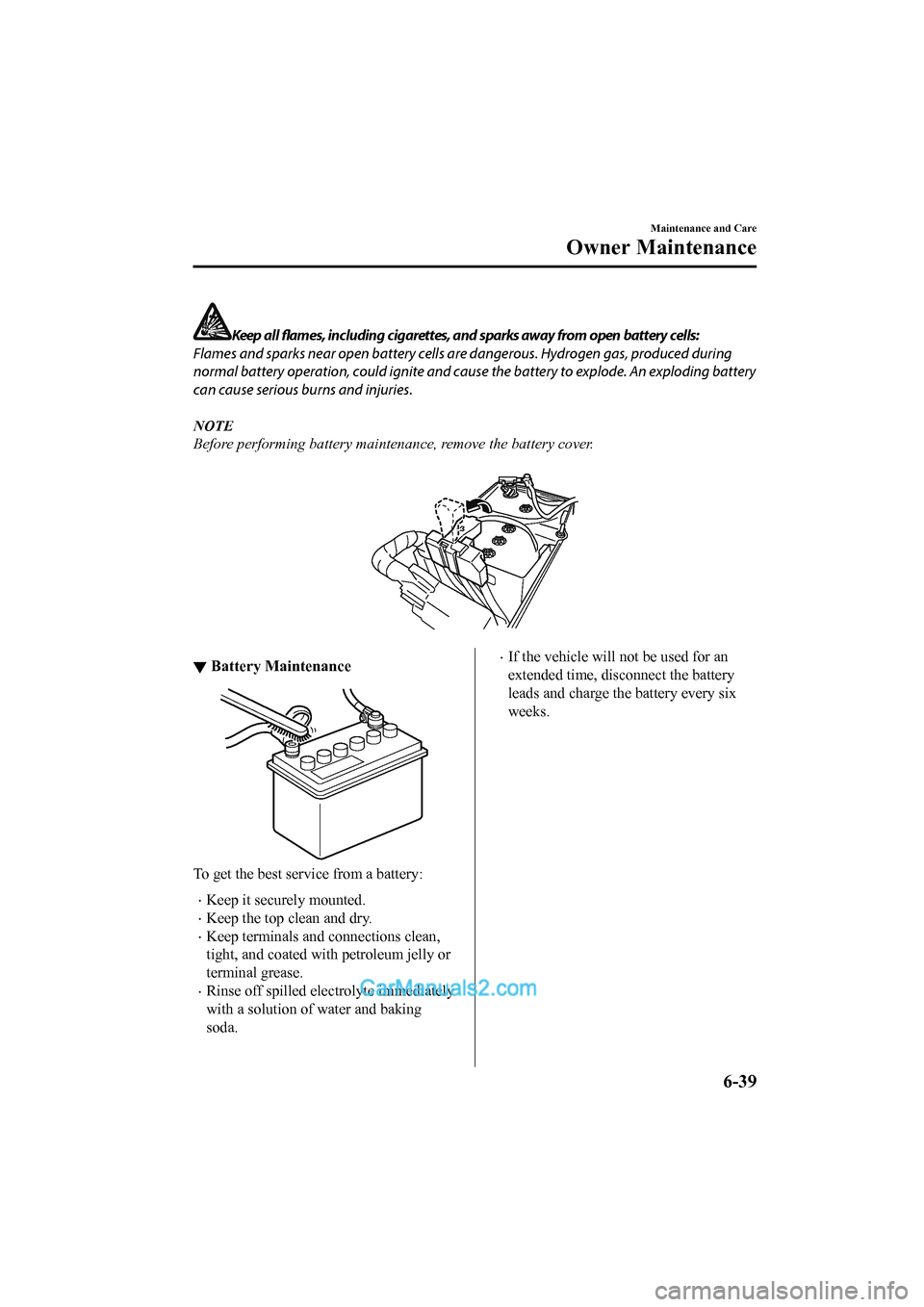

Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries.
NOTE
Before performing battery maintenance, remove the battery cover.

▼ Battery Maintenance
To get the best service from a battery:
•Keep it securely mounted.
•Keep the top clean and dry.
•Keep terminals and connections clean,
tight, and coated with
petroleum jelly or
terminal grease.
•Rinse off spilled electrolyte immediately
with a solution of water and baking
soda.
•If the vehicle will not be used for an
extended time, disconnect the battery
leads and charge the battery every six
weeks.
Maintenance and Care
Owner Maintenance
6-39
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

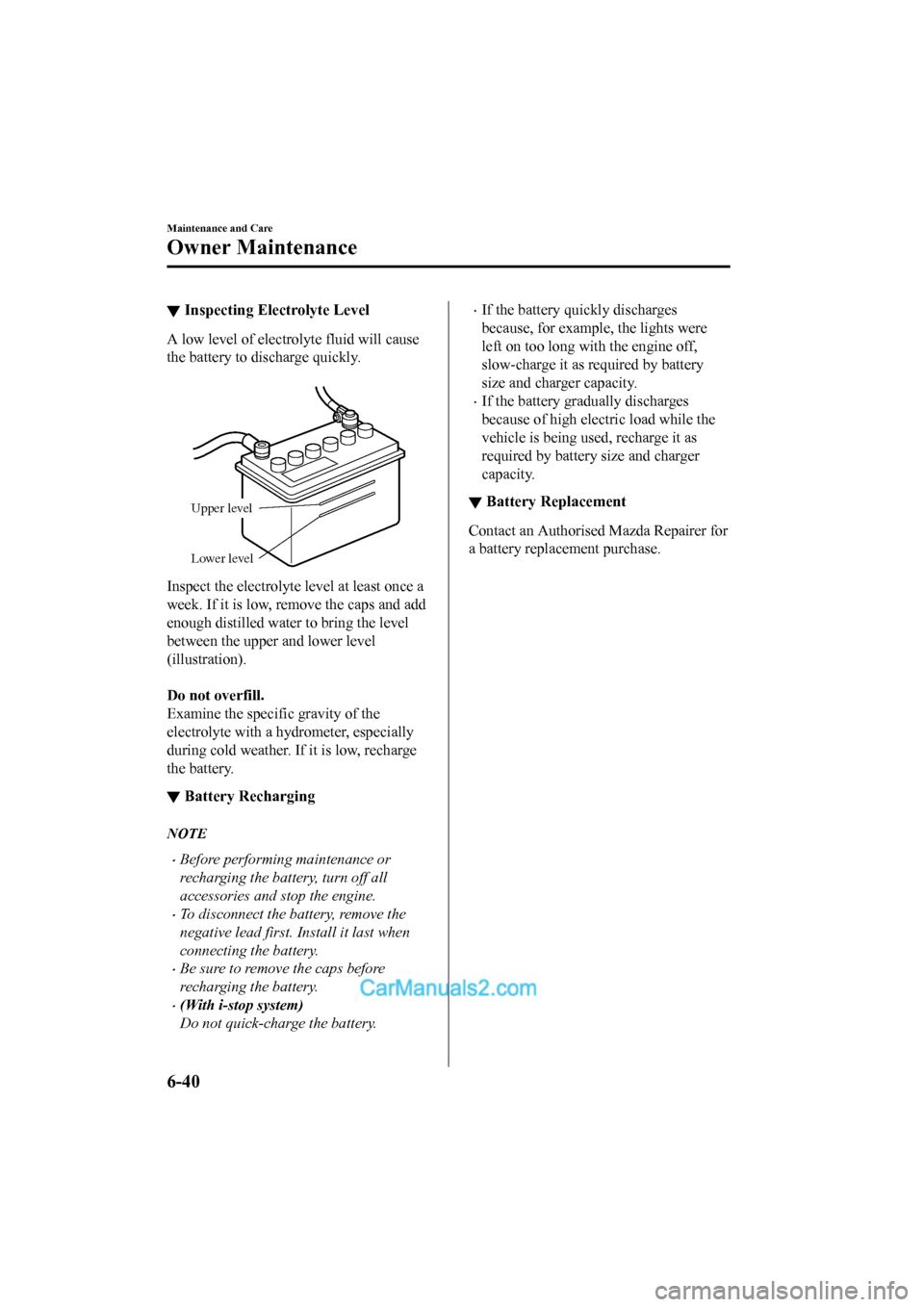

▼Inspecting Electrolyte Level
A low level of electrolyte fluid will cause
the battery to discharge quickly.

Upper level
Lower level
Inspect the electrolyte level at least once a
week. If it is low, re move the caps and add
enough distilled water to bring the level
between the upper and lower level
(illustration).

Do not overfill.
Examine the specific gravity of the
electrolyte with a hydrometer, especially
during cold weather. If it is low, recharge
the battery.
▼ Battery Recharging
NOTE
•Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
•To disconnect the battery, remove the
negative lead first. Install it last when
connecting the battery.
•Be sure to remove the caps before
recharging the battery.
•(With i-stop system)
Do not quick-charge the battery.
•If the battery quickly discharges
because, for example, the lights were
left on too long with the engine off,
slow-charge it as required by battery
size and charger capacity.
•If the battery gradually discharges
because of high electric load while the
vehicle is being used, recharge it as
required by battery
size and charger
capacity.
▼ Battery Replacement
Contact an Authorised Mazda Repairer for
a battery replacement purchase.
Maintenance and Care
Owner Maintenance
6-40
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Key Battery Replacement
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
 Make sure the battery is installed
correctly. Battery leakage could occur if it
is not installed correctly.
 When replacing the battery, be careful
not to touch any of the internal circuitry
and electrical terminals, bend the
electrical terminals, or get dirt in the
transmitter as the transmitter could be
damaged.
 There is the danger of explosion if the
battery is not correctly replaced.
 Dispose of used batteries according to
the following instructions.
 Insulate the plus and minus terminals
of the battery using cellophane or
equivalent tape.
 Never disassemble.
 Never throw the battery into fire or
water.
 Never deform or crush.
 Replace only with the same type battery
(CR2025 or equivalent).
The following conditions indicate that the
battery power is low:
•The KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is turned off
(for vehicles with a type A instrument
cluster (page 4-42), messages are
displayed in the instrument cluster).
•The system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
•The system's operational range is
reduced.
Replacing the battery at an Authorised
Mazda Repairer is recommended to
prevent damage to the key. If replacing the
battery by yourself, fo llow the instruction.
Replacing the key battery
1. Press the knob and pull out the auxiliary key.
Knob
Maintenance and Care
Owner Maintenance
6-41
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

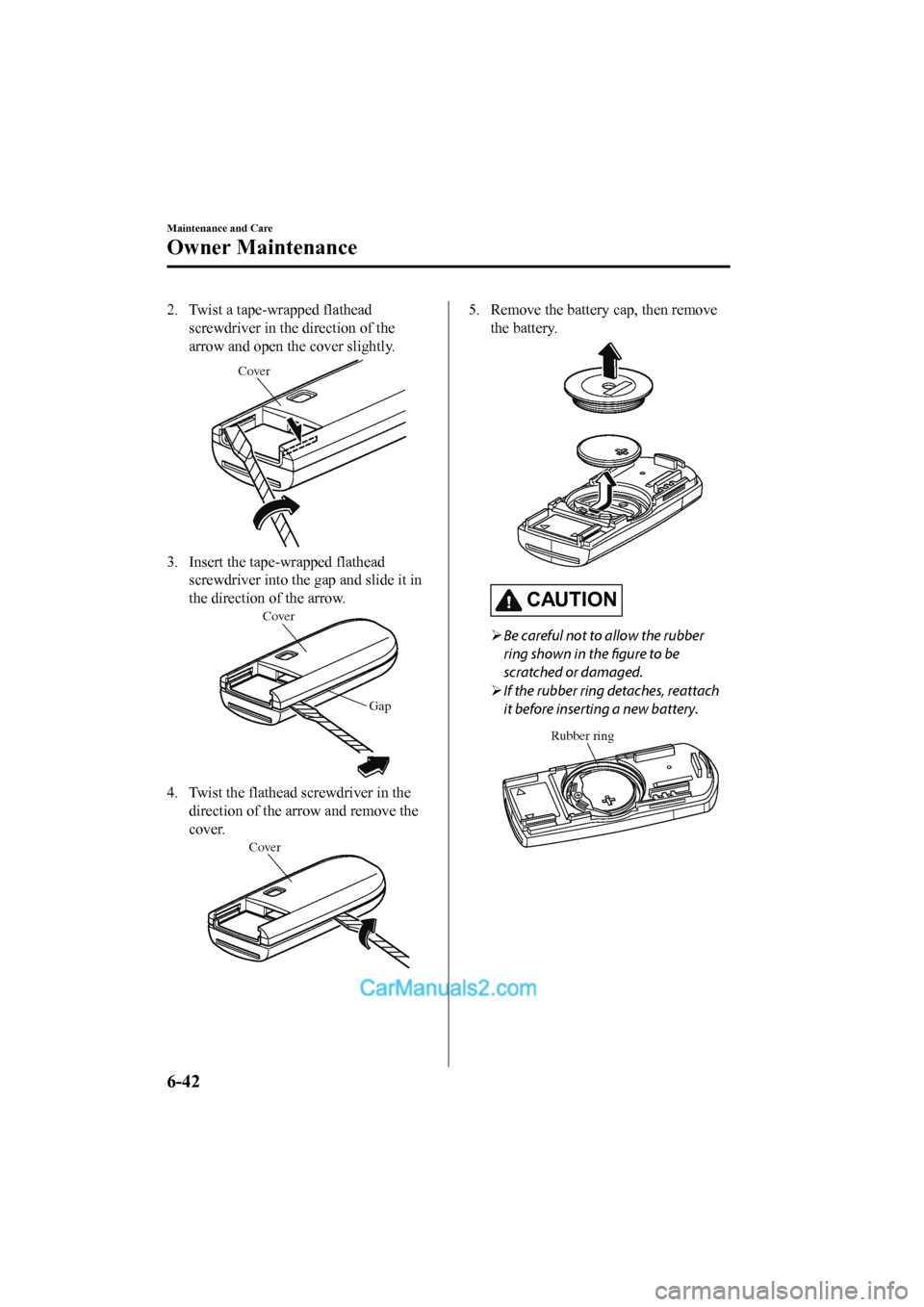

2. Twist a tape-wrapped flatheadscrewdriver in the direction of the
arrow and open the cover slightly.
Cover
3. Insert the tape-wrapped flatheadscrewdriver into the gap and slide it in
the direction of the arrow.
Cover
Gap
4. Twist the flathead screwdriver in thedirection of the arrow and remove the
cover.
Cover
5. Remove the battery cap, then remove
the battery.
CAUTION
Be careful not to allow the rubber
ring shown in the figure to be
scratched or damaged.
 If the rubber ring detaches, reattach
it before inserting a new battery.
Rubber ring
Maintenance and Care
Owner Maintenance
6-42
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

6. Insert a new battery with the positivepole facing up, and then cover the
battery with the battery cap.
7. Close the cover.
8. Reinsert the auxiliary key.
Ty r e s
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tyre inflation pressures and
stay within the recommended load limits
and weight distribution.
WA R N I N G
Using Different Tyre Types:
Driving your vehicle with different types of
tyres is dangerous. It could cause poor
handling and poor braking; leading to loss
of control.
Except for the limited use of the temporary
spare tyre, use only the same type tyres
(radial, bias-belted, bias-type) on all four
wheels.
Using Wrong-Sized Tyres:
Using any other tyre size than what is
specified for the vehicle (page 9-9) is
dangerous. It could seriously affect ride,
handling, ground clearance, tyre clearance,
and speedometer calibration. This could
cause you to have an accident. Use only
tyres that are the correct size specified for
the vehicle.
▼ Tyre Inflation Pressure
WA R N I N G
Always
inflate the tyres to the correct
pressure:
Overinflation or underinflation of tyres is
dangerous. Adverse handling or
unexpected tyre failure could result in a
serious accident.
Refer to Tyres on page 9-9.
Maintenance and Care
Owner Maintenance
6-43
