2Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
Seats.................................................... 2-2 Seat Precautions............................2-2
Front Seat......................................2-5
Rear Seat.......................................2-9
Head Restraints...........................2-15
Seat Belt Systems...... ....................... 2-17
Seat Belt Precautions.................. 2-17
Seat Belt......................................2-20
Seat Belt Warning Systems.........2-21
Seat Belt Pretensioner and Load
Limiting Systems........................ 2-21
Child Restraint................................ 2-24 Child-Restraint Precautions........ 2-24
Child-Restraint System
Installation.................................. 2-29
Child-Restraint System Suitability
for Various Seat Positions
Table........................................... 2-34
Installing Child-Restraint
Systems....................................... 2-38
SRS Air Bags....................................2-41
Supplementary Restraint System
(SRS) Precautions.......................2-41
Supplementary Restraint System
Components................................ 2-48
How the SRS Air Bags Work..... 2-50
SRS Air Bag Deployment
Criteria........................................ 2-54
Limitations to SRS Air Bag........2-56
Front Passenger Occupant
Classification System
*................2-58
Constant Monitoring...................2-63
*Some models.2-1
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Seat Precautions
WA R N I N G
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop
or collision, the seat or seatback could move, causing injury. Make sure the adjustable
components of the seat are locked in place by attempting to slide the seat forward and
backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's
hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can a llow passengers to be ejected or thrown around
and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After
adjusting the seatback at any time, even when there are no other passengers, rock the
seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts
is dangerous. The front seats contain air bag components essential to the supplementary
restraint system. Such modifications could damage the supplementary restraint system and
result in serious injury. Consult an Authorised Mazda Repairer if there is any need to remove or
reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats, such as se at cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to
inflate the air bags, could
damage the front seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always have an
Authorised Mazda Repairer inspect the front seat s, front seat belt pretensioners and air bags
after a collision.
Essential Safety Equipment
Seats
2-2
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not get
the full protection from seat belts. During sudden braking or a collision, you can slide under
the lap belt and suffer serious internal injuri es. For maximum protection, sit well back and
upright.
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, wh ich could result in a serious accident, injury or
death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fixed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fly around and become projectiles that may hit and injure
passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden
braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on
the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or
even a minor collision, a child not in a proper seat or child-restraint system and seat belt could
be thrown forward, back or even out of the vehi cle resulting in serious injuries or death. The
child in the baggage area could be thrown into other occupants and cause serious injury.
CAUTION
 When operating a seat, be careful not to put yo ur hands or fingers near the moving parts of
the seat or on the side trim to prevent injury.
 When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo.
Essential Safety Equipment
Seats
2-3
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raisi ng the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to i ts original position and the seatback is locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, pr ess the front or rear side of the reclining switch. Release the
switch at the de sired position.
Lumbar Support Adjustment (Driver's Seat)*
(Manual Seat)
To increase the seat firmness, move the lever downward. Move th e lever upward to decrease
firmness.
(Power Seat)
To increase the seat firmness, press and hold the front part of the switch to the desired
position, then release it.
Press the rear part of the switch to decrease firmness.

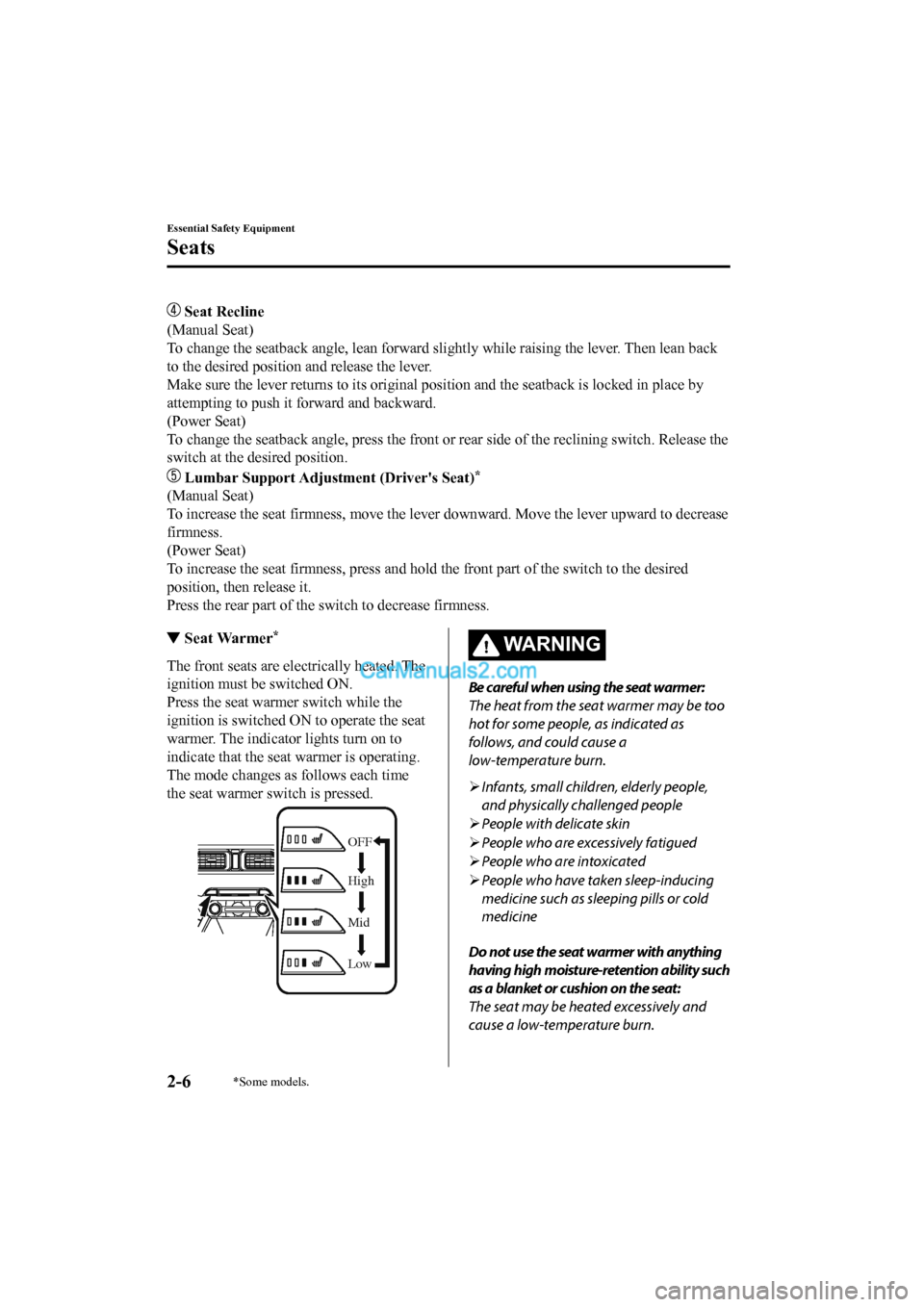

▼ Seat Warmer*
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicato
r lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
OFF
High
Mid
Low
WA R N I N G
Be careful when using the seat warmer:
The heat from the seat warmer may be too
hot for some people, as indicated as
follows, and could cause a
low-temperature burn.
 Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Do not use the seat warmer with anything
having high moisture-retention ability such
as a blanket or cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.
Essential Safety Equipment
Seats
2-6*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

NOTE
When you fold down the left seatback, the
centre seatback folds down at the same
time.
Using remote handle
*
1.(With rear seat warmer)
Turn the rear seat warmer switch off.
Refer to Seat Warmer on page 2-14.
2. After checking that the rear seats are
clear, open the liftgate and lower the
seatback you want to fold down using
the remote handle.
When folding the left side, operate the
outer part of the remote handle.
WA R N I N G
Always remove the child-restraint system
from the rear seat before operating the
remote handle for the rear seat:
Operating the remote handle while a
rear-facing child-restraint system is in the
rear seat is dangerous. It could cause injury
to a child seated in the child-restraint
system when the seatback suddenly flips
forward.
Make sure there is nobody in the rear seat
area before operating (pulling) the remote
handle:
Not checking the rear seat area for persons
before folding the seatbacks with the strap/
remote handle is dangerous. The rear seat
area is difficult to see from the rear of the
vehicle. Operating (pulling) the remote
handle without checking could cause injury
to a person when a se atback suddenly flips
forward.
CAUTION
 Before folding the seatbacks down with
the remote handle, make sure there is no
cup in a rear cup holder. Folding the
seatbacks with the remote handle while
a cup is in the cup holder could soil or
damage the seat bottom and seatback.
 Be careful of the following when using
the remote handle:
 On a downward slope, the seatback
could flip forward faster than on a flat
surface.
 On an upward slope, the seatback may
not fold down. When the seatbacks
cannot be folded down with the
remote handle, pull the rear seatback
forward from inside the vehicle.
Essential Safety Equipment
Seats
2-10*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

(Folding the left seatback)
Be careful when operating the remote
handle with the centre seatback folded
down. If a person sitting in the right rear
seat places a hand on the centre
seatback, it could be pinched by a
seatback or seat component causing
injury.
Using the lever
1. (With rear seat warmer)
Turn the rear seat warmer switch off.
Refer to Seat Warmer on page 2-14.
2. Pull the lever and fold the seatback forward.
Folding only centre seatback
Using remote handle*
1.(With rear seat warmer)
Turn the rear seat warmer switch off.
Refer to Seat Warmer on page 2-14.
2. If the centre head restraint is in the position for use, store it.
3. After checking that the centre seat is
clear, open the lift gate and pull the
inside remote handle on the left side of
the liftgate compartment.
WA R N I N G
Always remove the child-restraint system
from the rear seat before operating the
remote handle for the rear seat:
Operating the remote handle while a
rear-facing child-restraint system is in the
rear seat is dangerous. It could cause injury
to a child seated in the child-restraint
system when the seatback suddenly flips
forward.
Make sure there is nobody in the rear seat
area before operating (pulling) the remote
handle:
Not checking the rear seat area for persons
before folding the seatbacks with the strap/
remote handle is dangerous. The rear seat
area is difficult to see from the rear of the
vehicle. Operating (pulling) the remote
handle without checking could cause injury
to a person when a seatback suddenly flips
forward.
Essential Safety Equipment
Seats
*Some models.2-11
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

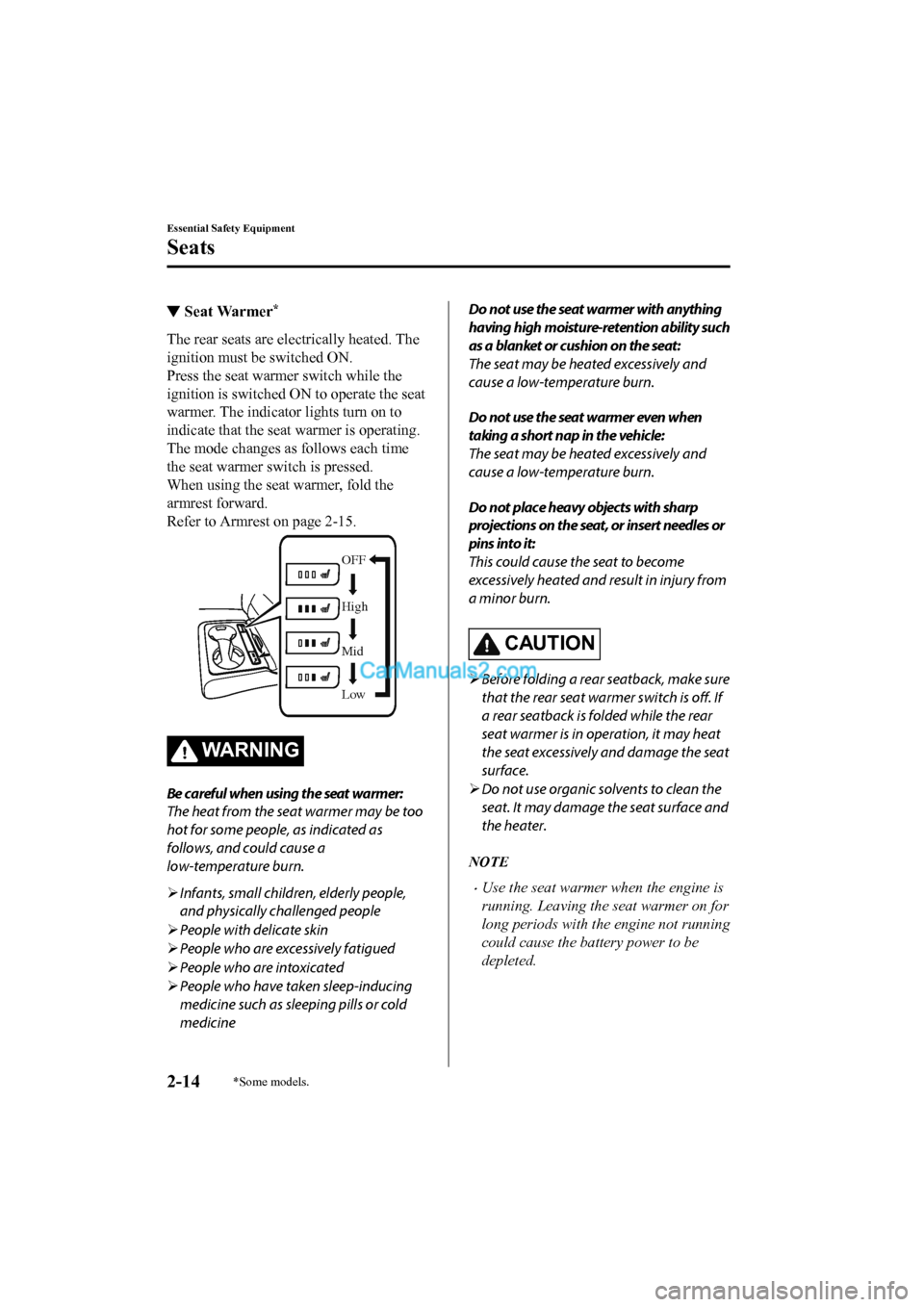

▼Seat Warmer*
The rear seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicato
r lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
When using the seat warmer, fold the
armrest forward.
Refer to Armrest on page 2-15.
OFF
High
Mid
Low
WA R N I N G
Be careful when using the seat warmer:
The heat from the seat warmer may be too
hot for some people, as indicated as
follows, and could cause a
low-temperature burn.
Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Do not use the seat warmer with anything
having high moisture-retention ability such
as a blanket or cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert needles or
pins into it:
This could cause the seat to become
excessively heated and result in injury from
a minor burn.
CAUTION
Before folding a rear seatback, make sure
that the rear seat warmer switch is off. If
a rear seatback is folded while the rear
seat warmer is in operation, it may heat
the seat excessively and damage the seat
surface.
 Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
•Use the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
Essential Safety Equipment
Seats
2-14*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
