Interior Features
Audio Set [Type A (non-touchscreen)]
Operating the Radio
Band selector buttonChannel preset
buttons
Scan button Auto memory button
Tuning button Audio display

Radio ON
Press a band selector button ( ) to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1→FM2→AM.

The selected mode will be indicated.
NOTE
If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise.

Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Select the station by pressing the tuning
button (
, ) lightly.
Seek tuning
Automatic search for radio stations starts
when the tuning button (
, ) is pressed
until a beep sound is heard. The search
stops when a station is found.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.

CX-5_8FN1-EA-16L_Edition1.indb 242016/12/12 10:06:29

5–74
Interior Features
Audio Set [Type B (touchscreen)]
Volume/Display/Sound Controls

Commander switchAudio control switch
Volume switch
Volume dial

Volume adjustment
Turn the commander switch volume dial.
The volume switch on the steering switch
can also be pressed.
Display setting
Select the icon on the home screen to
display the Settings screen.
Select the
tab to select the item you
would like to change.
Display OFF/Clock
The center display can be turned off.
Select
to turn the display off.
When
is
selected the center display turns off and
the clock is displayed.
The center display can be turned back on
as follows:
   Touch the center display.  Operate the commander switch.
Daytime/nighttime (System) screen
setting
The daytime or nighttime screen can be
selected.

: Switches screen automatically
according to headlight illumination
condition
*1

: Daytime screen setting

: Nighttime screen setting
*1 The display is constantly on daytime screen when the illumination dimmer is
cancelled.

Brightness adjustment
Adjust the center display brightness using
the slider.
Contrast adjustment
Adjust the center display contrast using
the slider.
Display setting reset
All of the screen setting values can be
reset to their initial settings.

1. Select .
2. Select
.
CX-5_8FN1-EA-16L_Edition1.indb 742016/12/12 10:06:38

5–124
Interior Features
Audio Set [Type B (touchscreen)]
Settings
NOTE
Depending on the grade and specifi cation, the screen display may differ.
Select the icon on the home screen and display the Settings screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:

Tab Item Function
AD-Disp Height
Brightness Control
Other Refer to Active Driving Display on page
4-28 .
Display Refer to Volume/Display/Sound Controls on page 5-74 .
Safety Distance Recognition Support System
SBS/SCBS
Other Refer to Personalization Features on page
9-11 .
Sound Refer to Volume/Display/Sound Controls on page 5-74 .
Clock Adjust Time
Displays the currently set time is displayed.
Press
to advance the hour/minute, and select
to move the hour/minute back.
AM/PM can only be selected with the 12-hour
clock display.
GPS Sync Synchronizes with GPS when turned on.
When turned off, the time can be changed from
“Adjust Time”.
Time Format Changes the display between 12 and 24-hour
clock time.
Time Zone Select When it's not synchronized with GPS, select
the region you want to specify.
Daylight Savings Time Turns the daylight saving time setting on/off.
When ON, the time advances 1 hour. When
OFF, it returns to normal time.
Vehicle Rain Sensing Wiper
Door Locks
Other Refer to Personalization Features on page
9-11 .
Devices Bluetooth Refer to Bluetooth
® Preparation on page
5-94 .
CX-5_8FN1-EA-16L_Edition1.indb 1242016/12/12 10:06:58

5–126
Interior Features
Audio Set [Type B (touchscreen)]
Applications
NOTE
Depending on the grade and specifi cation,
the screen display may differ.

Select the icon on the home screen to
display the Applications screen. The
following information can be veri fi ed.

Top screen Item Function
HD Radio™ Traffi c
Map —
—
Fuel Economy
Monitor Fuel
Consumption
Display Refer to Fuel
Economy
Monitor on
page 4-86 .
Vehicle
Status
Monitor
Maintenance
Scheduled
Maintenance
Tire Rotation
Oil Change Refer to
Maintenance
Monitor on
page 6-16 .
Warning
Guidance Warnings
currently
active can be
verifi
ed. Refer to If
a Warning
Light Turns
On or Flashes
on page
7-23 .

CX-5_8FN1-EA-16L_Edition1.indb 1262016/12/12 10:06:58

5–133
Interior Features
Appendix
FM characteristics
An FM broadcast range is usually about
40—50 km (25—30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.
FM Station
40—50km
(25—30 miles)

Signals from an FM transmitter are similar
to beams of light because they do not
bend around corners, but they do re fl ect.
Unlike AM signals, FM signals cannot
travel beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.

AM wave
FM wave
FM wave
100—200 km (60—120 miles) Ionosphere

Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days may
provide better reception than clear days. Multipath noise
Since FM signals can be re
fl ected by
obstructions, it is possible to receive both
the direct signal and the re fl ected signal
at the same time. This causes a slight
delay in reception and may be heard as a
broken sound or a distortion. This problem
may also be encountered when in close
proximity to the transmitter.

Reflected wave
Direct

Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.


CX-5_8FN1-EA-16L_Edition1.indb 1332016/12/12 10:06:59

5–138
Interior Features
Interior Equipment
*Some models.

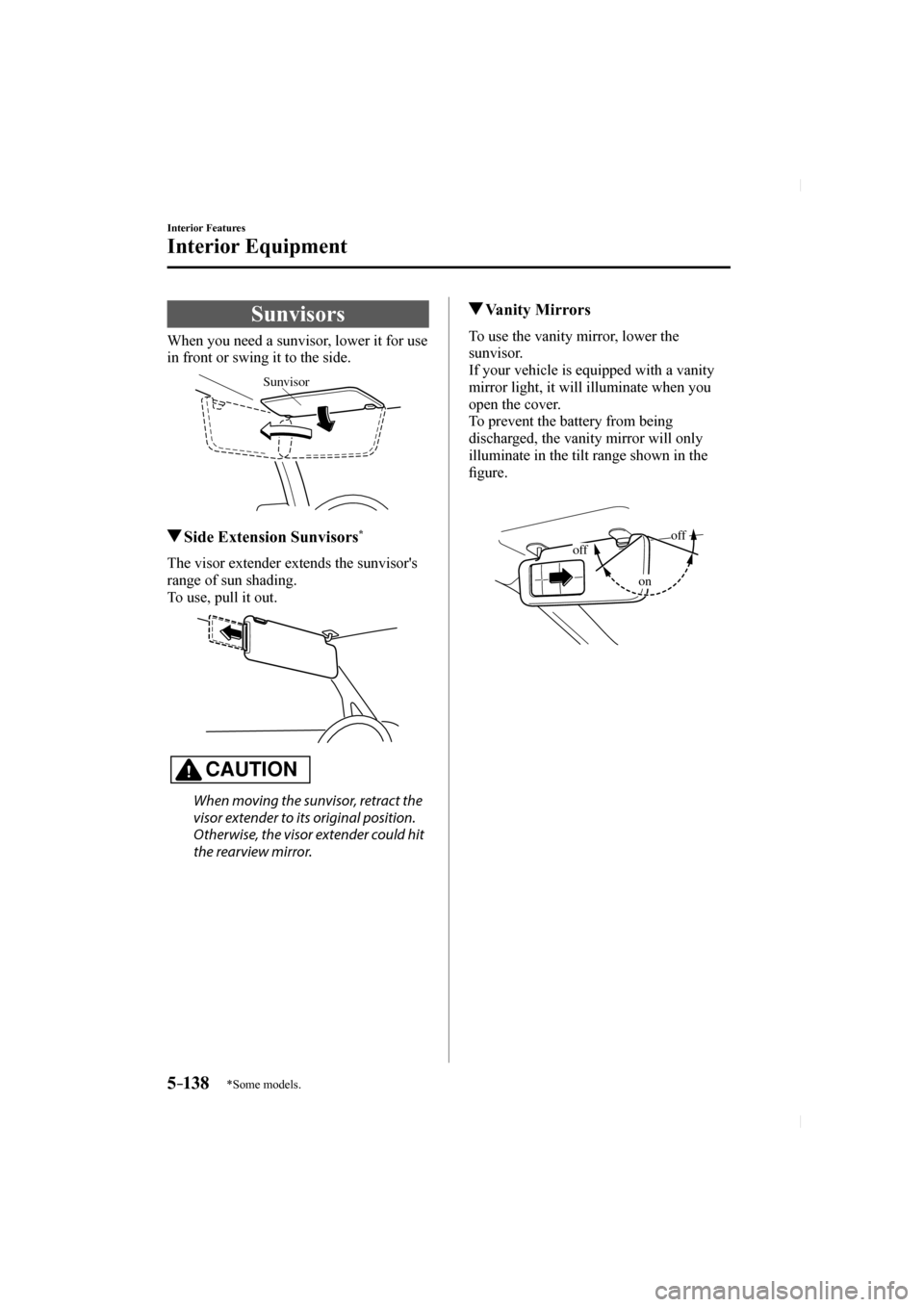

Sunvisors
When you need a sunvisor, lower it for use
in front or swing it to the side.
Sunvisor

Side Extension Sunvisors *
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.

CAUTION
When moving the sunvisor, retract the
visor extender to its original position.
Otherwise, the visor extender could hit
the rearview mirror.

Vanity Mirrors
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
To prevent the battery from being
discharged, the vanity mirror will only
illuminate in the tilt range shown in the
fi gure.


offoff
on

CX-5_8FN1-EA-16L_Edition1.indb 1382016/12/12 10:07:00

5–139
Interior Features
Interior Equipment
Interior Lights
NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.

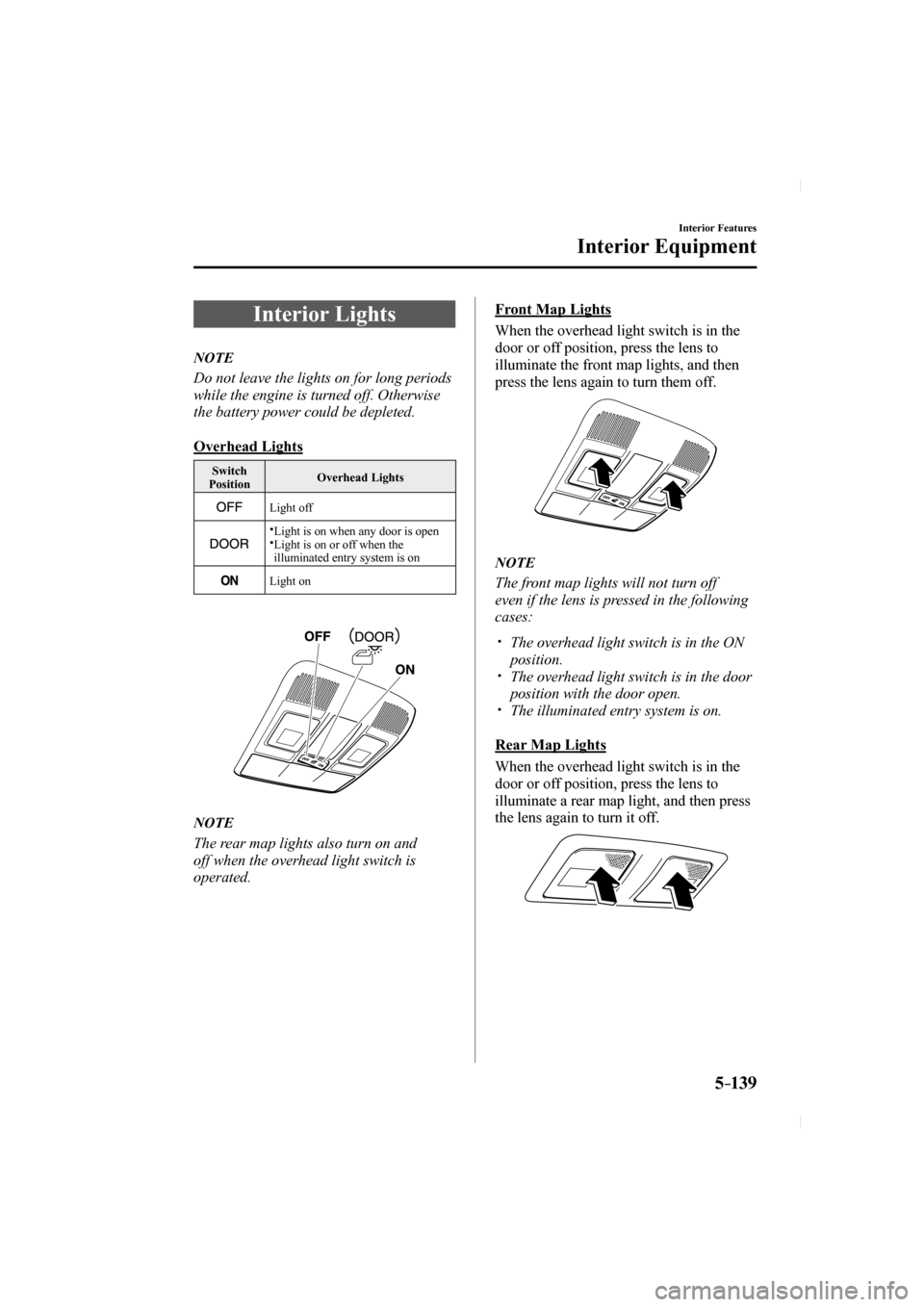

Overhead Lights
Switch
Position Overhead Lights

Light off


 Light is on when any door is open
 Light is on or off when the
illuminated entry system is on

Light on



NOTE
The rear map lights also turn on and
off when the overhead light switch is
operated.

Front Map Lights
When the overhead light switch is in the
door or off position, press the lens to
illuminate the front map lights, and then
press the lens again to turn them off.

NOTE
The front map lights will not turn off
even if the lens is pressed in the following
cases:
  The overhead light switch is in the ON
position.
  The overhead light switch is in the door
position with the door open.
  The illuminated entry system is on.
Rear Map Lights
When the overhead light switch is in the
door or off position, press the lens to
illuminate a rear map light, and then press
the lens again to turn it off.


CX-5_8FN1-EA-16L_Edition1.indb 1392016/12/12 10:07:01

5–14 0
Interior Features
Interior Equipment
NOTE
  Once the rear map lights have been
turned off, they will turn on and off
depending on the position to which the
overhead light is switched.
  The rear map lights will not turn
off even if the lens is pressed in the
following cases:
  The overhead light switch is ON.  The overhead light switch is in the
door position with the door open.
  The illuminated entry system is on.

Luggage Compartment Lights


Switch
Position Luggage Compartment Light

Light off

Light on when the liftgate is open

Illuminated Entry System
When the illuminated entry system
operates, the overhead lights turn on in the
following conditions:
 
 The driver's door is unlocked after the
ignition is switched OFF.
   The ignition is switched OFF with all
doors closed.

NOTE
   The illuminated entry system operates
when the overhead light switch is in the
DOOR position.
  The illumination time differs depending
on the operation.
  Battery saver  If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about
30 minutes to prevent battery depletion.
  The operation of the illuminated entry
system can be changed.
 Refer to Personalization Features on page 9-11 .

CX-5_8FN1-EA-16L_Edition1.indb 1402016/12/12 10:07:01

5–141
Interior Features
Interior Equipment
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.


Center, Rear
The accessory sockets can be used
regardless of whether the ignition is on or
off.


CenterRear

CAUTION
 To prevent accessory socket damage or electrical failure, pay attention to the
following:
 Do not use accessories that require more than 120 W (DC 12 V, 10 A).
 Do not use accessories that are not genuine Mazda accessories or the
equivalent.
 Close the cover when the accessory socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.
 Correctly insert the plug into the accessory socket.
 Do not insert the cigarette lighter into the accessory socket.
 Noise may occur on the audio playback depending on the device connected to
the accessory socket.
 Depending on the device connected to the accessory socket, the vehicle's
electrical system may be aff ected,
which could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem
is resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off . If the
problem is not resolved, consult an
Authorized Mazda Dealer.

NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.

CX-5_8FN1-EA-16L_Edition1.indb 1412016/12/12 10:07:01

5–14 5
Interior Features
Interior Equipment
Storage Compartments
WARNING
Keep storage boxes closed when
driving: Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.

Do not put articles in storage spaces
with no lid: Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.

CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.

Overhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.


Glove Compartment
To open the glove compartment, pull the
latch toward you.


To close the glove compartment,
fi rmly press in the center of the glove
compartment lid.
Center Console
To open, pull the release latch.


Storage tray
The storage tray can be removed.

Storage tray

CX-5_8FN1-EA-16L_Edition1.indb 1452016/12/12 10:07:03
