SignalWarning
Power Steering Mal-
function Indication*
The message is displayed if the electric power steering has a m alfunction.
If the message is displayed, st op the vehicle in a safe place a nd do not operate the
steering wheel. There is no problem if the message in the displ ay turns off after a
while. Contact an Authorized Mazda Dealer if the message is dis played continuously.
NOTE
•If the message is displayed, the power steering will not operate normally. In this
case, the steering wheel can still be operat ed, however, the operation may feel heavy
compared to normal, or the steerin g wheel could vibrate when turning.
•Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the power steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem. If
this occurs, park the vehicle safely and wait several minutes for the system to return
to normal.
Power Steering Mal- function Indicator
Light
*
The light illuminates/flashes if the electric power steering ha s a malfunction.
If the light illuminates/flashes, stop the vehicle in a safe pl ace and do not operate the
steering wheel. There is no problem if the light turns off afte r a while. Contact an Au-
thorized Mazda Dealer if the lig ht illuminates/flashes continuously.
NOTE
•If the indicator light illuminates/flashes, the power steering will not operate normal-
ly. If this happens, the steering wheel can still be oper ated, however, the operation
may feel heavy compar ed to normal, or the steering wheel could vibrate when turn-
ing.
•Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the power steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem. If
this occurs, park the vehicle safely and wait several minutes for the system to return
to normal.
▼ Contact Authorized Mazda Deal
er and Have Vehicle Inspected
If any of the following warning lights o r the indicator light turns on/flashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.
SignalWarning
ABS Warning LightIf the ABS warning light stays
on while you're driving, the ABS control unit has detected
a system malfunction. If this occurs, your brakes will function normally as if the vehicle
had no ABS.
Should this happen, consult an A uthorized Mazda Dealer as soon as possible.
NOTE
•When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
•The brake assist system does not operate wh ile the ABS warning light is illuminated.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-26*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

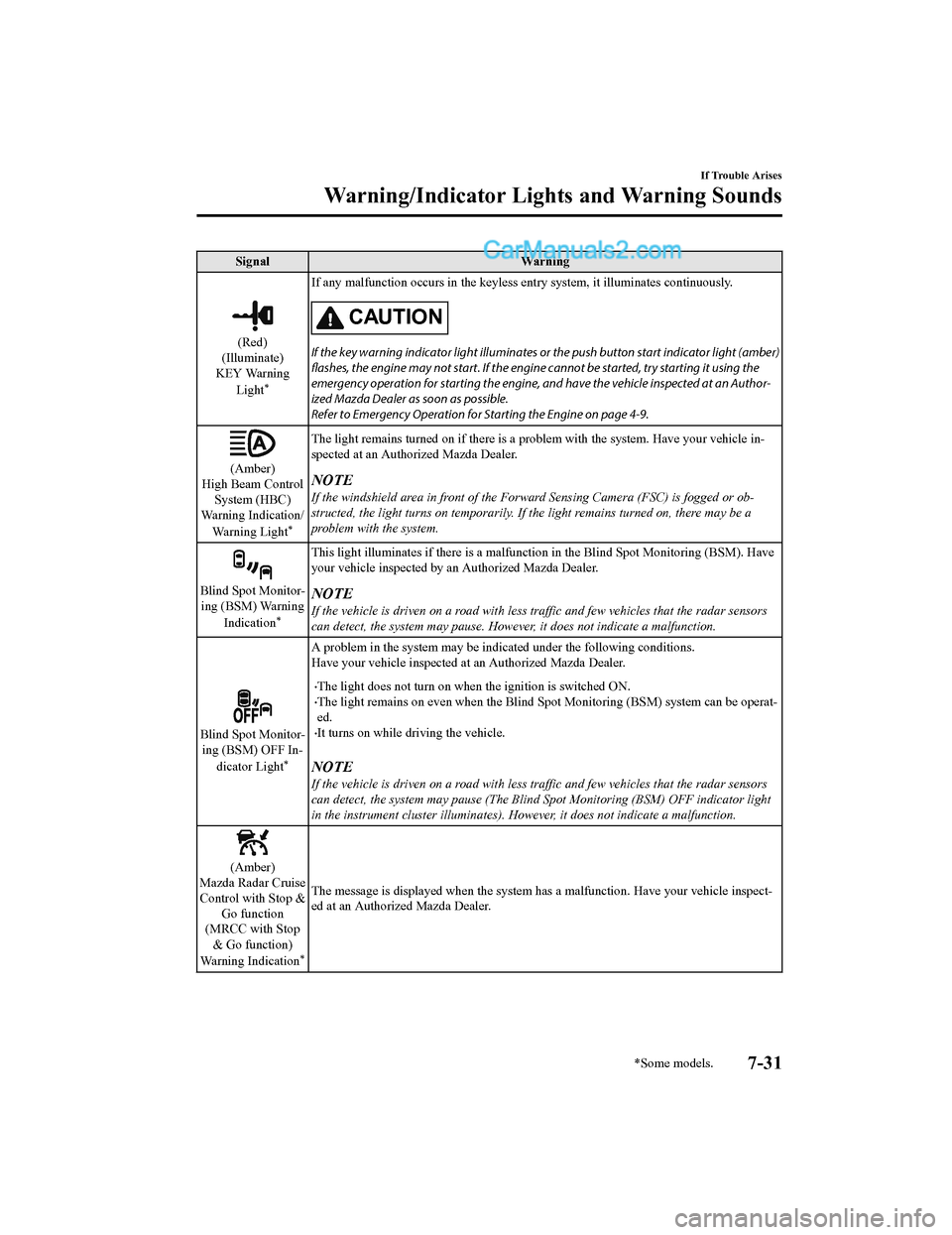

SignalWarning
(Red)
(Illuminate)
KEY Warning
Light
*
If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light (amber)
flashes, the engine may not start. If the engine cannot be started, try starting it using the
emergency operation for starting the engine, and have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-9.
(Amber)
High Beam Control
System (HBC)
Warning Indication/
Warning Light
*
The light remains turned on if th ere is a problem with the system. Have your vehicle in-
spected at an Authorized Mazda Dealer.
NOTE
If the windshield area in front of the Fo rward Sensing Camera (FSC) is fogged or ob-
structed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
Blind Spot Monitor- ing (BSM) Warning
Indication
*
This light illuminates if there i s a malfunction in the Blind Spot Monitoring (BSM). Have
your vehicle inspected by an Authorized Mazda Dealer.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause. How ever, it does not indicate a malfunction.
Blind Spot Monitor-
ing (BSM) OFF In-
dicator Light
*
A problem in the system may be i ndicated under the following conditions.
Have your vehicle inspected a t an Authorized Mazda Dealer.
•The light does not turn on when the ignition is switched ON.•The light remains on even when the Blind Spot Monitoring (BSM) system can be operat-
ed.
•It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause (The Blin d Spot Monitoring (BSM) OFF indicator light
in the instrument cluster illuminates). However, it does not indicate a malfunction.
(Amber)
Mazda Radar Cruise
Control with Stop & Go function
(MRCC with Stop
& Go function)
Warning Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect-
ed at an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-31
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Message Indicated in Multi-information Display*
If there is a notification from the vehicle, a message is displayed in the mu lti-information
display. Check the information and take the necessary action.

(Display example)
If the warning light tu rns on/flashes simultaneously or a symbol is indicated in the display,
check the information regarding the warning light or symbol. (page 4-30)
Display Content Action to be taken
Indicated when the push button start is
pressed while the selector lever is not in
the P position. Shift the selector lever to the P position.
Indicated when the pu
sh button start is
pressed without de pressing the brake
pedal. Depress the brake pedal and press the
push button start.
Indicates when the Electric Parking
Brake (EPB) switch is operated without
depressing the brake pedal.Operate the Electric Parking Brake
(EPB) switch while depressing the brake
pedal.
Indicates when there is a problem with
the brake related system while the vehi-
cle is being held in a stop position by the
AUTOHOLD function or during the
Mazda Radar Cruise Control with Stop
& Go function (MRC
C with Stop & Go
function) stop hold control. Depress the brake pedal.
Cancel the AUTOHOLD function or the
Mazda Radar Cruise Control with Stop
& Go function (M
RCC with Stop & Go
function), and have your vehicle inspect-
ed at an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-38*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼Safety Practices
The way you drive has a great deal to do with your tire mileage
and safety. So cultivate
good driving habits for your own benefit.
•Observe posted speed limits and drive at speeds that are safe f or the existing weather
conditions
•Avoid fast starts, stops and turns
•Avoid potholes and objects on the road
•Do not run over curbs or hit the tire against the curb when parking
CAUTION
If you feel a sudden vibration or ride disturbance while driving or you suspect your tire or
vehicle has been damaged, immediately reduce yo ur speed. Drive with caution until you can
safely pull off the road. Stop and inspect the tire for damage. If the tire is under-inflated or
damaged, deflate it, remove the tire and rim and replace it with your spare tire. If you cannot
detect a cause, have the vehicle towed to the ne arest vehicle or tire dealer to have the vehicle
inspected.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-33
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Index
A
Accessory Socket............................ 5-131
Active Driving Display..................... 4-27
Adaptive Front Lighting System
(AFS)................................................. 4-89
Add-On Non-Genuine Parts and
Accessories........................................ 8-17
Advanced Key
Advanced keyless entry system..... 3-9
Operational range........................ 3-10
Advanced Key Removed from Vehicle
Warning Beep.................................... 7-43
Advanced Smart City Brake Support
(Advanced SCBS)........................... 4-136
Collision warning.... .................. 4-138
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-138
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
system operation........................ 4-139
Air Bag Systems............................... 2-44
Air Bag/Front Seat Belt Pretensioner
System Warning Beep....................... 7-42
Ambient Temperature Display.......... 4-16
Antilock Brake System (ABS).......... 4-75
Armrest Box.................................... 5-136
Audio Control Switch Adjusting the Volume.................. 5-15
Seek Switch................................. 5-15
Audio Set [Type A (non-touchscreen)] AUX.............................................5-24
Bluetooth®.................................. 5-32
Clock............................................5-22
Error Indications.......................... 5-31
iPod mode....................................5-28
Power/Volume/Sound Controls... 5-20
Radio............................................5-23
Troubleshooting.......... ................. 5-61
USB............................................. 5-25
Voice Recognition.... ................... 5-57
Audio Set [Type B (touchscreen)]
Applications............................... 5-117
AUX.............................................5-80
Bluetooth®.................................. 5-86
Radio............................................5-73
Satellite Radio........ ..................... 5-77
Settings...................................... 5-115
Troubleshooting........... .............. 5-118
USB............................................. 5-81
Voice Recognition......................5-112
Volume/Display/Sound
Controls....................................... 5-70
Audio System
Antenna........................................5-19
Appendix................................... 5-122
Audio Control Switch................. 5-15
Audio Set [Type A (non-
touchscreen)]............................... 5-20
Audio Set [Type B
(touchscreen)].............................. 5-65
AUX/USB mode..........................5-16
Before Using the Audio
System......................................... 5-15
AUTOHOLD..................................... 4-69
AUTOHOLD Warning Beep.............7-45
Automatic Transaxle......................... 4-37 Active Adaptive Shift (AAS)...... 4-39
Automatic transaxle controls....... 4-37
Driving tips..................................4-45
Manual shift mode.......................4-40
Shift-lock system......................... 4-38
Transaxle ranges.......................... 4-38
B
Battery............................................... 6-27Maintenance.................................6-28
Replacement................................ 6-28
Specifications.................................9-4
Battery Runs Out.............................. 7-14 Jump-starting............................... 7-14
10-2
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Index
J
Jack...................................................... 7-4
Jump-Starting.................................... 7-14
K
Keyless Entry System......................... 3-3
Keys.....................................................3-2Key suspend function.................... 3-8
Transmitter..................................... 3-4
Key Left-in-luggage Compartment
Warning beep (With the advanced
keyless function)............................... 7-44
Key Left-in-vehicle Warning Beep (With
the advanced keyless function)......... 7-44
Key Removed from Vehicle Warning
Beep...................................................7-43
Key Suspend Function........................ 3-8
L
Label Information............................... 9-2
Lane Departure Warning sound........ 7-46
Lane-change Signals......................... 4-52
Lane-keep Assist System (LAS) & Lane
Departure Warning System
(LDWS)........................................... 4-125
Leaving Home Light......................... 4-50
Liftgate.............................................. 3-20
When Liftgate Cannot be
Opened......................................... 7-47
Lighting Control................................4-46
Lights-on Reminder.......................... 7-42
Light Bulbs Replacement................................ 6-36
Specifications.................................9-7
Lubricant Quality................................ 9-5
Luggage Compartment.. ..................5-137
Cargo securing loops................. 5-137
Cargo sub-compartment............ 5-137
Luggage Compartment Light.......... 5-129
M
Maintenance
Information.................................... 6-2
Scheduled.......................................6-4
Maintenance Monitor........................ 6-10
Map Lights...................................... 5-129
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function).......................................... 4-112
Close proximity warning........... 4-115
Cruise control function.............. 4-122
Display indication...................... 4-114
Setting the system......................4-115
Stop hold control....................... 4-121
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function) System Warnings............... 7-46
Message Indicated in Multi-information
Display.............................................. 7-38
Message Indicated on Display.......... 7-40
Meters and Gauges............................4-11
Mirrors Outside mirrors............................ 3-34
Rearview mirror.......................... 3-35
Mirror Defogger.......... ...................... 4-58
Moonroof...........................................3-40
Multi-information Disp lay................ 4-19
Average fuel econom y.................4-24
Blind Spot Monitoring (BSM)
Display......................................... 4-25
Compass Display......................... 4-26
Cruise Control Set Vehicle Speed
Display......................................... 4-26
Current fuel economy. .................4-24
Distance Recognition Support System
(DRSS) Display........................... 4-25
Distance-to-empty... .................... 4-23
Engine Coolant Temperature
Gauge........................................... 4-22
Fuel Gauge.................................. 4-22
10-6
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Index
Saving Fuel and Protection of the
Environment...................................... 3-45
Scheduled Maintenance...................... 6-4
Seats.................................................... 2-5Driving position memory.............. 2-7
Front seat....................................... 2-5
Front seat warmer..........................2-6
Head restraint.............................. 2-16
Rear seat........................................ 2-9
Rear seat warmer......................... 2-14
Seat Belt System............................... 2-21 Automatic locking....................... 2-20
Emergency locking...................... 2-20
Extender....................................... 2-24
Pregnant women.......................... 2-20
Seat belt precautions................... 2-18
3-point type................................. 2-21
Seat Belt Warning Beep.................... 7-43
Security System
Immobilizer system..................... 3-43
Smart Brake Support (S BS)............ 4-144
Collision warning.... .................. 4-146
Stopping the Smart Brake Support
(SBS) system operation............. 4-146
Smart City Brake Support
(SCBS)............................................ 4-140
Collision warning.... .................. 4-142
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-142
Stopping the Smart City Brake
Support (SCBS) System
Operation................................... 4-143
Spare Tire............................................ 7-4
Specifications...................................... 9-4
Speedometer...................................... 4-13
SRS Air Bags Front passenger occupant
classification system.................... 2-58
How the SRS air bags work........ 2-52
Limitations to SRS air bag.......... 2-56
Monitoring................................... 2-62SRS air bag deployment
criteria.......................................... 2-55
Supplemental restraint system
components.................................. 2-51
Starting the Engine..............................4-5
Steering Wheel.................................. 3-33 Horn............................................. 4-59
Storage Compartments .................... 5-135
Armrest box............................... 5-136
Center console........................... 5-135
Glove compartment................... 5-135
Luggage compartment ............... 5-137
Overhead console...................... 5-135
Rear coat hooks........ ................. 5-139
Sunshade............................................3-42
Sunvisors......................................... 5-128
T
Tachometer........................................ 4-14
Three-flash Turn Signal.................... 4-52
Tiedown Hook.............. .............................. 7-21
Tires................................................... 6-31 Flat tire.......................................... 7-3
Replacing a tire........................... 6-33
Replacing a wheel....................... 6-35
Snow tires.................................... 3-48
Specifications.................................9-7
Temporary spare tire....................6-34
Tire chains................................... 3-49
Tire inflation pressure................. 6-31
Tire rotation................................. 6-32
Uniform tire quality grading system
(UTQGS)..................................... 8-21
Tire Inflation Pressure Warning
Beep...................................................7-45
Tire Information................................ 8-23
Tire Pressure Monitoring System.... 4-162
To w i n g Recreational towing.....................3-60
10-8
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Index
Trailer towing.............................. 3-52
Towing Description........................... 7-20
Traction Control System (TCS)........ 4-76 TCS OFF Indicator Light............ 4-77
TCS OFF Switch......................... 4-77
TCS/DSC indicator light............. 4-76
Traffic Sign Recognition System
(TSR)................................................. 4-99
Transmitter.......................................... 3-4
Trip Computer................................... 4-17
Trip Meter......................................... 4-13
Trouble Battery runs out........................... 7-14
Emergency starting...................... 7-17
Emergency towing....................... 7-20
Flat tire.......................................... 7-3
Overheating................................. 7-18
Parking in an emergency............... 7-2
When Liftgate Cannot be
Opened......................................... 7-47
Turn Signals...................................... 4-52
U
USB Power Outlet.......................... 5-132
V
Vanity Mirrors................................. 5-128
Vehicle Information Labels................. 9-2
W
Warning Indication/Warning
Lights.................................................4-30
Warning Sound is Activated............. 7-42 Advanced Key removed from vehicle
warning beep............................... 7-43
Air bag/front seat belt pretensioner
system warning beep................... 7-42
AUTOHOLD Warning Beep....... 7-45
Blind Spot Monitoring (BSM)
warning beep............................... 7-45
Collision warning........................ 7-46
Electric Parking Brake (EPB)
Warning Beep.............................. 7-44
Excessive speed warning.............7-46
Ignition not switched off (STOP)
warning beep............................... 7-43
Key left-in-luggage compartment
warning beep (With the advanced
keyless function)..........................7-44
Key left-in-vehicle warning beep
(With the advanced keyless
function).......................................7-44
Key removed from vehicle warning
beep..............................................7-43
Lane Departure Warning sound... 7-46
Lights-on reminder...................... 7-42
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) system
warnings.......................................7-46
Power Liftgate Warning Beep..... 7-44
Power steering warning buzzer....7-45
Request switch inoperable warning
beep (With the advanced keyless
function).......................................7-44
Seat belt warning beep................ 7-43
Tire inflation pressure warning
beep..............................................7-45
Warranty............................................ 8-14
Weights................................................ 9-6
Windows Power windows......... .................. 3-37
Windshield Washer........................... 4-56
Windshield Wipers............................ 4-53
Windshield Wiper De-icer................ 4-57
Winter Driving.................................. 3-48
Wiper
Replacing Rear Window Wiper
Blade............................................ 6-25
Replacing windshield wiper
blades........................................... 6-22
10-9
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27
