Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q47-EA-01F

ABS Warning Light
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you’re driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function
normally as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
Air Bag System Warning Light
If the air bag system is OK, the warning
light comes on when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds it
goes out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn’t come on at all. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
Self-Servicing the Air Bag Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag
could accidentally activate or become
disabled. This could cause serious
injuries. Never tamper with the
systems and always have an
Authorized Mazda Dealer perform all
servicing and repairs.
WARNING
J76Y.book Page 27 Wednesday, March 27, 2002 5:04 PM

5-28
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q47-EA-01F

Low Fuel Warning Light
This warning light in the fuel gauge
signals that the fuel tank will soon be
empty.
Get fuel as soon as possible.

Seat Belt Warning Light
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.

Door-Ajar Warning Light
This warning light comes on when any
door isn’t securely closed.

Low Washer Fluid Level
Wa r n i n g L i g h t
This warning light reveals that little
windshield washer fluid remains. Add
fluid (page 8-19).

Headlight High-Beam Indicator
Light
This light indicates one of two things:
•The high-beam headlights are on.
•The turn signal lever is in the flash-to-
pass position.

HOLD Indicator Light
This light comes on when the hold mode
is selected.
Low fuel warning light
J76Y.book Page 28 Wednesday, March 27, 2002 5:04 PM

5-29
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q47-EA-01F

TCS Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS is
operating, the indicator light flashes.
If the light stays on, the TCS may have a
malfunction and it may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.

TCS OFF Indicator Light
This light comes on when the ignition
switch is turned to the ON position.
It goes off when the engine is started. It
also comes on when you switch off the
traction control system or when the
system has a malfunction.

Cruise Set Indicator Light
This light comes on when a cruising speed
is set.

Light-On Indicator Light
This indicator light comes on when the
exterior lights are on. If the hold indicator light flashes, the
transaxle has an electrical problem.
Continuing to drive your Mazda in this
condition could cause damage to your
transaxle. Consult an Authorized
Mazda Dealer as soon as possible.
NOTE
•In addition to the indicator light
flashing, a slight lugging sound will
come from the engine. This
indicates that the TCS is operating
properly.
•On slippery surfaces, such as fresh
snow, it will be impossible to
achieve high rpm when the TCS is
on.
CAUTION
NOTE
After starting the engine on very cold
days, the TCS OFF indicator will
remain on and TCS will not operate
until the engine is warm.
J76Y.book Page 29 Wednesday, March 27, 2002 5:04 PM

5-30
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q47-EA-01F

Seat Belt Warning Beep
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds.

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when the
driver’s door is opened.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when the driver’s door is opened.
Beeps
J76Y.book Page 30 Wednesday, March 27, 2002 5:04 PM

5-31
Driving Your Mazda
Form No. 8Q47-EA-01F
Switches and Controls

Headlights
To turn on the lights, turn the knob on the
end of the control lever.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when the driver’s door is opened.

Headlight High-Low Beam
Push the lever forward for high beams.
Pull it back for low.

Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
Lighting Control
Lever
PositionOFF
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
•If the light switch is left on, the
lights will automatically switch off
30 seconds after turning the ignition
switch to the LOCK position or
removing the key.
The lights will automatically switch
back on when the ignition switch is
turned to the ACC or ON position.
•To prevent discharging the battery,
don’t leave the lights on while the
engine is off.
High beams
Low beams
J76Y.book Page 31 Wednesday, March 27, 2002 5:04 PM

5-32
Driving Your Mazda
Switches and Controls
Form No. 8Q47-EA-01F

Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change —until the
indicator flashes— and hold it there. It
will return to the off position when
released.Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn on the
headlight switch. Then press the fog light
switch.
To turn the fog lights off, press OFF or
turn the headlight switch off.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Right lane
change
Left lane
changeOFF
Left turn
Fog Lights
ON
OFF
J76Y.book Page 32 Wednesday, March 27, 2002 5:04 PM

5-33
Driving Your Mazda
Switches and Controls
Form No. 8Q47-EA-01F
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.The ignition switch must be in the ON
position.
Daytime Running Lights
NOTE
the running lights go off when the
parking brake is applied.
Windshield Wipers and
Washer
Frozen Washer Fluid:
Using windshield washer fluid in
freezing temperatures is dangerous.
The washer fluid could freeze on the
windshield and block your vision.
You could have an accident. Don’t use
the washer without first warming the
windshield.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected by a circuit breaker. This
mechanism will automatically stop
operation of the blades, but only for
about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don’t resume functioning, consult
an Authorized Mazda Dealer as soon
as possible.
WARNING
J76Y.book Page 33 Wednesday, March 27, 2002 5:04 PM

5-34
Driving Your Mazda
Switches and Controls
Form No. 8Q47-EA-01F

Windshield Wipers
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1
— Normal
2
— Fast
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.One-touch wipers
For a single wiping cycle, push the lever
forward and release it.
Cold-weather operation of concealed
wipers (Cold areas)
In cold areas, the wiper arms may trap
heavy ice or snow. To prevent this, change
the angle of the arm by pulling it up until
it clicks. The wipers will then change to
the partially concealed position.
OFF
INT
1
2
OFF
INT
INT ring
J76Y.book Page 34 Wednesday, March 27, 2002 5:04 PM

5-35
Driving Your Mazda
Switches and Controls
Form No. 8Q47-EA-01F

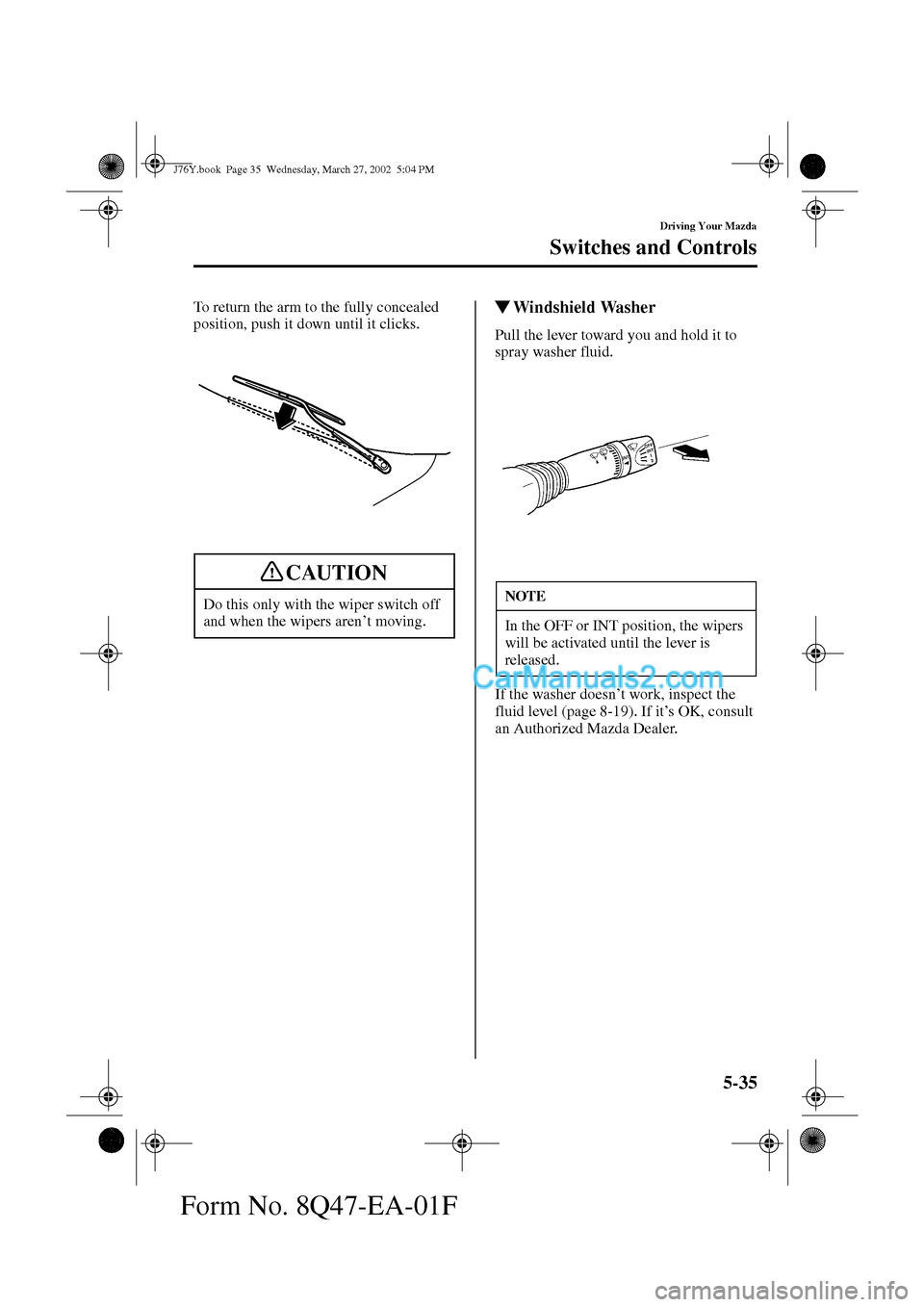

To return the arm to the fully concealed
position, push it down until it clicks.
Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
If the washer doesn’t work, inspect the
fluid level (page 8-19). If it’s OK, consult
an Authorized Mazda Dealer. Do this only with the wiper switch off
and when the wipers aren’t moving.
CAUTION
NOTE
In the OFF or INT position, the wipers
will be activated until the lever is
released.
J76Y.book Page 35 Wednesday, March 27, 2002 5:04 PM

5-36
Driving Your Mazda
Switches and Controls
Form No. 8Q47-EA-01F
The rear defroster clears frost, fog, and
thin ice from the rear window.
The ignition switch must be in the ON
position.
Push the switch to turn on the rear
window defroster; the indicator light will
come on.
Push the switch again to turn it off.To sound the horn, press the mark of
the steering wheel.
Rear Window Defroster
Don’t use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, brush it off before using the
defroster.
CAUTION
Horn
