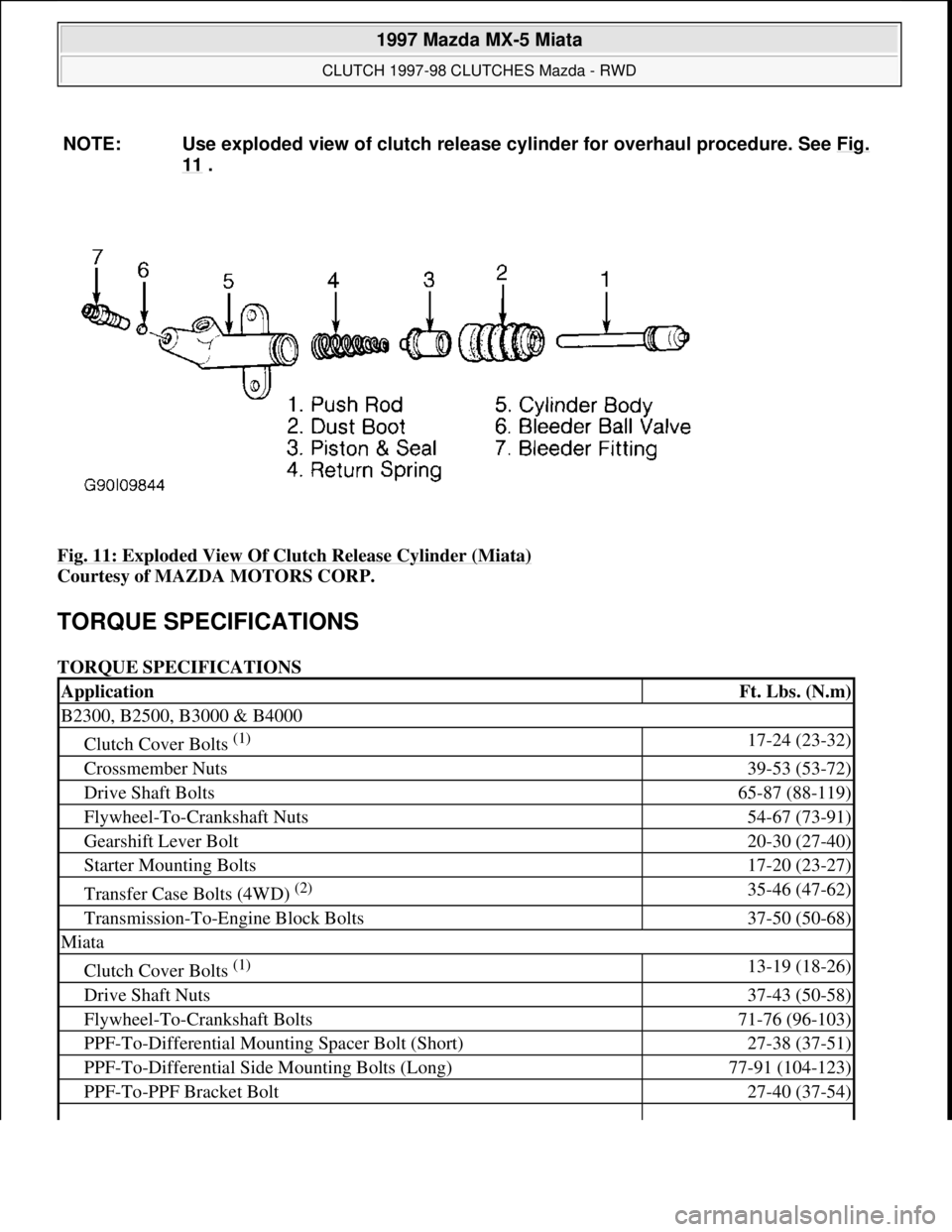

Fig. 11: Exploded View Of Clutch Release Cylinder (Miata)
Courtesy of MAZDA MOTORS CORP.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS NOTE: Use exploded view of clutch release cylinder for overhaul procedure. See Fig.
11 .
ApplicationFt. Lbs. (N.m)
B2300, B2500, B3000 & B4000
Clutch Cover Bolts (1) 17-24 (23-32)
Crossmember Nuts39-53 (53-72)
Drive Shaft Bolts65-87 (88-119)
Flywheel-To-Crankshaft Nuts54-67 (73-91)
Gearshift Lever Bolt20-30 (27-40)
Starter Mounting Bolts17-20 (23-27)
Transfer Case Bolts (4WD) (2) 35-46 (47-62)
Transmission-To-Engine Block Bolts37-50 (50-68)
Miata
Clutch Cover Bolts (1) 13-19 (18-26)
Drive Shaft Nuts37-43 (50-58)
Flywheel-To-Crankshaft Bolts71-76 (96-103)
PPF-To-Differential Mounting Spacer Bolt (Short)27-38 (37-51)
PPF-To-Differential Side Mounting Bolts (Long)77-91 (104-123)
PPF-To-PPF Bracket Bolt27-40 (37-54)

1997 Mazda MX-5 Miata
CLUTCH 1997-98 CLUTCHES Mazda - RWD
Microsoft
Sunday, July 05, 2009 1:36:47 PMPage 15 © 2005 Mitchell Repair Information Company, LLC.

PPF-To-Transmission Side Mounting Bolts (Long)77-91 (104-123)
Starter Mounting Bolts28-38 (38-51)
Transmission-To-Engine Block Bolts48-65 (64-89)
Transmission-To-PPF Bracket Bolts27-40 (37-54)
(1)Tighten in a crisscross pattern.
(2)Tighten in sequence. See Fig. 3 .

1997 Mazda MX-5 Miata
CLUTCH 1997-98 CLUTCHES Mazda - RWD
Microsoft
Sunday, July 05, 2009 1:36:47 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.

GENERAL INFORMATION
Computer Relearn Procedures
COMPUTER RELEARN PROCEDURES
Vehicles equipped with engine or transmission computers may require a relearn procedure after vehicle battery
is disconnected. Many vehicle computers memorize and store vehicle operation patterns for optimum
driveability and performance. When vehicle battery is disconnected, this memory is lost. The computer will use
default data until new data from each key start is stored. As computer memorizes vehicle operation for each
new key start, driveability is restored. Vehicle computers may memorize vehicles operation patterns for 40 of
more key starts.
Customers often complain of driveability problems during relearn stage because vehicle acts differently then
before being serviced. Depending on type and make of vehicle and how it is equipped, the following complaints
(driveability problems) may exist:
Harsh Or Poor Shift Quality
Rough Or Unstable Idle
Hesitation Or Stumble
Rich Or Lean Running
Poor Fuel Mileage
These symptoms and complaints should disappear after a number of drive cycles have been memorized. To
reduce the possibility of complaints, after any service which requires battery power to be disconnected, vehicle
should be road tested.
GENERIC COMPUTER RELEARN PROCEDURES
Some manufacturers identify a specific relearn procedure which will help establish suitable driveability during
relearn stage. These procedures are especially important if vehicle is equipped with and electronically
controlled automatic transmission or transaxle. Always complete procedure before returning vehicle to
customer. The following general procedures are to be used if driveability problems are encountered after power
loss or battery has been disconnected. These procedures may provide an aid in eliminating these problems.
Automatic Transmission
Set parking brake, start engine in "P" or "N" position. Warm-up vehicle to normal operating temperature
or until cooling fan cycles.
Allow vehicle to idle for one minute in "N" position. Select "D" and allow engine to idle for one minute.
Accelerate at normal throttle position (20-50%) until vehicle shifts into top gear.
Cruise at light to medium throttle.
Decelerate to a stop, allowing vehicle to downshift, and use brakes normally.
Process may be repeated as necessary.

1997 Mazda MX-5 Miata
GENERAL INFORMATION Computer Relearn Procedures

1997 Mazda MX-5 Miata
GENERAL INFORMATION Computer Relearn Procedures
Microsoft
Sunday, July 05, 2009 1:47:32 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, July 05, 2009 1:47:35 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.

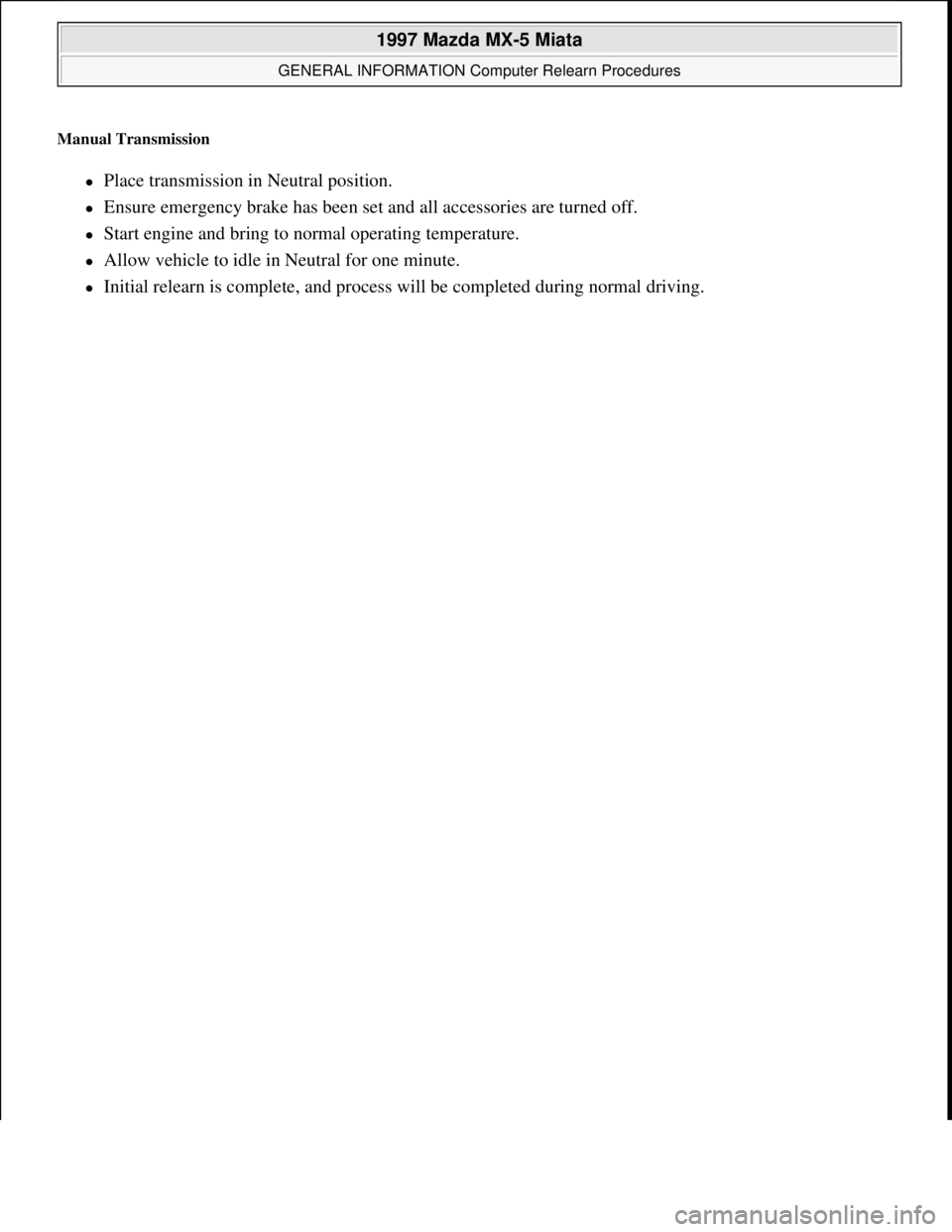

Manual Transmission
Place transmission in Neutral position.
Ensure emergency brake has been set and all accessories are turned off.
Start engine and bring to normal operating temperature.
Allow vehicle to idle in Neutral for one minute.
Initial relearn is complete, and process will be completed during normal driving.

1997 Mazda MX-5 Miata
GENERAL INFORMATION Computer Relearn Procedures
Microsoft
Sunday, July 05, 2009 1:47:32 PMPage 2 © 2005 Mitchell Repair Information Company, LLC.

1997-98 DRIVE AXLES
Differentials & Drive Axles - MPV & MX-5 Miata

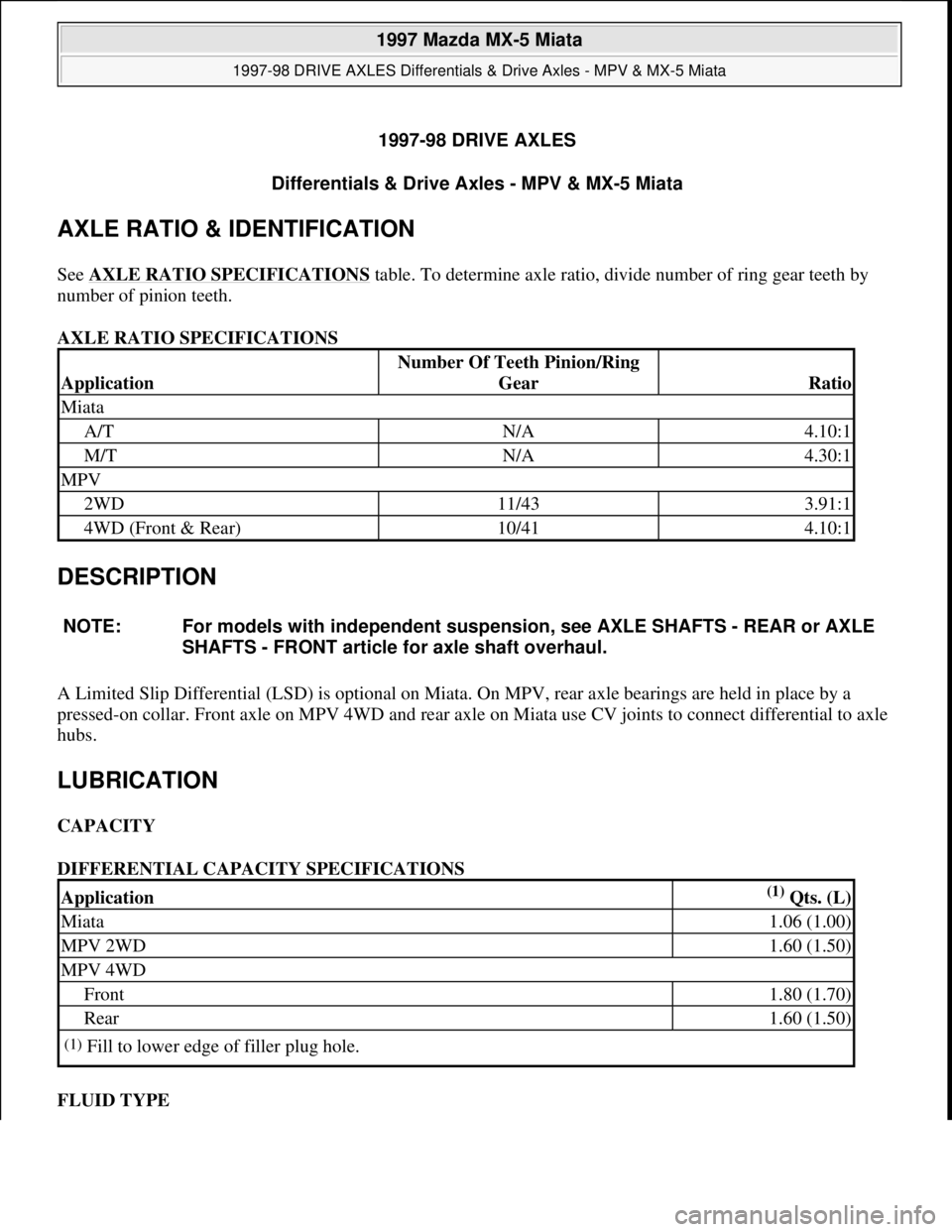

AXLE RATIO & IDENTIFICATION
See AXLE RATIO SPECIFICATIONS table. To determine axle ratio, divide number of ring gear teeth by
number of pinion teeth.
AXLE RATIO SPECIFICATIONS
DESCRIPTION
A Limited Slip Differential (LSD) is optional on Miata. On MPV, rear axle bearings are held in place by a
pressed-on collar. Front axle on MPV 4WD and rear axle on Miata use CV joints to connect differential to axle
hubs.
LUBRICATION
CAPACITY
DIFFERENTIAL CAPACITY SPECIFICATIONS
FLUID TYPE
Application
Number Of Teeth Pinion/Ring
Gear
Ratio
Miata
A/TN/A4.10:1
M/TN/A4.30:1
MPV
2WD11/433.91:1
4WD (Front & Rear)10/414.10:1
NOTE: For models with independent suspension, see AXLE SHAFTS - REAR or AXLE
SHAFTS - FRONT article for axle shaft overhaul.
Application(1) Qts. (L)
Miata1.06 (1.00)
MPV 2WD1.60 (1.50)
MPV 4WD
Front1.80 (1.70)
Rear1.60 (1.50)
(1)Fill to lower edge of filler plug hole.

1997 Mazda MX-5 Miata
1997-98 DRIVE AXLES Differentials & Drive Axles - MPV & MX-5 Miata

1997 Mazda MX-5 Miata
1997-98 DRIVE AXLES Differentials & Drive Axles - MPV & MX-5 Miata
Microsoft
Sunday, July 05, 2009 1:52:42 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, July 05, 2009 1:52:46 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.

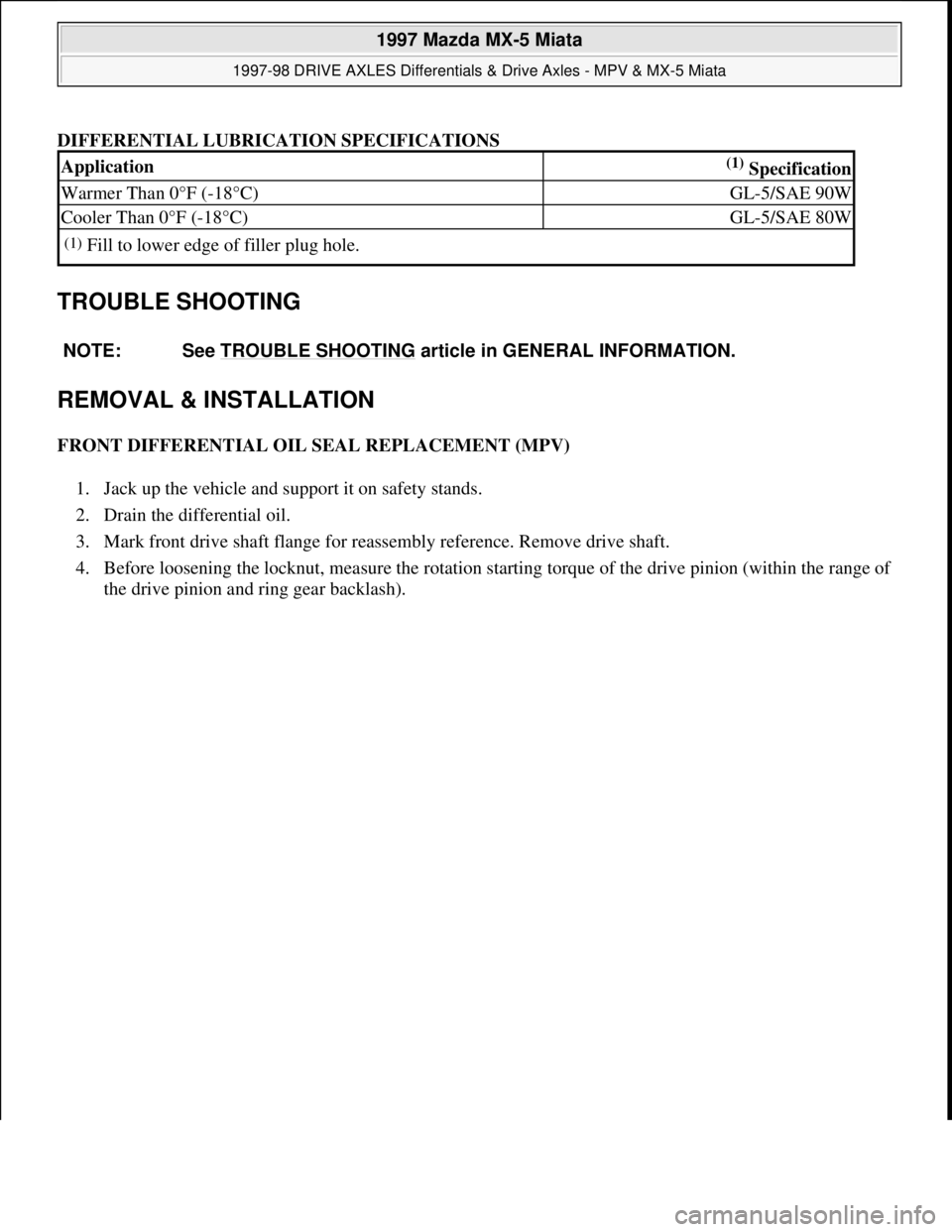

DIFFERENTIAL LUBRICATION SPECIFICATIONS
TROUBLE SHOOTING
REMOVAL & INSTALLATION
FRONT DIFFERENTIAL OIL SEAL REPLACEMENT (MPV)
1. Jack up the vehicle and support it on safety stands.
2. Drain the differential oil.
3. Mark front drive shaft flange for reassembly reference. Remove drive shaft.
4. Before loosening the locknut, measure the rotation starting torque of the drive pinion (within the range of
the drive pinion and rin
g gear backlash).
Application(1) Specification
Warmer Than 0°F (-18°C)GL-5/SAE 90W
Cooler Than 0°F (-18°C)GL-5/SAE 80W
(1)Fill to lower edge of filler plug hole.
NOTE: See TROUBLE SHOOTING
article in GENERAL INFORMATION.

1997 Mazda MX-5 Miata
1997-98 DRIVE AXLES Differentials & Drive Axles - MPV & MX-5 Miata
Microsoft
Sunday, July 05, 2009 1:52:42 PMPage 2 © 2005 Mitchell Repair Information Company, LLC.

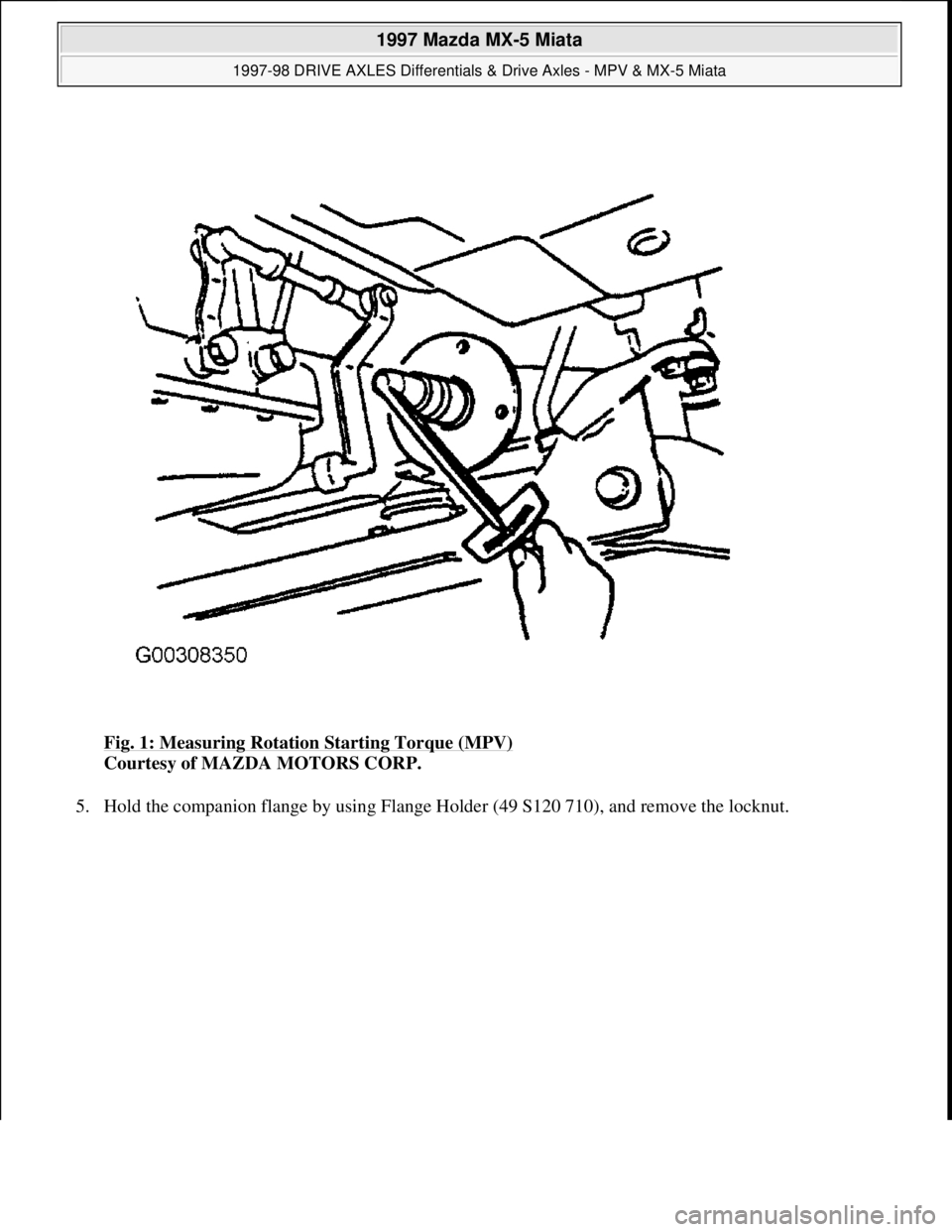

Fig. 1: Measuring Rotation Starting Torque (MPV)
Courtesy of MAZDA MOTORS CORP.
5. Hold the companion flan
ge by using Flange Holder (49 S120 710), and remove the locknut.

1997 Mazda MX-5 Miata
1997-98 DRIVE AXLES Differentials & Drive Axles - MPV & MX-5 Miata
Microsoft
Sunday, July 05, 2009 1:52:42 PMPage 3 © 2005 Mitchell Repair Information Company, LLC.

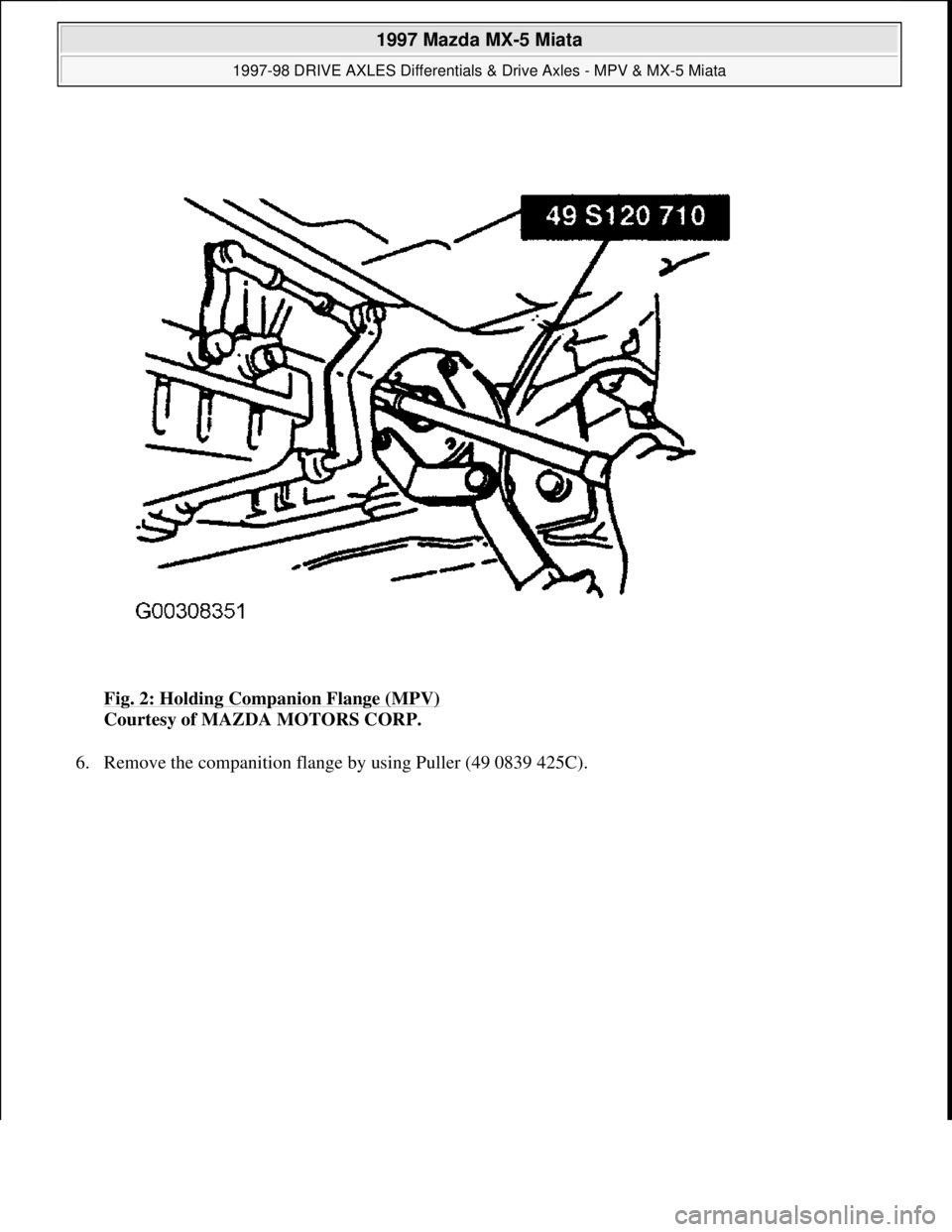

Fig. 2: Holding Companion Flange (MPV)
Courtesy of MAZDA MOTORS CORP.
6. Remove the companition flan
ge by using Puller (49 0839 425C).

1997 Mazda MX-5 Miata
1997-98 DRIVE AXLES Differentials & Drive Axles - MPV & MX-5 Miata
Microsoft
Sunday, July 05, 2009 1:52:42 PMPage 4 © 2005 Mitchell Repair Information Company, LLC.

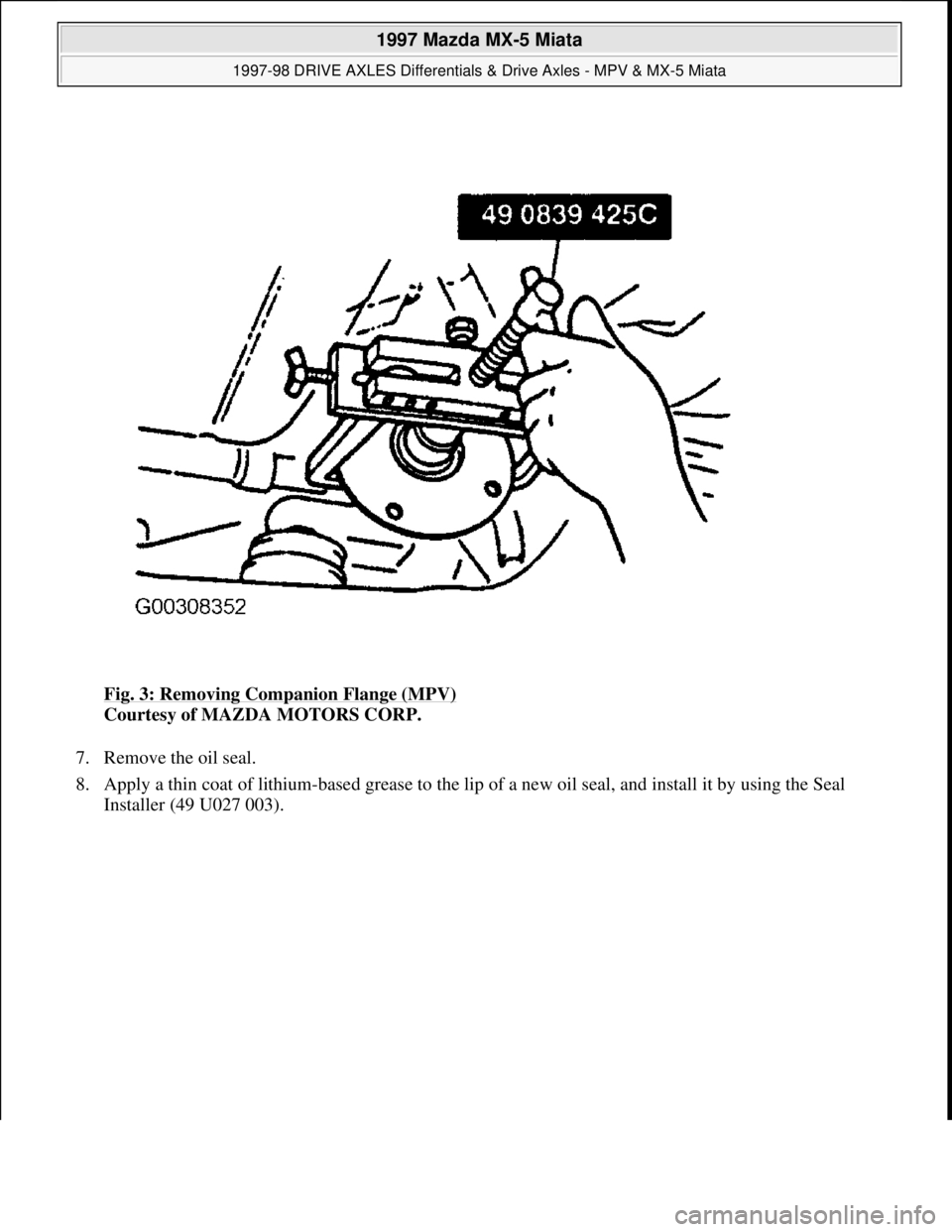

Fig. 3: Removing Companion Flange (MPV)
Courtesy of MAZDA MOTORS CORP.
7. Remove the oil seal.
8. Apply a thin coat of lithium-based grease to the lip of a new oil seal, and install it by using the Seal
Installer (49 U027 003).

1997 Mazda MX-5 Miata
1997-98 DRIVE AXLES Differentials & Drive Axles - MPV & MX-5 Miata
Microsoft
Sunday, July 05, 2009 1:52:42 PMPage 5 © 2005 Mitchell Repair Information Company, LLC.

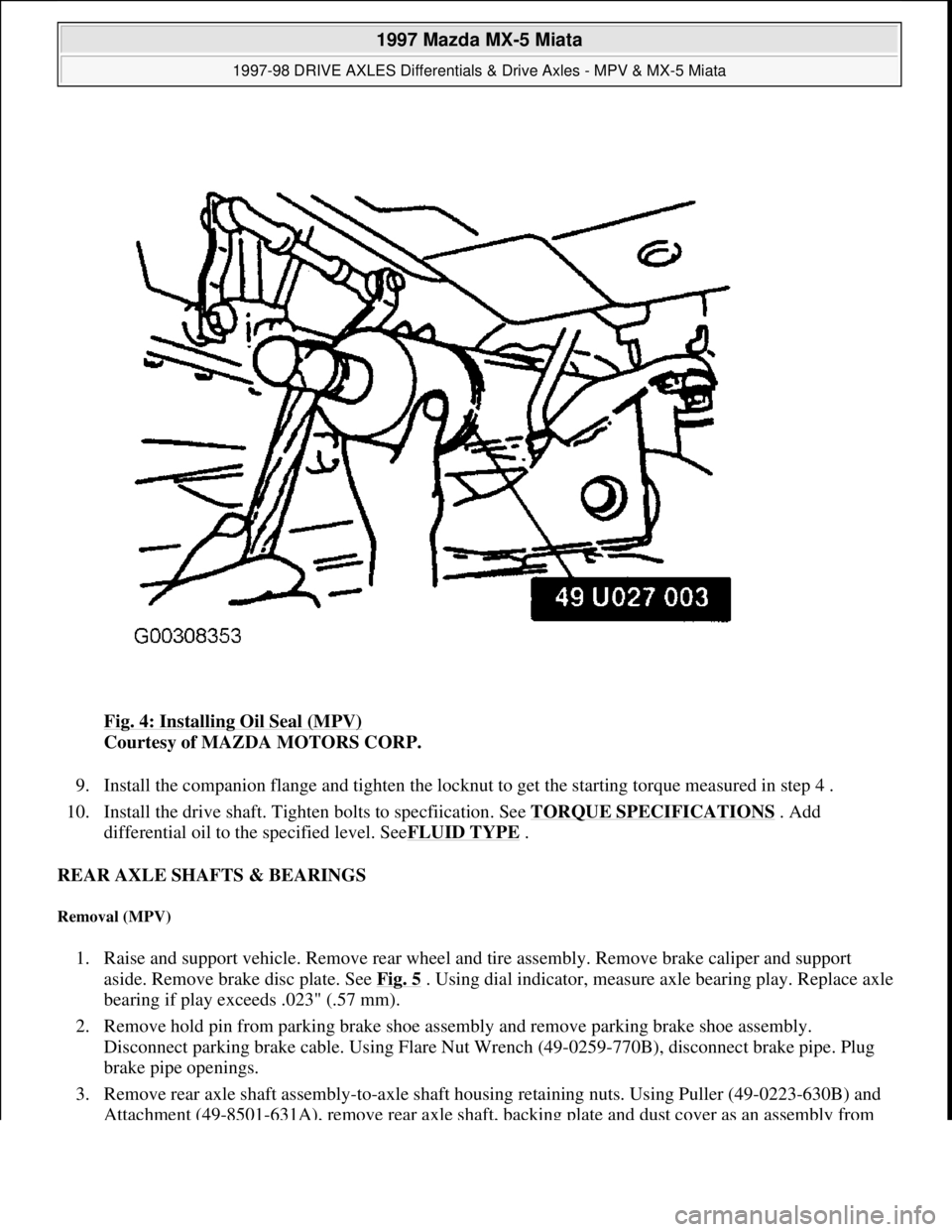

Fig. 4: Installing Oil Seal (MPV)
Courtesy of MAZDA MOTORS CORP.
9. Install the companion flange and tighten the locknut to get the starting torque measured in step 4 .
10. Install the drive shaft. Tighten bolts to specfiication. See TORQUE SPECIFICATIONS
. Add
differential oil to the specified level. SeeFLUID TYPE
.
REAR AXLE SHAFTS & BEARINGS
Removal (MPV)
1. Raise and support vehicle. Remove rear wheel and tire assembly. Remove brake caliper and support
aside. Remove brake disc plate. See Fig. 5
. Using dial indicator, measure axle bearing play. Replace axle
bearing if play exceeds .023" (.57 mm).
2. Remove hold pin from parking brake shoe assembly and remove parking brake shoe assembly.
Disconnect parking brake cable. Using Flare Nut Wrench (49-0259-770B), disconnect brake pipe. Plug
brake pipe openings.
3. Remove rear axle shaft assembly-to-axle shaft housing retaining nuts. Using Puller (49-0223-630B) and
Attachment (49-8501-631A), remove rear axle shaft, backin
g plate and dust cover as an assembly from
