MERCEDES-BENZ B-CLASS SPORTS 2014 Owners Manual

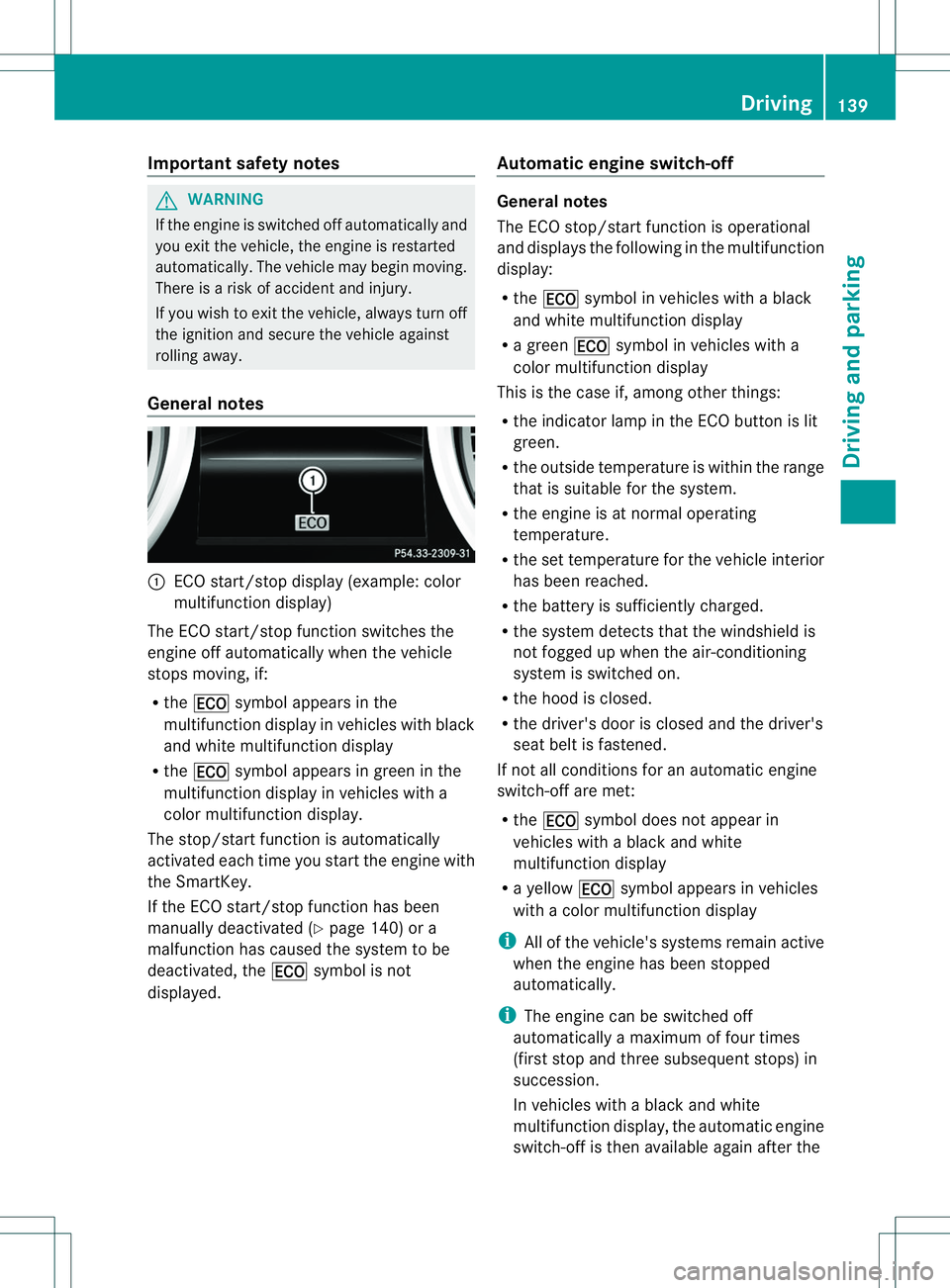

Important safety notes
G
WARNING
If th eengineiss witched off automatically and
you exit th evehicle, th eengine is restarted
automatically. The vehicl emay begi nmoving.
There is arisk of accident and injury.
If you wish to exit the vehicle, alwayst urn off
the ignition and secure the vehicle against
rolling away.
General notes 001A
ECO start/stop display (example: color
multifunction display)
The ECO start/stop function switches the
engine off automatically when the vehicle
stops moving, if:
R the 000C symbol appears in the
multifunction display in vehicles with black
and white multifunction display
R the 000C symbol appears in green in the
multifunction display in vehicles with a
color multifunction display.
The stop/start function is automatically
activated each time you start the engine with
the SmartKey.
If the ECO start/stop function has been
manually deactivated (Y page 140) or a
malfunction has caused the system to be
deactivated, the 000Csymbol is not
displayed. Automatic engine switch-off General notes
The ECO stop/start function is operational
and display
sthe following in the multifunction
display:
R the 000C symbol in vehicles with ablack
and white multifunction display
R ag reen 000C symbol in vehicles with a
color multifunction display
This is the case if, amon gothe rthings:
R the indicator lamp in the ECO button is lit
green.
R the outside temperature is within the range
that is suitable for the system.
R the engine is at normal operating
temperature.
R the set temperature for the vehicle interior
has been reached.
R the battery is sufficiently charged.
R the system detectst hat the windshield is
not fogged up when the air-conditioning
system is switched on.
R the hood is closed.
R the driver's door is closed and the driver's
seat belt is fastened.
If not all conditionsf or an automatic engine
switch-off are met:
R the 000C symbol does not appearin
vehicles with ablack and white
multifunction display
R ay ellow 000Csymbol appears in vehicles
with acolor multifunction display
i All of the vehicle's systems remai nactive
when the engine ha sbeens topped
automatically.
i Thee ngine can be switched off
automaticall yamaximum of fou rtimes
(firs tstop and thre esubsequen tstops )in
succession.
In vehicles with ablack and white
multifunctio ndisplay, the automatic engine

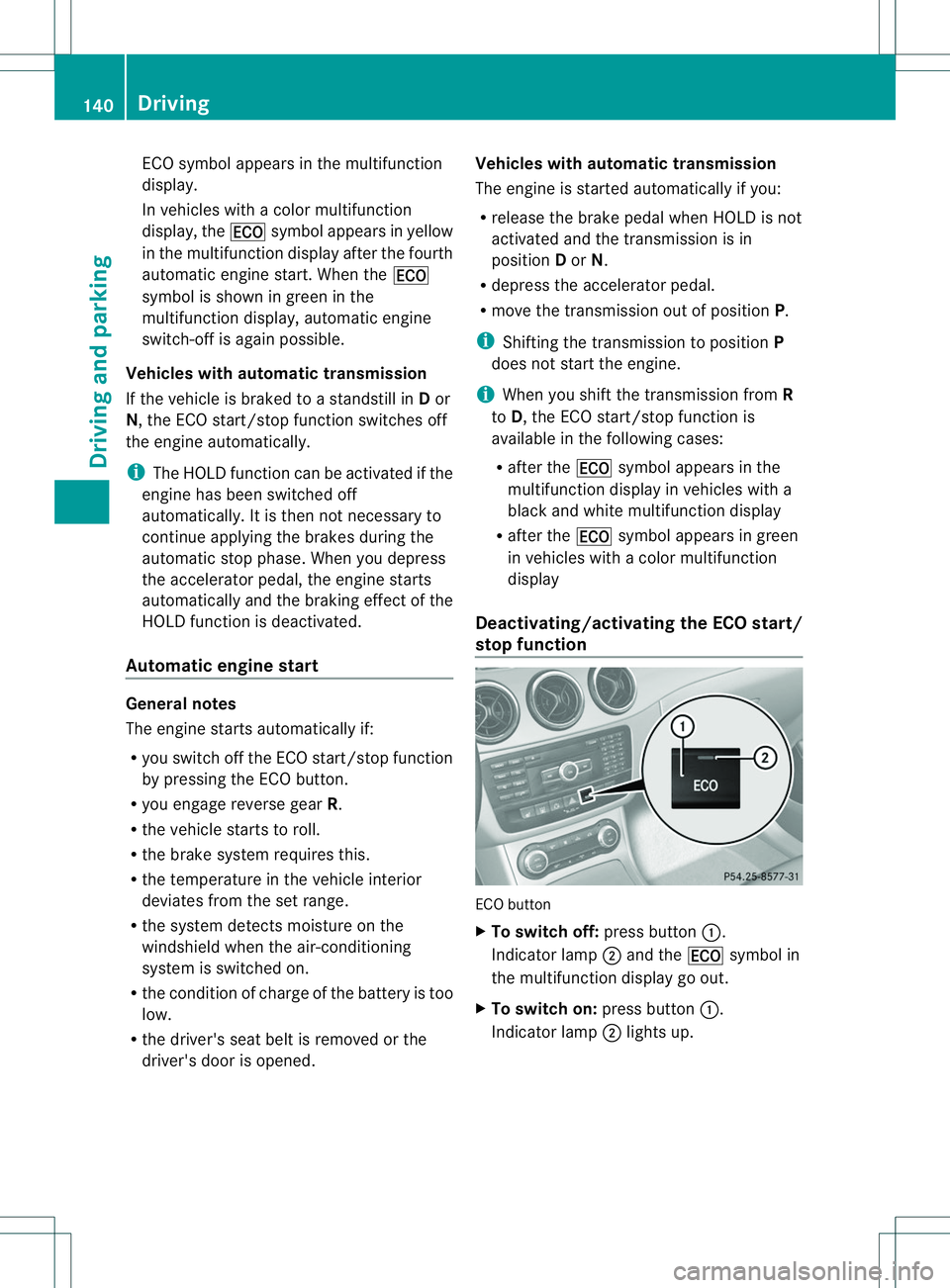

switch-off is the navailablea gain after the Driving
139Driving and parking Z

ECO symbo
lappears in the multifunction
display.
In vehicles with acolor multifunction
display, the 000Csymbo lappears in yellow
in the multifunctio ndisplay after the fourth
automatic engine start .When the 000C
symbol is shown in green in the
multifunction display, automatic engine
switch-off is again possible.
Vehicles with automatic transmission
If the vehicle is braked to astandstill in Dor
N,t he ECO start/stop function switches off
the engine automatically.
i The HOLD function can be activated if the
engine has been switched off
automatically .Itisthen not necessary to
continue applying the brakes during the
automatic stop phase. When you depress
the accelerator pedal, the engine starts
automatically and the braking effect of the
HOLD function is deactivated.
Automatic engine start General notes
The engine starts automatically if:
R
you switch off the ECO start/stop function
by pressing the ECO button.
R you engage reverse gear R.
R the vehicle starts to roll.
R the brake system requires this.
R the temperature in the vehicle interior
deviates from the set range.
R the system detectsm oisture on the
windshield when the air-conditioning
system is switched on.
R the condition of charge of the battery is too
low.
R the driver's seat belt is removed or the
driver's door is opened. Vehicles with automatic transmission
The engine is started automatically if you:
R
release the brake pedal when HOLD is not
activated and the transmission is in
position Dor N.
R depress the accelerator pedal.
R move the transmission out of position P.
i Shiftingt he transmission to position P
does not start the engine.
i When you shift the transmission from R
to D,t he ECO start/stop function is
available in the following cases:
R after the 000Csymbol appears in the
multifunction displayinv ehicles with a
black and white multifunction display
R after the 000Csymbol appears in green
in vehicles with acolor multifunction
display
Deactivating/activating the ECO start/
stop function ECO button
X
To switch off: press button001A.
Indicator lamp 0010and the 000Csymbol in
the multifunction displaygoo ut.
X To switch on: press button001A.
Indicator lamp 0010lights up. 140
DrivingDriving and parking

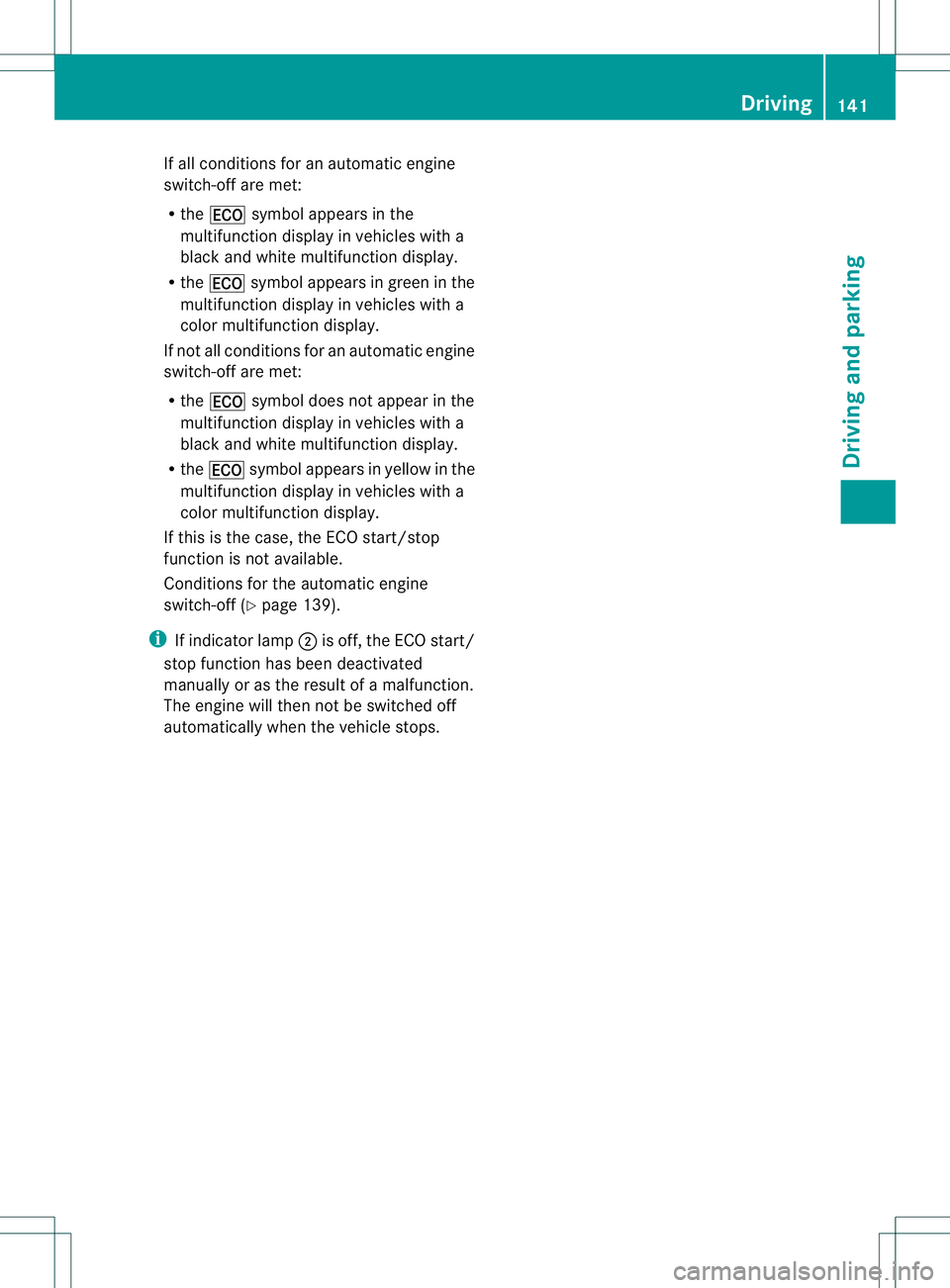

If all conditions for an automatic engine
switch-off are met:
R
the 000C symbola ppears in the
multifunction display in vehicle swith a
black and white multifunction display.
R the 000C symbola ppears in green in the
multifunction display in vehicle swith a
color multifunction display.
If not all conditions for an automatic engine
switch-off are met:
R the 000C symbold oes not appear in the
multifunction display in vehicle swith a
black and white multifunction display.
R the 000C symbola ppears in yellow in the
multifunction display in vehicle swith a
color multifunction display.
If this is the case, the ECO start/stop
function is not available.
Conditions for the automatic engine
switch-off (Y page 139).
i If indicator lamp 0010is off, the ECO start/
stop function has been deactivated
manually or as the resultofa malfunction.
The engine willt hen not be switched off
automatically when the vehicl estops. Driving
141Driving an dparking Z

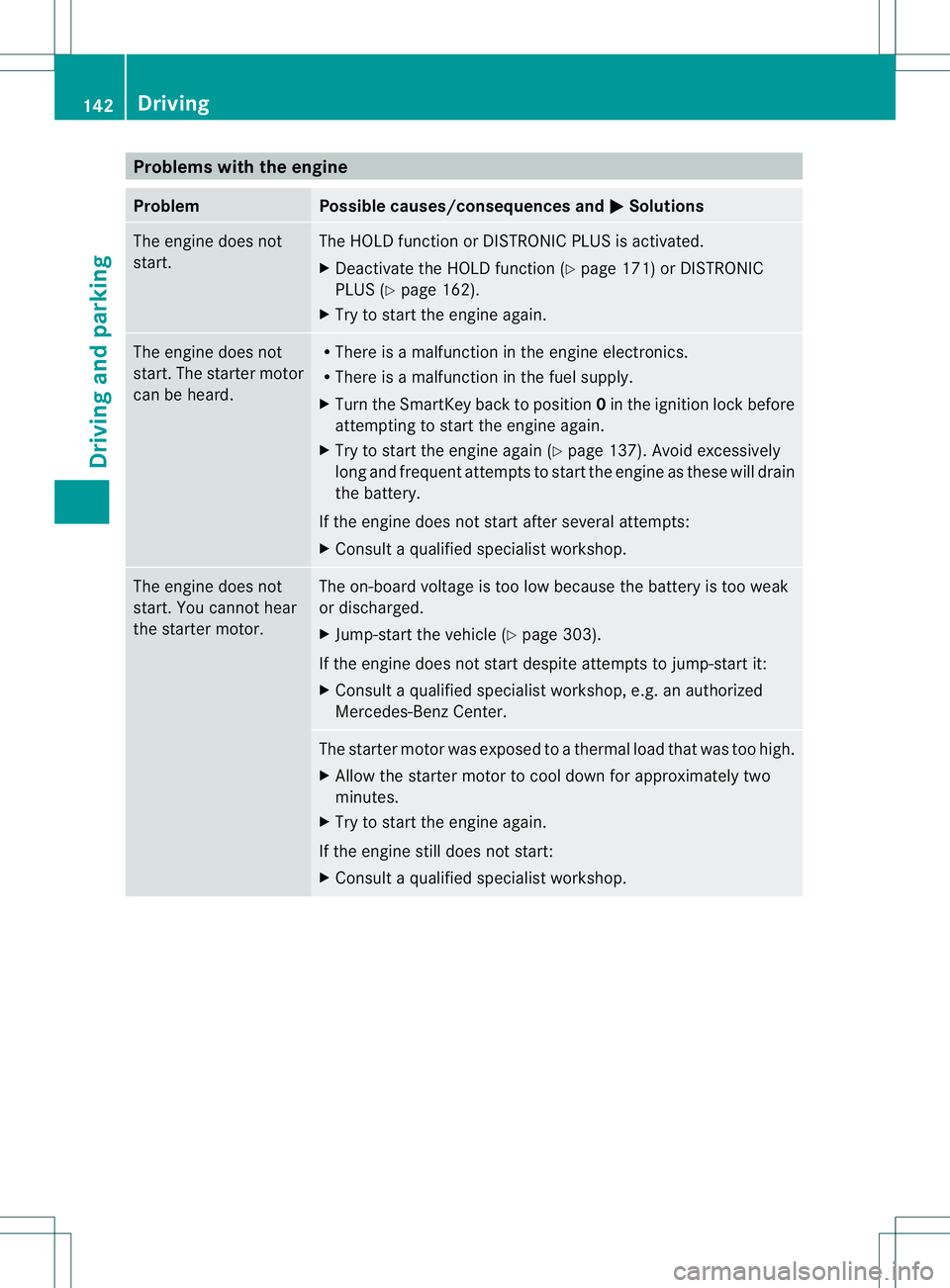

Problems with the engine
Problem Possible causes/consequences and
000B Solutions
The engine does not
start. The HOLD function or DISTRONIC PLUS is activated.
X
Deactivat ethe HOLD function (Y page 171) or DISTRONIC
PLUS (Y page 162).
X Try to start the engine again. The engine does not
start. The starter motor
can be heard. R
There is amalfunction in the engine electronics.
R There is amalfunction in the fuel supply.
X Turn the SmartKey back to position 0in the ignition lock before
attempting to start the engine again.
X Try to start the engine again (Y page 137). Avoid excessively
long and frequent attemptstos tart the engine as these will drain
the battery.
If the engine does not start after several attempts:
X Consult aqualified specialist workshop. The engine does not
start. You cannot hear
the starter motor. The on-board voltage is too low because the battery is too weak
or discharged.
X
Jump-start the vehicle (Y page 303).
If the engine does not start despite attemptstoj ump-start it:
X Consult aqualified specialist workshop, e.g. an authorized
Mercedes-Benz Center. The starter motor was exposed to
athermal load that was too high.
X Allow the starter motor to cool down for approximately two
minutes.
X Try to start the engine again.
If the engine still does not start:
X Consult aqualified specialist workshop. 142
DrivingDriving and parking

Problem Possible causes/consequences and
000B Solutions
The engine is not
running smoothly and
is misfiring. There is
amalfunction in the engine electronics or in amechanical
componentoft he engine management system.
X Only depress the accelerator pedal slightly.
X Have the cause rectified immediately at aqualified specialist
workshop.
Otherwise, non-combusted fuel may get into the catalytic
converter and damage it. The coolant
temperature display is
showing more than
248
‡(120 †). The
coolant warning lamp
may also be lit and a
warning tone may
sound. The coolant level is too low. The coolant is too hot and the engine
is no longer being cooled sufficiently.
X
Stop as soon as possible and allow the engine and the coolant
to cool down.
X Check the coolant level (Y page 283). Observe the warning
notes as you do so and add coolant if necessary. Automatic transmission
Important safety notes
G
WARNING
If the engine speed is above the idling speed
and you engage transmission position Dor
R,t he vehicle could pull away suddenly. There
is ar isk of an accident.
When engaging transmission position Dor R,
always firmly depress the brake pedal and do
not simultaneously accelerate. G
WARNING
The automatic transmission switches to
neutral position Nwhen you switch off the
engine. The vehicle may roll away.T here is a
risk of an accident.
After switching off the engine, always switch
to parking position P.Prevent the parked
vehicle from rolling away by applying the
parking brake. DIRECTS
ELECT lever
Overview of transmission positions The DIRECT SELECT leve
risonthe right of the
steering column. 0006
Park position with parking lock
0019 Reverse gear
0018 Neutral
000A Drive
i The DIRECT SELECT lever always returns
to its original position. The current
transmission position P,R, Nor Dappears
in the transmission position display
(Y page 144) in the multifunction display. Automatic transmission
143Driving and parking Z

Transmission position and drive
program display
The current transmission positio
nand drive
progra mappear in the multifunction display. 001A
Transmission position display
0010 Driv eprogram display
i The arrows in the transmission position
display show how and int owhich
transmission position syou can change
using the DIRECT SELECT lever.
! If the transmission position display in the
multifunction display is not working, you
should pull away carefully to chec kwhether
the desired transmission position is
engaged. Ideally,y ou should select
transmission position Dand drive program
E or S.
Engaging parkp osition PX
Push th eDIRECT SELECT lever in the
directio nofarrowP.
Transmission position display Pis show nin
the multifunctio ndisplay.
i When you engage park position P,make
sure that the transmission position display
shows Pin the multifunction display.
i You can only engage park position Pwhen
the vehicle is stationary.
i The automatic transmission shift sinto
park position Pautomatically:
R if you open the driver's door while the
vehicle is stationary in transmission
position Dor R
R if you open the door while travelin gat
very low speeds in transmission position
D or R In addition,
awarnin gtones ounds and a
display message is shown.
i Depressin gthe brak eand pushin gthe
DIRECT SELECT lever up or down
disengages the parking lock .The
transmission is in Nneutral.
At transmission fluid temperatures below
000F4‡( 000F20 †), you can only shift out of park
position Pinto another transmission
position whe nthe engine is running.
In order to shift from park position P
directly into Ror D:
R depress the brake pedal and
R push the DIRECT SELECT lever up or
down past the first point of resistance
! If the engine speed is too high or the
vehicle is moving, do not shift the
automatic transmission directly from Dto
R,f rom Rto Dor directly to P.The
automatic transmission could otherwise be
damaged.
Engaging reverse gear R !
Only shift the automatic transmission to
R when the vehicle is stationary.
i The ECO start/stop function is not
available when reverse gear is engaged.
Further information on the ECO start/stop
function (Y page 139).
X When the vehicle is stationary, depress the
brake pedal.
X Push the DIRECT SELECT lever up past the
first point of resistance.
Shifting to neutralN X
When the vehicle is stationary, depress the
brake pedal.
X Push the DIRECT SELECT lever up or down
to the first point of resistance.
If the engine has been switched off, the
automatic transmission automatically shifts
to N. 144
Automatic transmissionDriving and parking

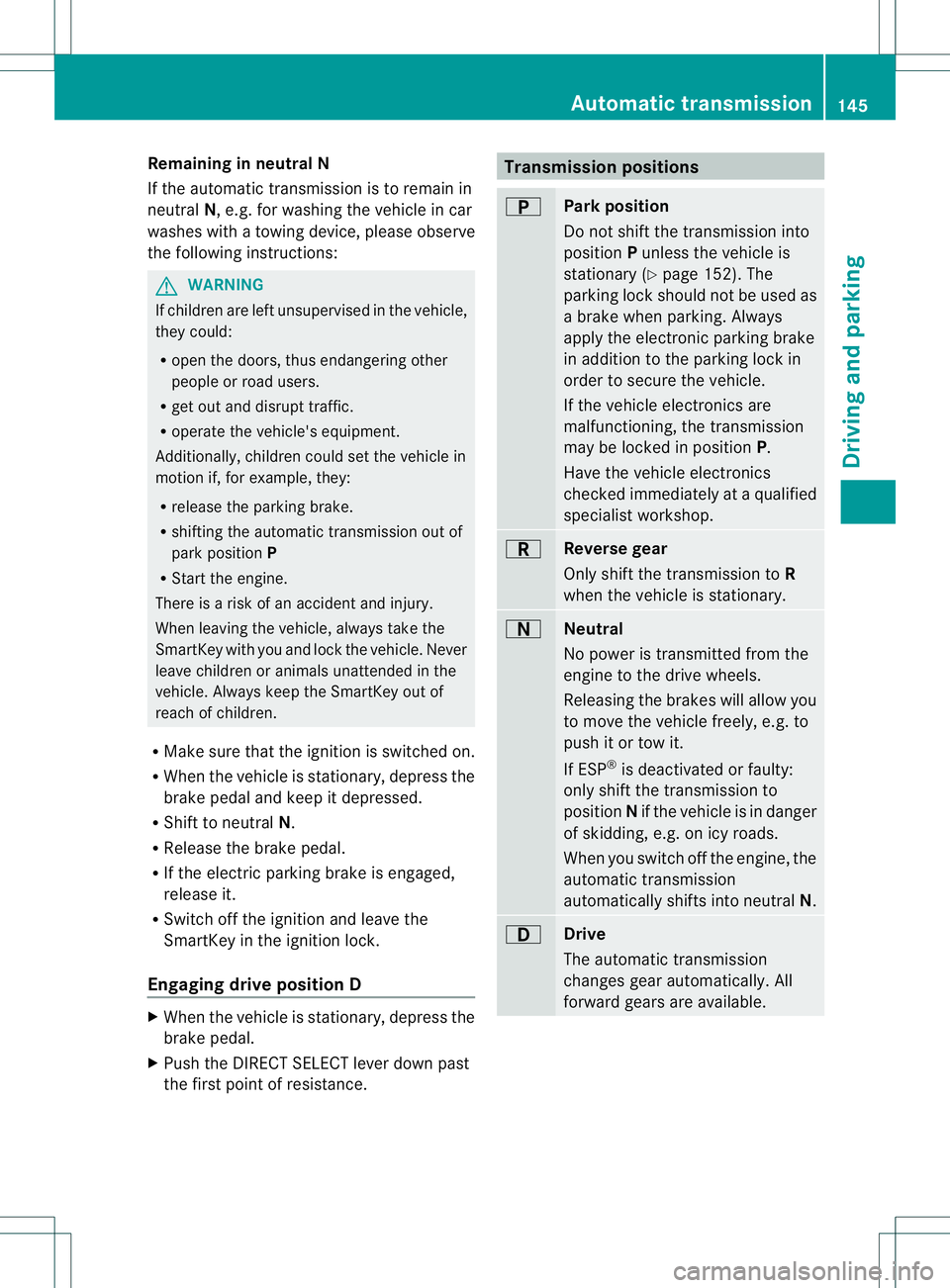

Remaining in neutral N
If the automatic transmissio
nistor emain in
neutral N,e.g. for washing the vehicle in car
washe swithat owing device ,please observe
the followin ginstructions: G
WARNING
If children are left unsupervised in the vehicle,
the ycould:
R open the doors ,thus endangerin gother
people or road users.
R get out and disrupt traffic.
R operat ethe vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
R release the parking brake.
R shifting the automatic transmission out of
park position P
R Start the engine.
There is arisk of an accident and injury.
When leavin gthe vehicle, always tak ethe
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reac hofc hildren.
R Make sure that the ignition is switched on.
R When the vehicle is stationary, depres sthe
brak epedal and keep it depressed.
R Shif tton eutral N.
R Release the brak epedal.
R If the electric parking brak eisengaged,
release it.
R Switch off the ignition and leave the
SmartKey in the ignition lock.
Engaging drive position D X
When the vehicle is stationary, depres sthe
brak epedal.
X Push the DIRECT SELECT lever down past
the firs tpoint of resistance. Transmission positions
0007
Par
kposition
Do not shif tthe transmission into
position Punles sthe vehicle is
stationar y(Ypage 152). The
parking lock should not be used as
ab rak ew hen parking .Always
apply the electronic parking brake
in additio ntothe parking lock in
order to secure the vehicle.
If the vehicle electronics are
malfunctioning, the transmission
may be locked in position P.
Have the vehicle electronics
checked immediately at aqualified
specialist workshop. 0006
Reverse gear
Only shift the transmission to
R
when the vehicle is stationary. 000D
Neutral
No power is transmitted from the
engine to the drive wheels.
Releasing the brakes will allow you
to move the vehicle freely, e.g. to
push it or tow it.
If ESP
®
is deactivated or faulty:
only shift the transmission to
position Nif the vehicle is in danger
of skidding, e.g. on icy roads.
When you switch off the engine, the
automatic transmission
automatically shifts into neutral N. 0009
Drive
The automatic transmission
changes gear automatically. All
forward gears are available. Automatic transmission
145Driving and parking Z

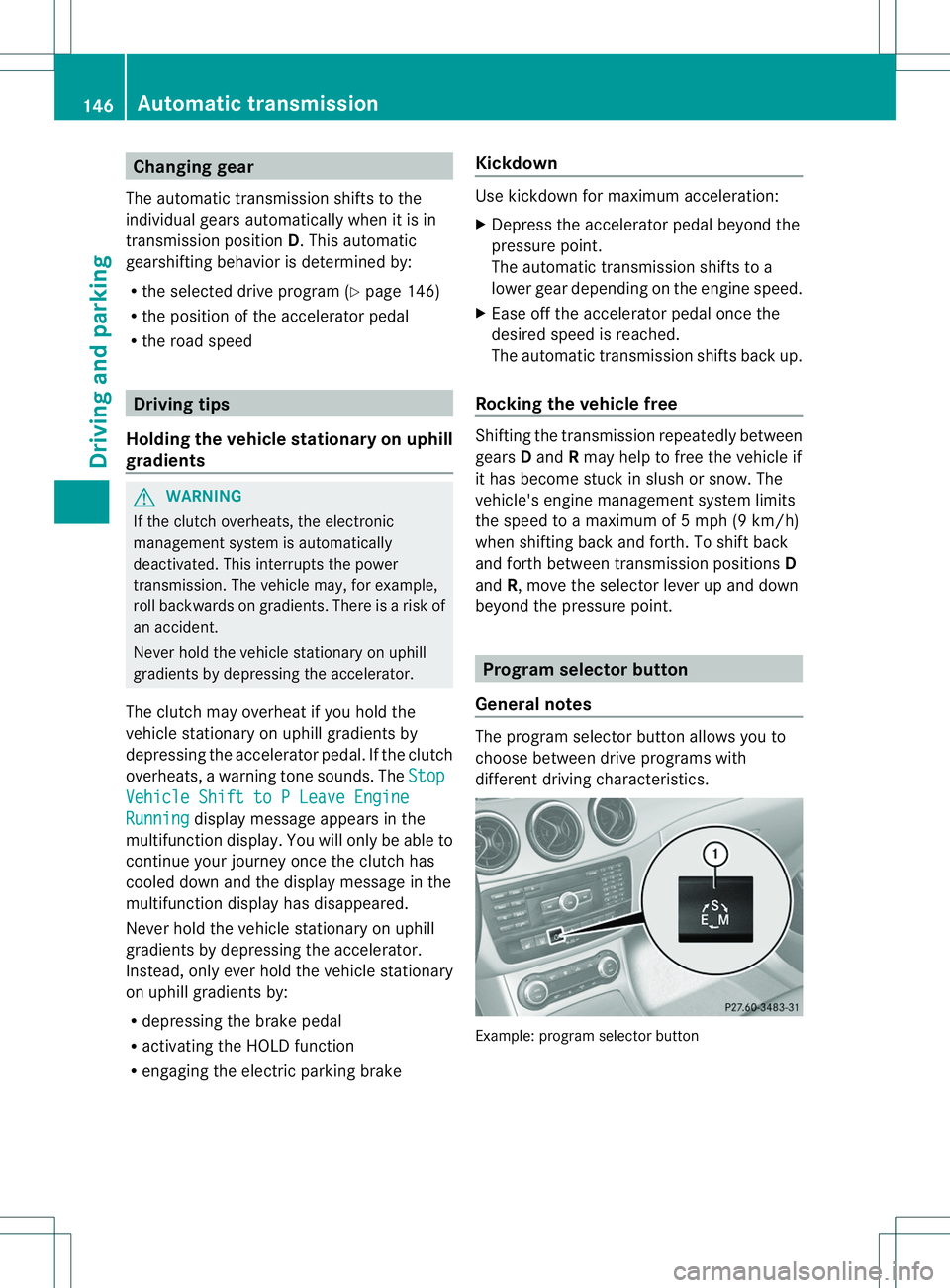

Changing gear
The automatic transmission shifts to the
individual gear sautomaticall ywhen it is in
transmission position D.This automatic
gearshifting behavior is determined by:
R the selected drive program (Y page 146)
R the position of the accelerator pedal
R the road speed Driving tips
Holding the vehicle stationary on uphill
gradients G
WARNING
If the clutch overheats, the electronic
management system is automatically
deactivated. This interrupts the power
transmission. The vehicle may, for example,
roll backwards on gradients. There is arisk of
an accident.
Never hold the vehicle stationary on uphill
gradients by depressing the accelerator.
The clutch may overheat if you hold the
vehicle stationary on uphill gradients by
depressing the accelerator pedal. If the clutch
overheats, awarning tone sounds. The StopVehicle Shift to
PLeave Engine Running displaym
essage appears in the
multifunction display. You will only be able to
continue your journey once the clutch has
cooled down and the displaym essage in the
multifunction displayh as disappeared.
Never hold the vehicle stationary on uphill
gradients by depressing the accelerator.
Instead, only ever hold the vehicle stationary
on uphill gradients by:
R depressing the brake pedal
R activating the HOLD function
R engaging the electric parking brake Kickdown Use kickdown for maximum acceleration:
X
Depress the accelerator pedal beyond the
pressure point.
The automatic transmission shifts to a
lower gear depending on the engine speed.
X Ease off the accelerator pedal once the
desired speed is reached.
The automatic transmission shifts back up.
Rocking the vehicle free Shiftingt
he transmission repeatedly between
gears Dand Rmay help to free the vehicle if
it has become stuck in slush or snow. The
vehicle's engine management system limits
the speed to amaximum of 5mph (9 km/h)
when shifting back and forth. To shift back
and forth between transmission positions D
and R,m ove the selector lever up and down
beyond the pressure point. Program selector button
General notes The program selector button allowsy
ou to
choose between drive programs with
different driving characteristics. Example: program selector button146
Automatic transmissionDriving and parking

E
Economy Comfortable, economical
driving
S
Sport Sporty driving style
M
Manual Manua
lgea rs hifting Onl
ychange fro mautomatic driv eprogram
E or Sto manual driv eprogram Mwhen the
vehicl eisstationary.
X Press program selector button 001A
repeatedly until th elette rfor the desired
gearshift program appears in the
multifunction display.
i The automatic transmission shifts to
automatic drive program Eeach time the
engine is started.
i For further information on the automatic
drive program, see (Y page 147).Steering wheel paddle shifters
001A
Left steerin gwheel paddle shifter (shifts
down)
0010 Right steerin gwheel paddle shifter (shifts
up)
In drive program M,you can change gear
yourself using the steerin gwheel paddle
shifters.
If you pull the left or right steerin gwheel
paddle shifter when in automatic drive
program Eor S,t he automatic transmission
shifts into drive program Mfor alimited time.
Dependin gonwhich paddle shifter is pulled, the automatic transmission immediately
shifts into the next gear down or up.
i
You can only change gear with the
steerin gwheel paddle shifters when the
transmission is in position D.
i For further information on the manual
drive program, see (Y page 147). Automatic drive program
Drive program Eis characterized by the
following:
R comfort-oriented engine settings
R optimal fuel consumption resulting from
the automatic transmission shiftin gup
sooner
R the vehicle pulling away more gently in
forward and reverse gears, unless the
accelerator pedal is depressed fully
R increased sensitivity. This improves driving
stability on slippery road surfaces, for
example
R the automatic transmission shiftin gup
sooner. This results in the vehicle being
driven at lower engine speeds and the
wheels being less likely to spin
Drive program Sis characterized by the
following:
R sporty engine settings
R the automatic transmission shiftin gup
later
R the fuel consumption possibly being higher
as aresult of the later automatic
transmission shift points Manuald
rive program
Introduction In manual drive program
M,you can change
gear yourself by using the steerin gwheel
paddle shifters. For this, the transmission
must be in position D.The gear currently Automatic transmission
147Driving and parking Z

selected and engaged is shown in the
multifunction display.
Manual drive program
Mdiffers from drive
programs Eand Swith regard to spontaneity,
responsiveness and smoothness of gear
changes. Gear Driving situations
0003
You can use the engine's braking
effect
000F
You can use the braking effect of
the engine on downhill gradients
and for driving:
R
on steep mountain roads
R in mountainous terrain
R in arduousc onditions 000B
To use the braking effect of the
engine on extremely steep downhill
gradients and on long downhill
stretches
Switching on the manual drive program
Activating permanently
X
Press the program selector button
(Y page 146) repeatedly until Mappears in
the multifunction display.
Manual drive program Mremains active
until drive program Eor Sis engaged.
Activating temporarily
X Pull the right or left steering wheel paddle
shifter (Y page 147).
M is shown in the multifunction display.
Manual drive program Mis temporarily
active. Depending on which paddles hifter
is pulled, the automatic transmission
immediately shifts into the next gear down
or up.
i When manual drive program Mis
activated via the steering wheel paddle
shifters, the temporarily active manual
drive program Mwill be deactivated
automaticallya fteralimited time, if the
driving situation permits. In this case, the automatic transmission shifts into the
automatic drive program that was last
engaged, i.e. Eor S.W hen driving on
downhill gradients, the temporarily active
manual drive program Mwill only be
deactivated if the accelerator pedal is
depressed while the vehicle is rolling
downhill.
Upshifting X
Pull the right-hand steering wheel paddle
shifter (Y page 147).
The automatic transmission shifts up to the
next gear.
i To prevent engine damage the automatic
transmission shifts up automatically:
R if the maximum engine speed on the
currently engaged gear is reached and
R you continue to accelerate.
Shift recommendation The gearshift recommendations assist you in
adopting an economical driving style. The
recommended gear is shown in the
multifunction display.
X
Shift to recommended gear 0010according
to gearshift recommendation 001Awhen
shown in the multifunction displayoft he
instrumentc luster.
Downshifting X
Pull the left-hand steering wheel paddle
shifter (Y page 147).
The automatic transmission shifts down to
the next gear. 148
Automatic transmissionDriving and parking
