MERCEDES-BENZ C-Class 2008 W204 Comand Manual

50 Audio
Satellite radio*
Storing via Autostore
i The function automatically assigns receiv-
able channels to the presets. The channels
which were stored in the channel memory man-
ually will be overwritten in this process.
Press n if the display/selection win-
dow is active.
Select “Autostore”.
or
Select “Presets” K “Autostore” from
the SatRadio submenu.
COMAND searches for receivable
channels. A corresponding message is
displayed. The available channels are
automatically stored under the presets.
Cancelling storage procedure
Select “Cancel”.Selecting a channel from the memory
list
To call up the channel list:
In the submenu rotate ymz or slide
omp until “Presets” is highlighted.
The presets list appears.
To select a channel: Rotate ymz or
slide qmr.
To tune to the selected channel:
Press n.
or
Press a number key, e.g. 4, on the
control unit.
Displaying information
In the submenu rotate ymz or slide
omp until “Info” is highlighted.
Press n.
Information about the current program
appears.1Category
2Channel
3Artist
4Song title
You will see (if available)
the full name
additional information
Switching back to the SatRadio main dis-
play:
Slide omp.

51 Audio
Satellite radio*
Displaying service information
You can call the provider service center for
questions or releases whenever you need.
Select “SatRadio” K “Service” in the
SatRadio submenu.
The service information appears.
1Phone number of the provider,
(SIRIUS) or “Call Service Provider”
2SIRIUS ID of your satellite receiver
Slide omp to switch back to the SatRa-
dio main display.
Channel list updates
While receiving a new channel list the mes-
sage “Updating Channels” will appear.
The channel last tuned will be muted until
the update is completed. You cannot oper-
ate the satellite radio.
After completion of the update, the
Satellite radio main menu will appear.
The channel last tuned to will begin to play.Sound settings
Refer to chapter “At a glance” on how to
adjust sound settings.
Volume (
page 35)
Balance control and fader (
page 36)
Bass and treble control (
page 36)
Surround sound (
page 38)

52 Audio
CD audio/DVD audio and MP3
Permissible storage media
CD-R and CD-RW
DVD+R and DVD+RW
DVD-R and DVD-RW
PCMCIA memory card (
page 57)
Permissible file systems
ISO9660/Joliet for CD storage media
UDF for DVDs
FAT16 or FAT32 for PCMCIA memory
card with storage medium
Multisession CDs
On multisession CDs, the content of the
first session determines how COMAND
handles the CD.
If the first session, for example, contains
data in audio CD format and the second
session contains MP3 tracks, COMAND
handles the CD as a conventional audio
CD. This means that the MP3 tracks can-
not be accessed.Similarly, if the first session contains MP3
tracks and the second session contains
d a t a i n a u d i o C D f ormat, COMAND handles
the CD as an MP3 CD. Only the MP3 tracks
can be accessed.
File structure of storage medium
When creating an MP3 storage medium,
you can organize MP3 tracks into folders.
A folder can also contain additional fold-
ers. A storage medium may have a maxi-
mum of 255 folders in total. A maximum of
255 tracks and 255 folders are permissible
per folder. A maximum of 4000 tracks in
total are permissible per storage medium.
Track names and folder names
When creating an MP3 storage medium,
you can assign names to the MP3 tracks
and to the folders.
COMAND uses these names in MP3 mode
for the corresponding display. Empty fold-
ers or folders containing data other than
MP3 tracks will not be displayed by
COMAND.
If MP3 files are stored in the root directory
itself, the root directory also counts as a
folder. COMAND will then display the root
directory name as a folder name.
CD audio/DVD audio and MP3
Safety instructions
G Warning
COMAND is classified as a Class 1 laser
product. You must not open the casing.
There is a risk of exposure to invisible laser
laser radiation if you open the casing, or if
the casing is faulty or damaged.
COMAND does not contain any parts that
you are able to maintain yourself. For safety
reasons, all maintenance work must be car-
ried out by qualified technicians.
G Warning
Only carry out the following when the vehi-
cle is stationary:
Inserting a disc
Ejecting a disc
There is a risk of accident by being distract-
ed from road and traffic conditions if you
load a CD/DVD while the vehicle is in mo-
tion.
Notes on MP3 mode

53 Audio
CD audio/DVD audio and MP3
Please note the following when assigning
track names:
Track names must contain at least one
character.
Track names must have the extension
“mp3”.
A period must appear between the
track name and the extension.
i COMAND does not support ID3 tags.
Permissible MP3 formats
COMAND supports the MPEG1 audio
layer 3 format.
i In everyday speech, this format has been re-
placed by the designation “MP3”.
Permissible bit and scan rates
Fixed and variable bit rates from
32 kbps to 320 kbps
Scan rates from 8 kHz to 48 kHz
i Only use MP3 tracks with a bit rate of 128
kbps or higher and with a scan rate of 44.1 kHz
or higher. Lower rates may result in impaired
sound quality. This is particularly true if the sur-
round sound function has been activated.
Notes on copyright
The music tracks that you can create for
playback in MP3 mode are generally copy-
right-protected under applicable interna-
tional and national laws.
In many countries,the reproduction of
copyrighted material is not permitted even
if only for personal use without the express
prior consent of the copyright holder.
Please check the current copyright laws
for your country and comply with them.
These restrictions do not apply, for exam-
ple, to your own compositions and record-
ings or for recordings for which
authorization has been obtained from the
copyright holder.
Notes about audio DVD discs
COMAND can playback commercially
available, prerecorded audio DVDs that
bear the following label. You will usually
find the label on the DVD booklet, the inlay
or the DVD itself.
i Audio DVDs differ from recordable DVD-R
and DVD-RW discs.
Data on audio DVDs are stored either in
uncompressed format or in lossless com-
pressed format. The sound quality on au-
dio DVDs is therefore better than on
recordable DVDs that contain MP3 data
because the MP3 format uses a lossy type
of compression. You cannot delete data
from or record additional data to commer-
cially available, prerecorded audio DVDs.
Please note the following information
about CDs/DVDs and pay special atten-
tion to the notes on copied and/or self-
written CDs/DVDs.
Other readable audio formats
COMAND can also read music files in the
WMA (Windows
® Media Audio), AAC (Ad-
vanced Audio Coding) and WAV (Waveform
Audio Format) formats.
i If other music files are stored in these audio
formats on a storage medium, in addition to MP3
files, the loading process may take longer before
the first track is played.

54 Audio
CD audio/DVD audio and MP3
i Discs with copy protection do not comply
with the CD audio standard and in some cases
cannot be played by COMAND.
When playing copied discs, problems may occur
with the playback.
A wide variety of discs, disc writing software and
writers are available. Due to this variety we can-
not guarantee that the system will be able to play
discs that you have written/copied yourself.
There may be playback problems with user-
burned CDs with a storage capacity of more than
700 MB. These CDs do not meet current valid
standards.
i When playing a DVD audio, it may be the
case with numerous albums that the last track
does not contain any music and COMAND
switches to the next track. This is due to the pro-
duction method and does not imply a fault with
the unit.
! Do not attach stickers or labels of any kind
to discs. They may come loose and damage
COMAND.
COMAND has been designed for discs meeting
the requirements of standard EN 60908. There-
fore, only discs with a maximum thickness of
1.3 mm can be used.
If a thicker disc is inserted, e.g. one which stores data on both sides, (DVD on one side, audio data
on the other side), this cannot be ejected and
COMAND will be damaged.
Do not use 8 cm diameter discs, not even with an
adapter. Only use round, 12 cm diameter discs.
i COMAND can play audio CDs with the high-
resolution surround format.
Only touch the discs at the edges.
Handle discs with care in order to pre-
vent malfunctions during playback.
Avoid scratching, leaving fingerprints
and dust on the discs.
Clean the discs occasionally with a
commercially available cleaning cloth.
Always wipe in a straight line from the
inside outwards, never in a circular mo-
tion.
The discs must only be labelled using
pens specially designed for this pur-
pose.
After use, put the discs back into the
box.
Protect the discs from heat and direct
sunlight.
i If the CD/DVD is printed on one side, this
side must face upwards when loaded. If neither
side is printed, the side to be played must face
downwards.
The system may not be able to play copy-protect-
ed CDs/DVDs.
Notes on CD/DVD discs
Notes on the care of
CD/DVD discs
Loading CDs and DVDs
G Warning
Only insert a CD or DVD when the vehicle is
stationary. There is a risk of accident by be-
ing distracted from road and traffic condi-
tions if you load a CD/DVD while the vehicle
is in motion.
Bear in mind that at a speed of just 30 mph
(appr. 50 km/h), your vehicle is covering a
distance of 44 feet (appr. 14 m) every
second.

55 Audio
CD audio/DVD audio and MP3
Loading the DVD changer
The DVD changer is a magazine with six
built-in compartments.
1Disc slot
2Load/Eject button (all magazine com-
partments)
Loading an individual magazine com-
partment
Press the Load button2.
A menu indicates which magazine com-
partments are currently loaded. The
highlighted or currently playing com-
partment is indicated by a red number.
Magazine menu
To select magazine compartment:
Rotate ymz or slide omp.
To start loading: Press n.
The DVD changer will switch to the se-
lected magazine compartment. The
message “Please Wait...” will be dis-
played.
The message “Please Insert Disc ”
will be displayed.
i Only insert a CD after COMAND has prompt-
ed you to do so with this message. Only insert
one CD per magazine compartment.
Insert a disc into the slot1 with the
printed side upwards.
The DVD changer pulls in the disc and
places it in the selected magazine com-
partment. The message “Loading Disc
” will be displayed.
i The loading process may take a while, de-
pending on the type of disc. If you do not insert a
disc, the display will switch back to the Magazine
menu after approximately 20 seconds.
The DVD changer plays the disc if
it has been inserted correctly
it is a permissible disc.

56 Audio
CD audio/DVD audio and MP3
Magazine menu, one disc loaded
1Magazine compartment occupied,
ejecting possible
2Empty magazine compartment
To exit menu: Press the Load button
again.
or
Select “Back”.
or
Press the í button next to the
COMAND controller.Filling empty magazine compartments
Press the Load button u.
The Magazine menu appears. The cur-
rently playing compartment is indicat-
ed by a red number or, if the magazine
is empty, compartment 1 is marked.
Select “Fill Empty Slots”.
The message “Please Insert Disc ”
will be displayed.
i Only insert a CD after COMAND has prompt-
ed you to do so with this message. Only insert
one CD per magazine compartment.
Insert a disc into the slot with the print-
ed side upwards.
The message “Please Wait...” will be
displayed. If the disc has been loaded,
the DVD changer will switch to the next
empty magazine compartment. The
message “Please Insert Disc ” will
be displayed.
Repeat the step until all compartments
have been loaded.
The DVD changer plays the last loaded
disc if it has been inserted correctly
and is permissible.If the loading process has not been
completed, COMAND will play the disc
inserted last.
To end loading procedure:
Press the Load button
u again.
or
Select “Back”.
or
Press the í button next to the
COMAND controller.

57 Audio
CD audio/DVD audio and MP3
COMAND supports type I and II 16 bit full-
size PCMCIA memory cards.
i COMAND supports commercially available
PCMCIA cards or PCMCIA card adapters with
storage media that may not be designed for the
temperatures which occur in the vehicle. You
should therefore remove the PCMCIA card from
the vehicle when not in use since extreme tem-
peratures could damage these devices.
1Slot for PCMCIA memory card
Push the PCMCIA memory card into
the slot 1.
The end with the contacts must be
pointing towards the slot.COMAND loads the memory card and
displays the message “Reading memo-
ry card”.
If no MP3 tracks can be found, a mes-
sage will be displayed.
Ejecting from the DVD changer
i If you eject a disc while another is being
played, the DVD changer interrupts playback.
Playback will continue once the disc has been
ejected completely.
Ejecting one disc
Press the Eject button2.
The Magazine menu appears. The mag-
azine compartment with the current
disc is highlighted.1Magazine compartment occupied,
ejecting possible
2Disc type
3Disc name (only if stored on disc)
4Current disc
To select occupied magazine com-
partment: Rotate ymz or slide omp.
Press n.
The message “Ejecting Disc ” will be
displayed. The following message will
then be displayed.
Loading PCMCIA memory card
Ejecting CDs and DVDs
G Warning
Only eject a disc when the vehicle is station-
ary. You may otherwise be distracted from
the traffic conditions and could cause an ac-
cident.

58 Audio
CD audio/DVD audio and MP3
Remove the disc from the slot 1.
If you do not remove the disc from the
slot 1, the DVD changer will automat-
ically pull it back in after a short while
and begin playback.
Ejecting all discs
Press the Eject button2.
The Magazine menu appears.
Select “Eject All”.
The DVD changer ejects the first disc
found. The message “Ejecting Disc ”
is displayed.
Remove the disc from the slot 1 when
you see the message prompting you to
do this.
The DVD changer switches to the next
occupied magazine compartment and
ejects the disc.
Repeat the last step until the magazine
is empty.1Eject button
2Slot for PCMCIA memory card
Press the Eject button 1 twice.
The PCMCIA memory card is ejected.
Remove the PCMCIA memory card
from the slot 2.
Ejecting PCMCIA memory card

59 Audio
CD audio/DVD audio and MP3

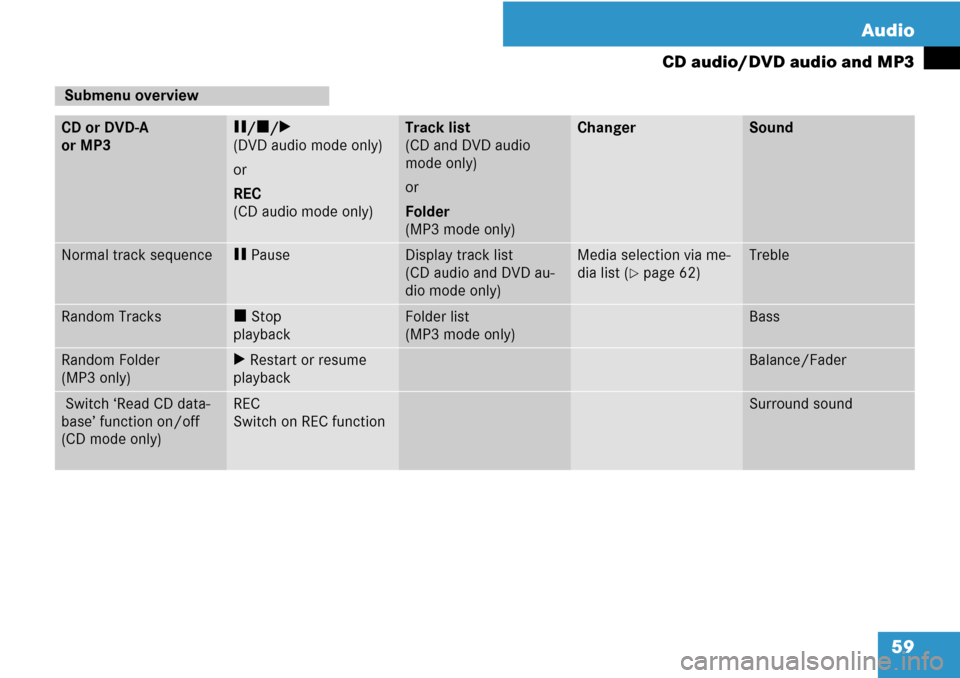

Submenu overview
CD or DVD-A
or MP3 g/h/T
(DVD audio mode only)
or
REC
(CD audio mode only)Track list
(CD and DVD audio
mode only)
or
Folder
(MP3 mode only)ChangerSound
Normal track sequenceg PauseDisplay track list
(CD audio and DVD au-
dio mode only)Media selection via me-
dia list (

page 62)
Treble
Random Tracksh Stop
playbackFolder list
(MP3 mode only)Bass
Random Folder
(MP3 only)T Restart or resume
playbackBalance/Fader
Switch ‘Read CD data-
base’ function on/off
(CD mode only)REC
Switch on REC functionSurround sound
