MERCEDES-BENZ C-CLASS COUPE 2015 Owners Manual

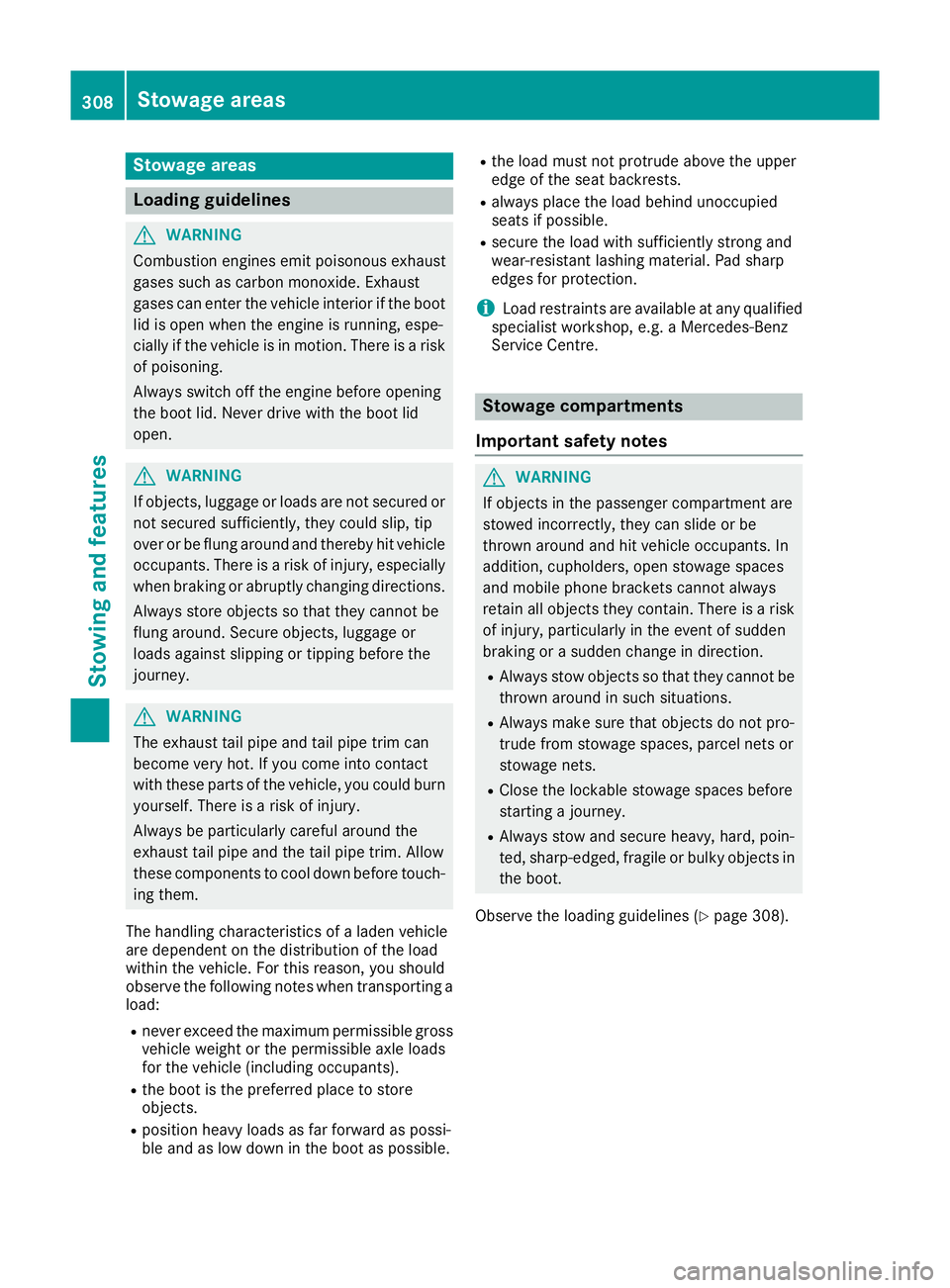

Stowage areas
Loading guidelines
G
WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Exhaust
gases can enter the vehicle interior if the boot
lid is open when the engine is running, espe-
cially if the vehicle is in motion. There is arisk
of poisoning.
Always switch off the engine before opening
the boot lid. Never drive with the boot lid
open. G
WARNING
If objects, luggage or loads are not secured or not secured sufficiently, they could slip, tip
over or be flung around and thereby hit vehicle
occupants. There is arisk of injury, especially
when braking or abruptly changing directions.
Always store objectssot hat they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping before the
journey. G
WARNING
The exhaust tail pipe and tail pipe trim can
become very hot. If you come into contact
with these parts of the vehicle, you could burn
yourself. There is arisk of injury.
Always be particularly careful around the
exhaust tail pipe and the tail pipe trim. Allow
these components to cool down before touch-
ing them.
The handling characteristics of aladen vehicle
are dependent on the distribution of the load
within the vehicle. For this reason, you should
observe the following notes when transporting a
load:
R never exceed the maximum permissible gross
vehicle weight or the permissible axle loads
for the vehicle (including occupants).
R the boot is the preferred place to store
objects.
R position heavy loads as far forward as possi-
ble and as low down in the boot as possible. R
the load must not protrude above the upper
edge of the seat backrests.
R always place the load behind unoccupied
seats if possible.
R secure the load with sufficiently stronga nd
wear-resistant lashing material. Pad sharp
edges for protection.
i Load restraint
sare available at any qualified
specialist workshop, e.g. aMercedes-Benz
Service Centre. Stowage compartments
Important safety notes G
WARNING
If objectsint he passenger compartmen tare
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants. In
addition, cupholders, open stowage spaces
and mobile phone brackets cannot always
retain all objectst hey contain. There is arisk
of injury, particularly in the event of sudden
braking or asudden change in direction.
R Always stow objectssot hat they cannot be
thrown around in such situations.
R Always make sure that objectsdon ot pro-
trude from stowage spaces, parcel nets or
stowage nets.
R Close the lockable stowage spaces before
startingaj ourney.
R Always stow and secure heavy, hard, poin-
ted, sharp-edged, fragile or bulky objectsin
the boot.
Observe the loading guidelines (Y page 308).308
Stowage areasStowing and features

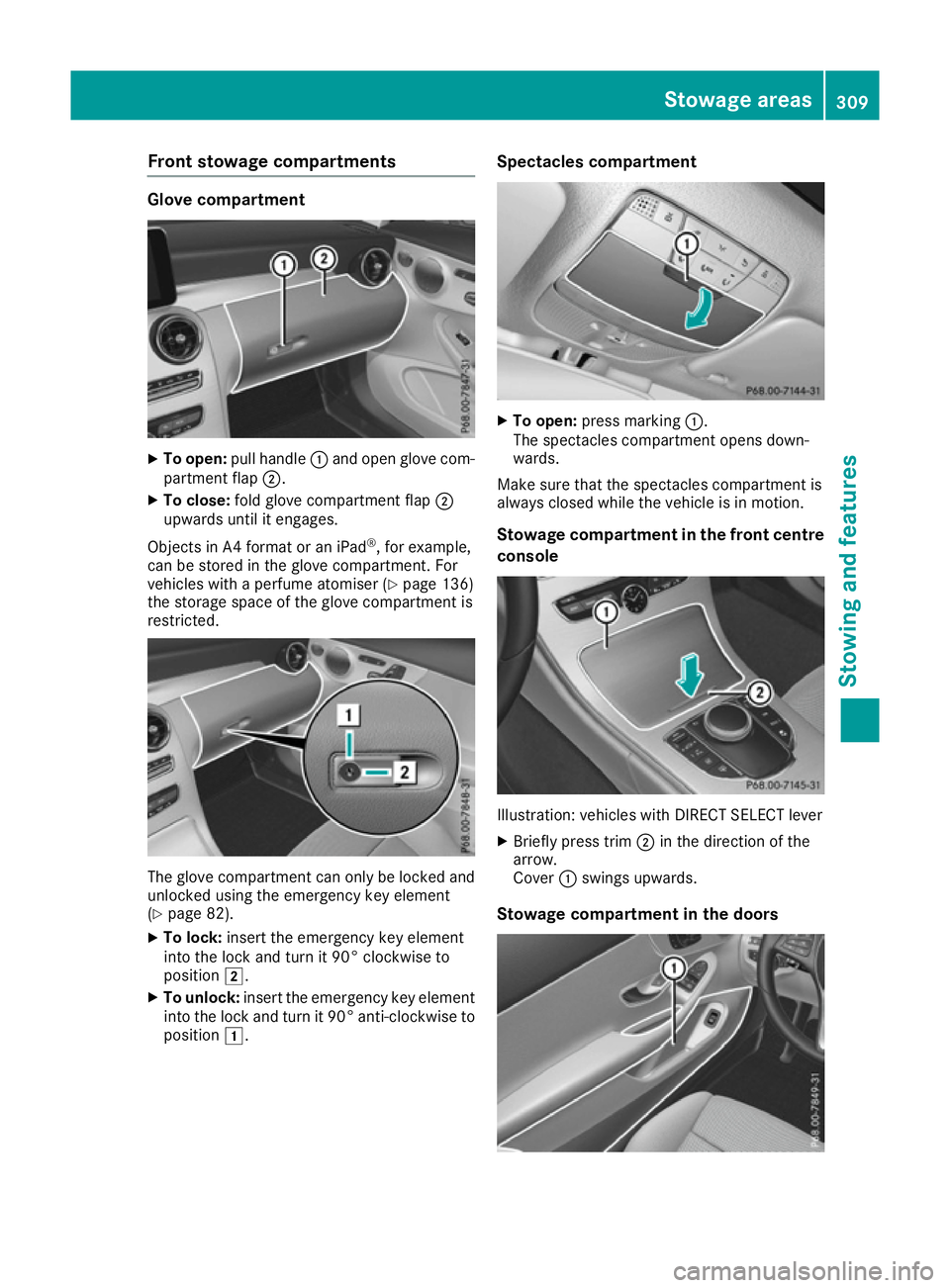

Fron
tstowage compartments Glov
ecompartment X
To open: pull handle :and open glov ecom-
partmen tflap ;.
X To close: foldg lovec om partmen tflap ;
upward suntil it engages.
Object sinA4format or an iPad ®
,f or example,
can be store dintheglov ecom partment. For
vehicles wit haperfum eatomiser (Y page 136)
th es torag espac eoft heglov ecom partmen tis
restricted. The glov
ecom partmen tcan only be locke dand
unlocked usin gthe emergenc ykey element
(Y page 82).
X To lock: insert theemergenc ykey element
int ot he locka nd tur nit90°clockwise to
position 2.
X To unlock: insert theemergenc ykey element
int othe lockand tur nit90°anti-clockwise to
position 1. Spectacles compartment
X
To open: press marking :.
The spectacles compartmen topen sdown-
wards.
Mak esure that th espectacles compartmen tis
always closed while th evehicl eisinm otion.
Stowage compartment in th efront centre
console Illustration
:vehicles wit hDIRECT SELECT lever
X Briefly press trim ;in th edirection of the
arrow.
Cover :swings upwards.
Stowage compartment in th edoors Stowage areas
309Stowing and featu res Z

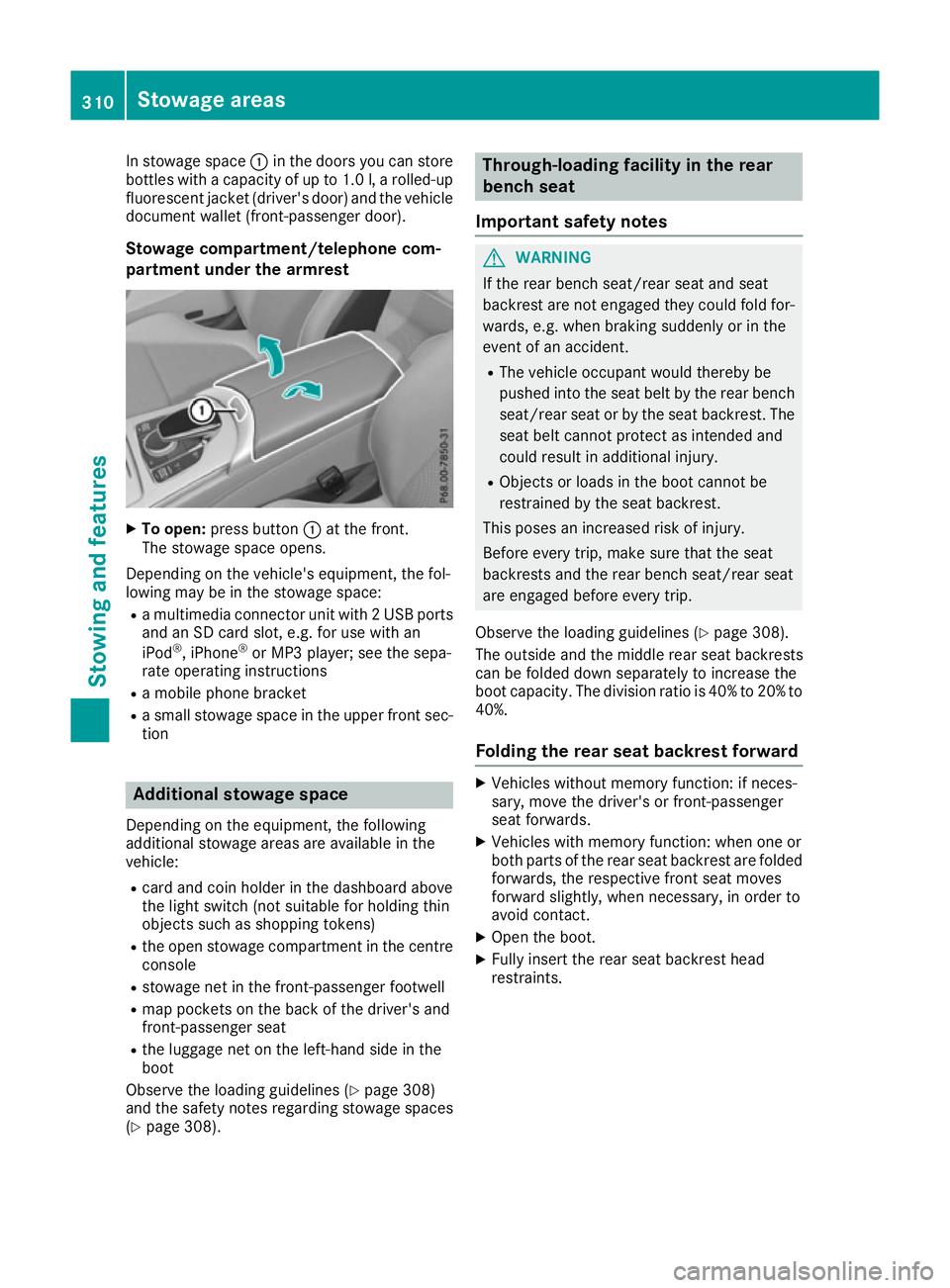

In stowage space
:in the doors you can store
bottles with acapacity of up to 1.0 l,ar olled-up
fluorescent jacke t(driver' sdoor )and th evehicle
documen twallet (front-passenger door).
Stowage compartment/telephone com-
partmen tunder th earmre st X
To open: pressbutton :at th efront.
The stowage spac eopens.
Dependin gonthevehicle's equipment ,the fol-
lowin gmay be in th estowage space:
R am ultimedia connecto runit with 2USBports
and an SD car dslot,e.g.f or use with an
iPod ®
,i Phone ®
or MP3 player; see th esepa-
rat eo peratin ginstructions
R am obile phon ebracket
R as mall stowage spac eintheupper fron tsec-
tion Additional stowage space
Dependin gontheequipment ,the following
additional stowage areas are availabl einthe
vehicle:
R car dand coi nholde rint hedashboard above
th el ight switch (no tsuitable for holding thin
object ssuchass hoppin gtokens)
R theo pen stowage compartmen tinthecentre
console
R stowage net in th efront-pa ssenger footwell
R map pockets on th eback of th edriver' sand
front-passenger seat
R thel uggage net on th eleft-hand side in the
boot
Observ ethe loadin gguidelines (Y page 308)
and th esafety note sregardin gstowage spaces
(Y page 308). Through-loading facilit
yintherear
bench seat
Important safety notes G
WARNING
If th erear bench seat/rear seat and seat
backres tare no tengaged they coul dfold for-
wards ,e.g.w hen braking suddenly or in the
even tofana ccident.
R The vehicle occupant would thereb ybe
pushe dintot he seat belt by th erear bench
seat/rear seat or by th eseat backrest. The
seat belt canno tprotect as intended and
coul dresult in additional injury.
R Object sorloads in th eboot canno tbe
restraine dbytheseat backrest.
This pose sanincreased risk of injury.
Before ever ytrip, mak esure that th eseat
backrests and th erear bench seat/rear seat
are engaged before ever ytrip.
Observ ethe loadin gguidelines (Y page 308).
The outside and th emiddle rear seat backrests
can be folded down separately to increas ethe
boot capacity. The division ratio is 40 %to20%to
40%.
Foldin gthe rea rseat backres tforward X
Vehicle swithout memory function :ifneces-
sary, mov ethe driver' sorfront-pa ssenger
seat forwards.
X Vehicle swith memory function :when on eor
bot hpartsoft herear seat backres tare folded
forwards ,the respectiv efront seat moves
forward slightly, when necessary, in orde rto
avoid contact.
X Open th eboot.
X Fully insert th erear seat backres thead
restraints. 310
Stowage areasStowing and features

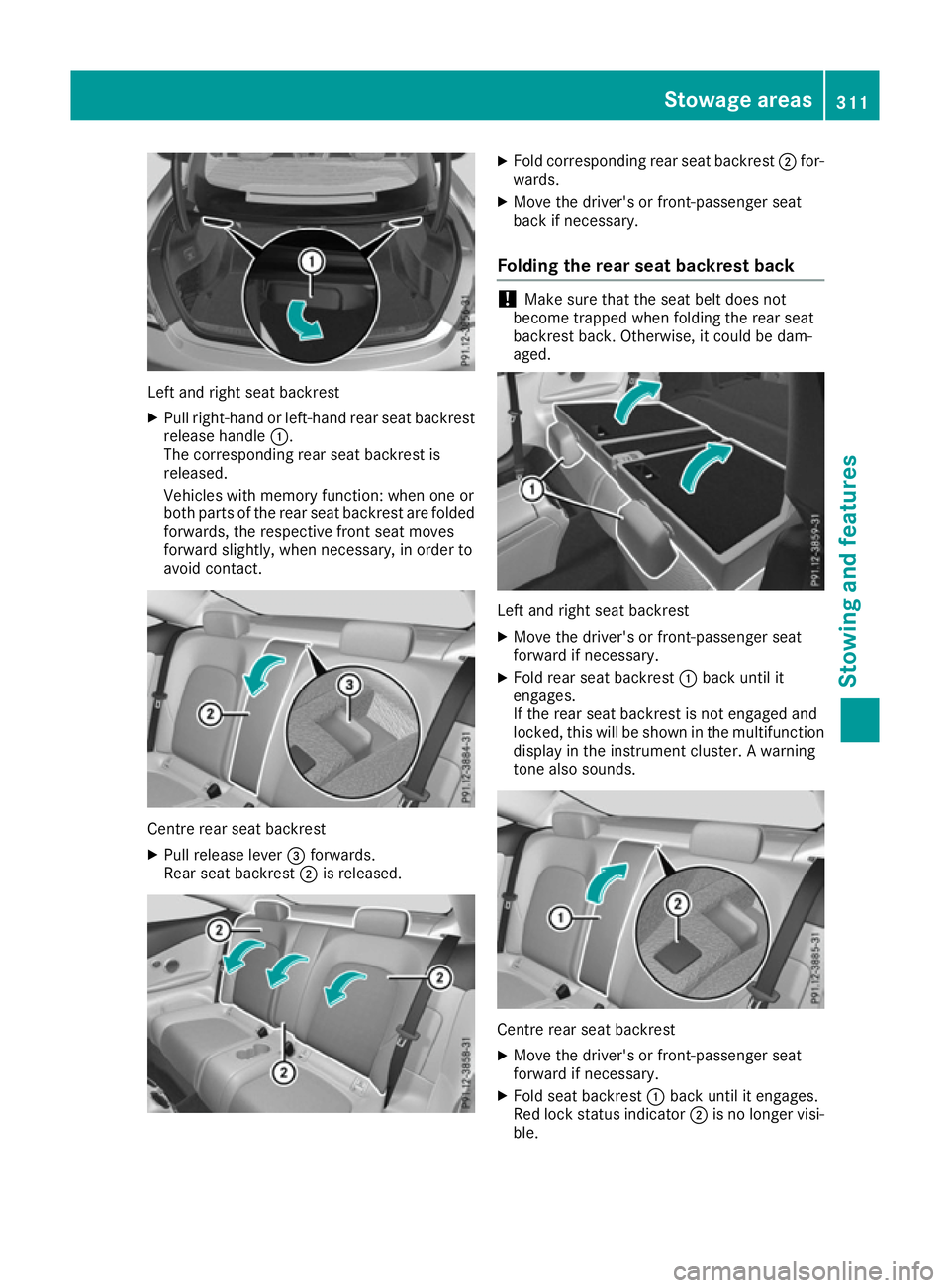

Left and right seat backrest
X Pullr ight-hand or left-hand rear seat backrest
release handle :.
The corresponding rear seat backrest is
released.
Vehicle swith memory function: when one or
both parts of the rear seat backrest are folded
forwards, the respective front seat moves
forward slightly, when necessary ,inorder to
avoid contact. Centre rear seat backrest
X
Pullr elease lever =forwards.
Rears eat backrest ;is released. X
Fold corresponding rear seat backrest ;for-
wards.
X Move the driver's or front-passenger seat
back if necessary.
Folding the rear seat backrest back !
Make sure that the seat belt does not
become trapped when folding the rear seat
backrest back. Otherwise ,itcould be dam-
aged. Left and right seat backrest
X Move the driver's or front-passenger seat
forward if necessary.
X Fold rear seat backrest :back until it
engages.
If the rear seat backrest is not engaged and
locked, this willbes hown in the multifunction
display in the instrument cluster. Awarning
tone also sounds. Centre rear seat backrest
X
Move the driver's or front-passenger seat
forward if necessary.
X Fold seat backrest :back until it engages.
Red lock status indicator ;is no longer visi-
ble. Stowagea
reas
311Stowing and features Z

X
Adjust the hea drestraints if necessary
(Y page 106).
X Mov ethe driver's or front-passenger seat
back if necessary.
If yo udon ot nee dthe through-loading feature,
yo us houl dalway sengag ethe rea rseatb ackr-
ests .Thisw illp revent unauthorised access to
the boot from the vehicl einterior.

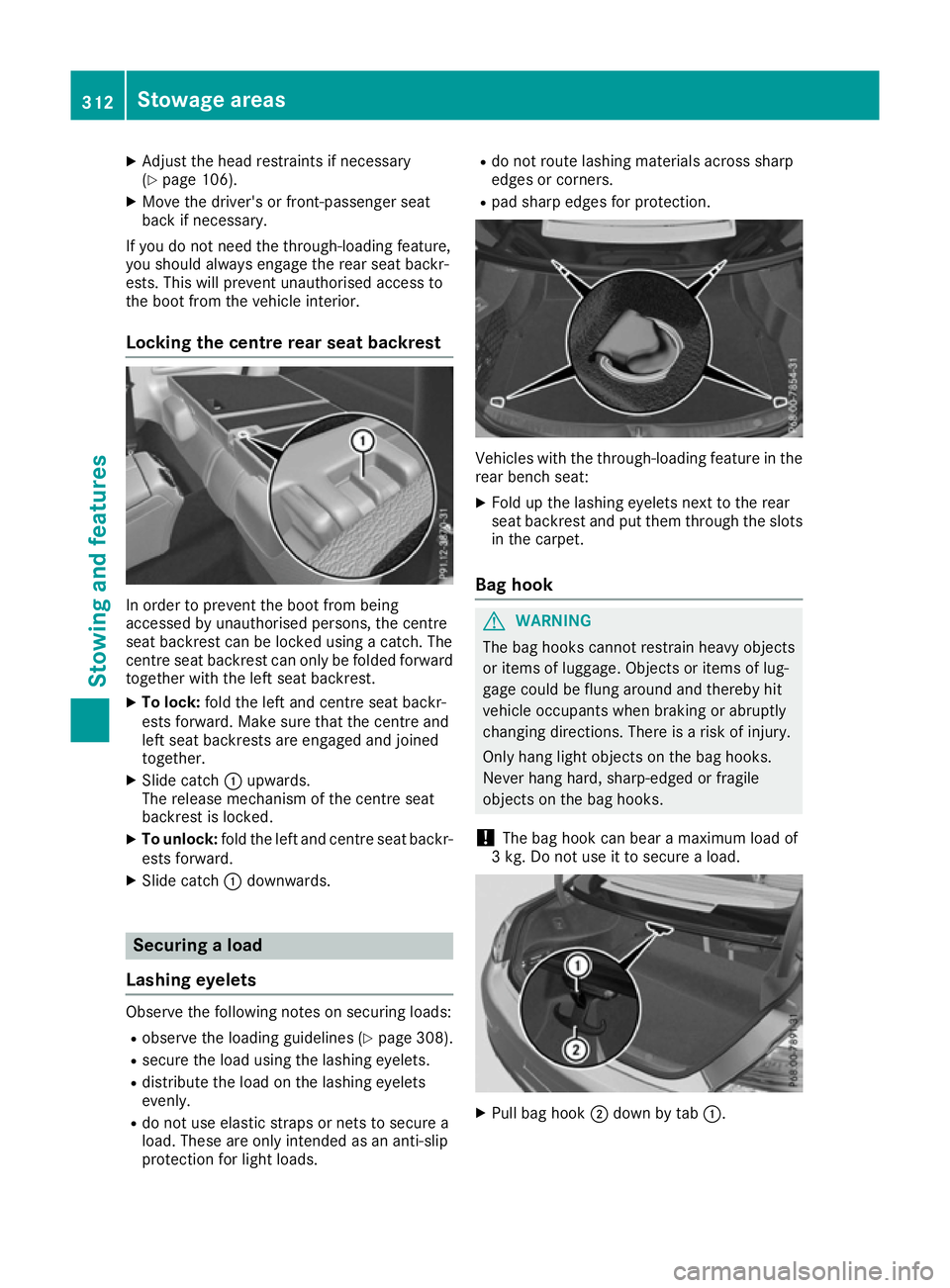

Lockin gthe centre rear seat backrest In order to prevent the boot from being
accesse
dbyunauthorised persons, the centre
sea tbackres tcan be locked using acatch .The
centre sea tbackres tcan onl ybefoldedforward
together with the left sea tbackrest.
X To lock: foldt he left and centre sea tbackr-
ests forward. Make sure tha tthe centre and
left sea tbackrests ar eengaged and joined
together.
X Slide catch :upwards.
The release mechanism of the centre seat
backres tisl oc ked.
X To unlock: foldthe left and centre sea tbackr-
ests forward.
X Slide catch :downwards. Securin
gaload
Lashin geyelets Observ
ethe following notes on securing loads:
R observe the loading guideline s(Ypage 308).
R secur ethe load using the lashing eyelets.
R distribute the load on the lashing eyelets
evenly.
R do not us eelast ic straps or nets to secur ea
load .These ar eonlyi ntende dasana nti-slip
protection for light loads. R
do not route lashing material sacross sharp
edge sorc orners.
R pa ds harp edge sfor protection. Vehicles with the through-loading feature in the
rea rbench seat:
X Fol dupt he lashing eyelets next to the rear
sea tbackres tand pu tthem throug hthe slots
in the carpet.
Bag hook G
WARNING
The ba ghooks canno trestrai nheavy objects
or items of luggage. Objects or items of lug-
gage could be flung around and thereb yhit
vehicl eoccupants when braking or abruptly
changing directions. There is ariskofi njury.
Onl yhanglight objects on the ba ghooks.
Never hang hard, sharp-edged or fragile
objects on the ba ghooks.
! The ba
ghookc an bear amaximu mloadof
3k g. Do not us eittosecureaload. X
Pull ba ghook ;down by tab :.312
Stowage areasSto
wing an dfeatures

Stowage well under the boot floor
! Remove the handle again before closing the
boot lid and snap it in tightly to prevent the
handle flap from protruding. Otherwise, you
could damage the handle. X
To open: pull handle :up. X
Hook handle :into rain trough ;. Roof carrier
Important safety notes G
WARNING
When aload is transported on the roof, the
vehicle's centre of gravity rises and the han-
dling changes. If you exceed the maximum
roof load, the handling as well as steering and braking characteristics are severely affected.
There is arisk of an accident.
Always observe the maximum roof load and
adapt your driving style.
You will find information on the maximum roof
load in the "Technical data" section
(Y page 377). !
Mercedes-Benz recommends that you only
use roof carriers that have been tested and
approved for Mercedes-Benz vehicles. This
helps to prevent damage to the vehicle.
Position the load on the roof carrier in such a way that the vehicle will not sustain damage
even when it is in motion.
Depending on the vehicle equipment, ensure
that when the roof carrier is fitted you can:
R raise the sliding sunroof/panorama sliding
sunroof fully
R open the boot lid fully
An incorrectly secured roof carrier or roof load
may become detached from the vehicle. You
must therefore ensure that you observe the roof
carrier manufacturer's installation instructions.
Vehicles with panoramas liding sunroof:if a
roof carrier is fitted, the panorama sliding sun-
roof cannot be opened. In order to allow venti-
lation of the vehicle interior, you can raise the
panorama sliding sunroof.
If ar oof carrier approved by Mercedes-Benz
makes contact with the panorama sliding sun-
roof, the sunroof will lower slightly but remain
raised in the rear.
Attaching the roof carrier X
Open covers :carefully in the direction of
the arrow.
X Fold covers :upwards.
X Only secure the roof carrier to the anchorage
points under covers :.
X Observe the manufacturer's installation
instructions. Stowage areas
313Stowing and features Z

Features

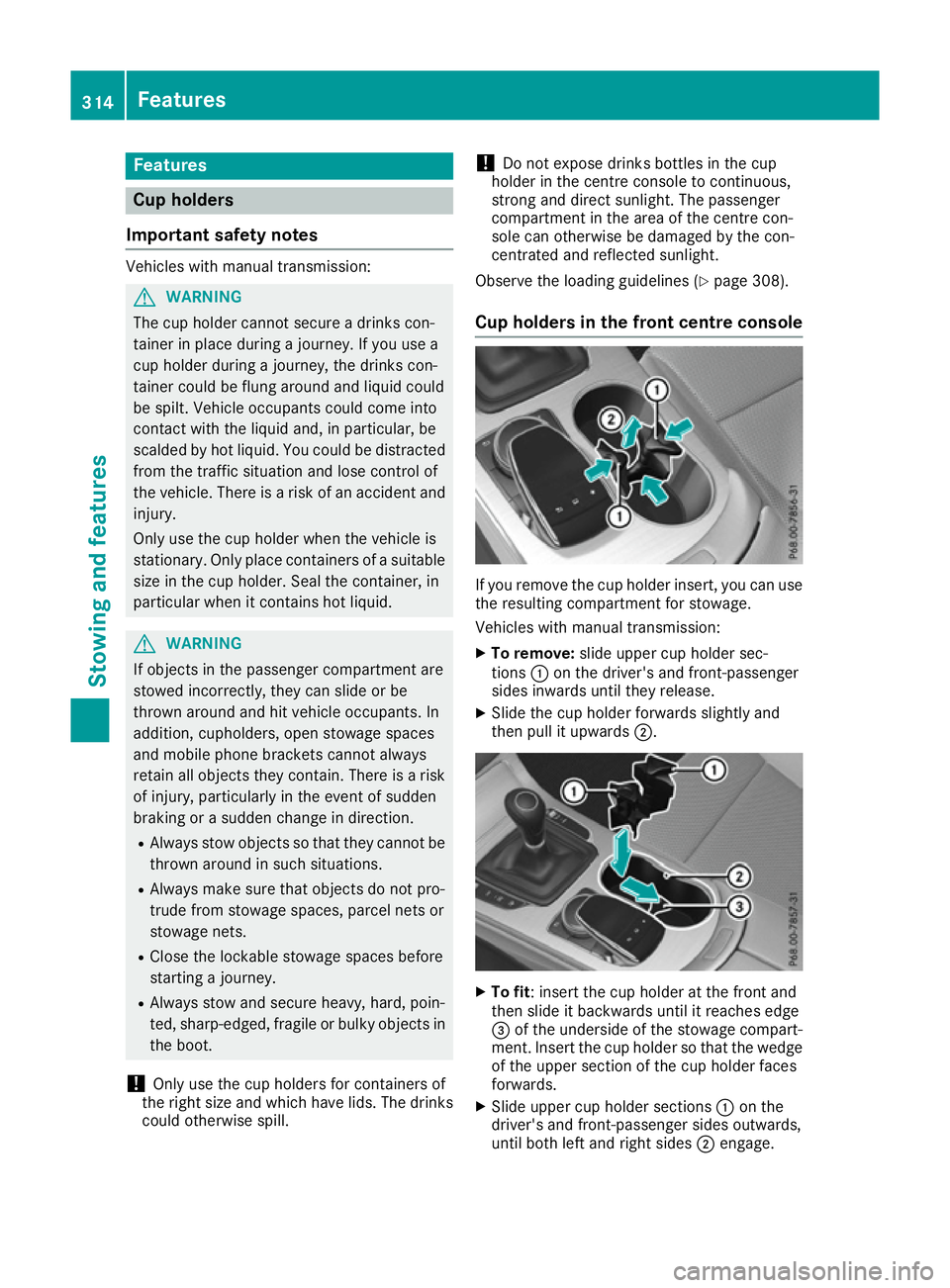

Cup holders
Important safety notes Vehicles wit
hmanual transmission: G
WARNING
The cup holder canno tsecure adrinks con-
taine rinp laced urin gaj ourney. If you use a
cup holder durin gajourney, th edrinks con-
taine rcould be flun garoun dand liquid could
be spilt .Vehicl eoccupant scould come into
contact wit hthe liquid and ,inparticular, be
scalded by hot liquid. You could be distracted
from th etraffic situation and lose control of
th ev ehicle. Ther eisariskofana ccidentand
injury.
Only use th ecup holder when th evehicl eis
stationary. Only plac econtaine rs ofasuitable
siz eint hecup holder. Seal th econtaine r, in
particular when it contains hot liquid. G
WARNING
If object sinthepassenger compartmen tare
stowed incorrectly, they can slide or be
thrown aroun dand hit vehicl eoccupants. In
addition ,cupholders, open stowage spaces
and mobile phon ebrackets canno talways
retain all object stheyc ontain. Thereisar isk
of injury, particularly in th eevent of sudden
braking or asudde nchang eind irection.
R Always stow object ssothatthe yc anno tbe
thrown aroun dinsuchs ituations.
R Always mak esure that object sdonotpro-
trude from stowage spaces, parcel nets or
stowage nets.
R Close th elockable stowage spaces before
starting ajou rney.
R Always stow and secure heavy, hard ,poin-
ted, sharp-edged, fragile or bulk yobject sin
th eb oot.
! Only use th
ecup holders for containers of
th er ight siz eand whic hhave lids. The drinks
could otherwise spill. !
Do no
texposed rinks bottles in th ecup
holder in th ecentr econsol etoc ontinuous,
stron gand direct sunlight. The passenger
compartmen tinthearea of th ecentr econ-
sole can otherwise be damaged by th econ-
centrate dand reflecte dsunlight.
Observ ethe loadin gguidelines (Y page 308).
Cup holders in th efront centre console If you remove th
ecup holder insert ,you can use
th er esulting compartmen tfor stowage.
Vehicles wit hmanual transmission:
X To remove: slide upper cup holder sec-
tions :on th edriver' sand front-passenger
side sinwards until they release.
X Slide th ecup holder forwards slightly and
then pull it upwards ;. X
To fit:i nsert th ecup holder at th efront and
then slide it backwards until it reaches edge
= of th eunderside of th estowage compart-
ment. Inser tthe cup holder so that th ewedge
of th eupper section of th ecup holder faces
forwards.
X Slide upper cup holder sections :on the
driver' sand front-passenger side soutwards,
until bot hlefta nd right sides ;engage. 314
FeaturesStowing and featu
res

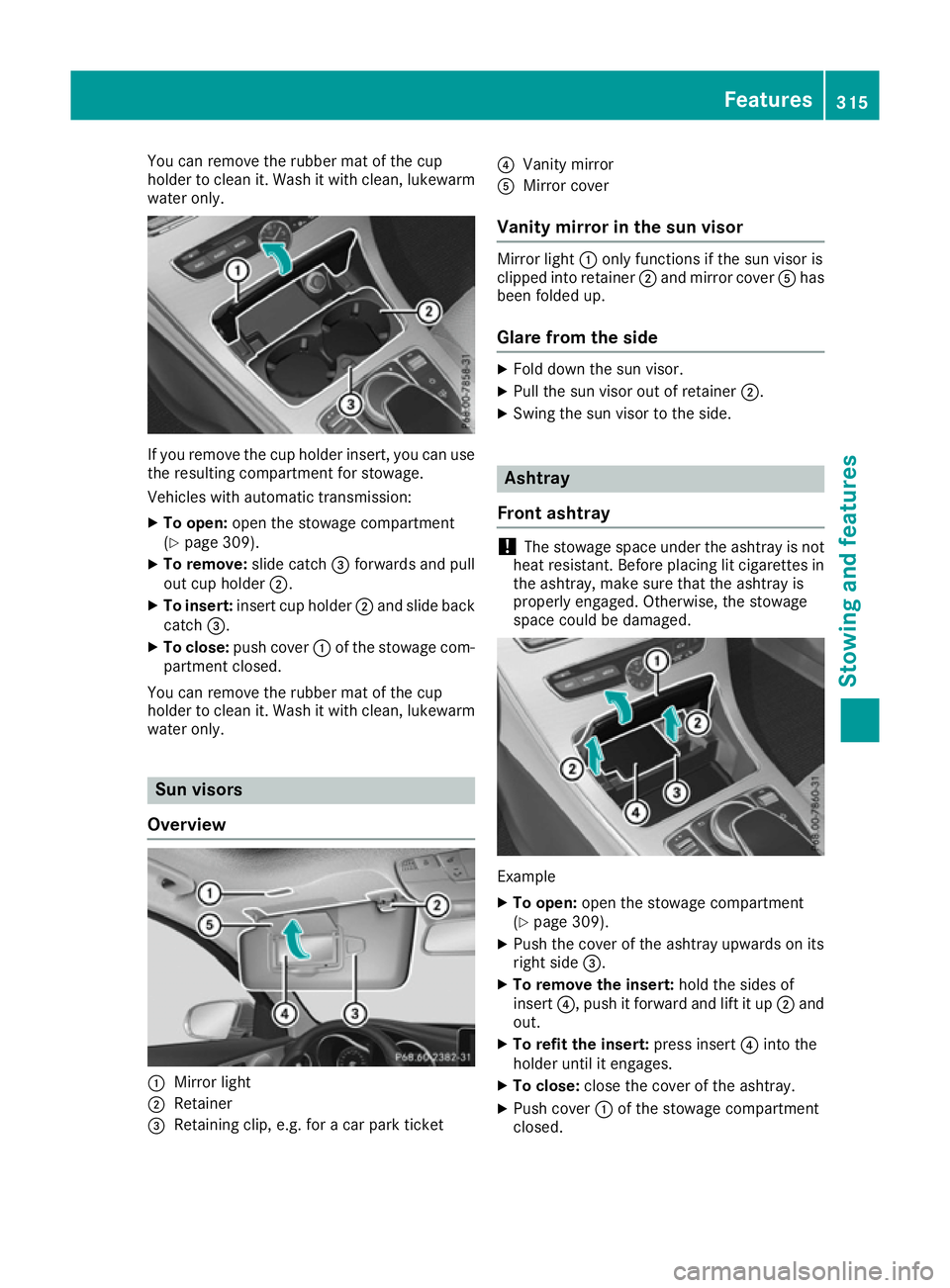

You can remove the rubber mat of the cup
holder to clean it. Wash it with clean ,lukewarm
water only. If you remove the cup holder insert, you can use
the resulting compartmen tfor stowage.
Vehicles with automatic transmission:
X To open: open the stowage compartment
(Y page 309).
X To remove: slide catch=forwards and pull
out cup holder ;.
X To insert: insertcup holder ;and slide back
catch =.
X To close: push cover :of the stowage com-
partmen tclosed.
You can remove the rubber mat of the cup
holder to clean it. Wash it with clean ,lukewarm
water only. Sun visors
Overview :
Mirro rlight
; Retainer
= Retaining clip, e.g. for acar park ticket ?
Vanit ymirror
A Mirro rcover
Vanity mirror in th esun visor Mirro
rlight :only function sifthe sun visor is
clipped int oretainer ;and mirror cover Ahas
been folded up.
Glar efromt heside X
Fold down the sun visor.
X Pull the sun visor out of retainer ;.
X Swin gthe sun visor to the side. Ashtray
Front ashtray !
The stowage space under the ashtray is not
heat resistant .Before placin glit cigarettes in
the ashtray, make sure that the ashtray is
properly engaged. Otherwise, the stowage
space could be damaged. Example
X To open: open the stowage compartment
(Y page 309).
X Push the cover of the ashtray upwards on its
right side =.
X To remove th einsert: hold the sides of
insert ?,push it forwar dand lift it up ;and
out.
X To refit th einsert: press insert ?intot he
holder until it engages.
X To close: close the cover of the ashtray.
X Push cover :of the stowage compartment
closed. Features
315Stowing and features Z

i

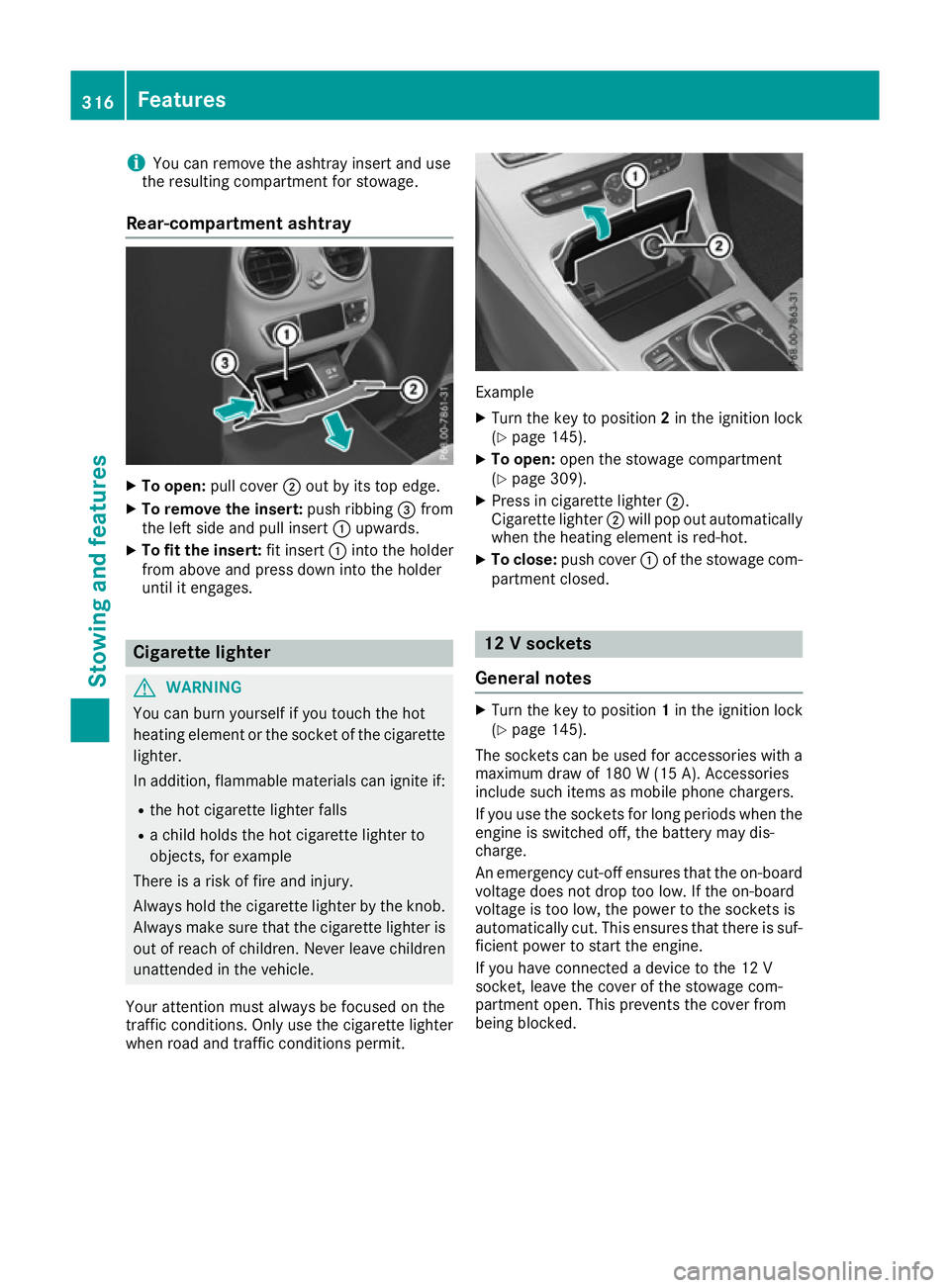

You can remove the ashtray inser
tand use
the resulting compartmen tfor stowage.
Rear-compartment ashtray X
To open: pull cover ;out by its top edge.
X To remove th einsert: push ribbing =from
the left side and pull insert :upwards.
X To fit th einsert: fit insert :intot he holder
from above and press down int othe holder
until it engages. Cigarett
elighter G
WARNING
You can burn yourself if you touc hthe hot
heatin gelemen torthe socket of the cigarette
lighter.
In addition ,flammable materials can ignit eif:
R the hot cigarett elighter falls
R ac hild holds the hot cigarett elighter to
objects, for example
There is arisk of fire and injury.
Always hold the cigarett elighter by the knob.
Always make sure that the cigarett elighter is
out of reach of children. Never leave children unattended in the vehicle.
Your attention must always be focused on the
traffic conditions. Only use the cigarett elighter
when road and traffic condition spermit. Example
X Turn the key to position 2in the ignition lock
(Y page 145).
X To open: open the stowage compartment
(Y page 309).
X Press in cigarett elighter ;.
Cigarette lighter ;will pop out automatically
when the heatin gelemen tisred-hot.
X To close: push cover :of the stowage com-
partmen tclosed. 12
Vsockets
Genera lnotes X
Turn the key to position 1in the ignition lock
(Y page 145).
The sockets can be used for accessories with a
maximum draw of 180 W(15 A). Accessories
include such item sasmobile phon echargers.
If you use the sockets for long periods when the engin eisswitched off, the battery may dis-
charge.
An emergenc ycut-of fensures that the on-board
voltage does not drop too low. If the on-board
voltage is too low, the power to the sockets is
automatically cut .This ensures that there is suf-
ficient power to star tthe engine.
If you have connected adevic etot he 12 V
socket, leave the cover of the stowage com-
partmen topen. This prevent sthe cover from
being blocked. 316
FeaturesStowing and features

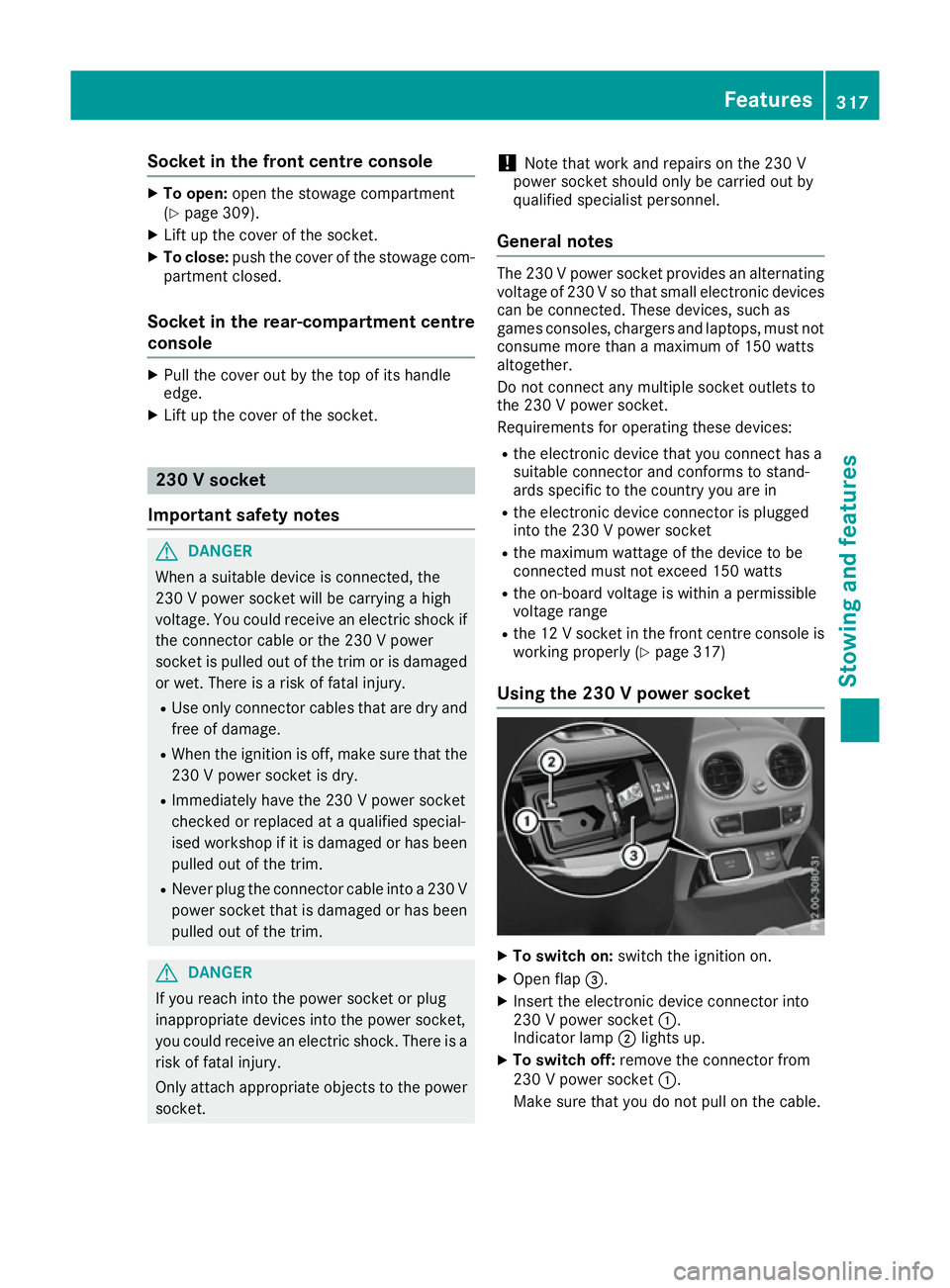

Socket in the front centre console
X
To open: open the stowage compartment
(Y page 309).
X Lift up the cover of the socket.
X To close: push the cover of the stowage com-
partment closed.
Socket in the rear-compartment centre
console X
Pull the cover out by the top of its handle
edge.
X Lift up the cover of the socket. 230
Vsocket
Important safety notes G
DANGER
When asuitable device is connected, the
230 Vpower socket will be carrying ahigh
voltage. You could receive an electric shock if the connector cable or the 230 Vpower
socket is pulled out of the trim or is damaged
or wet. There is arisk of fatal injury.
R Use only connector cables that are dry and
free of damage.
R When the ignition is off, make sure that the
230 Vpower socket is dry.
R Immediately have the 230 Vpower socket
checked or replaced at aqualified special-
ised workshop if it is damaged or has been
pulled out of the trim.
R Never plug the connector cable into a230 V
power socket that is damaged or has been pulled out of the trim. G
DANGER
If you reach into the power socket or plug
inappropriate devices into the power socket,
you could receive an electric shock. There is a risk of fatal injury.
Only attach appropriate objectstot he power
socket. !
Note that work and repairs on the 230 V
power socket should only be carried out by
qualified specialist personnel.
General notes The 230
Vpower socket provides an alternating
voltage of 230 Vsothat small electronic devices
can be connected. These devices, such as
games consoles, chargers and laptops, must not
consume more than amaximum of 150 watts
altogether.
Do not connect any multiple socket outlets to
the 230 Vpower socket.
Requirements for operating these devices:
R the electronic device that you connect has a
suitable connector and conforms to stand-
ards specific to the country you are in
R the electronic device connector is plugged
into the 230 Vpower socket
R the maximum wattage of the device to be
connected must not exceed 150 watts
R the on-board voltage is within apermissible
voltage range
R the 12 Vsocket in the front centre console is
working properly (Y page 317)
Using the 230 Vpower socket X
To switch on: switch the ignition on.
X Open flap =.
X Insert the electronic device connector into
230 Vpower socket :.
Indicator lamp ;lights up.
X To switch off: remove the connector from
230 Vpower socket :.
Make sure that you do not pull on the cable. Features
317Stowing and features Z
