69 Safety and Security
Occupant safety
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency
tensioning devices and belt force limiters.
The ETD is designed to activate in the
following cases:
in frontal or rear-end impacts
exceeding a preset severity level.
if the restraint systems are operational
and functioning correctly.
See 1indicator lamp (
page 60).In an impact, emergency tensioning
devices remove slack from the belts in
such a way that the seat belts fit more
snugly against the body. Belt force limiters
reduce the force exerted by the seat belts
on occupants during a crash.
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:
Secure the child using an infant or child
restraint appropriate to the age and
size of the child.
Make sure that the infant or child is
properly secured at all times while the
vehicle is in motion.
Infant and child restraint seats and infor-
mation on choosing an appropriate re-
straint system can be obtained from any
Mercedes-Benz Center.
Infant and child restraint systems
Only use a BabySmart
TM1
compatible child
restraint for the front passenger seat in
this vehicle.
iThe ETDs for the front seats will only
activate if the respective front seat belt
is fastened (latch plate properly
inserted into buckle).
The ETDs for the rear outer seats will
activate with or without the respective
seat belt fastened.

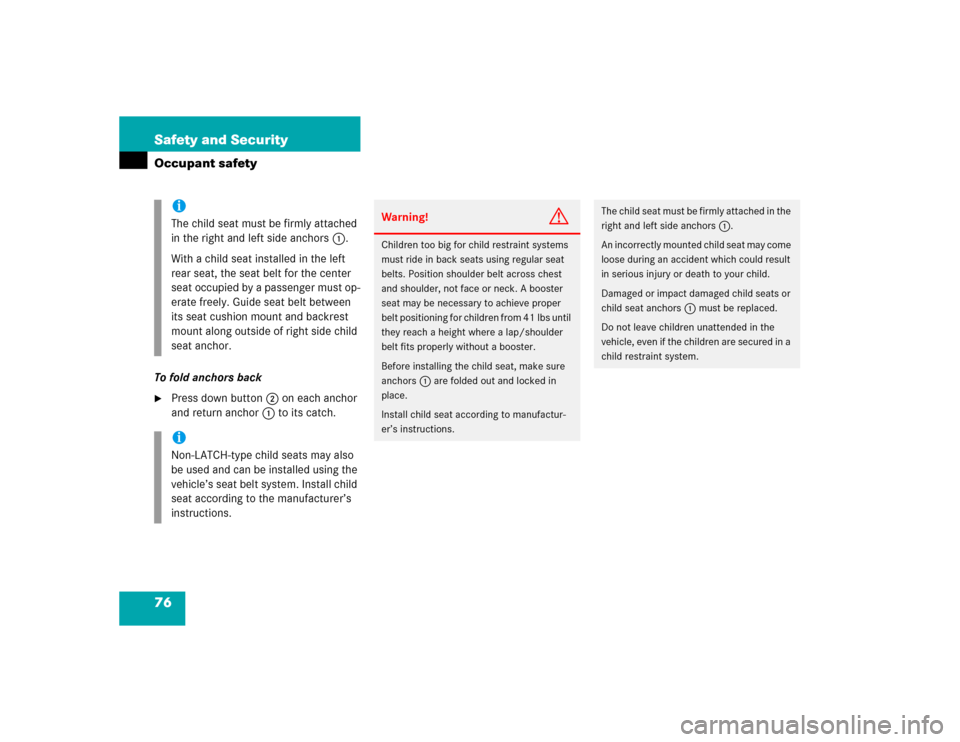

Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When scrapping the emergency tensioning
device, our safety instructions must be
followed. These are available at your
authorized Mercedes-Benz Center.!Do not place objects heavier than
20 lbs (9 kg) on the front passenger
seat. This could cause the front or side
impact air bag on the front passenger
side to deploy in a crash which exceeds
the system’s deployment threshold.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Page 72 of 426
70 Safety and SecurityOccupant safetyWe recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child re-
straint instructions for mounting. Then pull
the shoulder belt out completely and let it
retract. During the seat belt retraction, a
ratcheting sound can be heard to indicate
that the special seat belt retractor is acti-
vated. The belt is now locked. Push down
on child restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual man-
ner.
iFor information on child seats with
anchor fittings for tether anchorages,
see “Installation of infant and child re-
straint systems” (
page 74).
For information on child seat anchors –
LATCH-type (
page 75).
Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.
!The use of infant or child restraints is
required by law in all 50 states, the
District of Columbia, the U.S. territo-
ries and all Canadian provinces.
Infants and small children should be
seated in an appropriate infant or child
restraint system properly secured by a
lap-shoulder belt or, if so equipped, a
child restraint lower anchorage system
that complies with U.S. Federal Motor
Vehicle Safety Standards 213 and 225
and Canadian Motor Vehicle Safety
Standards 213 and 210.2.
Page 73 of 426
71 Safety and Security
Occupant safety
A statement by the child restraint man-
ufacturer of compliance with this stan-
dard can be found on the instruction
label on the restraint and in the
instruction manual provided with the
restraint.
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions
for installation and use.
Please read and observe warning labels
affixed to inside of vehicle and to infant
or child restraints.

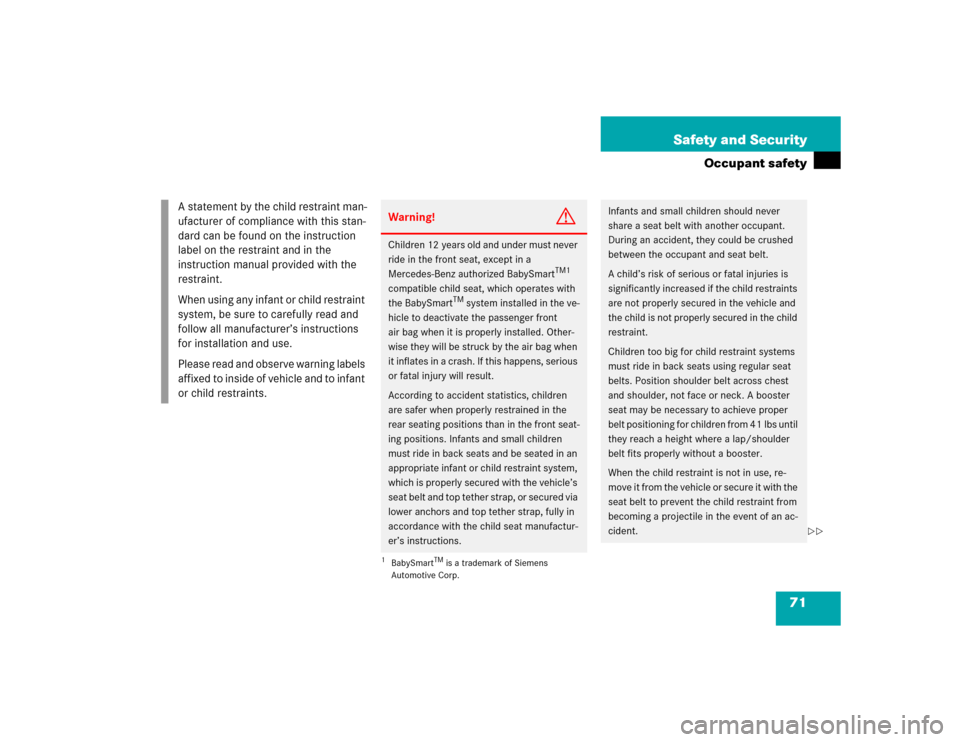

Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM1
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front
air bag when it is properly installed. Other-
wise they will be struck by the air bag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs until
they reach a height where a lap/shoulder
belt fits properly without a booster.
When the child restraint is not in use, re-
move it from the vehicle or secure it with the
seat belt to prevent the child restraint from
becoming a projectile in the event of an ac-
cident.
Page 74 of 426
72 Safety and SecurityOccupant safetyBabySmart
TM1
air bag deactivation
system
The56 indicator lamp is located in
the center console.

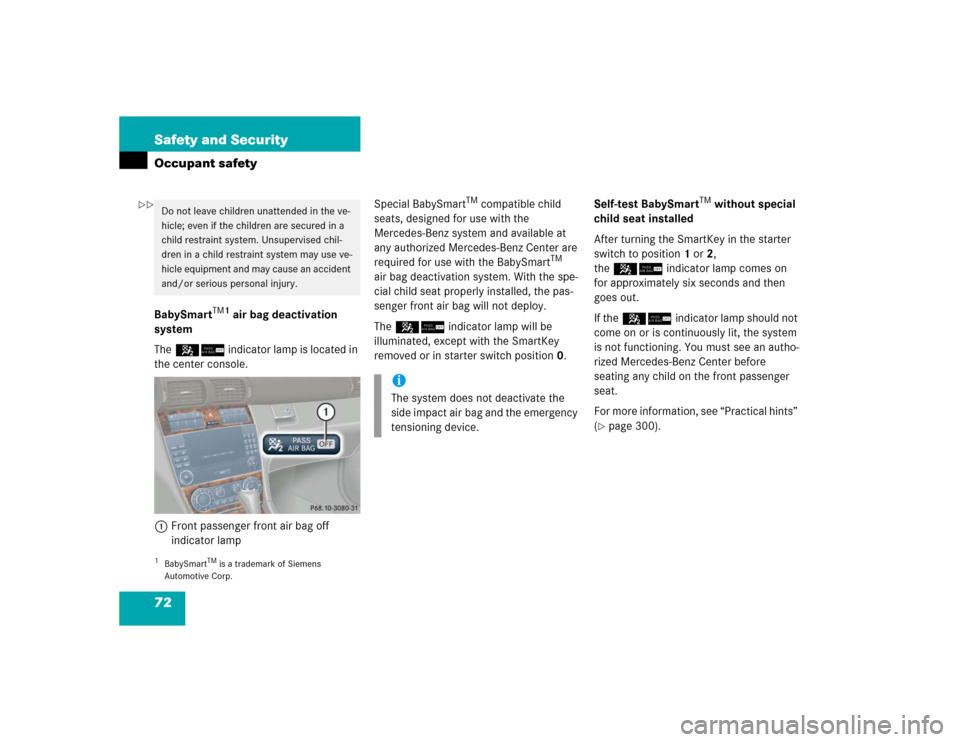

1Front passenger front air bag off
indicator lampSpecial BabySmart
TM compatible child
seats, designed for use with the
Mercedes-Benz system and available at
any authorized Mercedes-Benz Center are
required for use with the BabySmart
TM
air bag deactivation system. With the spe-
cial child seat properly installed, the pas-
senger front air bag will not deploy.
The56 indicator lamp will be
illuminated, except with the SmartKey
removed or in starter switch position0.Self-test BabySmart
TM without special
child seat installed
After turning the SmartKey in the starter
switch to position1 or2,
the56indicator lamp comes on
for approximately six seconds and then
goes out.
If the56indicator lamp should not
come on or is continuously lit, the system
is not functioning. You must see an autho-
rized Mercedes-Benz Center before
seating any child on the front passenger
seat.
For more information, see “Practical hints”
(
page 300).
Do not leave children unattended in the ve-
hicle; even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and may cause an accident
and/or serious personal injury.1BabySmart
TM is a trademark of Siemens
Automotive Corp.
iThe system does not deactivate the
side impact air bag and the emergency
tensioning device.
Page 75 of 426
73 Safety and Security
Occupant safety

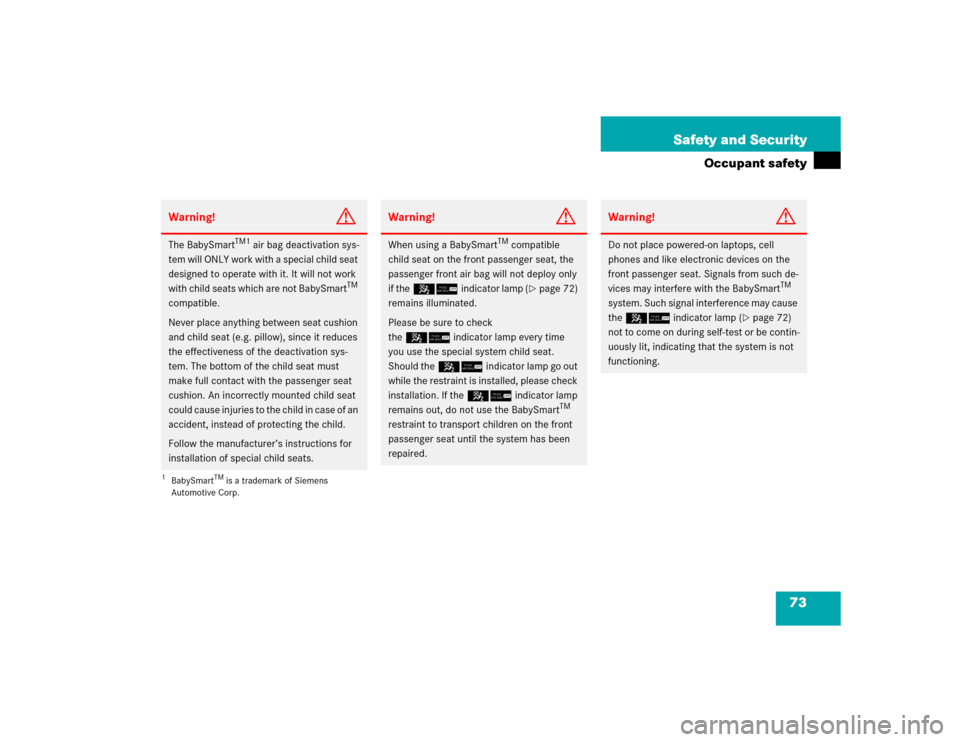

Warning!
G
The BabySmart
TM1
air bag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Warning!
G
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
passenger front air bag will not deploy only
if the56indicator lamp (
page 72)
remains illuminated.
Please be sure to check
the56indicator lamp every time
you use the special system child seat.
Should the56indicator lamp go out
while the restraint is installed, please check
installation. If the56indicator lamp
remains out, do not use the BabySmart
TM
restraint to transport children on the front
passenger seat until the system has been
repaired.
Warning!
G
Do not place powered-on laptops, cell
phones and like electronic devices on the
front passenger seat. Signals from such de-
vices may interfere with the BabySmart
TM
system. Such signal interference may cause
the56indicator lamp (
page 72)
not to come on during self-test or be contin-
uously lit, indicating that the system is not
functioning.
Page 76 of 426
74 Safety and SecurityOccupant safetyInstallation of infant and child restraint
systems
Prior to installing a tether strap, note the
following steps:
Roll up retractable luggage cover and
partition net.
If you place a child seat in the left or
center rear seat position, remove twin
roller blind (
page 229) and return
seat to its original position.
If you place a child seat in the right rear
seat position, the twin roller blind can
remain installed if so desired.
Fold the rear backrest slightly forward
(page 230).
Guide top tether strap between head
restraint and top of seat back.
Head restraints must be installed
(if removable) and positioned such that
the top tether strap can pass freely
between the head restraint and top of
the seat back.
Make sure the tether strap is not
twisted.
Fold the rear backrest back until it
locks in place (
page 231).Anchorage rings1 are located on the
back side of the outer rear backrests and
on the floor behind the rear center seat.

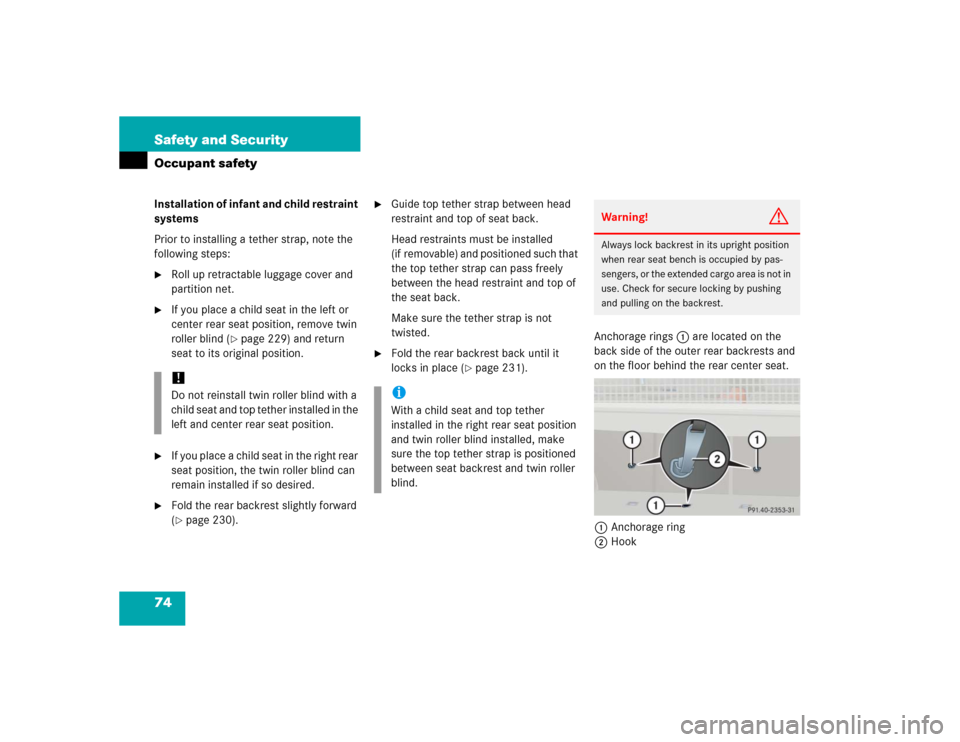

1Anchorage ring
2Hook
!Do not reinstall twin roller blind with a
child seat and top tether installed in the
left and center rear seat position.
iWith a child seat and top tether
installed in the right rear seat position
and twin roller blind installed, make
sure the top tether strap is positioned
between seat backrest and twin roller
blind.
Warning!
G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or the extended cargo area is not in
use. Check for secure locking by pushing
and pulling on the backrest.
Page 77 of 426
75 Safety and Security
Occupant safety
Fold up anchorage ring1.
Securely fasten hook2, which is part
of the tether strap, to anchorage
ring1.
1Anchorage ring
2HookOnce the top tether anchorage hook is
attached, the child restraint itself can be
secured. Tighten the top tether strap
according to the child restraint
manufacturer's instructions
Child seat anchors – LATCH-type
This vehicle is equipped with two LATCH-
(L
ower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the outer rear
seats) for the installation of a LATCH-type
child seat with the matching mounting
fittings.The foldable LATCH-type anchors are
located between the seat cushion and the
backrest.

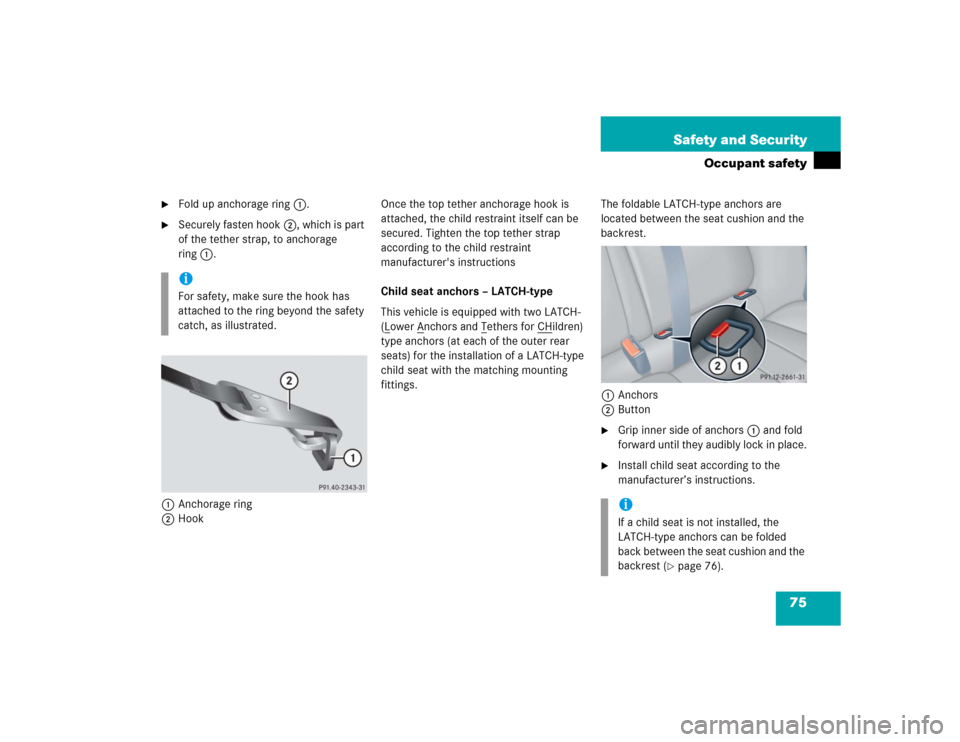

1Anchors
2Button
Grip inner side of anchors1 and fold
forward until they audibly lock in place.
Install child seat according to the
manufacturer’s instructions.
iFor safety, make sure the hook has
attached to the ring beyond the safety
catch, as illustrated.
iIf a child seat is not installed, the
LATCH-type anchors can be folded
back between the seat cushion and the
backrest (
page 76).
Page 78 of 426
76 Safety and SecurityOccupant safetyTo fold anchors back
Press down button2 on each anchor
and return anchor1 to its catch.iThe child seat must be firmly attached
in the right and left side anchors1.
With a child seat installed in the left
rear seat, the seat belt for the center
seat occupied by a passenger must op-
erate freely. Guide seat belt between
its seat cushion mount and backrest
mount along outside of right side child
seat anchor.iNon-LATCH-type child seats may also
be used and can be installed using the
vehicle’s seat belt system. Install child
seat according to the manufacturer’s
instructions.
Warning!
G
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs until
they reach a height where a lap/shoulder
belt fits properly without a booster.
Before installing the child seat, make sure
anchors1 are folded out and locked in
place.
Install child seat according to manufactur-
er’s instructions.
T h e c h i l d s e a t m u s t b e f i r m l y a t t a c h e d i n t h e
right and left side anchors1.
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to your child.
Damaged or impact damaged child seats or
child seat anchors1 must be replaced.
Do not leave children unattended in the
vehicle, even if the children are secured in a
child restraint system.
Page 79 of 426
77 Safety and Security
Occupant safety
Blocking of rear door window operation
You can block the rear door window
operation (for instance when you have
children riding in the rear passenger
compartment).

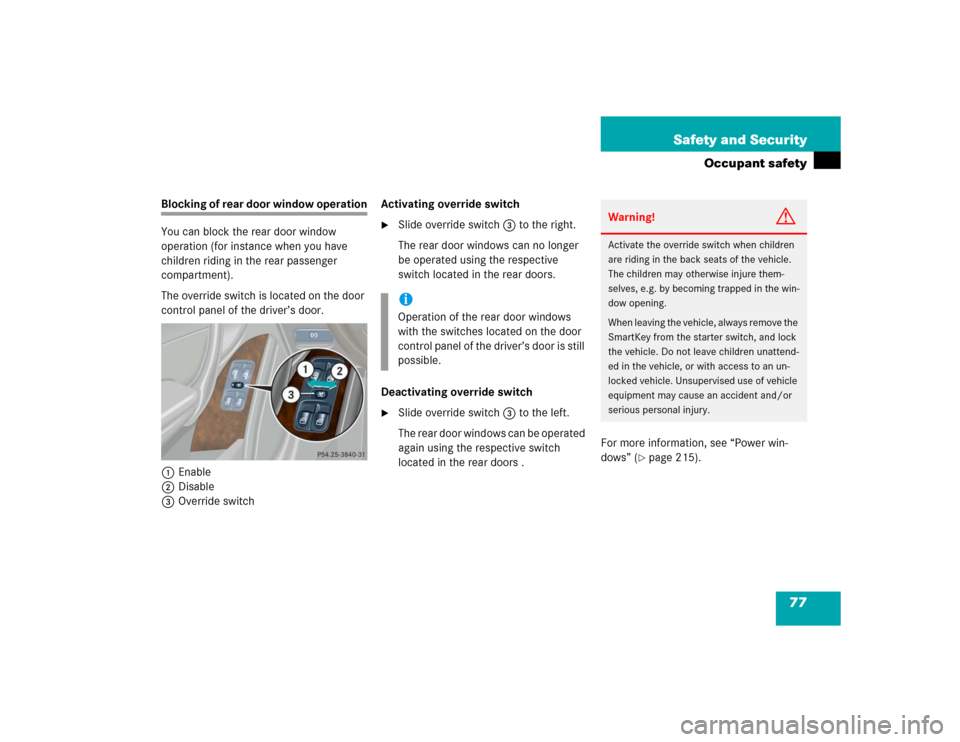

The override switch is located on the door
control panel of the driver’s door.
1Enable
2Disable
3Override switchActivating override switch
Slide override switch3 to the right.
The rear door windows can no longer
be operated using the respective
switch located in the rear doors.
Deactivating override switch
Slide override switch3 to the left.
The rear door windows can be operated
again using the respective switch
located in the rear doors .For more information, see “Power win-
dows” (
page 215).
iOperation of the rear door windows
with the switches located on the door
control panel of the driver’s door is still
possible.
Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Unsupervised use of vehicle
equipment may cause an accident and/or
serious personal injury.
Page 80 of 426
78 Safety and SecurityPanic alarm*An audible alarm and flashing exterior
lamps will operate for approximately
21/2minutes.

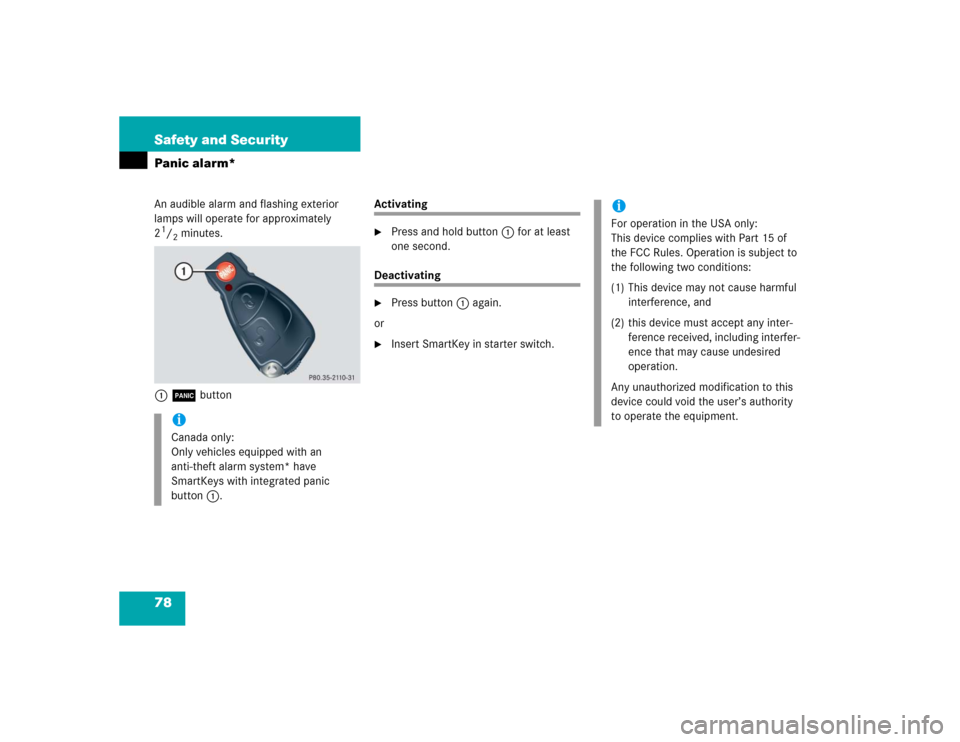

1Â button
Activating
Press and hold button1 for at least
one second.
Deactivating
Press button1 again.
or
Insert SmartKey in starter switch.
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button1.
iFor operation in the USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
