Page 51 of 426
49 Getting started
Driving
For more information on driving, see “Driv-
ing instructions” (
page 257).
Switching on headlamps
For more information on headlamps, see
“Lighting” (
page 108).
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
Exterior lamp switch1Off
2Low beam headlamps on
Turn exterior lamp switch to
positionB.
The low beam headlamp indicator
lampB in the instrument cluster
comes on (
page 24).
High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
Warning!
G
It is dangerous to shift the gear selector
lever out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
Page 52 of 426
50 Getting startedDriving
Push combination switch in direction of
arrow1.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 24).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1Turn signals, right
2Turn signals, left
Press combination switch in direction
of arrow1 or2.
The corresponding turn signal indicator
lampL orK in the instrument
cluster flashes (
page 24).
The combination switch resets automati-
cally after major steering wheel move-
ments.
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
2Switching on windshield wipers
Switch on ignition (
page 33).
iTo signal minor directional changes
such as changing lanes, press combi-
nation switch only to point of resis-
tance and release. The corresponding
turn signals will flash three times.
Page 53 of 426
51 Getting started
Driving
Switching on windshield wipers
Turn the combination switch to the
desired position depending on the
intensity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
iVehicles without rain sensor:
When the vehicle is standing still, the
wiper speed returns to next lower
setting.
Vehicles with rain sensor*:
Intermittent wiping interval is
dependent on wetness of windshield.
After the initial wipe, pauses between
wipes are automatically controlled by
the rain sensor.
!Vehicles with rain sensor*:
Do not leave windshield wipers in
intermittent setting when the vehicle is
taken to an automatic car wash or
during windshield cleaning. Wipers will
operate in the presence of water
sprayed on the windshield, and wipers
may be damaged as a result.
The switch should not be left in
intermittent setting as the wipers will
wipe the windshield once every time
the engine is started. Dust that
accumulates on the windshield might
scratch the glass and/or damage the
wiper blades when wiping occurs on a
dry windshield.
Page 54 of 426
52 Getting startedDrivingIntermittent wiping
Set the wiper switch to positionI.
Single wipe
Press combination switch briefly in
direction of arrow1.
The windshield wipers wipe one time
without washer fluid.Wiping with windshield washer fluid
Push combination switch in direction of
arrow1 past the resistance point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 277).
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.
!If anything blocks the windshield
wipers (leaves, snow, etc.), switch
them off immediately.
For safety reasons, withdraw
SmartKey from starter switch
before attempting to remove any
blockage.
Remove blockage.
Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,
set the combination switch to the
next highest wiper speed
have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center
Page 55 of 426
53 Getting started
Driving
Rear window wiper
The combination switch is located on the
left of the steering column.Combination switch1Rear window wiper switch
2Wiping rear window with washer fluid
3Intermittent wiping
4Rear window wiper off
5Wiping rear window with washer fluid
Switch on ignition (
page 33).
Activating intermittent wipe
Turn switch1 to position3.
Deactivating intermittent wipe
Turn switch1 to position4.Wiping with washer fluid
Turn switch1 to position2 or5.
The rear window wiper operates with
washer fluid.
Hold switch1 in position2 or5
until the rear window is clean.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 277).
iThe rear window wiper engages
automatically if the gear selector lever
is moved to positionR with the
windshield wipers switched on.
Page 56 of 426
54 Getting startedDrivingProblems while driving
The engine runs erratically and misfires
An ignition cable may be damaged.
The engine electronics may not be op-
erating properly.
Unburned gasoline may have entered
the catalytic converter and damaged it.
Give very little gas.
Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.The coolant temperature is
above 248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.
Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.
Check the coolant level and add
coolant if necessary (
page 275).In case of accident
If the vehicle is leaking gasoline:
Do not start the engine under any cir-
cumstances.
Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:
Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the
major assemblies
fuel system
engine mount:
Start the engine in the usual manner.
Page 57 of 426

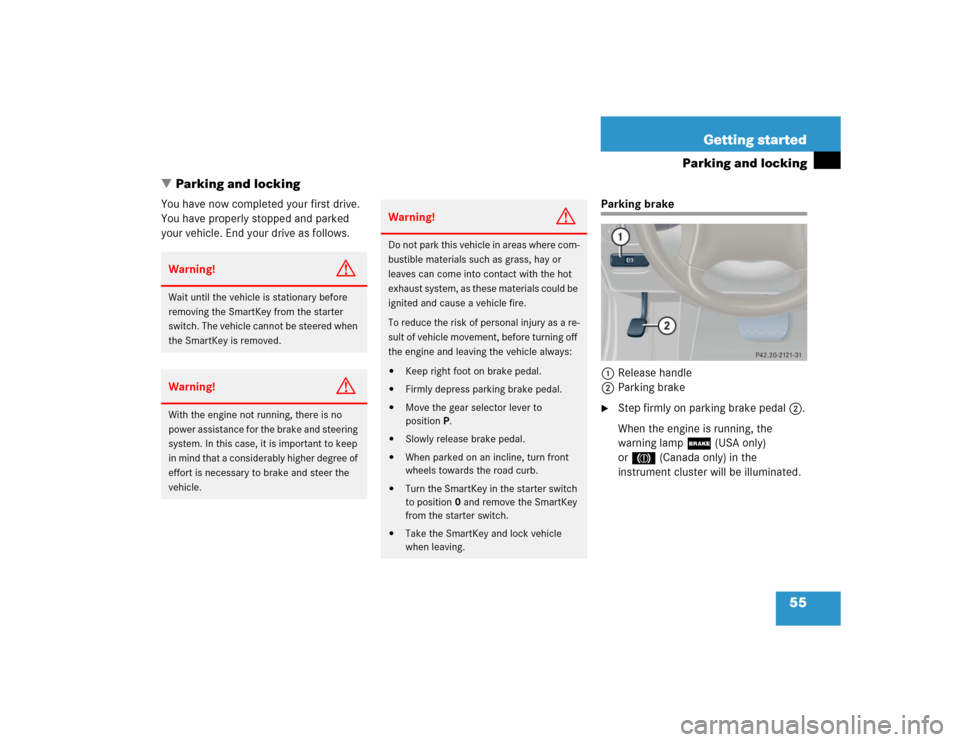

55 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Release handle
2Parking brake
Step firmly on parking brake pedal2.
When the engine is running, the
warning lamp; (USA only)
or3(Canada only) in the
instrument cluster will be illuminated.
Warning!
G
Wait until the vehicle is stationary before
removing the SmartKey from the starter
switch. The vehicle cannot be steered when
the SmartKey is removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
system. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:
Keep right foot on brake pedal.
Firmly depress parking brake pedal.
Move the gear selector lever to
positionP.
Slowly release brake pedal.
When parked on an incline, turn front
wheels towards the road curb.
Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch.
Take the SmartKey and lock vehicle
when leaving.
Page 58 of 426
56 Getting startedParking and locking
Switching off headlamps
Turn the exterior lamp switch
toM(
page 49).
For more information on headlamps, see
“Lighting” (
page 108).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Children could release the
parking brake and/or move the gear selec-
tor lever from positionP, either of which
could result in an accident and/or serious
injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP.
When parked on an incline, turn front wheels
towards the road curb.
Page 59 of 426
57 Getting started
Parking and locking
Turning off engine
Place the gear selector lever in
positionP.
Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch.
The immobilizer is activated.
Press the seat belt release button
(page 44).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.
After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 32).
All turn signal lamps flash three times.
The locking knobs in the doors move
down.
For more information, see “Locking and
unlocking” (
page 90).
iAlways set the parking brake in
addition to shifting to positionP.
On steep slopes, turn the front wheels
towards the road curb. iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
iWith the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
your vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
Page 60 of 426
