Page 31 of 426
29 At a glance

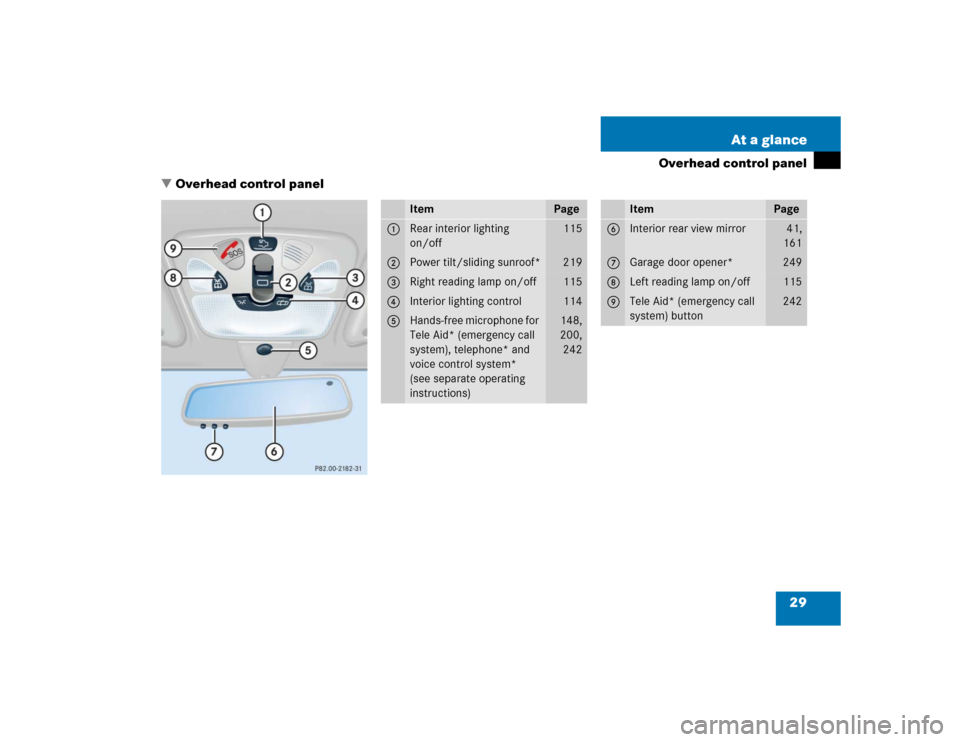

Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting
on/off
115
2
Power tilt/sliding sunroof*
219
3
Right reading lamp on/off
115
4
Interior lighting control
114
5
Hands-free microphone for
Tele Aid* (emergency call
system), telephone* and
voice control system*
(see separate operating
instructions)
148,
200,
242
Item
Page
6
Interior rear view mirror
41,
161
7
Garage door opener*
249
8
Left reading lamp on/off
115
9
Tele Aid* (emergency call
system) button
242
Page 32 of 426

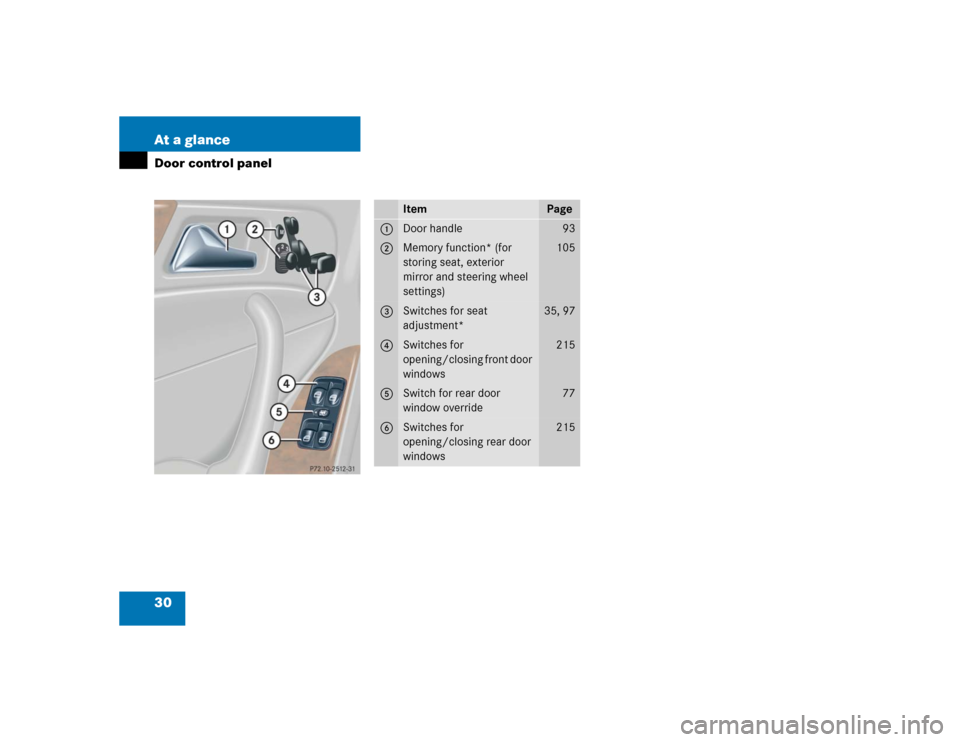

30 At a glanceDoor control panel
Item
Page
1
Door handle
93
2
Memory function* (for
storing seat, exterior
mirror and steering wheel
settings)
105
3
Switches for seat
adjustment*
35, 97
4
Switches for
opening/closing front door
windows
215
5
Switch for rear door
window override
77
6
Switches for
opening/closing rear door
windows
215
Page 33 of 426

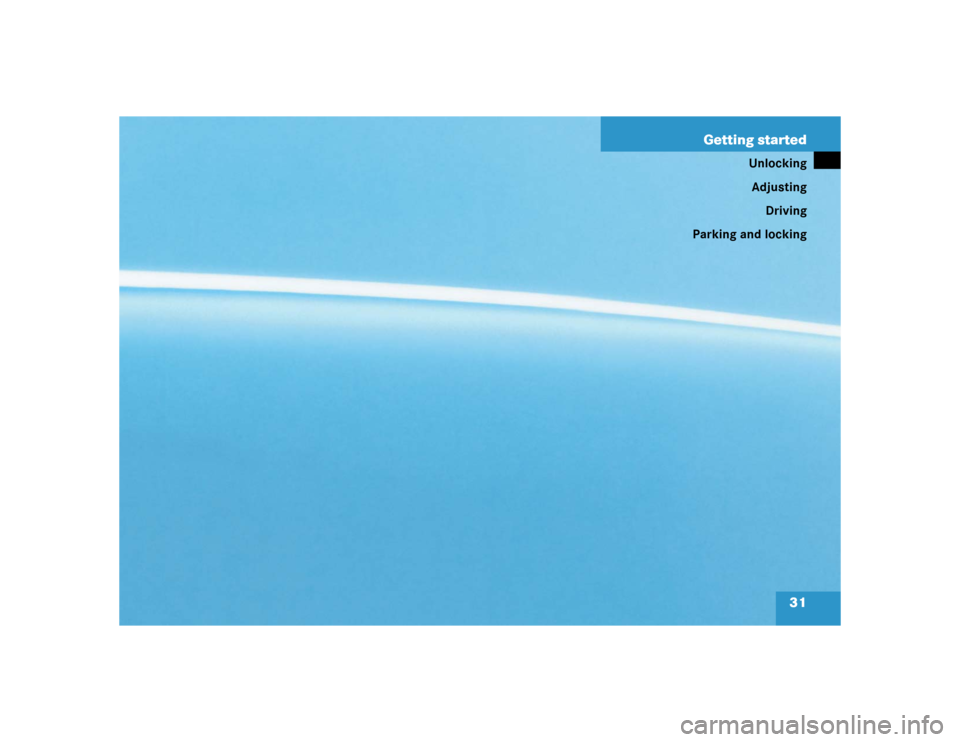

31 Getting started
Unlocking
Adjusting
Driving
Parking and locking
Page 34 of 426
32 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.Unlocking
Unlocking with the SmartKeySmartKey with remote control1‹Lock button
2ŒUnlock button
3ÂPanic button* (
page 78)
Press unlock buttonŒ on the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.
Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 90).
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button*3.
Page 35 of 426
33 Getting started
Unlocking
Starter switch positions SmartKey
Starter switch0For removing SmartKey
The steering is locked when the
SmartKey is removed from the starter
switch. If necessary, move steering
wheel slightly to allow the locking
mechanism to engage.
1Power supply to some electrical
consumers, such as seat adjustment2Ignition (power supply for all electrical
consumers) and driving position.
All lamps in the instrument cluster
come on. If a lamp in the instrument
cluster fails to come on when the
ignition is switched on, have it checked
and replaced if necessary. If a lamp in
the instrument cluster remains on after
starting the engine or comes on while
driving, refer to “Lamps in instrument
cluster” (
page 294).
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Unsupervised use of vehicle
equipment may cause an accident and/or
serious personal injury.
Page 36 of 426
34 Getting startedUnlocking
iWhen you switch on the ignition, the
indicator and warning lamps in the
instrument cluster come on. This indi-
cates that the respective systems are
operational. They should go out when
the engine is running.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!If the SmartKey cannot be turned in the
starter switch, the battery may not be
sufficiently charged.
Check the battery and charge it if
necessary (
page 347)
Get a jump start (
page 350).
To prevent accelerated battery
discharge and a possible dead battery,
always remove the SmartKey from the
starter switch when the engine is not in
operation.
Page 37 of 426
35 Getting started
Adjusting
Adjusting
Seats
The seats can be adjusted either manually
or electrically, depending on the vehicle’s
equipment.Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck.
That could cause serious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in a nearly
upright position and belts are properly posi-
tioned on the body. Your seat must be ad-
justed so that you can correctly fasten your
seat belt (
page 43).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
your vehicle.
Even with the SmartKey removed from the
starter switch, the power seats* can be
operated when the respective door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM1
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front
air bag when it is properly installed. Other-
wise they will be struck by the air bag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Page 38 of 426
36 Getting startedAdjustingManual seat adjustment
1Seat fore and aft adjustment
2Seat cushion tilt
3Seat backrest tilt
4Seat heightSeat fore and aft adjustment
Lift handle1.
Slide seat to the desired position.
Allow handle1 to reengage.
Check for proper engagement before
driving.
Adjust seat to a comfortable seating
position that still allows you to reach the
accelerator/brake pedal safely. The posi-
tion should be as far rearward as possible,
consistent with ability to properly operate
controls.Seat cushion tilt
Turn handwheel2 forward or back-
ward until your upper legs are lightly
supported
Seat backrest tilt
Switch on ignition (
page 33).
Press switch3 in direction of arrow
until your arms are slightly angled
when holding the steering wheel.
Seat height
Switch on ignition (
page 33).
Press switch4 in direction of arrow
until your legs are lightly supported.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
!When moving the seat, make sure that
there are no items in the footwell or
behind the seat. Otherwise you could
damage the seat.
Page 39 of 426
37 Getting started
Adjusting
Head restraint height
1Release button
Raising:
Manually adjust the height of the head
restraint by pulling it upward.
Lowering:
To lower head the restraint, push
release button1 and push down on
the head restraint.Head restraint tilt
Manually adjust the angle of the head
restraint.
Push or pull on the lower edge of the
head restraint cushion.
For more information, see “Seats”
(
page 97).
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.iAdjust the head restraint in such a way
that it is as close to the head as
possible.
Page 40 of 426
38 Getting startedAdjustingPower seat* adjustment
The seat adjustment switches are located
in each front door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Seat backrest tilt
Switch on ignition (
page 33).
or
Open the respective door.Seat fore and aft adjustment
Press switch forward or backward in
direction of arrow4.
Adjust seat to a comfortable seating
position that still allows you to reach the
accelerator/brake pedal safely. The posi-
tion should be as far rearward as possible,
consistent with ability to properly operate
controls.Seat cushion tilt
Press switch up or down in direction of
arrow3 until your upper legs are
lightly supported.
Seat backrest tilt
Press switch forward or backward in
direction of arrow5 until your arms
are slightly angled when holding the
steering wheel.
Seat height
Press switch up or down in direction of
arrow2.
Head restraint height
Press switch up or down in direction of
arrow1.
!When moving the seat, make sure that
there are no items in the footwell or
behind the seat. Otherwise you could
damage the seat.iThe memory function* (
page 105)
lets you store the setting for the seat
position together with the settings for
the steering wheel and exterior rear
view mirrors.
iAdjust the head restraint in such a way
that it is as close to the head as
possible.
