59 Safety and Security
Occupant safety
Panic alarm*
Driving safety systems
Anti-theft systems
Page 62 of 426
60 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are
Seat belts
Emergency tensioning device
Air bags
Child seats
Child seat recognition
Lower anchors and tethers for children
(LATCH)
As independent systems, their protective
effects work in conjunction with each
other.The1 indicator lamp in the instrument
cluster (
page 24) comes on:
for about four seconds when you turn
the SmartKey in the starter switch to
position1. It then goes out briefly,
comes on again and remains lit until
you start the engine.
for about four seconds when you start
the engine by turning the SmartKey.The1 indicator lamp goes out shortly
after you start the engine. This shows that
the restraint systems are operational.
A malfunction in the system has been
detected if the1 indicator lamp:
fails to extinguish after approximately
four seconds.
does not come on at all.
comes on after the engine was started
or while driving.
For safety reasons, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
For more information, see “Practical
hints”(
page 299).
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and
children, see “Children in the vehicle”
(page 69).
iThe1 indicator lamp remains lit if
the SmartKey in the starter switch is
turned to position2 and left there. The
indicator lamp will go out when you
start the engine.
Page 63 of 426
61 Safety and Security
Occupant safety

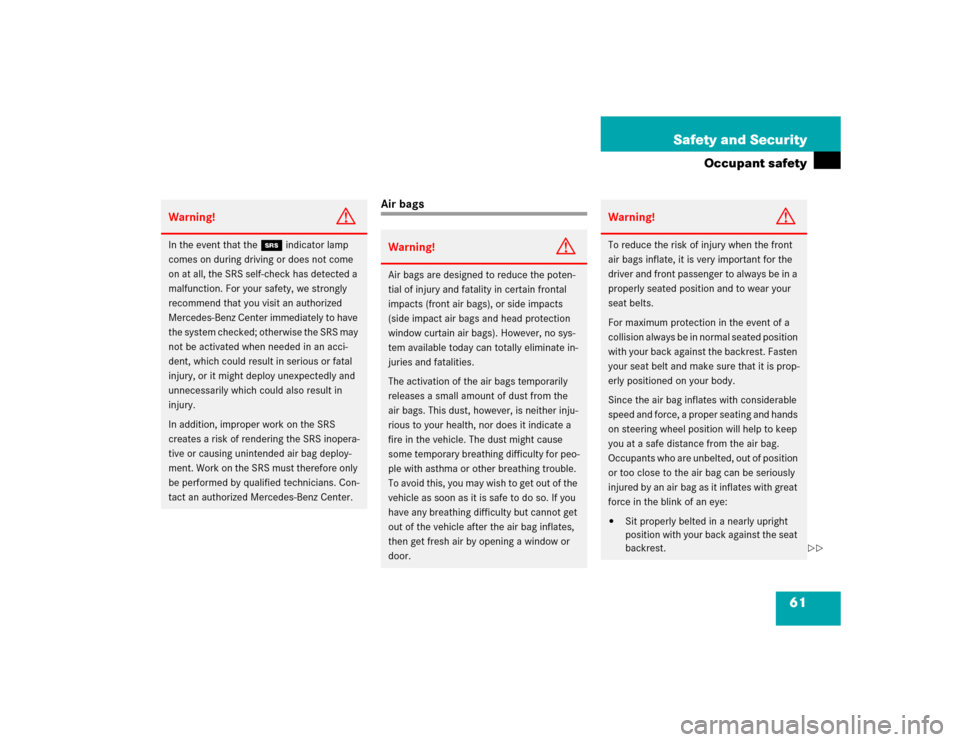

Air bags
Warning!
G
In the event that the1 indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be activated when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in
injury.
In addition, improper work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
Warning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal
impacts (front air bags), or side impacts
(side impact air bags and head protection
window curtain air bags). However, no sys-
tem available today can totally eliminate in-
juries and fatalities.
The activation of the air bags temporarily
releases a small amount of dust from the
air bags. This dust, however, is neither inju-
rious to your health, nor does it indicate a
fire in the vehicle. The dust might cause
some temporary breathing difficulty for peo-
ple with asthma or other breathing trouble.
To avoid this, you may wish to get out of the
vehicle as soon as it is safe to do so. If you
have any breathing difficulty but cannot get
out of the vehicle after the air bag inflates,
then get fresh air by opening a window or
door.
Warning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear your
seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured by an air bag as it inflates with great
force in the blink of an eye:
Sit properly belted in a nearly upright
position with your back against the seat
backrest.
Page 64 of 426

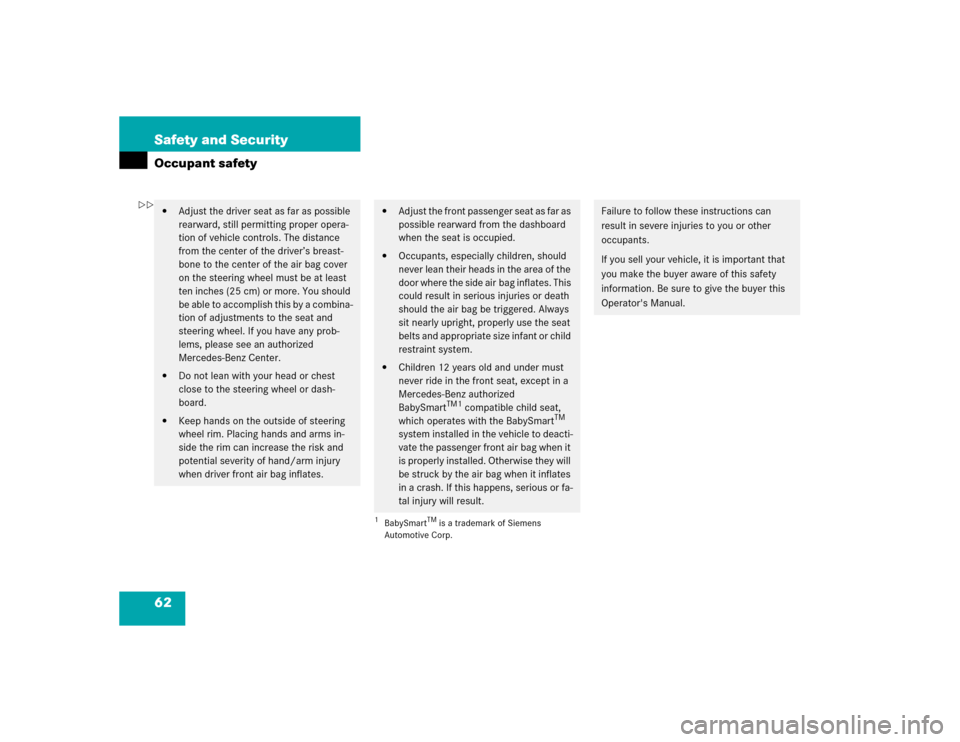

62 Safety and SecurityOccupant safety
Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
ten inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.
Do not lean with your head or chest
close to the steering wheel or dash-
board.
Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front air bag inflates.
Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.
Occupants, especially children, should
never lean their heads in the area of the
door where the side air bag inflates. This
could result in serious injuries or death
should the air bag be triggered. Always
sit nearly upright, properly use the seat
belts and appropriate size infant or child
restraint system.
Children 12 years old and under must
never ride in the front seat, except in a
Mercedes-Benz authorized
BabySmart
TM1
compatible child seat,
which operates with the BabySmart
TM
system installed in the vehicle to deacti-
vate the passenger front air bag when it
is properly installed. Otherwise they will
be struck by the air bag when it inflates
in a crash. If this happens, serious or fa-
tal injury will result.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator's Manual.
Page 65 of 426

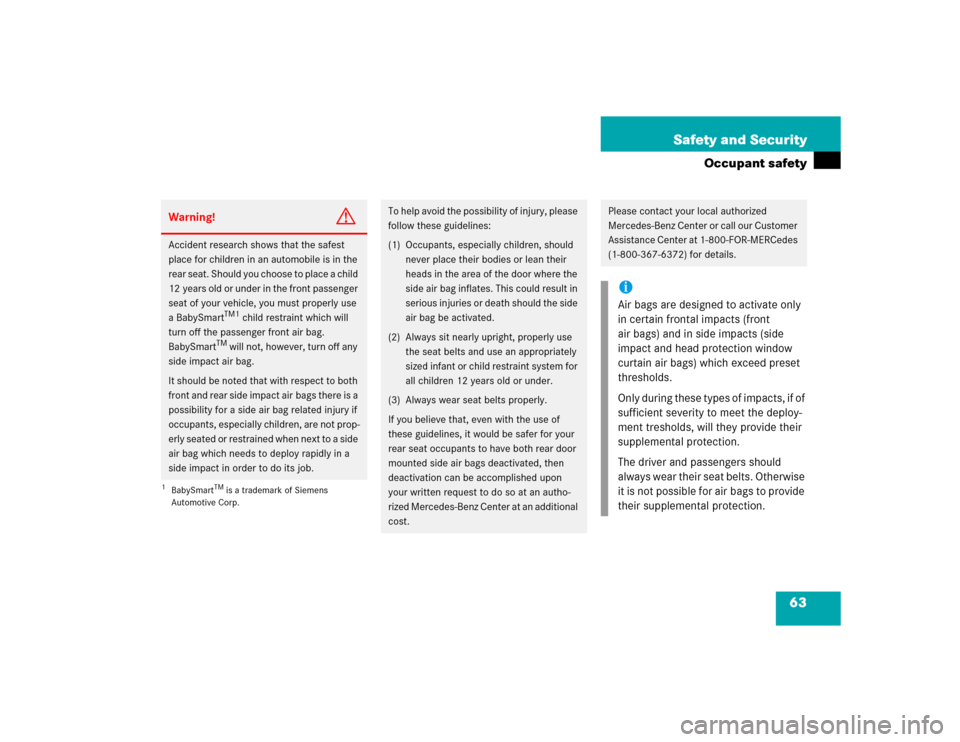

63 Safety and Security
Occupant safety
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat. Should you choose to place a child
12 years old or under in the front passenger
seat of your vehicle, you must properly use
a BabySmart
TM1
child restraint which will
turn off the passenger front air bag.
BabySmart
TM will not, however, turn off any
side impact air bag.
It should be noted that with respect to both
front and rear side impact air bags there is a
possibility for a side air bag related injury if
occupants, especially children, are not prop-
erly seated or restrained when next to a side
air bag which needs to deploy rapidly in a
side impact in order to do its job.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
side air bag inflates. This could result in
serious injuries or death should the side
air bag be activated.
(2) Always sit nearly upright, properly use
the seat belts and use an appropriately
sized infant or child restraint system for
all children 12 years old or under.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have both rear door
mounted side air bags deactivated, then
deactivation can be accomplished upon
your written request to do so at an autho-
rized Mercedes-Benz Center at an additional
cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.iAir bags are designed to activate only
in certain frontal impacts (front
air bags) and in side impacts (side
impact and head protection window
curtain air bags) which exceed preset
thresholds.
Only during these types of impacts, if of
sufficient severity to meet the deploy-
ment tresholds, will they provide their
supplemental protection.
The driver and passengers should
always wear their seat belts. Otherwise
it is not possible for air bags to provide
their supplemental protection.
Page 66 of 426

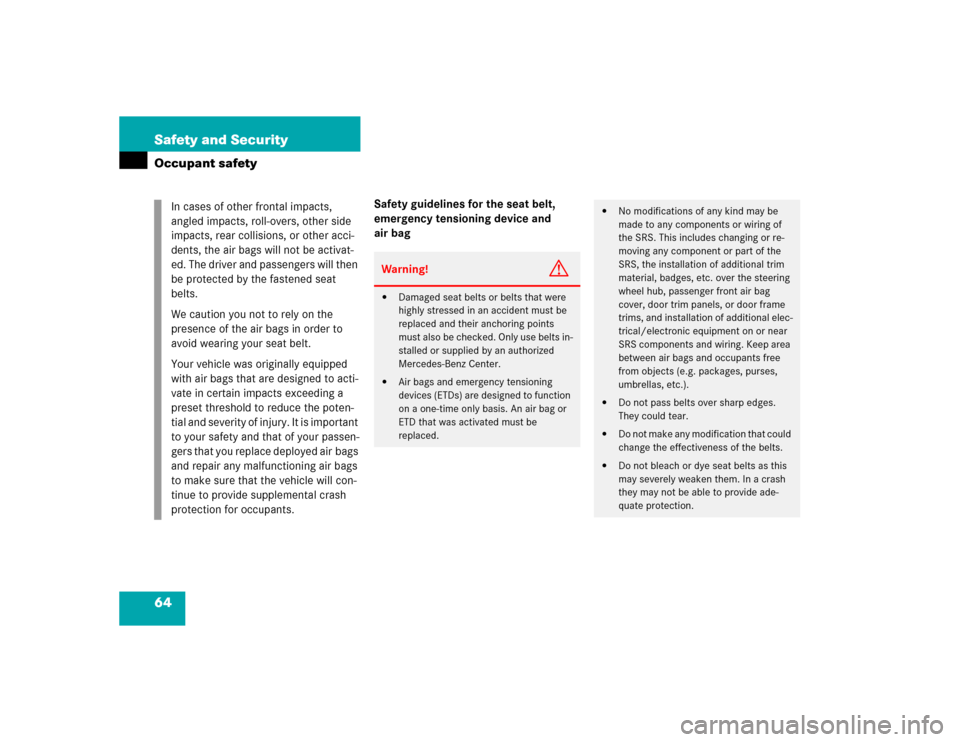

64 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag In cases of other frontal impacts,
angled impacts, roll-overs, other side
impacts, rear collisions, or other acci-
dents, the air bags will not be activat-
ed. The driver and passengers will then
be protected by the fastened seat
belts.
We caution you not to rely on the
presence of the air bags in order to
avoid wearing your seat belt.
Your vehicle was originally equipped
with air bags that are designed to acti-
vate in certain impacts exceeding a
preset threshold to reduce the poten-
tial and severity of injury. It is important
to your safety and that of your passen-
gers that you replace deployed air bags
and repair any malfunctioning air bags
to make sure that the vehicle will con-
tinue to provide supplemental crash
protection for occupants.Warning!
G
Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.
Air bags and emergency tensioning
devices (ETDs) are designed to function
on a one-time only basis. An air bag or
ETD that was activated must be
replaced.
No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, passenger front air bag
cover, door trim panels, or door frame
trims, and installation of additional elec-
trical/electronic equipment on or near
SRS components and wiring. Keep area
between air bags and occupants free
from objects (e.g. packages, purses,
umbrellas, etc.).
Do not pass belts over sharp edges.
They could tear.
Do not make any modification that could
change the effectiveness of the belts.
Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.
Page 67 of 426
65 Safety and Security
Occupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.

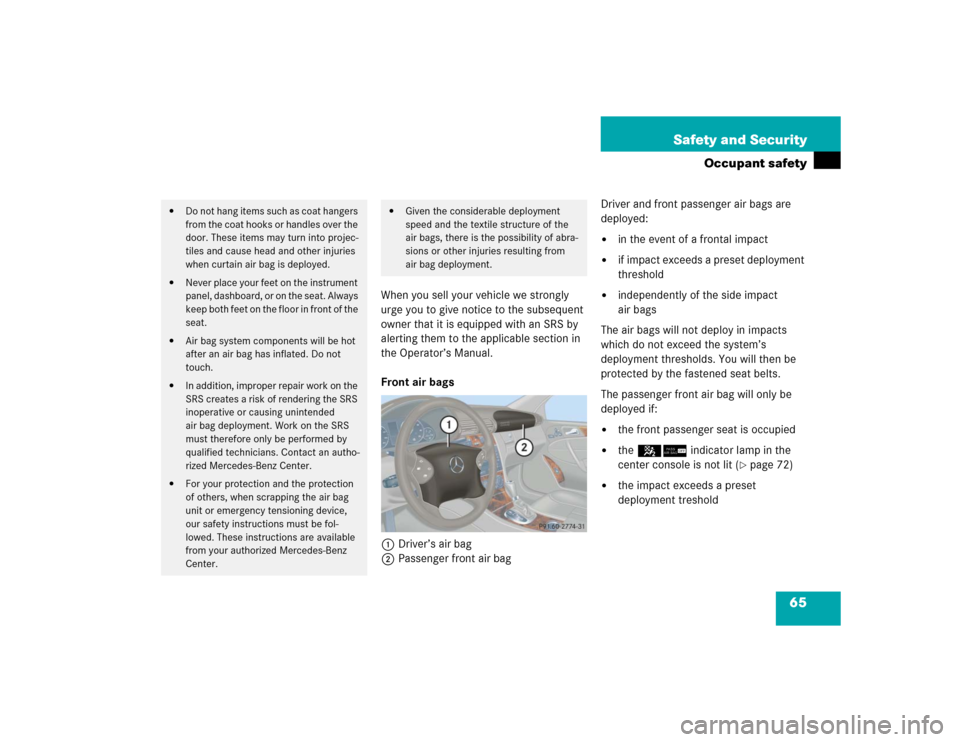

Front air bags
1Driver’s air bag
2Passenger front air bagDriver and front passenger air bags are
deployed:
in the event of a frontal impact
if impact exceeds a preset deployment
threshold
independently of the side impact
air bags
The air bags will not deploy in impacts
which do not exceed the system’s
deployment thresholds. You will then be
protected by the fastened seat belts.
The passenger front air bag will only be
deployed if:
the front passenger seat is occupied
the56 indicator lamp in the
center console is not lit (
page 72)
the impact exceeds a preset
deployment treshold
Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when curtain air bag is deployed.
Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.
Air bag system components will be hot
after an air bag has inflated. Do not
touch.
In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended
air bag deployment. Work on the SRS
must therefore only be performed by
qualified technicians. Contact an autho-
rized Mercedes-Benz Center.
For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.
Given the considerable deployment
speed and the textile structure of the
air bags, there is the possibility of abra-
sions or other injuries resulting from
air bag deployment.
Page 68 of 426
66 Safety and SecurityOccupant safetySide impact air bags, window curtain
air bags

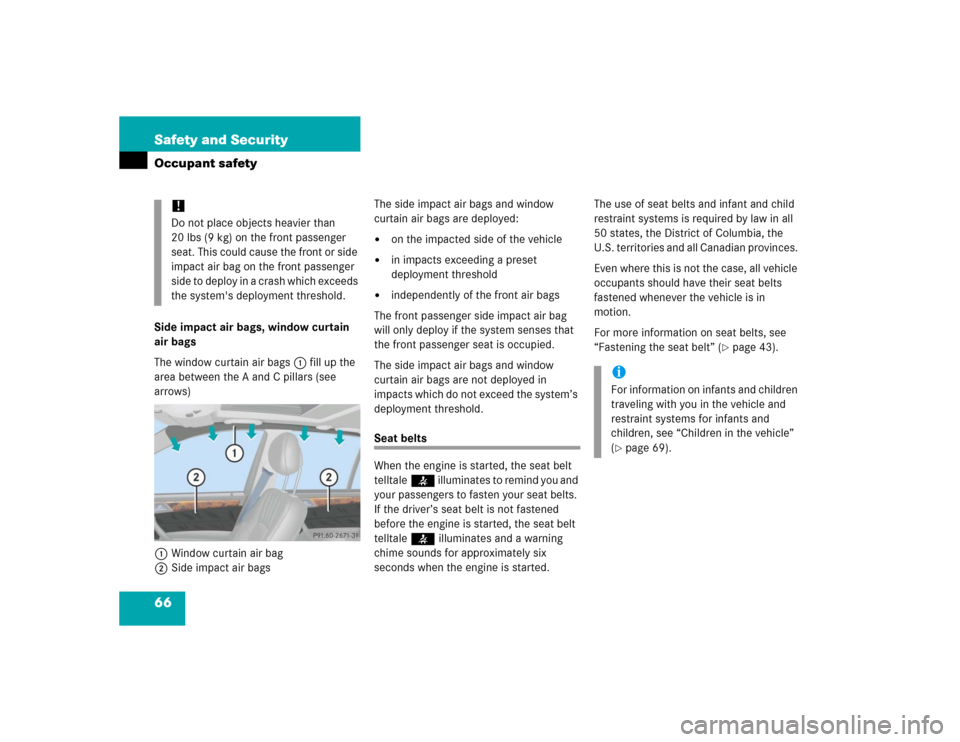

The window curtain air bags1 fill up the
area between the A and C pillars (see
arrows)
1Window curtain air bag
2Side impact air bagsThe side impact air bags and window
curtain air bags are deployed:
on the impacted side of the vehicle
in impacts exceeding a preset
deployment threshold
independently of the front air bags
The front passenger side impact air bag
will only deploy if the system senses that
the front passenger seat is occupied.
The side impact air bags and window
curtain air bags are not deployed in
impacts which do not exceed the system’s
deployment threshold.
Seat belts
When the engine is started, the seat belt
telltale< illuminates to remind you and
your passengers to fasten your seat belts.
If the driver’s seat belt is not fastened
before the engine is started, the seat belt
telltale< illuminates and a warning
chime sounds for approximately six
seconds when the engine is started.The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts
fastened whenever the vehicle is in
motion.
For more information on seat belts, see
“Fastening the seat belt” (
page 43).
!Do not place objects heavier than
20 lbs (9 kg) on the front passenger
seat. This could cause the front or side
impact air bag on the front passenger
side to deploy in a crash which exceeds
the system's deployment threshold.
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and
children, see “Children in the vehicle”
(page 69).
Page 69 of 426
67 Safety and Security
Occupant safety

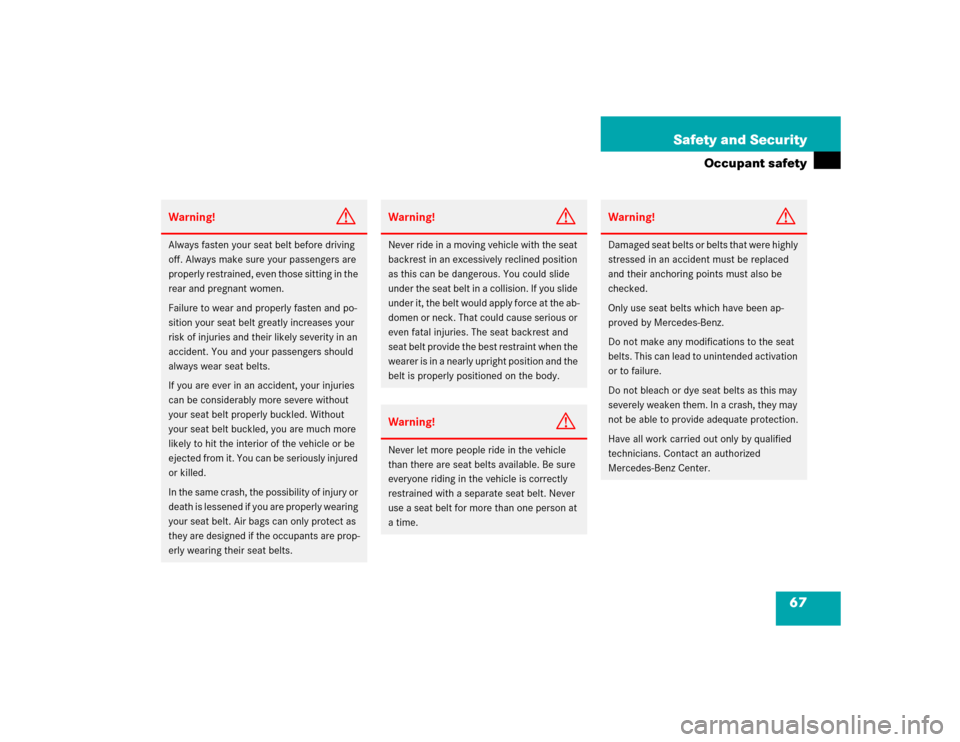

Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
Warning!
G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been ap-
proved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
or to failure.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.
Page 70 of 426

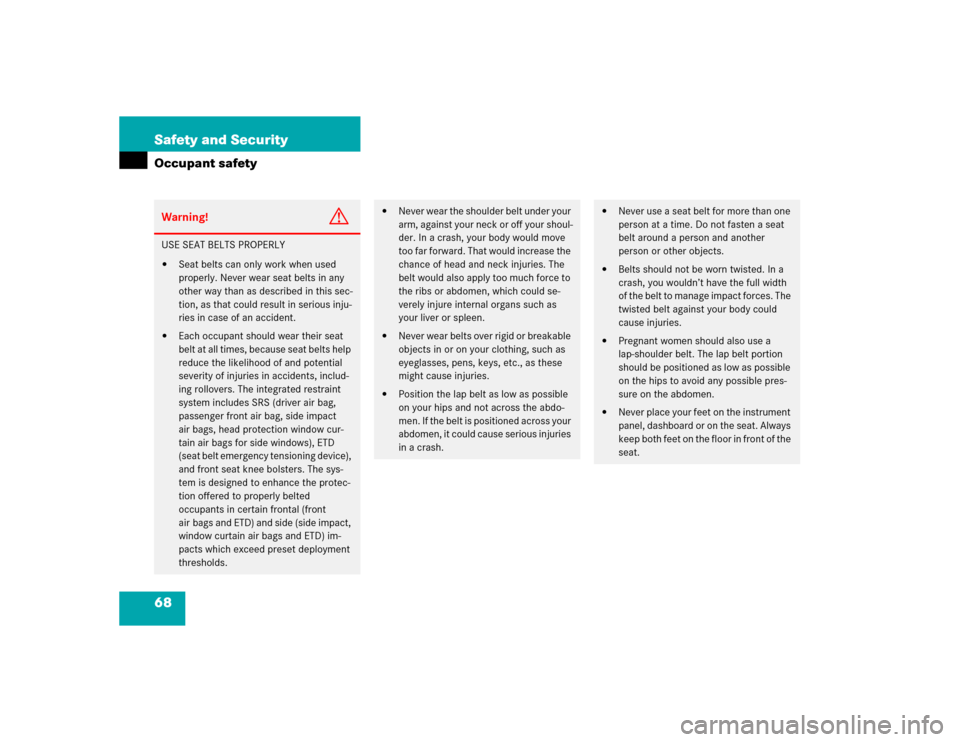

68 Safety and SecurityOccupant safetyWarning!
G
USE SEAT BELTS PROPERLY
Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.
Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag,
passenger front air bag, side impact
air bags, head protection window cur-
tain air bags for side windows), ETD
(seat belt emergency tensioning device),
and front seat knee bolsters. The sys-
tem is designed to enhance the protec-
tion offered to properly belted
occupants in certain frontal (front
air bags and ETD) and side (side impact,
window curtain air bags and ETD) im-
pacts which exceed preset deployment
thresholds.
Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a crash, your body would move
too far forward. That would increase the
chance of head and neck injuries. The
belt would also apply too much force to
the ribs or abdomen, which could se-
verely injure internal organs such as
your liver or spleen.
Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys, etc., as these
might cause injuries.
Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.
Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another
person or other objects.
Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to manage impact forces. The
twisted belt against your body could
cause injuries.
Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.
Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.
