MERCEDES-BENZ CL-Class 2002 C215 Comand Manual

169
Route guidance
Introduction
Audio
Telephone
Navigation
Index Info Services and
system settings Activating the location map
Turn the right-hand rotary/pushbutton
to menu
field “Location Map” (page 167) and press to confirm.
The route map shows the general view for the whole
route.9Geographical latitude and longitude for your
current position
10Number of satellites received
11Scale of the last activation of the position map,
Altering the map scale, page 182
12Current vehicle position in the center of the screen
13Name of the street you are currently travelling on
Press
twice to return to the symbol display or the
map.
P82.85-6456-26
10
11
12
13
9
09-NAVI2-203-US.pm507.06.2001, 16:56 Uhr 169

170 Route guidance
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Displaying the current destination
Use the right-hand rotary/pushbutton
to highlight
the menu field “Current Destn.” in the menu (page 167)
and press it to confirm.Press
to return to symbol display or the map.
P82.85-6109-26
09-NAVI2-203-US.pm507.06.2001, 16:56 Uhr 170

171
Route guidance
Introduction
Audio
Telephone
Navigation
Index Info Services and
system settings Requesting the route mode
Turn the right-hand rotary/pushbutton
to menu
field “Options” (page 167) and press to confirm.14Indicates settings for the route calculation mode
selected for the current route
Selecting the route calculation mode, page 161
Selecting a detour during route guidance, page 187
Marking a way point, page 184
Press
to return to the symbol display or the map.
The screen will return to this display automatically
after 15 seconds.
P82.85-6457-26
14
09-NAVI2-203-US.pm507.06.2001, 16:56 Uhr 171

172 Route guidance
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Activating the route map
Turn the right-hand rotary/pushbutton
to menu
field “Route Map” (page 167) and press to confirm.
The route map shows the general view for the whole
route.15Current vehicle position
16Route displayed as a blue line
17Destination
The map scale selected depends on the route. The route
map faces north.
Press
to return to the symbol display or the map.
P82.85-6458-26
15
17
16
09-NAVI2-203-US.pm507.06.2001, 16:56 Uhr 172

173
Route guidance
Introduction
Audio
Telephone
Navigation
Index Info Services and
system settings Displaying a stop-over
Use the right-hand rotary/pushbutton
to highlight
the menu field “Stop” in the menu (page 167) and press
it to confirm.18Stop-over
Place, type of stop-over and name
Note:
A stop-over will be displayed if this was previously
selected.
P82.85-6459-26
18
09-NAVI2-203-US.pm507.06.2001, 16:56 Uhr 173

174 Route guidance
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Voice output during route guidance
During the trip, along with the visual information –
symbol or map displays – COMAND also provides all of
the necessary spoken route information via voice output.
Warning!
Voice output is intended to direct you while driving
without diverting your attention from the road and
driving. Please always use this feature instead of
consulting the screen symbols or map for
directions while driving which may cause you to
divert your attention from driving which can
increase your risk of accident.
Spoken recommendations are given:
• when route guidance begins,
• after the route has been calculated,
• before and during a change in the driving direction,
• when the destination or a way point has been
reached.
If an audio source is switched on, e.g. the radio, the
voice output is mixed with that of the audio source. Beginning route guidance
After the route has been calculated, the symbol display
will appear. If you now are at the turn-off point, you
will also hear a voice telling you, e.g. “Please turn
right”.
You can select screen display during the journey:
• Symbol display
• Switch between symbol and map display, page 180
• Route guidance with a mixture of map and symbol
display, page 181
P82.85-3037-26
09-NAVI2-203-US.pm507.06.2001, 16:56 Uhr 174

175
Route guidance
Introduction
Audio
Telephone
Navigation
Index Info Services and
system settings The audio volume differential between Voice output/
Audio source can be set individually, page 69. During
telephone/Tele Aid operation, navigation voice outputs
are muted.
To repeat the current spoken recommendation:
Press the left-hand rotary/pushbutton
briefly.
To mute the current spoken recommendation:
Press
briefly during a voice output. The next
announcement will be heard normally.
Switching the voice output on/off
Press longer than 2 seconds during a voice
output.
The following message will appear on the screen:
“Voice output is muted.”
The voice output will remain muted for the duration of
the current route guidance.Switch the voice output on again:
• Press the left-hand rotary/pushbutton
• Automatically at the end of the current route
guidance
Select the language for voice output, see the chapter on
Info Services and system settings.
Altering the voice output volume
While you are listening to a spoken recommendation,
alter its volume by turning the left-hand rotary/
pushbutton
.
This setting will then affect all of following voice
outputs.
Note:
During a voice output you can alter the sound level
with the steering wheel keys as well:
– Increase volume– Decrease volume
The minimum sound level depends on the current
audio volume.
09-NAVI2-203-US.pm507.06.2001, 16:56 Uhr 175

176 Route guidance
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Turning onto a street132
P82.85-2190-26
Traffic situation and voice output:
1“Prepare to turn right.”
2“Turn right after one quarter mile.”
3“Please turn right.”Note:
As you approach a junction or interchange (e.g. I-695),
the system will advise you the direction of travel to
follow (e.g. North) as well as the name of the route.
Manual recall of the current voice instruction:
Press the left-hand rotary/pushbutton
.
09-NAVI2-203-US.pm507.06.2001, 16:56 Uhr 176

177
Route guidance
Introduction
Audio
Telephone
Navigation
Index Info Services and

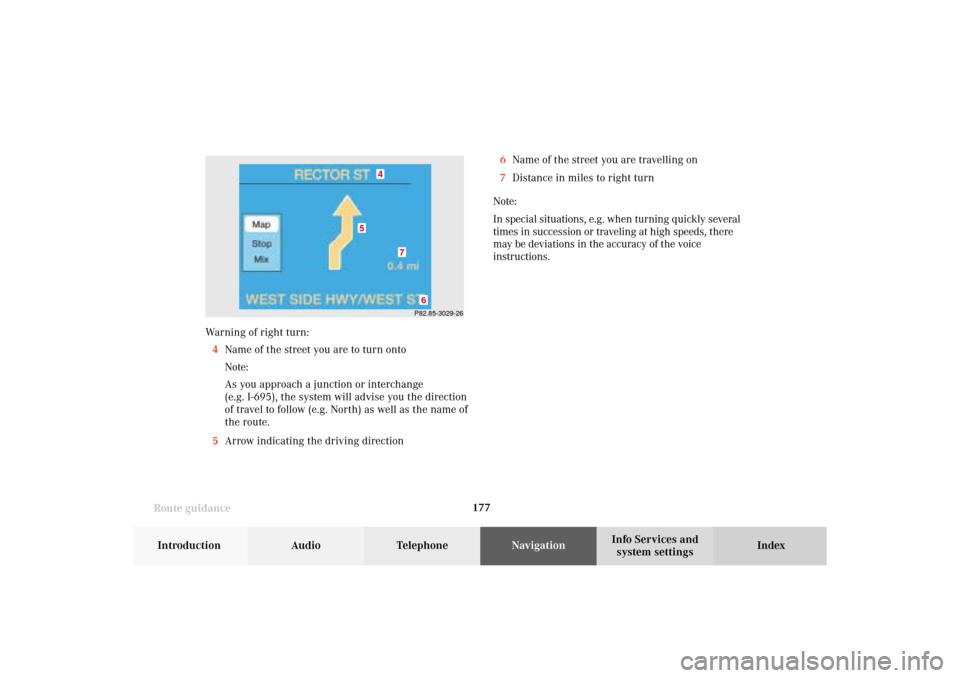

system settings Warning of right turn:
4Name of the street you are to turn onto
Note:
As you approach a junction or interchange
(e.g. I-695), the system will advise you the direction
of travel to follow (e.g. North) as well as the name of
the route.
5Arrow indicating the driving direction
P82.85-3029-26
4
7
6
5
6Name of the street you are travelling on
7Distance in miles to right turn
Note:
In special situations, e.g. when turning quickly several
times in succession or traveling at high speeds, there
may be deviations in the accuracy of the voice
instructions.
09-NAVI2-203-US.pm507.06.2001, 16:56 Uhr 177

178 Route guidance
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
1Distance in miles to destination
2Arrow indicating driving direction
3Name of the street you are currently driving on
4Distance in miles to next turn Following the course of the road
Just before a right turn:
8Name of the street you will turn onto
9Right-turn arrow
10Name of the street you are now driving on
11Distance graph to turning point, is reduced as you
approach the intersection
P82.85-3030-26
11
10
8
9
P82.85-3031-26
4
3
21
