navigation system MERCEDES-BENZ CL-Class 2014 C217 Owner's Guide

X

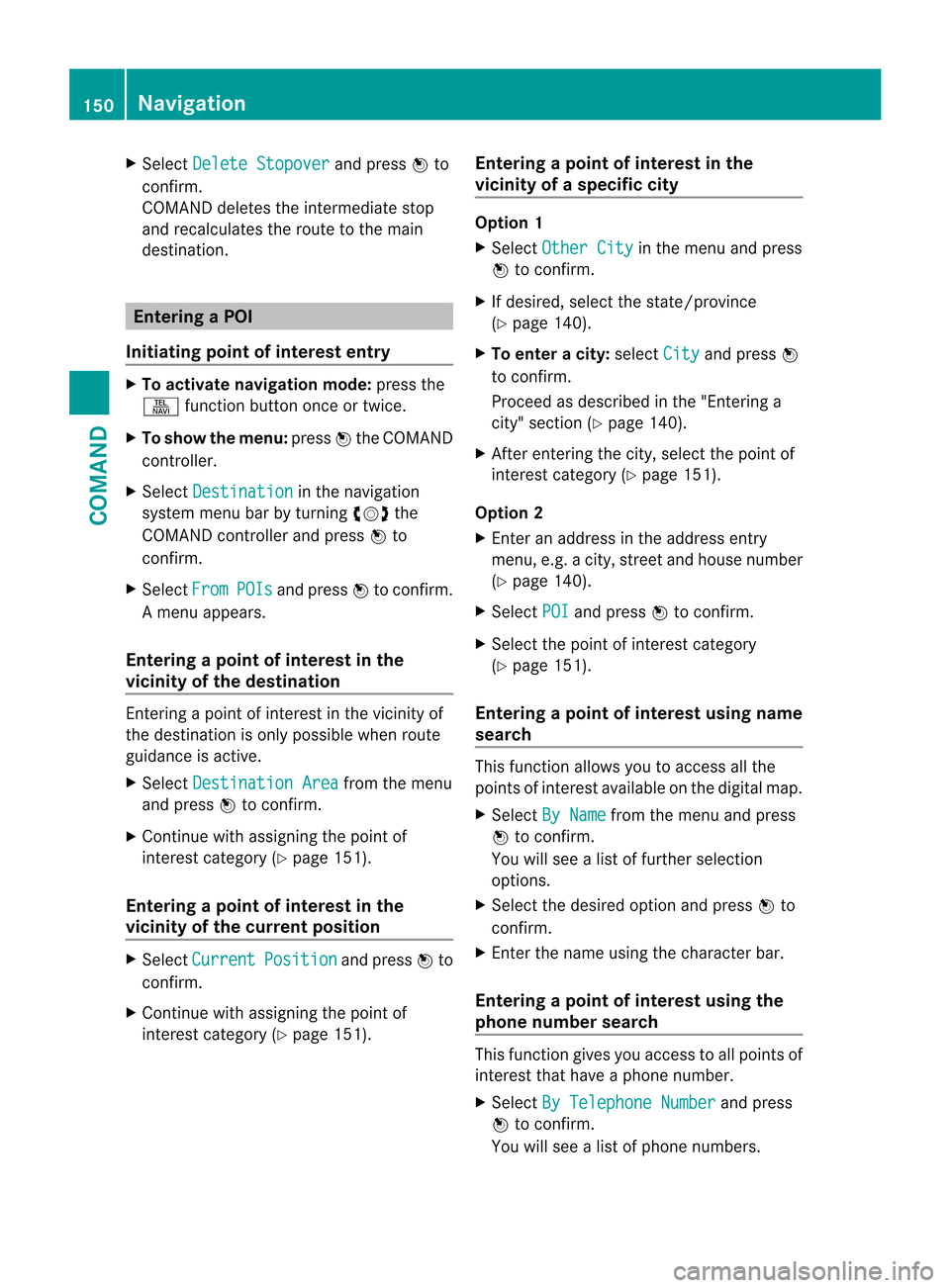

Select Delete Stopover and press
Wto
confirm.
COMAND deletes the intermediate stop
and recalculates the route to the main
destination. Entering
aPOI
Initiating point of interest entry X
To activate navigation mode: press the
S function button once or twice.
X To show the menu: pressWthe COMAND
controller.
X Select Destination in the navigation
system menu bar by turning cVdthe
COMAND controller and press Wto
confirm.
X Select From POIs and press
Wto confirm.
Am enu appears.
Entering apoint of interes tin the
vicinity of the destination Entering a point of interest in the vicinity of
the destination is only possible when route
guidance is active.
X Select Destination Area from the menu
and press Wto confirm.
X Continue with assigning the point of
interest category (Y page 151).
Entering apoint of interes tin the
vicinity of the current position X
Select Current Position and press
Wto
confirm.
X Continue with assigning the point of
interest category (Y page 151). Entering
apoint of interes tin the
vicinity of aspecific city Option 1
X
Select Other City in the menu and press
W to confirm.
X If desired, select the state/province
(Y page 140).
X To enter a city: selectCity and press
W
to confirm.
Proceed as described in the "Entering a
city" section (Y page 140).
X After entering the city, select the point of
interest category (Y page 151).
Option 2
X Enter an address in the address entry
menu, e.g. a city ,stree tand house number
(Y page 140).
X Select POI and press
Wto confirm.
X Select the point of interest category
(Y page 151).
Entering apoint of interes tusing name
search This function allows you to access all the
points of interest available on the digital map.
X Select By Name from the menu and press
W to confirm.
You will see a list of further selection
options.
X Select the desired option and press Wto
confirm.
X Enter the name using the character bar.
Entering apoint of interes tusing the
phone number search This function gives you access to all points of
interest that have a phone number.
X
Select By Telephone Number and press
W to confirm.
You will see a list of phone numbers. 150
NavigationCOMAND

X
Enter the phone number using the
character bar.

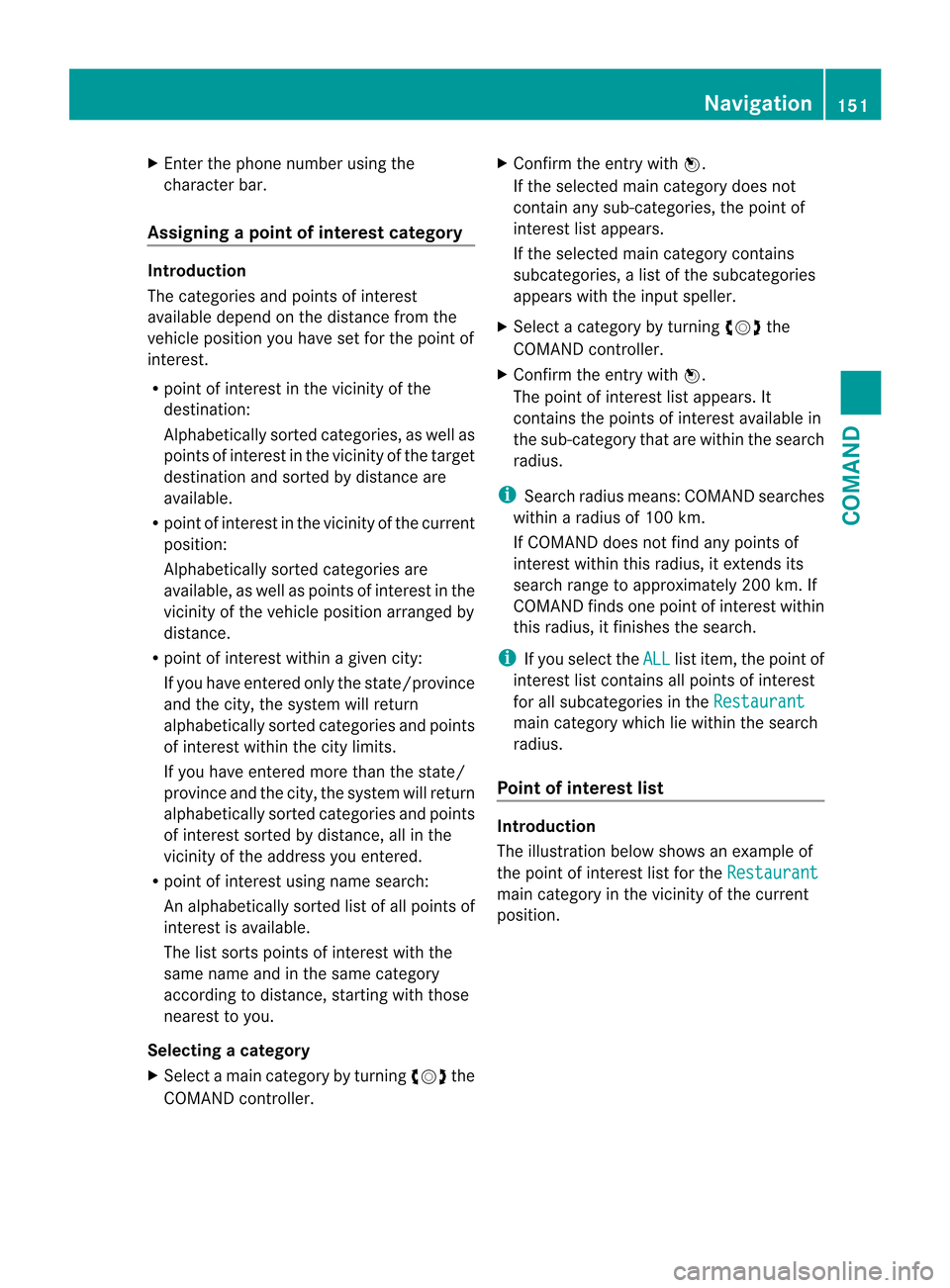

Assigning apoint of interes tcategory Introduction
The categories and points of interest
available depend on the distance from the
vehicle position you have set for the point of
interest.
R point of interest in the vicinity of the
destination:
Alphabetically sorted categories, as well as
points of interes tinthe vicinity of the target
destination and sorted by distance are
available.
R point of interest in the vicinity of the current
position:
Alphabetically sorted categories are
available, as well as points of interest in the
vicinity of the vehicle position arranged by
distance.
R point of interest within a given city:
If you have entered only the state/province
and the city, the system will return
alphabetically sorted categories and points
of interest within the city limits.
If you have entered more than the state/
province and the city, the system will return
alphabetically sorted categories and points
of interest sorted by distance, all in the
vicinity of the address you entered.
R point of interest using name search:
An alphabetically sorted list of all points of
interest is available.
The list sorts points of interest with the
same name and in the same category
according to distance, starting with those
nearest to you.
Selecting acategory
X Select a mai ncategory by turning cVdthe
COMAND controller. X
Confirm the entry with W.
If the selected main category does not
contain any sub-categories, the poin tof
interest list appears.
If the selected main category contains
subcategories, a list of the subcategories
appears with the input speller.
X Selec tacategory by turning cVdthe
COMAND controller.
X Confirm the entry with W.
The point of interest list appears. It
contains the points of interest available in
the sub-category that are within the search
radius.
i Search radius means: COMAND searches
within a radius of 100 km.
If COMAND does not find any points of
interest within this radius, it extends its
search range to approximately 200 km. If
COMAND finds one point of interest within
this radius, it finishes the search.
i If you select the ALL list item, the point of
interest list contains all points of interest
for all subcategories in the Restaurant mai
ncategory which lie within the search
radius.
Point of interes tlist Introduction
The illustration below shows an example of
the point of interest list for the
Restaurant main category in the vicinity of the current
position. Navigation
151COMAND Z

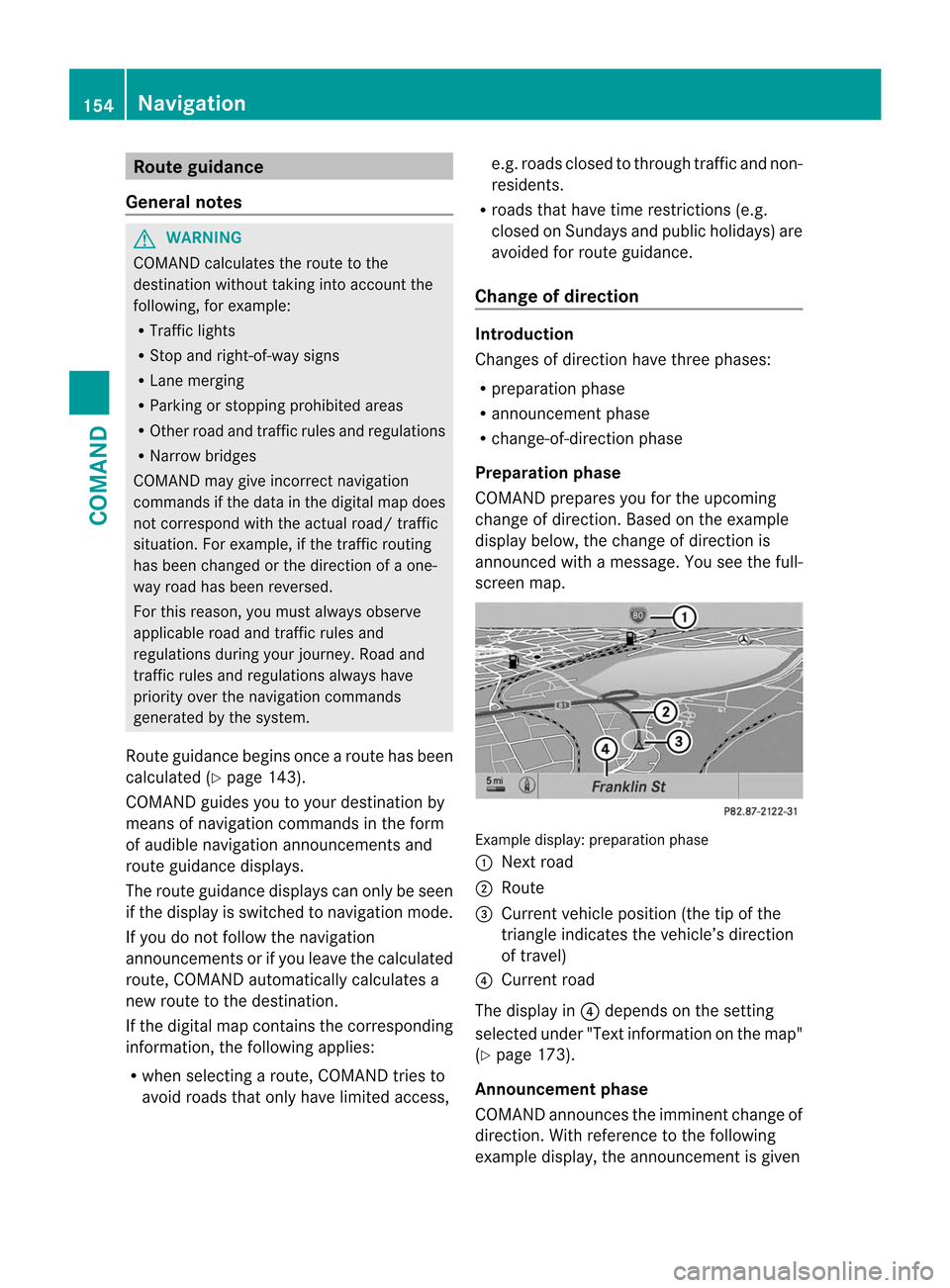

Route guidance
General notes G
WARNING
COMAND calculates the route to the
destination without taking into account the
following, for example:
R Traffic lights
R Stop and right-of-way signs
R Lane merging
R Parking or stopping prohibited areas
R Othe rroad and traffic rules and regulations
R Narrow bridges
COMAND may give incorrect navigation
commands if the data in the digital map does
not correspond with the actual road/ traffic
situation. For example, if the traffic routing
has been changed or the direction of a one-
way road has been reversed.
For this reason, you must always observe
applicable road and traffic rules and
regulations during your journey. Road and
traffic rules and regulations always have
priority over the navigation commands
generated by the system.
Route guidance begins once aroute has been
calculated (Y page 143).
COMAND guides you to your destination by
means of navigation commands in the form
of audible navigation announcements and
route guidance displays.
The route guidance displays can only be seen
if the display is switched to navigation mode.
If you do not follow the navigation
announcements or if you leave the calculated
route, COMAND automatically calculates a
new route to the destination.
If the digital map contains the corresponding
information, the following applies:
R when selecting a route, COMAND tries to
avoid roads that only have limited access, e.g. roads closed to through traffic and non-
residents.
R roads that have time restrictions (e.g.
closed on Sundays and public holidays) are
avoided for route guidance.
Change of direction Introduction
Changes of direction have three phases:
R preparation phase
R announcement phase
R change-of-direction phase
Preparation phase
COMAND prepares you for the upcoming
change of direction .Based on the example
display below, the change of direction is
announced with a message. You see the full-
scree nmap. Example display: preparation phase
: Next road
; Route
= Curren tvehicle position (the tip of the
triangle indicates the vehicle’s direction
of travel)
? Current road
The display in ?depends on the setting
selected under "Text information on the map"
(Y page 173).
Announcement phase
COMAND announces the imminen tchange of
direction. With referencet o the following
example display, the announcement is given 154
NavigationCOMAND

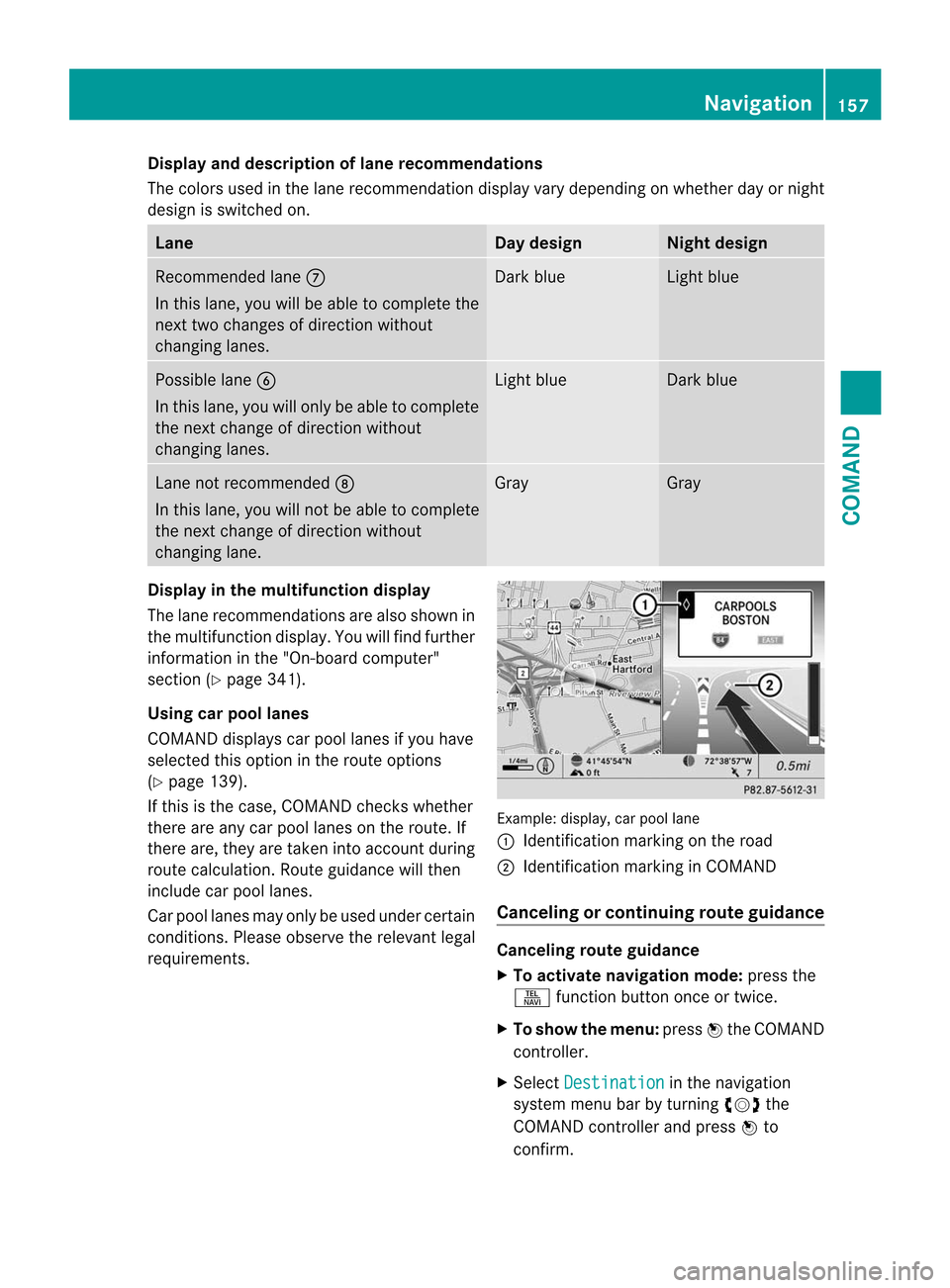

Display and description of lane recommendations
The colors used in the lan erecommendation display vary depending on whether day or night
design is switched on. Lane Day design Night design
Recommended lane
C
In this lane, you will be able to complete the
nextt wo changes of directio nwithout
changing lanes. Dar
kblue Light blue
Possible lane
B
In this lane, you will only be able to complete
the nex tchange of direction without
changing lanes. Light blue Dark blue
Lane not recommended
D
In this lane, you will not be able to complete
the next change of direction without
changing lane. Gray Gray
Display in the multifunction display
The lane recommendations are also shown in
the multifunction display. You will find further
information in the "On-board computer"
section (Y page 341).
Using car pool lanes
COMAND displays car pool lanes if you have
selected this option in the route options
(Y page 139).
If this is the case, COMAND checks whether
there are any car pool lanes on the route. If
there are, they are taken into account during
route calculation. Route guidance will then
include car pool lanes.
Car pool lanes may only be used under certain
conditions. Please observe the relevant legal
requirements. Example: display, car pool lane
:
Identification marking on the road
; Identification marking in COMAND
Canceling or continuing route guidance Canceling route guidance
X
To activate navigation mode: press the
S function button once or twice.
X To show the menu: pressWthe COMAND
controller.
X Select Destination in the navigation
system menu bar by turning cVdthe
COMAND controller and press Wto
confirm. Navigation
157COMAND Z

X
Select Cancel Route Guidance and press
W to confirm.
Continuing route guidance
X To activate navigation mode: press the
S function button once or twice.
X To show the menu: pressWthe COMAND
controller.
X Select Destination in the navigation
system menu ba rby turning cVdthe
COMAND controller and press Wto
confirm.
X Select Continue Route Guidance and
press Wto confirm.
COMAND calculates the route.
Destination or area of destination
reached Whe
nyou reach your destination, COMAND
displays a checkered flag and route guidance
is automatically ended.
For certain points of interest (e.g. airports),
the Destination Reached display is shown
as well as the checkered flag.
Navigation announcements Repeating navigation announcements
G
WARNING
Navigation announcements are intended to
direct you while driving without diverting your
attention from the road and driving.
Please always use this feature instead of
consulting the map display for directions.
Looking at the icons or map display can
distract you from traffic conditions and
driving, and increase the risk of an accident.
i Audible navigation announcements are
muted during a telephone call.
If you have missed an announcement, you can
call up the current announcement at any
time. X
To show the menu: pressWthe COMAND
controller.
X In the navigation menu bar, confirm RPT with
W.
Switching navigation announcements
on/off
X To switch off: during the announcement,
press the 8button on the multifunction
steering wheel.
You will briefly see the message: The driving instructions have been
muted .
X To switch on: pressWthe COMAND
controller.
X In the +navigation menu bar, press W
to confirm.
i COMAND automatically switches the
navigation announcements back on when:
R you have a new route calculated.
R you start the engine again after having
left the vehicle.
Reducing volume during anavigation
announcement
The volume of an active audio or video source
can be automatically reduced during a
navigation announcement.
X Select Navi in the main function bar by
sliding ZVand turning cVdthe COMAND
controller and press Wto confirm.
X Select Audio Fadeout and press
Wto
confirm.
The function is switched on Oor off ª,
depending on the previous status.
Setting the volume manually
X Set the volume during a navigation
announcement.
or
X In the map display whe nthe menu is
shown, select +and adjust the volume. 158
NavigationCOMAND

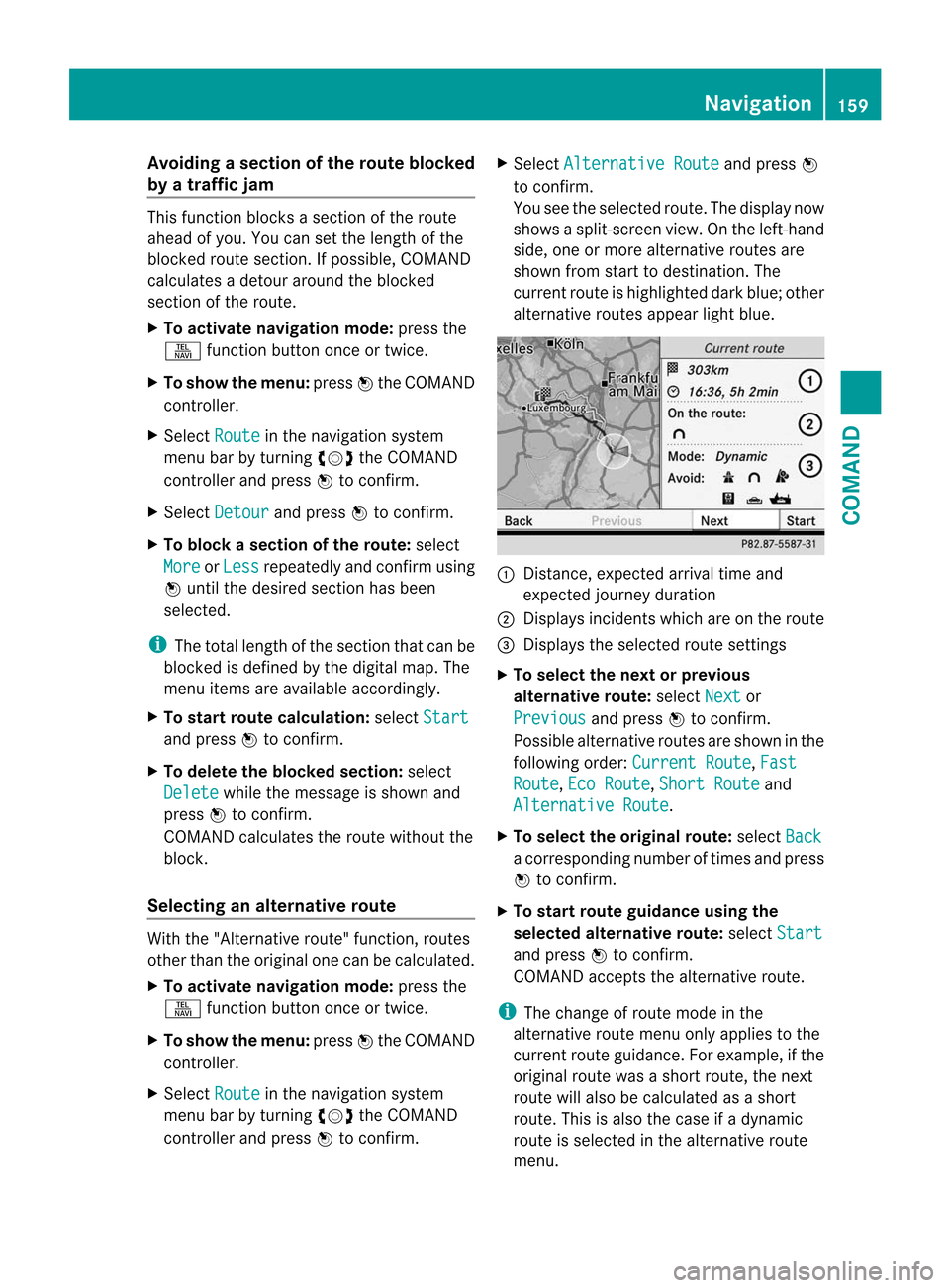

Avoiding
asection of the route blocked
by a traffic jam This function blocks a sectio
nofthe route
ahead of you. You can set the length of the
blocked route section. If possible, COMAND
calculates a detour around the blocked
section of the route.
X To activate navigation mode: press the
S function button once or twice.
X To show the menu: pressWthe COMAND
controller.
X Select Route in the navigation system
menu bar by turning cVdthe COMAND
controller and press Wto confirm.
X Select Detour and press
Wto confirm.
X To block a section of the route: select
More or
Less repeatedly and confirm using
W until the desired section has been
selected.
i The total length of the section that can be
blocked is defined by the digital map. The
menu items are available accordingly.
X To start route calculation: selectStart and press
Wto confirm.
X To delete the blockeds ection:select
Delete while the message is shown and
press Wto confirm.
COMAND calculates the rout ewithout the
block.
Selecting an alternative route With the "Alternative route" function, routes
other than the original one can be calculated.
X To activate navigation mode: press the
S function button once or twice.
X To show the menu: pressWthe COMAND
controller.
X Select Route in the navigation system
menu bar by turning cVdthe COMAND
controller and press Wto confirm. X
Select Alternative Route and press
W
to confirm.
You see the selected route. The display now
shows a split-screen view. On the left-hand
side, one or more alternative routes are
shown from start to destination. The
current route is highlighted dark blue; other
alternative routes appear light blue. :
Distance, expected arrival time and
expected journey duration
; Displays incidents which are on the route
= Displays the selected route settings
X To select the next or previous
alternative route: selectNext or
Previous and press
Wto confirm.
Possible alternative routes are shown in the
following order: Current Route ,
Fast Route ,
Eco Route ,
Short Route and
Alternative Route .
X To select the original route: selectBack a corresponding number of times and press
W
to confirm.
X To start route guidance using the
selected alternative route: selectStart and press
Wto confirm.
COMAND accepts the alternative route.
i The change of route mode in the
alternative route menu only applies to the
current route guidance. For example, if the
original route was a shor troute, the next
route will also be calculated as a short
route. This is also the case if a dynamic
route is selected in the alternative route
menu. Navigation
159COMAND Z

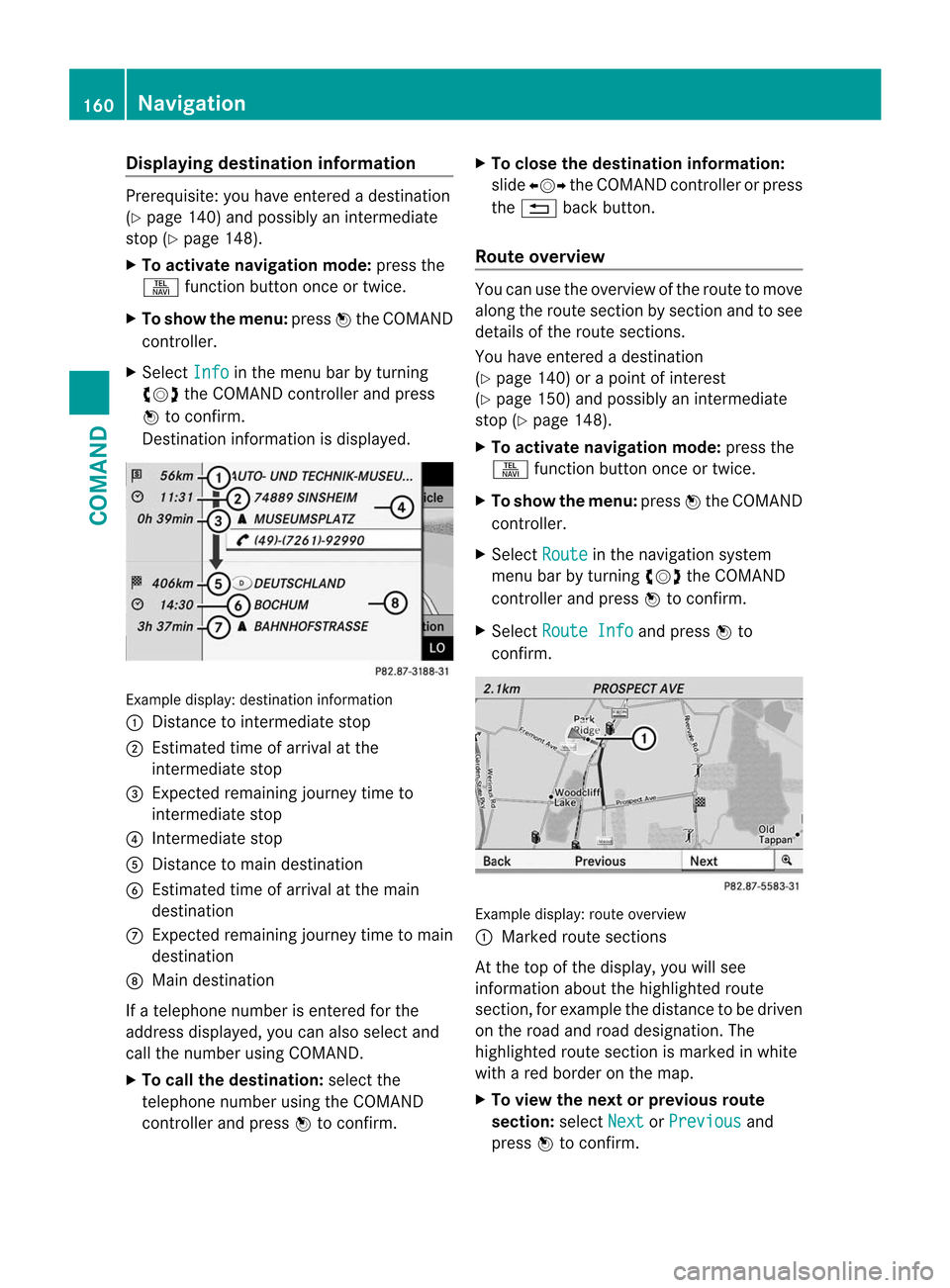

Displaying destination information
Prerequisite: you have entered a destination
(Y page 140) and possibly an intermediate
stop (Y page 148).
X To activate navigation mode: press the
S function button once or twice.
X To show the menu: pressWthe COMAND
controller.
X Select Info in the menu bar by turning
cVd the COMAND controller and press
W to confirm.
Destination information is displayed. Example display: destination information
:
Distance to intermediate stop
; Estimated time of arrival at the
intermediate stop
= Expected remaining journey time to
intermediate stop
? Intermediate stop
A Distance to main destination
B Estimated time of arrival at the main
destination
C Expected remaining journey time to main
destination
D Main destination
If a telephone number is entered for the
address displayed, you can also selec tand
call the numbe rusing COMAND.
X To call the destination: select the
telephone number using the COMAND
controller and press Wto confirm. X
To close the destination information:
slide XVY the COMAND controller or press
the % back button.
Route overview You can use the overview of the route to move
along the route section by section and to see
details of the route sections.
You have entered a destination
(Y
page 140) or a point of interest
(Y page 150) and possibly an intermediate
stop (Y page 148).
X To activate navigation mode: press the
S function button once or twice.
X To show the menu: pressWthe COMAND
controller.
X Select Route in the navigation system
menu bar by turning cVdthe COMAND
controller and press Wto confirm.
X Select Route Info and press
Wto
confirm. Example display: route overview
:
Marked route sections
At the top of the display, you will see
information aboutt he highlighted route
section, for example the distance to be driven
on the road and road designation. The
highlighted route section is marked in white
with a red border on the map.
X To view the next or previous route
section: selectNext or
Previous and
press Wto confirm. 160
NavigationCOMAND

i
If the first or last route section is
highlighted, you cannot select Previous or
Next .
X To zoom in or out of the map: selectN
or M and press Wto confirm.
X To close the route overview: select
Back and press
Wto confirm.

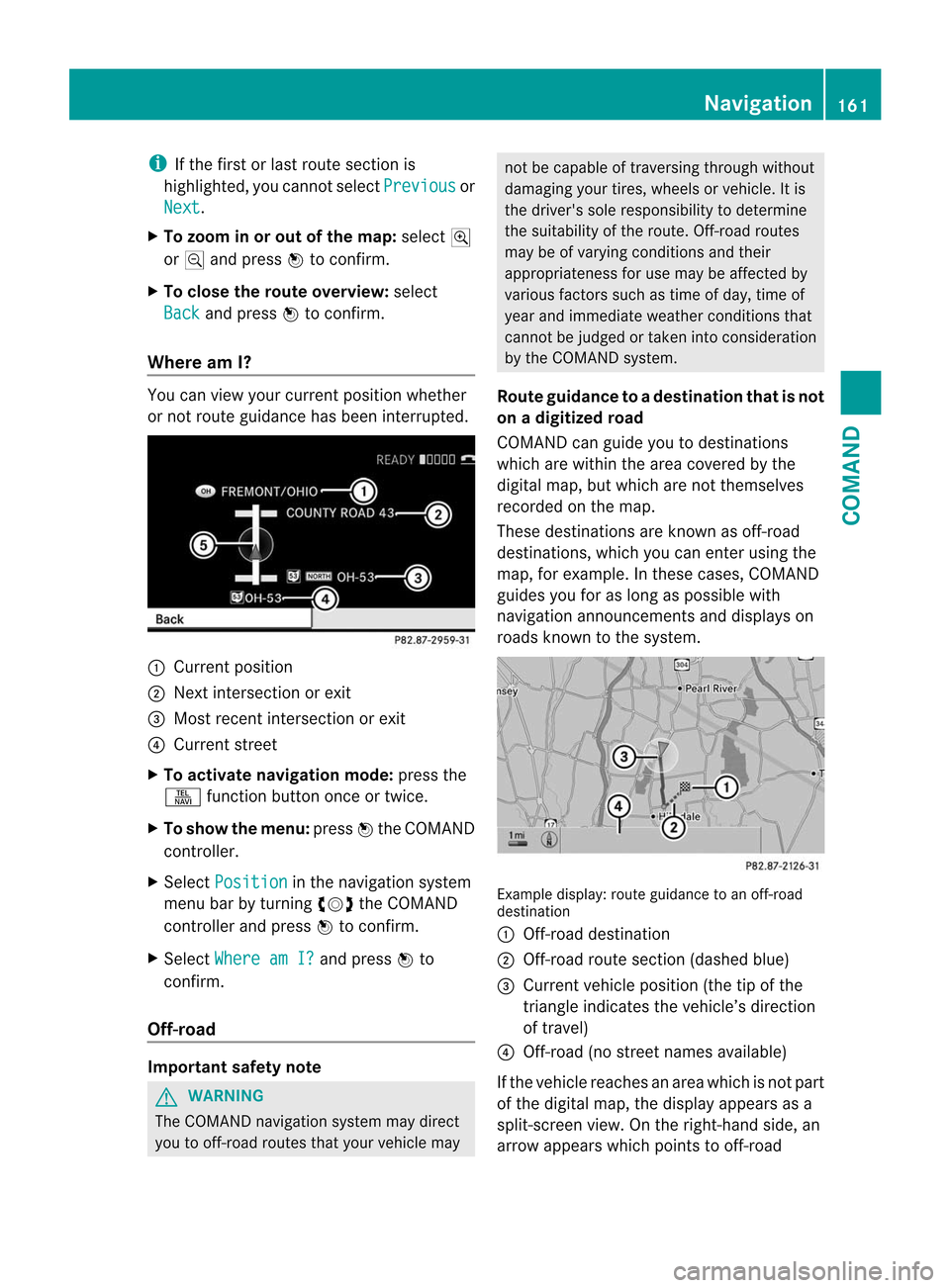

Where am I? You can view yourc
urrentposition whether
or not route guidance has been interrupted. :
Current position
; Next intersection or exit
= Most recent intersection or exit
? Current street
X To activate navigation mode: press the
S function button once or twice.
X To show the menu: pressWthe COMAND
controller.
X Select Position in the navigation system
menu bar by turning cVdthe COMAND
controller and press Wto confirm.
X Select Where am I? and press
Wto
confirm.
Off-road Important safety note
G
WARNING
The COMAND navigation system may direct
you to off-road routes that your vehicle may not be capable of traversing through without
damaging your tires, wheels or vehicle. It is
the driver's sole responsibility to determine
the suitability of the route. Off-road routes
may be of varying conditions and their
appropriateness for use may be affected by
various factors such as time of day, time of
year and immediate weather conditions that
cannot be judged or taken into consideration
by the COMAND system.
Route guidance to adestination that is not
on a digitized road
COMAND can guide you to destinations
which are within the area covered by the
digital map, but which are not themselves
recorded on the map.
These destinations are known as off-road
destinations, which you can enter using the
map, for example. In these cases, COMAND
guides you for as long as possible with
navigation announcements and displays on
roads known to the system. Example display: route guidance to an off-road
destination
:
Off-road destination
; Off-road route sectio n(dashed blue)
= Current vehicle position (the tip of the
triangle indicates the vehicle’s direction
of travel)
? Off-road (no street names available)
If the vehicle reaches an area which is not part
of the digital map, the display appears as a
split-screen view. On the right-hand side, an
arrow appears which points to off-road Navigation
161COMAND Z

destination
:.You will hear the
announcement:" Please follow the arrow on
the display".

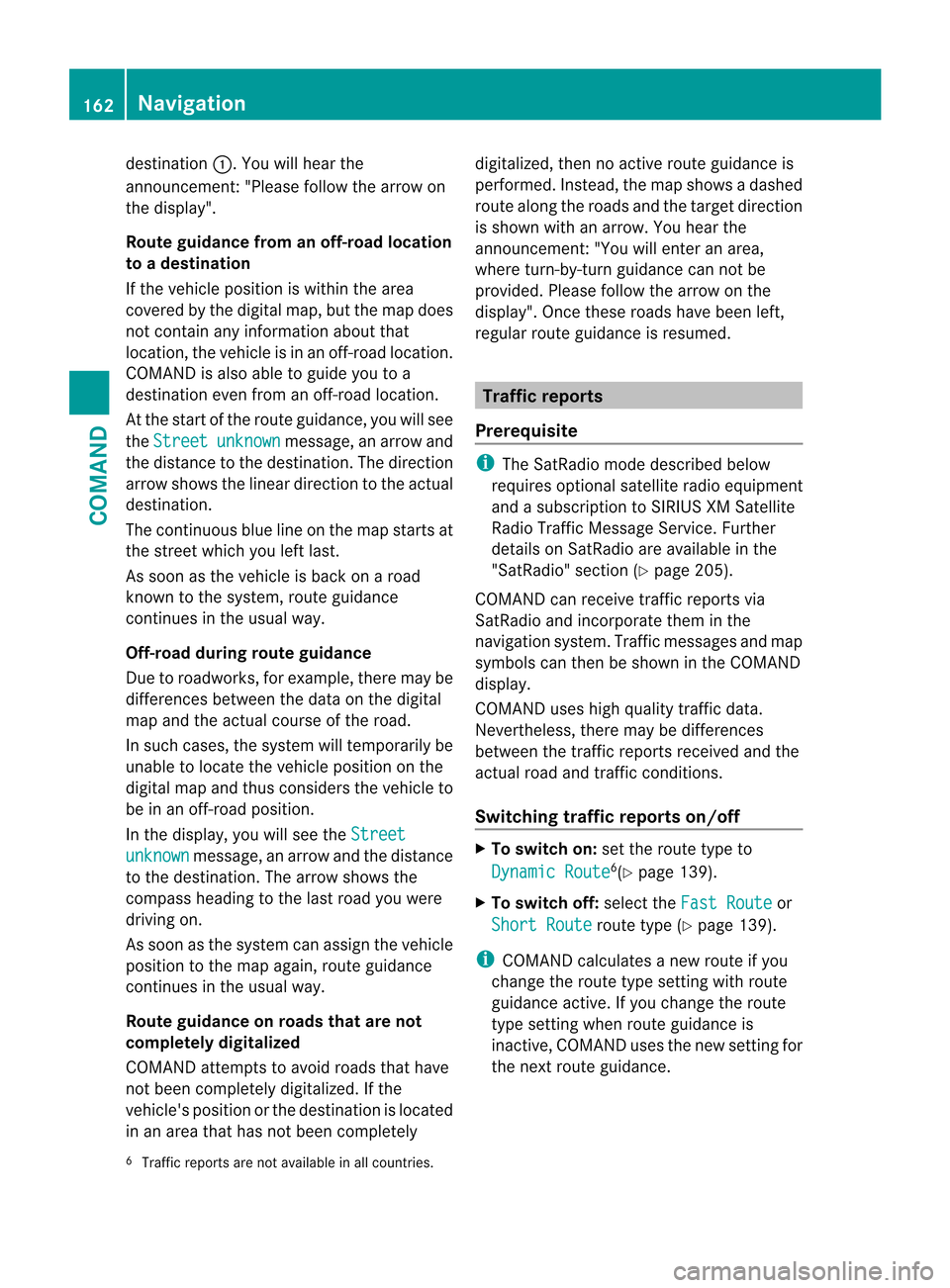

Route guidance from an off-road location
to a destination
If the vehicle position is within the area
covered by the digital map, but the map does
not contain any information about that
location, the vehicle is in an off-road location.
COMAND is also able to guide you to a
destination even from an off-road location.
At the start of the route guidance, you will see
the Street unknown message, an arrow and
the distance to the destination. The direction
arrow shows the linear direction to the actual
destination.
The continuous blue line on the map starts at
the street which you left last.
As soon as the vehicle is back on a road
known to the system, route guidance
continues in the usual way.
Off-road during route guidance
Due to roadworks, for example, there may be
differences between the data on the digital
map and the actual course of the road.
In such cases, the system will temporarily be
unable to locate the vehicle position on the
digital map and thus considers the vehicle to
be in an off-road position.
In the display, you will see the Streetunknown message, an arrow and the distance
to the destination. The arrow shows the
compass heading to the last road you were
driving on.
As soon as the system can assign the vehicle
position to the map again, route guidance
continues in the usual way.
Route guidance on roads that are not
completely digitalized
COMAND attempts to avoid roads that have
not been completely digitalized. If the
vehicle's position or the destination is located
in an area that has not been completely digitalized, then no active route guidance is
performed. Instead, the map shows a dashed
route along the roads and the target direction
is shown with an arrow. You hear the
announcement
:"You will enter an area,
where turn-by-turn guidance can not be
provided. Please follow the arrow on the
display". Once these roads have been left,
regular route guidance is resumed. Traffic reports
Prerequisite i
The SatRadio mode described below
requires optional satellite radio equipment
and a subscription to SIRIUS XM Satellite
Radio Traffic Message Service .Further
details on SatRadio are available in the
"SatRadio" section (Y page 205).
COMAND can receive traffic reports via
SatRadio and incorporate them in the
navigation system. Traffic messages and map
symbols can then be shown in the COMAND
display.
COMAND uses high quality traffic data.
Nevertheless, there may be differences
between the traffic reports received and the
actual road and traffic conditions.
Switching traffic reports on/off X
To switch on: set the route type to
Dynamic Route 6
(Y page 139).
X To switch off: select theFast Route or
Short Route route type (Y
page 139).
i COMAND calculates a new route if you
change the route type setting with route
guidance active. If you change the route
type setting when route guidance is
inactive, COMAND uses th enew setting for
the nextr oute guidance.
6 Traffic reports are not available in all countries. 162
NavigationCOMAND

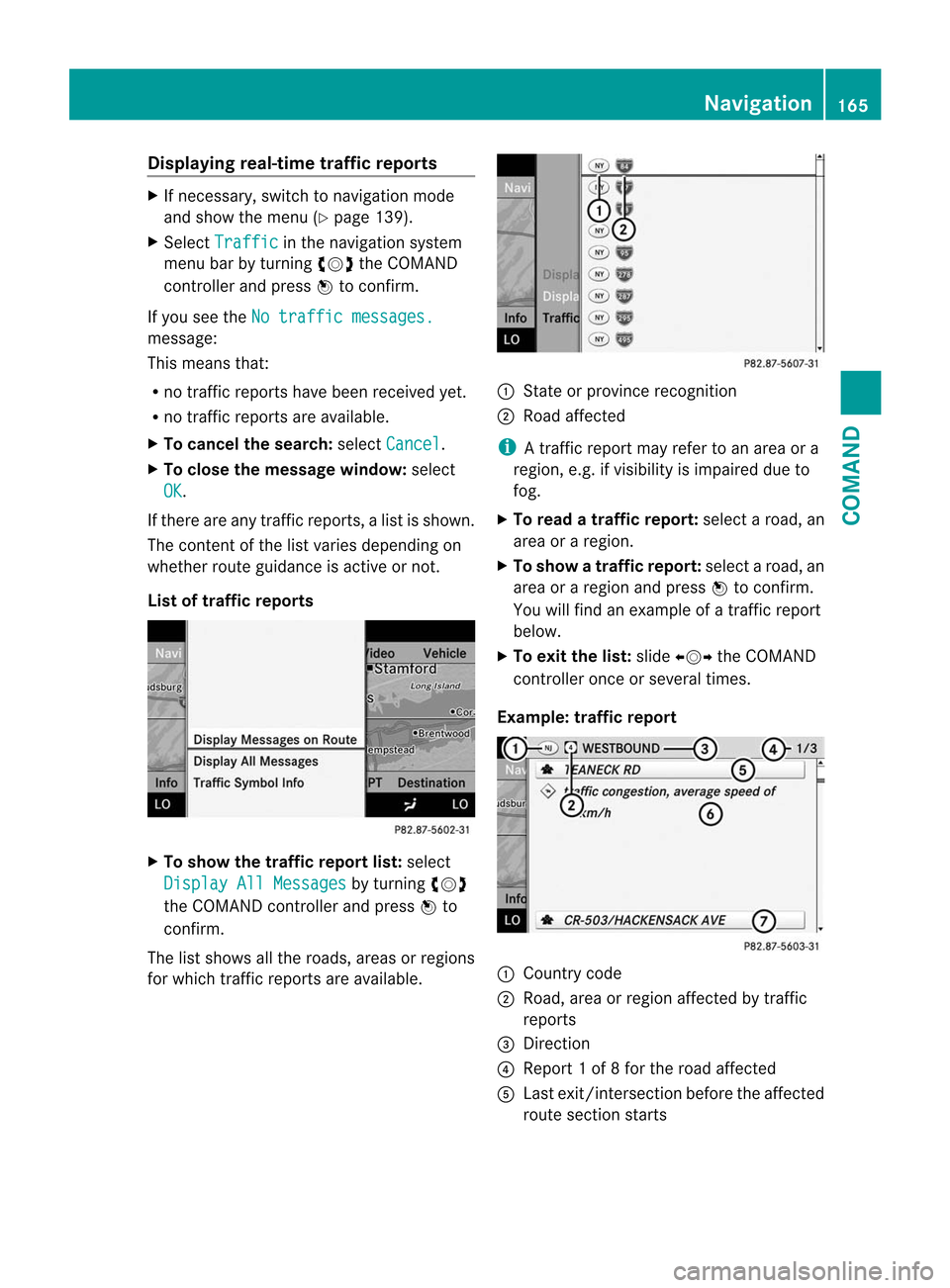

Displaying real-time traffic reports
X
If necessary, switch to navigation mode
and show the menu (Y page 139).
X Select Traffic in the navigation system
menu bar by turning cVdthe COMAND
controller and press Wto confirm.
If you see the No traffic messages. message:
This means that:
R
no traffic reports have been received yet.
R no traffic reports are available.
X To cancel the search: selectCancel .
X To close the message window: select
OK .
If there are any traffic reports, a list is shown.
The conten tofthe list varies depending on
whether route guidance is active or not.
List of traffic reports X
To show the traffic report list: select
Display All Messages by turning
cVd
the COMAND controller and press Wto
confirm.
The list shows all the roads, areas or regions
for which traffic reports are available. 1
State or province recognition
2 Road affected
i A traffic report may refer to an area or a
region, e.g. if visibility is impaired due to
fog.
X To read a traffic report: select a road, an
area or a region.
X To show a traffic report: select a road, an
area or a region and press Wto confirm.
You will find an example of a traffic report
below.
X To exit the list: slideXVY the COMAND
controller once or several times.
Example: traffic report 1
Country code
2 Road, area or region affected by traffic
reports
3 Direction
4 Report 1 of 8 for the road affected
5 Last exit/intersection before the affected
route section starts Navigation
165COMAND Z
