MERCEDES-BENZ CLA 2014 Owners Manual

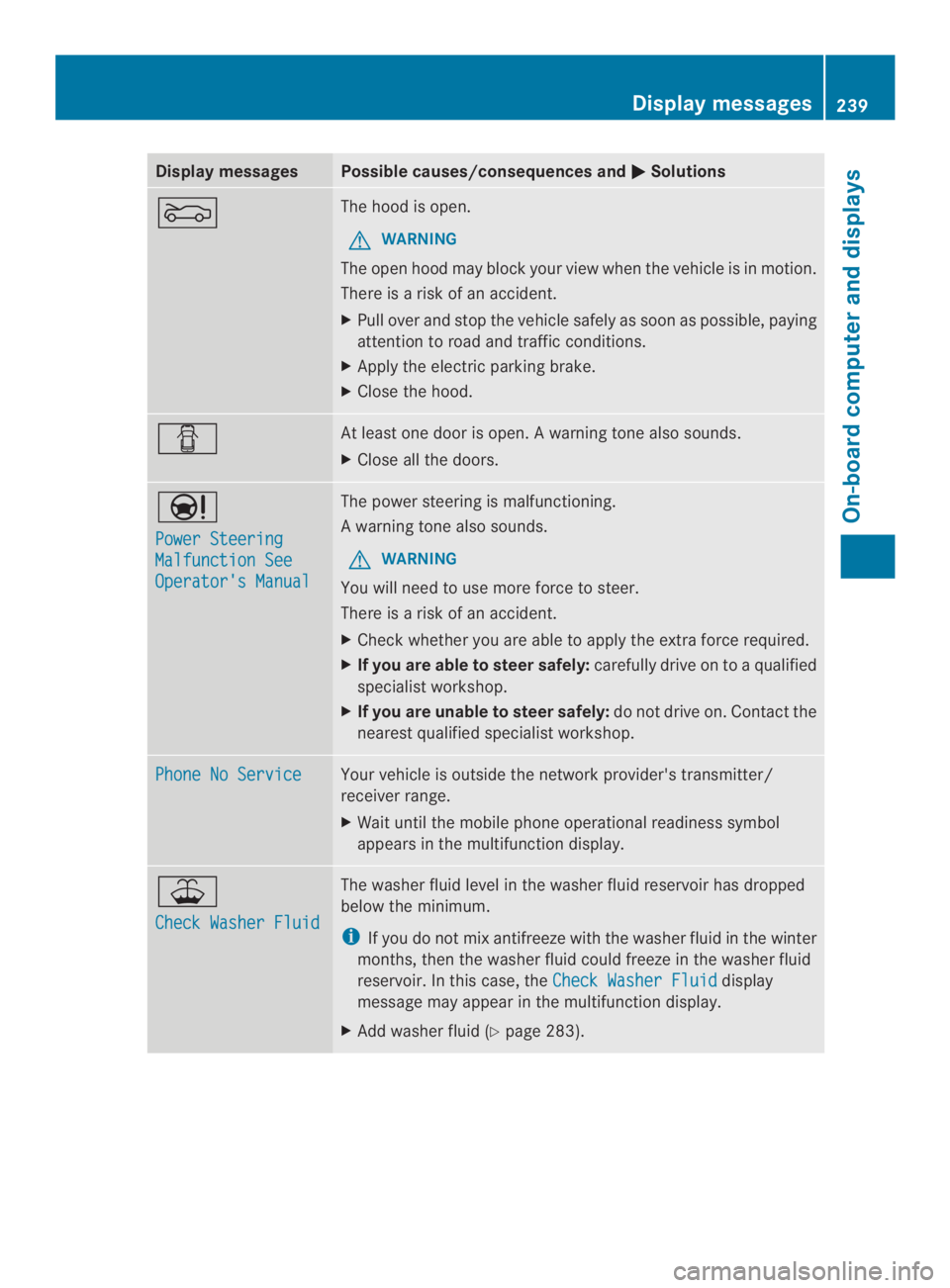

Display messagesPossible causes/consequences and
Solutions
\rThe hood is open.
GWARNING
The open hood may blockyour view when the vehicle is in motion.
There is a risk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XApply the electric parking brake.
XClose the hood.
At least one door is open.Awarning tone also sounds.
XClose all the doors.


Power Steering
Malfunction See
Operator's Manual
The power steering is malfunctioning.
Awarning tone also sounds.
GWARNING
You will need to use more force to steer.
There is a riskofanaccident.
XCheck whetheryou are able to apply the extra force required.
XIf you are able to steer safely:carefully drive on to a qualified
specialist workshop.
XIf you are unable to steer safely:do not drive on. Contact the
nearest qualified specialist workshop.
Phone No ServiceYour vehicle is outside the network provider's transmitter/
receiver range.
XWait until the mobile phone operational readiness symbol
appears in the multifunction display.

Check Washer Fluid
The washer fluid level in the washer fluid reservoir has dropped
below the minimum.
iIf you do not mix antifreeze with the washer fluid in the winter
months, then the washer fluid could freeze in the washer fluid
reservoir. In this case, theCheck Washer Fluiddisplay
message may appear in the multifunction display.
XAdd washer fluid (Ypage 283).
Display messages239
On-board computer and displays
Z

Display messagesPossible causes/consequences and
Solutions

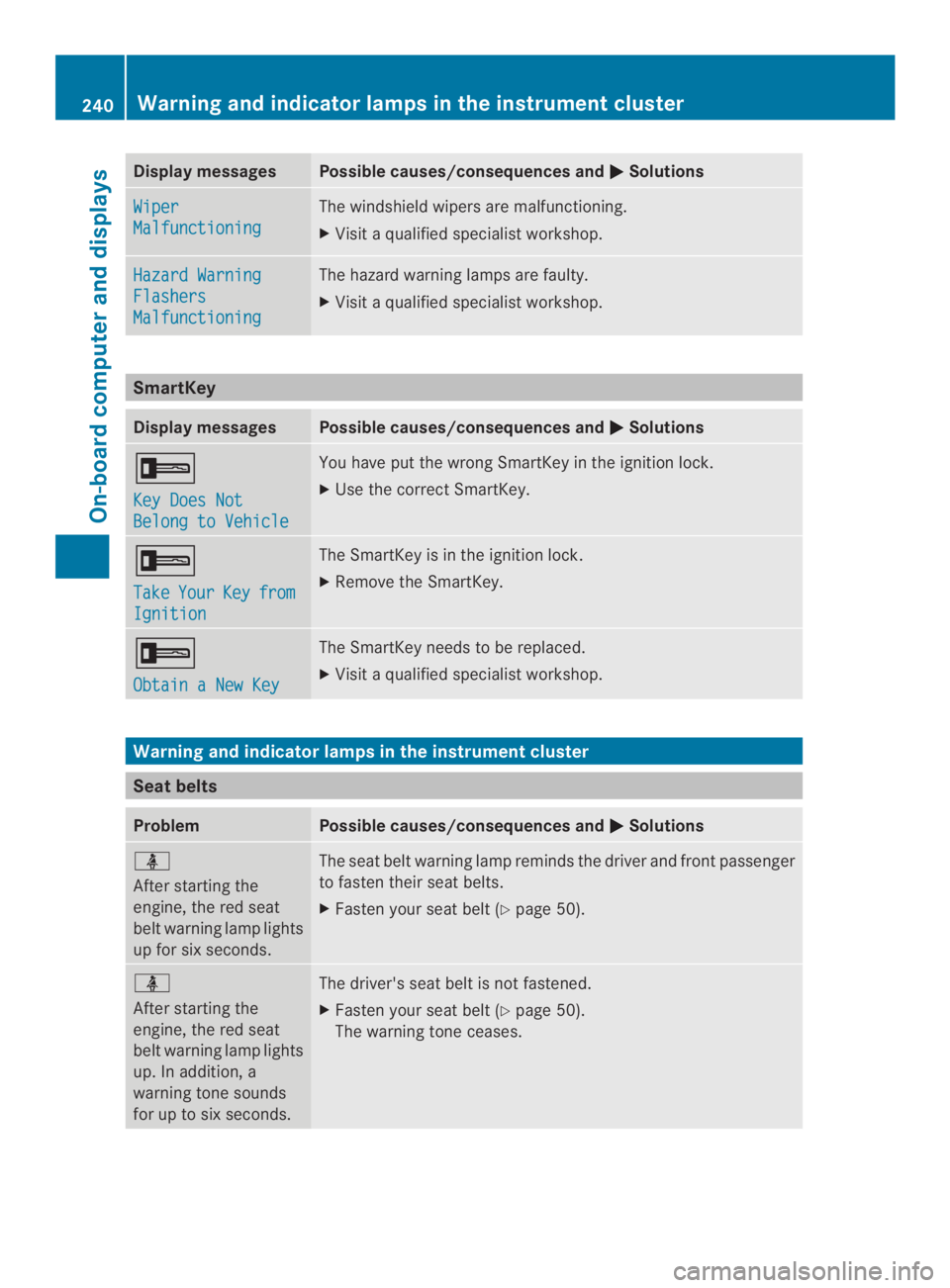

Wiper
Malfunctioning
The windshield wipers are malfunctioning.
XVisit a qualified specialist workshop.
Hazard Warning
Flashers
Malfunctioning
The hazard warning lamps are faulty.
XVisit a qualified specialist workshop.
SmartKey
Display messagesPossible causes/consequences and
Solutions

Key Does Not
Belong to Vehicle
You have put the wrong SmartKey in the ignition lock.
XUse the correct SmartKey.

TakeYourKeyfrom
Ignition
The SmartKey is in the ignition lock.
XRemove the SmartKey.

Obtain a New Key
The SmartKey needs to be replaced.
XVisit a qualified specialist workshop.
Warning and indicator lamps in the instrument cluster
Seatbelts
ProblemPossible causes/consequences and
Solutions

After starting the
engine, the red seat
belt warning lamp lights
up for six seconds.
The seat belt warning lamp reminds the driver and frontpassenger
to fasten their seat belts.
XFastenyour seat belt (Ypage 50).

After starting the
engine, the red seat
belt warning lamp lights
up. In addition, a
warning tone sounds
for up to six seconds.
The driver's seat belt is not fastened.
XFasten your seat belt (Ypage 50).
The warning tone ceases.
240Warning and indicator lamps in the instrument cluster
On-board computer and displays

ProblemPossible causes/consequences and
Solutions

The red seat belt
warning lamp lights up
after the engine starts,
as soon as the driver's
or the front-passenger
door is closed.
The driver or front passenger has not fastened their seat belt.
XFasten your seat belt (Ypage 50).
The warning lamp goes out.
There are objects on the front-passenger seat.
XRemove the objects from the front-passenger seat and stow
them in a secure place.
The warning lamp goes out.

The red seat belt
warning lamp flashes
and an intermittent
audible warning
sounds.
The driver or front passenger has not fastened their seat belt. In
addition, you are driving faster than 15 mph (25 km/h)or you have
briefly driven faster than 15 mph (25 km/h).
XFasten your seat belt (Ypage 50).
The warning lamp goes out and the intermittentwarning tone
ceases.
There are objects on thefront-passengerseat. In addition, you are
driving faster than 15 mph (25 km/h) or you have briefly driven
faster than 15 mph (25 km/h).
XRemove the objects from the front-passenger seat and stow
them in a secure place.
The warning lamp goes out and the intermittentwarning tone
ceases.
Warning and indicator lamps in the instrument cluster241
On-board computer and displays
Z

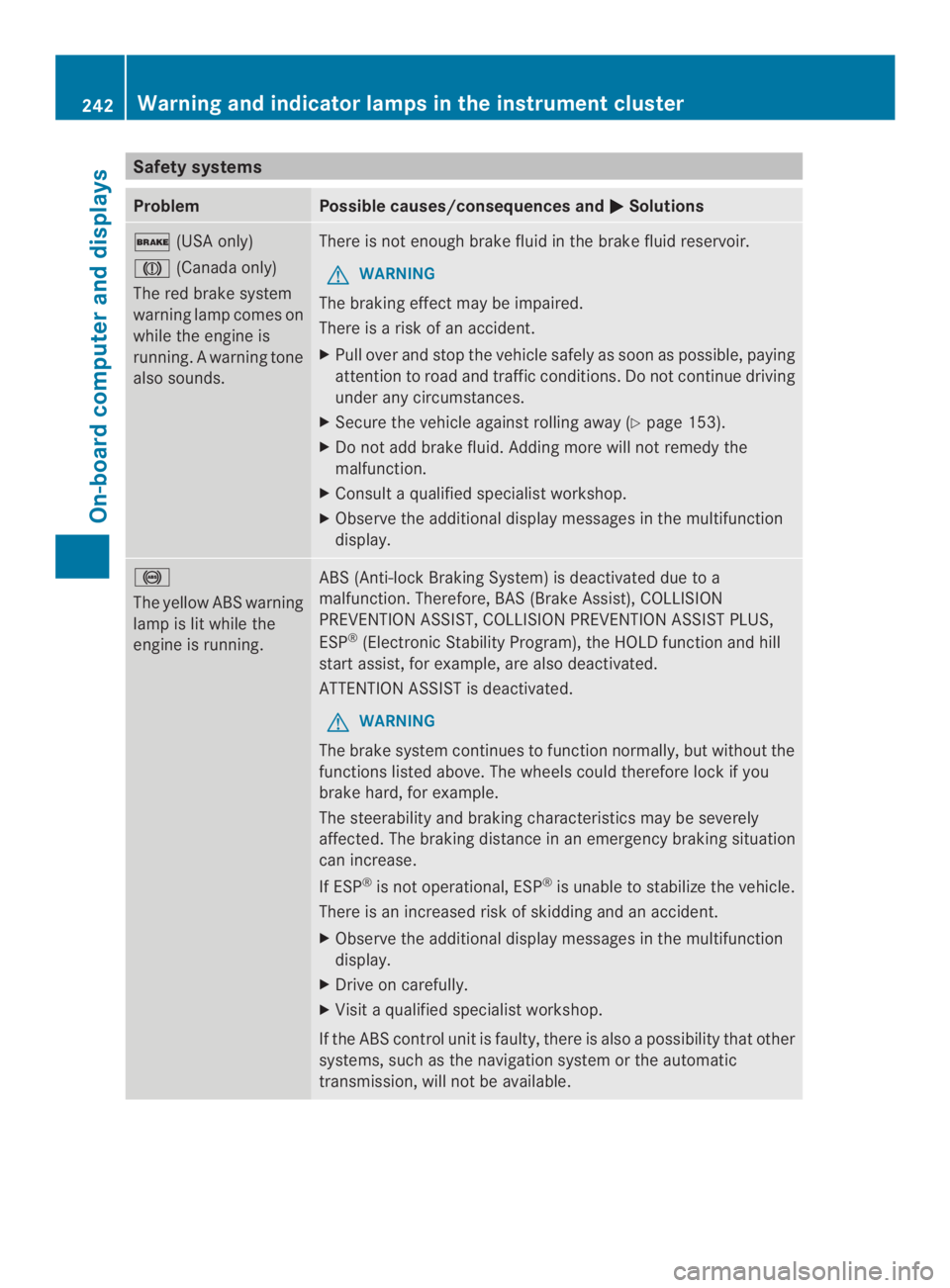

Safety systems
ProblemPossible causes/consequences and
Solutions
(USA only)
(Canada only)
The red brake system
warning lamp comes on
while the engine is
running. A warning tone
also sounds.
There is not enough brake fluid in the brake fluid reservoir.
GWARNING
The braking effect may be impaired.
There is a risk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
XSecure the vehicle against rolling away (Ypage 153).
XDo not add brake fluid. Adding more will not remedy the
malfunction.
XConsult a qualified specialist workshop.
XObserve the additional display messages in the multifunction
display.

The yellow ABS warning
lamp is lit while the
engine is running.
ABS (Anti-lock Braking System) is deactivated due to a
malfunction. Therefore, BAS (Brake Assist), COLLISION
PREVENTION ASSIST, COLLISION PREVENTION ASSIST PLUS,
ESP®(Electronic Stability Program), the HOLD function and hill
start assist, for example, are also deactivated.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
If the ABS control unit is faulty, there is also a possibility that other
systems, such as the navigation system or the automatic
transmission, will not be available.
242Warning and indicator lamps in the instrument cluster
On-board computer and displays

ProblemPossible causes/consequences and
Solutions

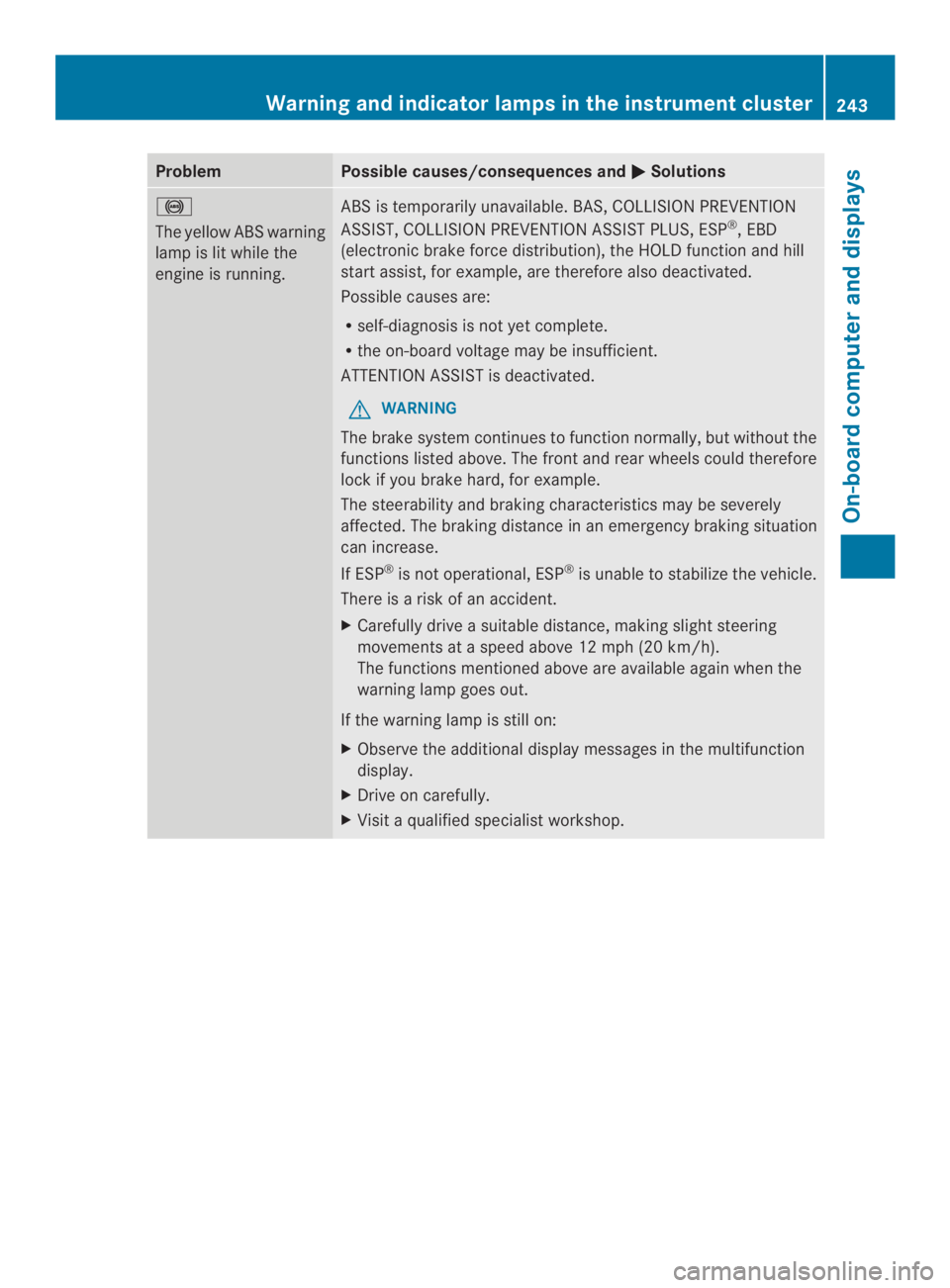

The yellow ABS warning
lamp is lit while the
engine is running.
ABS is temporarily unavailable. BAS, COLLISION PREVENTION
ASSIST, COLLISION PREVENTION ASSIST PLUS, ESP®, EBD
(electronic brake force distribution), the HOLD function and hill
start assist, for example, are therefore also deactivated.
Possible causes are:
Rself-diagnosis is not yet complete.
Rthe on-board voltage may be insufficient.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is a risk of an accident.
XCarefully drive a suitable distance, making slight steering
movements at a speed above 12 mph (20 km/h).
The functions mentioned above are available again when the
warning lamp goes out.
If the warning lamp is still on:
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
Warning and indicator lamps in the instrument cluster243
On-board computer and displays
Z

ProblemPossible causes/consequences and
Solutions

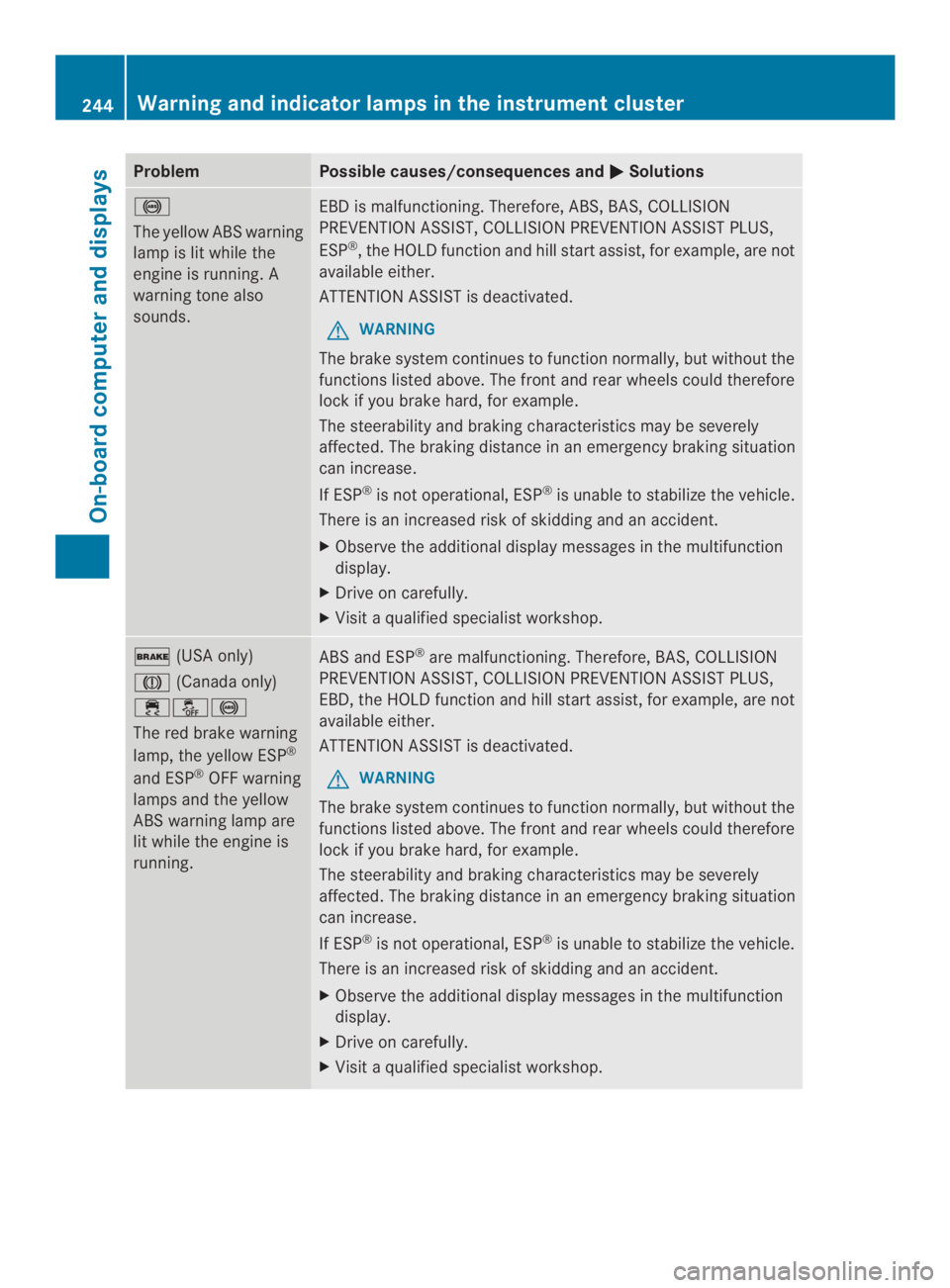

The yellow ABS warning
lamp is lit while the
engine is running. A
warning tone also
sounds.
EBD is malfunctioning. Therefore, ABS, BAS, COLLISION
PREVENTION ASSIST, COLLISION PREVENTION ASSIST PLUS,
ESP®, the HOLD function and hill start assist, for example, are not
available either.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
(USA only)
(Canada only)

The red brake warning
lamp, the yellow ESP®
and ESP®OFF warning
lamps and the yellow
ABS warning lamp are
lit while the engine is
running.
ABS and ESP®are malfunctioning. Therefore, BAS, COLLISION
PREVENTION ASSIST, COLLISION PREVENTION ASSIST PLUS,
EBD, the HOLD function and hill start assist, for example, are not
available either.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
244Warning and indicator lamps in the instrument cluster
On-board computer and displays

ProblemPossible causes/consequences and
Solutions

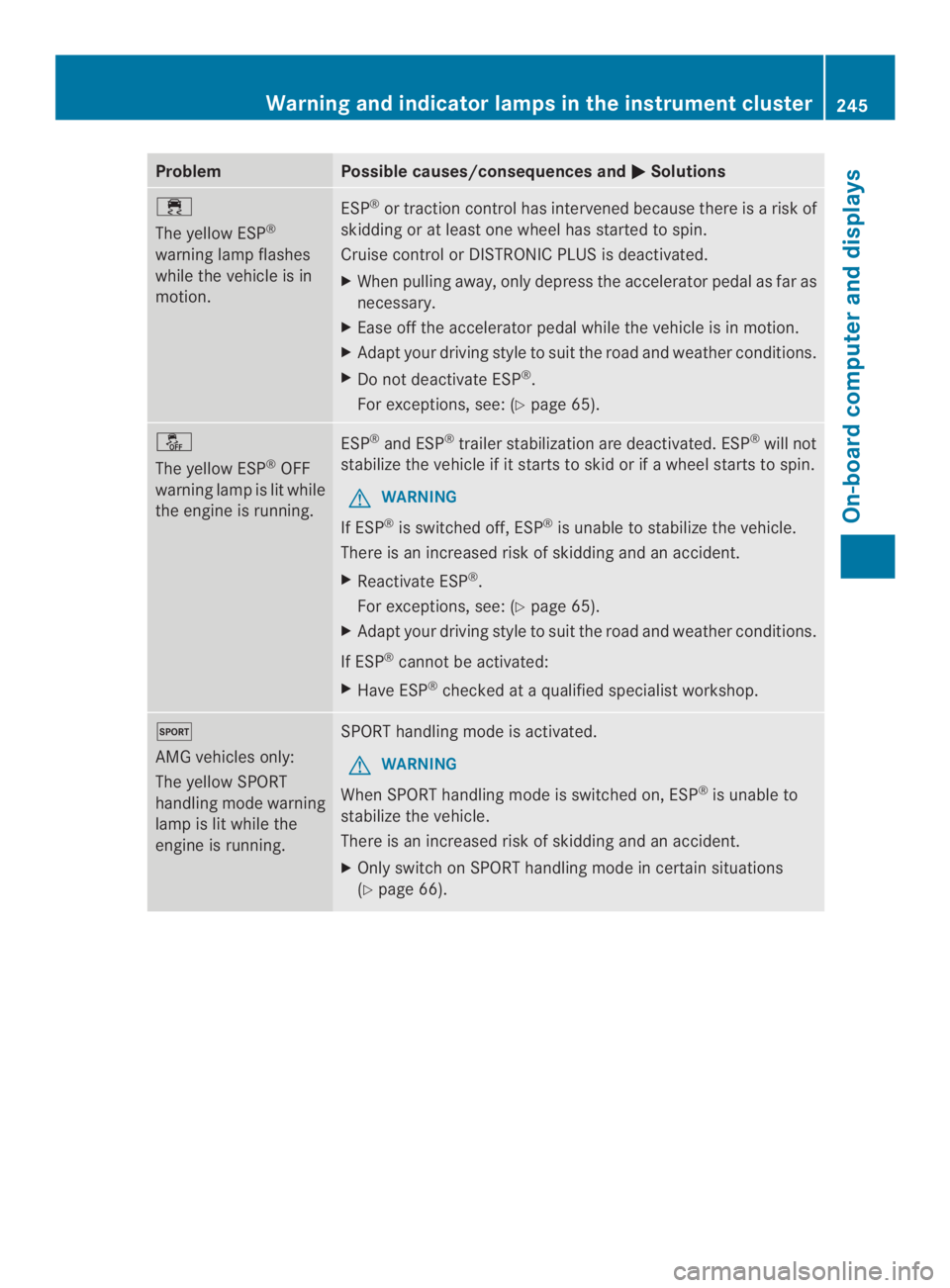

The yellow ESP®
warning lamp flashes
while the vehicle is in
motion.
ESP®or traction control has intervened because there is a risk of
skidding or at least one wheel has started to spin.
Cruise control or DISTRONIC PLUS is deactivated.
XWhen pulling away, only depress the accelerator pedal as far as
necessary.
XEase off the accelerator pedal while the vehicle is in motion.
XAdapt your driving style to suit the road and weather conditions.
XDo not deactivate ESP®.
For exceptions, see: (Ypage 65).

The yellow ESP®OFF
warning lamp is lit while
the engine is running.
ESP®and ESP®trailer stabilization are deactivated. ESP®will not
stabilize the vehicle if it starts to skid or if a wheel starts to spin.
GWARNING
If ESP®is switched off, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XReactivate ESP®.
For exceptions, see: (Ypage 65).
XAdapt your driving style to suit the road and weather conditions.
If ESP®cannot be activated:
XHave ESP®checked at a qualified specialist workshop.

AMG vehicles only:
The yellow SPORT
handling mode warning
lamp is lit while the
engine is running.
SPORT handling mode is activated.
GWARNING
When SPORT handling mode is switched on, ESP®is unable to
stabilize the vehicle.
There is an increased risk of skidding and an accident.
XOnly switch on SPORT handling mode in certain situations
(Ypage 66).
Warning and indicator lamps in the instrument cluster245
On-board computer and displays
Z

ProblemPossible causes/consequences and
Solutions

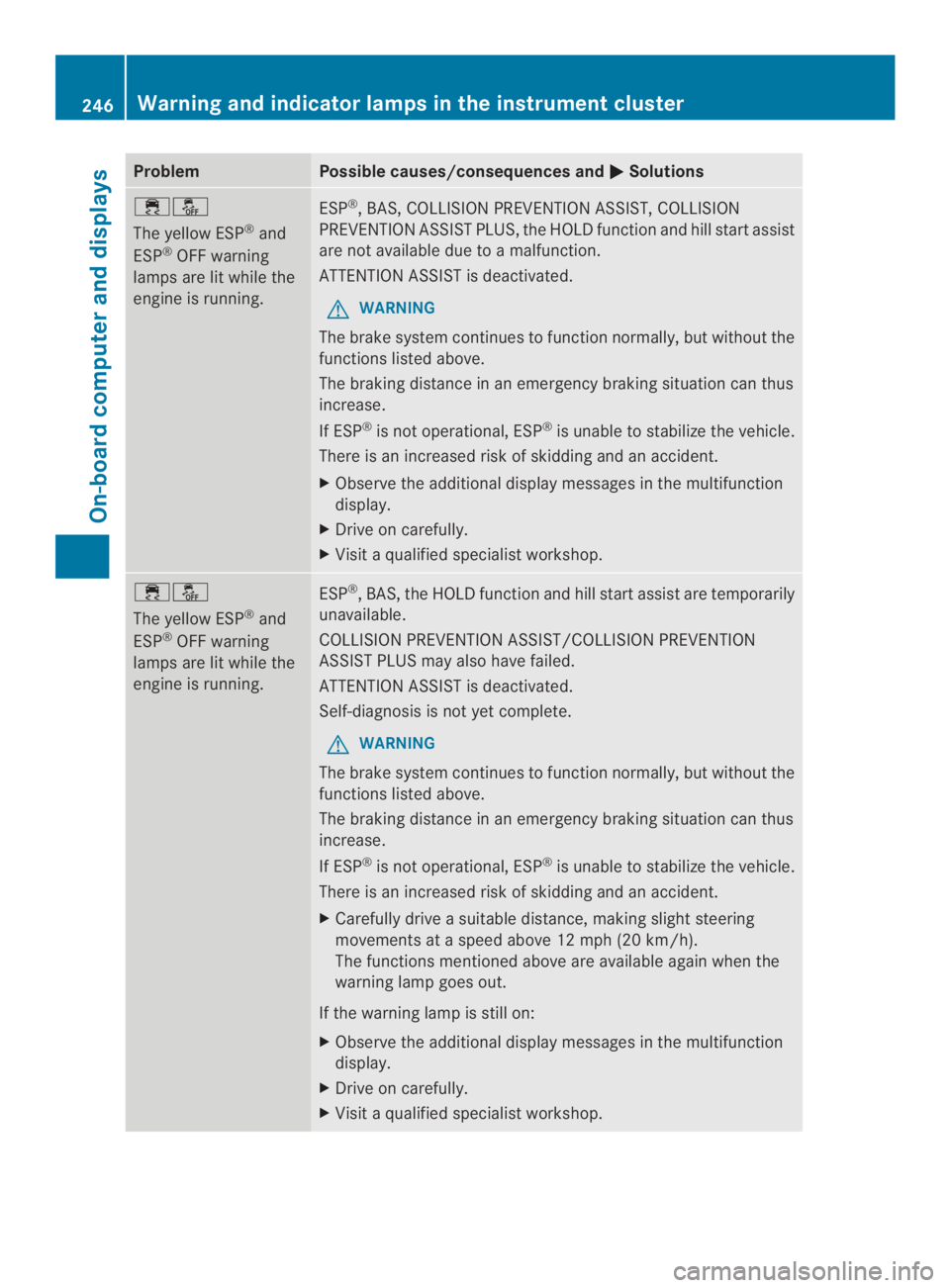

The yellow ESP®and
ESP®OFF warning
lamps are lit while the
engine is running.
ESP®, BAS, COLLISION PREVENTION ASSIST, COLLISION
PREVENTION ASSIST PLUS, the HOLD function and hill start assist
are not available due to a malfunction.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above.
The braking distance in an emergency braking situation can thus
increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.

The yellow ESP®and
ESP®OFF warning
lamps are lit while the
engine is running.
ESP®, BAS, the HOLD function and hill start assist are temporarily
unavailable.
COLLISION PREVENTION ASSIST/COLLISION PREVENTION
ASSIST PLUS may also have failed.
ATTENTION ASSIST is deactivated.
Self-diagnosis is not yet complete.
GWARNING
The brake system continues to function normally, but without the
functions listed above.
The braking distance in an emergency braking situation can thus
increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XCarefully drive a suitable distance, making slight steering
movements at a speed above 12 mph (20 km/h).
The functions mentioned above are available again when the
warning lamp goes out.
If the warning lamp is still on:
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
246Warning and indicator lamps in the instrument cluster
On-board computer and displays

ProblemPossible causes/consequences and
Solutions
(USA only)
(Canada only)
The red indicator lamp
for the electric parking
brake flashes or lights
up and/or the yellow
warning lamp for the
electric parking brake
lights up.
XObserve the additional display messages in the multifunction
display.

The red SRS warning
lamp is lit while the
engine is running.
There is a malfunction in the SRS (Supplemental Restraint
System).
GWARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
XDrive on carefully.
XHave SRS checked at a qualified specialist workshop
immediately.
For further information about SRS, see (Ypage 38).
Warning and indicator lamps in the instrument cluster247
On-board computer and displays

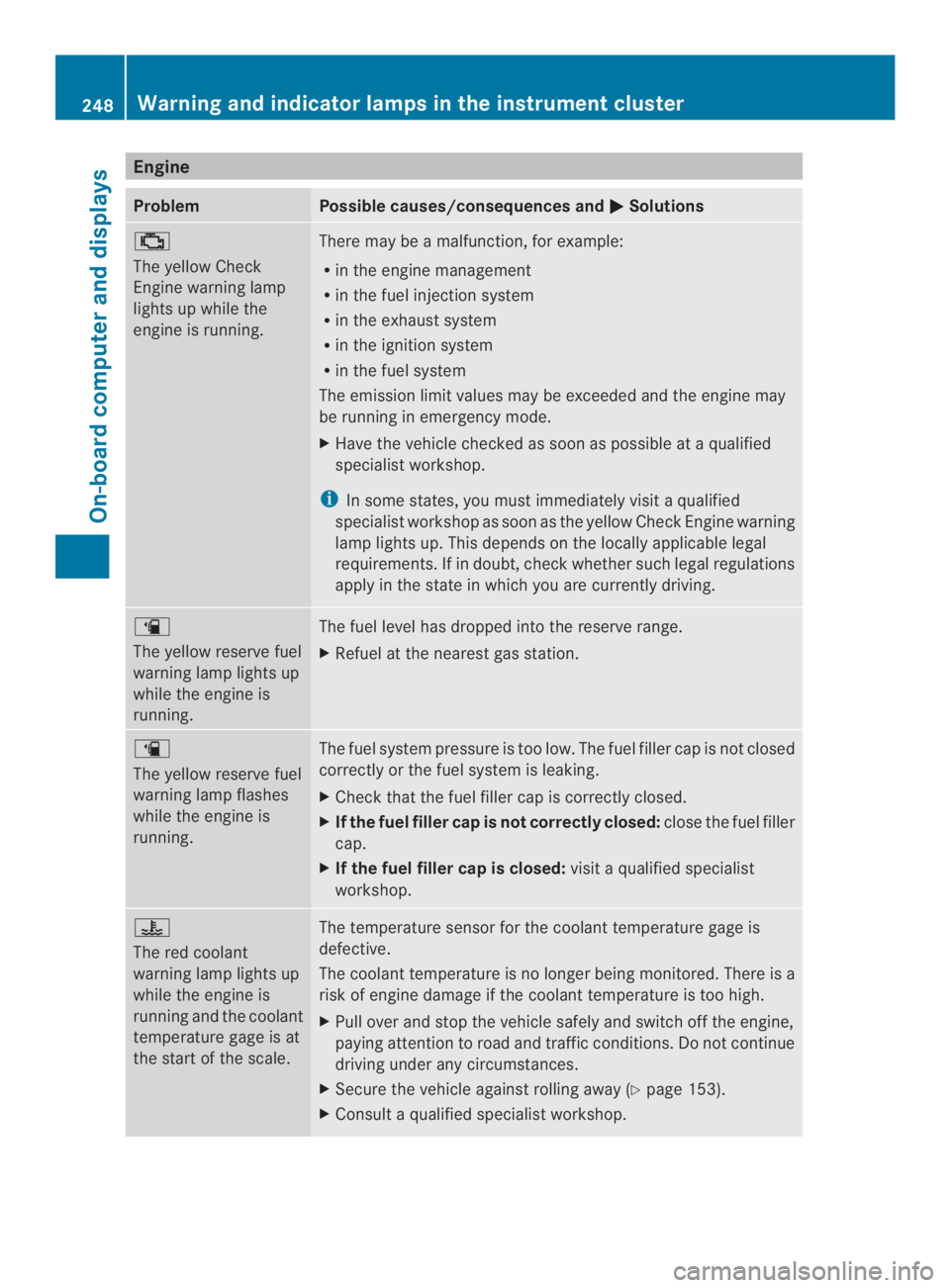

Z

Engine
ProblemPossible causes/consequences and
Solutions

The yellow Check
Engine warning lamp
lights up while the
engine is running.
There may be a malfunction, for example:
Rin the engine management
Rin the fuel injection system
Rin the exhaust system
Rin the ignition system
Rin the fuel system
The emission limit values may be exceeded and the enginemay
be running in emergency mode.
XHave the vehicle checked as soon as possible at a qualified
specialist workshop.
iIn some states, you must immediately visit a qualified
specialist workshop as soon as the yellow CheckEngine warning
lamp lights up.This depends on the locally applicable legal
requirements. If in doubt, check whether such legal regulations
apply in the state in which you are currently driving.


The yellow reserve fuel
warning lamp lights up
while the engine is
running.
The fuel level has dropped into the reserve range.
XRefuel at the nearest gas station.


The yellow reserve fuel
warning lamp flashes
while the engine is
running.
The fuel system pressure is too low. The fuel filler cap is not closed
correctly or the fuel system is leaking.
XCheck that the fuel filler cap is correctly closed.
XIf the fuel filler cap is not correctly closed:close the fuel filler
cap.
XIf the fuel filler cap is closed:visit a qualified specialist
workshop.
\r
The red coolant
warning lamp lights up
while the engine is
running and the coolant
temperature gage is at
the start of the scale.
The temperature sensor for the coolant temperature gage is
defective.
The coolant temperature is no longer being monitored. There is a
risk of engine damage if the coolant temperature is too high.
XPull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions. Do not continue
driving under any circumstances.
XSecure the vehicle against rolling away (Ypage 153).
XConsult a qualified specialist workshop.
248Warning and indicator lamps in the instrument cluster
On-board computer and displays
