MERCEDES-BENZ CLK-CLASS 2004 Owners Manual

391 Practical hints
Towing the vehicle
!
To be certain to avoid a possibility of
damage to the transmission, however,
we recommend the drive shaft be dis-
connected at the rear axle drive flange
for any towing beyond a short tow to a
nearby garage.

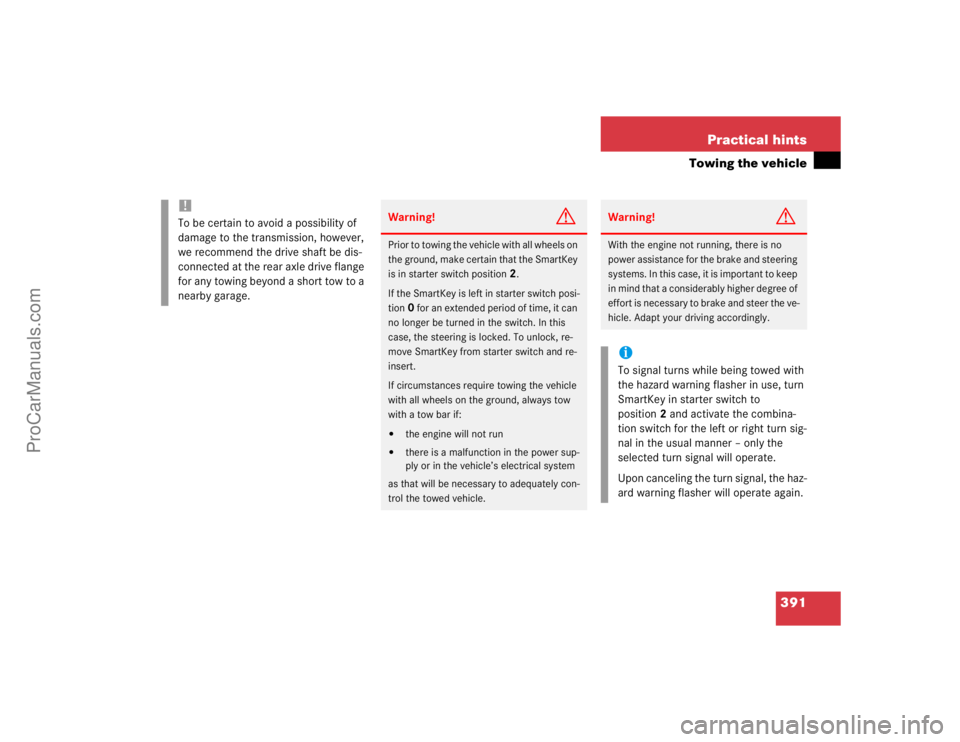

Warning!
G
Prior to towing the vehicle with all wheels on
the ground, make certain that the SmartKey
is in starter switch position
2.
If the SmartKey is left in starter switch posi-
tion
0 for an extended period of time, it can
no longer be turned in the switch. In this
case, the steering is locked. To unlock, re-
move SmartKey from starter switch and re-
insert.
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:


the engine will not run


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.iTo signal turns while being towed with
the hazard warning flasher in use, turn
SmartKey in starter switch to
position2 and activate the combina-
tion switch for the left or right turn sig-
nal in the usual manner – only the
selected turn signal will operate.
Upon canceling the turn signal, the haz-
ard warning flasher will operate again.
ProCarManuals.com

392 Practical hintsTowing the vehicle
Installing towing eye bolt
Towing eye bolt CLK 320/CLK 500
1Cover on right side of front bumper2Cover on right side of rear bumper
To remove cover:

Press mark on cover in direction of ar-
row.

Lift cover off to reveal threaded hole for
towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the compartment under-
neath the trunk floor).

Screw towing eye bolt to its stop and
tighten with lug wrench.
To reinstall cover:

Fit cover and snap into place.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, or KEYLESS-GO*
start/stop button in position2, the ve-
hicle doors lock if the left front wheel
as well as the right rear wheel are turn-
ing at vehicle speeds of approx. 9 mph
(15 km / h) or more.
Switch off the tow-away alarm
(page 84).
To prevent the vehicle door locks from
locking, deactivate the automatic cen-
tral locking (
page 149).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to the vehicle chas-
sis, frame or suspension parts.
iThe gear selector lever will remain
locked in positionP and the SmartKey
will not turn in the starter switch if the
battery is disconnected or discharged.
See notes on the battery (
page 385)
or on jump starting (
page 388).
Manually unlocking gear selector lever
(
page 352)
ProCarManuals.com

393 Practical hints
Towing the vehicle
Towing eye bolt CLK 55 AMG
Towing eye bolt in front bumper
The cover for the threaded bore in the front
bumper is identical to the cover on the
models CLK320/CLK500.
To remove and to reinstall cover,see “Tow-
ing eye bolt CLK 320/CLK 500”
(page 392)Towing eye bolt in rear bumper
1Cover on right side of rear bumper
2Recess in the cover
To remove cover:

Insert flat, blunt object as a lever in re-
cess 2 on the edge of cover 1.

Loosen cover 1 from the bumper us-
ing lever, to reveal threaded hole for
towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the compartment
underneath the trunk floor).

Screw towing eye bolt to its stop and
tighten with lug wrench.To reinstall cover:

Hook right-hand side of the cover into
opening.

Slide cover as far as it will go in the di-
rection of the arrow3.

Gently press left-hand side of cover in
direction of the arrow4.
The hooks on the left-hand side en-
gage.iWhen closing the cover, make sure the
cover’s check strap does not get
caught.
ProCarManuals.com

394 Practical hintsFuses
Fuses
Fuse box in passenger compartment Opening

Pull cover away from fuse box1 (ar-
row).

Remove cover rearward.
Closing

Attach the cover in the front.

Fold the cover in until it engages.
Fuse chart
The fuse chart is found in the fuse box in
the passenger compartment. The amper-
ages of the fuses are also given there.
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.
ProCarManuals.com

395 Practical hintsFuses
Fuse box in engine compartment
The fuse box is located in the engine com-
partment on the left-hand side.
2Cover
3Screw
4RetainerRemoving/installing cover

Twist screws3 90° counterclock-
wise.

Pull up cover2.

Slide out retainer4 and remove cover
by pulling towards front.

Install cover2 in reverse order.Opening fuse box
5Fuse box cover
6Clamps

Release clamps6.

Remove cover5.
Closing fuse box

Ensure that the sealing rubber is prop-
erly positioned.

Press the cover down and secure with
clamps6.
ProCarManuals.com

396 Practical hintsFusesAuxiliary fuse box in trunk
The auxiliary fuse box is located in the
trunk on the left hand side.
1Trim coverOpening auxiliary fuse box

To open, pull trim cover1 in the direc-
tion of the rear light and outward.
Closing auxiliary fuse box

Press trim cover1 back into place.Spare fuses
Spare fuses are found in the vehicle tool kit
in the cargo area.
Spare extractor
The fuse extractor is located in the trunk
underneath the trunk floor cover in the
storage well casing (
page 344).
ProCarManuals.com

397 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions
Weights
Fuels, coolants, lubricants, etc.
Consumer information
ProCarManuals.com

398 Technical dataSpare parts service
The “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different spare parts
for Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject
to stringent quality inspections. Each part
has been specifically developed, manufac-
tured or selected for and adapted to Mer-
cedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.
ProCarManuals.com

399 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.
ProCarManuals.com

400 Technical dataIdentification labels
Identification labels1Certification label2Vehicle Identification Number (VIN)3Information label, California version
Vacuum line routing for emission con-
trol system
4Emission control label
5VIN, visible (lower edge of windshield)
6Engine number (engraved on engine)
When ordering spare parts, please specify
vehicle identification and engine numbers.
