MERCEDES-BENZ CLK-CLASS 2004 Owners Manual

401 Technical data

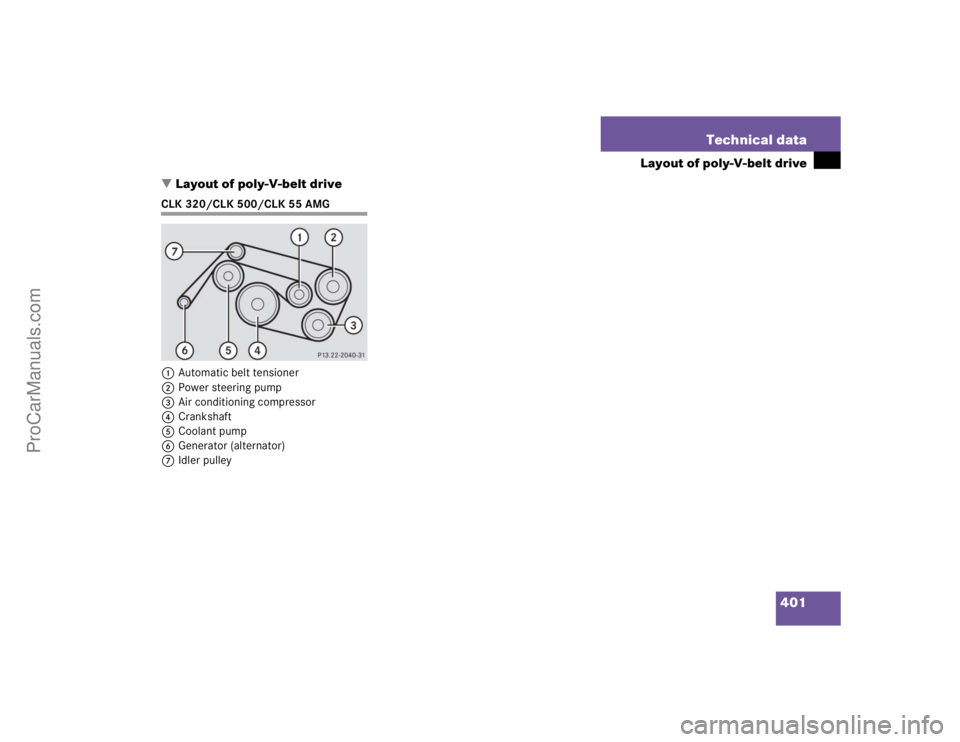

Layout of poly-V-belt drive
Layout of poly-V-belt drive
CLK 320/CLK 500/CLK 55 AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
ProCarManuals.com

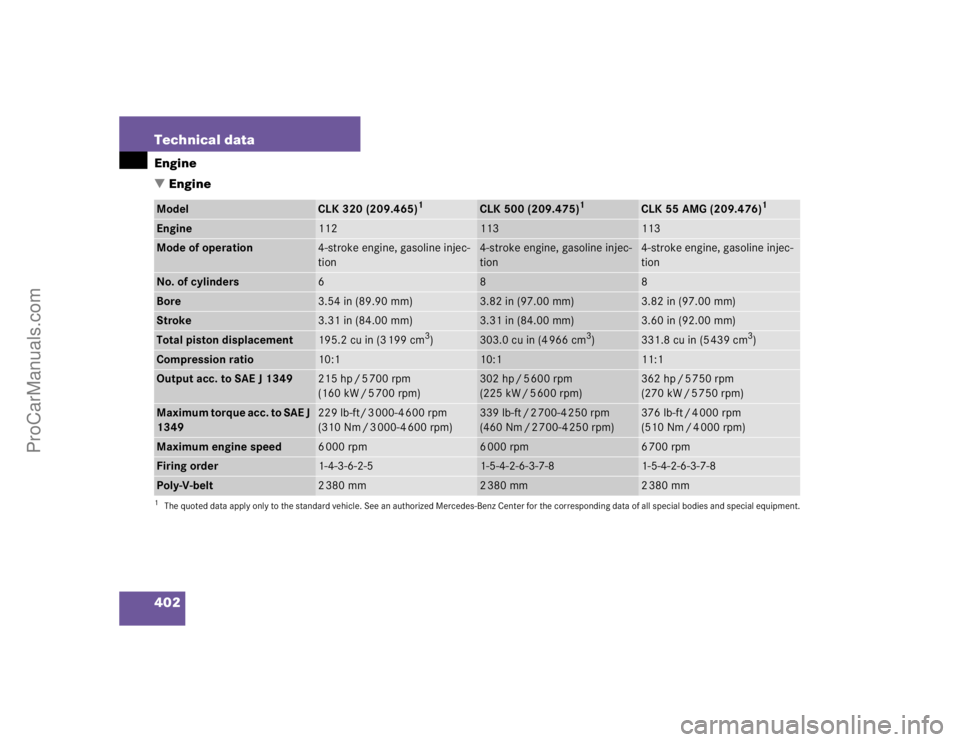

402 Technical dataEngine
EngineModel
CLK 320 (209.465)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CLK 500 (209.475)
1
CLK 55 AMG (209.476)
1
Engine
112
113
113
Mode of operation
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
No. of cylinders
6
8
8
Bore
3.54 in (89.90 mm)
3.82 in (97.00 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
3.60 in (92.00 mm)
Total piston displacement
195.2 cu in (3 199 cm
3)
303.0 cu in (4 966 cm
3)
331.8 cu in (5 439 cm
3)
Compression ratio
10:1
10:1
11:1
Output acc. to SAE J 1349
215 hp / 5 700 rpm
(160 kW / 5 700 rpm)
302 hp / 5 600 rpm
(225 kW / 5 600 rpm)
362 hp / 5 750 rpm
(270 kW / 5 750 rpm)
Maximum torque acc. to SAE J
1349
229 lb-ft/ 3 000-4 600 rpm
(310 Nm / 3 000-4 600 rpm)
339 lb-ft / 2 700-4 250 rpm
(460 Nm / 2 700-4 250 rpm)
376 lb-ft / 4 000 rpm
(510 Nm / 4 000 rpm)
Maximum engine speed
6000 rpm
6 000 rpm
6700 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2380 mm
2 380 mm
2380 mm
ProCarManuals.com

403 Technical data
Rims and tires
Rims and tires
Only use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er flap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.
ProCarManuals.com

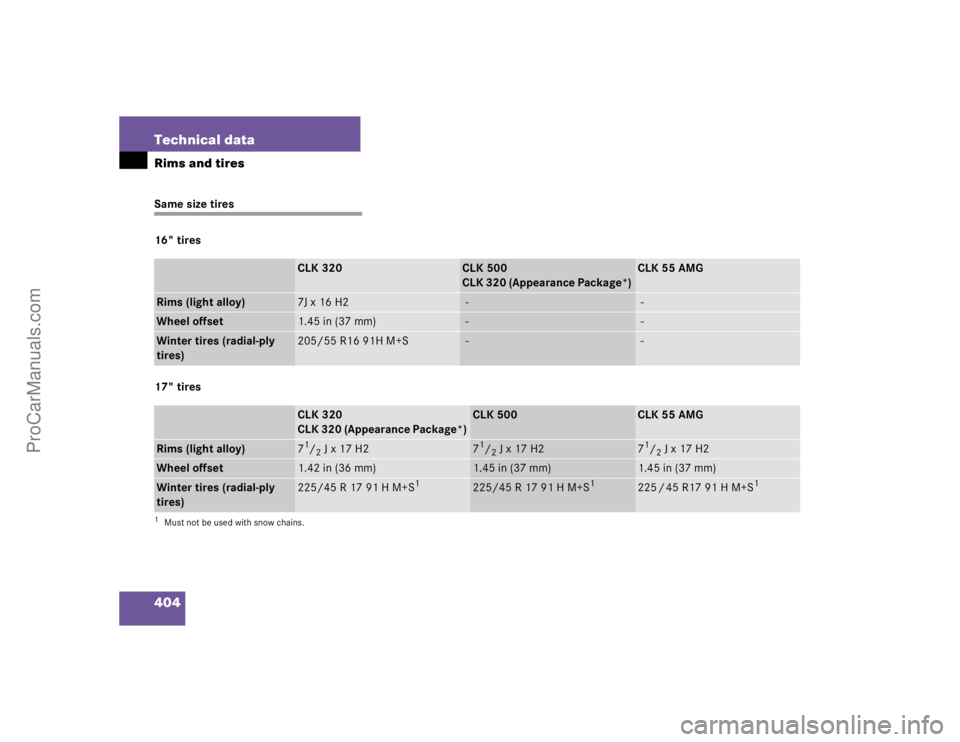

404 Technical dataRims and tiresSame size tires
16" tires
17" tires
CLK 320
CLK 500
CLK 320 (Appearance Package*)
CLK 55 AMG
Rims (light alloy)
7J x 16 H2
-
-
Wheel offset
1.45 in (37 mm)
-
-
Winter tires (radial-ply
tires)
205/55 R16 91H M+S
-
-
CLK 320
CLK 320 (Appearance Package*)
CLK 500
CLK 55 AMG
Rims (light alloy)
71/2 J x 17 H2
71/2 J x 17 H2
71/2 Jx17H2
Wheel offset
1.42 in (36 mm)
1.45 in (37 mm)
1.45 in (37 mm)
Winter tires (radial-ply
tires)
225/45 R 17 91 H M+S
1
225/45 R 17 91 H M+S
1
225 / 45 R17 91 H M+S
1
1Must not be used with snow chains.
ProCarManuals.com

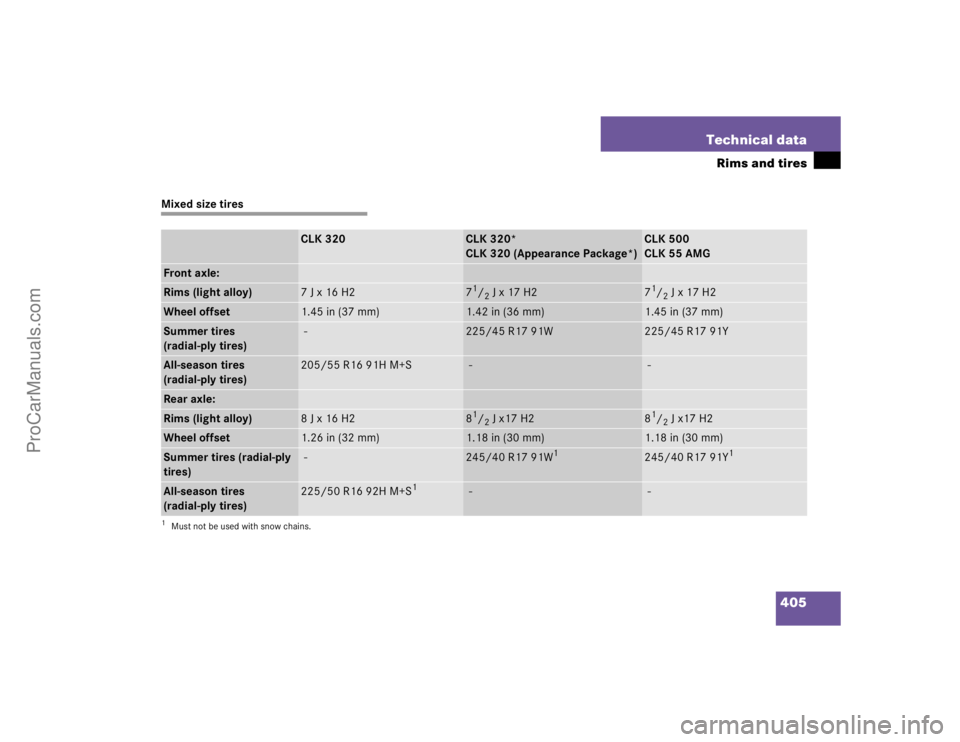

405 Technical data
Rims and tires
Mixed size tires
CLK 320
CLK 320*
CLK 320 (Appearance Package*)
CLK 500
CLK 55 AMG
Front axle:Rims (light alloy)
7 J x 16 H2
71/2 J x 17 H2
71/2 J x 17 H2
Wheel offset
1.45 in (37 mm)
1.42 in (36 mm)
1.45 in (37 mm)
Summer tires
(radial-ply tires)
-
225/45 R17 91W
225/45 R17 91Y
All-season tires
(radial-ply tires)
205/55 R16 91H M+S
-
-
Rear axle:Rims (light alloy)
8 J x 16 H2
81/2 J x17 H2
81/2 J x17 H2
Wheel offset
1.26 in (32 mm)
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires (radial-ply
tires)
-
245/40 R17 91W
1
1Must not be used with snow chains.
245/40 R17 91Y
1
All-season tires
(radial-ply tires)
225/50 R16 92H M+S
1
-
-
ProCarManuals.com

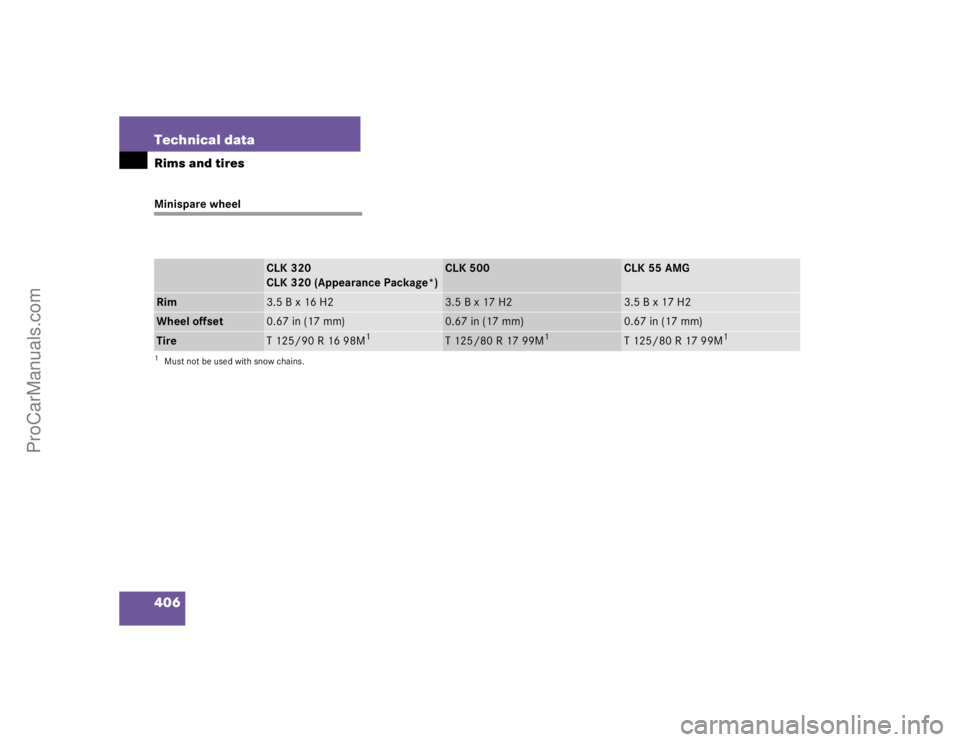

406 Technical dataRims and tiresMinispare wheel
CLK 320
CLK 320 (Appearance Package*)
CLK 500
CLK 55 AMG
Rim
3.5 B x 16 H2
3.5 B x 17 H2
3.5 B x 17 H2
Wheel offset
0.67 in (17 mm)
0.67 in (17 mm)
0.67 in (17 mm)
Tire
T 125/90 R 16 98M
1
1Must not be used with snow chains.
T 125/80 R 17 99M
1
T 125/80 R 17 99M
1
ProCarManuals.com

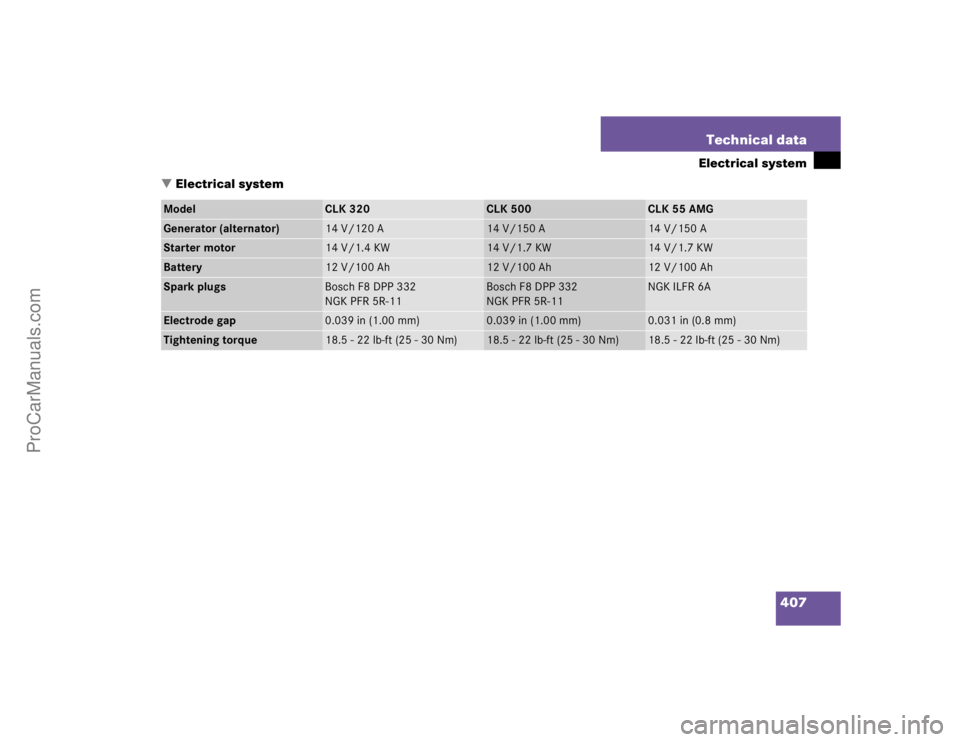

407 Technical data
Electrical system
Electrical system
Model
CLK 320
CLK 500
CLK 55 AMG
Generator (alternator)
14 V/120 A
14 V/150 A
14 V/150 A
Starter motor
14 V/1.4 KW
14 V/1.7 KW
14 V/1.7 KW
Battery
12 V/100 Ah
12 V/100 Ah
12 V/100 Ah
Spark plugs
Bosch F8 DPP 332
NGK PFR 5R-11
Bosch F8 DPP 332
NGK PFR 5R-11
NGK ILFR 6A
Electrode gap
0.039 in (1.00 mm)
0.039 in (1.00 mm)
0.031 in (0.8 mm)
Tightening torque
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)
ProCarManuals.com

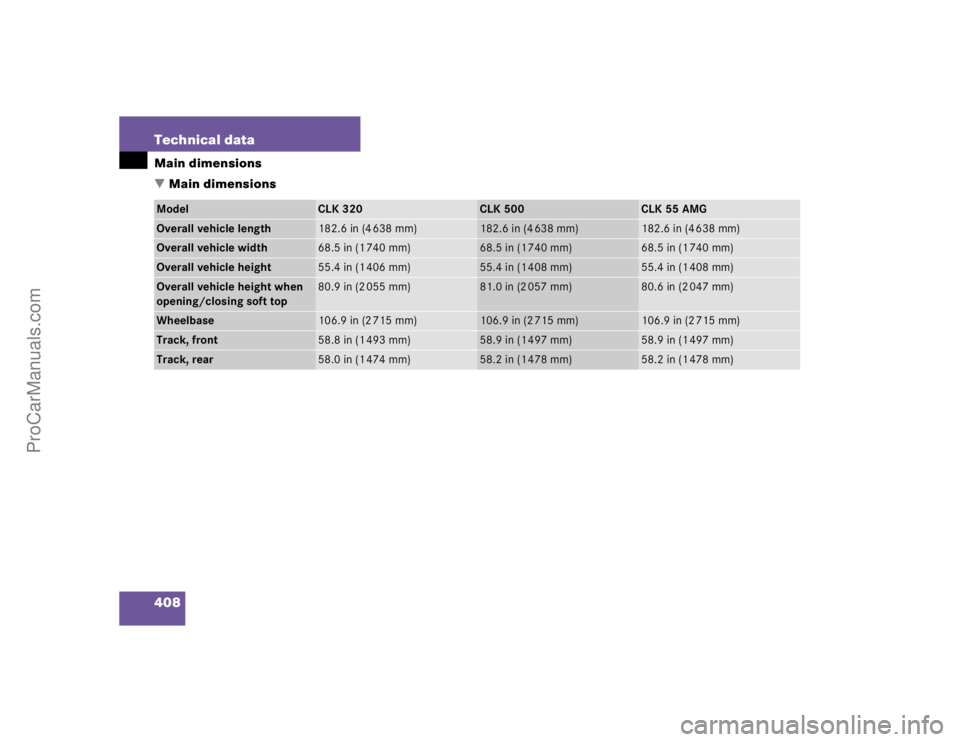

408 Technical dataMain dimensions
Main dimensionsModel
CLK 320
CLK 500
CLK 55 AMG
Overall vehicle length
182.6 in (4 638 mm)
182.6 in (4 638 mm)
182.6 in (4 638 mm)
Overall vehicle width
68.5 in (1 740 mm)
68.5 in (1 740 mm)
68.5 in (1 740 mm)
Overall vehicle height
55.4 in (1 406 mm)
55.4 in (1 408 mm)
55.4 in (1 408 mm)
Overall vehicle height when
opening/closing soft top
80.9 in (2 055 mm)
81.0 in (2 057 mm)
80.6 in (2 047 mm)
Wheelbase
106.9 in (2 715 mm)
106.9 in (2 715 mm)
106.9 in (2 715 mm)
Track, front
58.8 in (1 493 mm)
58.9 in (1 497 mm)
58.9 in (1 497 mm)
Track, rear
58.0 in (1 474 mm)
58.2 in (1 478 mm)
58.2 in (1 478 mm)
ProCarManuals.com

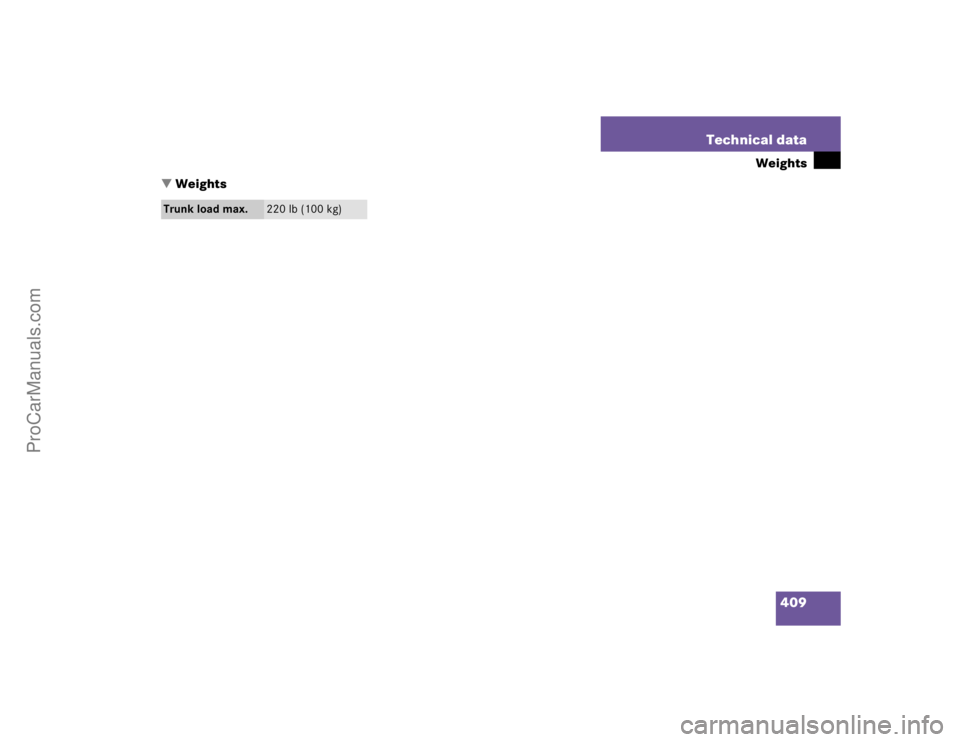

409 Technical data
Weights
Weights
Trunk load max.
220 lb (100 kg)
ProCarManuals.com

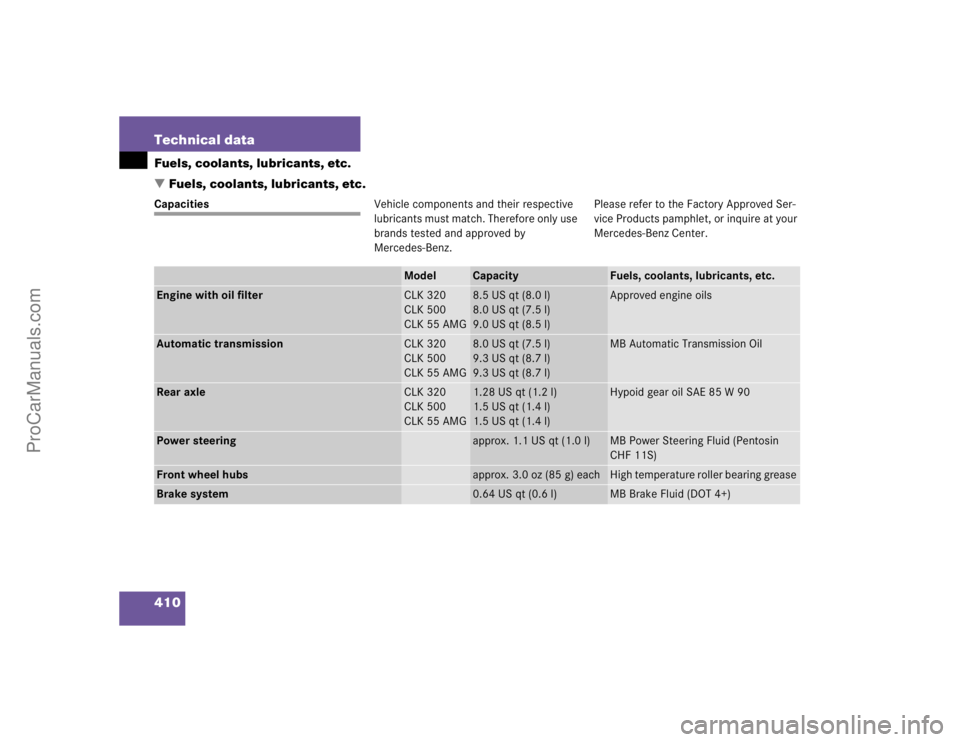

410 Technical dataFuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.CapacitiesVehicle components and their respective
lubricants must match. Therefore only use
brands tested and approved by
Mercedes-Benz.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
CLK 320
CLK 500
CLK 55 AMG
8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
9.0 US qt (8.5 l)
Approved engine oils
Automatic transmission
CLK 320
CLK 500
CLK 55 AMG
8.0 US qt (7.5 l)
9.3 US qt (8.7 l)
9.3 US qt (8.7 l)
MB Automatic Transmission Oil
Rear axle
CLK 320
CLK 500
CLK 55 AMG
1.28 US qt (1.2 l)
1.5 US qt (1.4 l)
1.5 US qt (1.4 l)
Hypoid gear oil SAE 85 W 90
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
0.64 US qt (0.6 l)
MB Brake Fluid (DOT 4+)
