MERCEDES-BENZ CLS-Class 2014 W218 Owner's Manual

X
Press the 000Cbutton.
The curren tselection is displayed.
X To activate/deactivate: press the000C
button again.
If the Blind Spot Assist Sensors Deactivated or
Act. Blind Spot Asst. Sensors Deactivated message appears,
the radar sensor system is deactivated.
X Switc hont he radar sensor system
(Y page 232).
For further information about Blind Spot
Assist ,see (Y page 207).
For further information about Active Blind
Spot Assist ,see (Y page 211).
Activating/deactivating Lane Keeping
Assist X
Press 000Aor0004 on the steering wheel
to select the DriveAssist menu.
X Press the 0006or0005 button to select
Lane Keep. Asst. X
Press the 000Cbutton.
The curren tselection is displayed.
X Press 000Cto confirm.
X Press the 0005or0006 button to set Off ,
Standard or
Adaptive .
X Press the 000Cbutton to save the setting.
For further information about Lane Keeping
Assist ,see (Y page 209).
For further information about Active Lane
Keeping Assist ,see (Y page 214). Maintenance menu
In the
Serv. menu, you have the following
options: R

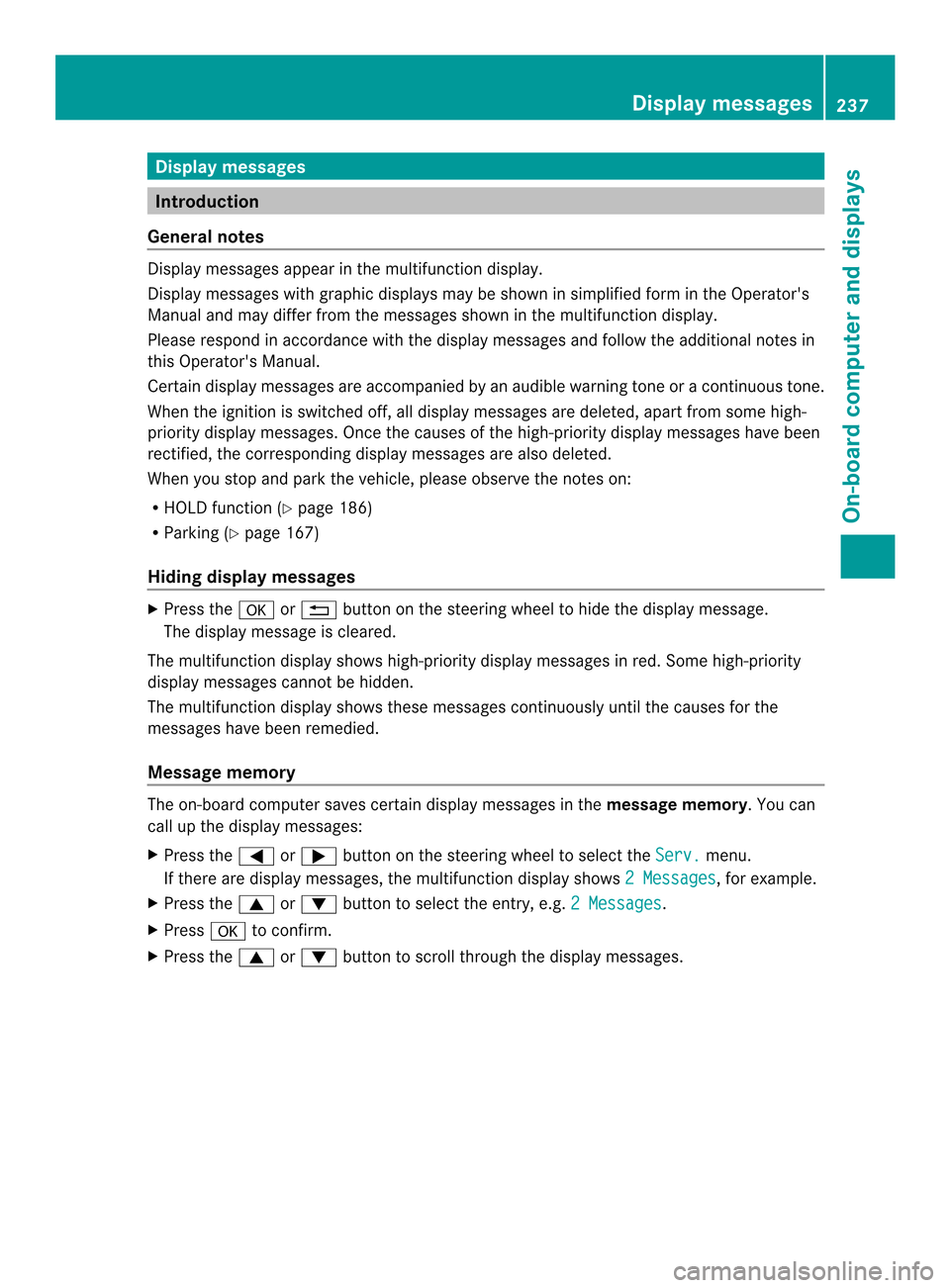

Calling up display messages in message
memory (Y page 237)
R Restarting the tire pressure loss warning
system (Y page 342)
R Checkin gthe tire pressure electronically
(Y page 342)
R Calling up the servic edue date
(Y page 310) Settings menu
Introduction In the
Sett. menu, you have the following
options:
R Changing the instrument cluster settings
(Y page 229)
R Changing the light settings (Y page 230)
R Changing the vehicle settings
(Y page 232)
R Changing the convenience settings
(Y page 233)

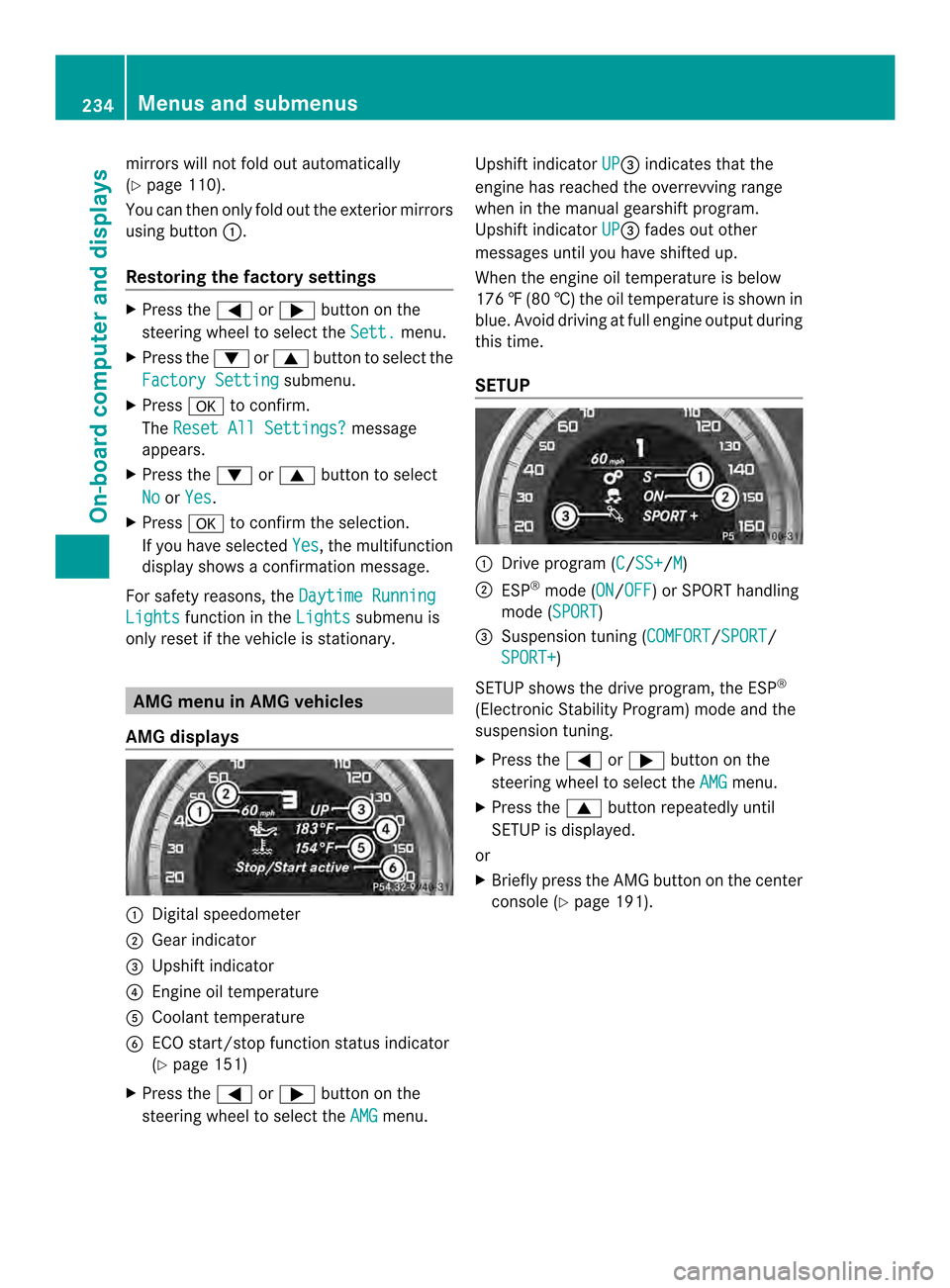

R Restorin gthe factory settings
(Y page 234)
Instrument cluster Selecting the unit of measurement for
distance
The
Display Unit Speed-/Odometer: function allows you to choose whether
certain displays appear in kilometers or miles
in the multifunction display. Menus and submenus
229On-boardcomputer and displays Z

You can determin
ewhether the multifunction
display shows some messages in miles or
kilometers.
X Press the 000Aor0004 button on the
steerin gwheel to selec tthe Sett. menu.
X Press the 0005or0006 button to select the
Inst. Cluster submenu.
X Press 000Cto confirm.
X Press the 0005or0006 button to select the
Display Unit Speed-/Odometer: function.
You will see the selected setting:
km or
miles .
X Press the 000Cbutton to save the setting.
The selected unit of measurement for
distance applies to:
R the digital speedometer in the Trip menu
R odometer and the trip odometer
R trip computer
R current consumption and the range
R the navigation instructions in the Navimenu
R cruise control
R DISTRONIC PLUS
R ASSYST PLUS service interval display
Selecting the permanent display function
You can determine whether the multifunction
displayp ermanently shows your speed or the
outside temperature.
X Press the 000Aor0004 button on the
steering wheel to select the Sett. menu.
X Press the 0005or0006 button to select the
Inst. Cluster submenu.
X Press 000Cto confirm.
X Press the 0005or0006 button to select the
Permanent Display: function.
You will see the selected setting OutsideTemperature or
Speedometer [km/h] (USA)/Speedometer [mph] (Canada).
X Press the 000Cbutton to save the setting. i
The speed is shown in km/h (USA)/mph
(Canada).
Lights Setting the brightness of the instrument
cluster lighting and switches
The lighting in the instrumentc
luster,inthe
displays and the controls in the vehicle
interior can be adjusted using the
Brightness Display/Switches: function.
X Press the 000Aor0004 button on the
steerin gwheel to selec tthe Sett. menu.
X Press the 0005or0006 button to select the
Lights submenu.
X Press 000Cto confirm.
X Press the 0005or0006 button to select the
Brightness Display/Switches: function.
You will see the selected setting.
X Press 000Cto confirm.
X Press the 0005or0006 button to adjust the
brightness to any level from Level 1 to
Level 5 (bright).
X Press the 000Cor0002 button to save the
setting.
If the light switch is set to 000D,0008or
001D,t he brightness is dependent upon
the brightness of the ambient light.
i The light sensor in the instrumentc luster
automatically controls the brightnes sof
the multifunction display.
In daylight, the displays in the instrument
cluster are not illuminated.
Switching th edaytime running lamps on/
off
i This function is not available in Canada.
X Press the 000Aor0004 button on the
steerin gwheel to selec tthe Sett. menu.
X Press the 0005or0006 button to select the
Lights submenu.
X Press 000Cto confirm. 230
Menus and submenusOn-board computer and displays

X

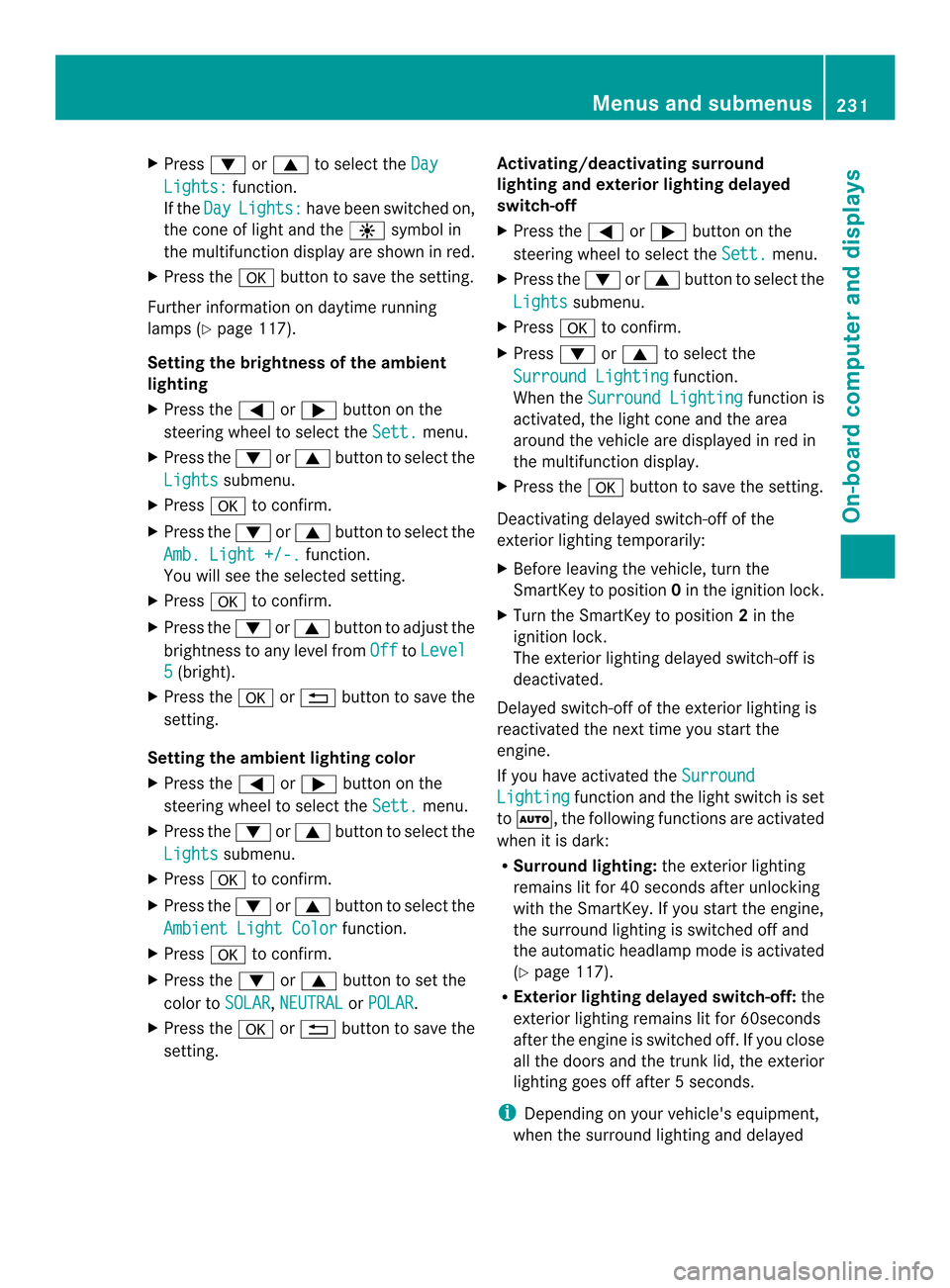

Press 0005or0006 to select the Day Lights: function.
If the Day Lights: have been switched on,
the cone of light and the 0004symbol in
the multifunction display are shown in red.
X Press the 000Cbutton to save the setting.
Further information on daytime running
lamps (Y page 117).
Setting the brightness of the ambient
lighting
X Press the 000Aor0004 button on the
steerin gwheel to select the Sett. menu.
X Press the 0005or0006 button to select the
Lights submenu.
X Press 000Cto confirm.
X Press the 0005or0006 button to select the
Amb. Light +/-. function.
You will see the selected setting.
X Press 000Cto confirm.
X Press the 0005or0006 button to adjust the
brightness to any level from Off to
Level 5 (bright).
X Press the 000Cor0002 button to save the
setting.
Setting the ambient lighting color
X Press the 000Aor0004 button on the
steerin gwheel to select the Sett. menu.
X Press the 0005or0006 button to select the
Lights submenu.
X Press 000Cto confirm.
X Press the 0005or0006 button to select the
Ambient Light Color function.
X Press 000Cto confirm.
X Press the 0005or0006 button to set the
color to SOLAR ,
NEUTRAL or
POLAR .
X Press the 000Cor0002 button to save the
setting. Activating/deactivating surround
lighting and exterior lighting delayed
switch-off
X
Press the 000Aor0004 button on the
steerin gwheel to select the Sett. menu.
X Press the 0005or0006 button to select the
Lights submenu.
X Press 000Cto confirm.
X Press 0005or0006 to select the
Surround Lighting function.
When the Surround Lighting function is
activated, the light cone and the area
around the vehicle are displaye dinred in
the multifunction display.
X Press the 000Cbutton to save the setting.
Deactivating delayed switch-off of the
exterior lighting temporarily:
X Before leaving the vehicle, turn the
SmartKey to position 0in the ignition lock.
X Turn the SmartKey to position 2in the
ignition lock.
The exterior lighting delayed switch-off is
deactivated.
Delayed switch-off of the exterior lighting is
reactivated the next time you start the
engine.
If you have activated the Surround Lighting function and the light switch is set
to 000D,t he following functions are activated
when it is dark:
R Surround lighting: the exterior lighting
remains lit for 40 seconds after unlocking
with the SmartKey. If you start the engine,
the surround lighting is switched off and
the automatic headlamp mode is activated
(Y page 117).
R Exterior lighting delayed switch-off: the
exterior lighting remains lit for 60seconds
after the engine is switched off. If you close
all the doors and the trunkl id, the exterior
lighting goes off after 5seconds.
i Depending on your vehicle's equipment,
when the surround lighting and delayed Menus and submenus
231On-boardcomputer and displays Z

switch-off exterior lighting are on, the
following light up:
R
Parking lamps
R Low-beam headlamps
R Daytime running lamps
R Side marker lamps
R Surround lighting in the exterior mirrors
Activating/deactivating the interior
lighting delayed switch-off
If you activate the Interior LightingDelay function,t
he interior lighting remains
on for 20seconds after you remove the
SmartKey from the ignition lock.
X Press the 000Aor0004 button on the
steering wheel to select the Sett. menu.
X Press the 0005or0006 button to select the
Lights submenu.
X Press 000Cto confirm.
X Press 0005or0006 to select the Light. Delay function.
When the Interior Lighting Delay function is activated, the vehicle interior is
displayed in red in the multifunction
display.
X Press the 000Cbutton to save the setting.
Vehicle Activating/deactivating the automatic
door locking mechanism
X Press the 000Aor0004 button on the
steering wheel to select the Sett. menu.
X Press 0005or0006 to select the Vehicle submenu.
X Press 000Cto confirm.
X Press 0005or0006 to select the Auto. Door Locks function.
When the Automatic Door Lock function
is activated, the vehicle doors are displayed
in red in the multifunction display.
X Press the 000Cbutton to save the setting. If you activate the
Automatic Door Lock function,t
he vehicle is centrally locked above
as peed of around 9mph (15 km/h).
For further information on the automatic
locking feature, see (Y page 83).
Activating/deactivating the acoustic
locking verification signal
If you switch on the Acoustic Lock function,
an acoustic signal sounds when you lock the
vehicle.
X Press the 000Aor0004 button on the
steering wheel to select the Sett. menu.
X Press 0005or0006 to select the Vehicle submenu.
X Press 000Cto confirm.
X Press the 0005or0006 button to select the
Acoustic Lock function.
If the Acoustic Lock function is activated,
the 000F symbol in the multifunction
displayl ights up red.
X Press the 000Cbutton to save the setting.
Activating/deactivating the radar sensor
system
X Press the 000Aor0004 button on the
steering wheel to select the Sett. menu.
X Press 0005or0006 to select the Vehicle submenu.
X Press 000Cto confirm.
X Press the 0006or0005 button to select
Radar Sensor (See Oper. Manual): .
You will see the selected setting: Enabled or
Disabled .
X Press the 000Cbutton to save the setting.
The following systems are switched off when
the radar sensor system is deactivated:
R DISTRONIC PLUS (Y page 177)
R BAS PLUS (Y page 67)
R PRE-SAFE ®
Brake (Y page 72)
R Blind Spot Assist (Y page 207)
R Active Blind Spot Assist (Y page 211)232
Menus and submenusOn-board computer and displays

Convenience
Activating/deactivatin
gthe EASY-
ENTRY/EXIT feature G
WARNING
When th eEASY-ENTRY/EXIT feature adjusts
th es teering wheel ,you and other vehicle
occupants –particularly childre n–could
become trapped. There is arisk of injury.
While the EASY-ENTRY/EXIT feature is
making adjustments, make sure that no one
has any body parts in the sweep of the
steering wheel.
If somebody becomes trapped:
R press one of the memory function position
buttons, or
R move the switch for steering wheel
adjustmen tinthe opposite direction to that
in which the steering wheel is moving.
The adjustment process is stopped.
X Press the 000Aor0004 button on the
steering wheel to select the Settingsmenu.
X Press the 0005or0006 button to select the
Convenience submenu.
X Press 000Cto confirm.
X Press the 0005or0006 button to select the
Easy Entry/Exit: function.
If the Easy Entry/Exit function is
activated, the vehicle steering wheel is
displayed in red in the multifunction
display.
X Press the 000Cbutton to save the setting.
Further information on the EASY-ENTRY/EXIT
feature (Y page 108).
Switching the belt adjustment on/off
X Press the 000Aor0004 button on the
steering wheel to select the Sett. menu.
X Press the 0005or0006 button to select the
Convenience submenu.
X Press 000Cto confirm. X
Press the 0005or0006 button to select the
Belt Adjustment function.
When the Belt Adjustment function is
activated, the vehicle seat belt is displayed
in red in the multifunction display.
X Press the 000Cbutton to save the setting.
For further information on belt adjustment,
see (Y page 57).
Switching the fold-in mirrors with the
locking featureo n/off
This function is only available on vehicles with
the memory function (Y page 112).
When you activate the Auto. Mirror Folding function, the exterior mirrors are
folded in when the vehicle is locked. If you
unlock the vehicle and then open adoor, the
exterior mirrors fold out again.
X Press the 000Aor0004 button on the
steering wheel to select the Sett. menu.
X Press the 0005or0006 button to select the
Convenience submenu.
X Press 000Cto confirm.
X Press 0005or0006 to select the Auto. Mirror Folding function.
If the Auto. Mirror Folding function is
activated, the vehicle's exterior mirror is
displayed in red in the multifunction
display.
X Press the 000Cbutton to save the setting. 001A
To fold the exterior mirrors in or out
If you have switched on the Auto. Mirror Folding function and you fold in the exterior
mirrors by pressing button 001A,the exterior Menus and submenus
233On-board computer and displays Z

mirrors willn
ot fold out automatically
(Y page1 10).
You can then only fold out the exterior mirrors
using button 001A.
Restorin gthe factory settings X
Press the 000Aor0004 button on the
steering whee ltoselect the Sett. menu.
X Press the 0005or0006 button to select the
Factory Setting submenu.
X Press 000Cto confirm.
The Reset All Settings? message
appears.
X Press the 0005or0006 button to select
No or
Yes .
X Press 000Cto confirm the selection.
If you have selected Yes ,t
he multifunction
display show saconfirmation message.
For safety reasons, the Daytime RunningLights function in the
Lights submenu is
only reset if the vehicl eisstationary. AMG menu in AMG vehicles
AMG displays 001A
Digital speedometer
0010 Gear indicator
0024 Upshift indicator
0021 Engine oil temperature
001E Coolant temperature
0025 ECO start/stop function status indicator
(Ypage 151)
X Press the 000Aor0004 button on the
steering wheel to select the AMG menu.Upshift indicator
UP 0024
indicates that the
engine has reached the overrevving range
when in the manual gearshift program.
Upshift indicator UP 0024
fades out other
messages until you have shifted up.
When the engine oil temperature is below
176 ‡(80 †) the oil temperature is show nin
blue. Avoid drivin gatfull engin eoutput during
this time.
SETUP 001A
Driv eprogram (C /SS+ /M )
0010 ESP ®
mode (ON /OFF )orS
PORT handling
mode (SPORT )
0024 Suspension tunin g(COMFORT /SPORT /
SPORT+ )
SETUP shows the drive program, the ESP ®
(Electronic Stability Program) mode and the
suspension tuning.
X Press the 000Aor0004 button on the
steering wheel to select the AMG menu.
X Press the 0006button repeatedly until
SETUP is displayed.
or
X Briefly press the AMG button on the center
console (Y page 191).234
Menus and submenusOn-boar
dcomputer and displays

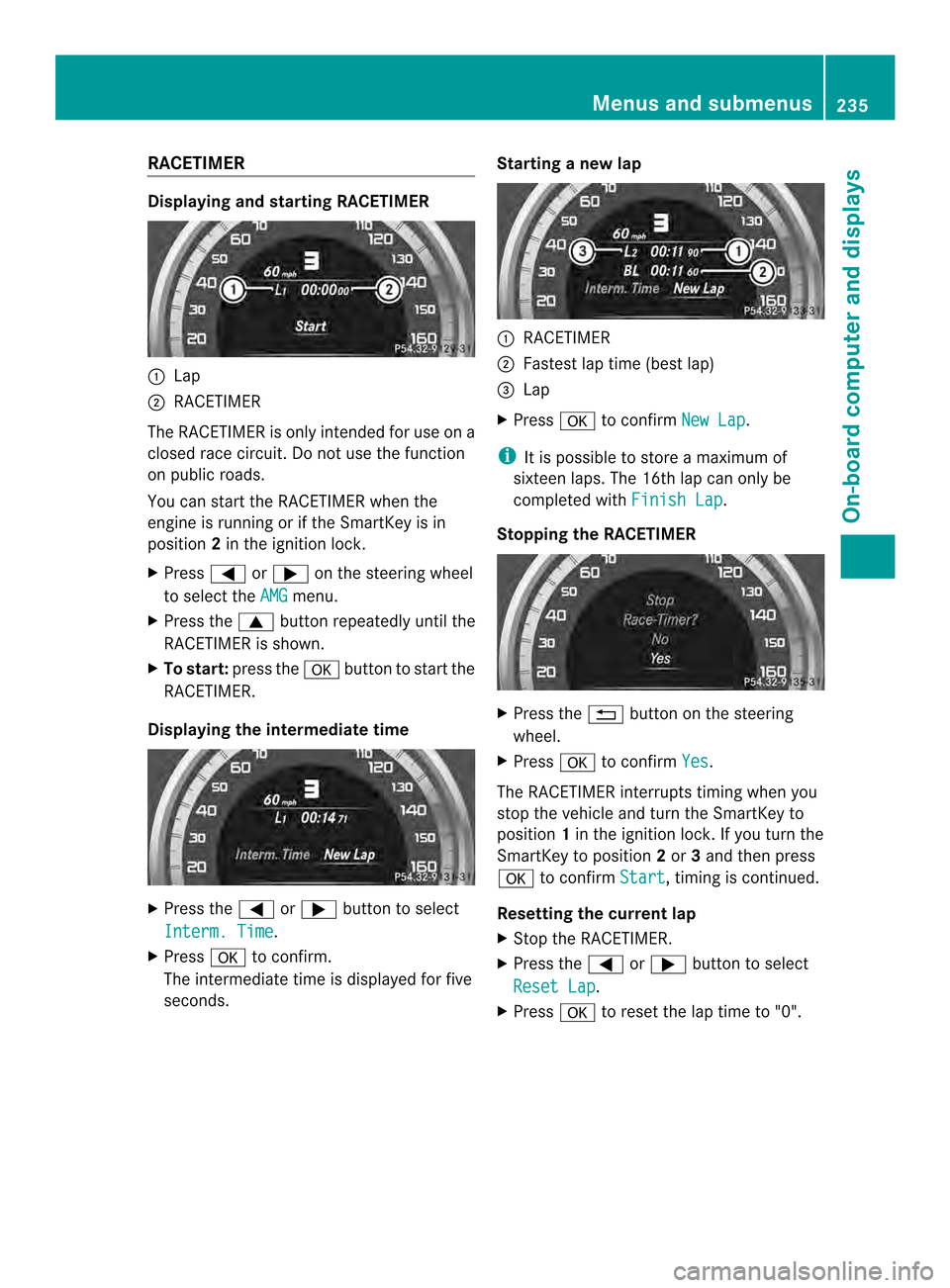

RACETIMER
Displaying and startin
gRACETIMER 001A
Lap
0010 RACETIMER
The RACETIMER is only intended for us eona
closed race circuit. Do not us ethe function
on public roads.
Yo uc an star tthe RACETIMER when the
engine is running or if the SmartKey is in
position 2in the ignition lock.
X Press 000Aor0004 on the steering wheel
to select the AMG menu.
X Press the 0006button repeatedl yuntilthe
RACETIMER is shown.
X To start: press the 000Cbutton to star tthe
RACETIMER.
Displaying the intermediate time X
Press the 000Aor0004 button to select
Interm. Time .
X Press 000Cto confirm.
The intermediate time is displayed for five
seconds. Startin
ganewlap 001A
RACETIMER
0010 Fastest la ptime (best lap)
0024 Lap
X Press 000Cto confirm New Lap .
i It is possible to store amaximum of
sixteen laps. The 16th la pcan only be
completed with Finish Lap .
Stoppin gthe RACETIMER X
Press the 0002button on the steering
wheel.
X Press 000Cto confirm Yes .
The RACETIMER interrupts timing when you
stop the vehicl eand turn the SmartKey to
position 1in the ignition lock. If yo uturn the
SmartKey to position 2or 3and then press
000C to confirm Start ,t
iming is continued.
Resetting the current lap
X Stop the RACETIMER.
X Press the 000Aor0004 button to select
Rese tLap .
X Press 000Cto reset the la ptime to "0". Menus and submenus
235On-board computer and displays Z

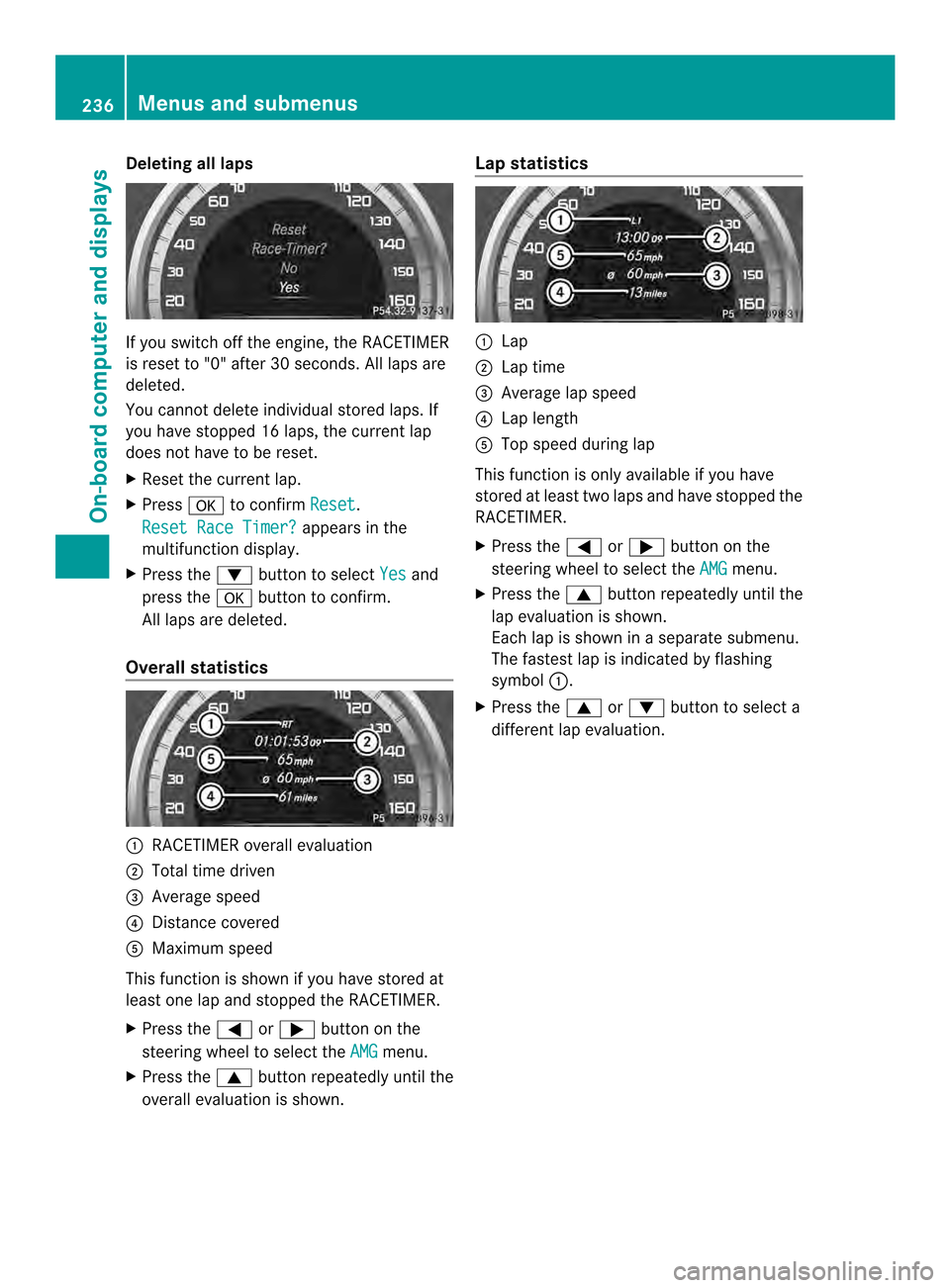

Deleting all laps
If you switch of
fthe engine, the RACETIMER
is reset to "0" after 30 seconds. All laps are
deleted.
You cannot delete individuals tored laps. If
you have stopped 16 laps, the current lap
does not have to be reset.
X Reset the current lap.
X Press 000Cto confirm Reset .
Reset Race Timer? appears in the
multifunction display.
X Press the 0005button to select Yes and
press the 000Cbutton to confirm.
All laps are deleted.
Overall statistics 001A
RACETIMER overall evaluation
0010 Total time driven
0024 Average speed
0021 Distancec overed
001E Maximum speed
This function is shown if you have stored at
least one lap and stopped the RACETIMER.
X Press the 000Aor0004 button on the
steering wheel to select the AMG menu.
X Press the 0006button repeatedly until the
overall evaluation is shown. Lap statistics 001A
Lap
0010 Lap time
0024 Average lap speed
0021 Lap length
001E Top speed during lap
This function is only available if you have
stored at least two laps and have stopped the
RACETIMER.
X Press the 000Aor0004 button on the
steering wheel to select the AMG menu.
X Press the 0006button repeatedly until the
lap evaluation is shown.
Each lap is shown in aseparate submenu.
The fastest lap is indicated by flashing
symbol 001A.
X Press the 0006or0005 button to select a
different lap evaluation. 236
Menus and submenusOn-board computer and displays

Display messages
Introduction
General notes Display message
sappear in th emultifunction display.
Display message swithg raphic displays may be shown in simplified for minthe Operator's
Manual and may differ from the messages shown in the multifunction display.
Please respond in accordance with the displaym essages and follow the additional notes in
this Operator's Manual.
Certain displaym essages are accompanied by an audible warning tone or acontinuous tone.
When the ignition is switched off, all displaym essages are deleted, apart from some high-
priority displaym essages. Once the causes of the high-priority displaym essages have been
rectified, the corresponding displaym essages are also deleted.
When you stop and park the vehicle, please observe the notes on:
R HOLD function (Y page 186)
R Parking (Y page 167)
Hiding display messages X
Press the 000Cor0002 button on the steering wheel to hide the displaym essage.
The displaym essage is cleared.
The multifunction displays hows high-priority displaym essages in red. Some high-priority
displaym essages cannot be hidden.
The multifunction displays hows these messages continuously until the causes for the
messages have been remedied.
Message memory The on-board computer saves certain displaym
essages in themessage memory.Y ou can
call up the display messages:
X Press the 000Aor0004 button on the steerin gwheel to select the Serv. menu.
If there are display messages, the multifunction display shows 2Messages ,f
or example.
X Press the 0006or0005 button to select the entry, e.g. 2Messages .
X Press 000Cto confirm.
X Press the 0006or0005 button to scroll through the display messages. Display messages
237On-board computer and displays Z

Safety systems
Display messages Possible causes/consequences and
000B Solutions
001C0011
Currently
Unavailable See
Operator's Manual ABS (Anti-lock Braking System), ESP
®
(Electronic Stability
Program), BAS (Brake Assist), PRE-SAFE ®
,t he HOLD function and
hill start assist are temporarily unavailable.
BAS PLUS and PRE-SAFE ®
Brake may also have failed.
In addition, the 0011,0009and001C warning lamps light up in
the instrumentc luster.
ATTENTIONA SSIST is deactivated.
Possible causes are:
R self-diagnosis is not yet complete.
R the on-board voltage may be insufficient.
G WARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Carefully drive asuitable distance, making slight steering
movements, at aspeed above 12 mph (20 km/h).
If the displaym essage disappears, the functions mentioned
above are available again.
If the displaym essage continues to be displayed:
X Drive on carefully.
X Visit aqualified specialist workshop. 001C0011
Inoperative See
Operator's Manual ABS,E
SP®
,B AS,P RE-SAFE ®
,t he HOLD function and hill start
assist are unavailable due to amalfunction.
The 0004 (USA only)/0001 (Canada only),0011,0009and001C
warning lamps in the instrumentc luster also light up.
ATTENTION ASSIS Tisdeactivated.
G WARNING
The brak esystem continues to function normally, but without the
function slisted above. The wheels could therefore lock if you
brak ehard, for example. 238
Display messagesOn-board computer and displays
