Page 261 of 382

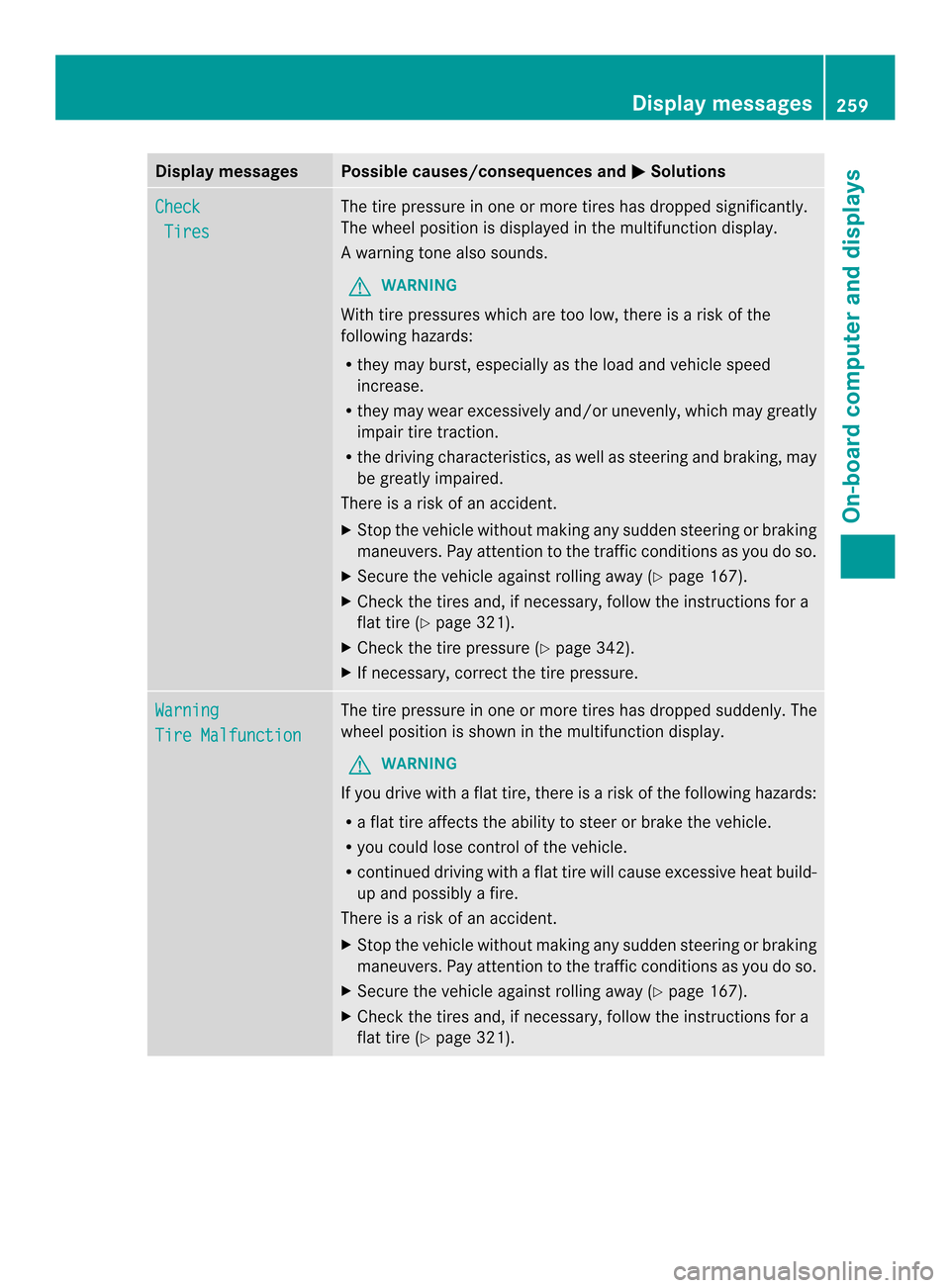

Display messages Possible causes/consequences and
000B Solutions
Check
Tires The tire pressur
einoneor mor etires has dropped significantly.
The whee lposition is displayed in th emultifunction display.
Aw arning tone also sounds.
G WARNING
Wit htirep ressure swhicha re to olow, there is ariskoft he
following hazards:
R they may burst, especiallyast he load and vehicle speed
increase.
R they may wear excessively and/or unevenly, which may greatly
impair tire traction.
R the driving characteristics, as well as steering and braking, may
be greatly impaired.
There is arisk of an accident.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditionsasy ou do so.
X Secure the vehicle against rolling away (Y page 167).
X Check the tires and, if necessary, follow the instructions for a
flat tire (Y page 321).
X Check the tire pressure (Y page 342).
X If necessary, correct the tire pressure. Warning
Tire Malfunction The tire pressure in one or more tires has dropped suddenly. The
wheel position is shown in the multifunction display.
G WARNING
If you drive with aflat tire, there is arisk of the following hazards:
R af lat tire affects the ability to steer or brake the vehicle.
R you could lose control of the vehicle.
R continued driving with aflat tire will cause excessive heat build-
up and possibly afire.
There is arisk of an accident.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditionsasy ou do so.
X Secure the vehicle against rolling away (Y page 167).
X Check the tires and, if necessary, follow the instructions for a
flat tire (Y page 321). Display messages
259On-board computer and displays Z
Page 262 of 382
Display messages Possible causes/consequences and
000B Solutions
Tire Press. Monitor
Currently
Unavailable Due to
asource of radi ointerference ,nosignals can be received
from the whee lsensors .The tire pressure monitor is temporarily
malfunctioning.
X Drive on.
The tire pressure monitor restarts automatically as soon as the
problem has been solved. TirePress.
Sensor(s) Missing There is no signal from the tire pressure sensor of one or several
wheels. The pressure of the affected tire is not displayed in the
multifunction display.
X
Have the faulty tire pressure sensor replaced at aqualified
specialist workshop. Tire Pressure
Monitor
Inoperative No
Wheel Sensors The wheels mounted do not have
asuitable tire pressure sensor.
The tire pressure monitor is deactivated.
X Mount wheels with suitable tire pressure sensors.
The tire pressure monitor is activated automatically after driving
for afew minutes. Tire Press. Monitor
Inoperative The tire pressure monitor is faulty.
X
Visit aqualified specialist workshop. Vehicle
Display messages Possible causes/consequencesa
nd000B Solutions
Shift to 'P' or 'N'
To Start Engine You have attempted to start the engine with the transmission in
position
Ror D.
X Shift the transmission to position Por N. Auxiliary Battery
Malfunction The auxiliary battery for the automatic transmission is no longer
being charged.
X
Visit aqualified specialist workshop. Apply Brake
to Shift from 'P' You have attempted to move the transmission selector lever to
position
D,Ror Nwithout depressing the brake pedal.
X Depress the brake pedal. Risk of Rolling
Away
Vehicle Not in 'P' The driver's door is open and the transmission is in position
R,N
or D.
Aw arning tone also sounds.
X Shift th etransmission to position P.
X Secure th evehicle against rolling away ( Ypage 167). 260
Display messagesOn-boar
dcomputer and displays
Page 263 of 382

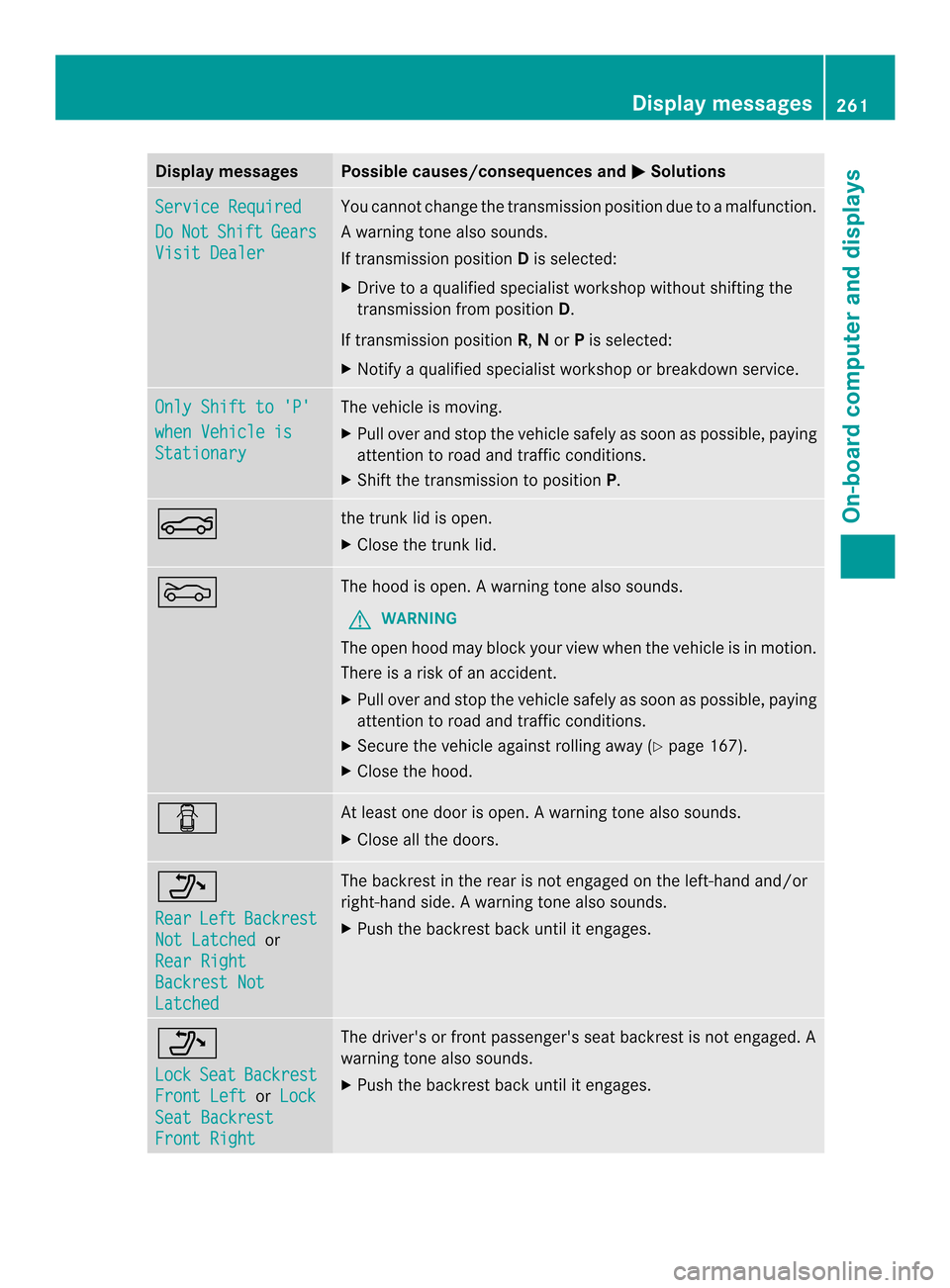

Display messages Possible causes/consequences and
000B Solutions
Servic
eRequired Do Not Shift Gears
Visit Dealer You canno
tchange the transmission position due to amalfunction.
Aw arning tone also sounds.
If transmission position Dis selected:
X Drive to aqualified specialist worksho pwithout shiftin gthe
transmission from position D.
If transmission position R,Nor Pis selected:
X Notify aqualified specialist worksho porbreakdown service. Onl
yS hift to 'P' whe
nV ehicl eis Stationary The vehicle is moving.
X
Pull ove rand stop the vehicl esafelyass oonasp ossible,p aying
attention to road and traffic conditions.
X Shift the transmission to position P.0011 the trunk lid is open.
X
Close the trunk lid. 0004 The hood is open.
Awarning tone also sounds.
G WARNING
The open hood may bloc kyour view when the vehicle is in motion.
There is arisk of an accident.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Secure the vehicle against rolling away (Y page 167).
X Close the hood. 000C At least one door is open.
Awarning tone also sounds.
X Close all th edoors. 0001
Rear
Left Backrest
Not Latched or
Rea rR ight Backrest Not
Latched The backres
tinthe rear is not engaged on the left-hand and/or
right-hand side. Awarning tone also sounds.
X Push th ebackres tback until it engages. 0001
Lock
Seat Backrest
Front Left or
Lock Sea
tB ackrest Front Right The driver'
sorfront pa ssenger' sseat backres tisnot engaged. A
warning tonea lso sounds.
X Push the backrest back until it engages. Display messages
261On-board computer and displays Z
Page 264 of 382

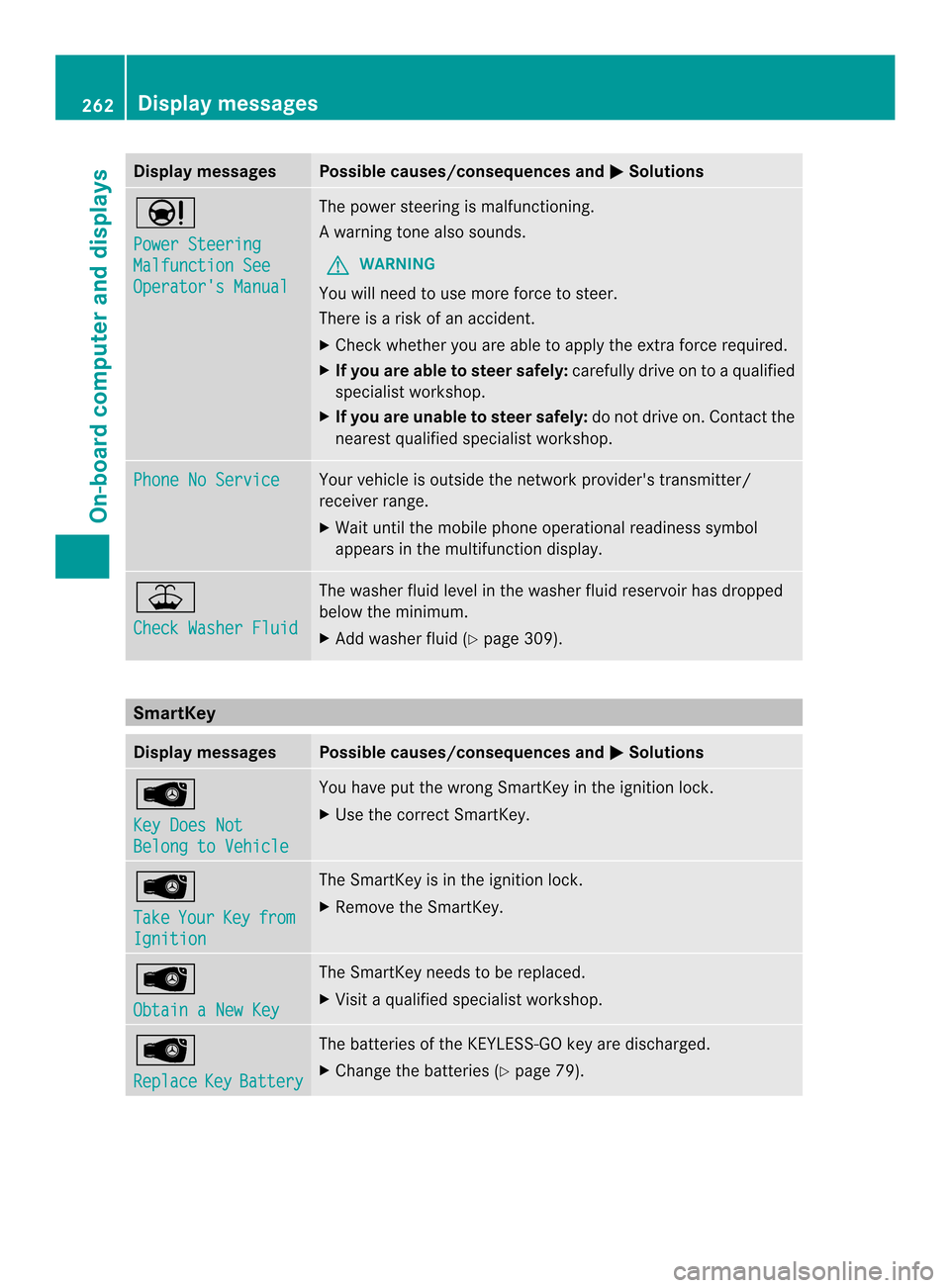

Display messages Possible causes/consequences and
000B Solutions
0013
Power Steering
Malfunction See
Operator'
sManual The powe
rsteering is malfunctioning.
Aw arning tone also sounds.
G WARNING
You will need to use mor eforce to steer.
Ther eisar iskofana ccident.
X Check whethe ryou are able to apply the extraf orce required.
X If you are able to steer safely: carefully drive on toaqualified
specialist workshop.
X If you are unable to steer safely: do not drive on. Contact the
nearest qualified specialist workshop. Phone No Service Your vehicle is outside the network provider's transmitter/
receiver range.
X
Wait until the mobile phone operational readiness symbol
appears in the multifunction display. 000E
Check Washer Fluid The washer fluid level in the washer fluid reservoir has dropped
below the minimum.
X
Add washer fluid (Y page 309).SmartKey
Display messages Possible causes/consequences and
000B Solutions
0002
Key Does Not
Belong to Vehicle You have put the wrong SmartKey in the ignition lock.
X
Use the correc tSmartKey. 0002
Take
Your Key from
Ignition The SmartKey is in the ignition lock.
X
Remove the SmartKey. 0002
Obtain
aNew Key The SmartKey needs to be replaced.
X
Visit aqualified specialist workshop. 0002
Replace
Key Battery The batteries of the KEYLESS-GO key are discharged.
X
Change the batteries (Y page 79).262
Display messagesOn-board computer and displays
Page 265 of 382

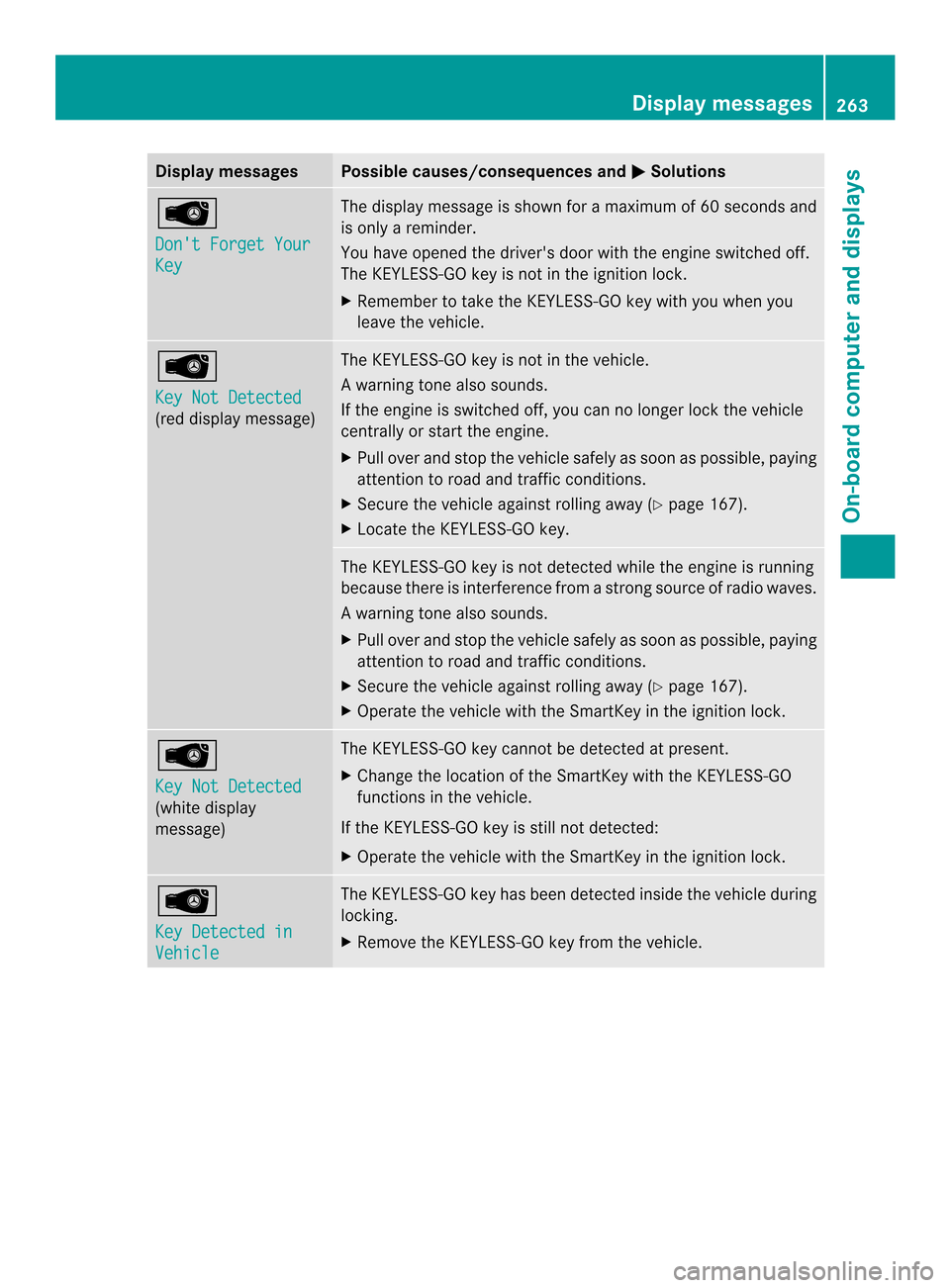

Display messages Possible causes/consequences and
000B Solutions
0002
Don't Forget Your
Key The display message is shown fo
ramaximum of 60 seconds and
is only areminder.
You have opened the driver' sdoor with the engine switched off.
The KEYLESS-GO key is not in the ignitio nlock.
X Remember to take the KEYLESS-GO key with you when you
leave the vehicle. 0002
Key Not Detected
(red display message) The KEYLESS-GO key is not in the vehicle.
Aw
arning tone also sounds.
If th eengineiss witched off ,you can no longer loc kthe vehicle
centrally or start the engine.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Secure the vehicle against rolling away (Y page 167).
X Locate the KEYLESS-GO key. The KEYLESS-GO key is not detected while the engine is running
because there is interference from
astrongs ource of radio waves.
Aw arning tone also sounds.
X Pull ove rand stop the vehicl esafelyass oonasp ossible,p aying
attention to road and traffic conditions.
X Secure the vehicle against rolling away( Ypage 167).
X Operate the vehicle with the SmartKey in the ignition lock. 0002
Key Not Detected
(white display
message) The KEYLESS-GO key cannot be detected at present.
X
Change the location of the SmartKey with the KEYLESS-GO
functionsint he vehicle.
If the KEYLESS-GO key is still not detected:
X Operate the vehicle with the SmartKey in the ignition lock. 0002
Key Detected in
Vehicle The KEYLESS-GO key has been detected inside the vehicle during
locking.
X
Remove the KEYLESS-GO key from the vehicle. Display messages
263On-board computer and displays Z
Page 266 of 382

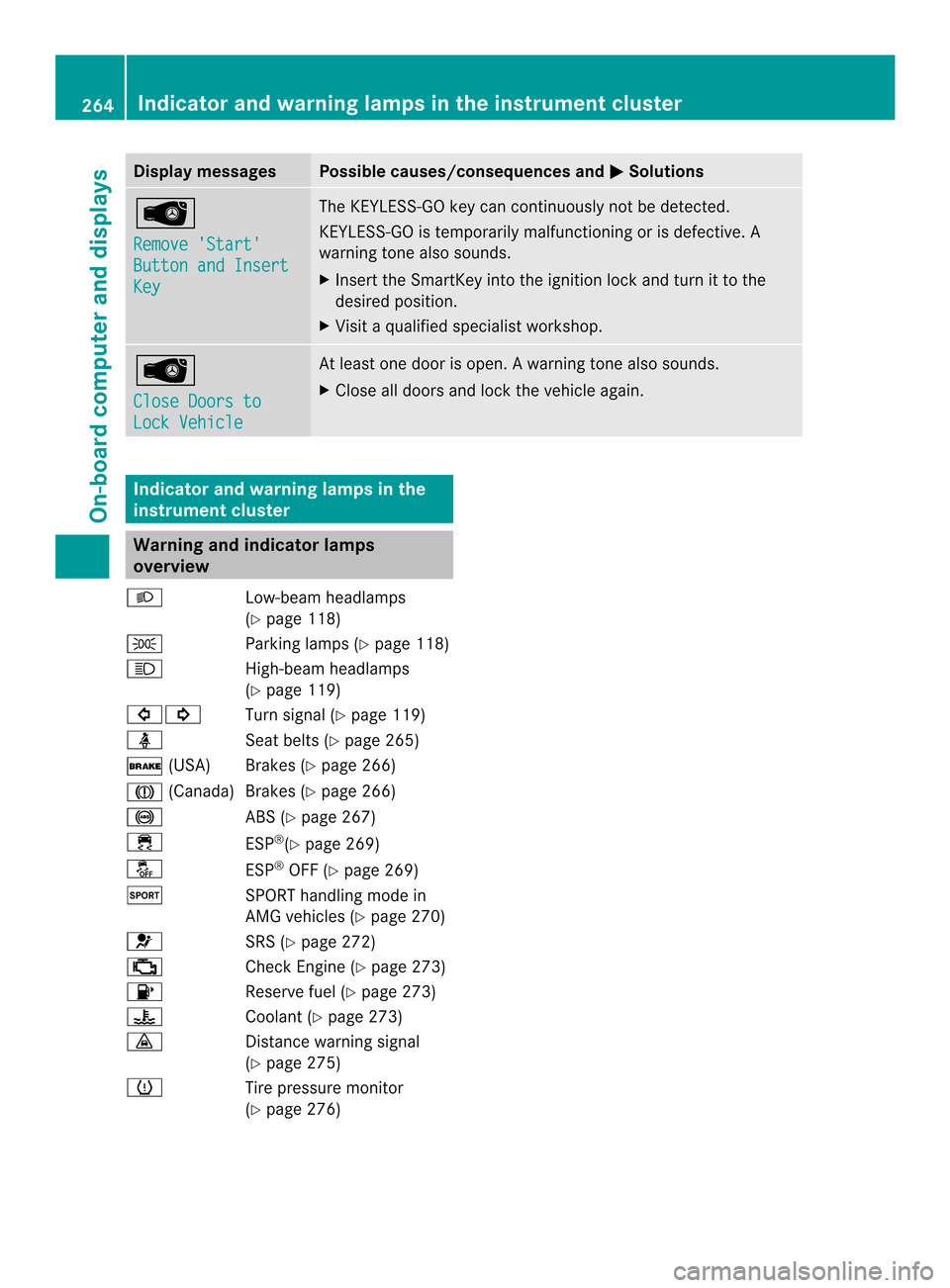

Display messages Possible causes/consequences and
000B Solutions
0002
Remove 'Start'
Button and Insert
Key The KEYLESS-GO ke
ycan continuousl ynotbe detected.
KEYLESS-GO is temporarily malfunctionin gorisdefective. A
warnin gtonea lso sounds.
X Inser tthe SmartKey into th eignition loc kand tur nittot he
desire dposition.
X Visit aqualified specialist workshop. 0002
Close Doors to
Loc
kV ehicle At leas
tone door is open. Awarning tone also sounds.
X Close all door sand loc kthe vehicle again. Indicator and warning lamps in the
instrument cluster Warning and indicator lamps
overview
001D Low-beam headlamps
(Ypage 118)
0008 Parking lamps (Y page 118)
0015 High-beam headlamps
(Ypage 119)
00020001 Turn signal (Ypage 119)
0006 Seat belts (Ypage 265)
0004 (USA) Brakes (Y page 266)
0001 (Canada)B rakes (Ypage266)
001C ABS (Ypage267)
0011 ESP®
(Y page2 69)
0009 ESP®
OFF (Y page269)
0005 SPORT handling mode in
AMG vehicles (Y page270)
0012 SRS (Ypage272)
000A Check Engine (Y page273)
0007 Reserve fuel (Ypage273)
0017 Coolant (Ypage273)
0008 Distance warning signal
(Ypage2 75)
0008 Tire pressure monitor
(Ypage2 76) 264
Indicator and warnin
glamps in the instrument clusterOn-board computer and displays

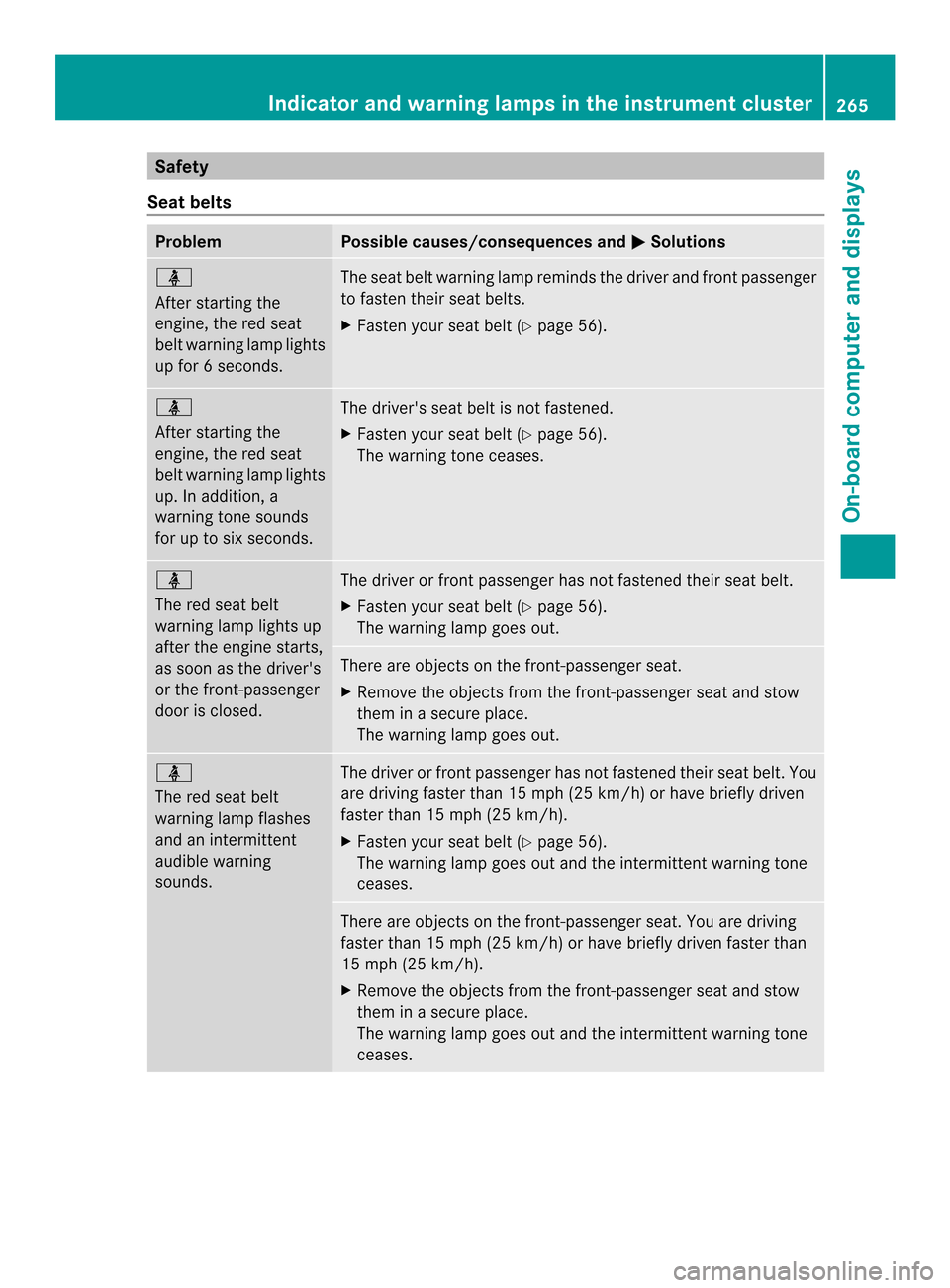

Page 267 of 382
Safety
Seat belts Problem Possible causes/consequences and
000B Solutions
0006
After startingt
he
engine, the red seat
belt warning lamp lights
up for 6seconds. The seat belt warning lamp reminds the driver and fron
tpassenger
to fasten their seat belts.
X Faste nyour seat belt (Y page 56). 0006
After starting the
engine, the red seat
belt warning lamp lights
up. In addition, a
warning tones ounds
for up to six seconds. The driver's seat belt is not fastened.
X
Fasten your seat belt (Y page 56).
The warning tonec eases. 0006
The red seat belt
warning lamp lights up
after the engine starts,
as soon as the driver's
or the front-passenger
door is closed.
The driver or front passenger has not fastened their seat belt.
X
Fasten your seat belt (Y page 56).
The warning lamp goes out. There are object
sonthe front-passenger seat.
X Remove the object sfrom the front-passenger seat and stow
them in asecure place.
The warning lamp goes out. 0006
The red seat belt
warning lamp flashes
and an intermittent
audible warning
sounds.
The driver or front passenger has not fastened their seat belt. You
are driving faster than 15 mph (25 km/h) or have briefly driven
faster than 15 mph (25 km/h).
X
Fasten your seat belt (Y page 56).
The warning lamp goes out and the intermittentw arning tone
ceases. Ther
eare object sonthefront-passenger seat .You are driving
faster than 15 mph (25 km/h) or have briefly driven faster than
15 mph (25 km/h).
X Remove the object sfrom the front-passenger seat and stow
them in asecure place.
The warning lamp goes out and the intermittentw arning tone
ceases. Indicator and warning lamps in th
einstrumen tcluster
265On-boar dcomputer and displays Z

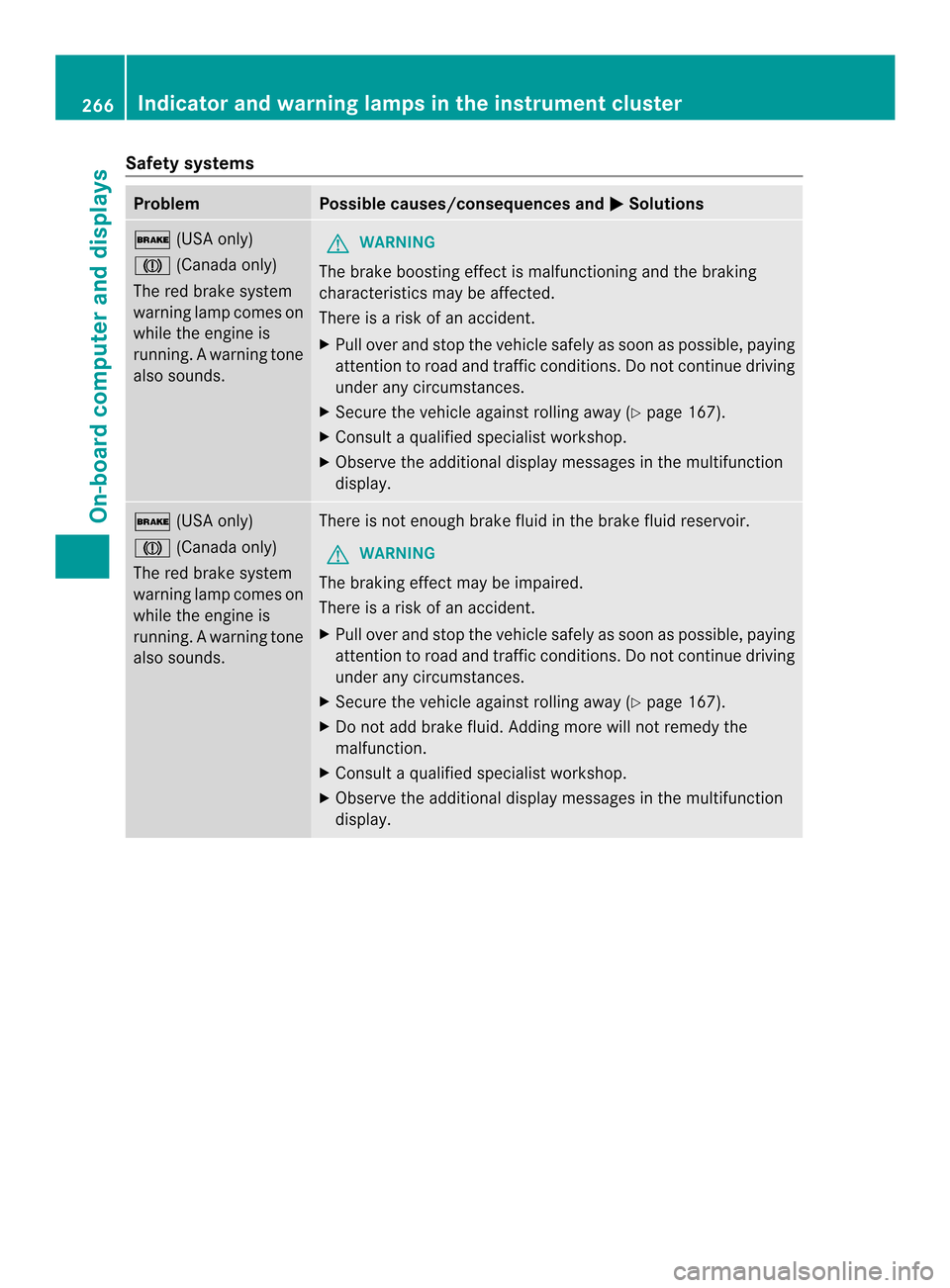

Page 268 of 382
Safety systems
Problem Possible causes/consequences and
000B Solutions
0004
(USA only)
0001 (Canada only)
The red brake system
warning lamp comes on
while the engine is
running. Awarning tone
also sounds. G
WARNING
The brake boosting effect is malfunctioning and the braking
characteristics may be affected.
There is arisk of an accident.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
X Secure the vehicle against rolling away (Y page 167).
X Consult aqualified specialist workshop.
X Observe the additional display messages in the multifunction
display. 0004
(USA only)
0001 (Canada only)
The red brake system
warning lamp comes on
while the engine is
running. Awarning tone
also sounds. There is not enough brake fluid in the brake fluid reservoir.
G WARNING
The braking effect may be impaired.
There is arisk of an accident.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
X Secure the vehicle against rolling away (Y page 167).
X Do not add brake fluid. Adding more will not remedy the
malfunction.
X Consult aqualified specialist workshop.
X Observe the additional display messages in the multifunction
display. 266
Indicator and warning lampsint
he instrument clusterOn-board computer and displays

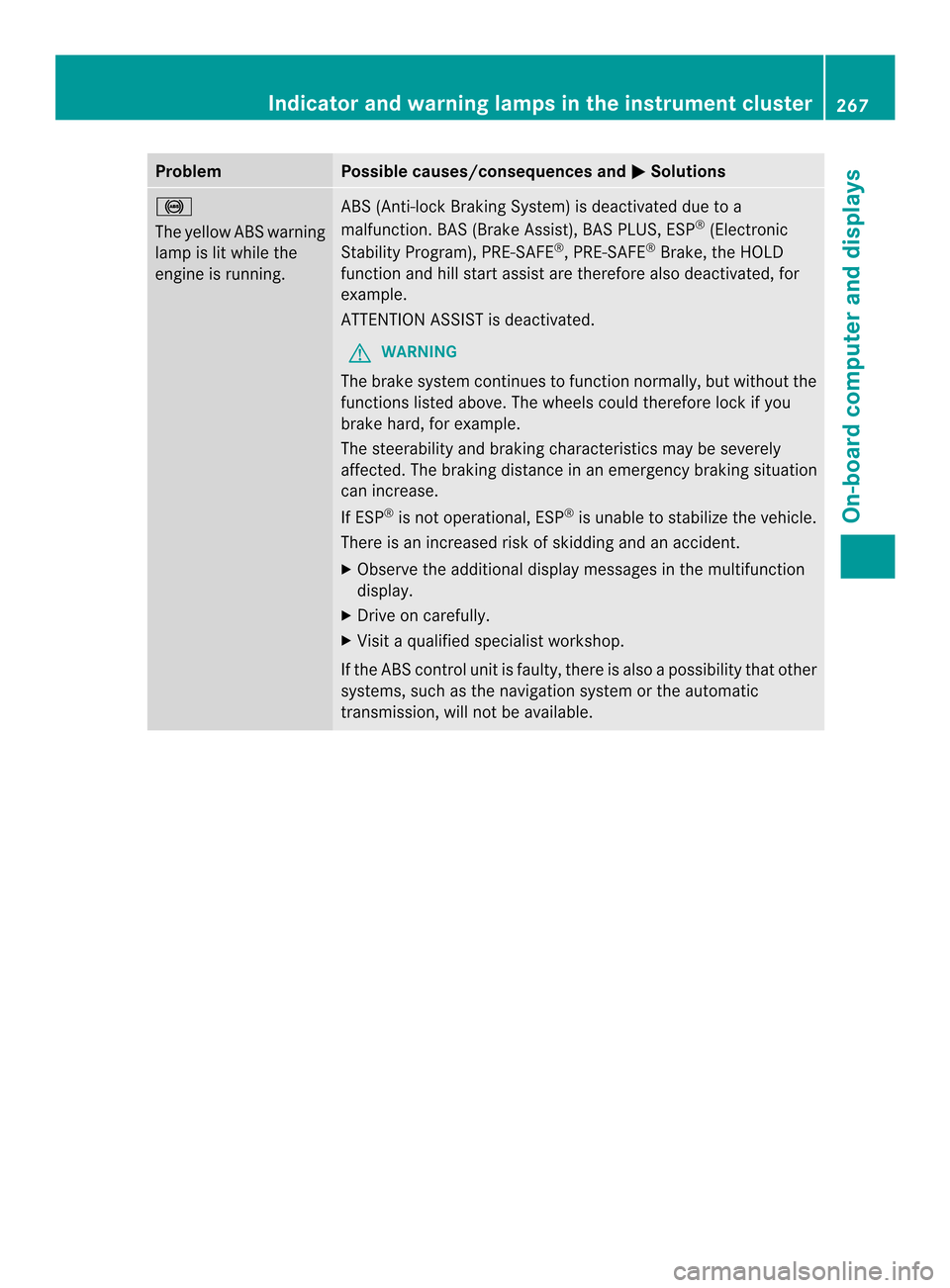

Page 269 of 382
Problem Possible causes/consequences and
000B Solutions
001C
The yellowA
BS warning
lamp is lit while the
engine is running. ABS (Anti-lock Braking System) is deactivated due to a
malfunction
.BAS (Brake Assist), BAS PLUS, ESP ®
(Electronic
Stability Program), PRE-SAFE ®
,P RE-SAFE ®
Brake, the HOLD
function and hill start assist are therefore also deactivated, for
example.
ATTENTION ASSIST is deactivated.
G WARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Observe the additional display messages in the multifunction
display.
X Drive on carefully.
X Visit aqualified specialist workshop.
If the ABS control unit is faulty, there is also apossibility that other
systems, such as the navigation system or the automatic
transmission, will not be available. Indicator and warning lampsint
he instrument cluster
267On-board computer and displays Z

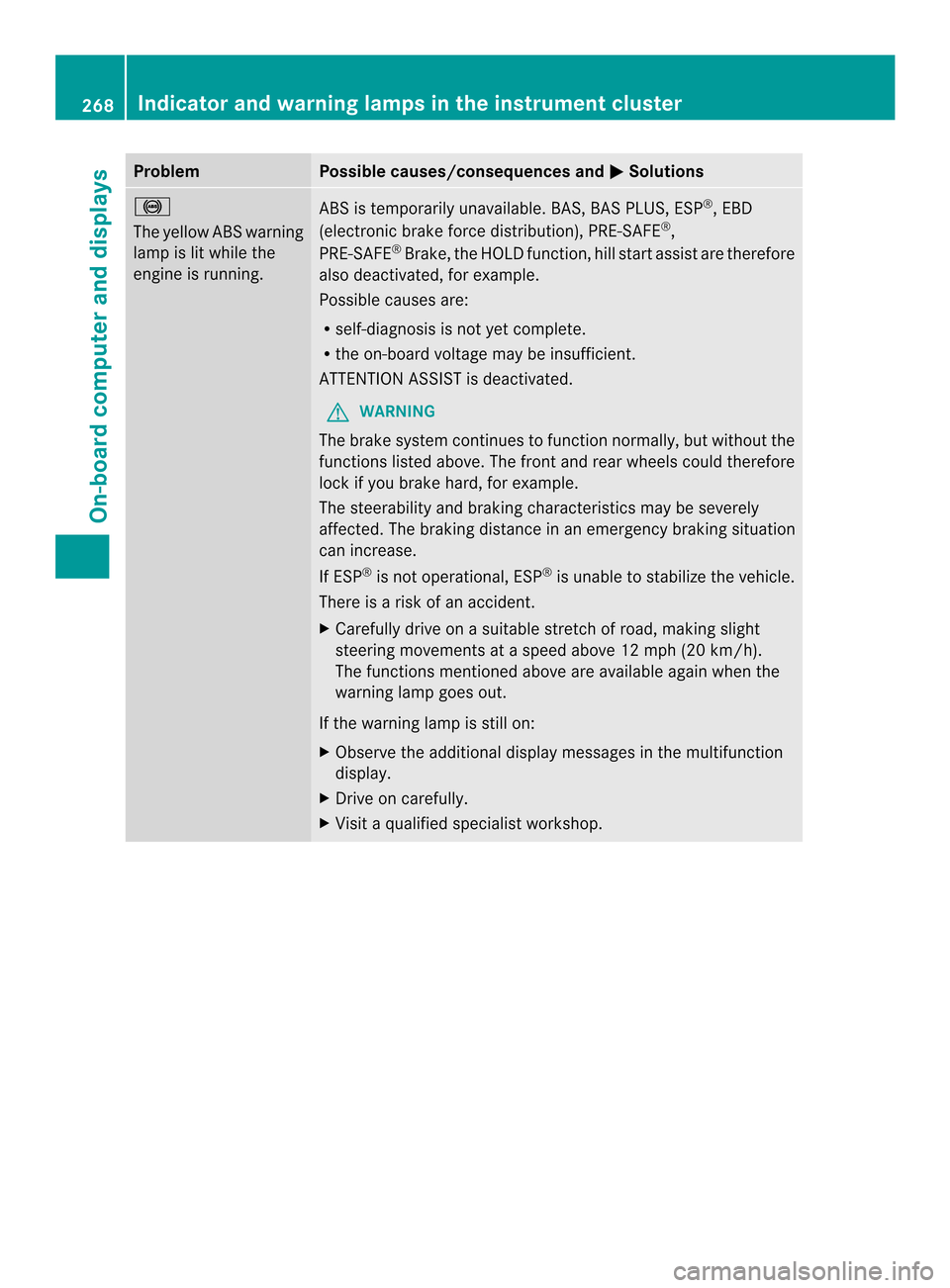

Page 270 of 382
Problem Possible causes/consequences and
000B Solutions
001C
The yellowA
BS warning
lamp is lit while the
engine is running. ABS is temporarily unavailable. BAS,B
AS PLUS, ESP®
,E BD
(electronic brake force distribution), PRE-SAFE ®
,
PRE-SAFE ®
Brake, the HOLD function, hill start assist are therefore
also deactivated, for example.
Possible causes are:
R self-diagnosis is not yet complete.
R the on-board voltage may be insufficient.
ATTENTION ASSIST is deactivated.
G WARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is arisk of an accident.
X Carefullyd rive onasuitable stretch of road, making slight
steering movementsatas peed above 12 mph (20 km/h).
The functions mentioned above are available again when the
warning lamp goes out.
If the warning lamp is still on:
X Observe the additional display messages in the multifunction
display.
X Drive on carefully.
X Visit aqualified specialist workshop. 268
Indicator and warning lampsint
he instrument clusterOn-board computer and displays
