eequipment
i Thismanua ldesc ribe sallthe standard
and optional equipment of your vehicle
which wa savailable at th etime of pur-
chase. Countr y-specif ic differences are
possible. Bear in mind tha tyour vehicle
ma ynot featur eall function sdescribed
here. Note
sont he technical data
i Thet echnica ldata was determined in
accordance with EC Directives. All data
applies to the vehicle's standar dequip-
ment .Therefore, the data ma ydiffer for
vehicles with optional equipment. You can
obtain further information from a
Mercedes-Ben zService Cent re.
You can find technical data on the Internet at:
http://www.mercedes-benz.com Genuine Mercedes-Benz parts
Mercedes-Ben ztests genuin eparts and con-
version parts and accessories which have
been specifically approved for your vehicle for
their reliability, safety and suitability. Despite
ongoing market research, Mercedes -Benz is
unabl etoe valuate othe rparts. Mercedes-
Ben ztherefore accepts no responsibility for
the use of such parts in Mercedes-Ben zvehi-
cles, even if they have been independently or
officially approved.
In Germany and some other coun tries, certain
parts are only officially approved for installa-
tion or modification if they comply with legal
requirements. All genuine Mercedes-Benz
parts meet this requirement .The use of non-
approved parts ma yinvalidat ethe vehicle's
general operating permit. This is the case if: R
they cause achange of the vehicle type
from that for whic hthe vehicle' sgeneral
operating permit was granted.
R other road users could be endangered.
R the emission or noise levels are adversely
affected
The use of non-approved part scould affect
your vehicle' soperating safety .Therefore,
Mercedes-Ben zrecom mends genuine
Mercedes-Ben zparts and conversion parts
and accessories that have been approved for
your vehicle. H
Environmental note
Daimler AG also supplies reconditioned
assemblies and parts which are of the same
quality as new parts. For these, the same war-
rant yapplies as for new parts.
Always specify the vehicle identification num-
ber and engin enumber when ordering genu-
ine Mercedes -Ben zp arts. You will fin dthese
number sonthe vehicl eidentification plat eon
your vehicle ,for example (Y page 312). Vehicle electronics
Tampering with th
eengine electron-
ics G
Ris
kofa ccident
Only have work on the engine electronic sand
related component scarried out at aqualified
specialist worksho pwhichh as the necessary
specialist knowledge and tools to carry out
the work required. Mercedes-Ben zrecom-
mends that you use aMercedes-Ben zService
Centr efor this purpose. In particular ,work
relevant to safet yoronsafety-related sys-
tems must be carried out at aqualified spe-
cialist workshop .Otherwise, the vehicle's
roadworthiness could be affected.
! Only have maintenanc ework on the
engin eelectronics and its associated parts,
such as control units, sensor sand connec-
tor leads, carried out at aqualified special- 310
Vehicle electronicsTechnical data
BA 207 ECE ÄJ 201
0/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 310
Page 314 of 333
ist workshop, e.g.
aMercedes-Ben zService
Cent re.V ehicle component smay other-
wise wear mor equickly and the vehicle's
operatin gpermit may be invalidated. Retrofitting of two-way radios and
mobile phones (RF transmitter)
Use th eTechnical Specification
ISO/TS 21609 55
implementation regulation
when retrofitting RF (radi ofrequency) trans-
mitters.
If your vehicle has fittings for two-way radio
equipmen t(e.g. taxis, hire car sorofficial vehi-
cles) ,use the power suppl yoraeria lconnec-
tion sintended for use with the basic wiring.
Be sure to observe the manufacturer's addi-
tional instructions whe ninstalling the fittings.
! Have aftermarket radio frequency trans-
mitting equipment installed at aqualified
specialist workshop. Mercedes -Ben zrec-
ommends that you use aMercedes-Benz
Ser vice Centre for thi spurpose.
The transmission output at the aerial base
must not exceed the maximum values below. Waveband Maximum trans-
mission output
(PEAK)
Short wave (f <
54 MHz) 100 W
4mw
aveband 30 W
2mw
aveband 50 W
Trunked radio/Tetra 35 W
70 cm waveband 35 W
GSM 900/AMPS 10 W
GSM 1800 10 W

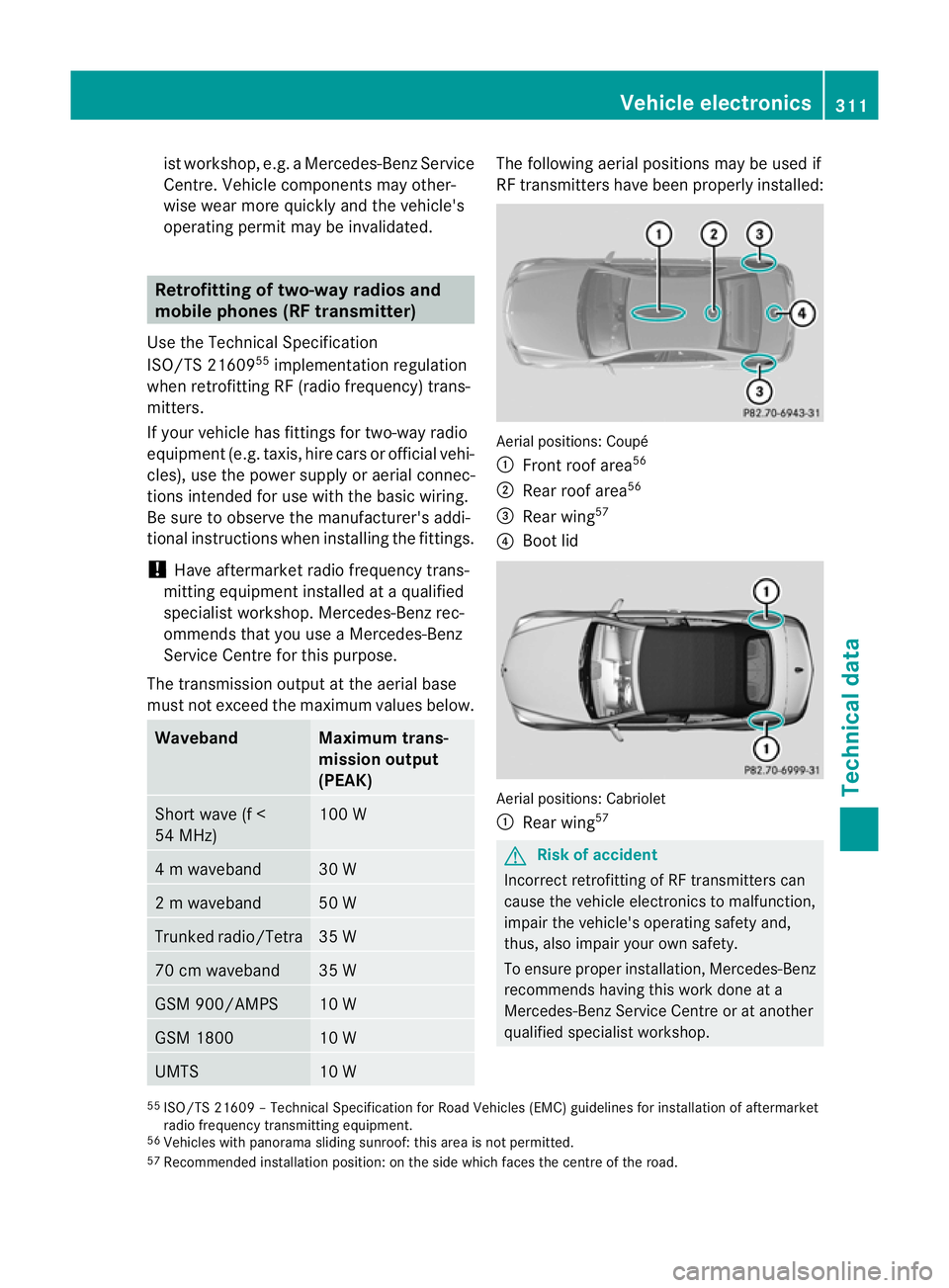

UMTS 10 W The following aerial positions may be used if
RF transmitters have been properly installed:
Aerial positions: Coupé
:
Fron troof area 56
; Rear roof area 56
= Rear wing 57
? Boot lid Aerial positions: Cabriolet
:
Rear wing 57 G
Risk of accident
In co rrect retrofit ting of RF transmitters can
cause the vehicl eelectronics to malfunction,
impair the vehicle's operatin gsafety and,
thus, also impair your own safety.
To ensure proper installation, Mercedes-Benz
recommends having this work done at a
Mercedes-Benz Service Centr eoratanother
qualified specialis tworkshop.
55 ISO/TS 2160 9–Technical Specification for Road Vehicles (EMC) guidelines for installation of aftermarket
radio frequenc ytransmitting equipment.
56 Vehicles wit hpanorama sliding sunroof: this area is not permitted.
57 Recommended installation position: on the side which faces the centre of the road. Vehicl
eelectronics
311Technical da ta
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 311 Z
Page 315 of 333
G
Risk of injury
Imprope rinstallation of RF transmitters can
lead to increase delec tromagnetic radiation in
the vehicle interior. Using an exterior aerial
takes into account current scientifi cdiscus-
sions relating to th epossible health hazards
that may result from electromagnetic fields.
To ensure proper installation, Merc edes-Benz
recommends having this work done at a
Mercedes-Ben zServ iceC entre or at another
qualified specialist workshop.
Deviations with respect to aeria llocations,
output and frequenc iesm ust be approved by
Mercedes-Benz.
There is no restrictio nfor aeria lposi tions in
the outer are aofthe vehicle for these wave-
bands: trunked radio/Tetr a,70 cm wave-
band, GSM 900/AMPS, GSM 1800 and
UMTS.
Legal provisions for fittings must be
obse rved.
RF transmitter switham aximum transmis-
sion outpu tof100 mW (PEAK) ma ybeused
in the vehicl ewithou trestrictions.
! The operatin gpermit may be invalidated
if the instruc tions for installation and use of
RF transmit ters are not observed ,e.g.
approved wavebands ,maximum output
and aerial positions on the vehicle. Vehicle identification plates
Vehicle identification plat
ewith vehi-
cle identification number (VIN) and
paint code number X
Open the right-hand door.

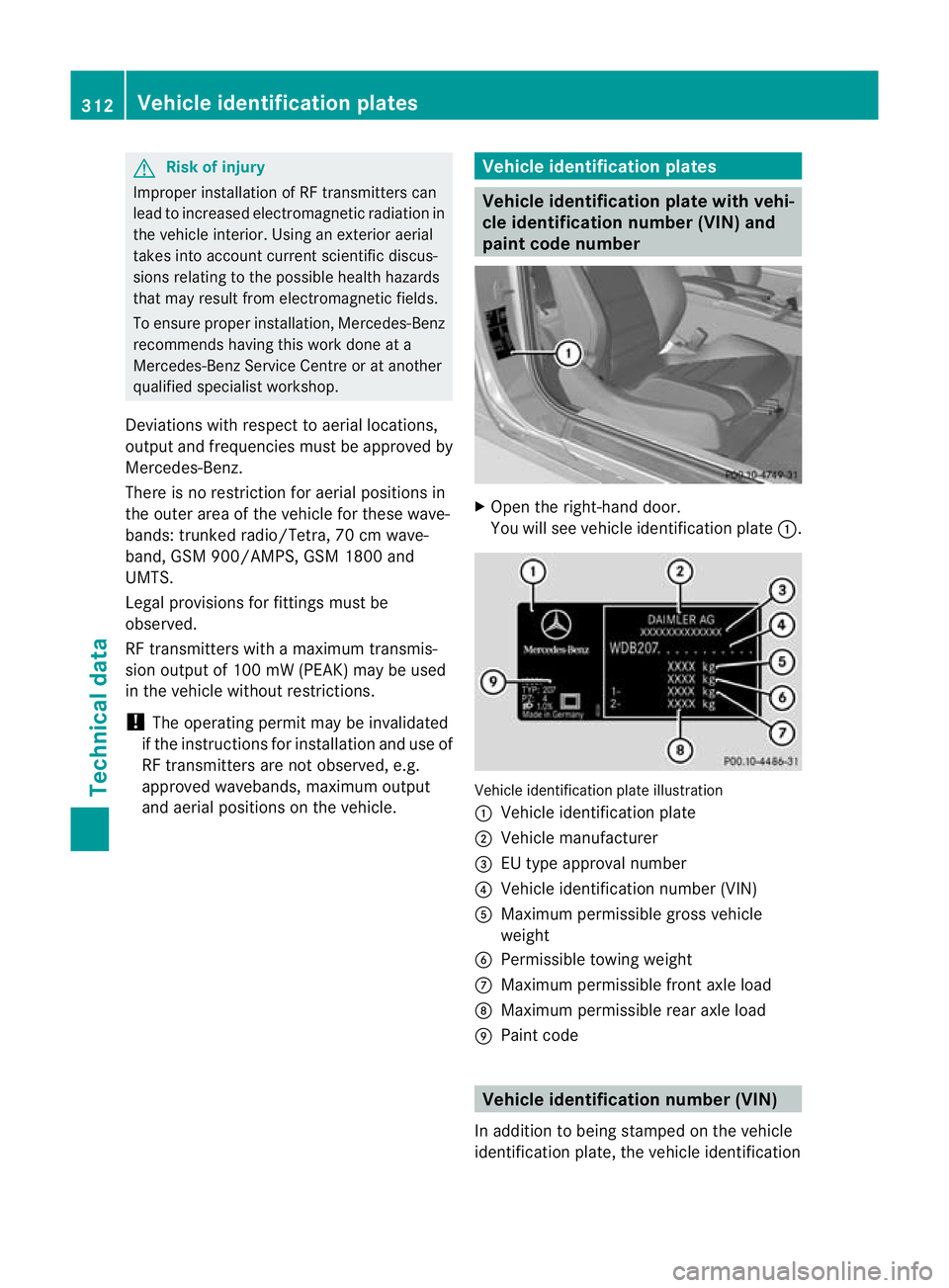

You will see vehicle identification plate :. Vehicle identi
ficatio nplate illustration
: Vehicle identification plate
; Vehicle manufacturer
= EU type approval number
? Vehicle identification number (VIN)
A Maximum permissible gross vehicle
weight
B Permissible towing weight
C Maximum permissible fron taxle load
D Maximu mpermissible rear axle load
E Paint code Vehicle identifica
tion number (VIN)
In addition to being stamped on the vehicle
identification plate, the vehicle identification 312
Vehicle identification platesTechnical data
BA 20
7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 312
Page 316 of 333
numb
er (VIN) is also stamped onto th evehicle
body.

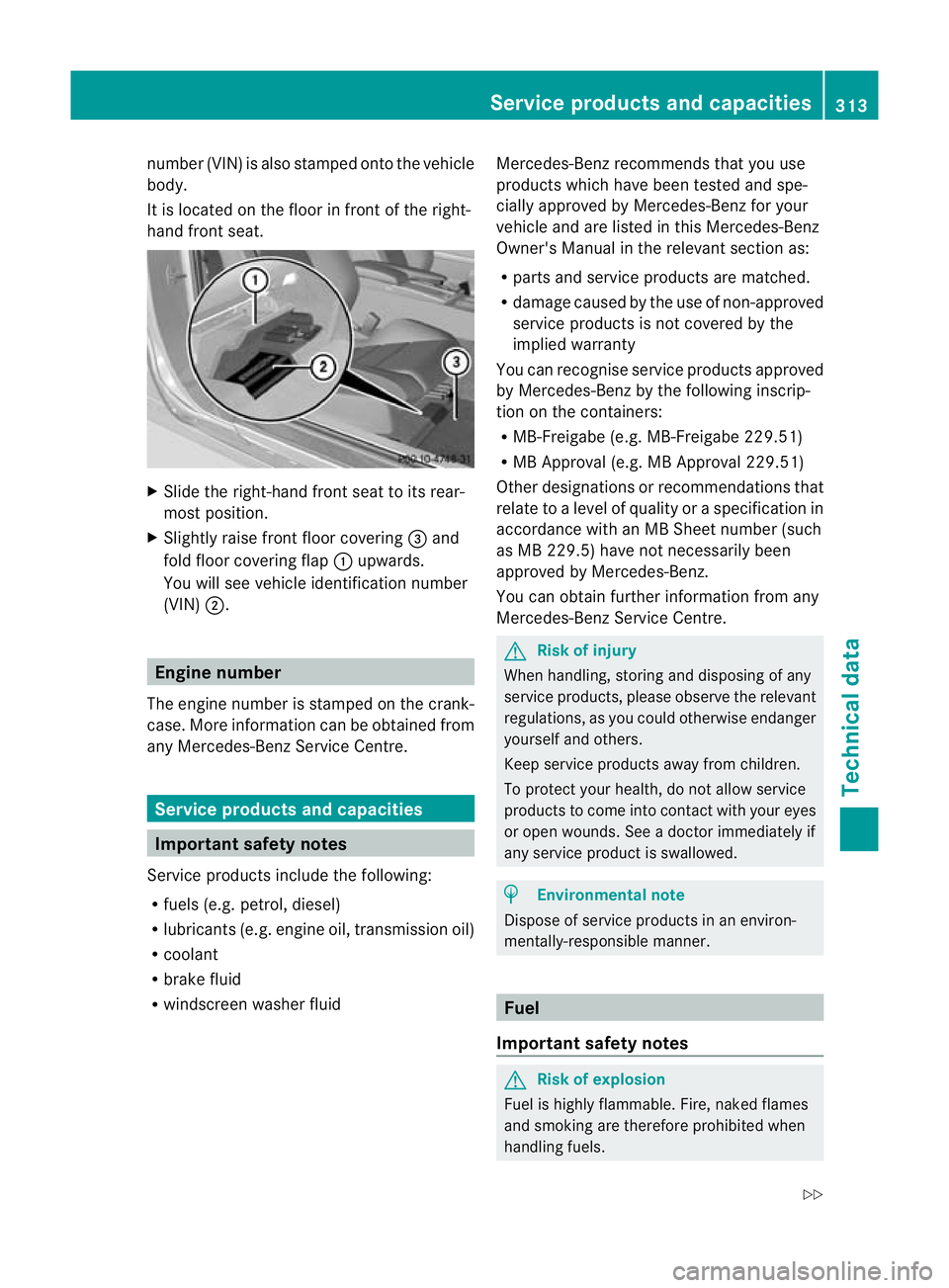

It is located on the floor in front of the right-
hand front seat. X
Slide the right-hand front seat to its rear-
most position.
X Slightl yraise front floor covering =and
fold floor covering flap :upwards.
You will see vehicle identification number
(VIN) ;. Engine number
The engine number is stamped on the crank-
case. More information can be obtained from
any Mercedes-Benz Service Centre. Servic
eproducts and capacities Important safety notes
Service products include the following:
R fuels (e.g. petrol, diesel)
R lubricants (e.g. engine oil, transmission oil)
R coolant
R brake fluid
R windscreen wash erfluid Mercedes-Ben
zrecom mends that you use
product swhich hav ebeen tested and spe-
ciall yapproved by Mercedes-Ben zfor your
vehicle and ar elisted in this Mercedes-Benz
Owner' sManual in the relevant section as:
R parts and service products are matched.
R damage caused by the use of non-approved
service products is not covered by the
implied warranty
You can recognise service products approved
by Mercedes-Benz by the following inscrip-
tion on the containers:
R MB-Freigabe (e.g. MB-Freigabe 229 .51)
R MB Approval (e.g. MB Approval 229.51)
Othe rdesignations or recommendations that
relate to alevel of quality or aspecification in
accordan cewith an MB Sheet number (such
as MB 229 .5)h ave not necessarily been
approved by Mercedes-Benz.
You can obtain further information from any
Mercedes-Benz Servic eCentre. G
Risk of inju
ry
When handling, storin gand disposing of any
service products, please observe the relevant
regulations ,asyou coul dotherwis eendanger
yourself and others.
Keep service products away from children.
To protect your health, do not allo wservice
products to com einto contact with your eyes
or ope nwounds. See adoctor immediately if
any service product is swallowed. H
Environmental note
Dispose of service products in an environ-
men tally-responsible manner. Fuel
Important safety notes G
Risk of explosion
Fuel is highly flammable. Fire, naked flames
and smokin gare therefore prohibited when
handling fuels. Servic
eprodu cts and capacities
313Technical data
BA 207ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 313 Z
Page 317 of 333
Switch off the engine before refuelling.
G
Ris
kofi njury
Do not come into contac twithf uels.
It is hazardou stoyourh ealth if your skin
com esinto direct contact with fuels or you
breathe in fuel vapo urs.
Tank capacity Total capacity 66 l
Of which reserve fuel Approx-
imately 8l !
Do not us epetrol to ref uelvehicles with a
dies elengine. Do not use dies elto refuel
vehicles with apetrol engine. Nev ermix
diesel with petrol. Even small amou ntsof
the wron gfuel result in damage to the
injection system. Damage resulting from
adding the wron gfuel is not covered by the

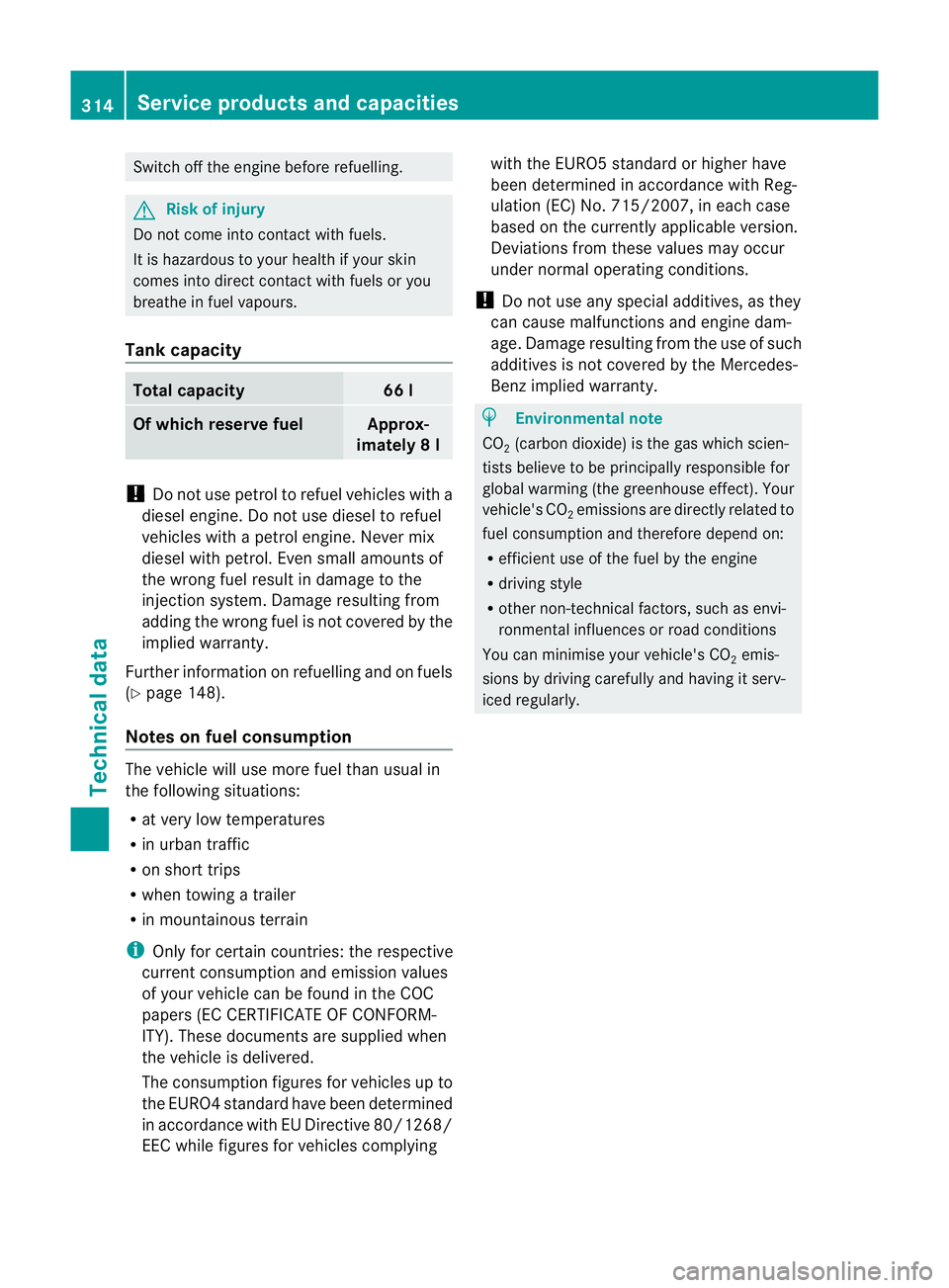

implied warranty.
Further information on refuelling and on fuels
(Y page 148).
Notes on fuel consump tion The vehicle will use mor
efuel than usual in
the following situations:
R at very low temperatures
R in urban traffic
R on sho rttrips
R when towing atrailer
R in mountainous terrain
i Only for certain countries: the respec tive
current consump tion and emission values
of your vehicle can be fou ndin the COC
papers (EC CERTIFICAT EOFCONFORM-
ITY). These documents ar esupplied when
the vehicle is delivered.
The consumption figures for vehicles up to
the EURO4 standard have been determined
in accordance with EU Directive 80/1 268/
EEC while figures for vehicles complying wit
hthe EURO5 standar dorhigher have
been determined in accordance with Reg-
ulation (EC) No. 715/2007 ,ineach case
based on the currently applicable version.
Deviations from these value smay occur
under norma loperating conditions.
! Do not use any special additives, as they
can cause malfunc tions and engin edam-
age. Damage resulting from the use of such
additives is not covered by the Mercedes-
Benz implied warranty. H
Environmental note
CO 2(carbon dioxide) is the gas which scien-
tists believe to be principally responsibl efor
global warmin g(the greenhouse effect). Your
vehicle's CO 2emissions are directly related to
fuel consumption and therefore depend on:
R efficient use of the fuel by the engine
R driving style
R othe rnon-technical factors, such as envi-
ronmental influences or road conditions
You can minimise your vehicle' sCO
2emis-
sions by driving carefull yand having it serv-
iced regularly. 314
Service products and capacitiesTechnical data
BA 207 ECE ÄJ 2010
/1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 314
Page 318 of 333
Engine oil

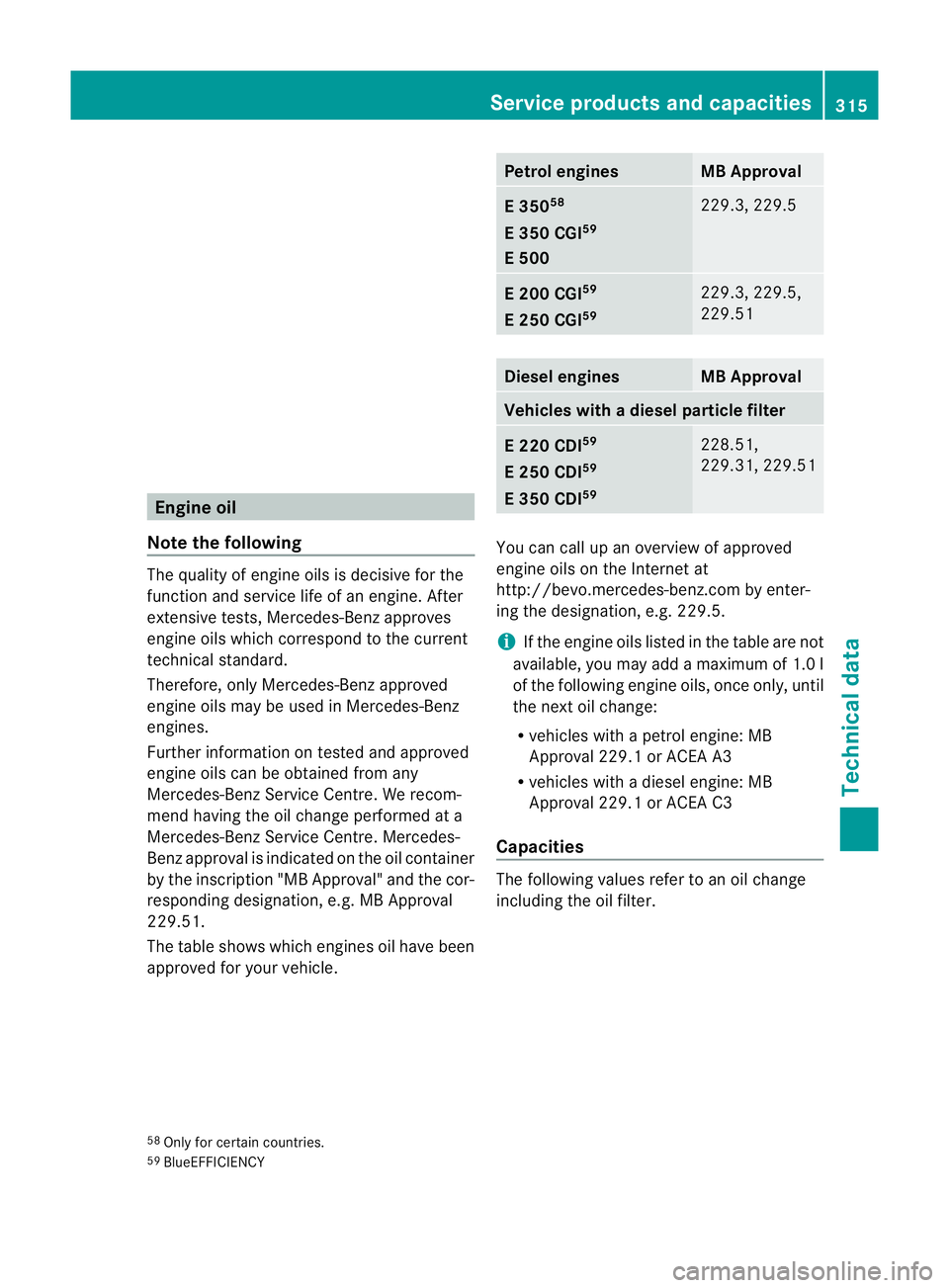

Note the following The quality of engine oils is decisive for the
func
tion and service lif eofane ngine.After
extensive tests, Mercedes-Benz approves
engine oils which correspond to th ecurrent
technical standard.
Therefore, only Mercedes-Benz approved
engine oils may be used in Mercedes-Benz
engines.
Further information on tested and approved
engine oils can be obtained from any
Mercedes-Benz Servic eCentre. We recom-
men dhaving the oil change performed at a
Mercedes-Benz Servic eCentre. Mercedes-
Benz approval is indicated on the oil container
by the inscription "MB Approval" and the cor-
responding designation, e.g. MB Approval
229.51.
The table shows which engines oil have been
approved for your vehicle. Petro
lengines MB App
roval E3
5058
E3 50 CGI 59
E5 00 229.3, 229.5
E2
00 CGI 59
E2 50 CGI 59 229.3, 229.5,
229.51 Diesel engines MB App
roval Vehicle
swithadiesel particle filter E2
20 CDI 59
E2 50 CDI 59
E3 50 CDI 59 22
8.51,
229.31, 229.51 Yo
uc an call up an overview of approved
engin eoils on the Internet at
http://bevo.mercedes-benz.com by enter-
ing the designation ,e.g. 229.5.
i If the engin eoils listed in the table are not
available, you may add amaximum of 1. 0l
of the following engin eoils, once only, until
the next oil change:
R vehicles with apetrol engine: MB
Approval 229. 1orACEA A3
R vehicles with adiesel engine: MB
Approva l229. 1orA CEA C3
Capacities The following values refer to an oil change
including the oil filter.
58 Only for certain countries.
59 BlueEFFICIENCY Service products and capacities
315Technical data
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafaV ersion: 3.0.2.11
2010-01-26T13:03:22+01:00
-Seite 315 Z
Page 319 of 333
Vehicl

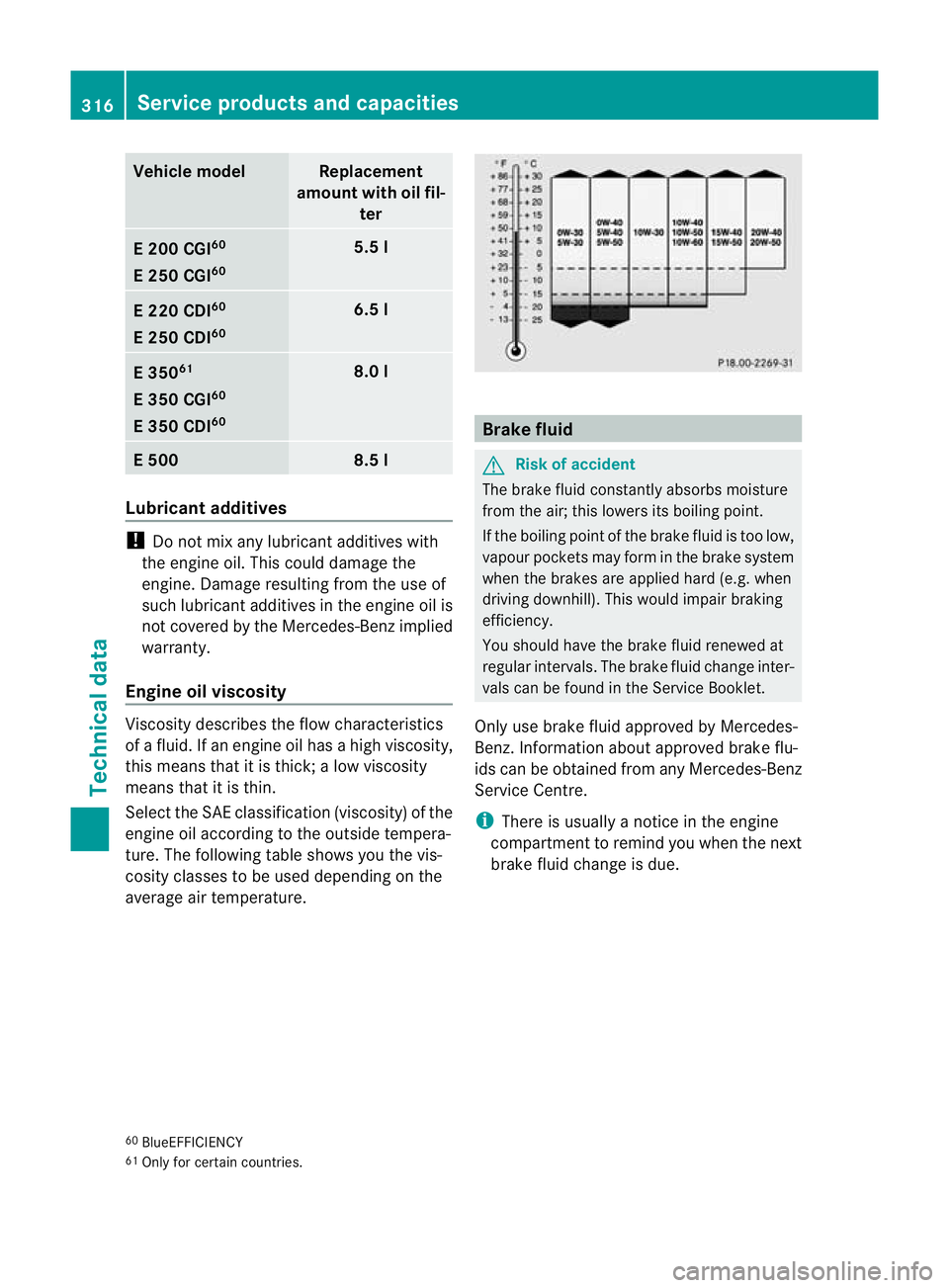

emodel Replacement
amou nt with oil fil-
ter E2
00 CGI 60
E2 50 CGI 60 5.5 l
E2
20 CDI 60
E2 50 CDI 60 6.5 l
E3
5061
E3 50 CGI 60
E3 50 CDI 60 8.0 l
E5
00 8.5 l
Lubricant additives
!
Do not mix any lubrican tadditives with
the engin eoil. This could damage the
engine. Damage resultin gfrom th euse of
suc hlubricant additives in the engine oil is
not covered by the Mercedes-Benz implied
warranty.
Engin eoil viscosity Viscosit
ydescribes the flow characteristics
of afluid. If an engin eoil has ahigh viscosity,
this means that it is thick; alow viscosity
means that it is thin.
Selec tthe SA Eclassification (viscosity )ofthe
engine oil accordi ngto the outside tempera-
ture. The followin gtable shows you the vis-
cosity classes to be used depending on the
average air temperature. Brake fluid
G
Risk of accident
The brak efluid constantly absorbs moisture
fro mt he air ;this lower sits boiling point.
If the boiling point of the brake fluid is too low,
vapour pockets may form in the brake system
when the brakes are applied hard (e.g. when
driving downhill). Thi swould impair braking
efficiency.
You should have the brake fluid renewed at
regular intervals. The brake fluid change inter-
val sc an be found in the Service Booklet.
Only use brake fluid approved by Mercedes-
Benz .Information abou tapproved brak eflu-
ids can be obtained from any Mercedes-Benz
Service Centre.
i There is usually anotic eint he engine
compartmen ttoremin dyou when the next
brake fluid change is due.
60 BlueEF FICIENCY
61 Only for certain countries. 316
Service products and capacitiesTechnical data
BA 20
7ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 316
Page 320 of 333
Coolant

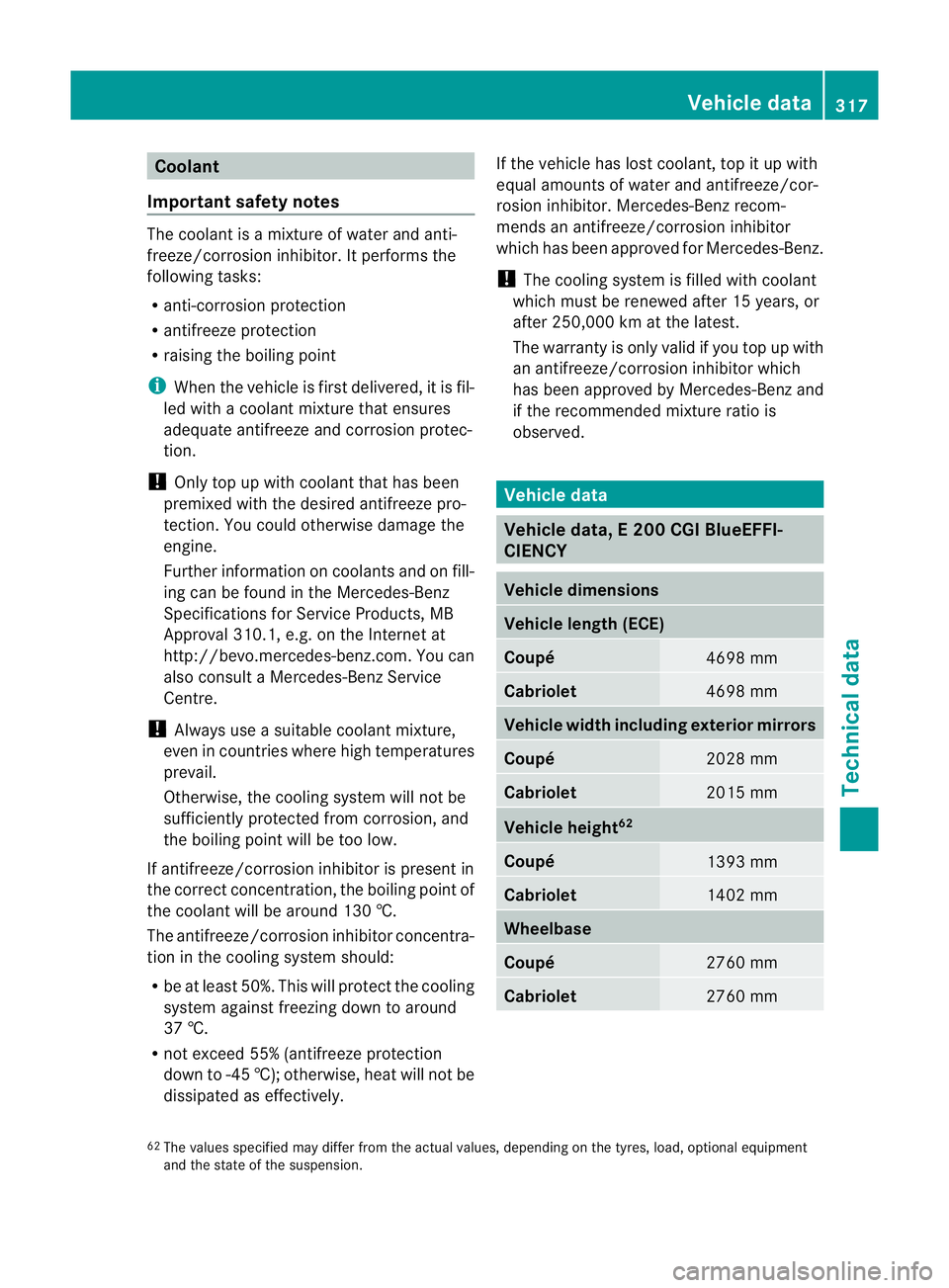

Important safety notes The coolan
tisamixture of water and anti-
freeze/corrosio ninhibitor. It performs the
following tasks:
R anti-corrosio nprotection
R antifreeze protection
R raising th eboiling point
i When the vehicle is first delivered, it is fil-
led with acoolant mixtur ethat ensures
adequate antifreeze and corrosion protec-
tion.
! Only top up with coolant that has been
premixed with the desired antifreeze pro-
tec tion. You coul dotherwis edamage the
engine.
Further information on coolants and on fill-
ing can be found in the Mercedes-Benz
Specifications for Service Products, MB
Approval 310.1 ,e.g. on the Internet at
http ://bevo.mercedes-benz.com .You can
also consult aMercedes-Benz Service
Centre.
! Alway suseasuitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the cooling system will not be
sufficiently protected from corrosion, and
the boiling point will be too low.
If antifreeze/corrosio ninhibitor is present in
the correc tconcentration, the boilin gpoint of
the coolant will be around 13 0†.
The antifreeze/ corrosion inhibitor con centra-
tion in the cooling system should:
R be at leas t50%. This wil lprotect the cooling
system against freezing down to around
37 †.
R not exceed 55% (antifreeze protection
down to -45 †); otherwise ,heat will not be
dissipated as effectively. If the vehicle has lost coolant, top it up with
equal amounts of water and antifreeze/cor-
rosion inhibitor. Mercedes-Ben
zrecom-
mends an anti freeze/cor rosion inhibitor
whic hhas been approved for Mercedes -Benz.
! The coolin gsystem is filled with coolant
which must be renewed after 15 years, or
after 250,000 km at the latest.
The warrant yisonly valid if you top up with
an antifreeze /corrosion inhibitor which
has been approved by Mercedes-Ben zand
if the recommend edmixt urer atio is
obser ved. Vehicl
edata Vehicle data,
E200 CG IBlueEFFI-
CIENCY Vehicle dimensions
Vehicle length (ECE)
Coupé
4698 mm
Cabri
olet 469
8mm Vehicle width including exterio
rmirrors Coupé
20
28 mm Cabriolet
201
5mm Vehicle height
62 Coupé
139
3mm Cabriolet
140
2mm Wheelbase
Coupé
276
0mm Cabriolet
276
0mm 62
Thev alues specified may diffe rfrom the actual values ,depending on the tyres, load, optional equipment
and the state of the suspension. Vehicl
edata
317Technical data
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 317 Z
