MERCEDES-BENZ E-CLASS CABRIOLET 2010 Owners Manual

as when con
necting the do norb atter yin
the jump-starting procedure
(Y page 289). Reconnecting th
ebattery
! Always connect the battery in the order
described below. Never swap the terminal
clamps. Yo umay otherwise damage the
vehicle elect ronics.
X Switch off all ele ctrical consumers, e.g.
radio, blower, etc.
X Connect the positiv eterminal clamp and
secur ethe cov er.
X Connect th enegative termina lclamp.
X Put th efilter box back in place, then clip in
and close th eretaining clamps.
X Close th ebonnet.
i If th epower supply has been interrupted,
e.g .ift he battery has been reconnected,
you must carry out the followin gtasks:
R set the clock (Y page 205)
R reset the function for folding the exterior
mirrors in/out automatically by folding
the mirrors out once (Y page 102)288
BatteryBreakdown assistance
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa
Version:3.0.2.11
2010-01-26T13:03:22+01:00
-Seite 288

Jum
p-starting G
Risk of injury
There is arisk of acid burns when jump-starting avehicle due to the gases which escape from
the battery. Do not lean over the batter ywhile the engin eisbeing jump-started. G
Risk of explosion
Gases escapin gfrom th ebattery during jump-starting may cause minor explosions. Avoid cre-
ating sparks. Keep naked flames away from the battery, and do not smoke.
Comply with safety precautions when handling batteries. You will find these under "Battery" in
the index.
! Avoid repeated and lengthy startin gattempts. Otherwise, non-combuste dfuel may dam-
age the catalytic converter 41
and create arisk of fire.
Do not use arapid-charging device to start the engine.
Make sure the jump leads are not damaged.
Make sure the jump leads are not touching any other metal objects when they are connected
to the battery.
If your vehicle's battery is discharged ,the engin ecan be jump-started from another vehicle
or from asecond batter yusing jum pleads.
Observ ethe followin gpoints:
X The battery is not accessible in all vehicles. If the other vehicle' sbattery is not accessible,
jump-start the vehicle using asecond batter yorajump-star ting device.
X Only jump-start the vehicl ewhen th eengineisc old an dthe catalytic converter system has
cooled down 42
.
X Do no tstart the engine if the battery is frozen. Let the battery thaw first.
X Jump-starting may only be performed from batterie swithanominal voltage of 12 V.
X Only use jum pleads which have asufficient cross-section and insulated terminal clamps.
X Make sure that the jump leads cannot come into contact with parts, such as the pulley or
the fan. Thes eparts move when the engine is started and while it is running.
X If the battery is fully discharged ,leave the batter ythat is being used to jump-star tconnected
for afew minutes befor eattempting to start. This charges the battery alittle.
i Jump leads and further information about jump-startin gcan be obtained from any
Mercedes-Ben zService Centre.
X Make sure that the two vehicles do not touch.
X Apply the parking brak efirmly.
X Manual transmission: engage neutral.
X Automatic transmission: move the selector lever toP.
X Switch off all electrical consumer s(e.g. radio, blower, etc.).
X Open the bonnet (Y page 259).
41 Only vehicles with apetrol engine.
42 Only vehicles with apetrol engine. Jump-starting
289Breakdown assistance
BA 207ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 289 Z

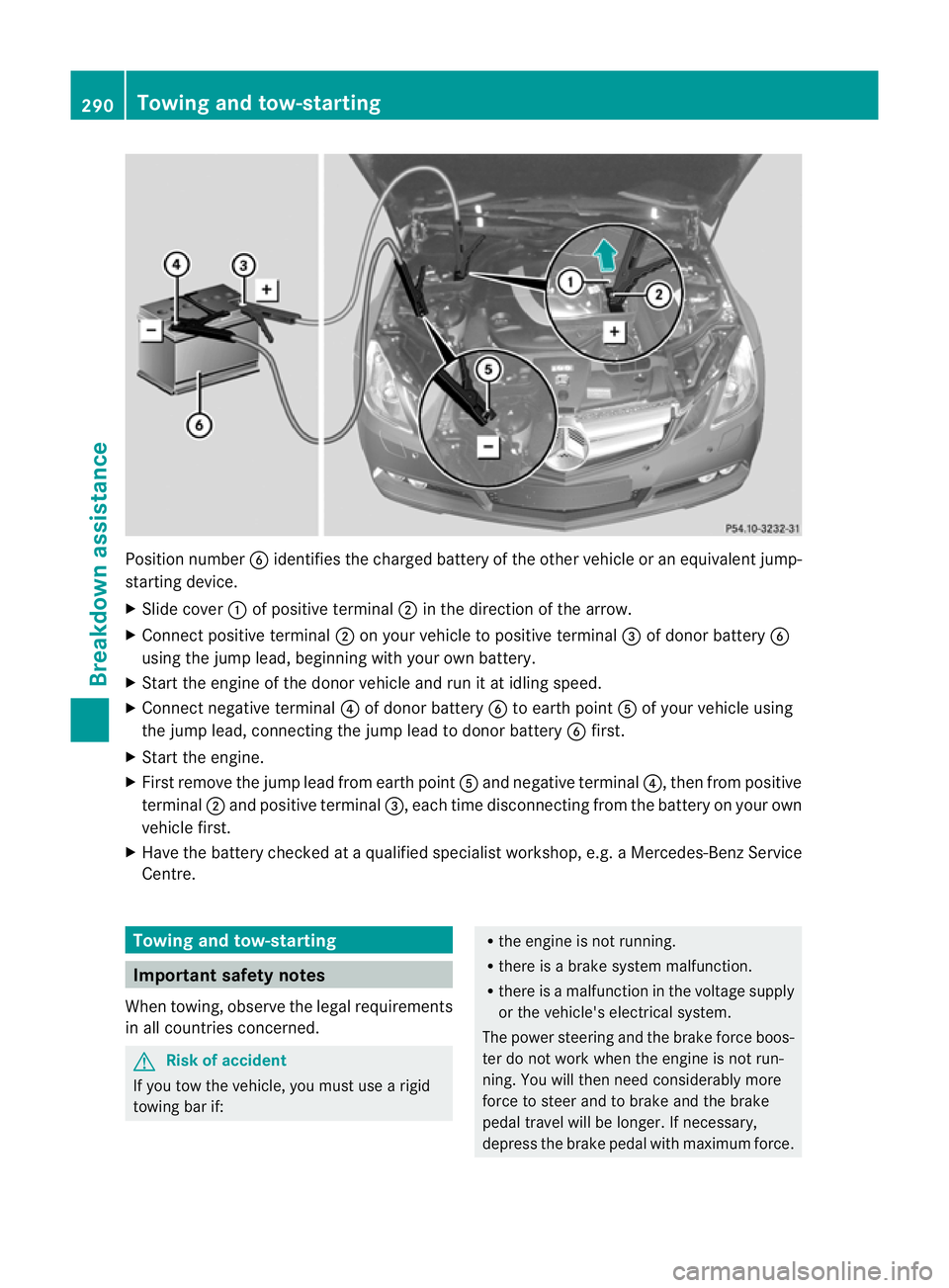

Position number
Bidentifie sthe charged batter yofthe other vehicle or an equivalen tjump-
starting device.
X Slide cover :of positive terminal ;in the direction of the arrow.
X Connec tpositiv eterminal ;on your vehicle to positiv eterminal =of donor battery B
using the jum plead, beginning with your own battery.
X Start the engine of the donor vehicle and run it at idling speed.
X Connect negative terminal ?of donor battery Bto eart hpoint Aof your vehicle using
the jum plead, connectin gthe jum plead to donor battery Bfirst.
X Start the engine.
X First remove the jum plead from eart hpoint Aand negative terminal ?,then from positive
terminal ;and positive terminal =,each time disconnecting from the battery on your own
vehicle first.
X Have the battery checked at aqualified specialist workshop, e.g. aMercedes-Ben zService
Cent re. Towin
gand tow-star ting Important safet
ynotes
When towing, observe the legal requirements
in all countries concerned. G
Risk of accident
If you tow the vehicle, you must use arigid
towing bar if: R
the engin eisnot run ning.
R there is abrake system malfunction.
R there is amalfunction in the voltage supply
or the vehicle's electrical system.
The power steering and the brake forc eboos-
ter do not work when the engin eisnot run-
nin g. Yo uwill then need considerably more
forc etos teer and to brake and the brake
peda ltrave lwill be longer. If necessary,
depress the brake pedal with maximum force. 290
Towing and tow-startingBreakdown assistance
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa
Version: 3.0.2.11
2010-01-26T13:03:22+01:00
-Seite 290

Befor
etowing away ,make sur ethat the steer-
ing can be mov edand is not locked.
If yo utow or tow- start another vehicle, its
weigh tmustn ot excee dthe maximum per-
missible gross vehicle weigh tofyour vehicle. G
Risk of accident
The vehicle is braked when the HOL Dfunction
or DISTRONIC PLUS is activated. Therefore,
deactivate HOLD and DISTRONIC PLUS if the
vehicle is to be towed.
It is better to have the vehicle transported
than to have it towed.
! Whe ntowing, pull away slowly and
smoothly. If the tractive power is too high,
the vehicles coul dbedamaged.
! Do not use the towing eye for recovery,
as this could damage the vehicle. If in
doubt, recover the vehicle with acrane.
! Youm ay tow the vehicle for amaximum
of 50 km. Atowing speed of 50 km /h must
no tbee xceeded.
For towing distances over 50 km, the entire
vehicl emust be lifted up and transported.
! On vehicles with KEYLESS-GO, use the
key instead of the Start/Stop button .Turn
the key to position 2in the ignition lock and
shif tthe automatic transmission to N.
Then, turn the key back to 0and leave it in
the ignitio nlock.
! Only secur ethe tow cable or towing bar
to the towing eyes. You could otherwise
damage the vehicle.
Please note:
R vehicles with an automatic transmission
must not be tow-started.
R if you ar etowing the vehicle over alonger
distance, this must be done with the rear
axle raised.
R the ignition must be switched off if you are
towin gthe vehicle with the rea raxle raised. Intervention by ESP
®
could otherwis edam-
age the brake system.
R if the vehicle has suffered transmission
damage, only tow it with the propelle rshaft
disconnected.
R if the engin edoes not start, tr yjump-start-
ing it (Y page 289).
R if it is not possible to jump-start the vehicle,
have it towed to the nearest qualified spe-
cialist workshop, e.g. aMercedes-Benz
Servic eCentre.
R the automatic transmission must be in
position Nwhen the vehicle is being towed.
Before towing the vehicle, mak esure that the
battery is connected and charged. You will
otherwis ebeunable to switch on the ignition
or shift the transmissio ntoNin vehicles with
an automatic transmission.
i Switch off the automatic locking feature
before the vehicle is towed (Y page 208).
You could otherwise be locked out when
pushing or towing the vehicle. Fitting the towing eye
Vehicles with atrailer to whitch: if you intend
to use the vehicle for towing, fold out the ball
coupling and connect the towbar to it
(Y page 186).
X Take the towing eye and the wheel wrench
from the vehicle tool kit (Y page 274).
The mountings for the removable towing eyes
are located in the bumpers. They are at the
front and at the rear ,under the covers. Towing and tow-starting
291Breakdown assistance
BA 207 ECE ÄJ 2010/1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 291 Z

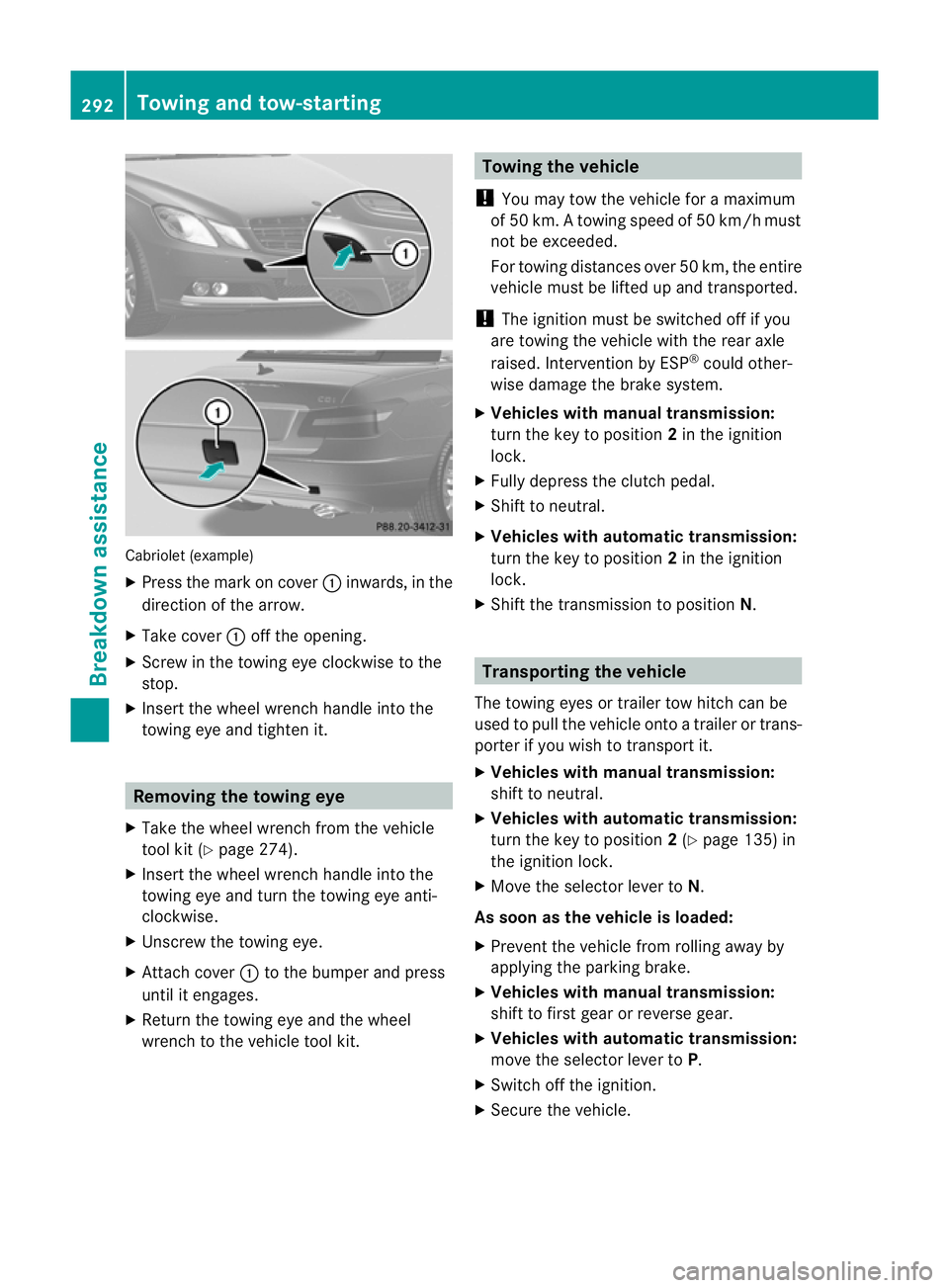

Cabriolet (example)
X
Press the mark on cover :inwards, in the
direction of the arrow.
X Take cover :off the opening.
X Screw in the towing eye clockwise to the
stop.
X Insert the wheel wrench handle into the
towin geye and tighte nit. Removing the towing eye
X Take the whee lwrenc hfrom th evehicle
tool kit (Y page 274).
X Insert the wheel wrench handle into the
towing eye and tur nthe towing eye anti-
clockwise.
X Unscrew the towing eye.
X Attach cover :to the bumper and press
until it engages.
X Return the towing eye and the wheel
wrenc htothe vehicle tool kit. Towing th
evehicle
! You may tow the vehicle for amaximum
of 50 km. Atowing speed of 50 km/h must
not be exceeded.
For towin gdistances over 50 km, the entire
vehicle must be lifted up and transported.
! The ignition must be switched off if you
are towing the vehicle with the rear axle
raised. Interven tion by ESP ®
coul dother-
wise damage the brake system.
X Vehicles with manua ltransmission:
turn the key to position 2in the ignition
lock.
X Fully depress the clutch pedal.
X Shift to neutral.
X Vehicles with automatic transmission:
turn the key to position 2in the ignition
lock.
X Shift the transmission to position N. Transporting the vehicle
The towing eyes or trailer tow hitch can be
used to pull the vehicle onto atrailer or trans-
porter if yo uwish to transport it.
X Vehicles with manu altransmission:
shift to neutral.
X Vehicles with automatic transmission:
turn the key to position 2(Y page 135) in
the ignition lock.
X Move the selector lever to N.
As soon as the vehicl eisloaded:
X Prevent the vehicle from rolling away by
applying the parking brake.
X Vehicles with manua ltransmission:
shift to first gear or reverse gear.
X Vehicles with automatic transmission:
move the selector lever to P.
X Switch off the ignition.
X Secure the vehicle. 292
Towing and tow-startingBreakdown assistance
BA 207 ECE ÄJ 2010
/1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 292

!
Only lash the vehicle down by the wheels
or wheel rims, not by parts of the vehicle
suc hasa xle or steering components. Oth-
erwise, the vehicl ecould be damaged. Tow-star
ting (emergency engine
starting)
Please note:
R vehicles with an automatic transmission
must not be tow-started.
R the batter ymust be connected.
R the engine and catalytic converter must be
cold.
R avoid repeated and lengthy starting
attempts.
Vehicles with manual transmission:
X Turn the key to position 2in the ignition
lock.
X Fully depres sthe clutc hpedal.
X Shif tton eutral.
X Tow the vehicle or let it roll.
X Shif ttoas uitable gear and bring the clutch
pedal up slowly. Do not depres sthe accel-
erator pedal.
The engin eisstarted. Fuses
Important safet
ynotes
The fuses in your vehicle serve to close down
faulty circuits. If afuse blows, all the compo-
nen tson th ecircuit and their function swill
fail. G
Ris
koff ire
Only use fuses that have been approve dfor
Mercedes-Ben zvehicles and which have the
cor rect fuse rating for the systems con-
cerned. Do not attempt to repai rorbridge
faulty fuses .Otherwise, acircuit overload
could cause afire. Have the cause traced and
rectified at aqualified specialist workshop,
e.g. aMercedes-Benz Ser vice Centre. Blow
nfuses must be replaced with fuses of
the same rating, which you can recognise by
the colour and value. The fuse ratings are lis-
ted in the fuse allocation chart .AMercedes-
Ben zService Cent rewill be happy to advise
you.
If the newly inserted fuse also blows, have the
cause traced and rectified at aqualified spe-
cialist workshop, e.g. aMercedes-Benz
Ser vice Centre.
! Onlyuse fuses that hav ebeen approved
for Mercedes-Ben zvehicles and which
have the cor rect fuse rating for the system
concerned. Otherwise, compo nentso rsys-
tems could be damaged. Befor
echangin gafuse
X Park th evehicle and apply the parking
brake.
X Swit choff all elect rical consumers.
X Remove the key from the ignitio nlock.
The fuses ar elocated in variou sfuse boxes:
R fuse box on the driver' sside of the dash-
board
R fuse box in the engin ecompartmen tonthe
driver's side
R fuse box in the boot on the right when
viewed in the direction of travel
The fuse allocation char tisl ocated in the
vehicle tool kit (Y page 274)in the stowage
compar tment under the boot floor. Fuse box under the dashboard
! Do not use apointed objec tsuch as a
screwdriver to open the cover in the dash-
board. You could damage the dashboard or
the cover. Fuses
293Breakdown assistance
BA 207ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:00
-Seite 293 Z

X

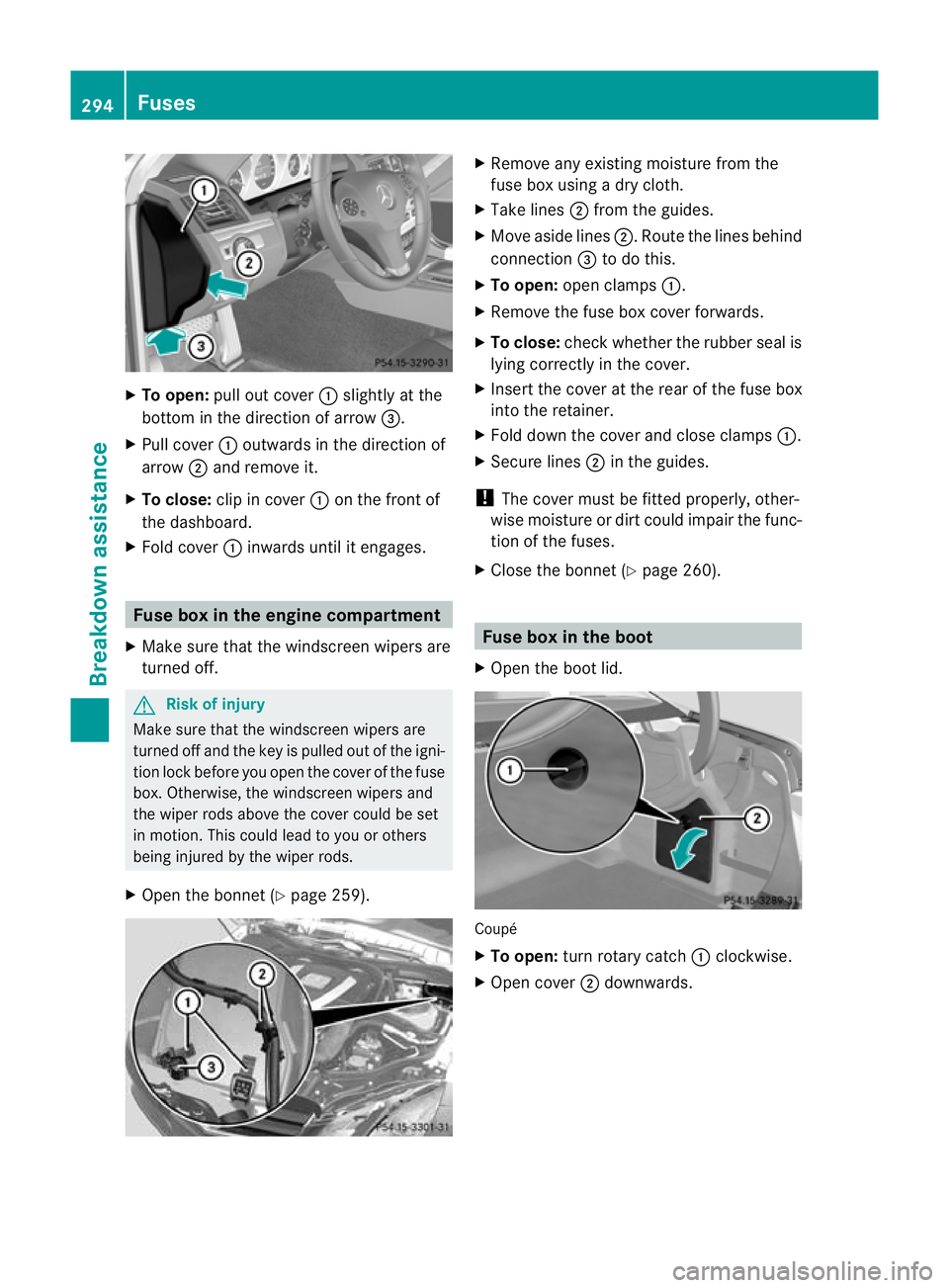

To open: pull outcover :slightly at the
bottom in the direction of arrow =.
X Pull cover :outwards in the direction of
arrow ;and remove it.
X To close: clip in cover :on the front of
the dashboard.
X Fold cover :inwards until it engages. Fuse box in th
eengine compartment
X Make sure that the windscreen wiper sare
turne doff. G
Ris
kofi njury
Make sure that the windscreen wipers are
turned off and the key is pulled out of the igni-
tion lock befor eyou open the cover of the fuse
box. Otherwise, the windscreen wiper sand
the wipe rrods abov ethe cover coul dbeset
in motion .This coul dlead to you or others
being injured by the wiper rods.
X Open the bonnet (Y page 259). X
Remov eany existing moisture from the
fuse box using adry cloth.
X Take lines ;from th eguides.
X Move aside lines ;.Route the lines behind
con nection =to do this.
X To open: open clamps :.
X Remove the fuse bo xcover forwards.
X To close: checkwhether the rubber seal is
lyin gcorrectly in the cover.
X Insert the cover at the rea rofthe fuse box
int ot he retainer.
X Fold down the cover and close clamps :.
X Secur elines ;in the guides.
! The cover must be fitted properly, other-
wise moisture or dirt could impair the func-
tion of the fuses.
X Close the bonnet (Y page 260). Fuse box in the boot
X Open the boot lid. Coupé
X
To open: turn rotarycatch :clockwise.
X Open cover ;downwards. 294
FusesBreakdown assistance
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa
Version:3.0.2.11
2010-01-26T13:03:22+01:00
-Seite 294

Cabriolet
X

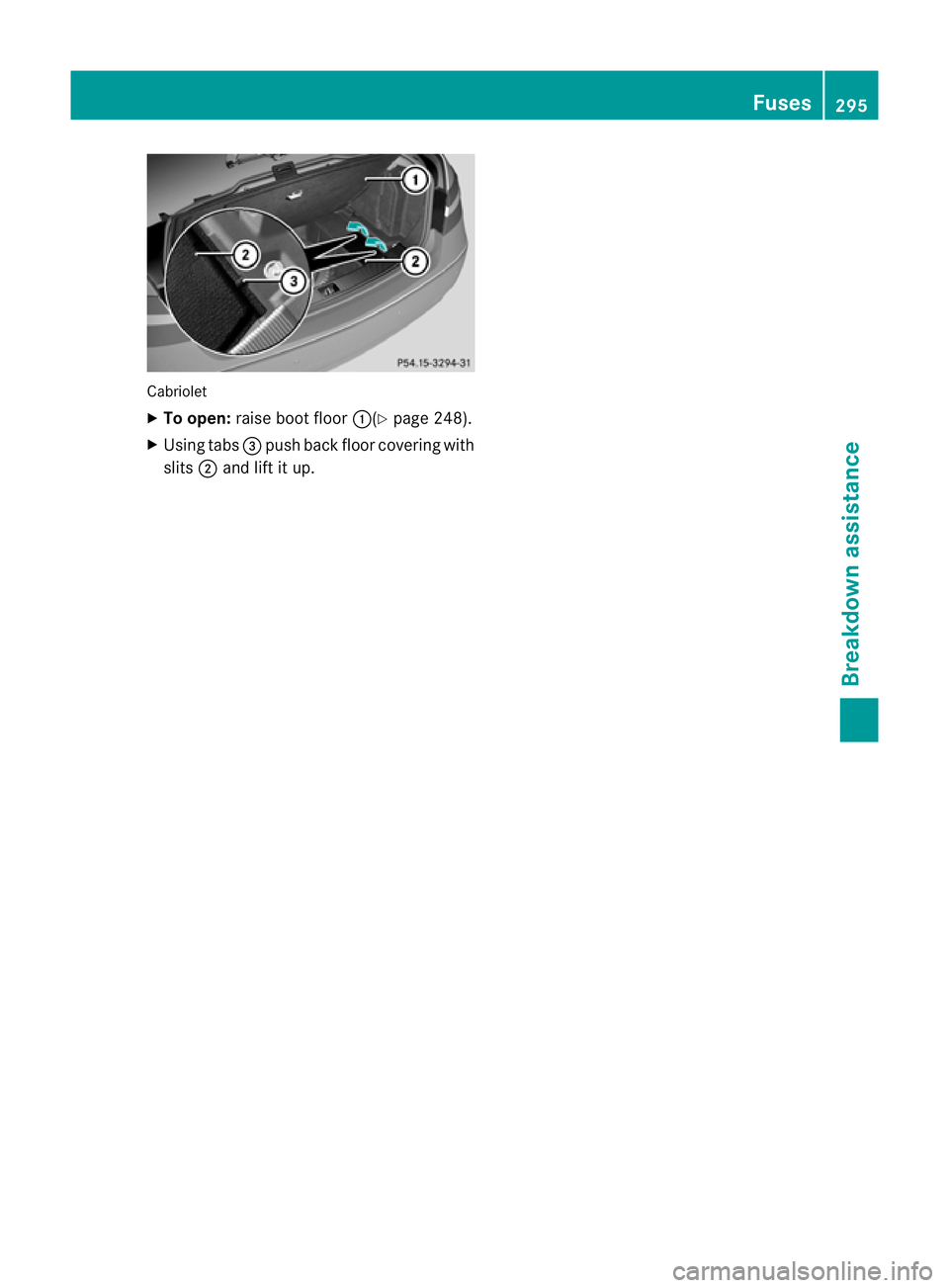

To open: raise bootfloor :(Y page 248).
X Usin gtabs =push back floor coverin gwith
slits ;and lift it up. Fuses
295Breakdown assistance
BA 207ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 295 Z

296 BA 20
7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 296

Vehicl
eequipment ............................ 298
Important safet ynotes .................... 298
Directives to be observed ................298
Maintenance and car eofwheels
and tyres ............................................ 299
Tyr epressures .................................. 299
Direction of rotation .........................302
Interchanging the wheels ................302
Wheel and ty recombinations ..........303 297Tyres and wheels
BA 20
7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 297
