MERCEDES-BENZ E-CLASS ESTATE 2012 Owner's Guide

28

Cockpit
................................................. 30
Instrumen tcluster .............................. 32
Multifunction steering wheel .............35
Centre console .................................... 36
Overhea dcontrol panel ...................... 39
Door control panel .............................. 40 29At a glance

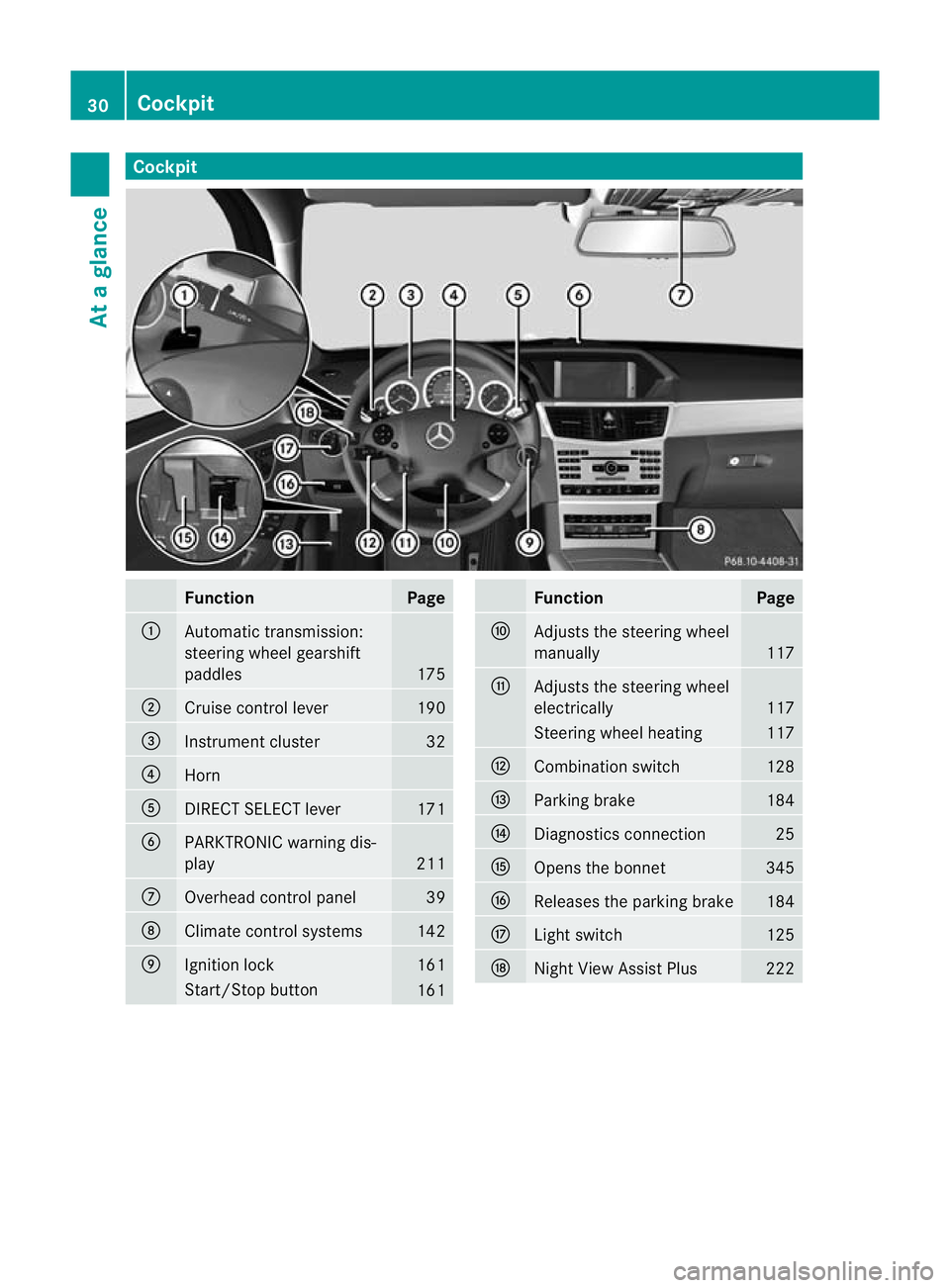

Cockpit
Function Page
:
Automatic transmission:
steering wheel gearshift
paddles
175
;
Cruise control lever 190
=
Instrument cluster 32
?
Horn
A
DIRECT SELECT lever 171
B
PARKTRONIC warning dis-
play
211
C
Overhead control panel 39
D
Climate control systems 142
E
Ignition lock 161
Start/Stop button
161 Function Page
F
Adjusts the steering wheel
manually 117
G
Adjusts the steering wheel
electrically 117
Steering wheel heating 117
H
Combination switch 128
I
Parking brake 184
J
Diagnostics connection 25
K
Opens the bonnet 345
L
Releases the parking brake 184
M
Ligh
tswitch 125
N
Night View Assist Plus 22230
CockpitAt a glance

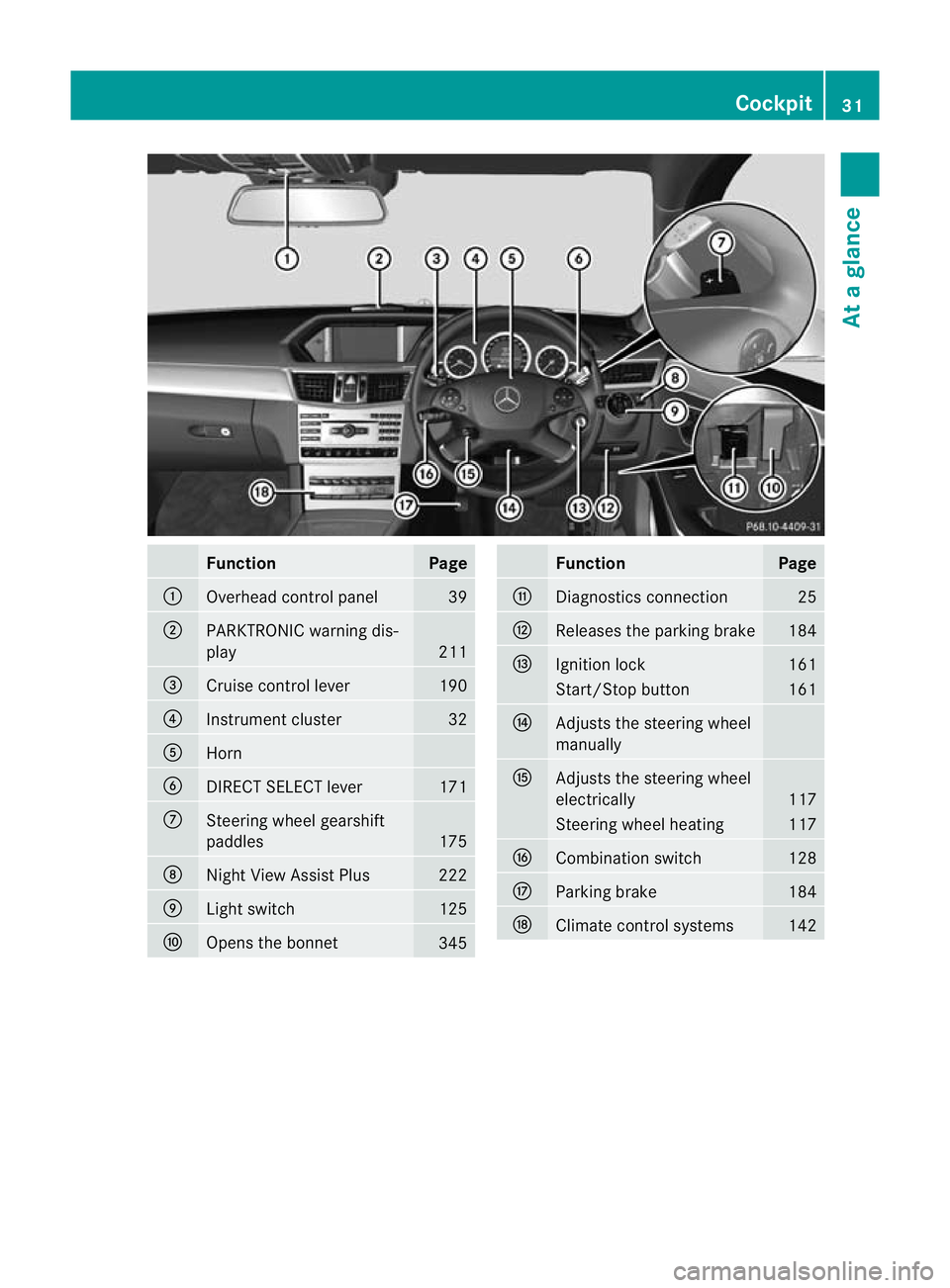

Function Page
:
Overhead control panel 39
;
PARKTRONIC warning dis-
play
211
=
Cruise control lever 190
?
Instrument cluster 32
A
Horn
B
DIRECT SELECT lever 171
C
Steering wheel gearshift
paddles
175
D
Nigh
tView Assist Plus 222
E
Light switch 125
F
Opens the bonnet
345 Function Page
G
Diagnostics connection 25
H
Releases the parking brake 184
I
Ignition lock 161
Start/Stop button 161
J
Adjusts the steering wheel
manually
K
Adjusts the steering wheel
electrically
117
Steering wheel heating 117
L
Combination switch 128
M
Parking brake 184
N
Climate control systems 142Cockpit
31At a glance

Instrumen
tcluster Displays and controls
i
Instrument cluster: kilometres Function Page
:
Fuel gauge
;
Clock
:see the separate
operating instructions =
Speedometer with seg-
ments
247 Function Page
?
Multifunction display 248
A
Rev counter 247
B
Coolant temperature 246
C
Instrument cluster lighting 24632
Instrument clusterAt a glance

i

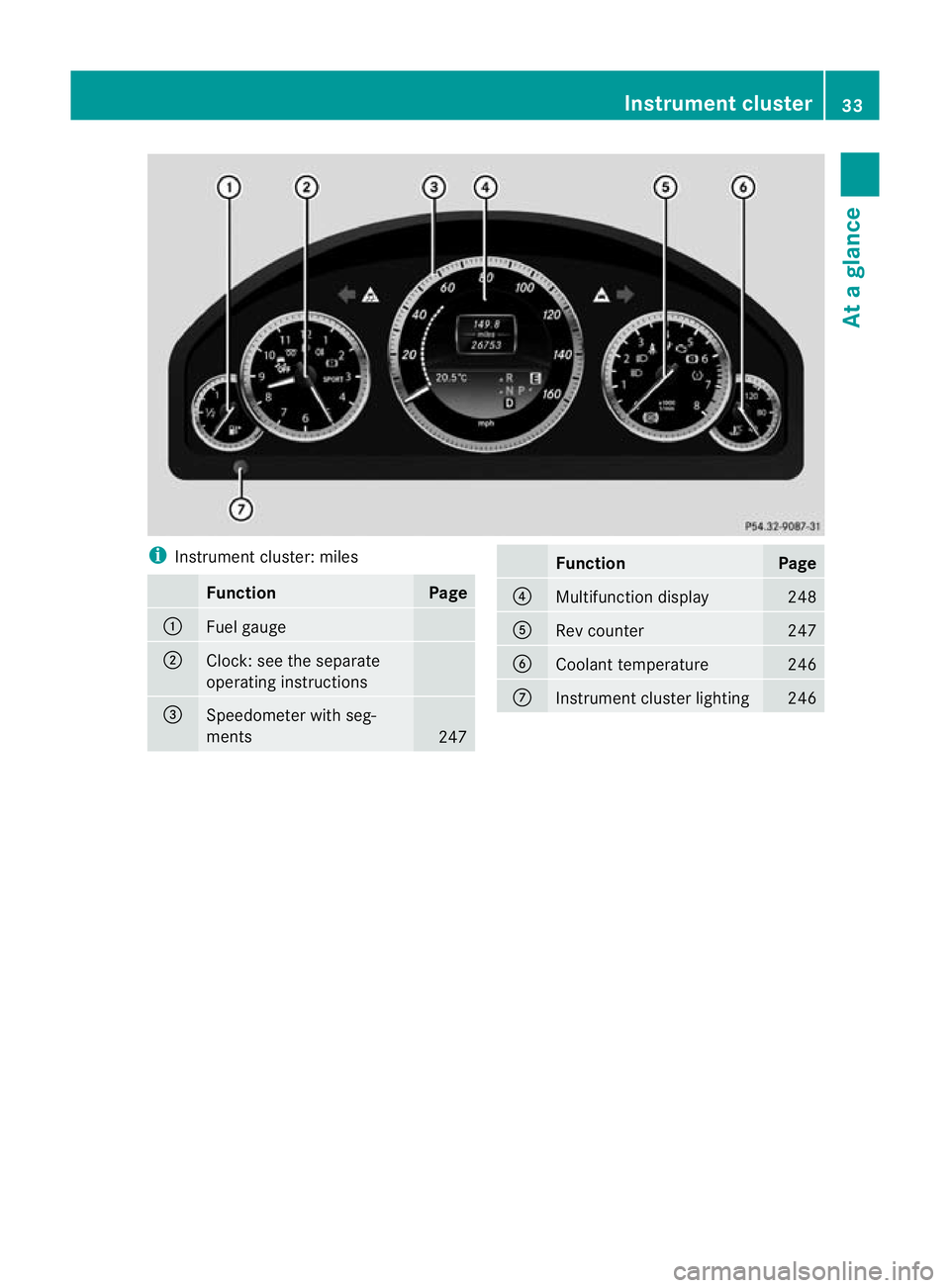

Instrument cluster: miles Function Page
:
Fuel gauge
;
Clock: see the separate
operating instructions
=
Speedometer with seg-
ments
247 Function Page
?
Multifunction display 248
A
Rev counter 247
B
Coolant temperature 246
C
Instrument cluster lighting 246Instrument cluster
33At a glance

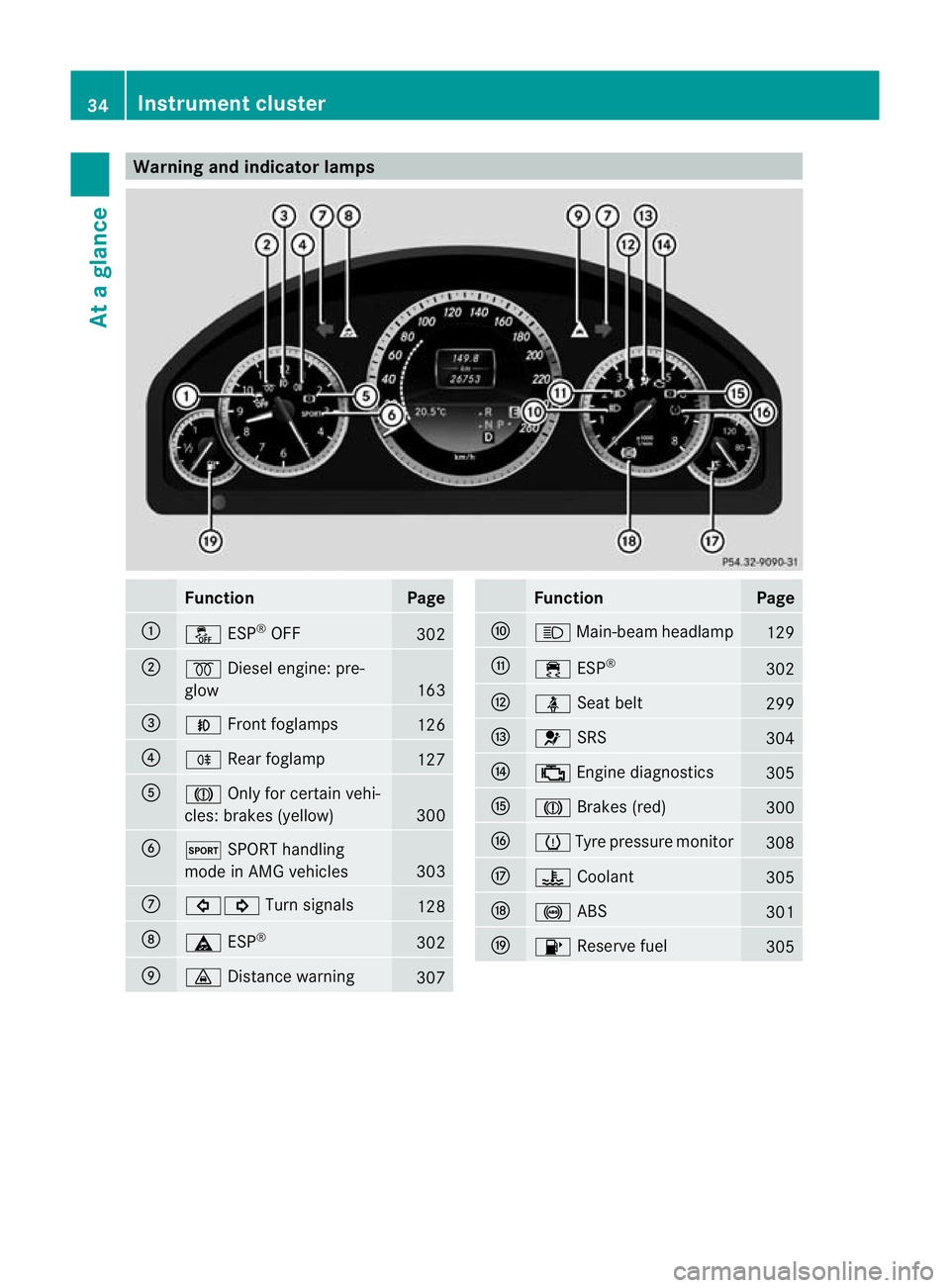

Warning and indicator lamps
Function Page
:
å
ESP®
OFF 302
;
%
Diesel engine: pre-
glow 163
=
N
Front foglamps 126
?
R
Rearfoglamp 127
A
J
Only for certain vehi-
cles: brakes (yellow) 300
B
M
SPORT handling
mode in AMG vehicles 303
C
#!
Turn signals 128
D
ä
ESP® 302
E
·
Distance warning 307 Function Page
F
K
Main-beam headlamp 129
G
÷
ESP® 302
H
ü
Seat belt 299
I
6
SRS 304
J
;
Engine diagnostics 305
K
J
Brakes (red) 300
L
h
Tyre pressure monitor 308
M
?
Coolant 305
N
!
ABS 301
O
8
Reserve fuel 30534
Instrument clusterAt a glance

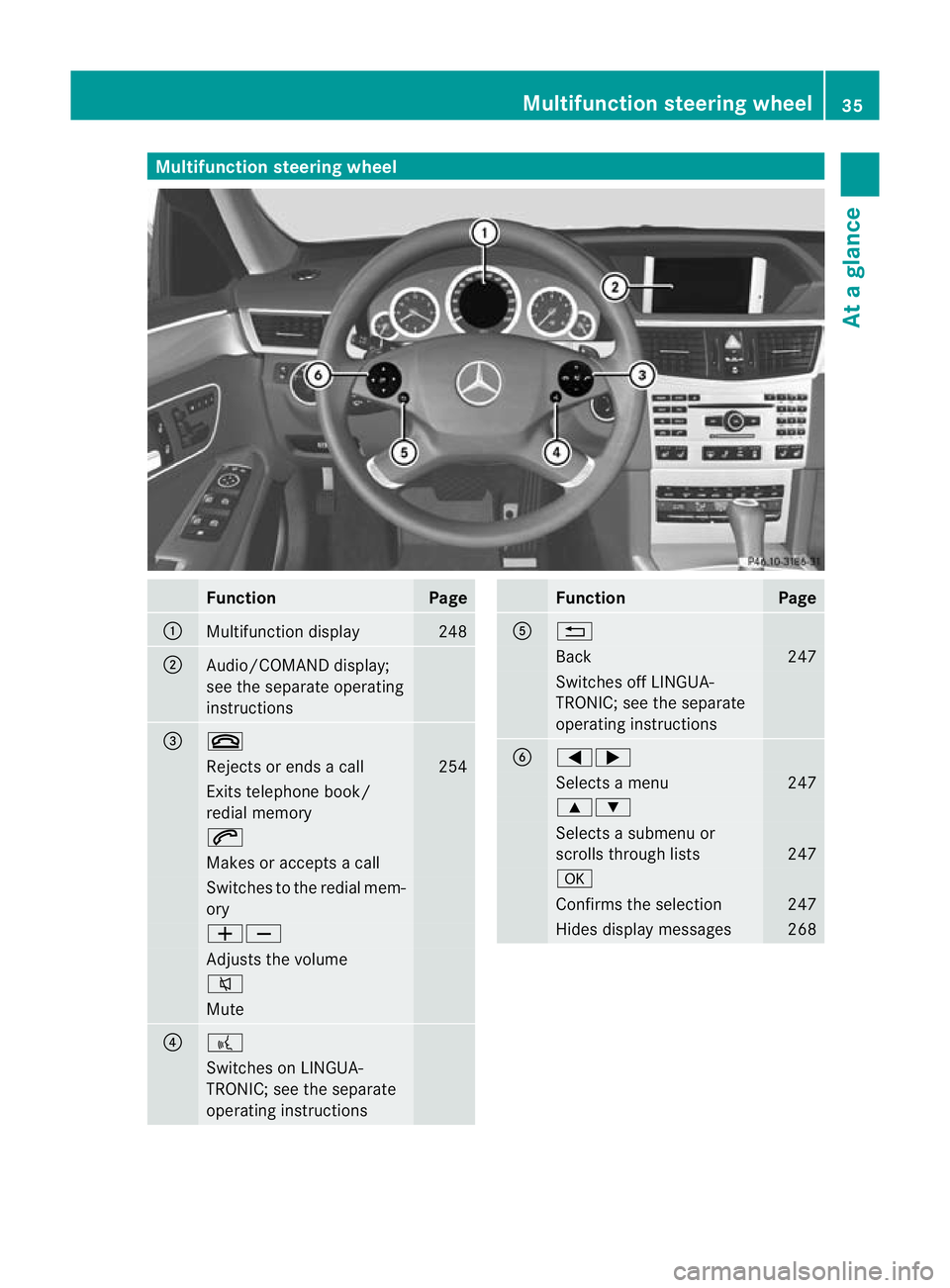

Multifunction steering wheel
Function Page
:
Multifunction display 248
;
Audio/COMAND display;
see the separate operating
instructions
=
~
Rejects or ends a call 254
Exits telephone book/
redial memory
6
Makes or accepts a call
Switches to the redial mem-
ory
WX
Adjusts the volume
8
Mute
?
?
Switches on LINGUA-
TRONIC; see the separate
operating instructions Function Page
A
%
Back 247
Switches off LINGUA-
TRONIC; see the separate
operating instructions
B
=;
Selects a menu 247
9:
Selects a submenu or
scrolls through lists
247
a
Confirms the selection 247
Hides display messages 268Multifunction steering wheel
35At a glance

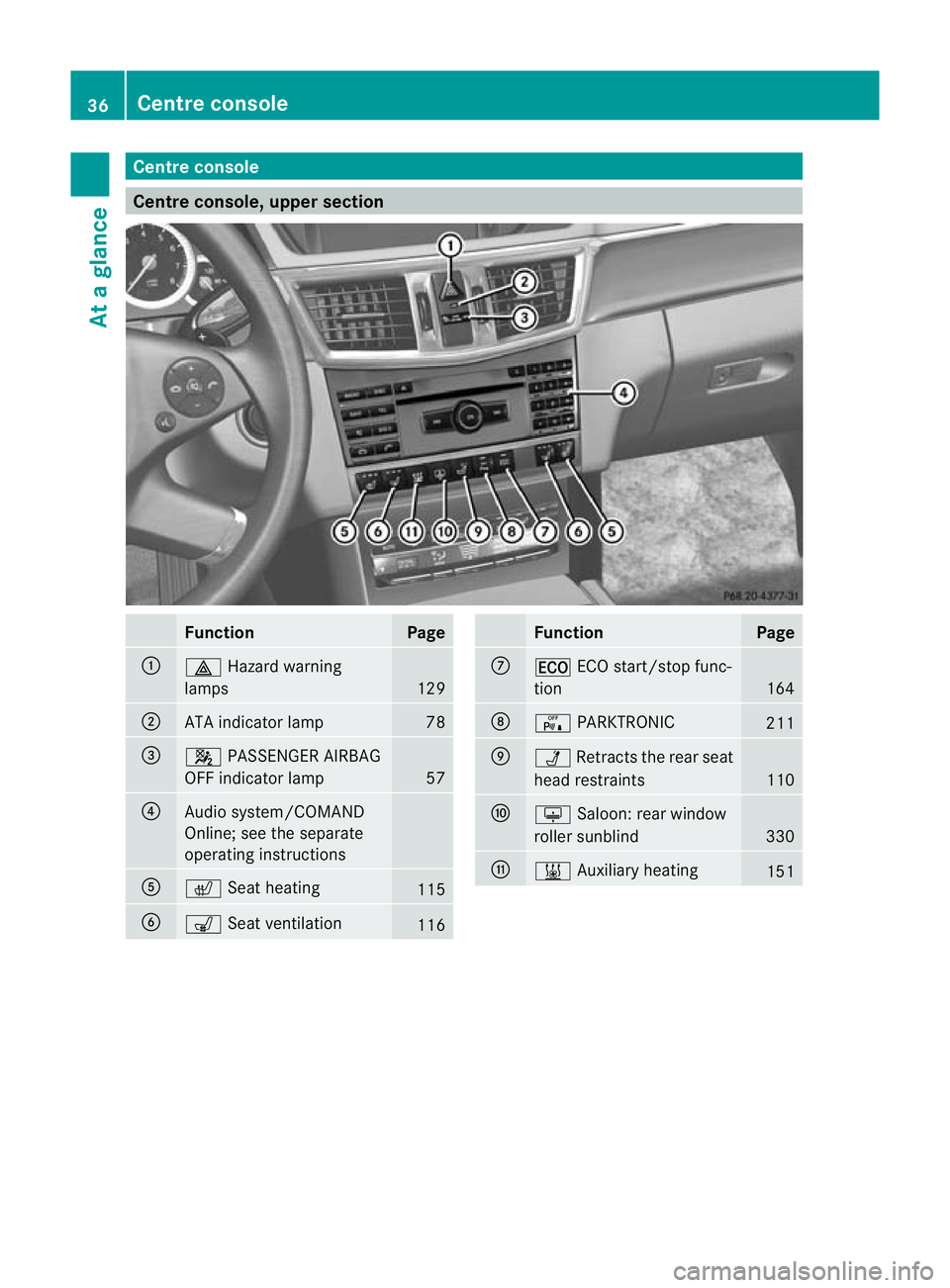

Centre console
Centre console, upper section
Function Page
:
£
Hazard warning
lamps 129
;
ATA indicator lamp 78
=
4
PASSENGER AIRBAG
OFF indicator lamp 57
?
Audio system/COMAND
Online; see the separate
operating instructions
A
c
Seat heating 115
B
s
Seat ventilation 116 Function Page
C
¤
ECO start/stop func-
tion 164
D
c
PARKTRONIC 211
E
Ü
Retracts the rear seat
head restraints 110
F
u
Saloon :rear window
roller sunblind 330
G
&
Auxiliary heating 15136
Centre consoleAt a glance

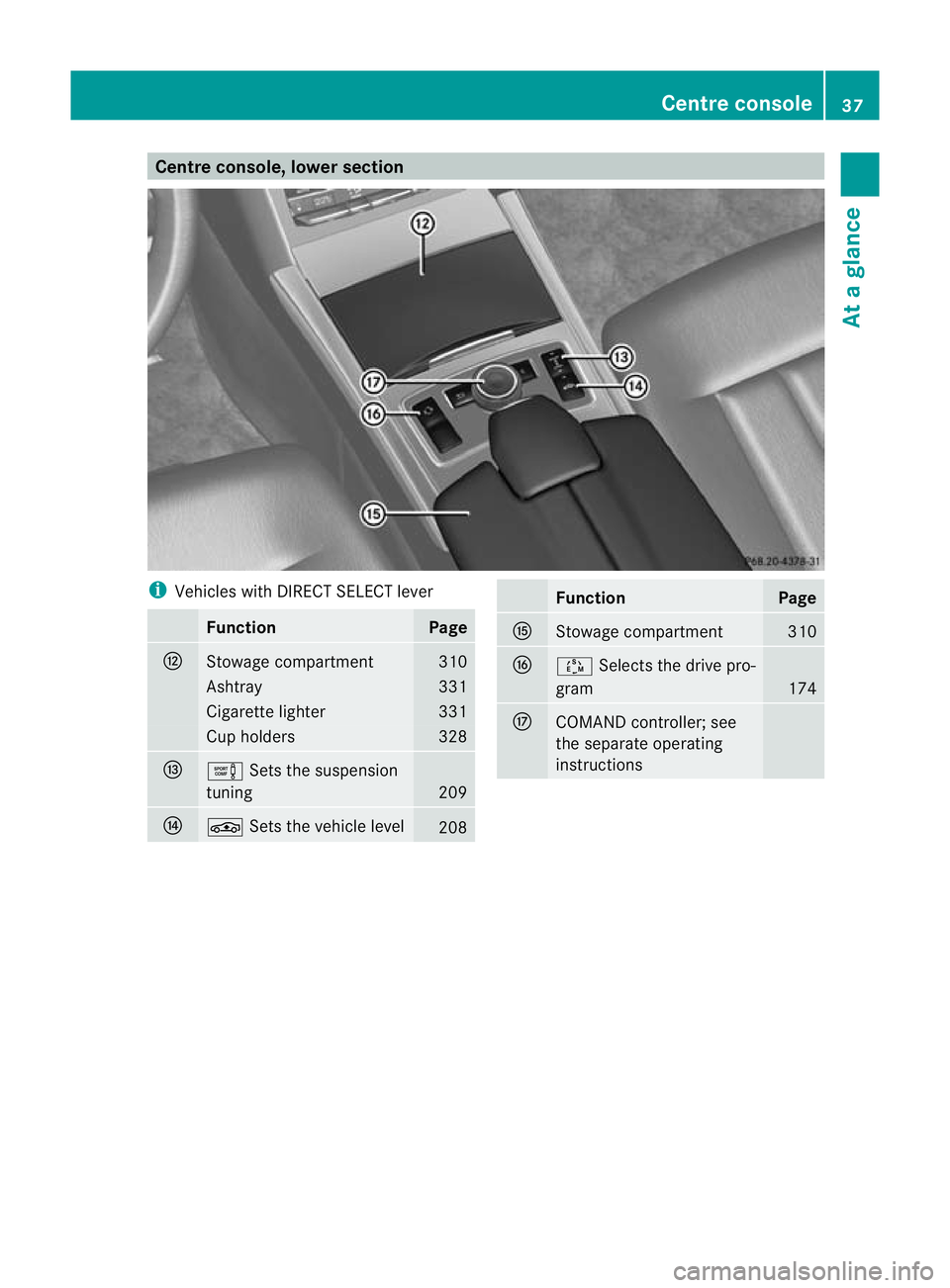

Centre console, lower section
i
Vehicles with DIRECT SELECT lever Function Page
H
Stowage compartment 310
Ashtray 331
Cigarette lighter 331
Cup holders 328
I
e
Sets the suspension
tuning 209
J
É
Sets the vehicle level 208 Function Page
K
Stowage compartment 310
L
Ú
Selects the drive pro-
gram 174
M
COMAND controller; see
the separate operating
instructions Centre console
37At a glance
