MERCEDES-BENZ E WAGON 2006 S211 Owner's Manual

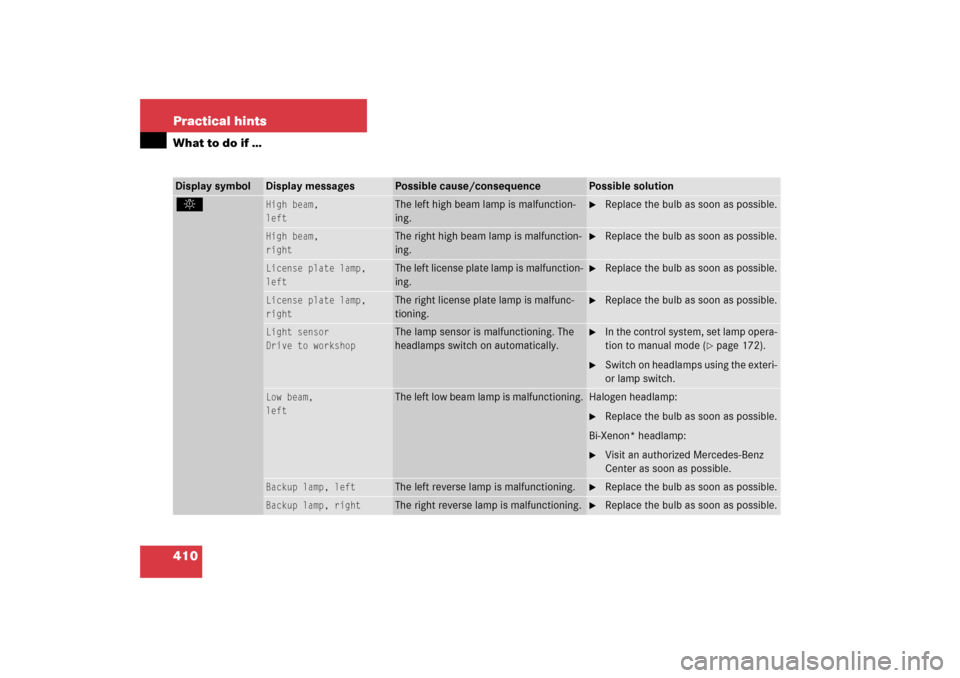

410 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
.
High beam,
left
The left high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
High beam,
right
The right high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
License plate lamp,
left
The left license plate lamp is malfunction-
ing.

Replace the bulb as soon as possible.
License plate lamp,
right

The right license plate lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Light sensor
Drive to workshop
The lamp sensor is malfunctioning. The
headlamps switch on automatically.

In the control system, set lamp opera-
tion to manual mode (
page 172).

Switch on headlamps using the exteri-
or lamp switch.
Low beam,
left
The left low beam lamp is malfunctioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Backup lamp, left
The left reverse lamp is malfunctioning.

Replace the bulb as soon as possible.
Backup lamp, right
The right reverse lamp is malfunctioning.

Replace the bulb as soon as possible.

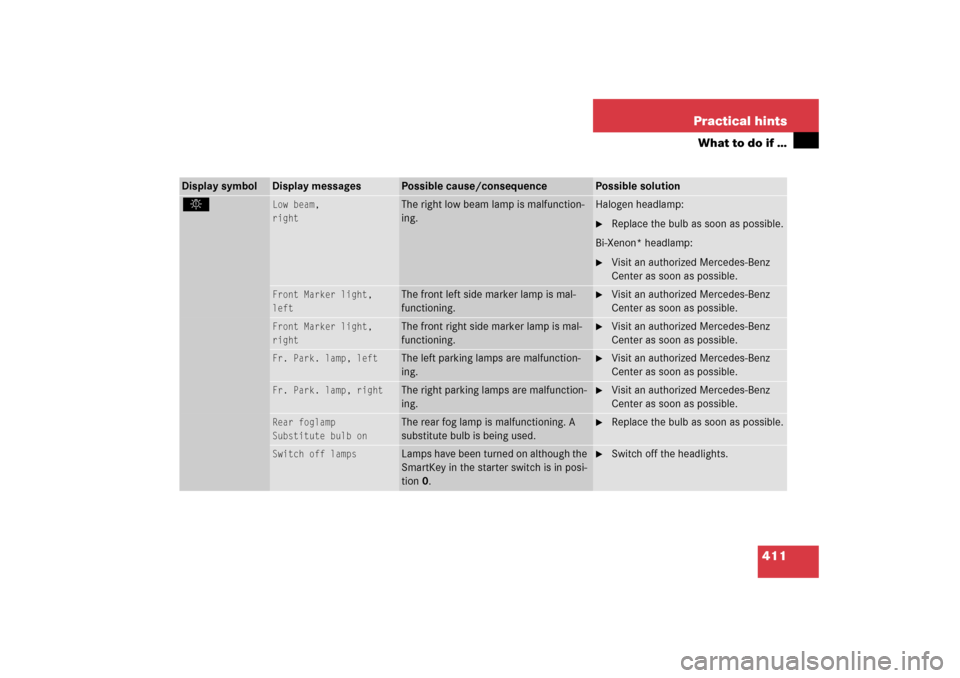

411 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
.
Low beam,
right
The right low beam lamp is malfunction-
ing.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Front Marker light,
left
The front left side marker lamp is mal-
functioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Front Marker light,
right
The front right side marker lamp is mal-
functioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Fr. Park. lamp, left
The left parking lamps are malfunction-
ing.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Fr. Park. lamp, right
The right parking lamps are malfunction-
ing.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Rear foglamp
Substitute bulb on
The rear fog lamp is malfunctioning. A
substitute bulb is being used.

Replace the bulb as soon as possible.
Switch off lamps
Lamps have been turned on although the
SmartKey in the starter switch is in posi-
tion 0.

Switch off the headlights.

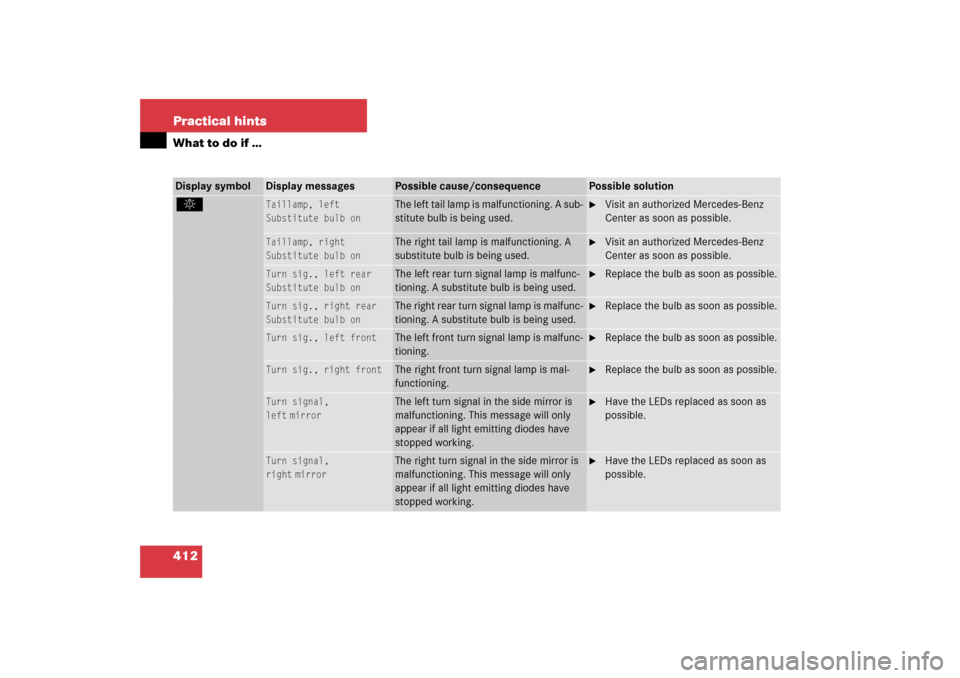

412 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
.
Taillamp, left
Substitute bulb on
The left tail lamp is malfunctioning. A sub-
stitute bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Taillamp, right
Substitute bulb on
The right tail lamp is malfunctioning. A
substitute bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn sig., left rear
Substitute bulb on
The left rear turn signal lamp is malfunc-
tioning. A substitute bulb is being used.

Replace the bulb as soon as possible.
Turn sig., right rear
Substitute bulb on
The right rear turn signal lamp is malfunc-
tioning. A substitute bulb is being used.

Replace the bulb as soon as possible.
Turn sig., left front
The left front turn signal lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Turn sig., right front
The right front turn signal lamp is mal-
functioning.

Replace the bulb as soon as possible.
Turn signal,
left
mirror
The left turn signal in the side mirror is
malfunctioning. This message will only
appear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.
Turn signal,

right
mirror
The right turn signal in the side mirror is
malfunctioning. This message will only
appear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.

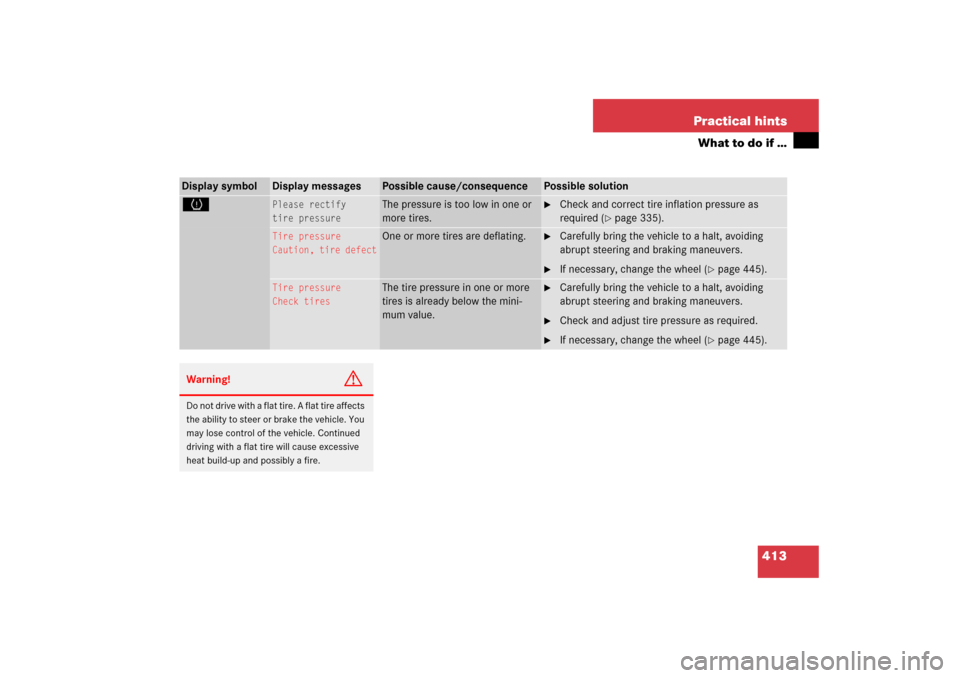

413 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
H
Please rectify
tire pressure
The pressure is too low in one or
more tires.

Check and correct tire inflation pressure as
required (
page 335).
Tire pressure
Caution, tire defect
One or more tires are deflating.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

If necessary, change the wheel (
page 445).
Tire pressure
Check tires
The tire pressure in one or more
tires is already below the mini-
mum value.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

Check and adjust tire pressure as required.

If necessary, change the wheel (
page 445).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.

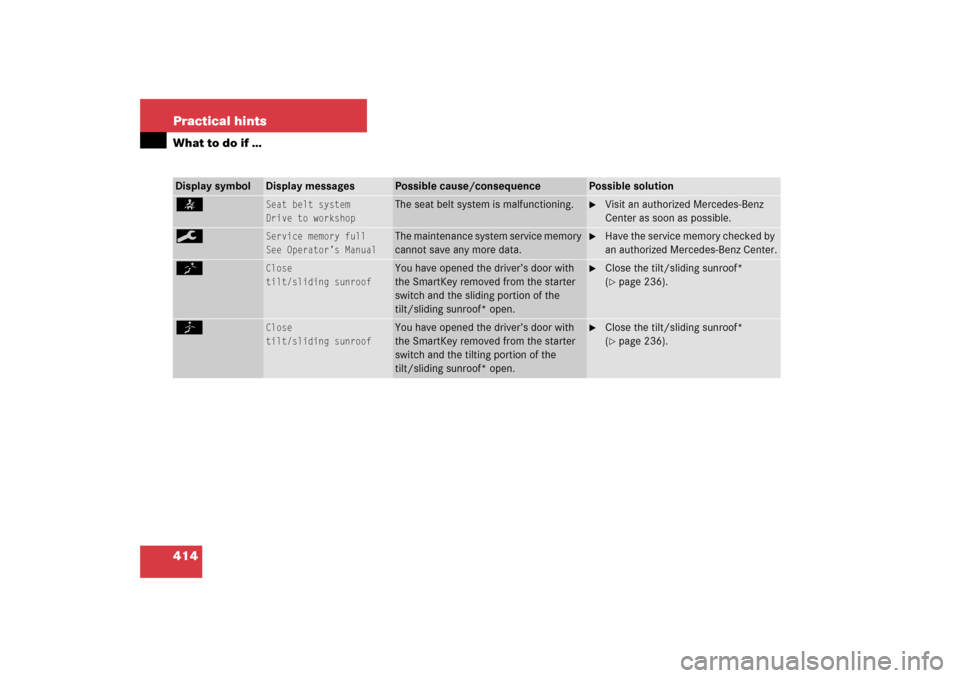

414 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
<
Seat belt system
Drive to workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
9
Service memory full
See Operator’s Manual
The maintenance system service memory
cannot save any more data.

Have the service memory checked by
an authorized Mercedes-Benz Center.
K
Close
tilt/sliding sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding portion of the
tilt/sliding sunroof* open.

Close the tilt/sliding sunroof*
(page 236).
J
Close
tilt/sliding sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilting portion of the
tilt/sliding sunroof* open.

Close the tilt/sliding sunroof*
(page 236).

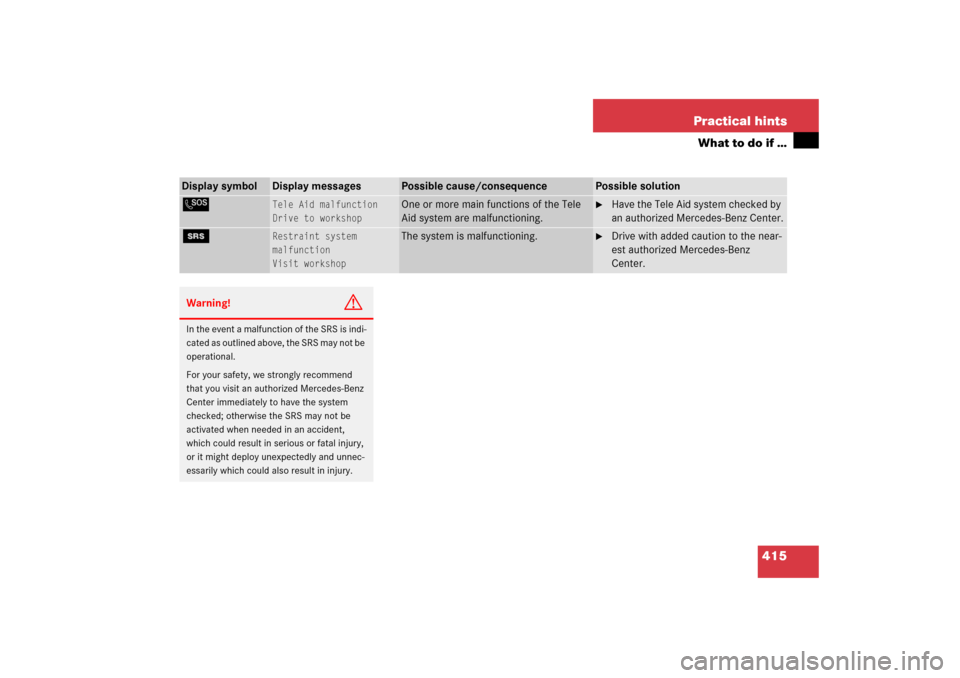

415 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
L
Tele Aid malfunction
Drive to workshop
One or more main functions of the Tele
Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
1
Restraint system
malfunction
Visit workshop
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz
Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Center immediately to have the system
checked; otherwise the SRS may not be
activated when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.

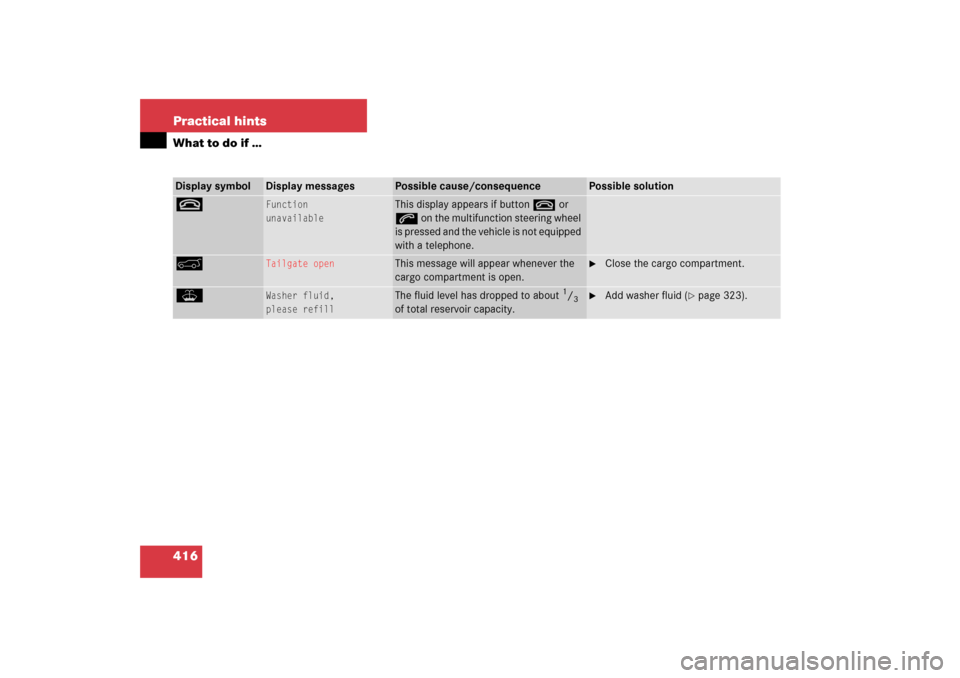

416 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
t
Function
unavailable
This display appears if button t or
s on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
&
Tailgate open
This message will appear whenever the
cargo compartment is open.

Close the cargo compartment.
W
Washer fluid,
please refill
The fluid level has dropped to about
1/3
of total reservoir capacity.
Add washer fluid (
page 323).

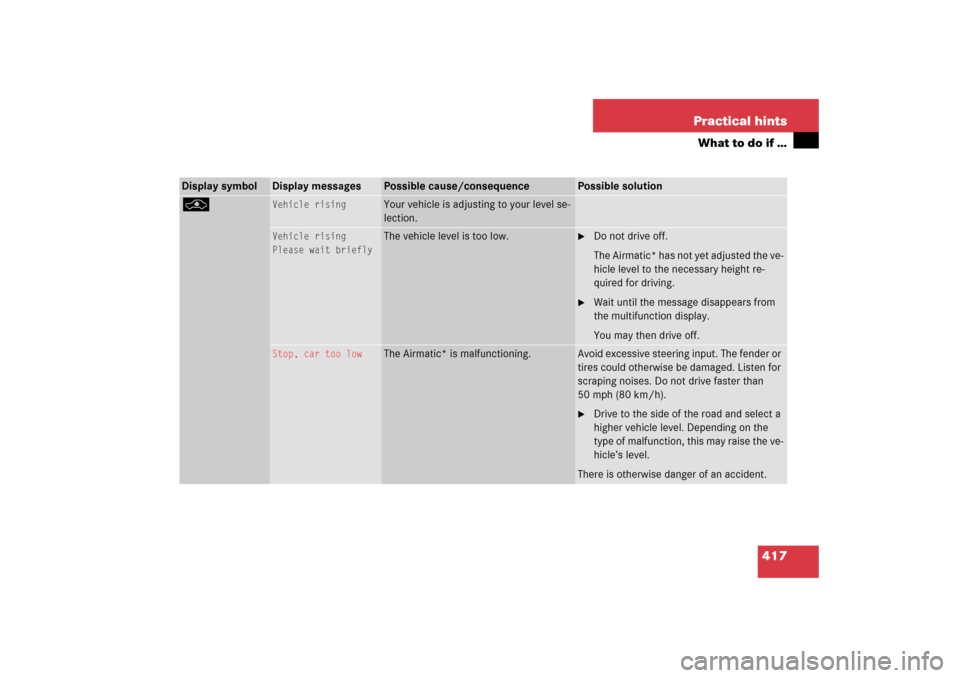

417 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
@
Vehicle rising
Your vehicle is adjusting to your level se-
lection.
Vehicle rising
Please wait briefly
The vehicle level is too low.

Do not drive off.
The Airmatic* has not yet adjusted the ve-
hicle level to the necessary height re-
quired for driving.

Wait until the message disappears from
the multifunction display.
You may then drive off.
Stop, car too low
The Airmatic* is malfunctioning.
Avoid excessive steering input. The fender or
tires could otherwise be damaged. Listen for
scraping noises. Do not drive faster than
50 mph (80 km/h).
Drive to the side of the road and select a
higher vehicle level. Depending on the
type of malfunction, this may raise the ve-
hicle’s level.
There is otherwise danger of an accident.

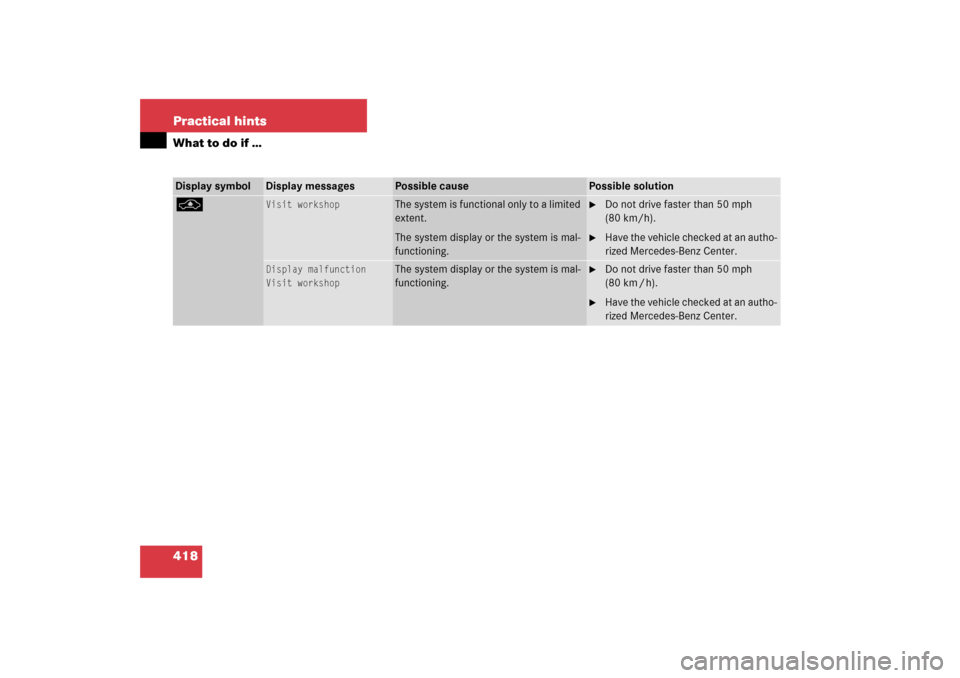

418 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
@
Visit workshop
The system is functional only to a limited
extent.
The system display or the system is mal-
functioning.

Do not drive faster than 50 mph
(80 km/h).

Have the vehicle checked at an autho-
rized Mercedes-Benz Center.
Display malfunction
Visit workshop
The system display or the system is mal-
functioning.

Do not drive faster than 50 mph
(80 km / h).

Have the vehicle checked at an autho-
rized Mercedes-Benz Center.

419 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is in the storage compart-
ment at the front edge of the front passen-
ger seat.
1Tab
Pull tab1 upward.

Fold the covering forward.

Remove the first aid kit.
Vehicle tool kit, jack and spare wheel
The vehicle tool kit, jack and spare wheel
are stored in the compartment underneath
the third row seat cushions and footwell
(page 420) or underneath the cargo
compartment floor (E 55 AMG only).
The vehicle tool kit includes:


One pair of universal pliers


One towing eye bolt


One wheel wrench


One alignment bolt


One fuse extractor


Spare fuses


Collapsible wheel chock


A pair of glovesVehicles without foldable third row
seat (E 55 AMG only) - Vehicle tool kit,
jack and collapsible tire
The vehicle tool kit is located in the cargo
compartment underneath the cargo com-
partment floor.
1Release handle
2Unlocking

Pull release handle 1 and fold cargo
compartment floor upward.

If the cargo compartment floor is
locked, insert mechanical key
(page 429) into the lock and turn it to
position 2.
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.
