MERCEDES-BENZ E WAGON 2006 S211 Owner's Manual

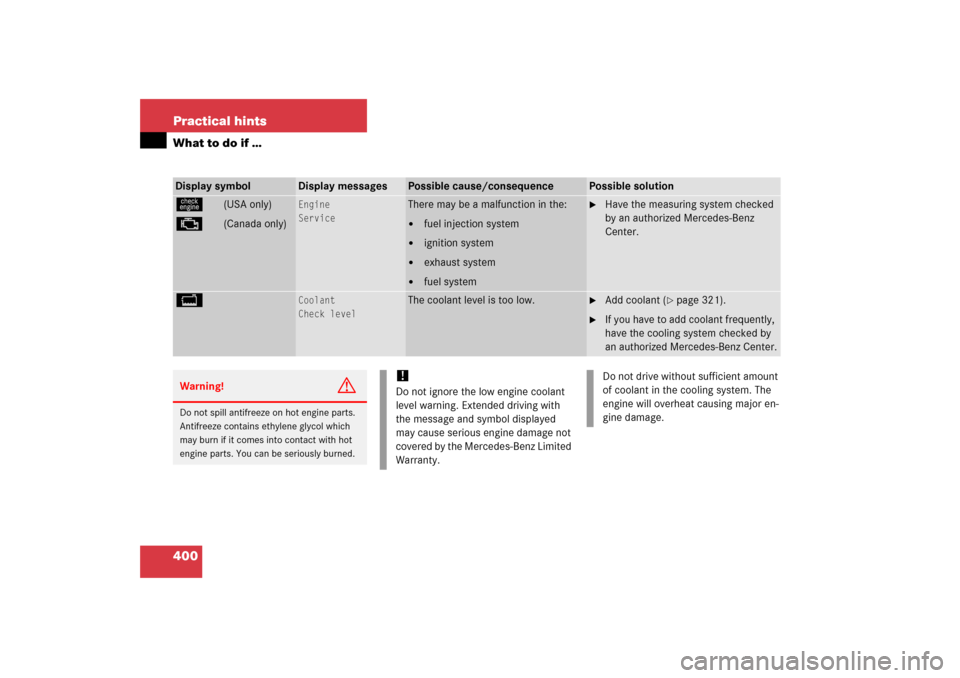

400 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
ú
(USA only)
±
(Canada only)
Engine
Service
There may be a malfunction in the:

fuel injection system


ignition system


exhaust system


fuel system

Have the measuring system checked
by an authorized Mercedes-Benz
Center.
B
Coolant
Check level
The coolant level is too low.

Add coolant (
page 321).

If you have to add coolant frequently,
have the cooling system checked by
an authorized Mercedes-Benz Center.
Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You can be seriously burned.
!Do not ignore the low engine coolant
level warning. Extended driving with
the message and symbol displayed
may cause serious engine damage not
covered by the Mercedes-Benz Limited
Warranty.
Do not drive without sufficient amount
of coolant in the cooling system. The
engine will overheat causing major en-
gine damage.

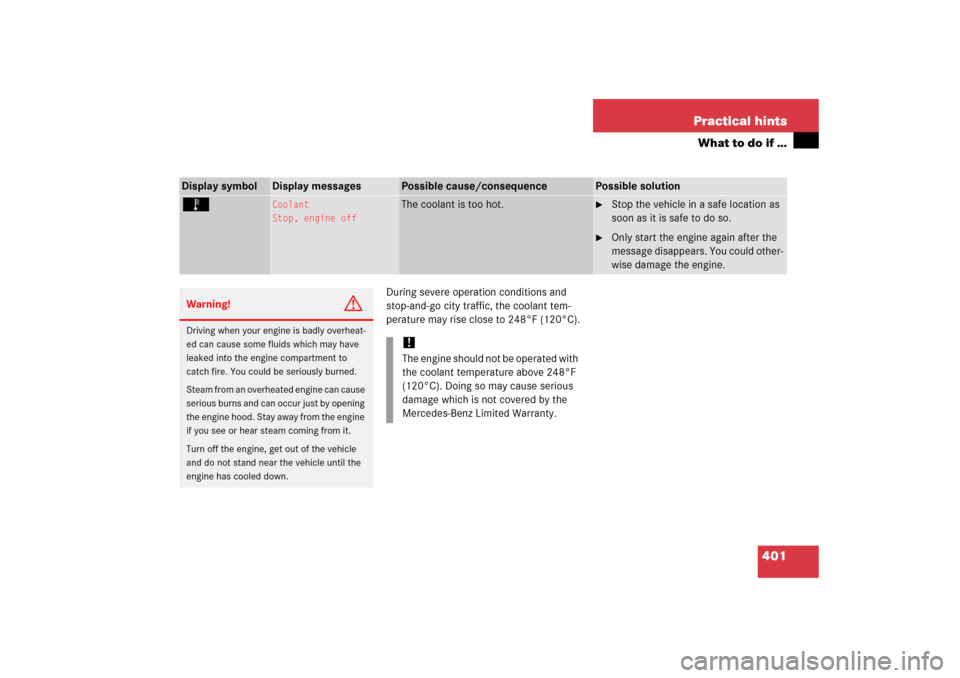

401 Practical hints
What to do if …
During severe operation conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
Display symbol
Display messages
Possible cause/consequence
Possible solution
Ï
Coolant
Stop, engine off
The coolant is too hot.

Stop the vehicle in a safe location as
soon as it is safe to do so.

Only start the engine again after the
message disappears. You could other-
wise damage the engine.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine
if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
!The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
damage which is not covered by the
Mercedes-Benz Limited Warranty.

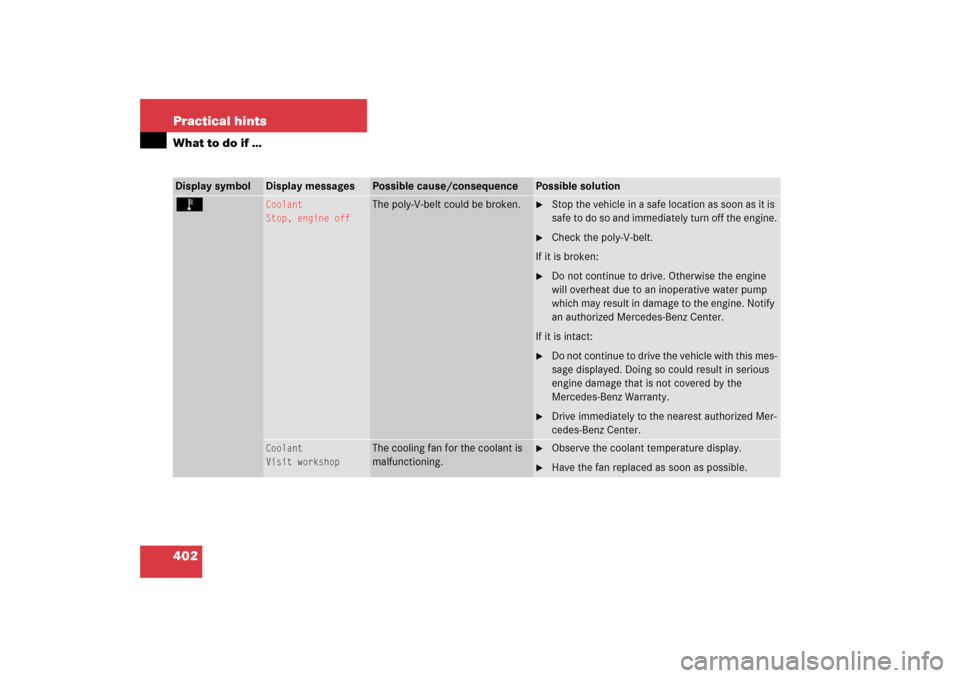

402 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
Ï
Coolant
Stop, engine off
The poly-V-belt could be broken.

Stop the vehicle in a safe location as soon as it is
safe to do so and immediately turn off the engine.

Check the poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise the engine
will overheat due to an inoperative water pump
which may result in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:

Do not continue to drive the vehicle with this mes-
sage displayed. Doing so could result in serious
engine damage that is not covered by the
Mercedes-Benz Warranty.

Drive immediately to the nearest authorized Mer-
cedes-Benz Center.
Coolant
Visit workshop
The cooling fan for the coolant is
malfunctioning.

Observe the coolant temperature display.

Have the fan replaced as soon as possible.

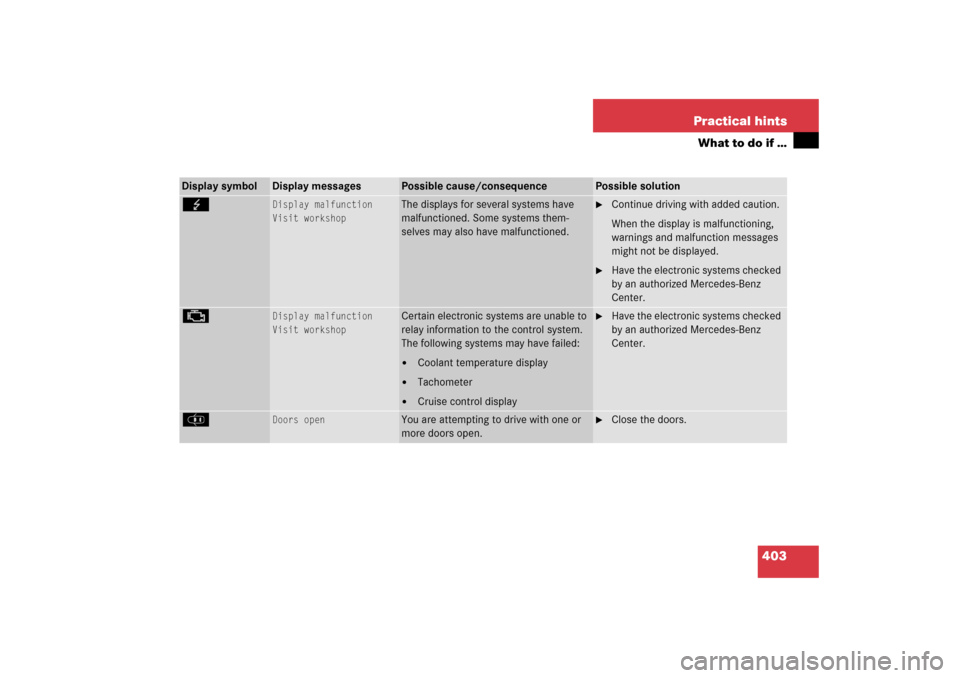

403 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
G
Display malfunction
Visit workshop
The displays for several systems have
malfunctioned. Some systems them-
selves may also have malfunctioned.

Continue driving with added caution.
When the display is malfunctioning,
warnings and malfunction messages
might not be displayed.

Have the electronic systems checked
by an authorized Mercedes-Benz
Center.
±
Display malfunction
Visit workshop
Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems checked
by an authorized Mercedes-Benz
Center.
J

Doors open
You are attempting to drive with one or
more doors open.

Close the doors.

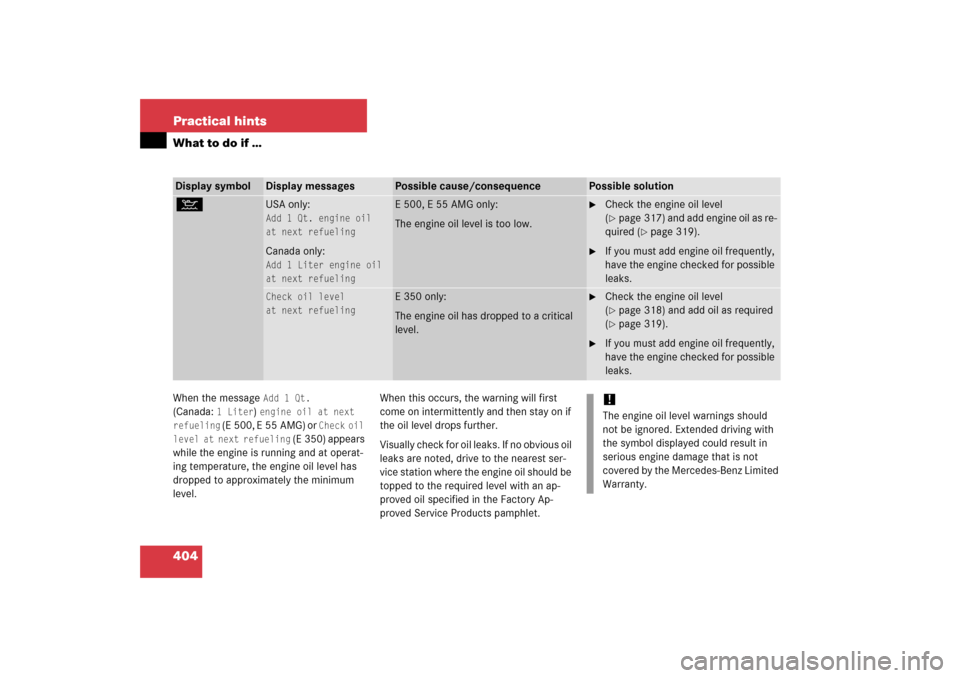

404 Practical hintsWhat to do if …When the message
Add 1 Qt.

(Canada:
1 Liter
) engine oil at next
refueling
(E 500, E 55 AMG) or
Check oil
level at next refueling
(E 350) appears
while the engine is running and at operat-
ing temperature, the engine oil level has
dropped to approximately the minimum
level.When this occurs, the warning will first
come on intermittently and then stay on if
the oil level drops further.
Visually check for oil leaks. If no obvious oil
leaks are noted, drive to the nearest ser-
vice station where the engine oil should be
topped to the required level with an ap-
proved oil specified in the Factory Ap-
proved Service Products pamphlet.
Display symbol
Display messages
Possible cause/consequence
Possible solution
:
USA only:Add 1 Qt. engine oil
at next refuelingCanada only:Add 1 Liter engine oil
at next refueling
E 500, E 55 AMG only:
The engine oil level is too low.

Check the engine oil level
(page 317) and add engine oil as re-
quired (
page 319).

If you must add engine oil frequently,
have the engine checked for possible
leaks.
Check oil level
at next refueling
E 350 only:
The engine oil has dropped to a critical
level.

Check the engine oil level
(page 318) and add oil as required
(page 319).

If you must add engine oil frequently,
have the engine checked for possible
leaks.!The engine oil level warnings should
not be ignored. Extended driving with
the symbol displayed could result in
serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.

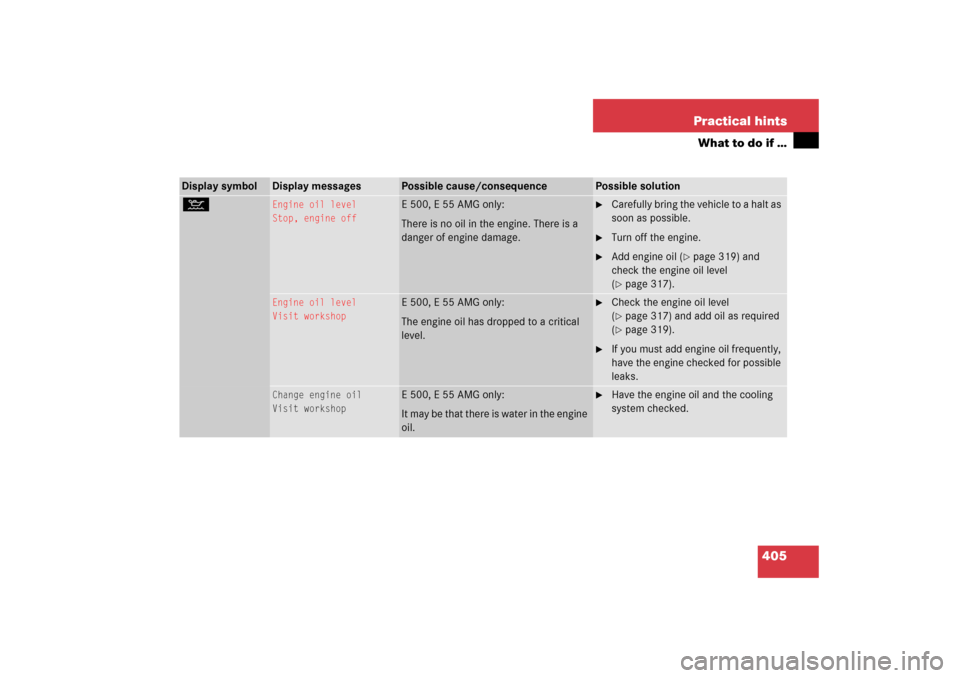

405 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
:
Engine oil level
Stop, engine off
E 500, E 55 AMG only:
There is no oil in the engine. There is a
danger of engine damage.

Carefully bring the vehicle to a halt as
soon as possible.

Turn off the engine.

Add engine oil (
page 319) and
check the engine oil level
(
page 317).
Engine oil level
Visit workshop
E 500, E 55 AMG only:
The engine oil has dropped to a critical
level.

Check the engine oil level
(page 317) and add oil as required
(page 319).

If you must add engine oil frequently,
have the engine checked for possible
leaks.
Change engine oil
Visit workshop
E 500, E 55 AMG only:
It may be that there is water in the engine
oil.

Have the engine oil and the cooling
system checked.

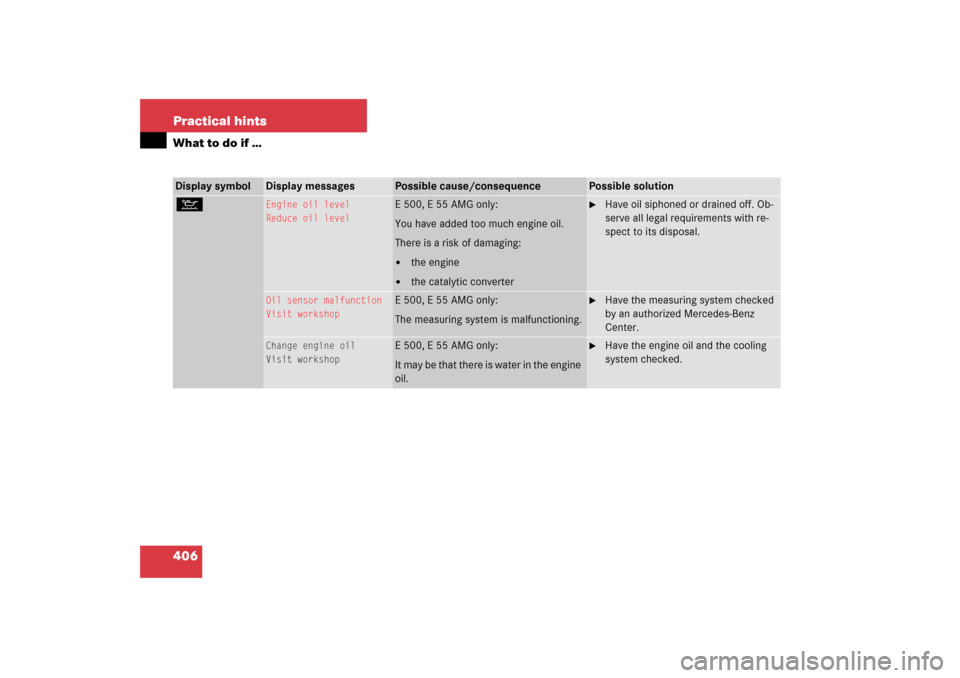

406 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
:
Engine oil level
Reduce oil level
E 500, E 55 AMG only:
You have added too much engine oil.
There is a risk of damaging:

the engine


the catalytic converter

Have oil siphoned or drained off. Ob-
serve all legal requirements with re-
spect to its disposal.
Oil sensor malfunction
Visit workshop
E 500, E 55 AMG only:
The measuring system is malfunctioning.

Have the measuring system checked
by an authorized Mercedes-Benz
Center.
Change engine oil
Visit workshop
E 500, E 55 AMG only:
It may be that there is water in the engine
oil.

Have the engine oil and the cooling
system checked.

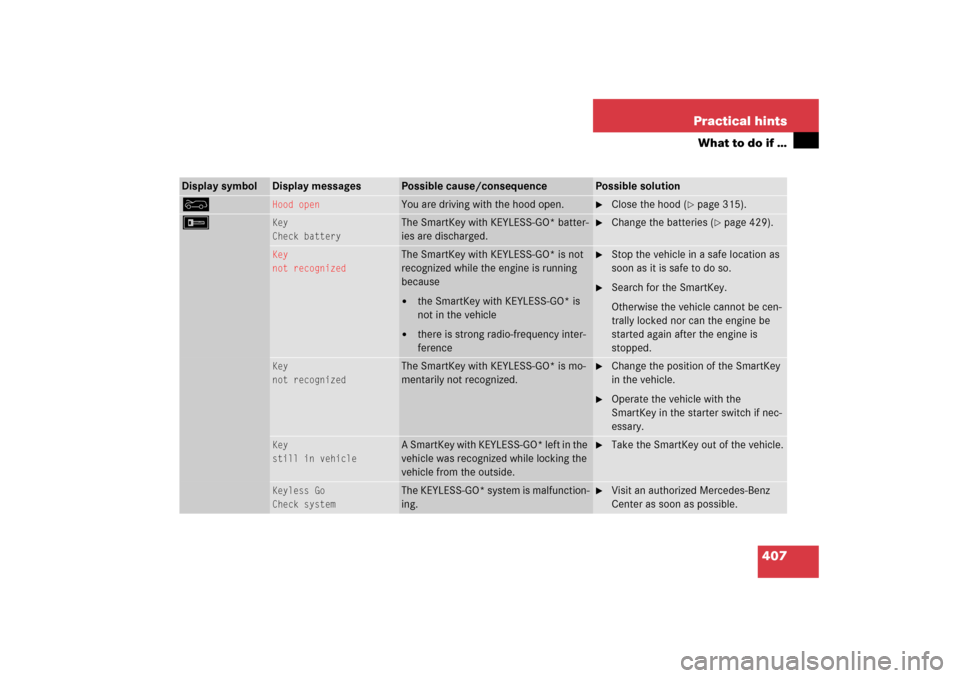

407 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
%
Hood open
You are driving with the hood open.

Close the hood (
page 315).
F
Key
Check battery
The SmartKey with KEYLESS-GO* batter-
ies are discharged.

Change the batteries (
page 429).
Key
not recognized
The SmartKey with KEYLESS-GO* is not
recognized while the engine is running
because

the SmartKey with KEYLESS-GO* is
not in the vehicle


there is strong radio-frequency inter-
ference

Stop the vehicle in a safe location as
soon as it is safe to do so.

Search for the SmartKey.
Otherwise the vehicle cannot be cen-
trally locked nor can the engine be
started again after the engine is
stopped.
Key
not recognized
The SmartKey with KEYLESS-GO* is mo-
mentarily not recognized.

Change the position of the SmartKey
in the vehicle.

Operate the vehicle with the
SmartKey in the starter switch if nec-
essary.
Key
still in vehicle
A SmartKey with KEYLESS-GO* left in the
vehicle was recognized while locking the
vehicle from the outside.

Take the SmartKey out of the vehicle.
Keyless Go
Check system
The KEYLESS-GO* system is malfunction-
ing.

Visit an authorized Mercedes-Benz
Center as soon as possible.

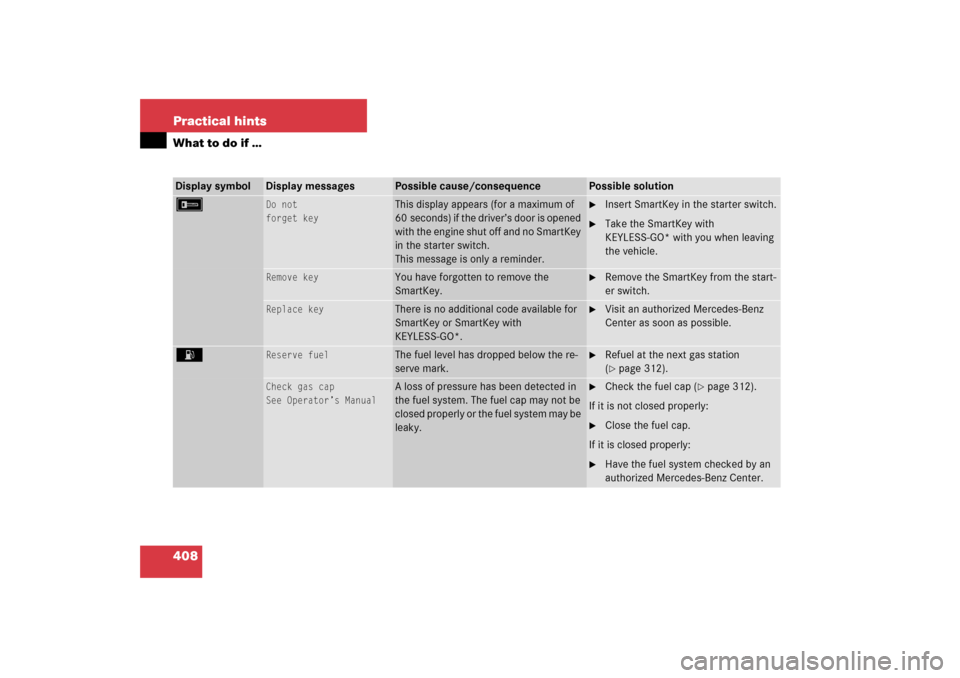

408 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
F
Do not
forget key
This display appears (for a maximum of
60 seconds) if the driver’s door is opened
with the engine shut off and no SmartKey
in the starter switch.
This message is only a reminder.

Insert SmartKey in the starter switch.

Take the SmartKey with
KEYLESS-GO* with you when leaving
the vehicle.
Remove key
You have forgotten to remove the
SmartKey.

Remove the SmartKey from the start-
er switch.
Replace key
There is no additional code available for
SmartKey or SmartKey with
KEYLESS-GO*.

Visit an authorized Mercedes-Benz
Center as soon as possible.
A
Reserve fuel
The fuel level has dropped below the re-
serve mark.

Refuel at the next gas station
(page 312).
Check gas cap
See Operator’s Manual
A loss of pressure has been detected in
the fuel system. The fuel cap may not be
closed properly or the fuel system may be
leaky.

Check the fuel cap (
page 312).
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an
authorized Mercedes-Benz Center.

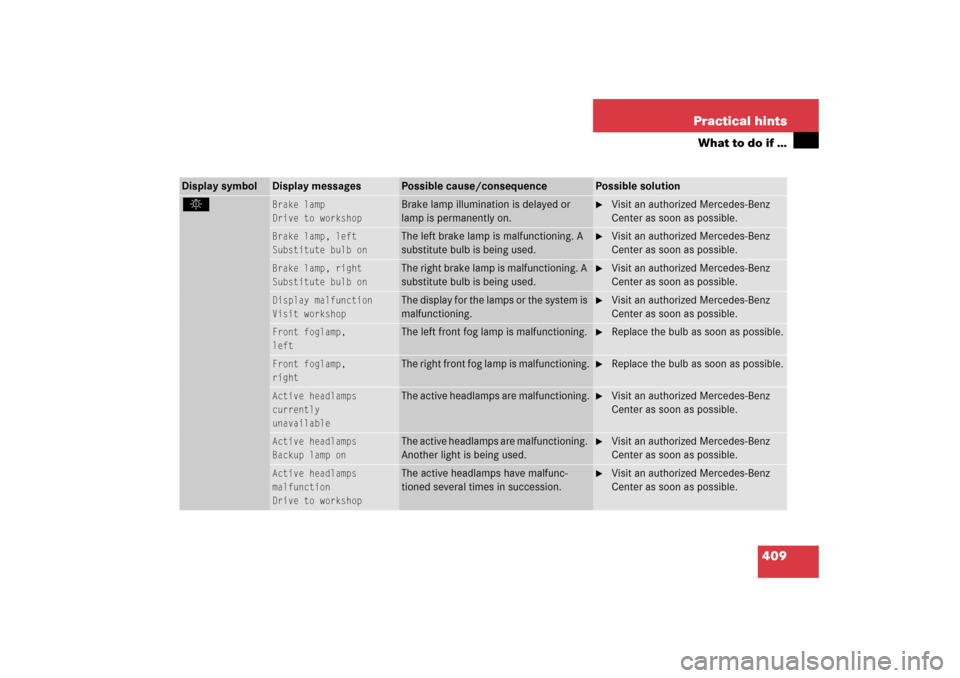

409 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
.
Brake lamp
Drive to workshop
Brake lamp illumination is delayed or
lamp is permanently on.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp, left
Substitute bulb on
The left brake lamp is malfunctioning. A
substitute bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp, right
Substitute bulb on
The right brake lamp is malfunctioning. A
substitute bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Display malfunction
Visit workshop
The display for the lamps or the system is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp,
left
The left front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
Front foglamp,
right
The right front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
Active headlamps
currently
unavailable
The active headlamps are malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Active headlamps
Backup lamp on
The active headlamps are malfunctioning.
Another light is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Active headlamps
malfunction
Drive to workshop
The active headlamps have malfunc-
tioned several times in succession.

Visit an authorized Mercedes-Benz
Center as soon as possible.
