MERCEDES-BENZ E43AMG 2017 W213 Comand Manual

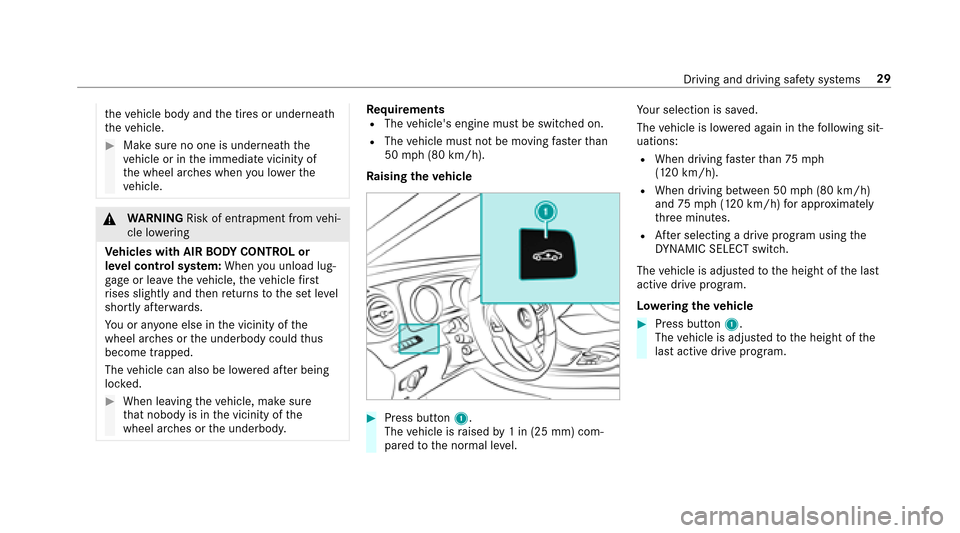

theve hicle body and the tires or underneath
th eve hicle.
#Make sure no one is underneath the
ve hicle or in the immediate vicinity of
th e wheel ar ches when youlowe rth e
ve hicle.
&
WARNING Risk of entrapment from vehi‐
cle lo wering
Ve hicles with AIR BODY CONT ROL or
le ve l control sy stem: When you unload lug‐
ga ge or lea vetheve hicle, theve hicle firs t
ri ses slightly and then returns tothe set le vel
shortly af terw ards.
Yo u or an yone else in the vicinity of the
wheel ar ches or the underbody could thus
become trapped.
The vehicle can also be lo wered af ter being
loc ked.
#When leaving theve hicle, make sure
th at nobody is in the vicinity of the
wheel ar ches or the underbody.
Re quirementsRThe vehicle's engine must be switched on.
RThe vehicle must not be moving fasterthan
50 mph(8 0 km/h).
Ra ising theve hicle
#Press button 1.
The vehicle is raised by1 in (25 mm) com‐
pared tothe normal le vel. Yo
ur selection issave d.
The vehicle is lo wered again in thefo llowing sit‐
uations:
RWhen driving fasterthan 75 mph
(120 km/h).
RWhen driving between 50 mph (80 km/h)
and 75mph(120 km/h) for app roxima tely
th re e minutes.
RAf ter selecting a drive program using the
DY NA MIC SELECT switch.
The vehicle is adjus tedto the height of the last
active drive prog ram.
Lo weri ngtheve hicle
#Press button 1.
The vehicle is adjus tedto the height of the
last active drive prog ram.
Driving and driving saf etysy stems 29

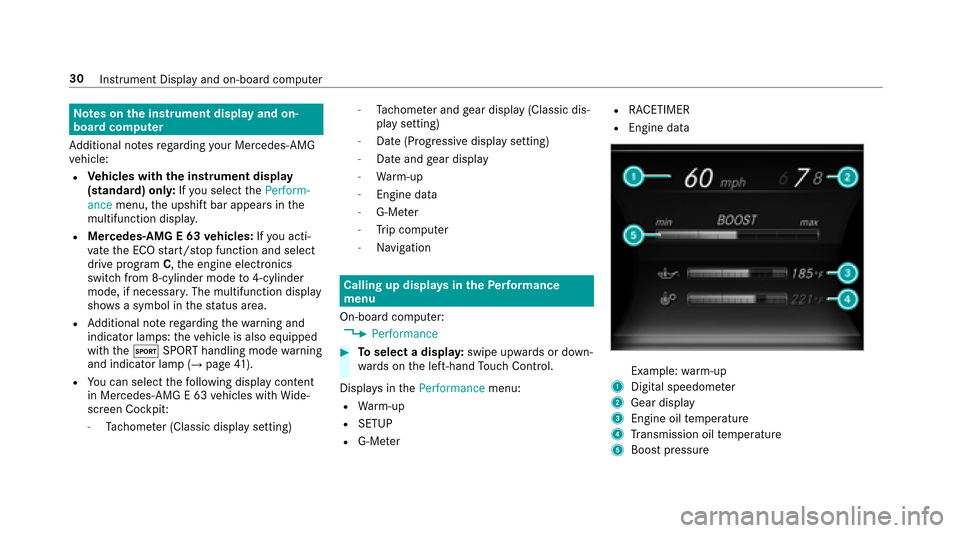

Notes onthe instrument display and on-
board compu ter
Ad ditional no tesre ga rding your Mercedes-AMG
ve hicle:
RVe hicles with the instrument display
(standard) onl y:Ifyo u select thePerform-
ance menu, the upshift bar appears in the
multifunction displa y.
RMercedes-AMG E 63 vehicles: Ifyo u act i‐
va te the ECO start/ stop function and select
drive program C,the engine electronics
switch from 8-c ylinder mode to4-cylinder
mode, if necessary . The multifunction display
sho wsa symbol in thest atus area.
RAd ditional no terega rding thewa rning and
indicator lamps: theve hicle is also equipped
with theM SPORT handling mode warning
and indicator lamp (
→page 41).
RYou can select thefo llowing display con tent
in Mercedes-AMG E 63 vehicles with Wide‐
screen Cockpit:
-Ta ch ome ter (Classic display setting)
-Ta ch ome ter and gear display (Classic dis‐
play setting)
-Date (Progressive display setting)
-Date andgear display
-Wa rm-up
-Engine da ta
-G-Me ter
-Trip computer
-Na vigation
Calling up displa ysinthePe rformance
menu
On-board computer:
,Performance
#To select a displa y:swipe upwards or down‐
wa rds on the left-hand Touch Control.
Dis playsinthePerformance menu:
RWarm-up
RSETUP
RG-M eter
RRACETIMER
REngine data
Example: warm-up
1Digital speedome ter
2Gear display
3Engine oil temp erature
4Transmission oil temp erature
5Boost pressure
30
Instrument Display and on-board computer

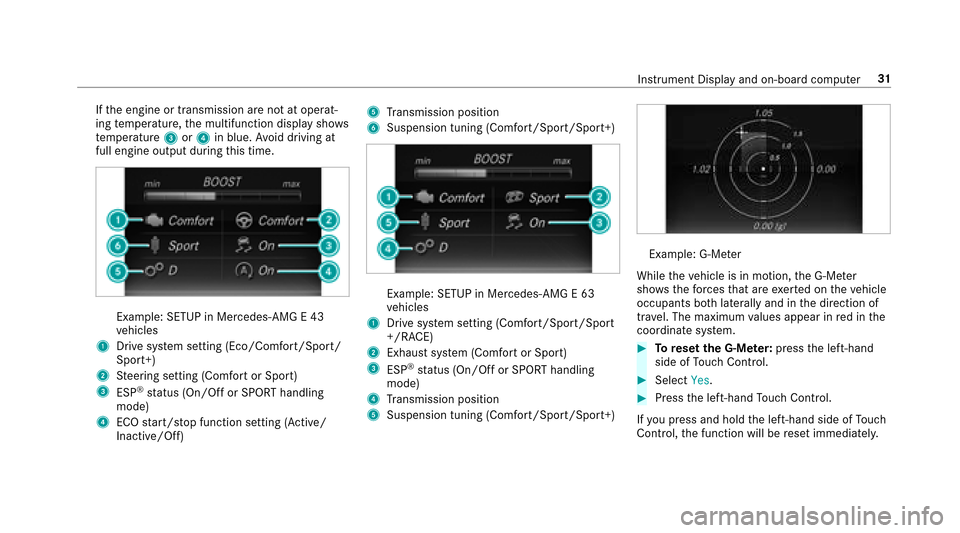

Ifth e engine or transmission are not at operat‐
ing temp erature, the multifunction display sho ws
te mp erature 3or4 in blue. Avoid driving at
full engine output during this time.
Example: SETUP in Mercedes -AMG E 43
ve hicles
1Drive sy stem setting (Eco/Comfort/Sport/
Sport+)
2St eering setting (Comfort or Sport)
3ESP®status (On/O ffor SPORT handling
mode)
4ECO start/ stop function setting (Active/
Inactive/Off)
5Tr ansmission position
6Suspension tuning (Comfort/Spo rt/Sport+)
Example: SETUP in Mercedes-AMG E 63
ve hicles
1Drive sy stem setting (Comfort/Sport/Sport
+/RACE)
2Exhaust sy stem (Comfort or Sport)
3ESP®st atus (On/O ffor SPORT handling
mode)
4Tr ansmission position
5Suspension tuning (Comfort/Spo rt/Sport+)
Example: G-Me ter
While theve hicle is in motion, the G-Me ter
sho ws th efo rc es that are exerted on theve hicle
occupants bo thlaterally and in the direction of
tra vel. The maximum values appear in red in the
coordinate sy stem.
#To reset the G-M eter: press the left-hand
side of Touch Control.
#Select Yes.
#Pressthe left-hand Touch Control.
If yo upr ess and hold the left-hand side of Touch
Control, the function will be reset immediately.
Instrument Display and on-board computer 31

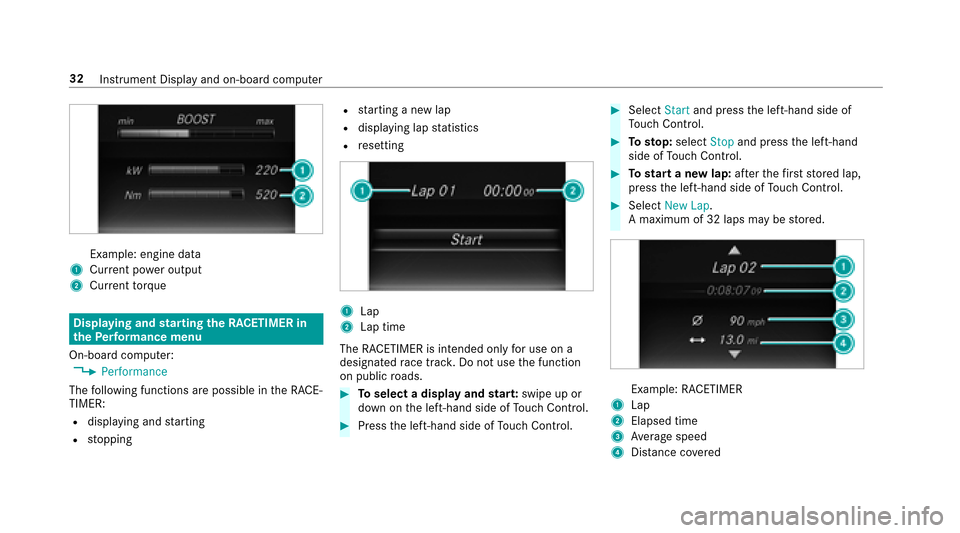

Example: engine data
1Current po wer output
2Current torque
Dis playing and starting the RACETIMER in
th ePe rformance menu
On-board computer:
,Performance
The following functions are possible in the RACE‐
TIMER:
Rdisplaying and starting
Rstopping
Rst arting a new lap
Rdisplaying lap statistics
Rre setting
1Lap
2Lap time
The RACETIMER is intended only for use on a
designated race trac k.Do not use the function
on public roads.
#To select a display and star t:swipe up or
down on the left-hand side of Touch Control.
#Press the left-hand side of Touch Control.
#Select Start and press the left-hand side of
To uch Control.
#To sto p:select Stopand press the left-hand
side of Touch Control.
#To start a new lap: afte rth efirs tst ored lap,
press the left-hand side of Touch Control.
#Select New Lap.
A maximum of 32 laps may be stored.
Example: RACETIMER
1Lap
2Elapsed time
3Av erage speed
4Dis tance co vered
32
Instrument Display and on-board computer

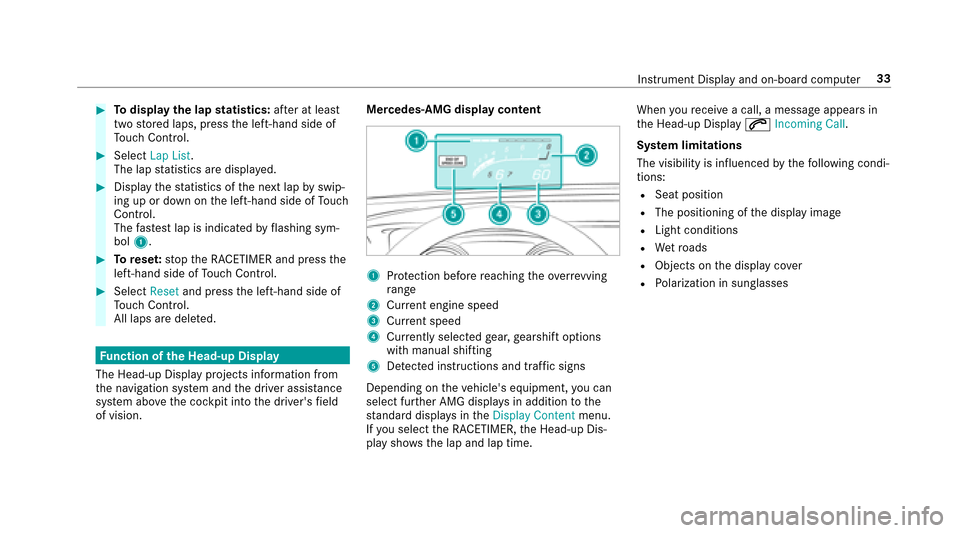

#Todispl aythe lap statistics: afte r at least
two stored laps, press the left-hand side of
To uch Control.
#Select Lap List .
The lap statistics are displa yed.
#Display thest atistics of the next lap byswip‐
ing up or down on the left-hand side of Touch
Control.
The fastest lap is indicated byflashing sym‐
bol 1.
#Torese t:stop the RACETIMER and press the
left-hand side of Touch Control.
#Select Resetandpress the left-hand side of
To uch Control.
All laps are dele ted.
Fu nction of the Head-up Display
The Head-up Display projects information from
th e navigation sy stem and the driver assis tance
sy stem abo vethe cockpit into the driver's field
of vision. Mercedes-AMG display content
1Pr
otection before reaching theove rrev ving
ra nge
2Cu rrent engine speed
3Cur rent speed
4Cu rrent lyselected gear, gearshift options
with manual shifting
5De tected instructions and traf fic signs
Depending on theve hicle's equipment, you can
select fur ther AMG displa ysin addition tothe
st andard displa ysintheDisplay Content menu.
If yo u select the RACETIMER, the Head-up Dis‐
play sho ws the lap and lap time. When
youre ceive a call, a message appears in
th e Head-up Display 6Incoming Call.
Sy stem limitations
The visibility is influenced bythefo llowing condi‐
tions:
RSeat position
RThe positioning of the display image
RLight conditions
RWe tro ads
RObjects on the display co ver
RPo larization in sunglasses
Instrument Display and on-board computer 33

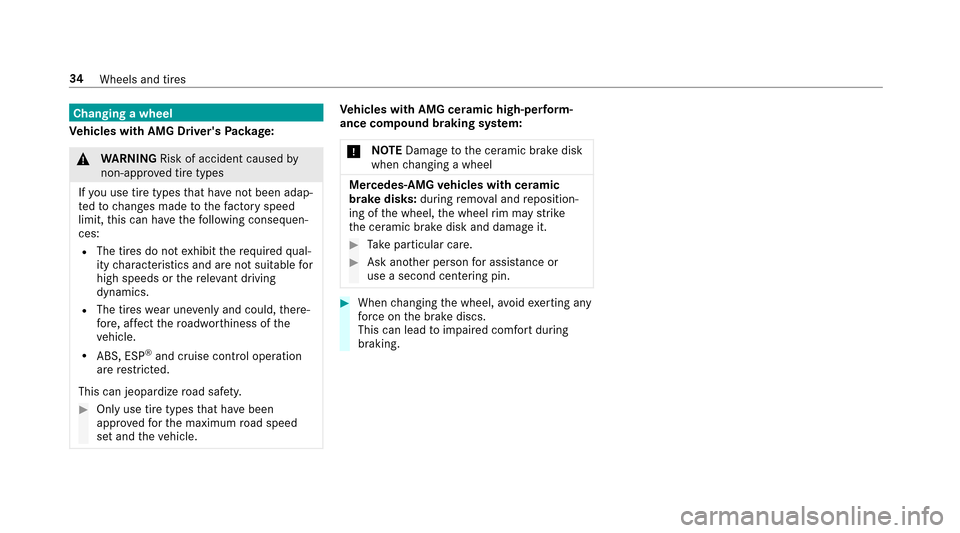

Changing a wheel
Ve hicles with AMG Driver's Package:
&
WARNING Risk of accident caused by
non-app rove d tire types
If yo u use tire types that ha venot been adap‐
te dto changes made tothefa ctory speed
limit, this can ha vethefo llowing consequen‐
ces:
RThe tires do not exhibit there qu ired qual‐
ity characteristics and are not suitable for
high speeds or there leva nt driving
dynamics.
RThe tires wear une venly and could, there‐
fo re , af fect thero adwor thiness of the
ve hicle.
RABS, ESP®and cruise contro l operation
are restricted.
This can jeopardize road saf ety.
#Only use tire types that ha vebeen
appr ovedfo rth e maximum road speed
set and theve hicle.
Ve hicles with AMG ce ramic high-perf orm‐
ance compound braking sy stem:
* NO
TEDama getothe ceramic brake disk
when changing a wheel
Mercedes -AMG vehicles with ce ramic
brake dis ks:during remo val and reposition‐
ing of the wheel, the wheel rim may strike
th e ceramic brake disk and damage it.
#Ta ke particular care.
#Ask ano ther person for assi stance or
use a second cen tering pin.
#When changing the wheel, avoidexe rting any
fo rc e on the brake discs.
This can lead toimpaired com fort during
braking.
34 Wheels and tires

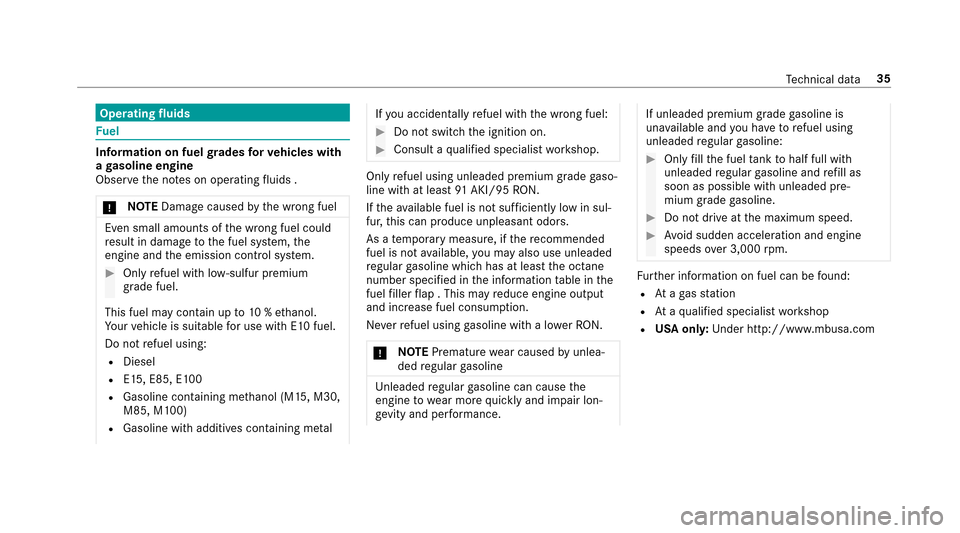

Operatingfluids
Fu el
Information on fuel grades forve hicles with
a ga soline engine
Obser vethe no tes on operating fluids .
* NO
TEDama gecaused bythe wrong fuel
Even small amounts of the wrong fuel could
re sult in damage tothe fuel sy stem, the
engine and the emission control sy stem.
#Only refuel with lo w-sulfur premium
grade fuel.
This fuel may contain up to10 %ethanol.
Yo ur vehicle is suitable for use with E10 fuel.
Do not refuel using:
RDiesel
RE15, E85, E100
RGasoline containing me thanol (M15, M30,
M85, M100)
RGasoline with additives con taining me tal
Ifyo u accidenta llyrefuel with the wrong fuel:
#Do not switch the ignition on.
#Consult a qualified specialist workshop.
Only refuel using unleaded premium grade gaso‐
line with at least 91AKI/95 RON.
If th eav ailable fuel is not suf ficiently low in sul‐
fur, this can produce unpleasant odors.
As a temp orary measure, if there commended
fuel is not available, you may also use unleaded
re gular gasoline which has at least the octane
number specified in the information table in the
fuel filler flap . This may reduce engine output
and increase fuel consum ption.
Ne verre fuel using gasoline with a lo werRO N.
* NO
TEPremature wear caused byunlea‐
ded regular gasoline
Unleaded regular gasoline can cause the
engine towe ar more quickly and impair lon‐
ge vity and per form ance.
If unleaded premium grade gasoline is
una vailable and you ha vetorefuel using
unleaded regular gasoline:
#Only fill th e fuel tank tohalf full with
unleaded regular gasoline and refill as
soon as possible with unleaded pre‐
mium grade gasoline.
#Do not drive at the maximum speed.
#Av oid sudden acceleration and engine
speeds over 3,000 rpm.
Fu rther information on fuel can be found:
RAt aga sst ation
RAt aqu alified specialist workshop
RUSA onl y:Un der http://www.mbusa.com
Tech nical da ta35

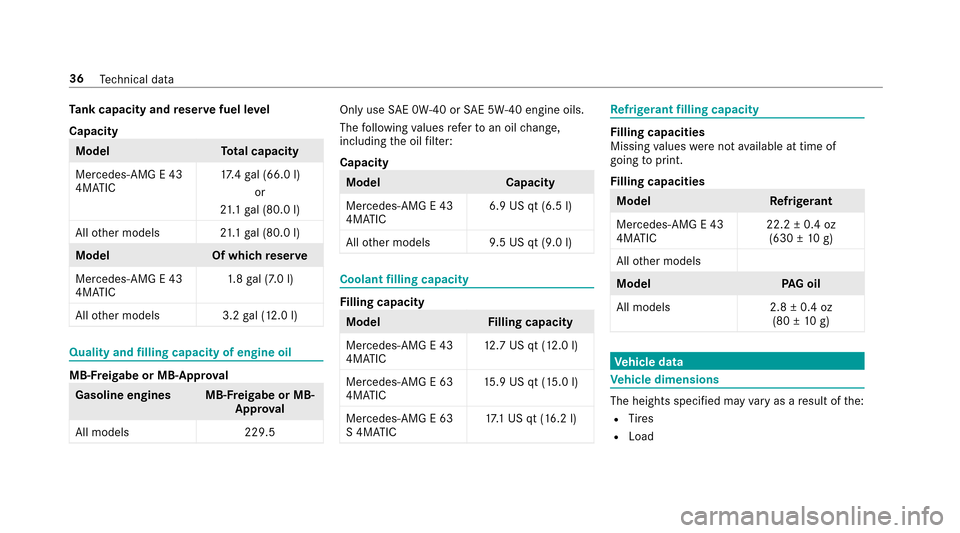

Tank capacity and reser vefuel le vel
Capacity
Model Total capacity
Mercedes -AMG E 43
4MATIC 17
.4 gal (66.0 l)
or
21 .1ga l(8 0.0 l)
All other models 21.1ga l(8 0.0 l)
Model Of whichreser ve
Mercedes-AMG E 43
4MATIC 1.
8 ga l(7.0 l)
Al lot her models 3.2 gal (12.0 l)
Quality and filling capacity of engine oil
MB- Freigabe or MB-A pproval
Gasoline enginesM B-Freigabe or MB-
Appr oval
All models 229.5
Only useSAE 0W-40 or SAE 5W-40 engine oils.
The following values referto an oil change,
including the oil filter:
Capacity
Model Capacity
Mercedes -AMG E 43
4MATIC 6.9 US qt (6.5 l)
All other models 9.5 US qt (9.0 l)
Coolant filling capacity
Fi lling capacity
Model Filling capacity
Mercedes-AMG E 43
4MATIC 12
.7 US qt (12.0 l)
Mercedes-A MG E 63
4MATIC 15
.9 US qt (15.0 l)
Mercedes-A MG E 63
S 4MATIC 17
.1 US qt (16.2 l)
Re frigerant filling capacity
Fi lling capacities
Missing values werenot available at time of
going toprint.
Fi lling capacities
Model Refrigerant
Mercedes-AMG E 43
4MATIC 22.2 ± 0.4 oz
(630 ± 10g)
All other models
Model PAG oil
All models2 .8 ± 0.4 oz
(80 ± 10g)
Vehicle data
Vehicle dimensions
The heights specifi ed mayvary as a result of the:
RTire s
RLoad
36
Tech nical da ta

RCondition ofthe suspension
ROptional equipment
Missing values werenot available at the time of

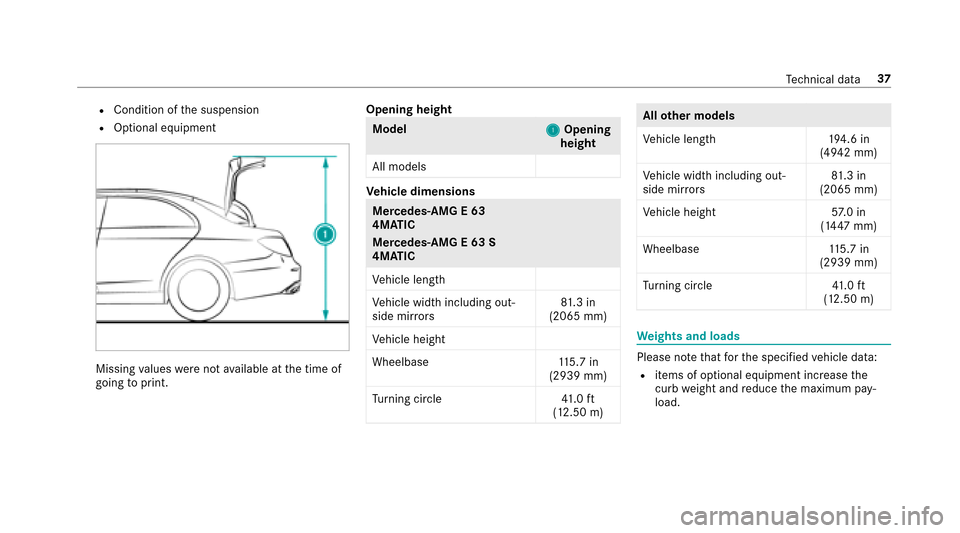

going toprint. Opening height
Model
1Opening
height
All models
Ve hicle dimensions
Mercedes-AMG E 63
4MATIC
Mercedes-AMG E 63 S
4MATIC
Vehicle length
Ve hicle width including out‐
side mir rors 81
.3 in
(2065 mm)
Ve hicle height
Wheelbase 115.7 in
(2939 mm)
Tu rning circle 41.0 ft
(12.50 m)
All other models
Ve hicle lengt h1 94.6 in
(4942 mm)
Ve hicle width including out‐
side mir rors 81
.3 in
(2065 mm)
Ve hicle height 57.0 in
(1 44 7 mm)
Wheelbase 115.7 in
(2939 mm)
Tu rning circle 41.0 ft
(12.50 m)
We ights and loads
Please no tethat forth e specified vehicle data:
Ritems of optional equipment increase the
curb weight and reduce the maximum pay‐
load.
Te ch nical da ta37

Allmod els

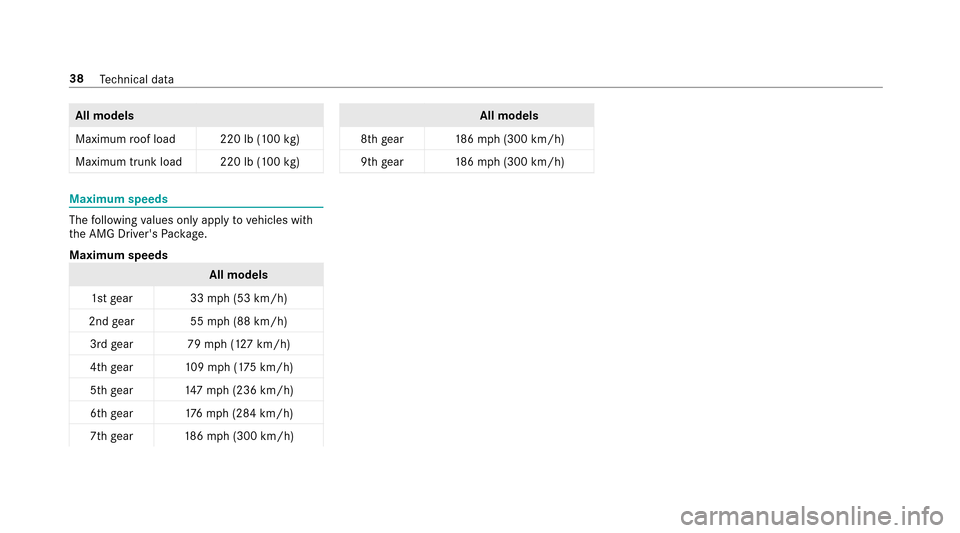

Maximum roof load 220 lb (100 kg)
Maximum trunk load 220 lb (100 kg)
Maximum speeds
The following values only apply tovehicles with
th e AMG Driver's Package.
Maximum speeds
All models
1st gear 33 mph(5 3 km/h)
2nd gear 55 mph(8 8 km/h)
3rd gear 79 mph (1 27km/h)
4th gear 109mp h (1 75km/h)
5th gear 147mp h (236 km/h)
6th gear 176mp h (284 km/h)
7th gear 186mp h (300 km/h)
All models
8th gear 186mp h (300 km/h)
9th gear 186mp h (300 km/h)
38
Tech nical da ta
