Page 171 of 284

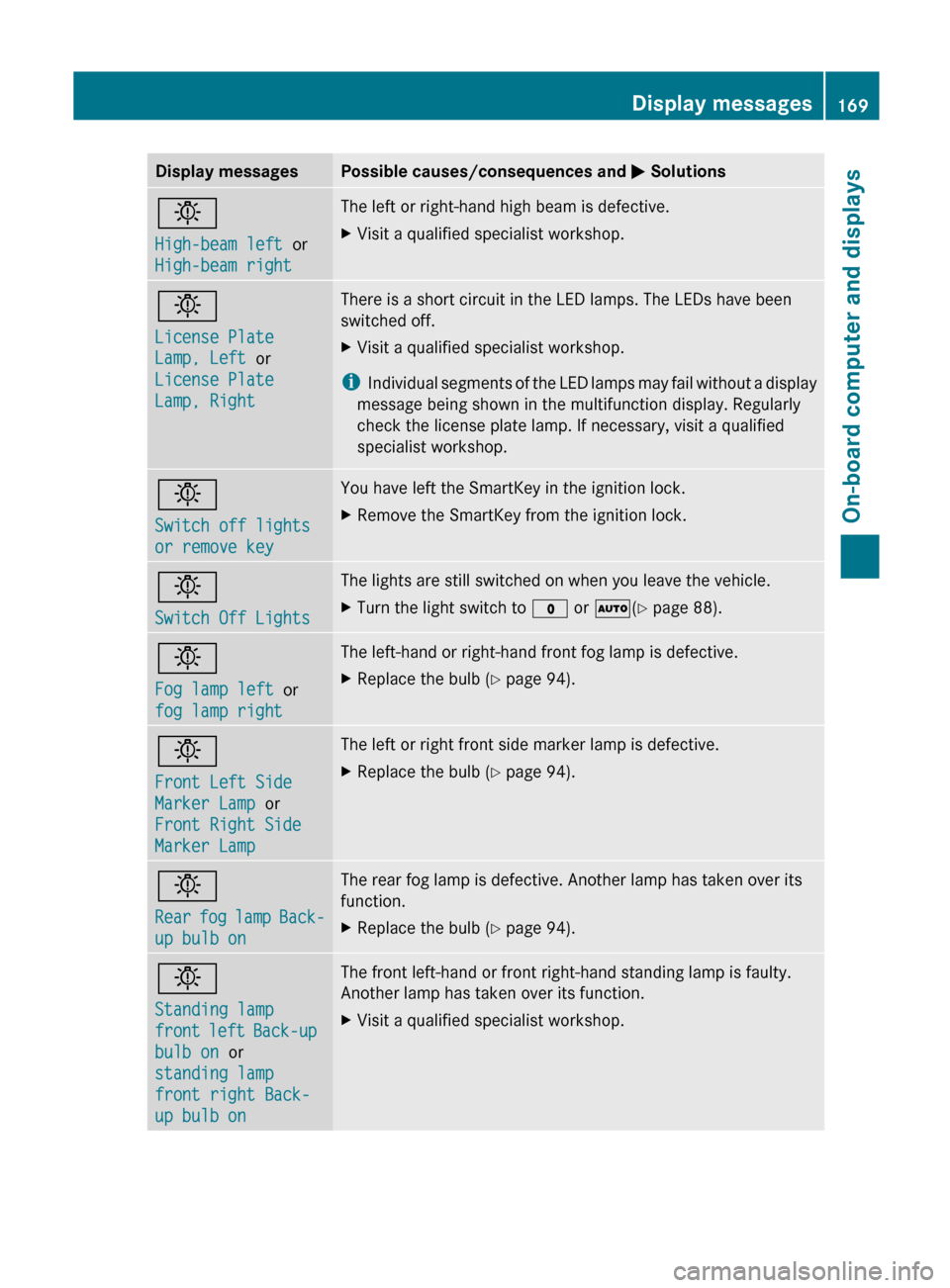

Display messages Possible causes/consequences and
M Solutionsb
High-beam left or
High-beam right The left or right-hand high beam is defective.
X
Visit a qualified specialist workshop. b
License Plate
Lamp, Left or
License Plate
Lamp, Right There is a short circuit in the LED lamps. The LEDs have been
switched off.
X
Visit a qualified specialist workshop.
i Individual segments of the LED lamps may fail without a display
message being shown in the multifunction display. Regularly
check the license plate lamp. If necessary, visit a qualified
specialist workshop. b
Switch off lights
or remove key You have left the SmartKey in the ignition lock.
X
Remove the SmartKey from the ignition lock. b
Switch Off Lights The lights are still switched on when you leave the vehicle.
X
Turn the light switch to $ or Ã(Y page 88). b
Fog lamp left or
fog lamp right The left-hand or right-hand front fog lamp is defective.
X
Replace the bulb ( Y page 94).b
Front Left Side
Marker Lamp or
Front Right Side
Marker Lamp The left or right front side marker lamp is defective.
X
Replace the bulb ( Y page 94).b
Rear
fog
lamp Back-
up bulb on The rear fog lamp is defective. Another lamp has taken over its
function.
X
Replace the bulb ( Y page 94).b
Standing lamp
front
left
Back-up
bulb on or
standing lamp
front right Back-
up bulb on The front left-hand or front right-hand standing lamp is faulty.
Another lamp has taken over its function.
X
Visit a qualified specialist workshop. Display messages
169
On-board computer and displays Z
Page 172 of 284

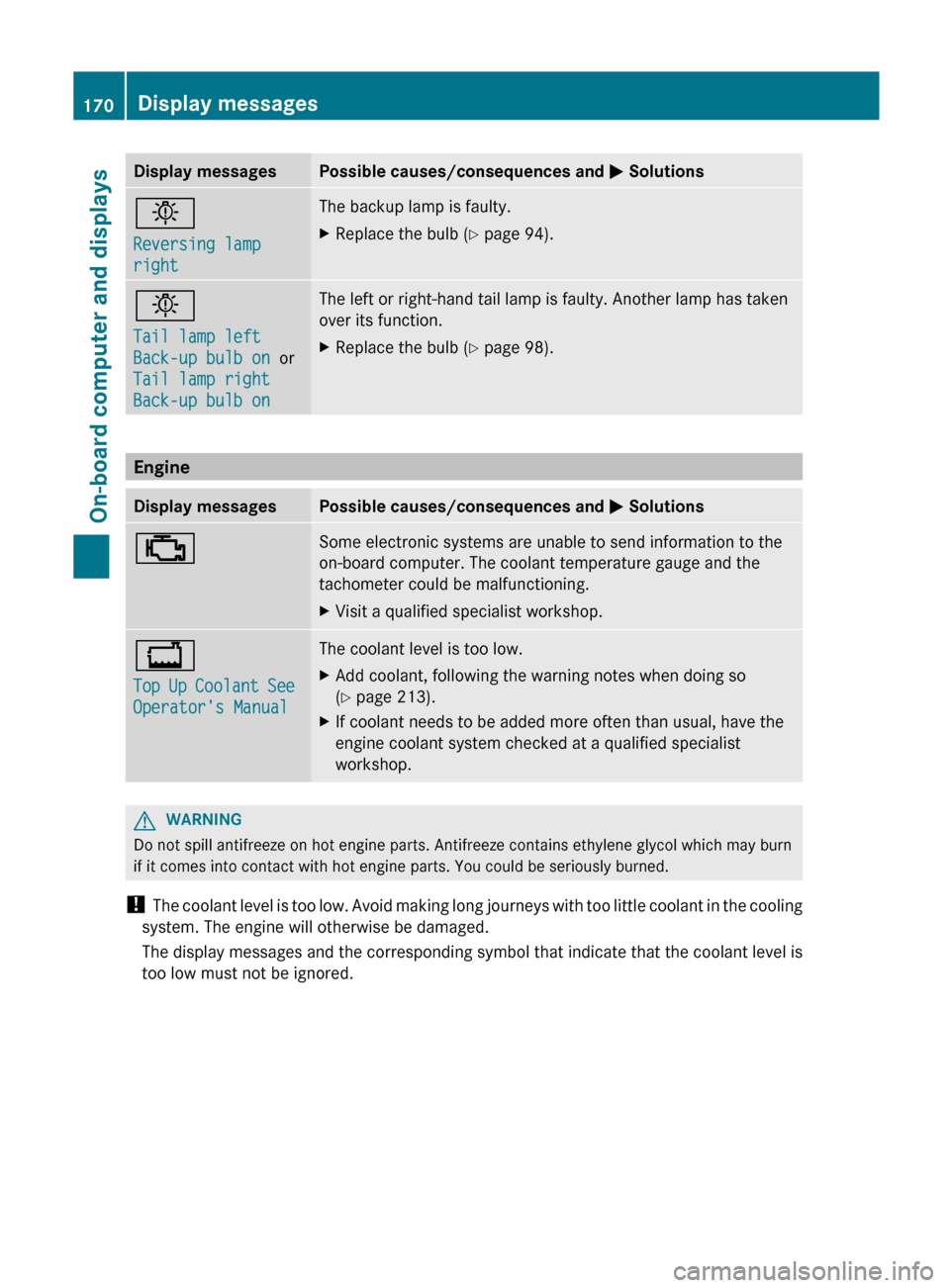

Display messages Possible causes/consequences and
M Solutionsb
Reversing lamp
right The backup lamp is faulty.
X
Replace the bulb ( Y page 94).b
Tail lamp left
Back-up bulb on
or
Tail lamp right
Back-up bulb on The left or right-hand tail lamp is faulty. Another lamp has taken
over its function.
X
Replace the bulb ( Y page 98).Engine
Display messages Possible causes/consequences and
M Solutions; Some electronic systems are unable to send information to the
on-board computer. The coolant temperature gauge and the
tachometer could be malfunctioning.
X
Visit a qualified specialist workshop. +
Top
Up
Coolant See
Operator's Manual The coolant level is too low.
X
Add coolant, following the warning notes when doing so
(Y page 213).
X If coolant needs to be added more often than usual, have the
engine coolant system checked at a qualified specialist
workshop. G
WARNING
Do not spill antifreeze on hot engine parts. Antifreeze contains ethylene glycol which may burn
if it comes into contact with hot engine parts. You could be seriously burned.
! The coolant
level is too low. Avoid making long journeys with too little coolant in the cooling
system. The engine will otherwise be damaged.
The display messages and the corresponding symbol that indicate that the coolant level is
too low must not be ignored. 170
Display messages
On-board computer and displays
Page 173 of 284

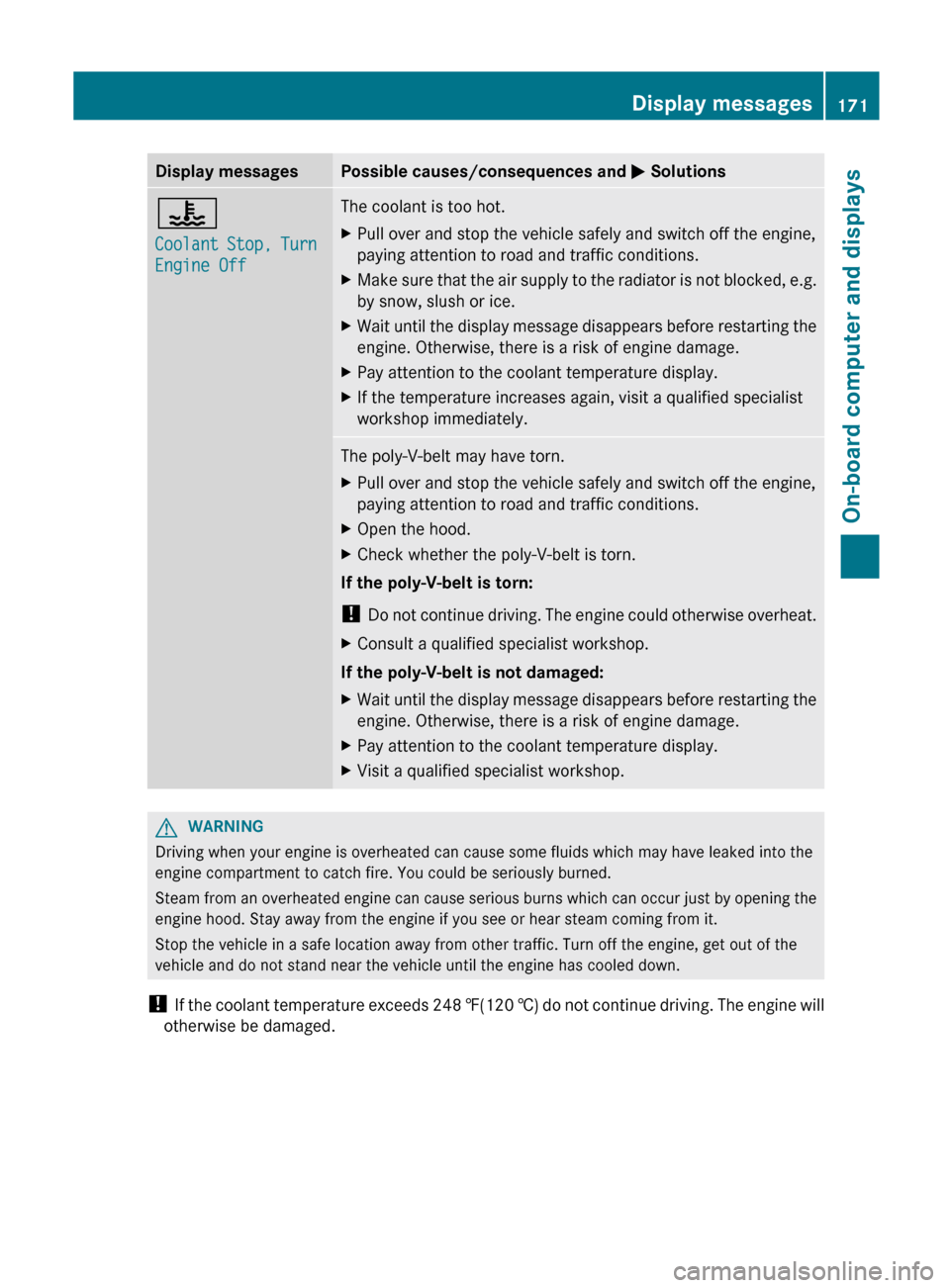

Display messages Possible causes/consequences and
M Solutions?
Coolant
Stop,
Turn
Engine Off The coolant is too hot.
X
Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Make sure that the air supply to the radiator is not blocked, e.g.
by snow, slush or ice.
X Wait until the display message disappears before restarting the
engine. Otherwise, there is a risk of engine damage.
X Pay attention to the coolant temperature display.
X If the temperature increases again, visit a qualified specialist
workshop immediately. The poly-V-belt may have torn.
X
Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Open the hood.
X Check whether the poly-V-belt is torn.
If the poly-V-belt is torn:
! Do not
continue driving. The engine could otherwise overheat.
X Consult a qualified specialist workshop.
If the poly-V-belt is not damaged:
X Wait until the display message disappears before restarting the
engine. Otherwise, there is a risk of engine damage.
X Pay attention to the coolant temperature display.
X Visit a qualified specialist workshop. G
WARNING
Driving when your engine is overheated can cause some fluids which may have leaked into the
engine compartment to catch fire. You could be seriously burned.
Steam from
an overheated engine can cause serious burns which can occur just by opening the
engine hood. Stay away from the engine if you see or hear steam coming from it.
Stop the vehicle in a safe location away from other traffic. Turn off the engine, get out of the
vehicle and do not stand near the vehicle until the engine has cooled down.
! If the coolant temperature exceeds 248 ‡(120 †) do not continue driving. The engine will
otherwise be damaged. Display messages
171
On-board computer and displays Z
Page 174 of 284

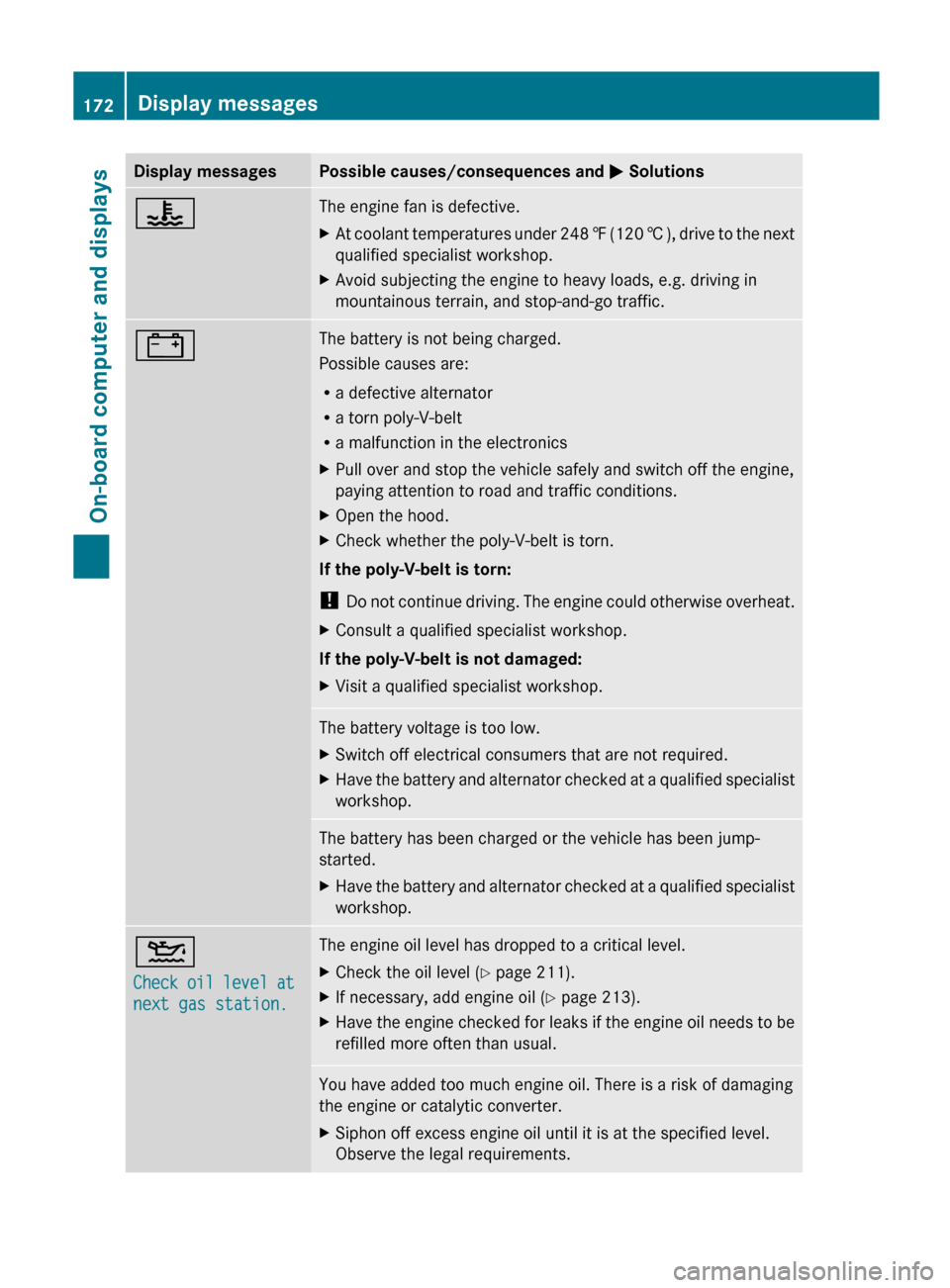

Display messages Possible causes/consequences and
M Solutions? The engine fan is defective.
X
At coolant temperatures under 248 ‡ (120 † ), drive to the next
qualified specialist workshop.
X Avoid subjecting the engine to heavy loads, e.g. driving in
mountainous terrain, and stop-and-go traffic. # The battery is not being charged.
Possible causes are:
R
a defective alternator
R a torn poly-V-belt
R a malfunction in the electronics
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Open the hood.
X Check whether the poly-V-belt is torn.
If the poly-V-belt is torn:
! Do not
continue driving. The engine could otherwise overheat.
X Consult a qualified specialist workshop.
If the poly-V-belt is not damaged:
X Visit a qualified specialist workshop. The battery voltage is too low.
X
Switch off electrical consumers that are not required.
X Have the battery and alternator checked at a qualified specialist
workshop. The battery has been charged or the vehicle has been jump-
started.
X
Have the battery and alternator checked at a qualified specialist
workshop. 4
Check
oil
level at
next gas station. The engine oil level has dropped to a critical level.
X
Check the oil level (Y page 211).
X If necessary, add engine oil ( Y page 213).
X Have the engine checked for leaks if the engine oil needs to be
refilled more often than usual. You have added too much engine oil. There is a risk of damaging
the engine or catalytic converter.
X
Siphon off excess engine oil until it is at the specified level.
Observe the legal requirements.172
Display messages
On-board computer and displays
Page 175 of 284

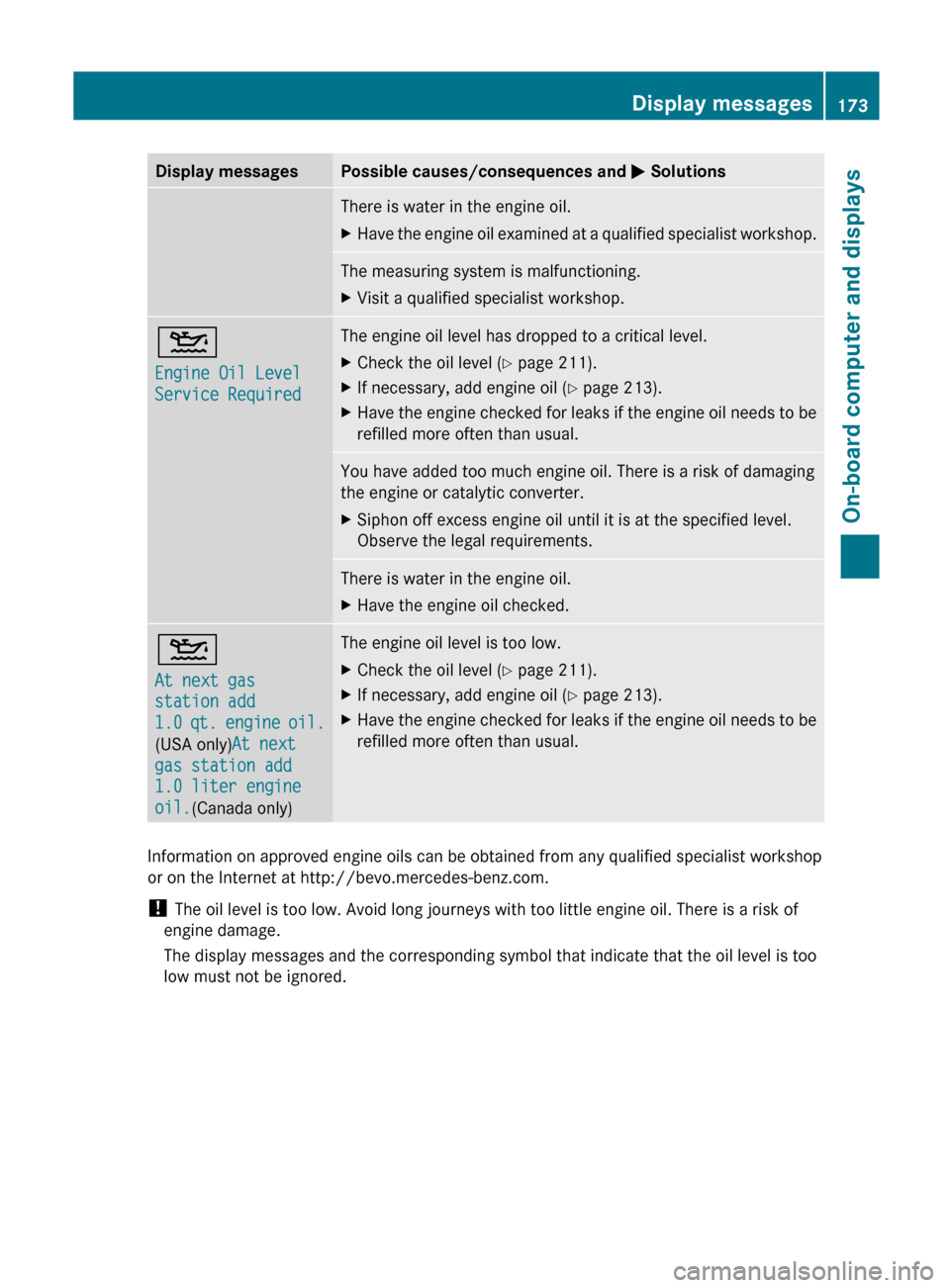

Display messages Possible causes/consequences and
M SolutionsThere is water in the engine oil.
X
Have the engine oil examined at a qualified specialist workshop. The measuring system is malfunctioning.
X
Visit a qualified specialist workshop. 4
Engine Oil Level
Service Required The engine oil level has dropped to a critical level.
X
Check the oil level (Y page 211).
X If necessary, add engine oil ( Y page 213).
X Have the engine checked for leaks if the engine oil needs to be
refilled more often than usual. You have added too much engine oil. There is a risk of damaging
the engine or catalytic converter.
X
Siphon off excess engine oil until it is at the specified level.
Observe the legal requirements. There is water in the engine oil.
X
Have the engine oil checked. 4
At next gas
station add
1.0
qt.
engine oil.
(USA only)At next
gas station add
1.0 liter engine
oil.(Canada only) The engine oil level is too low.
X
Check the oil level (Y page 211).
X If necessary, add engine oil ( Y page 213).
X Have the engine checked for leaks if the engine oil needs to be
refilled more often than usual. Information on approved engine oils can be obtained from any qualified specialist workshop
or on the Internet at
http://bevo.mercedes-benz.com
.
! The oil level is too low. Avoid long journeys with too little engine oil. There is a risk of
engine damage.
The display messages and the corresponding symbol that indicate that the oil level is too
low must not be ignored. Display messages
173
On-board computer and displays Z

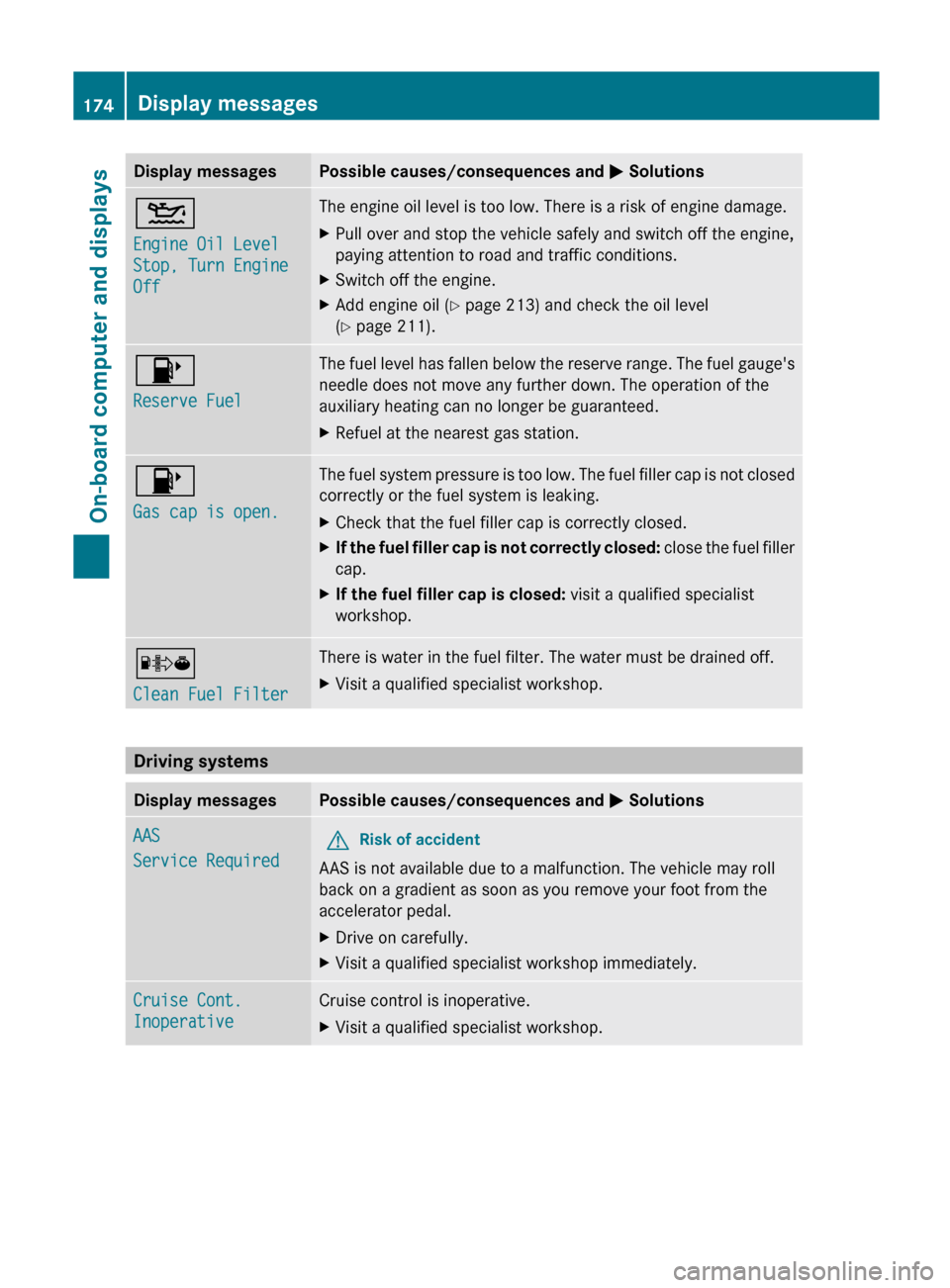

Page 176 of 284
Display messages Possible causes/consequences and
M Solutions4
Engine Oil Level
Stop, Turn Engine
Off The engine oil level is too low. There is a risk of engine damage.
X
Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Switch off the engine.
X Add engine oil ( Y page 213) and check the oil level
(Y page 211). 8
Reserve Fuel The fuel level has fallen below the reserve range. The fuel gauge's
needle does not move any further down. The operation of the
auxiliary heating can no longer be guaranteed.
X
Refuel at the nearest gas station. 8
Gas cap is open. The fuel system pressure is too low. The fuel filler cap is not closed
correctly or the fuel system is leaking.
X
Check that the fuel filler cap is correctly closed.
X If the fuel filler cap is not correctly closed:
close the fuel filler
cap.
X If the fuel filler cap is closed: visit a qualified specialist
workshop. ´
Clean Fuel Filter There is water in the fuel filter. The water must be drained off.
X
Visit a qualified specialist workshop. Driving systems
Display messages Possible causes/consequences and
M SolutionsAAS
Service Required
G
Risk of accident
AAS is not available due to a malfunction. The vehicle may roll
back on a gradient as soon as you remove your foot from the
accelerator pedal.
X Drive on carefully.
X Visit a qualified specialist workshop immediately. Cruise Cont.
Inoperative Cruise control is inoperative.
X
Visit a qualified specialist workshop.174
Display messages
On-board computer and displays
Page 177 of 284

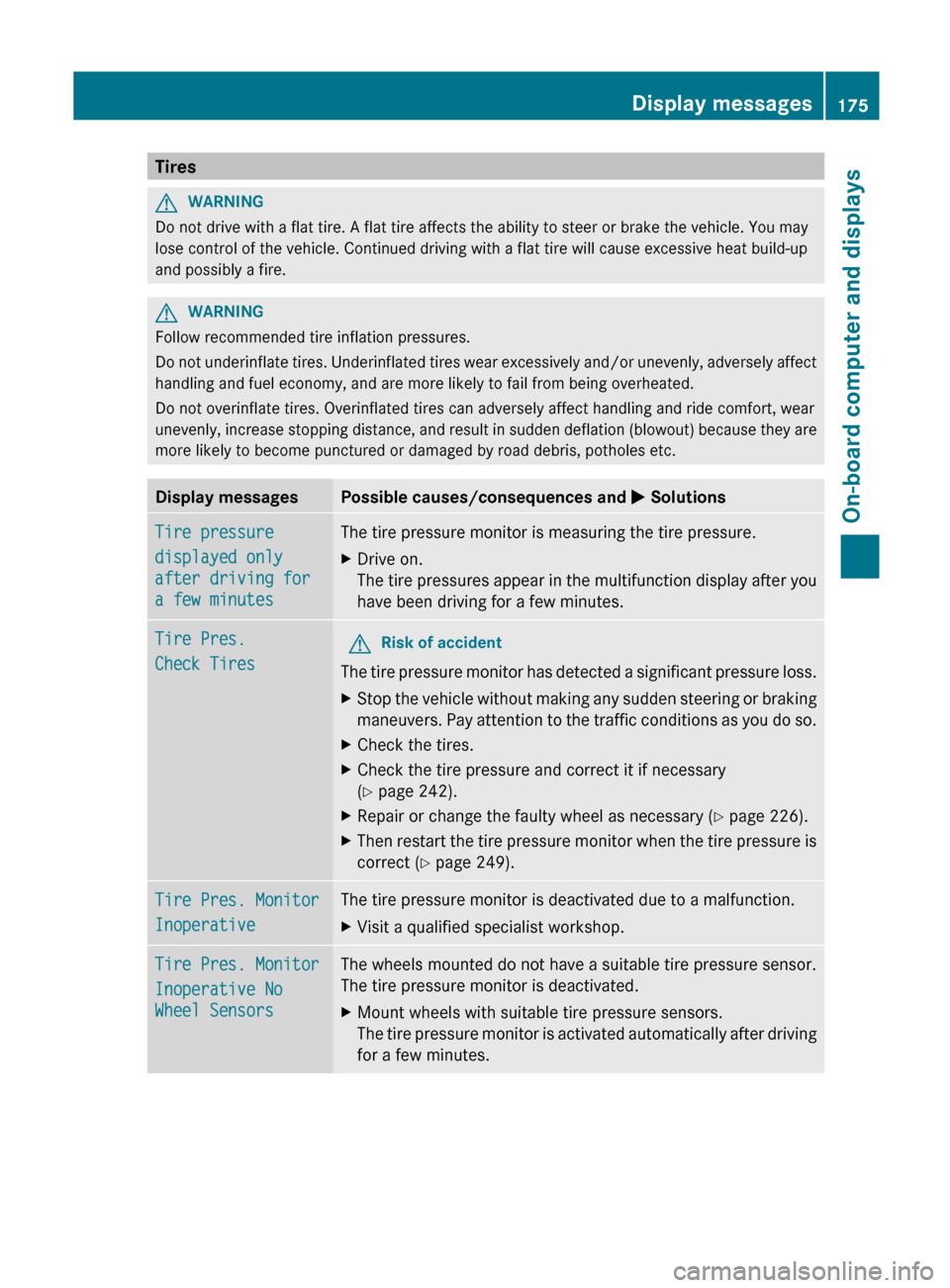

Tires
G
WARNING
Do not drive with a flat tire. A flat tire affects the ability to steer or brake the vehicle. You may
lose control of the vehicle. Continued driving with a flat tire will cause excessive heat build-up
and possibly a fire. G
WARNING
Follow recommended tire inflation pressures.
Do not
underinflate tires. Underinflated tires wear excessively and/or unevenly, adversely affect
handling and fuel economy, and are more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires can adversely affect handling and ride comfort, wear
unevenly, increase stopping distance, and result in sudden deflation (blowout) because they are
more likely to become punctured or damaged by road debris, potholes etc. Display messages Possible causes/consequences and
M
Solutions
Tire pressure
displayed only
after driving for
a few minutes The tire pressure monitor is measuring the tire pressure.
X
Drive on.
The tire
pressures appear in the multifunction display after you
have been driving for a few minutes. Tire Pres.
Check Tires
G
Risk of accident
The
tire pressure monitor has detected a significant pressure loss.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay
attention to the traffic conditions as you do so.
X Check the tires.
X Check the tire pressure and correct it if necessary
(Y page 242).
X Repair or change the faulty wheel as necessary ( Y page 226).
X Then restart the tire pressure monitor when the tire pressure is
correct (
Y page 249). Tire Pres. Monitor
Inoperative The tire pressure monitor is deactivated due to a malfunction.
X
Visit a qualified specialist workshop. Tire Pres. Monitor
Inoperative No
Wheel Sensors The wheels mounted do not have a suitable tire pressure sensor.
The tire pressure monitor is deactivated.
X
Mount wheels with suitable tire pressure sensors.
The tire
pressure monitor is activated automatically after driving
for a few minutes. Display messages
175
On-board computer and displays Z
Page 178 of 284

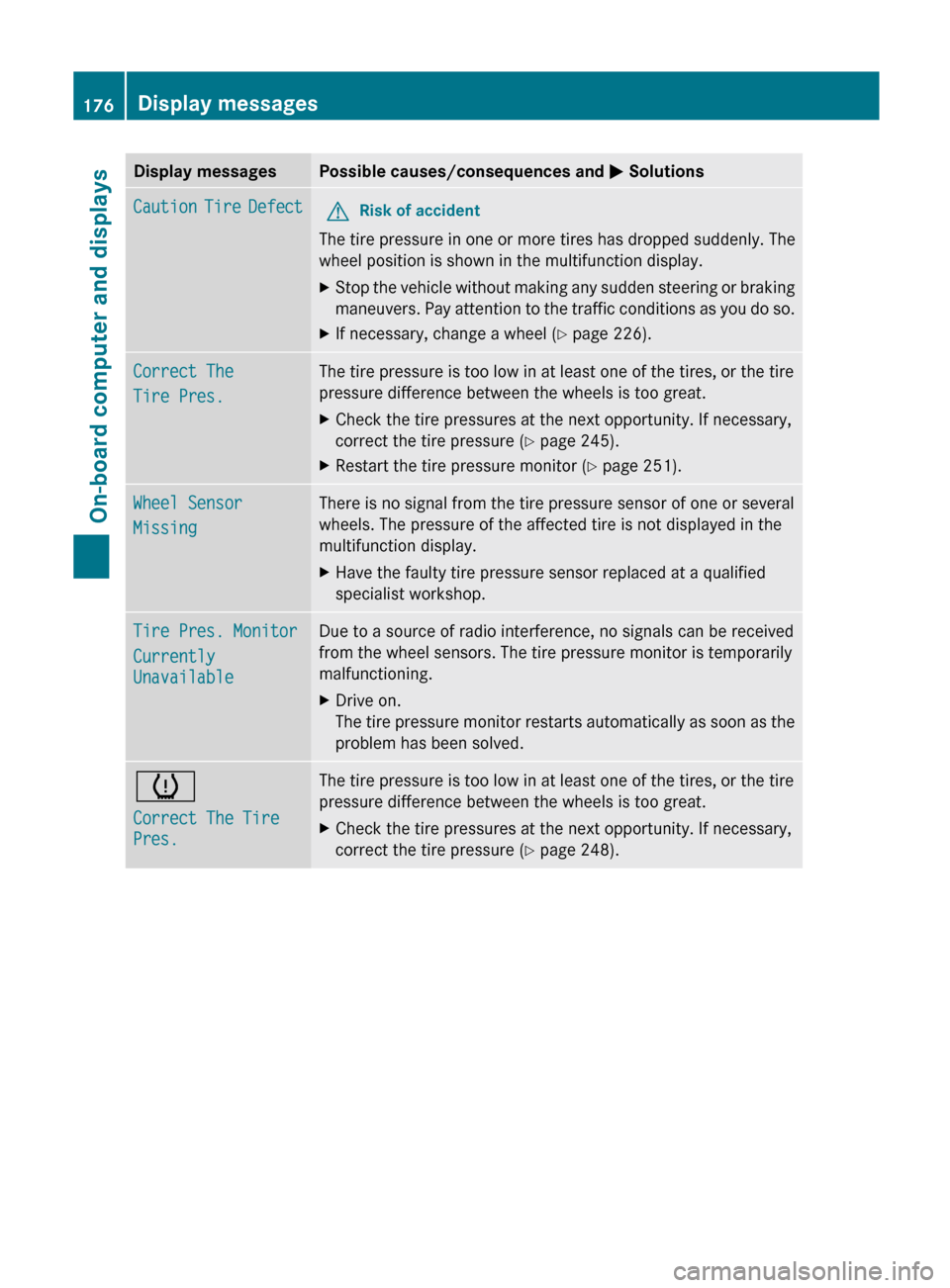

Display messages Possible causes/consequences and
M SolutionsCaution Tire Defect
G
Risk of accident
The tire pressure in one or more tires has dropped suddenly. The
wheel position is shown in the multifunction display.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay
attention to the traffic conditions as you do so.
X If necessary, change a wheel ( Y page 226).Correct The
Tire Pres. The tire pressure is too low in at least one of the tires, or the tire
pressure difference between the wheels is too great.
X
Check the tire pressures at the next opportunity. If necessary,
correct the tire pressure ( Y page 245).
X Restart the tire pressure monitor (Y page 251). Wheel Sensor
Missing There is no signal from the tire pressure sensor of one or several
wheels. The pressure of the affected tire is not displayed in the
multifunction display.
X
Have the faulty tire pressure sensor replaced at a qualified
specialist workshop. Tire Pres. Monitor
Currently
Unavailable Due to a source of radio interference, no signals can be received
from the wheel sensors. The tire pressure monitor is temporarily
malfunctioning.
X
Drive on.
The tire
pressure monitor restarts automatically as soon as the
problem has been solved. h
Correct The Tire
Pres. The tire pressure is too low in at least one of the tires, or the tire
pressure difference between the wheels is too great.
X
Check the tire pressures at the next opportunity. If necessary,
correct the tire pressure ( Y page 248).176
Display messages
On-board computer and displays
Page 179 of 284

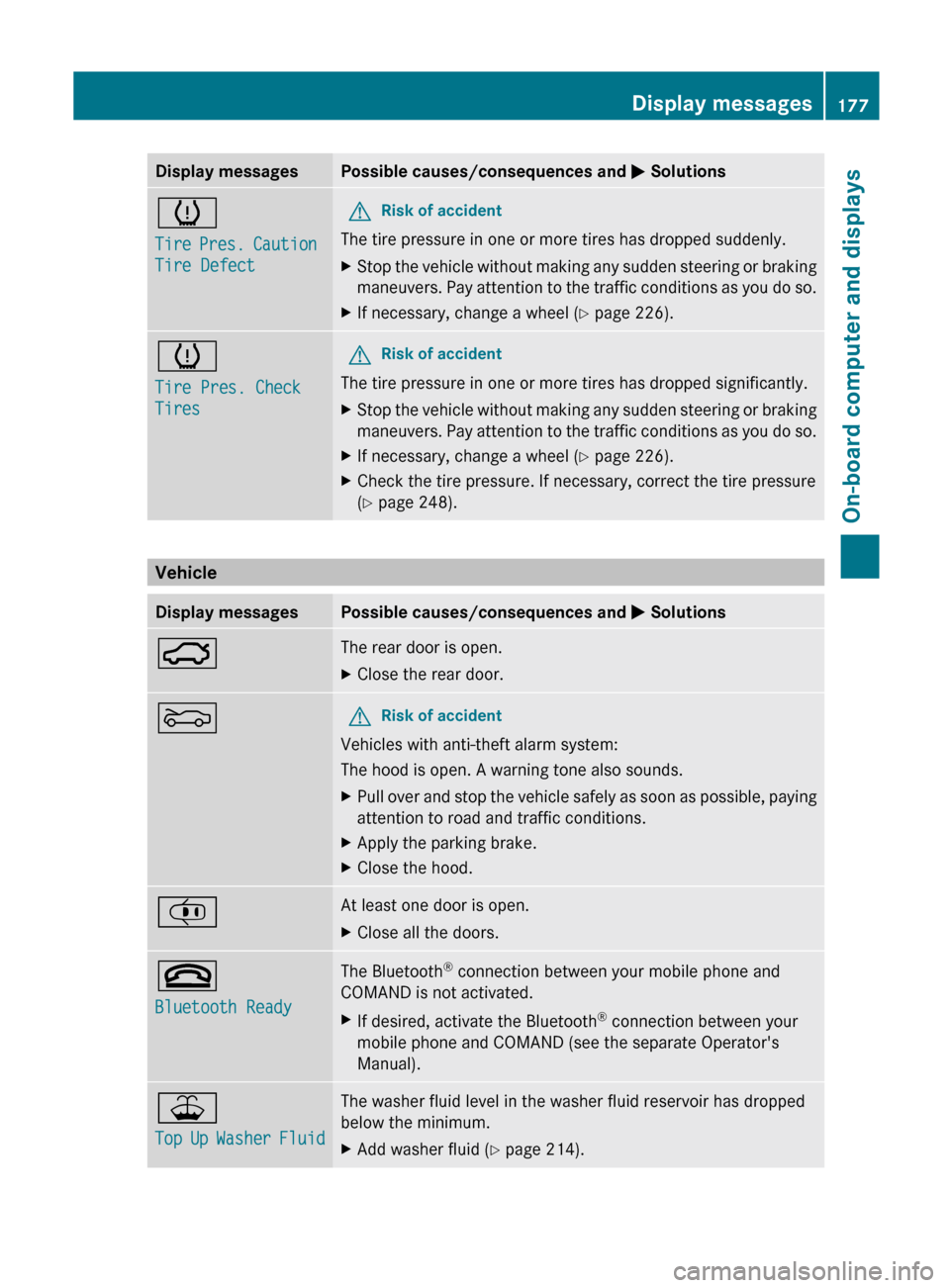

Display messages Possible causes/consequences and
M Solutionsh
Tire
Pres.
Caution
Tire Defect G
Risk of accident
The tire pressure in one or more tires has dropped suddenly.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay
attention to the traffic conditions as you do so.
X If necessary, change a wheel ( Y page 226).h
Tire Pres. Check
Tires G
Risk of accident
The tire pressure in one or more tires has dropped significantly.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay
attention to the traffic conditions as you do so.
X If necessary, change a wheel ( Y page 226).
X Check the tire pressure. If necessary, correct the tire pressure
(Y page 248). Vehicle
Display messages Possible causes/consequences and
M Solutions: The rear door is open.
X
Close the rear door. M G
Risk of accident
Vehicles with anti-theft alarm system:
The hood is open. A warning tone also sounds.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Apply the parking brake.
X Close the hood. ¡ At least one door is open.
X
Close all the doors. ~
Bluetooth Ready The Bluetooth
®
connection between your mobile phone and
COMAND is not activated.
X If desired, activate the Bluetooth ®
connection between your
mobile phone and COMAND (see the separate Operator's
Manual). ¥
Top
Up
Washer Fluid The washer fluid level in the washer fluid reservoir has dropped
below the minimum.
X
Add washer fluid ( Y page 214). Display messages
177
On-board computer and displays Z
Page 180 of 284

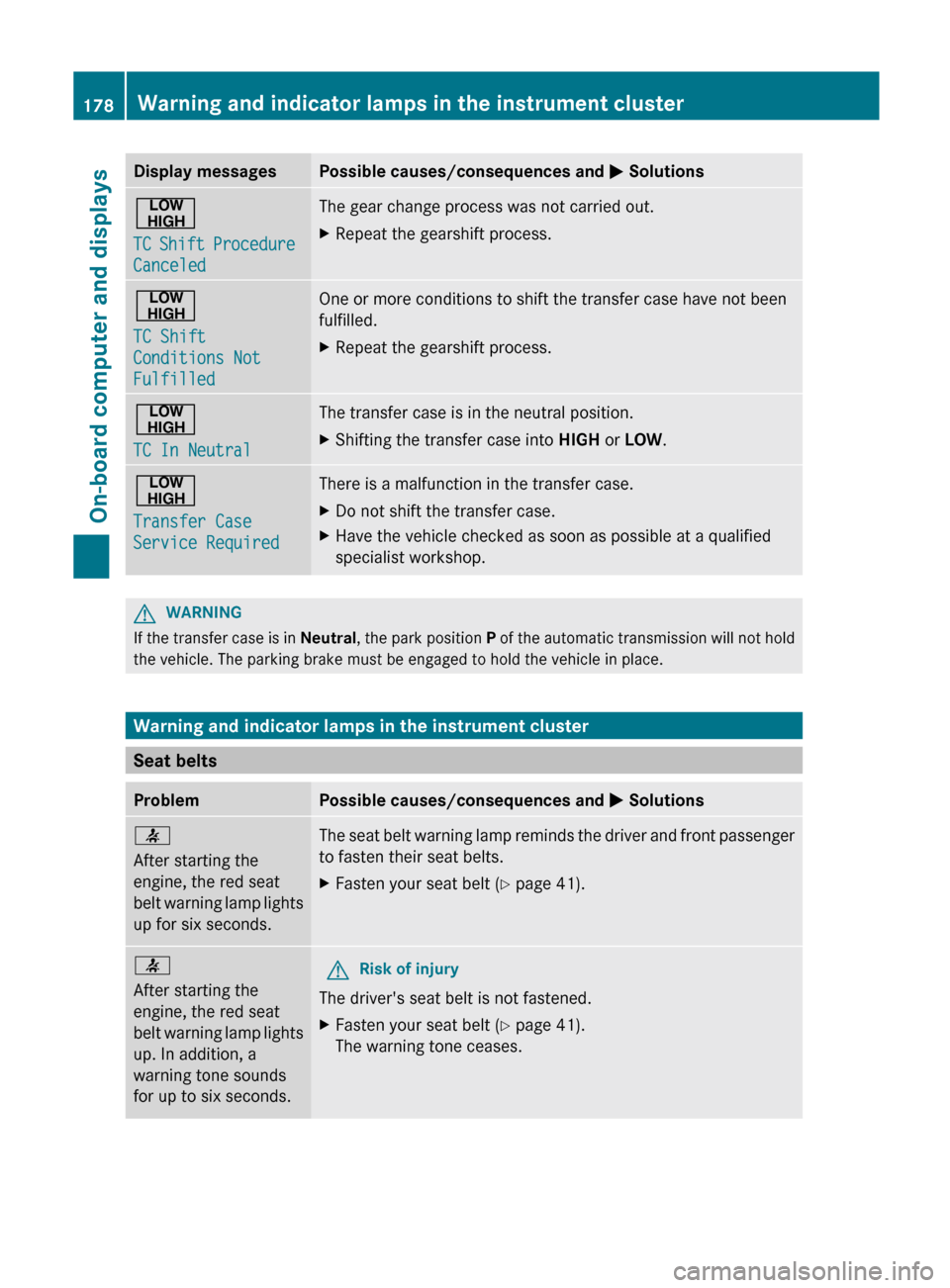

Display messages Possible causes/consequences and
M Solutions©
TC
Shift
Procedure
Canceled The gear change process was not carried out.
X
Repeat the gearshift process. ©
TC Shift
Conditions Not
Fulfilled One or more conditions to shift the transfer case have not been
fulfilled.
X
Repeat the gearshift process. ©
TC In Neutral The transfer case is in the neutral position.
X
Shifting the transfer case into HIGH or LOW.©
Transfer Case
Service Required There is a malfunction in the transfer case.
X
Do not shift the transfer case.
X Have the vehicle checked as soon as possible at a qualified
specialist workshop. G
WARNING
If the transfer case is in Neutral,
the
park position P of the automatic transmission will not hold
the vehicle. The parking brake must be engaged to hold the vehicle in place. Warning and indicator lamps in the instrument cluster
Seat belts
Problem Possible causes/consequences and
M Solutions7
After starting the
engine, the red seat
belt
warning
lamp lights
up for six seconds. The seat belt warning lamp reminds the driver and front passenger
to fasten their seat belts.
X
Fasten your seat belt ( Y page 41).7
After starting the
engine, the red seat
belt
warning
lamp lights
up. In addition, a
warning tone sounds
for up to six seconds. G
Risk of injury
The driver's seat belt is not fastened.
X Fasten your seat belt ( Y page 41).
The warning tone ceases. 178
Warning and indicator lamps in the instrument cluster
On-board computer and displays
