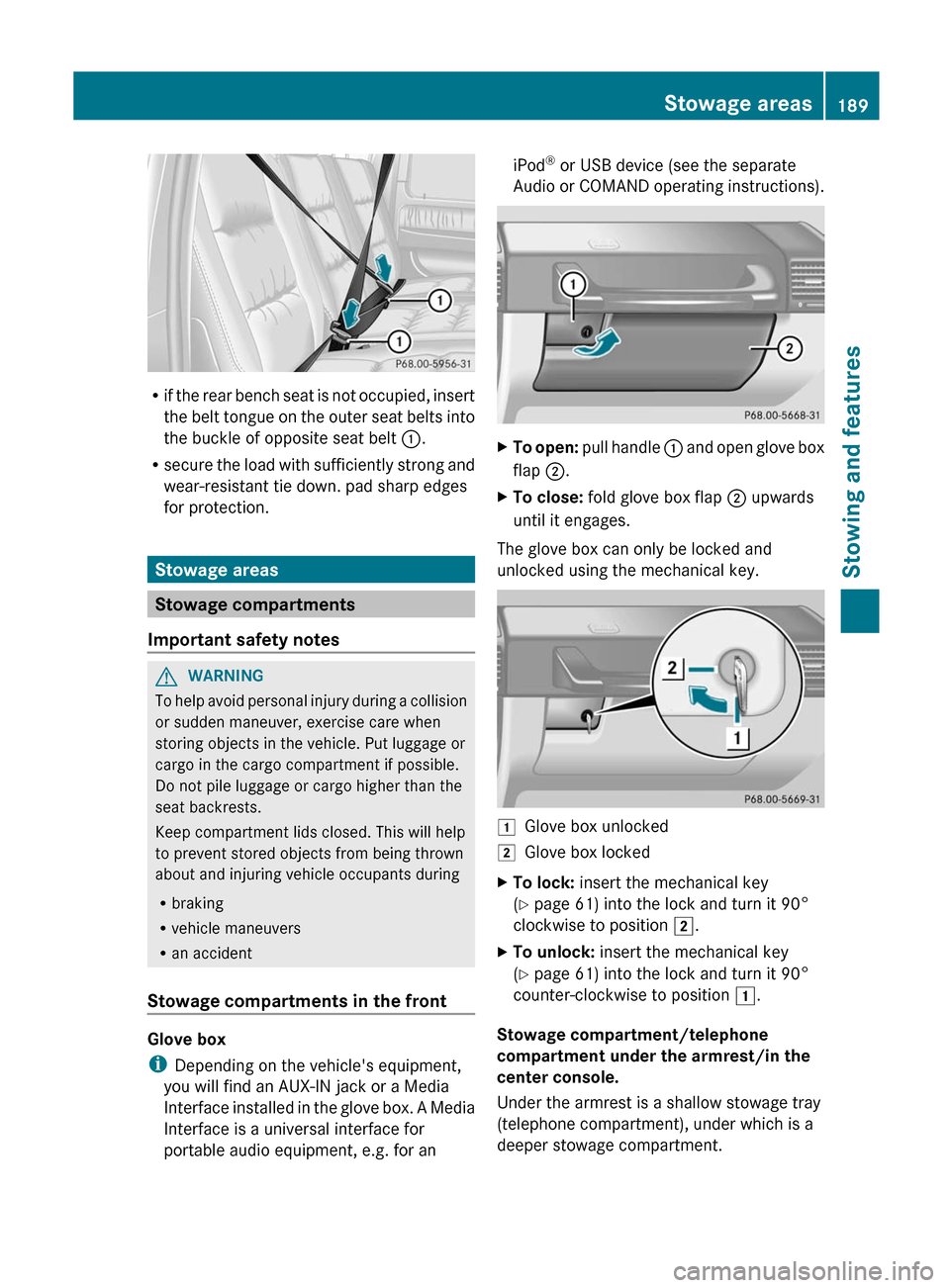

R
if the
rear bench seat is not occupied, insert
the belt tongue on the outer seat belts into
the buckle of opposite seat belt :.
R secure the load with sufficiently strong and
wear-resistant tie down. pad sharp edges
for protection. Stowage areas
Stowage compartments
Important safety notes G
WARNING
To help avoid personal injury during a collision
or sudden maneuver, exercise care when
storing objects in the vehicle. Put luggage or
cargo in the cargo compartment if possible.
Do not pile luggage or cargo higher than the
seat backrests.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
R braking
R vehicle maneuvers
R an accident
Stowage compartments in the front Glove box
i
Depending on the vehicle's equipment,
you will find an AUX-IN jack or a Media
Interface installed
in the glove box. A Media
Interface is a universal interface for
portable audio equipment, e.g. for an iPod
®
or USB device (see the separate
Audio or
COMAND operating instructions). X
To open: pull handle :
and open glove box
flap ;.
X To close: fold glove box flap ; upwards
until it engages.
The glove box can only be locked and
unlocked using the mechanical key. 1
Glove box unlocked
2 Glove box locked
X To lock: insert the mechanical key
(Y page 61) into the lock and turn it 90°
clockwise to position 2.
X To unlock: insert the mechanical key
(Y page 61) into the lock and turn it 90°
counter-clockwise to position 1.
Stowage compartment/telephone
compartment under the armrest/in the
center console.
Under the armrest is a shallow stowage tray
(telephone compartment), under which is a
deeper stowage compartment. Stowage areas
189
Stowing and features Z
Page 192 of 284

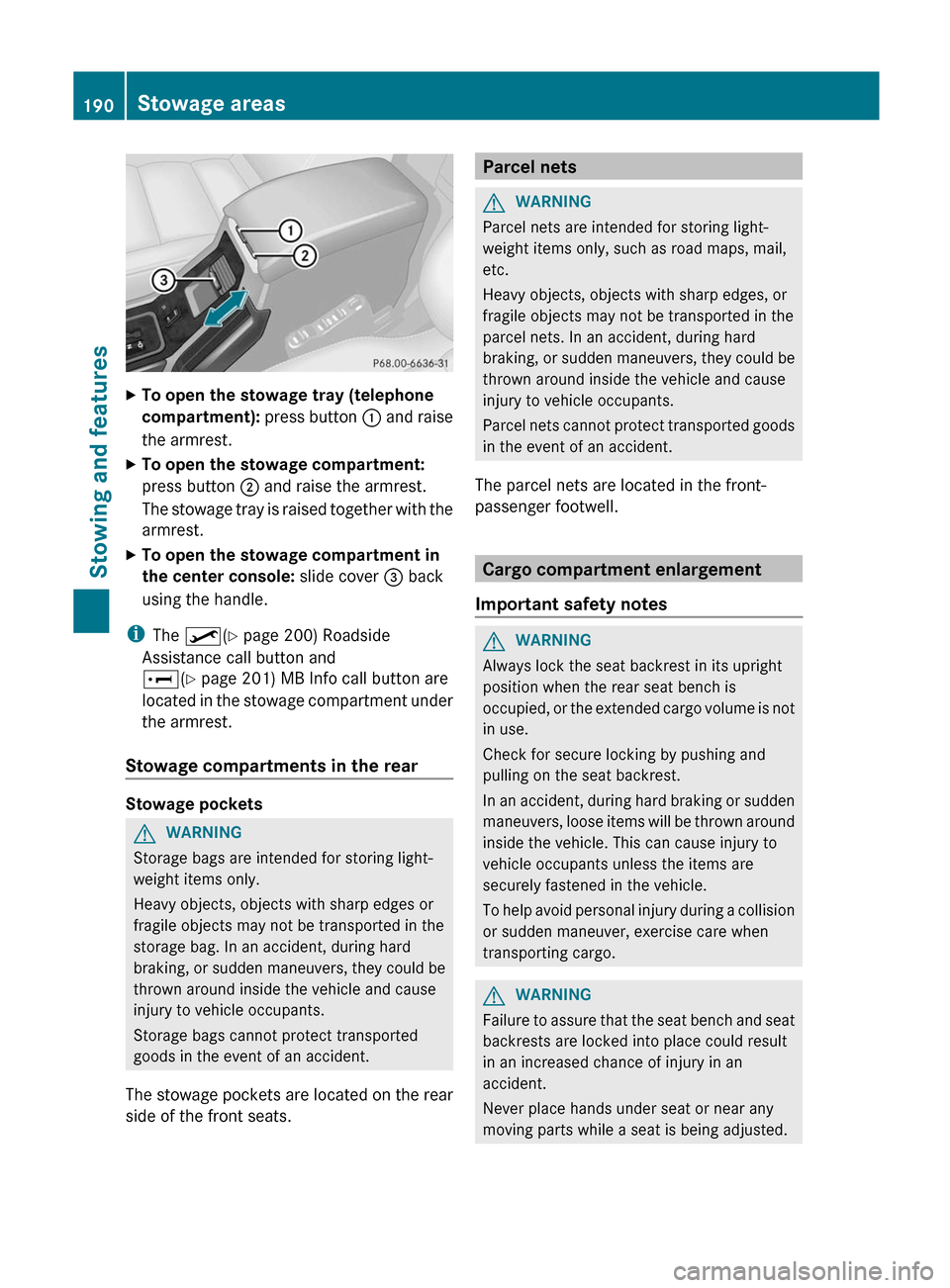

X
To open the stowage tray (telephone
compartment): press
button : and raise
the armrest.
X To open the stowage compartment:
press button ; and raise the armrest.
The stowage
tray is raised together with the
armrest.
X To open the stowage compartment in
the center console: slide cover = back
using the handle.
i The º(Y page 200) Roadside
Assistance call button and
E(Y page 201) MB Info call button are
located in
the stowage compartment under
the armrest.
Stowage compartments in the rear Stowage pockets
G
WARNING
Storage bags are intended for storing light-
weight items only.
Heavy objects, objects with sharp edges or
fragile objects may not be transported in the
storage bag. In an accident, during hard
braking, or
sudden maneuvers, they could be
thrown around inside the vehicle and cause
injury to vehicle occupants.
Storage bags cannot protect transported
goods in the event of an accident.
The stowage pockets are located on the rear
side of the front seats. Parcel nets
G
WARNING
Parcel nets are intended for storing light-
weight items only, such as road maps, mail,
etc.
Heavy objects, objects with sharp edges, or
fragile objects may not be transported in the
parcel nets. In an accident, during hard
braking, or
sudden maneuvers, they could be
thrown around inside the vehicle and cause
injury to vehicle occupants.
Parcel nets cannot protect transported goods
in the event of an accident.
The parcel nets are located in the front-
passenger footwell. Cargo compartment enlargement
Important safety notes G
WARNING
Always lock the seat backrest in its upright
position when the rear seat bench is
occupied, or
the extended cargo volume is not
in use.
Check for secure locking by pushing and
pulling on the seat backrest.
In an accident, during hard braking or sudden
maneuvers, loose items will be thrown around
inside the vehicle. This can cause injury to
vehicle occupants unless the items are
securely fastened in the vehicle.
To help avoid personal injury during a collision
or sudden maneuver, exercise care when
transporting cargo. G
WARNING
Failure to assure that the seat bench and seat
backrests are locked into place could result
in an increased chance of injury in an
accident.
Never place hands under seat or near any
moving parts while a seat is being adjusted. 190
Stowage areas
Stowing and features
Page 193 of 284

For safety reasons, the rear seat bench must
only be adjusted when the vehicle is
stationary.
Never drive a vehicle with the tailgate open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in
unconsciousness and death.
! Ensure that you remove all containers
from the cup holder in the rear before
folding the seat backrest and the seat
cushion of the rear bench seat forwards.
The left-hand and right-hand rear seats can
be folded down to increase the cargo
compartment capacity. The following
changes are possible:
R fold the seat backrests forward
R fold the rear bench seat back fully.

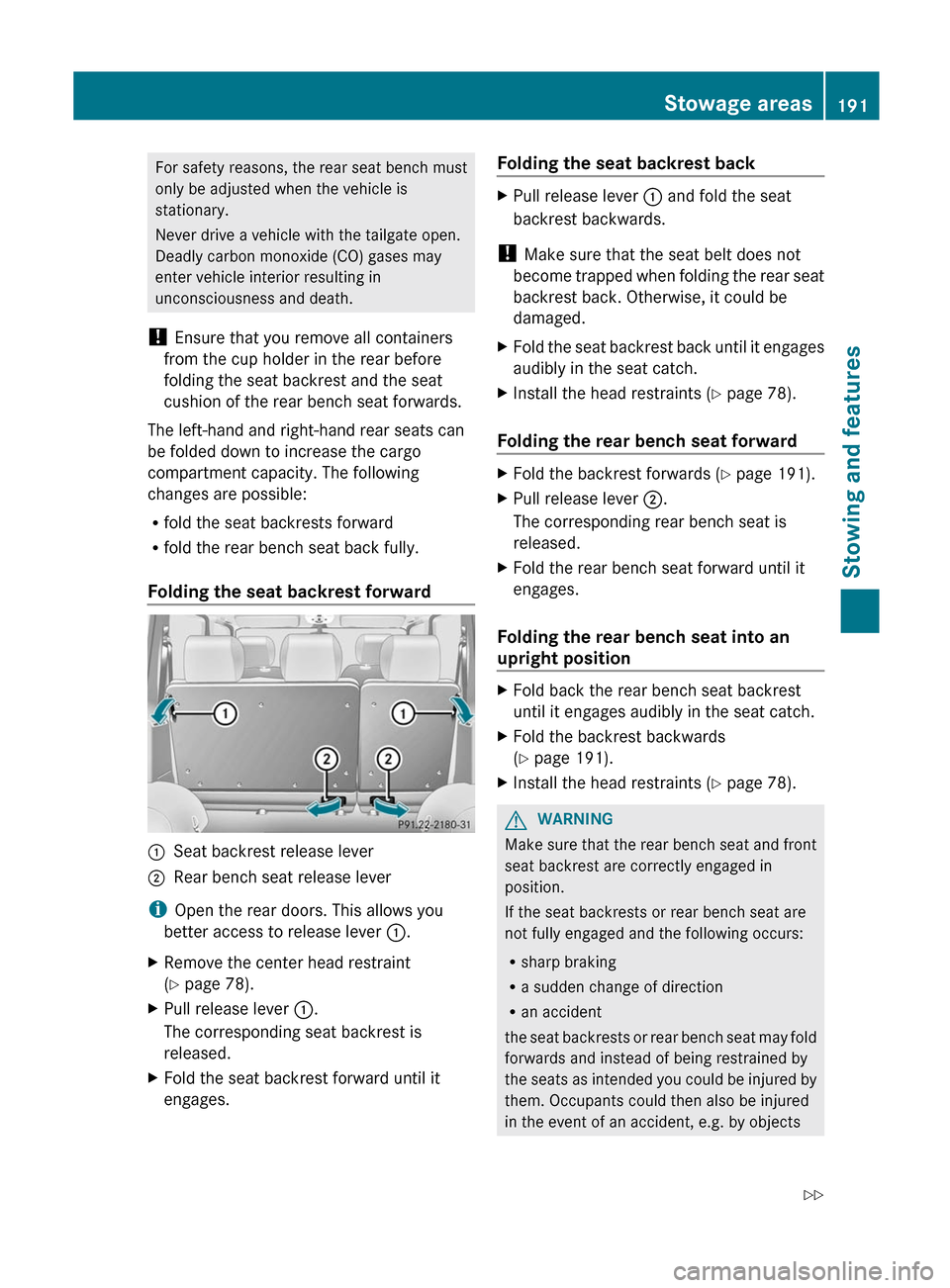

Folding the seat backrest forward :
Seat backrest release lever
; Rear bench seat release lever
i Open the rear doors. This allows you
better access to release lever :.
X Remove the center head restraint
(Y page 78).
X Pull release lever :.
The corresponding seat backrest is
released.
X Fold the seat backrest forward until it
engages. Folding the seat backrest back X
Pull release lever : and fold the seat
backrest backwards.
! Make sure that the seat belt does not
become trapped
when folding the rear seat
backrest back. Otherwise, it could be
damaged.
X Fold the seat backrest back until it engages
audibly in the seat catch.
X Install the head restraints (Y page 78).
Folding the rear bench seat forward X
Fold the backrest forwards (
Y page 191).
X Pull release lever ;.
The corresponding rear bench seat is
released.
X Fold the rear bench seat forward until it
engages.
Folding the rear bench seat into an
upright position X
Fold back the rear bench seat backrest
until it engages audibly in the seat catch.
X Fold the backrest backwards
( Y page 191).
X Install the head restraints (Y page 78). G
WARNING
Make sure that the rear bench seat and front
seat backrest are correctly engaged in
position.
If the seat backrests or rear bench seat are
not fully engaged and the following occurs:
R sharp braking
R a sudden change of direction
R an accident
the seat
backrests or rear bench seat may fold
forwards and instead of being restrained by
the seats as intended you could be injured by
them. Occupants could then also be injured
in the event of an accident, e.g. by objects Stowage areas
191
Stowing and features
Z
Page 194 of 284

being thrown forwards from the cargo
compartment.
Securing cargo
Important safety notes G
WARNING
Distribute the load on the cargo tie down rings
evenly.
Otherwise, vehicle occupants could be
injured by
objects being thrown around if you:
R brake sharply
R change direction suddenly
R are involved in an accident
Please observe the loading guidelines.
Observe the following notes on securing
loads:
R secure the load using the cargo tie down
rings.
R do not use elastic straps or nets to secure
a load, as these are only intended as an
anti-slip protection for light loads.
R do not route tie downs across sharp edges
or corners.
R pad sharp edges for protection.
R only use tie downs that have been checked
in accordance with applicable standards,
e.g. lashing nets or lashing straps.
R fill the spaces between the load and the
cargo compartment walls and the wheel
mountings in a form-locking way. Only use
dimensionally stable transportation aids
for this, such as chocks, wooden fixings or
padding.
Cargo tie down rings in the cargo
compartment There are four cargo tie down rings in the
cargo compartment mounted at the sides. Cargo compartment cover
Important safety notes !
When loading
the vehicle, make sure that
you do not stack the load in the cargo
compartment higher than the lower edge of
the side windows. Do not place heavy
objects on top of the cargo compartment
cover.
The cargo compartment cover is located
behind the rear bench seat backrest.

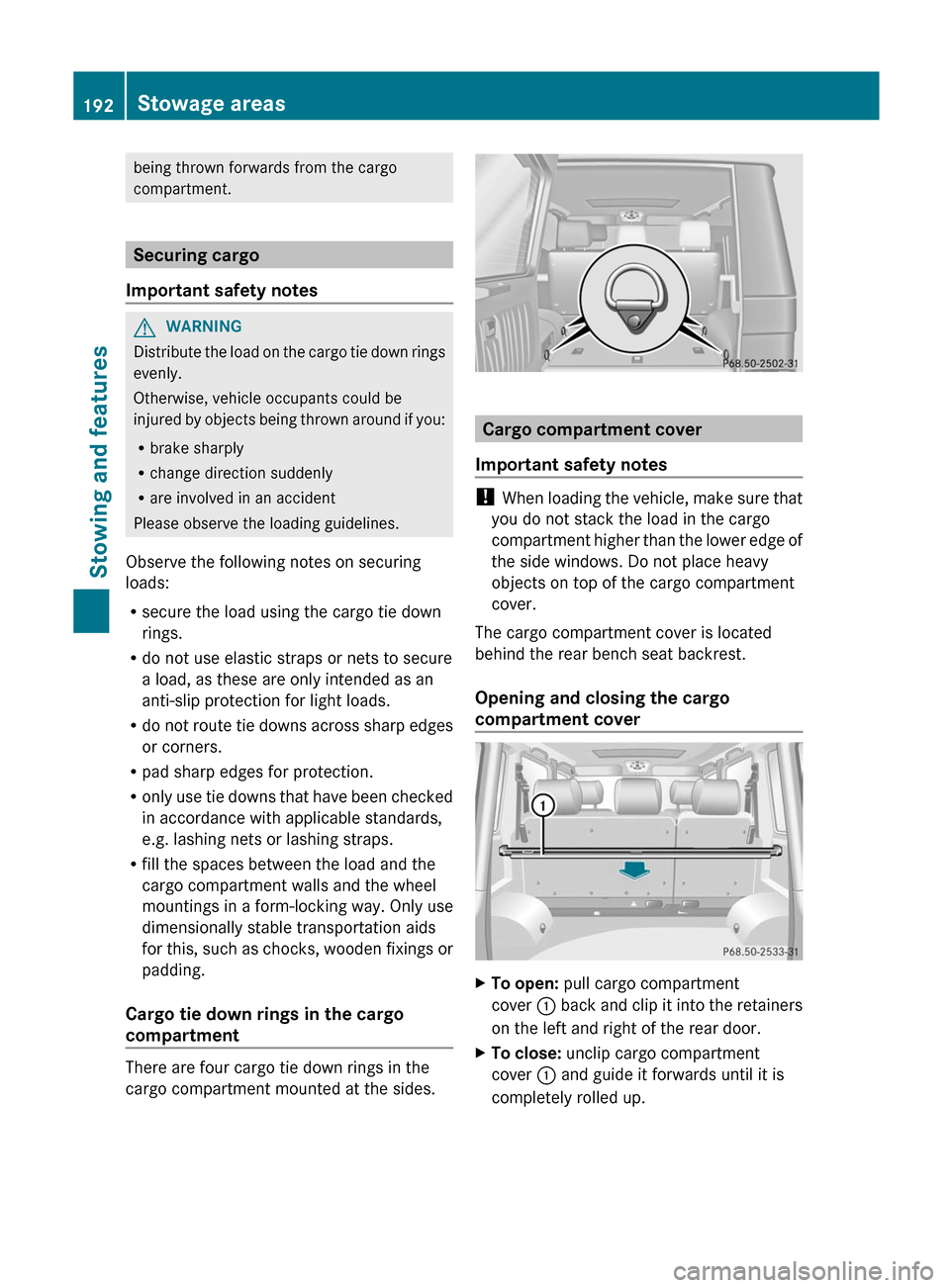

Opening and closing the cargo
compartment cover X
To open:
pull cargo compartment
cover : back
and clip it into the retainers
on the left and right of the rear door.
X To close: unclip cargo compartment
cover : and guide it forwards until it is
completely rolled up. 192
Stowage areas
Stowing and features
Page 195 of 284

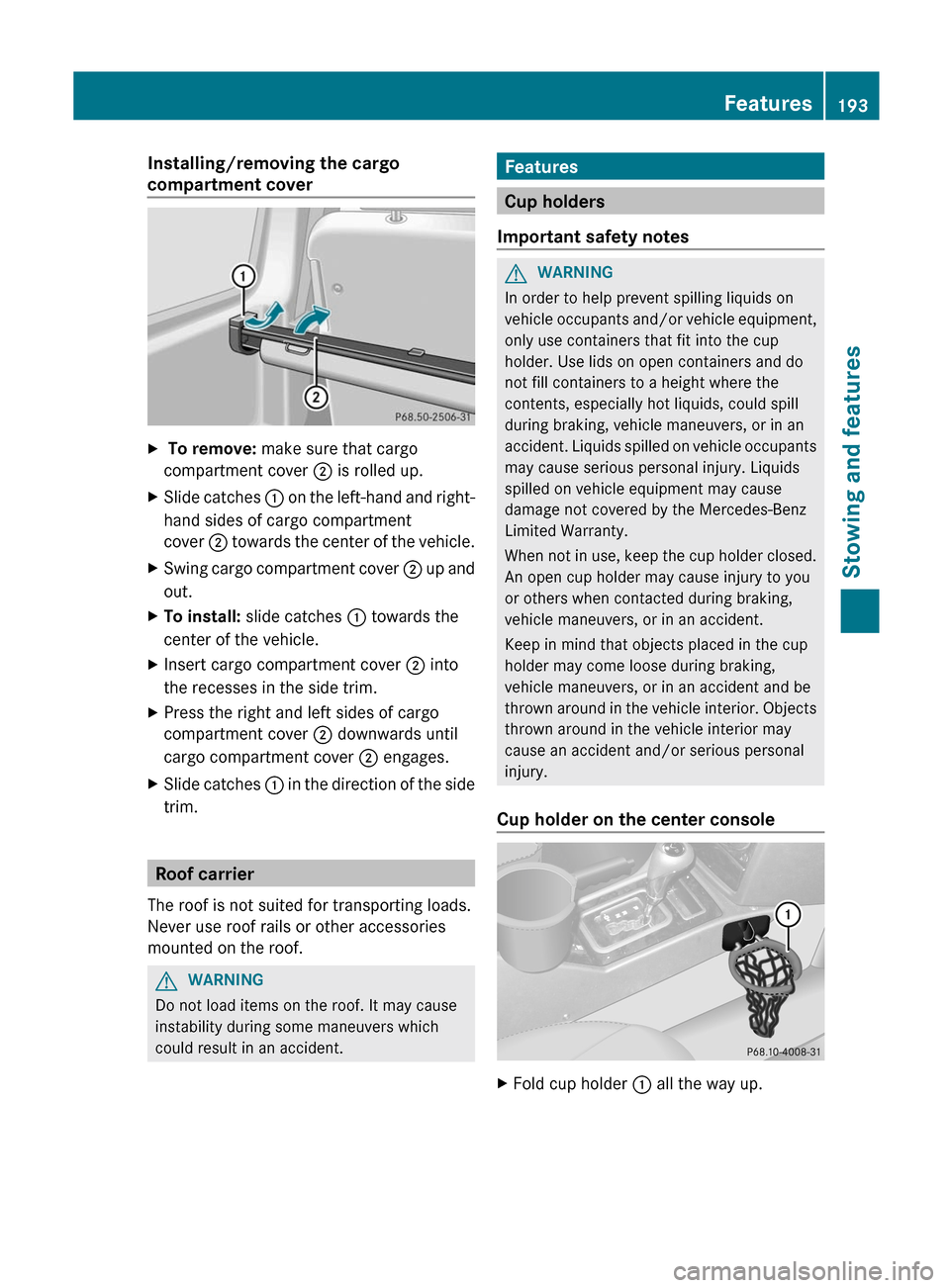

Installing/removing the cargo
compartment cover
X
To remove: make sure that cargo
compartment cover ; is rolled up.
X Slide catches :
on the left-hand and right-
hand sides of cargo compartment
cover ; towards the center of the vehicle.
X Swing cargo compartment cover ; up
and
out.
X To install: slide catches : towards the
center of the vehicle.
X Insert cargo compartment cover ; into
the recesses in the side trim.
X Press the right and left sides of cargo
compartment cover ; downwards until
cargo compartment cover ; engages.
X Slide catches : in
the direction of the side
trim. Roof carrier
The roof is not suited for transporting loads.
Never use roof rails or other accessories
mounted on the roof. G
WARNING
Do not load items on the roof. It may cause
instability during some maneuvers which
could result in an accident. Features
Cup holders
Important safety notes G
WARNING
In order to help prevent spilling liquids on
vehicle occupants
and/or vehicle equipment,
only use containers that fit into the cup
holder. Use lids on open containers and do
not fill containers to a height where the
contents, especially hot liquids, could spill
during braking, vehicle maneuvers, or in an
accident. Liquids spilled on vehicle occupants
may cause serious personal injury. Liquids
spilled on vehicle equipment may cause
damage not covered by the Mercedes-Benz
Limited Warranty.
When not in use, keep the cup holder closed.
An open cup holder may cause injury to you
or others when contacted during braking,
vehicle maneuvers, or in an accident.
Keep in mind that objects placed in the cup
holder may come loose during braking,
vehicle maneuvers, or in an accident and be
thrown around in the vehicle interior. Objects
thrown around in the vehicle interior may
cause an accident and/or serious personal
injury.
Cup holder on the center console X
Fold cup holder : all the way up. Features
193
Stowing and features Z
Page 196 of 284

!

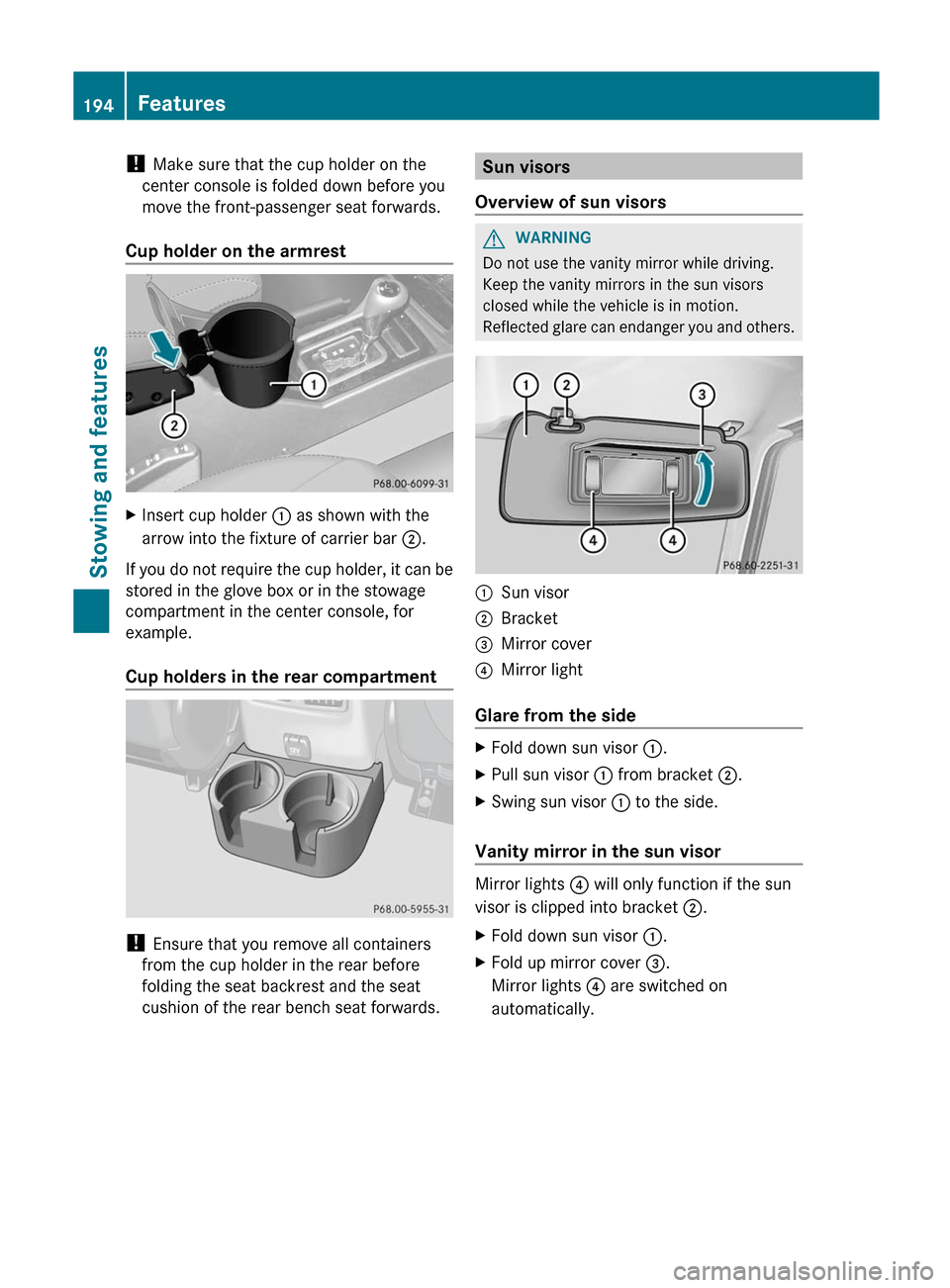

Make sure that the cup holder on the
center console is folded down before you
move the front-passenger seat forwards.
Cup holder on the armrest X
Insert cup holder : as shown with the
arrow into the fixture of carrier bar ;.
If you do not require the cup holder, it can be
stored in the glove box or in the stowage
compartment in the center console, for
example.
Cup holders in the rear compartment !
Ensure that you remove all containers
from the cup holder in the rear before
folding the seat backrest and the seat
cushion of the rear bench seat forwards. Sun visors
Overview of sun visors G
WARNING
Do not use the vanity mirror while driving.
Keep the vanity mirrors in the sun visors
closed while the vehicle is in motion.
Reflected glare
can endanger you and others. :
Sun visor
; Bracket
= Mirror cover
? Mirror light
Glare from the side X
Fold down sun visor :.
X Pull sun visor : from bracket ;.
X Swing sun visor : to the side.
Vanity mirror in the sun visor Mirror lights ? will only function if the sun
visor is clipped into bracket ;.
X
Fold down sun visor :.
X Fold up mirror cover =.
Mirror lights ? are switched on
automatically.194
Features
Stowing and features
Page 197 of 284

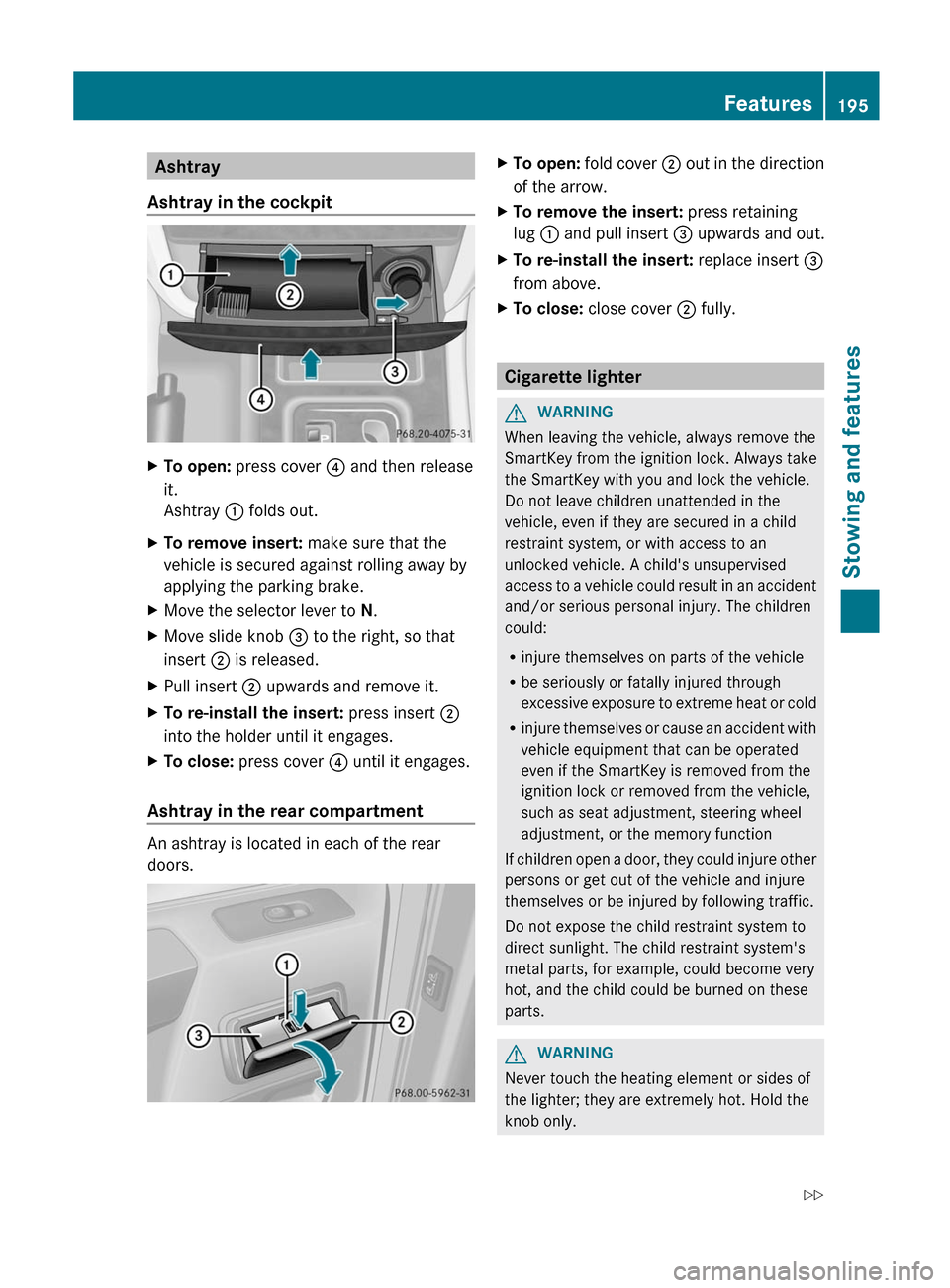

Ashtray
Ashtray in the cockpit X
To open: press cover ? and then release
it.
Ashtray : folds out.
X To remove insert: make sure that the
vehicle is secured against rolling away by
applying the parking brake.
X Move the selector lever to N.
X Move slide knob = to the right, so that
insert ; is released.
X Pull insert ; upwards and remove it.
X To re-install the insert: press insert ;
into the holder until it engages.
X To close: press cover ? until it engages.
Ashtray in the rear compartment An ashtray is located in each of the rear
doors. X
To open: fold cover ;
out in the direction
of the arrow.
X To remove the insert: press retaining
lug : and
pull insert = upwards and out.
X To re-install the insert: replace insert =
from above.
X To close: close cover ; fully. Cigarette lighter
G
WARNING
When leaving the vehicle, always remove the
SmartKey from the ignition lock. Always take
the SmartKey with you and lock the vehicle.
Do not leave children unattended in the
vehicle, even if they are secured in a child
restraint system, or with access to an
unlocked vehicle. A child's unsupervised
access to
a vehicle could result in an accident
and/or serious personal injury. The children
could:
R injure themselves on parts of the vehicle
R be seriously or fatally injured through
excessive exposure to extreme heat or cold
R injure themselves or cause an accident with
vehicle equipment that can be operated
even if the SmartKey is removed from the
ignition lock or removed from the vehicle,
such as seat adjustment, steering wheel
adjustment, or the memory function
If children open a door, they could injure other
persons or get out of the vehicle and injure
themselves or be injured by following traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's
metal parts, for example, could become very
hot, and the child could be burned on these
parts. G
WARNING
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only. Features
195
Stowing and features
Z
Page 198 of 284

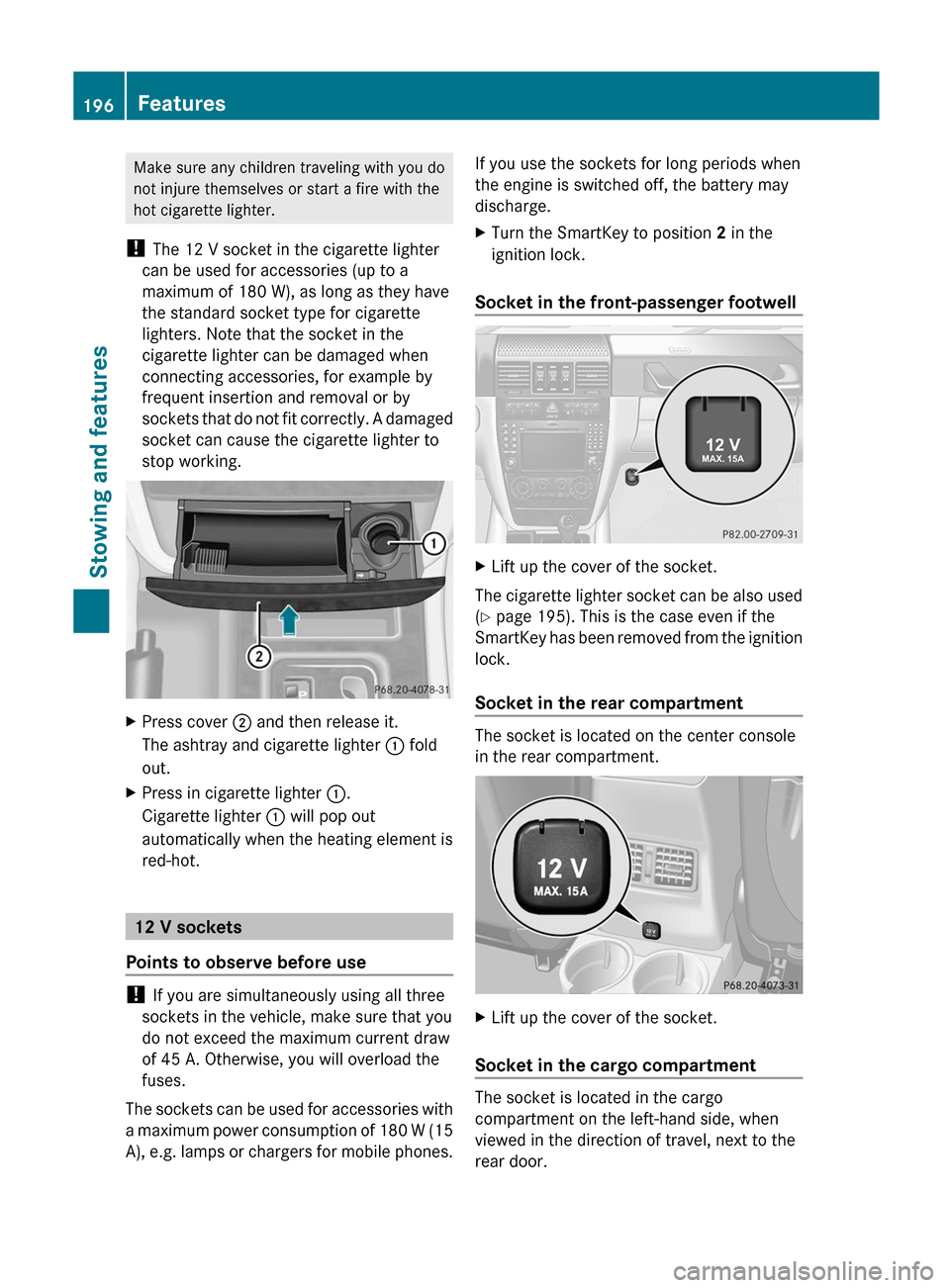

Make sure any children traveling with you do
not injure themselves or start a fire with the
hot cigarette lighter.
! The 12 V socket in the cigarette lighter
can be used for accessories (up to a
maximum of 180 W), as long as they have
the standard socket type for cigarette
lighters. Note that the socket in the
cigarette lighter can be damaged when
connecting accessories, for example by
frequent insertion and removal or by
sockets that
do not fit correctly. A damaged
socket can cause the cigarette lighter to
stop working. X
Press cover
; and then release it.
The ashtray and cigarette lighter : fold
out.
X Press in cigarette lighter :.
Cigarette lighter : will pop out
automatically when the heating element is
red-hot. 12 V sockets
Points to observe before use !
If you are simultaneously using all three
sockets in the vehicle, make sure that you
do not exceed the maximum current draw
of 45 A. Otherwise, you will overload the
fuses.
The sockets
can be used for accessories with
a maximum power consumption of 180 W (15
A), e.g. lamps or chargers for mobile phones. If you use the sockets for long periods when
the engine is switched off, the battery may
discharge.
X
Turn the SmartKey to position 2 in the
ignition lock.
Socket in the front-passenger footwell X
Lift up the cover of the socket.
The
cigarette lighter socket can be also used
(Y page 195). This is the case even if the
SmartKey has
been removed from the ignition
lock.
Socket in the rear compartment The socket is located on the center console
in the rear compartment.
X
Lift up the cover of the socket.
Socket in the cargo compartment The socket is located in the cargo
compartment on the left-hand side, when
viewed in the direction of travel, next to the
rear door.196
Features
Stowing and features
Page 199 of 284

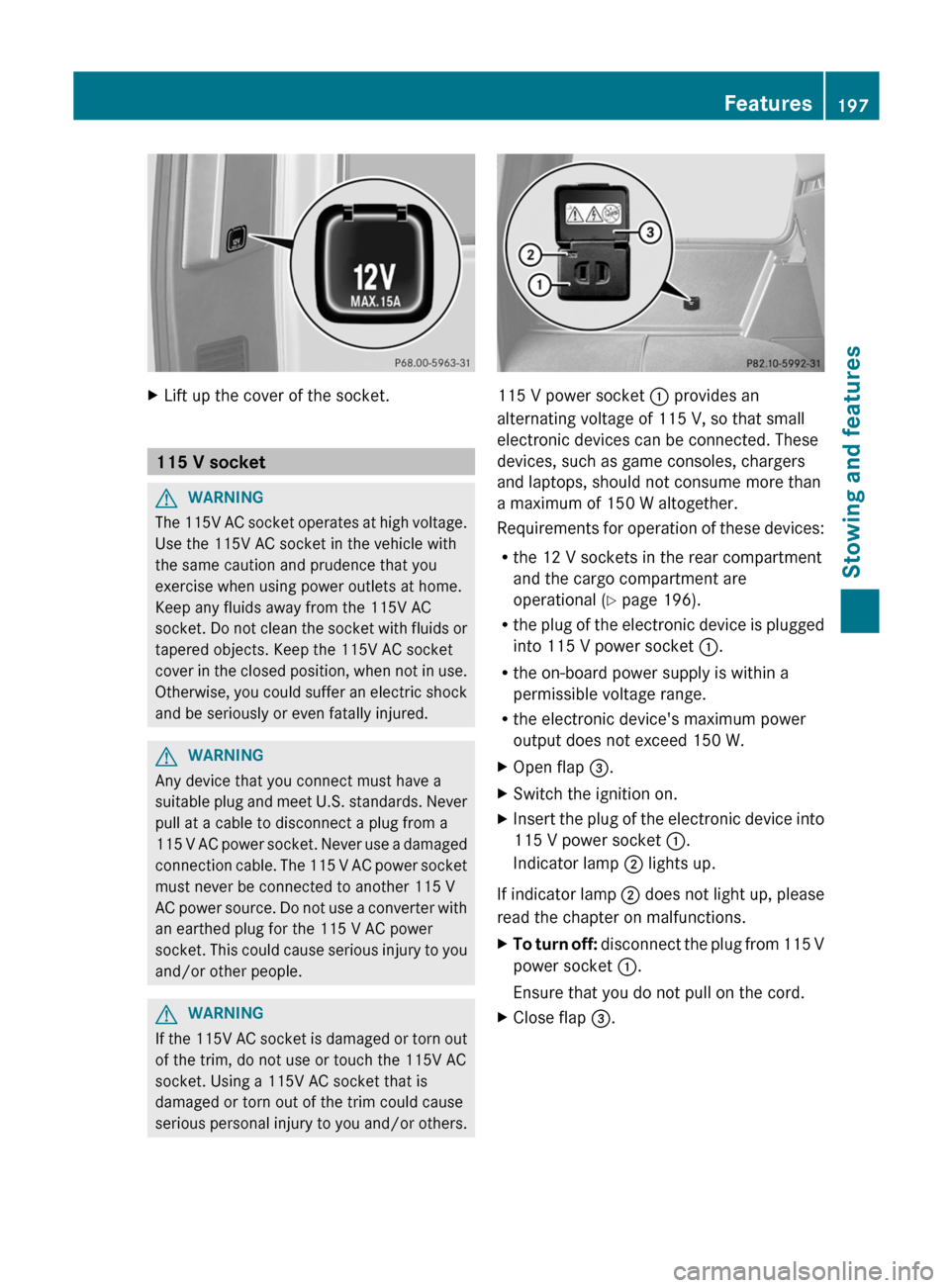

X
Lift up the cover of the socket. 115 V socket
G
WARNING
The 115V AC socket operates at high voltage.
Use the 115V AC socket in the vehicle with
the same caution and prudence that you
exercise when using power outlets at home.
Keep any fluids away from the 115V AC
socket. Do
not clean the socket with fluids or
tapered objects. Keep the 115V AC socket
cover in the closed position, when not in use.
Otherwise, you could suffer an electric shock
and be seriously or even fatally injured. G
WARNING
Any device that you connect must have a
suitable plug
and meet U.S. standards. Never
pull at a cable to disconnect a plug from a
115 V AC power socket. Never use a damaged
connection cable. The 115 V AC power socket
must never be connected to another 115 V
AC power source. Do not use a converter with
an earthed plug for the 115 V AC power
socket. This could cause serious injury to you
and/or other people. G
WARNING
If the 115V AC socket is damaged or torn out
of the trim, do not use or touch the 115V AC
socket. Using a 115V AC socket that is
damaged or torn out of the trim could cause
serious personal
injury to you and/or others. 115 V power socket
: provides an
alternating voltage of 115 V, so that small
electronic devices can be connected. These
devices, such as game consoles, chargers
and laptops, should not consume more than
a maximum of 150 W altogether.
Requirements for
operation of these devices:
R the 12 V sockets in the rear compartment
and the cargo compartment are
operational ( Y page 196).
R the plug of the electronic device is plugged
into 115 V power socket :.
R the on-board power supply is within a
permissible voltage range.
R the electronic device's maximum power
output does not exceed 150 W.
X Open flap =.
X Switch the ignition on.
X Insert the plug of the electronic device into
115 V power socket :.
Indicator lamp ; lights up.
If indicator lamp ; does
not light up, please
read the chapter on malfunctions.
X To turn off: disconnect the plug from 115 V
power socket
:.
Ensure that you do not pull on the cord.
X Close flap =. Features
197
Stowing and features Z
Page 200 of 284

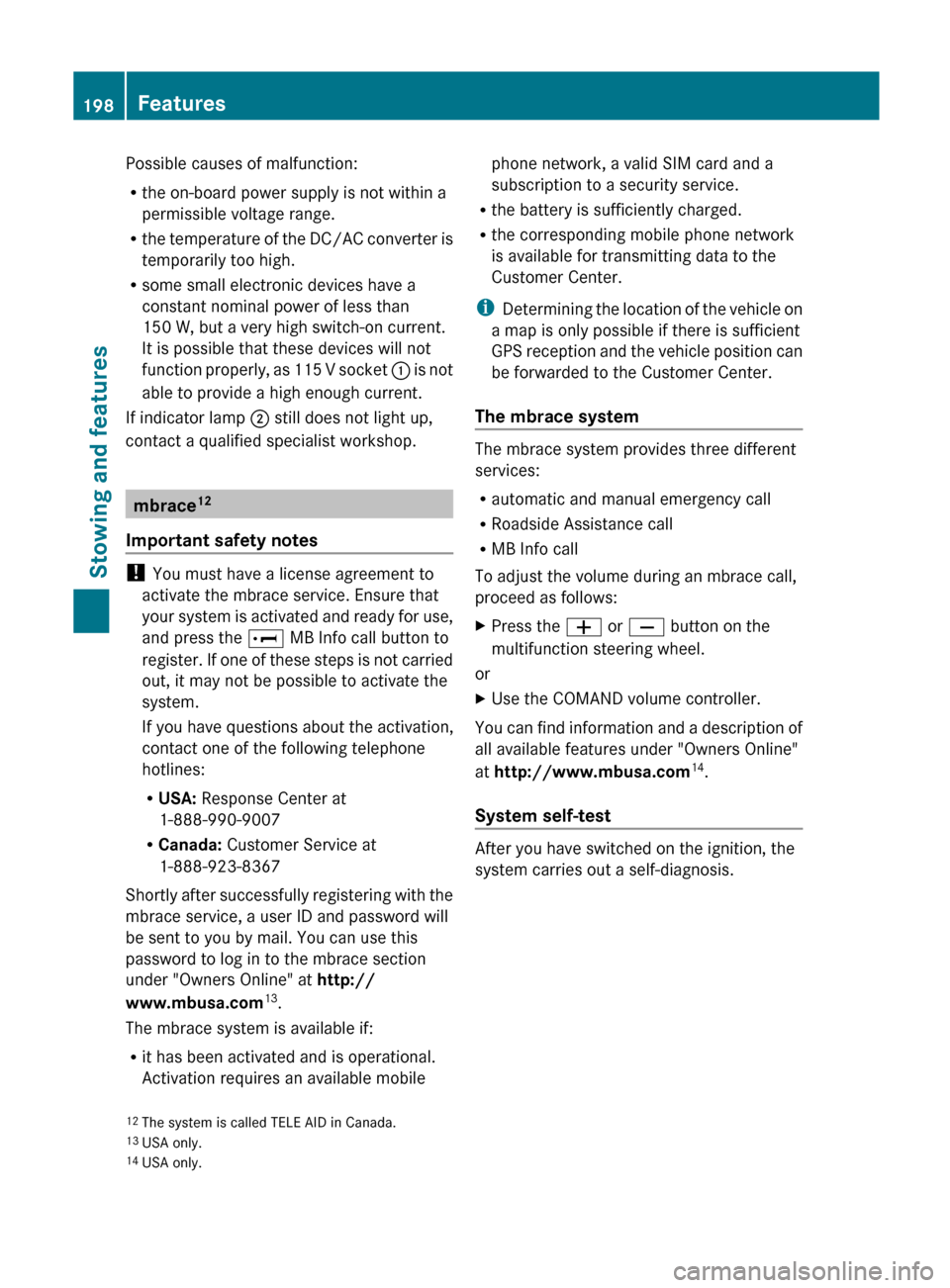

Possible causes of malfunction:
R
the on-board power supply is not within a
permissible voltage range.
R the temperature
of the DC/AC converter is
temporarily too high.
R some small electronic devices have a
constant nominal power of less than
150 W, but a very high switch-on current.
It is possible that these devices will not
function properly, as 115 V socket : is not
able to provide a high enough current.
If indicator lamp ; still does not light up,
contact a qualified specialist workshop. mbrace
12
Important safety notes !
You must have a license agreement to
activate the mbrace service. Ensure that
your system
is activated and ready for use,
and press the E MB Info call button to
register. If one of these steps is not carried
out, it may not be possible to activate the
system.
If you have questions about the activation,
contact one of the following telephone
hotlines:
R USA: Response Center at
1-888-990-9007
R Canada: Customer Service at
1-888-923-8367
Shortly after successfully registering with the
mbrace service, a user ID and password will
be sent to you by mail. You can use this
password to log in to the mbrace section
under "Owners Online" at http://
www.mbusa.com 13
.
The mbrace system is available if:
R it has been activated and is operational.
Activation requires an available mobile phone network, a valid SIM card and a
subscription to a security service.
R the battery is sufficiently charged.
R the corresponding mobile phone network
is available for transmitting data to the
Customer Center.
i Determining the
location of the vehicle on
a map is only possible if there is sufficient
GPS reception and the vehicle position can
be forwarded to the Customer Center.
The mbrace system The mbrace system provides three different
services:
R
automatic and manual emergency call
R Roadside Assistance call
R MB Info call
To adjust the volume during an mbrace call,
proceed as follows:
X Press the W or X button on the
multifunction steering wheel.
or
X Use the COMAND volume controller.
You can find information and a description of
all available features under "Owners Online"
at http://www.mbusa.com 14
.
System self-test After you have switched on the ignition, the
system carries out a self-diagnosis.
12 The system is called TELE AID in Canada.
13 USA only.
14 USA only.198
Features
Stowing and features
