X

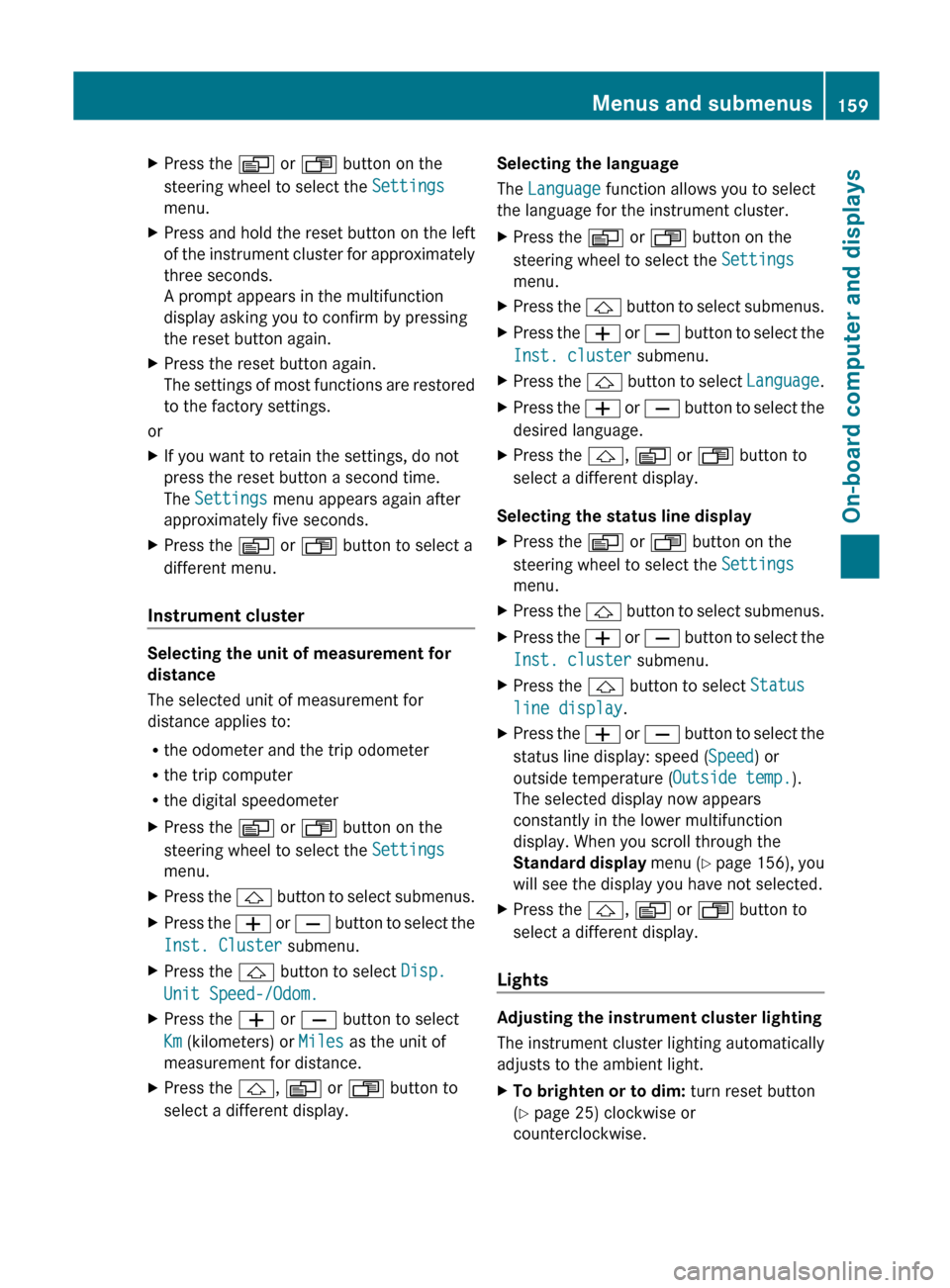

Press the V or U button on the
steering wheel to select the Settings
menu.
X Press and hold the reset button on the left
of the
instrument cluster for approximately
three seconds.
A prompt appears in the multifunction
display asking you to confirm by pressing
the reset button again.
X Press the reset button again.
The settings

of most functions are restored
to the factory settings.
or
X If you want to retain the settings, do not
press the reset button a second time.
The Settings menu appears again after
approximately five seconds.
X Press the V or U button to select a
different menu.
Instrument cluster Selecting the unit of measurement for
distance
The selected unit of measurement for
distance applies to:
R
the odometer and the trip odometer
R the trip computer
R the digital speedometer
X Press the V or U button on the
steering wheel to select the Settings
menu.
X Press the & button
to select submenus.
X Press the W or X
button to select the
Inst. Cluster submenu.
X Press the & button to select Disp.
Unit Speed-/Odom.
X Press the W or X button to select
Km (kilometers) or Miles as the unit of
measurement for distance.
X Press the &, V or U button to
select a different display. Selecting the language
The Language function allows you to select
the language for the instrument cluster.
X
Press the V or U button on the
steering wheel to select the Settings
menu.
X Press the & button
to select submenus.
X Press the W or X
button to select the
Inst. cluster submenu.
X Press the & button
to select Language.
X Press the W or X
button to select the
desired language.
X Press the &, V or U button to
select a different display.
Selecting the status line display
X Press the V or U button on the
steering wheel to select the Settings
menu.
X Press the &
button
to select submenus.
X Press the W or X
button to select the
Inst. cluster submenu.
X Press the & button to select Status
line display.
X Press the W or X
button to select the
status line display: speed ( Speed) or
outside temperature ( Outside temp.).
The selected display now appears
constantly in the lower multifunction
display. When you scroll through the
Standard display menu (Y page 156), you
will see the display you have not selected.
X Press the &, V or U button to
select a different display.
Lights Adjusting the instrument cluster lighting
The instrument cluster lighting automatically
adjusts to the ambient light.
X
To brighten or to dim: turn reset button
(Y page 25) clockwise or
counterclockwise. Menus and submenus
159
On-board computer and displays Z

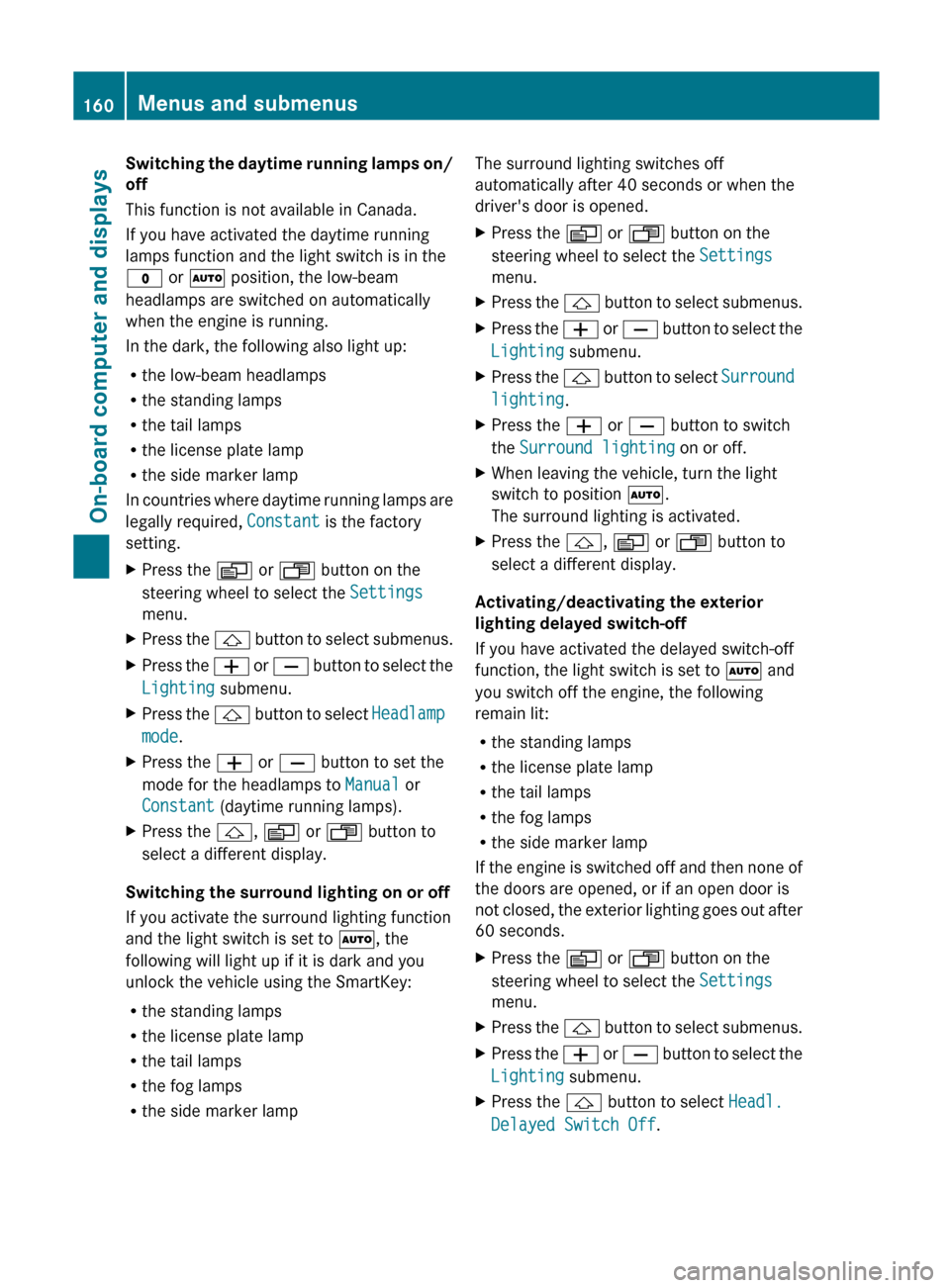

Switching the daytime running lamps on/
off
This function is not available in Canada.
If you have activated the daytime running
lamps function and the light switch is in the
$ or à position, the low-beam
headlamps are switched on automatically
when the engine is running.
In the dark, the following also light up:
R
the low-beam headlamps
R the standing lamps
R the tail lamps
R the license plate lamp
R the side marker lamp
In countries
where daytime running lamps are
legally required, Constant is the factory
setting.
X Press the V or U button on the
steering wheel to select the Settings
menu.
X Press the & button

to select submenus.
X Press the W or X
button to select the
Lighting submenu.
X Press the & button
to select Headlamp
mode.
X Press the W or X button to set the
mode for the headlamps to Manual or
Constant (daytime running lamps).
X Press the &, V or U button to
select a different display.
Switching the surround lighting on or off
If you activate the surround lighting function
and the light switch is set to Ã, the
following will light up if it is dark and you
unlock the vehicle using the SmartKey:
R the standing lamps
R the license plate lamp
R the tail lamps
R the fog lamps
R the side marker lamp The surround lighting switches off
automatically after 40 seconds or when the
driver's door is opened.
X
Press the V or U button on the
steering wheel to select the Settings
menu.
X Press the & button
to select submenus.
X Press the W or X
button to select the
Lighting submenu.
X Press the & button
to select Surround
lighting.
X Press the W or X button to switch
the Surround lighting on or off.
X When leaving the vehicle, turn the light
switch to position Ã.
The surround lighting is activated.
X Press the &, V or U button to
select a different display.
Activating/deactivating the exterior
lighting delayed switch-off
If you have activated the delayed switch-off
function, the light switch is set to à and
you switch off the engine, the following
remain lit:
R the standing lamps
R the license plate lamp
R the tail lamps
R the fog lamps
R the side marker lamp
If the

engine is switched off and then none of
the doors are opened, or if an open door is
not closed, the exterior lighting goes out after
60 seconds.
X Press the V or U button on the
steering wheel to select the Settings
menu.
X Press the & button
to select submenus.
X Press the W or X
button to select the
Lighting submenu.
X Press the & button to select Headl.
Delayed Switch Off. 160
Menus and submenus
On-board computer and displays

X

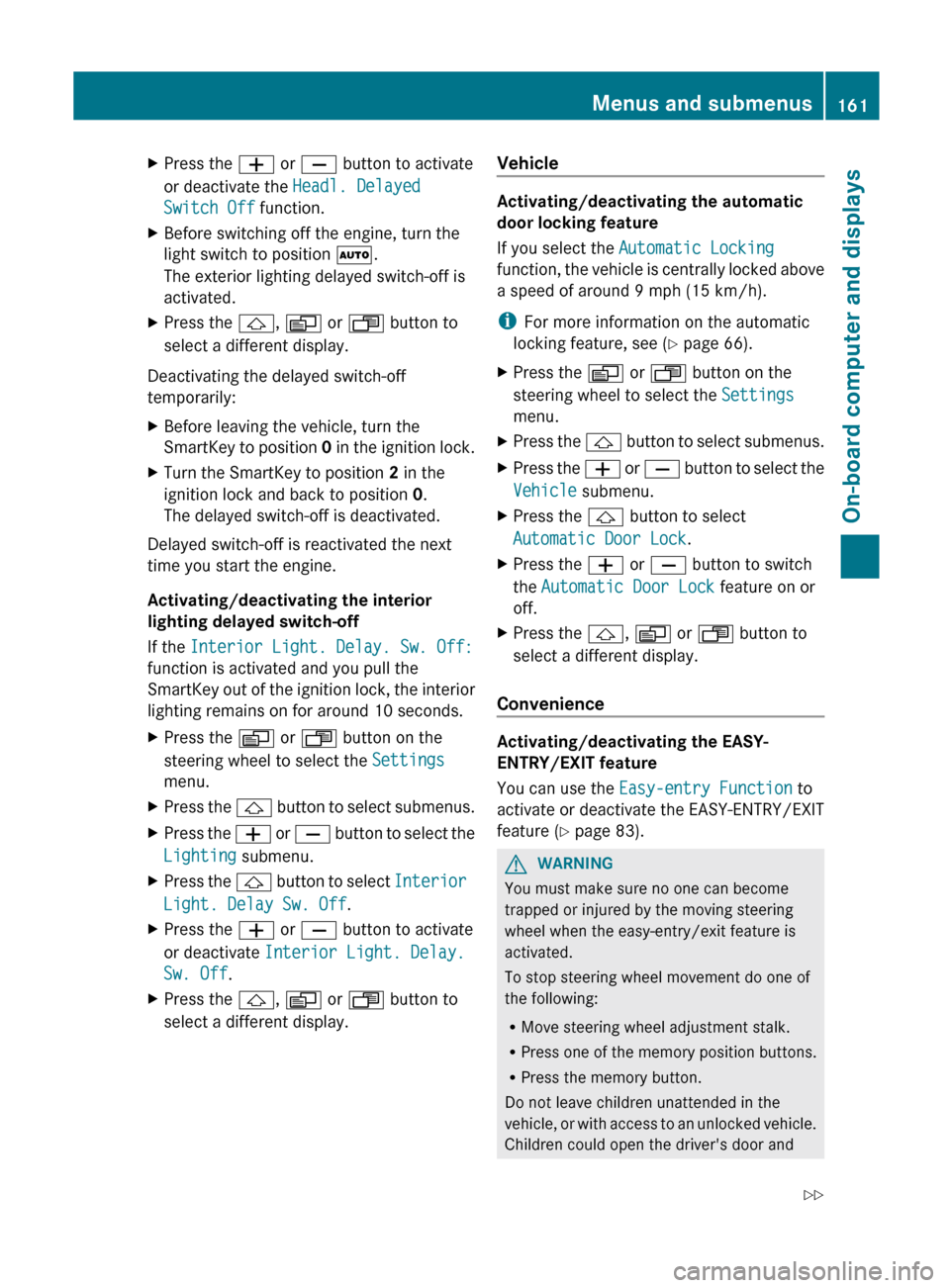

Press the W or X button to activate
or deactivate the Headl. Delayed
Switch Off function.
X Before switching off the engine, turn the
light switch to position Ã.
The exterior lighting delayed switch-off is
activated.
X Press the &, V or U button to
select a different display.
Deactivating the delayed switch-off
temporarily:
X Before leaving the vehicle, turn the
SmartKey to
position 0 in the ignition lock.
X Turn the SmartKey to position 2 in the
ignition lock and back to position 0.
The delayed switch-off is deactivated.
Delayed switch-off is reactivated the next
time you start the engine.
Activating/deactivating the interior
lighting delayed switch-off
If the Interior Light. Delay. Sw. Off:
function is activated and you pull the
SmartKey out

of the ignition lock, the interior
lighting remains on for around 10 seconds.
X Press the V or U button on the
steering wheel to select the Settings
menu.
X Press the & button
to select submenus.
X Press the W or X
button to select the
Lighting submenu.
X Press the & button
to select Interior
Light. Delay Sw. Off.
X Press the W or X button to activate
or deactivate Interior Light. Delay.
Sw. Off.
X Press the &, V or U button to
select a different display. Vehicle Activating/deactivating the automatic
door locking feature
If you select the Automatic Locking
function,
the

vehicle is centrally locked above
a speed of around 9 mph (15 km/h).
i For more information on the automatic
locking feature, see ( Y page 66).
X Press the V or U button on the
steering wheel to select the Settings
menu.
X Press the & button
to select submenus.
X Press the W or X
button to select the
Vehicle submenu.
X Press the & button to select
Automatic Door Lock.
X Press the W or X button to switch
the Automatic Door Lock feature on or
off.
X Press the &, V or U button to
select a different display.
Convenience Activating/deactivating the EASY-
ENTRY/EXIT feature
You can use the
Easy-entry Function to
activate or deactivate the EASY-ENTRY/EXIT
feature ( Y page 83). G
WARNING
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement do one of
the following:
R Move steering wheel adjustment stalk.
R Press one

of the memory position buttons.
R Press the memory button.
Do not leave children unattended in the
vehicle, or with access to an unlocked vehicle.
Children could open the driver's door and Menus and submenus
161
On-board computer and displays
Z

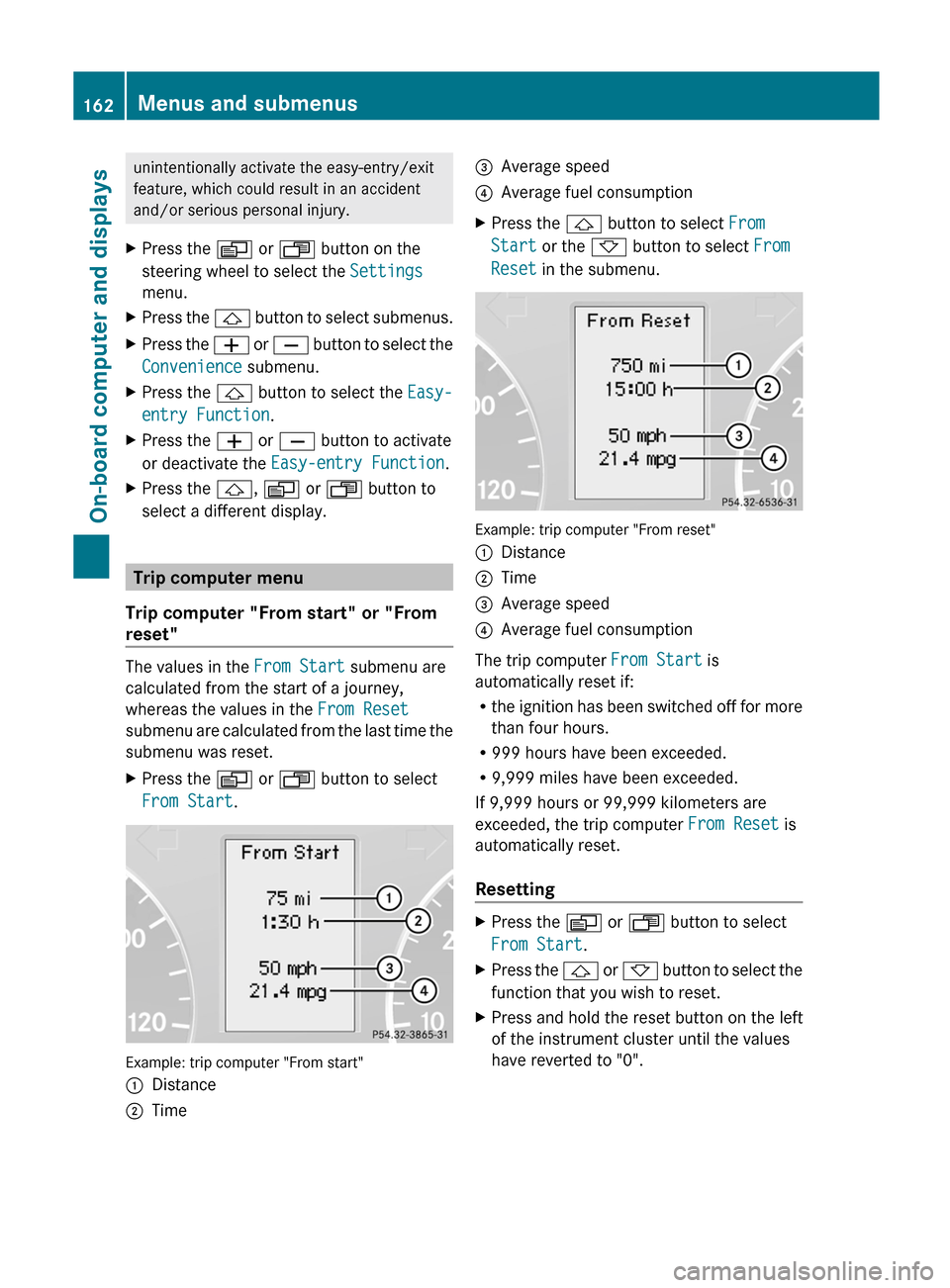

unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
X Press the V or U button on the
steering wheel to select the Settings
menu.
X Press the & button
to select submenus.
X Press the W or X
button to select the
Convenience submenu.
X Press the & button to select the Easy-
entry Function.
X Press the W or X button to activate
or deactivate the Easy-entry Function.
X Press the &, V or U button to
select a different display. Trip computer menu
Trip computer "From start" or "From
reset" The values in the
From Start
submenu are
calculated from the start of a journey,
whereas the values in the From Reset
submenu are

calculated from the last time the
submenu was reset.
X Press the V or U button to select
From Start. Example: trip computer "From start"
:
Distance
; Time =
Average speed
? Average fuel consumption
X Press the
& button to select
From
Start or the * button to select From
Reset in the submenu. Example: trip computer "From reset"
:
Distance
; Time
= Average speed
? Average fuel consumption
The trip computer From Start is
automatically reset if:
R the ignition

has been switched off for more
than four hours.
R 999 hours have been exceeded.
R 9,999 miles have been exceeded.
If 9,999 hours or 99,999 kilometers are
exceeded, the trip computer From Reset is
automatically reset.
Resetting X
Press the
V or U button to select
From Start.
X Press the &
or *
button to select the
function that you wish to reset.
X Press and hold the reset button on the left
of the instrument cluster until the values
have reverted to "0".162
Menus and submenus
On-board computer and displays

Calling up the range
X
Press the V or U button to select
From Start.
X Press the & or * button to select
Range:.
The multifunction display shows the
estimated range of the vehicle, based on
the current driving style and the fuel level.
If there is only a small amount of fuel
remaining in the fuel tank, a gas pump
7 appears instead of the range. Telephone menu
Introduction You can establish a Bluetooth
®
connection to
COMAND (see the separate operating
instructions). G
WARNING
A driver's attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we
recommend that you pull over to a safe
location and stop before placing or taking a
telephone call. If you choose to use the
telephone while

driving, please use the hands-
free device and only use the telephone when
weather, road and traffic conditions permit.
Some jurisdictions prohibit the driver from
using a mobile phone while driving a vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h ), your vehicle is
covering a distance of 44 feet (approximately
14 m) every second.
X Switch on the mobile phone and COMAND
(see the separate operating instructions).
X Press the V or U button on the
steering wheel to select the Telephone
menu.
You will see one of the following display
messages in the multifunction display: R
Ready or

the name of the network provider:
the mobile phone has found a network and
is ready to receive.
R Bluetooth Ready : the mobile phone is not
yet connected via Bluetooth ®
to COMAND.
R No Service: no network is available.
Accepting a call If someone calls you when you are in the
Telephone
menu,

a display message appears
in the multifunction display, for example: COMAND display (example)
X
Press the 6 button on the steering
wheel to accept an incoming call.
If you are not in the Telephone menu,
you can
still accept a call.
Rejecting or ending a call X
Press the ~ button on the steering
wheel.
If you are not in the Telephone menu,
you can
still accept a call.
Dialing a number from the phone book You can enter new telephone numbers into
the
phone

book via the mobile phone (see the
separate operating instructions). If your
mobile phone is operational, you can select
and dial a number from the phone book at any
time. Menus and submenus
163
On-board computer and displays Z

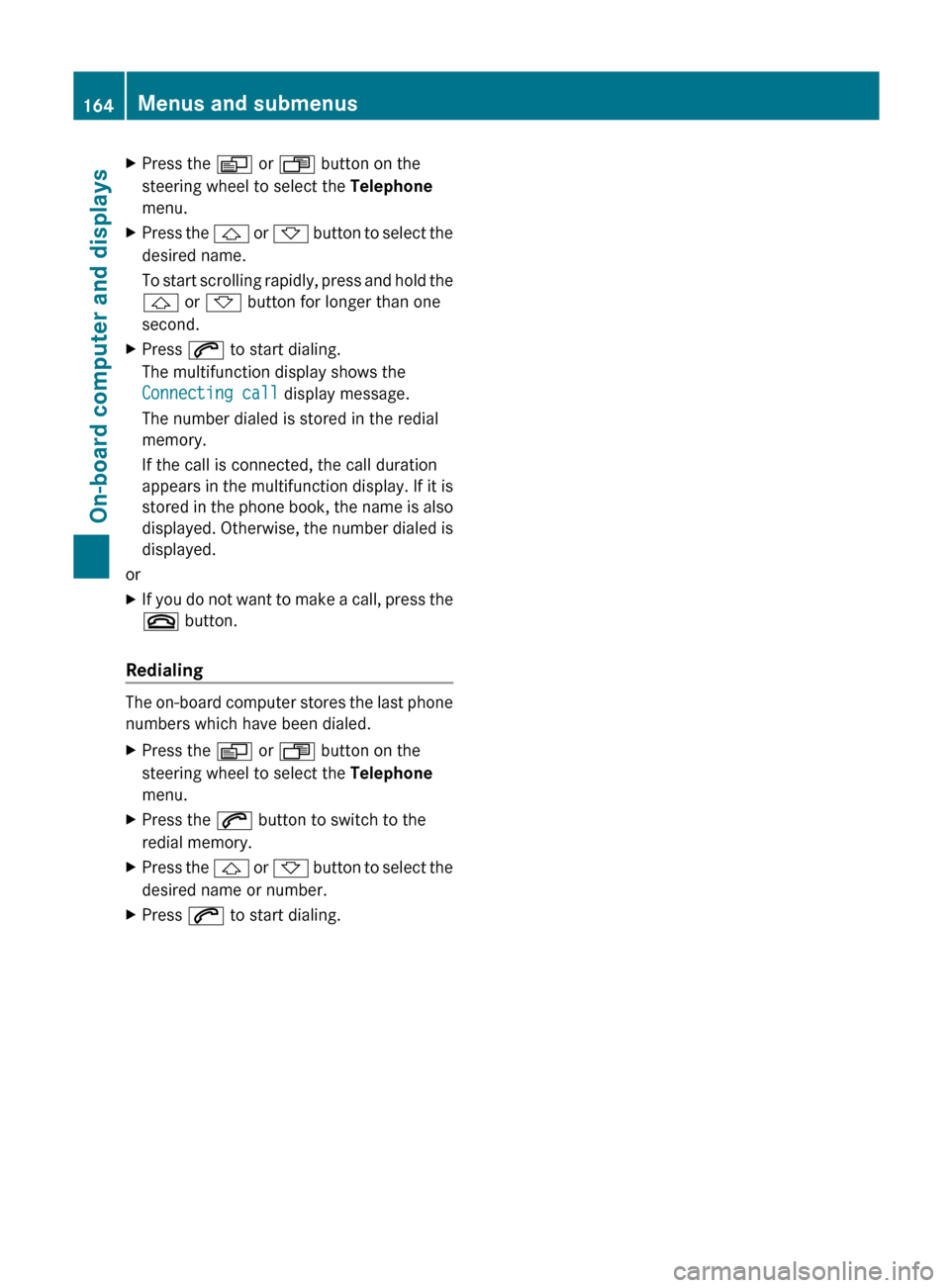

X
Press the V or U button on the
steering wheel to select the Telephone
menu.
X Press the &
or * button to select the
desired name.
To start scrolling rapidly, press and hold the
& or * button for longer than one
second.
X Press 6 to start dialing.
The multifunction display shows the
Connecting call display message.
The number dialed is stored in the redial
memory.
If the call is connected, the call duration
appears in

the multifunction display. If it is
stored in the phone book, the name is also
displayed. Otherwise, the number dialed is
displayed.
or
X If you do not want to make a call, press the
~ button.
Redialing The on-board computer stores the last phone
numbers which have been dialed.
X
Press the V or U button on the
steering wheel to select the Telephone
menu.
X Press the 6 button to switch to the
redial memory.
X Press the & or *
button to select the
desired name or number.
X Press 6 to start dialing.164
Menus and submenus
On-board computer and displays

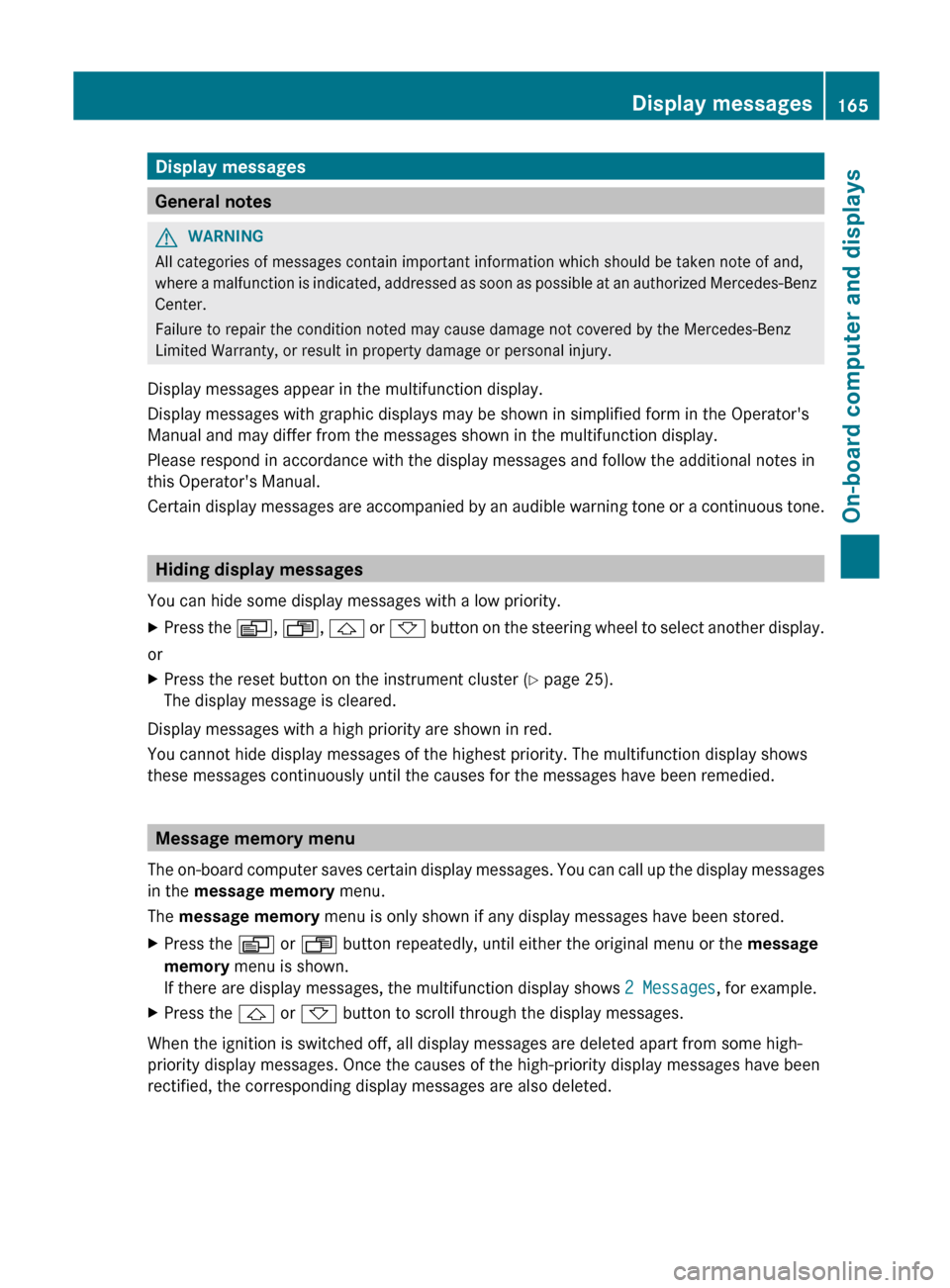

Display messages
General notes
G
WARNING
All categories of messages contain important information which should be taken note of and,
where a
malfunction is indicated, addressed as soon as possible at an authorized Mercedes-Benz
Center.
Failure to repair the condition noted may cause damage not covered by the Mercedes-Benz
Limited Warranty, or result in property damage or personal injury.
Display messages appear in the multifunction display.
Display messages with graphic displays may be shown in simplified form in the Operator's
Manual and may differ from the messages shown in the multifunction display.
Please respond in accordance with the display messages and follow the additional notes in
this Operator's Manual.
Certain display messages are accompanied by an audible warning tone or a continuous tone. Hiding display messages
You can hide some display messages with a low priority.
X Press
the
V, U, & or *
button on the steering wheel to select another display.
or
X Press the reset button on the instrument cluster ( Y page 25).
The display message is cleared.
Display messages with a high priority are shown in red.
You cannot hide display messages of the highest priority. The multifunction display shows
these messages continuously until the causes for the messages have been remedied. Message memory menu
The on-board

computer saves certain display messages. You can call up the display messages
in the message memory menu.
The message memory menu is only shown if any display messages have been stored.
X Press the V or U button repeatedly, until either the original menu or the message
memory menu is shown.
If there are display messages, the multifunction display shows 2 Messages, for example.
X Press the & or * button to scroll through the display messages.
When the ignition is switched off, all display messages are deleted apart from some high-
priority display messages. Once the causes of the high-priority display messages have been
rectified, the corresponding display messages are also deleted. Display messages
165
On-board computer and displays Z

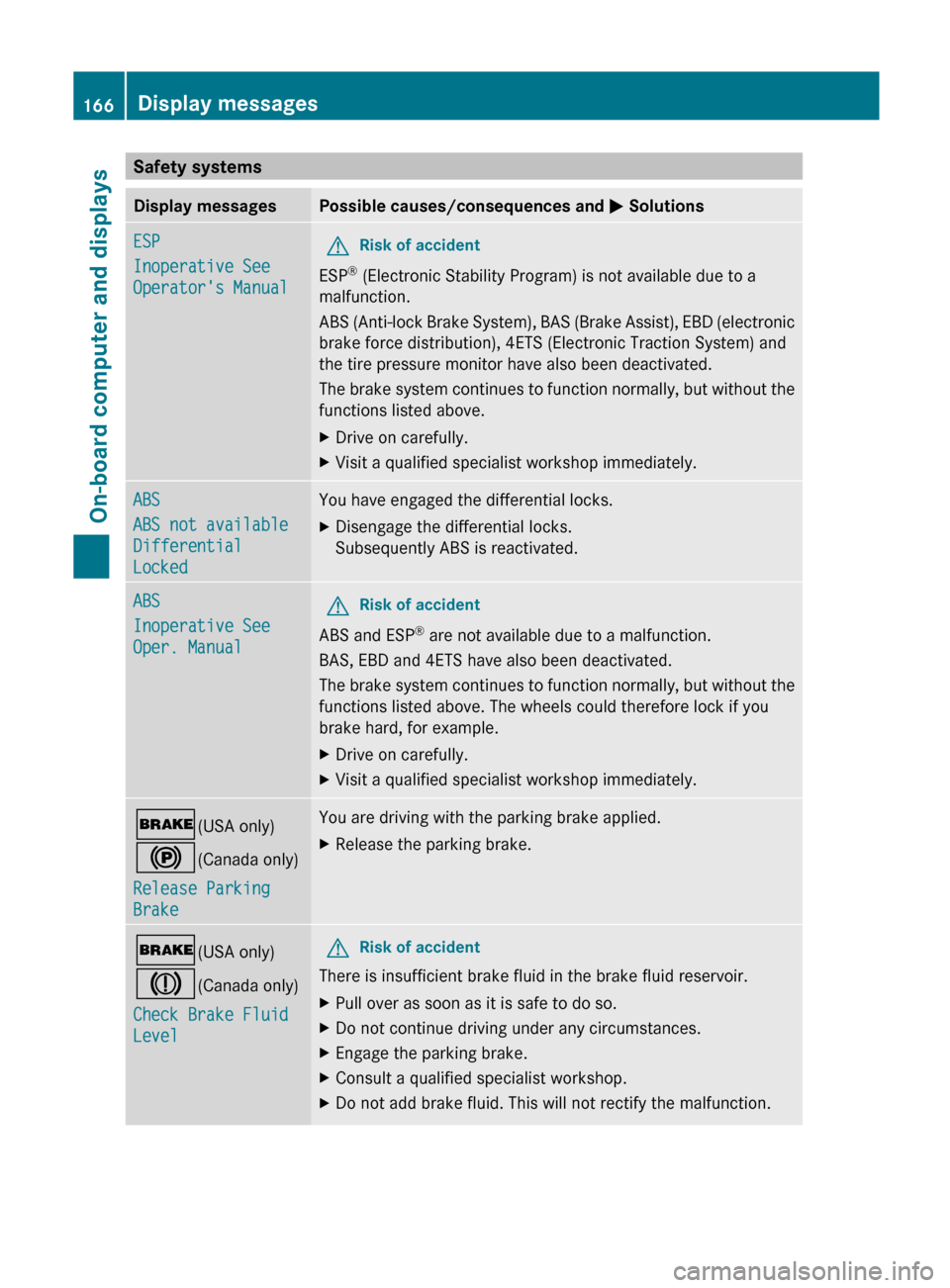

Safety systems
Display messages Possible causes/consequences and
M Solutions
ESP
Inoperative See
Operator's Manual
G
Risk of accident
ESP ®
(Electronic Stability Program) is not available due to a
malfunction.
ABS (Anti-lock

Brake System), BAS (Brake Assist), EBD (electronic
brake force distribution), 4ETS (Electronic Traction System) and
the tire pressure monitor have also been deactivated.
The brake system continues to function normally, but without the
functions listed above.
X Drive on carefully.
X Visit a qualified specialist workshop immediately. ABS
ABS not available
Differential
Locked You have engaged the differential locks.
X
Disengage the differential locks.
Subsequently ABS is reactivated. ABS
Inoperative See
Oper. Manual
G
Risk of accident
ABS and ESP ®
are not available due to a malfunction.
BAS, EBD and 4ETS have also been deactivated.
The brake

system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
X Drive on carefully.
X Visit a qualified specialist workshop immediately. $
(USA only)
!(Canada only)
Release Parking
Brake You are driving with the parking brake applied.
X
Release the parking brake. $ (USA only)
J(Canada only)
Check Brake Fluid
Level G
Risk of accident
There is insufficient brake fluid in the brake fluid reservoir.
X Pull over as soon as it is safe to do so.
X Do not continue driving under any circumstances.
X Engage the parking brake.
X Consult a qualified specialist workshop.
X Do not add brake fluid. This will not rectify the malfunction.166
Display messages
On-board computer and displays

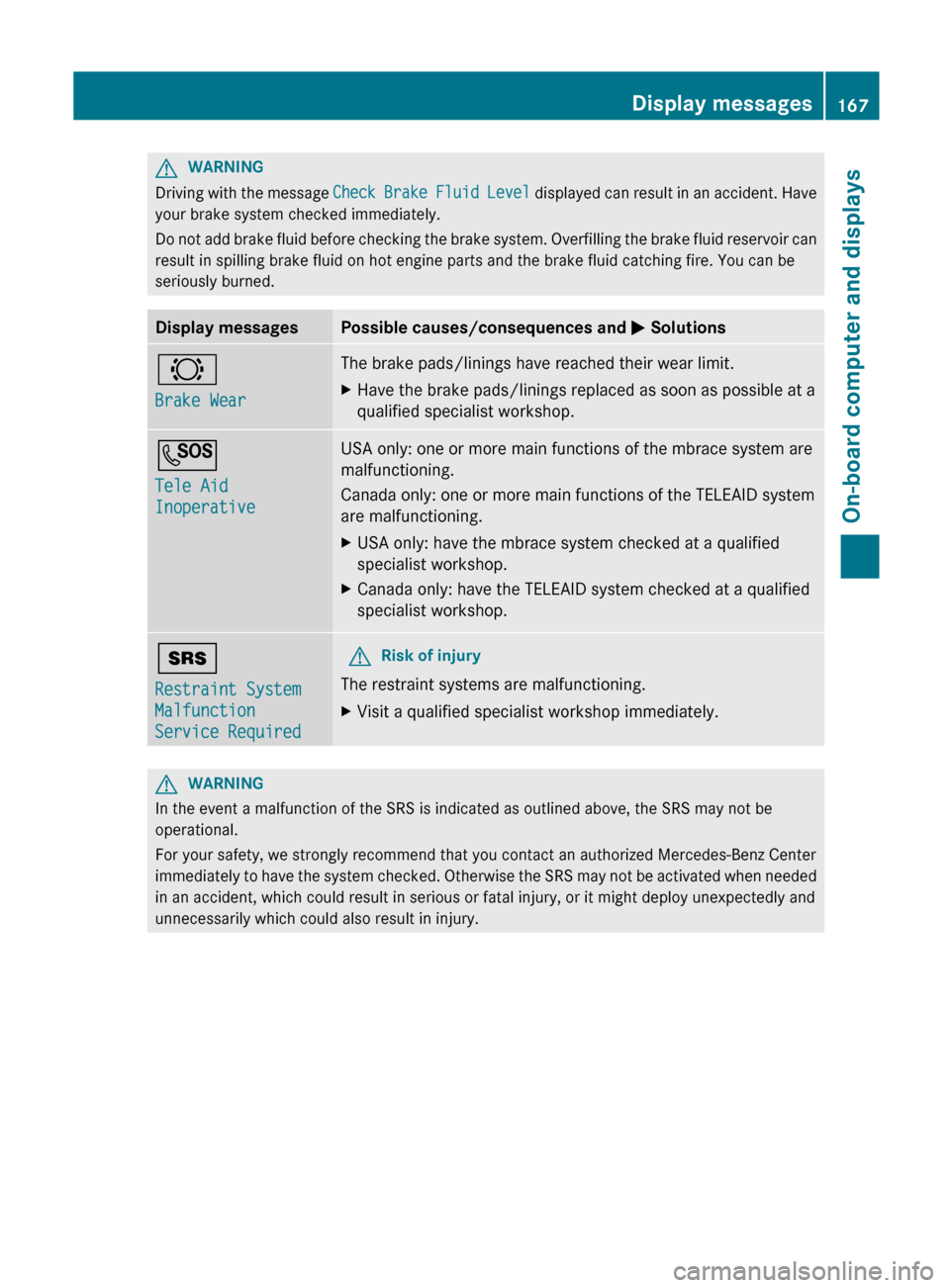

G
WARNING
Driving with the message
Check
Brake
Fluid Level displayed can result in an accident. Have
your brake system checked immediately.
Do not add brake fluid before checking the brake system. Overfilling the brake fluid reservoir can
result in spilling brake fluid on hot engine parts and the brake fluid catching fire. You can be
seriously burned. Display messages Possible causes/consequences and
M
Solutions
#
Brake Wear The brake pads/linings have reached their wear limit.
X
Have the brake pads/linings replaced as soon as possible at a
qualified specialist workshop. G
Tele Aid
Inoperative USA only: one or more main functions of the mbrace system are
malfunctioning.
Canada only: one or more main functions of the TELEAID system
are malfunctioning.
X
USA only: have the mbrace system checked at a qualified
specialist workshop.
X Canada only: have the TELEAID system checked at a qualified
specialist workshop. +
Restraint System
Malfunction
Service Required G
Risk of injury
The restraint systems are malfunctioning.
X Visit a qualified specialist workshop immediately. G
WARNING
In the event a malfunction of the SRS is indicated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend that you contact an authorized Mercedes-Benz Center
immediately to

have the system checked. Otherwise the SRS may not be activated when needed
in an accident, which could result in serious or fatal injury, or it might deploy unexpectedly and
unnecessarily which could also result in injury. Display messages
167
On-board computer and displays Z

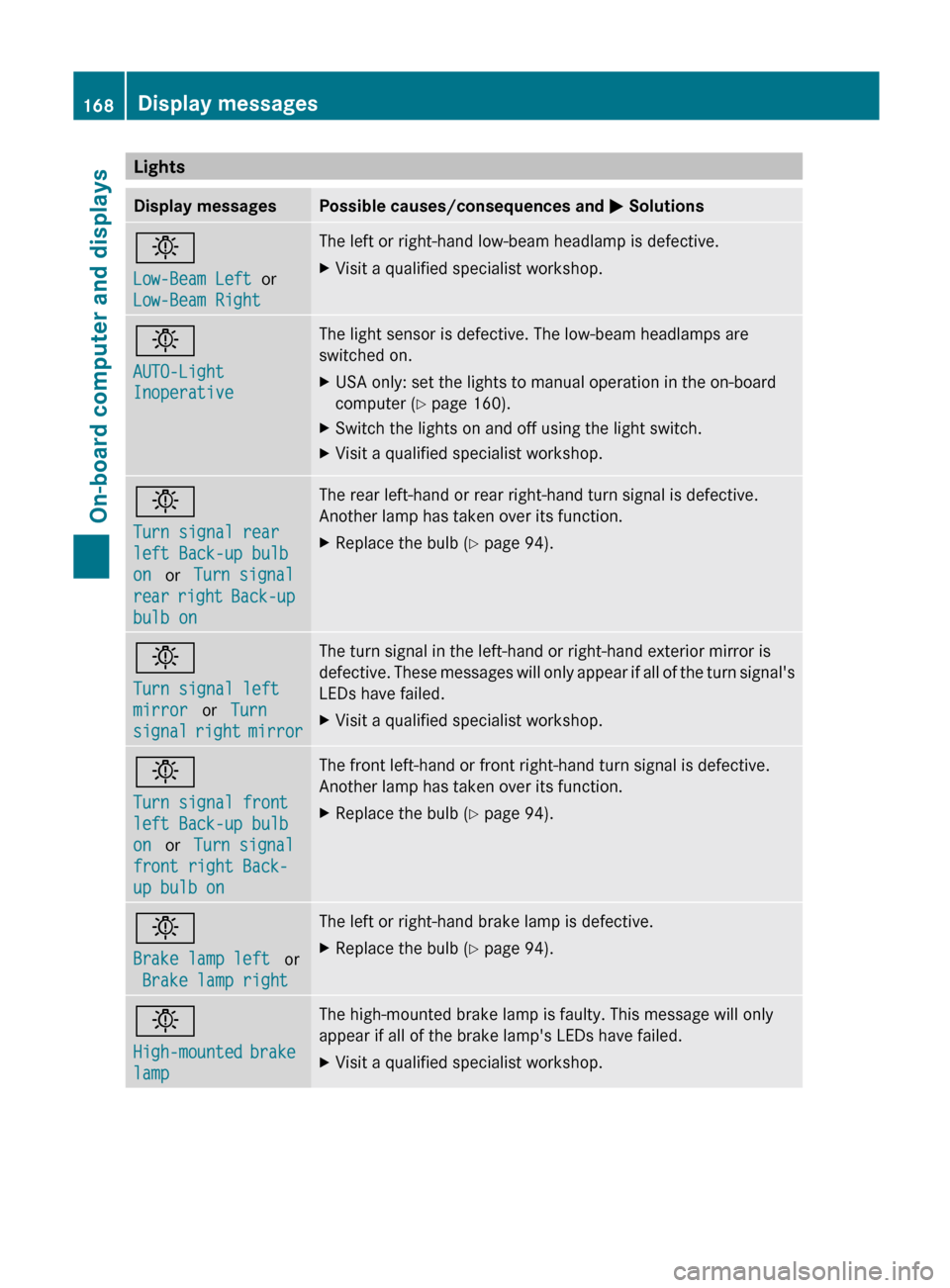

Lights
Display messages Possible causes/consequences and
M Solutions
b
Low-Beam Left
 or 
Low-Beam Right The left or right-hand low-beam headlamp is defective.
X
Visit a qualified specialist workshop. b
AUTO-Light
Inoperative The light sensor is defective. The low-beam headlamps are
switched on.
X
USA only: set the lights to manual operation in the on-board
computer ( Y page 160).
X Switch the lights on and off using the light switch.
X Visit a qualified specialist workshop. b
Turn signal rear
left Back-up bulb
on
  or  

Turn signal
rear right Back-up
bulb on The rear left-hand or rear right-hand turn signal is defective.
Another lamp has taken over its function.
X
Replace the bulb
(
Y page 94). b
Turn signal left
mirror
  or  Turn
signal right

mirror The turn signal in the left-hand or right-hand exterior mirror is
defective.
These
messages will only appear if all of the turn signal's
LEDs have failed.
X Visit a qualified specialist workshop. b
Turn signal front
left Back-up bulb
on

  or
 

Turn signal
front right Back-
up bulb on The front left-hand or front right-hand turn signal is defective.
Another lamp has taken over its function.
X
Replace the bulb
(
Y page 94). b
Brake lamp left
  or
 Brake lamp right The left or right-hand brake lamp is defective.
X
Replace the bulb (
Y page 94). b
High-mounted
brake
lamp The high-mounted brake lamp is faulty. This message will only
appear if all of the brake lamp's LEDs have failed.
X
Visit a qualified specialist workshop.168
Display messages
On-board computer and displays
