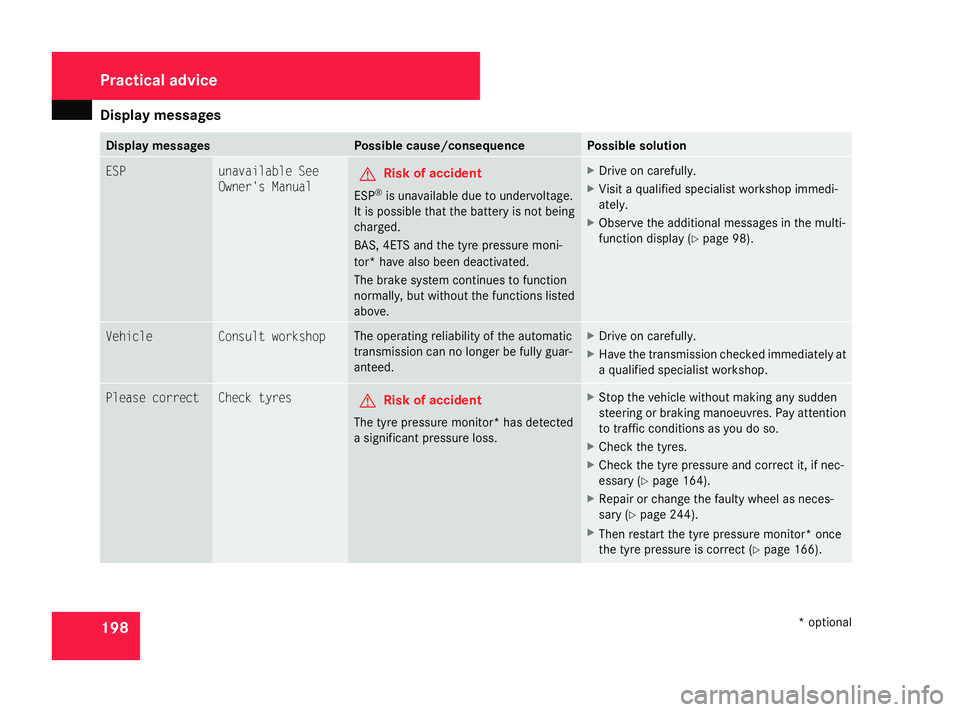

Page 201 of 293
Display
messages 198 Display messages Possible cause/consequence Possible solution
ESP unavailable See
Owner's Manual
G
Risk of accident
ESP ®
is unavailable due to undervoltage.
It is possible that the battery is not being
charged.
BAS, 4ETS and the tyre pressure moni-
tor* have also been deactivated.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately.
X Observe the additional messages in the multi-
function display ( Ypage 98). Vehicle Consult workshop The operating reliability of the automatic
transmission can no longer be fully guar-
anteed. X
Drive on carefully.
X Have the transmission checked immediately at
a qualified specialist workshop. Please correct Check tyres
G
Risk of accident
The tyre pressure monitor* has detected
a significant pressure loss. X
Stop the vehicle without making any sudden
steering or braking manoeuvres. Pay attention
to traffic conditions as you do so.
X Check the tyres.
X Check the tyre pressure and correct it, if nec-
essary ( Ypage 164).
X Repair or change the faulty wheel as neces-
sary ( Ypage 244).
X Then restart the tyre pressure monitor* once
the tyre pressure is correct (Y page 166).Practical advice
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 198Dateiname: 6515_4091_02_buchblock.pdf; preflight

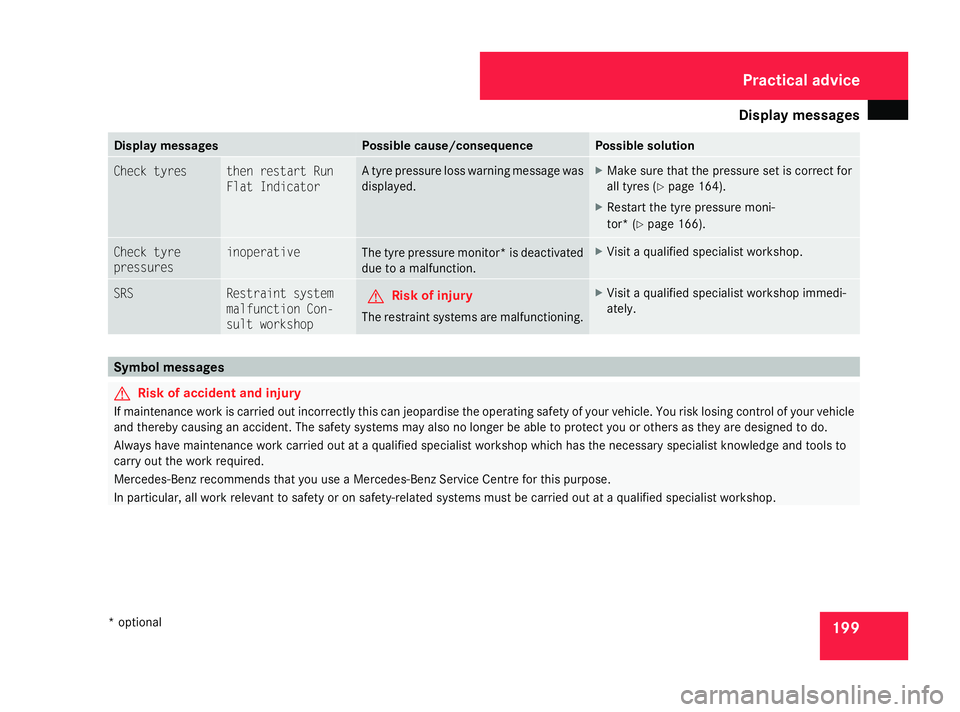

Page 202 of 293
Display
messages 199Display messages Possible cause/consequence Possible solution
Check tyres then restart Run
Flat Indicator A tyre pressure loss warning message was
displa
yed. X
Make sure that the pressure set is correct for
all tyres (Y page 164).
X Restart the tyre pressure moni-
tor* (Y page 166). Check tyre
pressures inoperative
The tyre pressure monitor* is deactivated
due to a malfunction. X
Visit a qualified specialist workshop. SRS Restraint system
malfunction Con-
sult workshop G
Risk of injury
The restraint systems are malfunctioning. X
Visit a qualified specialist workshop immedi-
ately. Sy
mbol messages G
Risk of accident and injury
If maintenance work is carried out incorrectl y this can jeopardise the operating safety of your vehicle. You risk losing control of your vehicle
and thereby causing an accident. The safety systems may also no longer be able to protect you or others as they are designed to do.
Always have maintenance work carried out at a qualified specialist workshop which has the necessary specialist knowledge and tools to
carry out the work required.
Mercedes-Benz recommends that you use a Mercedes-Benz Service Centre for this purpose.
In particular, all work relevant to safety or on safety-related systems must be carried out at a qualified specialist workshop. Practical advice
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 199 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

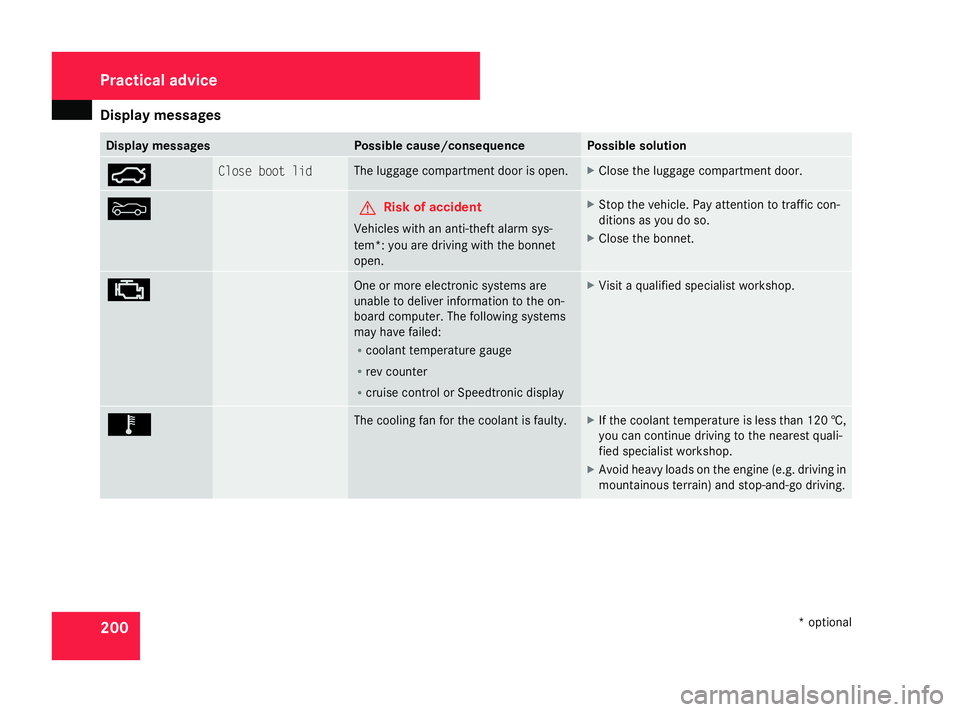

Page 203 of 293
Display
messages 200 Display messages Possible cause/consequence Possible solution
Ê Close boot lid The luggage compartment door is open. X
Close the luggage compartment door. Y G
Risk of accident
Vehicles with an anti-theft alarm sys-
tem*: you are driving with the bonnet
open. X
Stop the vehicle. Pay attention to traffic con-
ditions as you do so.
X Close the bonnet. ± One or more electronic systems are
unable to deliver information to the on-
board computer. The following systems
may have failed:
R
coolant temperature gauge
R rev counter
R cruise control or Speedtronic display X
Visit a qualified specialist workshop. Ï The cooling fan for the coolant is faulty. X
If the coolant temperature is less than 120 †,
you can continue driving to the nearest quali-
fied specialist workshop.
X Avoid heavy loads on the engine (e.g. driving in
mountainous terrain) and stop-and-go driving. Practical advice
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 200Dateiname: 6515_4091_02_buchblock.pdf; preflight

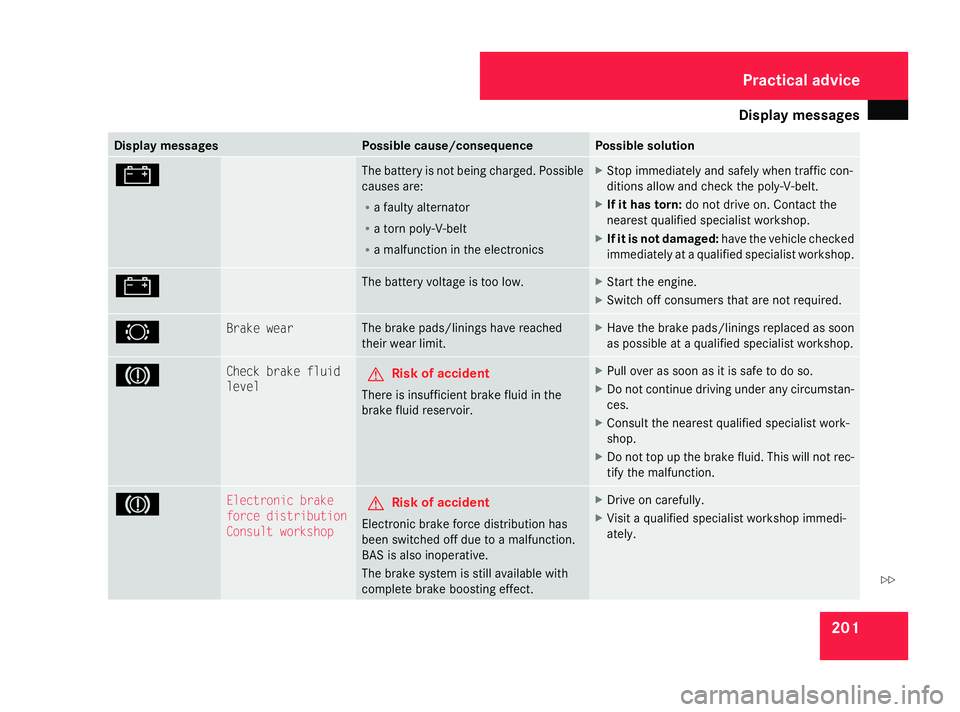

Page 204 of 293
Display
messages 201Display messages Possible cause/consequence Possible solution
# The battery is not being charged. Possible
ca
uses are:
R a faulty alternator
R a torn poly-V-belt
R a malfunction in the electronics X
Stop immediately and safely when traffic con-
ditions allow and check the poly-V-belt.
X If it has torn: do not drive on. Contact the
nearest qualified specialist workshop.
X If it is not damaged: have the vehicle checked
immediately at a qualified specialist workshop. # The battery voltage is too low. X
Start the engine.
X Switch off consumers that are not required. 2 Brake wear The brake pads/linings have reached
their wear limit. X
Have the brake pads/linings replaced as soon
as possible at a qualified specialist workshop. 3 Check brake fluid
level G
Risk of accident
There is insufficient brake fluid in the
brake fluid reservoir. X
Pull over as soon as it is safe to do so.
X Do not continue driving under any circumstan-
ces.
X Consult the nearest qualified specialist work-
shop.
X Do not top up the brake fluid. This will not rec-
tify the malfunction. 3 Electronic brake
force distribution
Consult workshop G
Risk of accident
Electronic brake force distribution has
been switched off due to a malfunction.
BAS is also inoperative.
The brake system is still available with
complete brake boosting effect. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. Practical advice
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 201 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

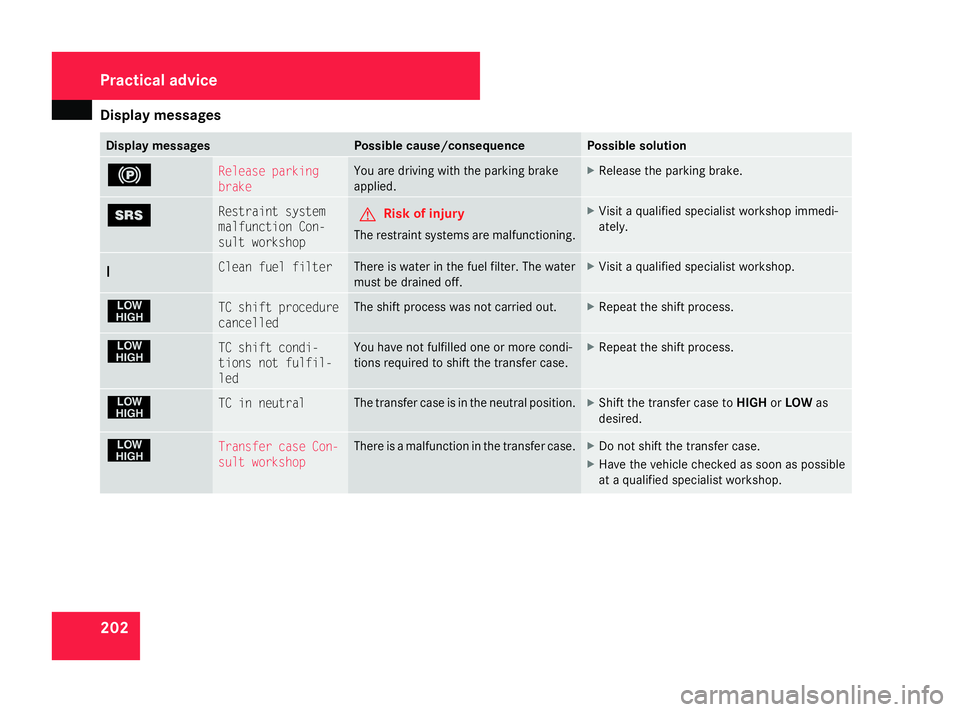

Page 205 of 293
Display
messages 202 Display messages Possible cause/consequence Possible solution
! Release parking
brake Yo
u are driving with the parking brake
applied. X
Release the parking brake. 1 Restraint system
malfunction Con-
sult workshop
G
Risk of injury
The restraint systems are malfunctioning. X
Visit a qualified specialist workshop immedi-
ately. [ Clean fuel filter There is water in the fuel filter. The water
must be drained off. X
Visit a qualified specialist workshop. § TC shift procedure
cancelled The shift process was not carried out. X
Repeat the shift process. § TC shift condi-
tions not fulfil-
led You have not fulfilled one or more condi-
tions required to shift the transfer case. X
Repeat the shift process. § TC in neutral The transfer case is in the neutral position. X
Shift the transfer case to HIGHorLOW as
desired. § Transfer case Con-
sult workshop There is a malfunction in the transfer case. X
Do not shift the transfer case.
X Have the vehicle checked as soon as possible
at a qualified specialist workshop. Practical advice
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 202Dateiname: 6515_4091_02_buchblock.pdf; preflight

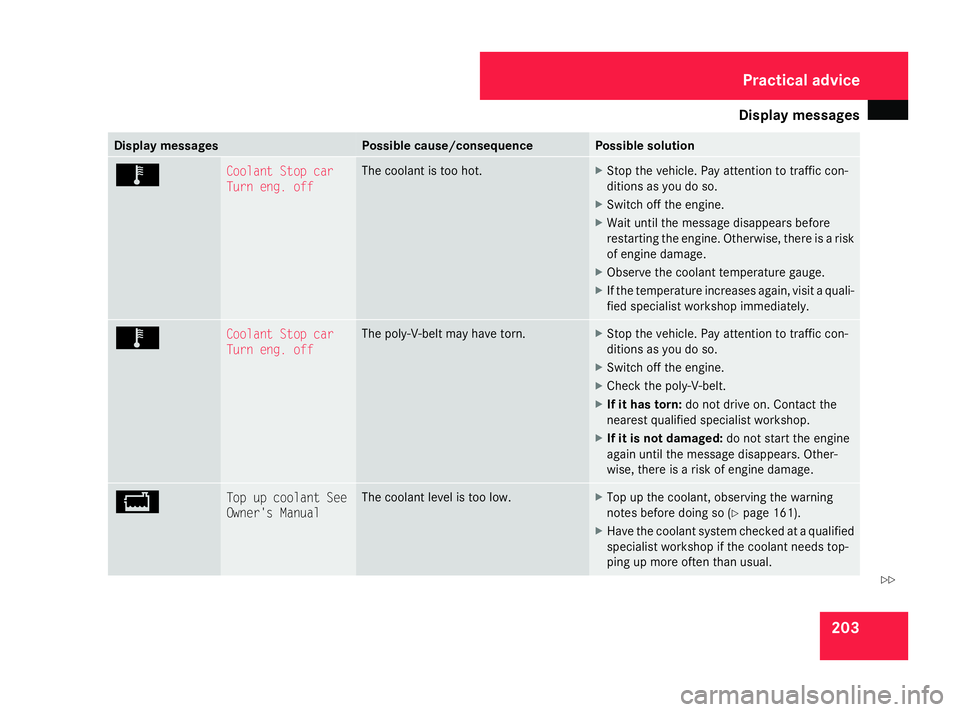

Page 206 of 293
Display
messages 203Display messages Possible cause/consequence Possible solution
Ï Coolant Stop car
Turn eng. off The coolant is too hot. X
Stop the vehicle. Pa y attention to traffic con-
ditions as you do so.
X Switch off the engine.
X Wait until the message disappears before
restarting the engine. Otherwise, there is a risk
of engine damage.
X Observe the coolant temperature gauge.
X If the temperature increases again, visit a quali-
fied specialist workshop immediately. Ï Coolant Stop car
Turn eng. off The poly-V-belt may have torn. X
Stop the vehicle. Pay attention to traffic con-
ditions as you do so.
X Switch off the engine.
X Check the poly-V-belt.
X If it has torn: do not drive on. Contact the
nearest qualified specialist workshop.
X If it is not damaged: do not start the engine
again until the message disappears. Other-
wise, there is a risk of engine damage. B Top up coolant See
Owner's Manual The coolant level is too low. X
Top up the coolant, observing the warning
notes before doing so (Y page 161).
X Have the coolant system checked at a qualified
specialist workshop if the coolant needs top-
ping up more often than usual. Practical advice
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 203 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

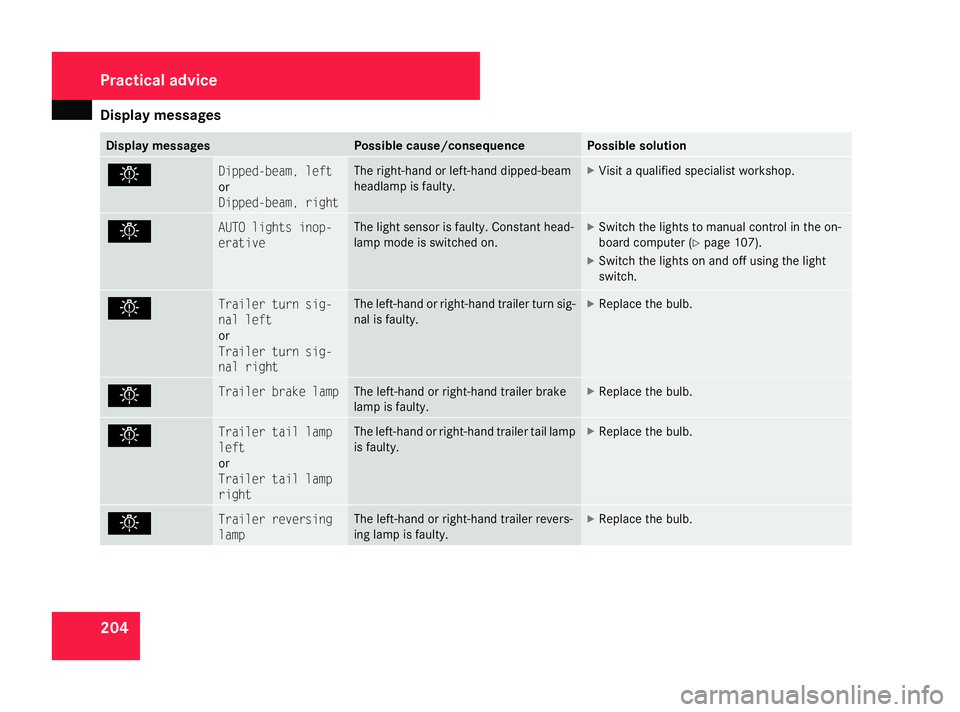

Page 207 of 293
Display
messages 204 Display messages Possible cause/consequence Possible solution
. Dipped-beam, left
or
Dipped-beam, right The right-hand or left-hand dipped-beam
headlamp is fa
ulty. X
Visit a qualified specialist workshop. . AUTO lights inop-
erative The light sensor is faulty. Constant head-
lamp mode is switched on. X
Switch the lights to manual control in the on-
board computer (Y page 107).
X Switch the lights on and off using the light
switch. . Trailer turn sig-
nal left
or
Trailer turn sig-
nal right The left-hand or right-hand trailer turn sig-
nal is faulty. X
Replace the bulb. . Trailer brake lamp The left-hand or right-hand trailer brake
lamp is faulty. X
Replace the bulb. . Trailer tail lamp
left
or
Trailer tail lamp
right The left-hand or right-hand trailer tail lamp
is faulty. X
Replace the bulb. . Trailer reversing
lamp The left-hand or right-hand trailer revers-
ing lamp is faulty. X
Replace the bulb. Practical advice
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 204Dateiname: 6515_4091_02_buchblock.pdf; preflight

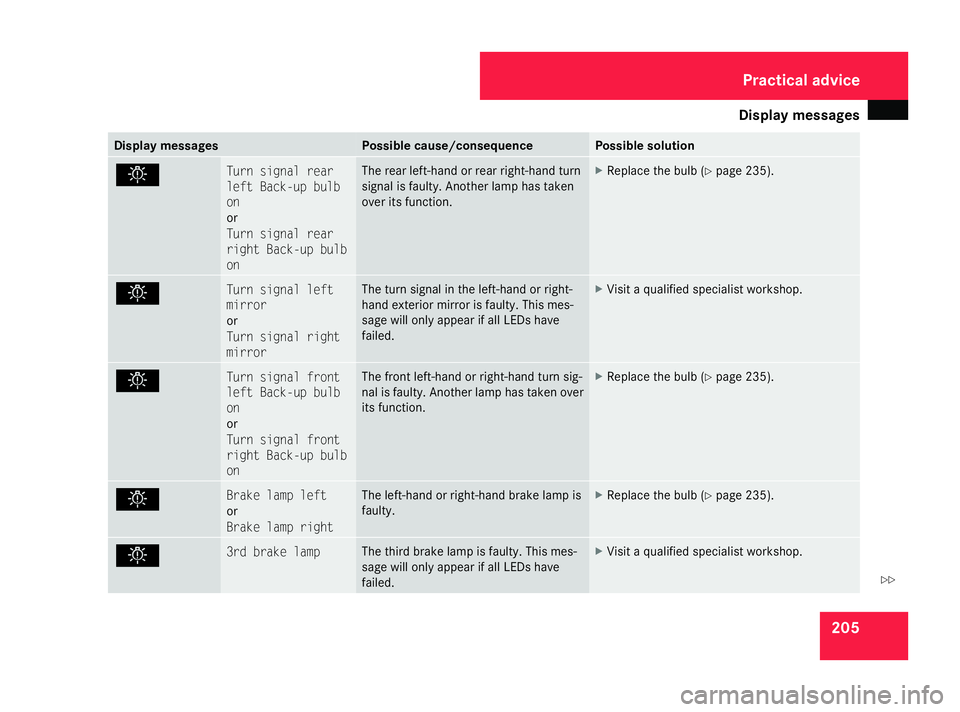

Page 208 of 293
Display
messages 205Display messages Possible cause/consequence Possible solution
. Turn signal rear
left Back-up bulb
on
or
Turn signal rear
right Back-up bulb
on The rear left-hand or rear right-hand turn
signal is fa
ulty. Another lamp has taken
over its function. X
Replace the bulb (Y page 235). . Turn signal left
mirror
or
Turn signal right
mirror The turn signal in the left-hand or right-
hand exterior mirror is faulty. This mes-
sage will only appear if all LEDs have
failed. X
Visit a qualified specialist workshop. . Turn signal front
left Back-up bulb
on
or
Turn signal front
right Back-up bulb
on The front left-hand or right-hand turn sig-
nal is faulty. Another lamp has taken over
its function. X
Replace the bulb (Y page 235). . Brake lamp left
or
Brake lamp right The left-hand or right-hand brake lamp is
faulty. X
Replace the bulb (Y page 235). . 3rd brake lamp The third brake lamp is faulty. This mes-
sage will only appear if all LEDs have
failed. X
Visit a qualified specialist workshop. Practical advice
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 205 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

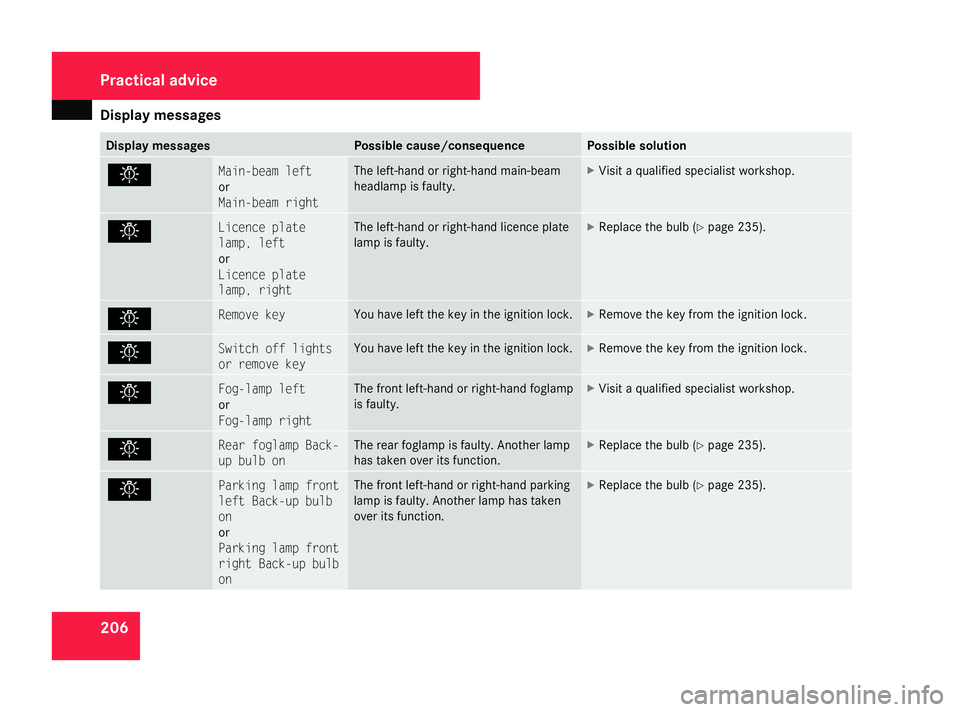

Page 209 of 293
Display
messages 206 Display messages Possible cause/consequence Possible solution
. Main-beam left
or
Main-beam right The left-hand or right-hand main-beam
headlamp is fa
ulty. X
Visit a qualified specialist workshop. . Licence plate
lamp, left
or
Licence plate
lamp, right The left-hand or right-hand licence plate
lamp is faulty. X
Replace the bulb (Y page 235).. Remove key You have left the key in the ignition lock. X
Remove the key from the ignition lock. . Switch off lights
or remove key You have left the key in the ignition lock. X
Remove the key from the ignition lock. . Fog-lamp left
or
Fog-lamp right The front left-hand or right-hand foglamp
is faulty. X
Visit a qualified specialist workshop. . Rear foglamp Back-
up bulb on The rear foglamp is faulty. Another lamp
has taken over its function. X
Replace the bulb (Y page 235).. Parking lamp front
left Back-up bulb
on
or
Parking lamp front
right Back-up bulb
on The front left-hand or right-hand parking
lamp is faulty. Another lamp has taken
over its function. X
Replace the bulb (Y page 235).Practical advice
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 206Dateiname: 6515_4091_02_buchblock.pdf; preflight
Page 210 of 293

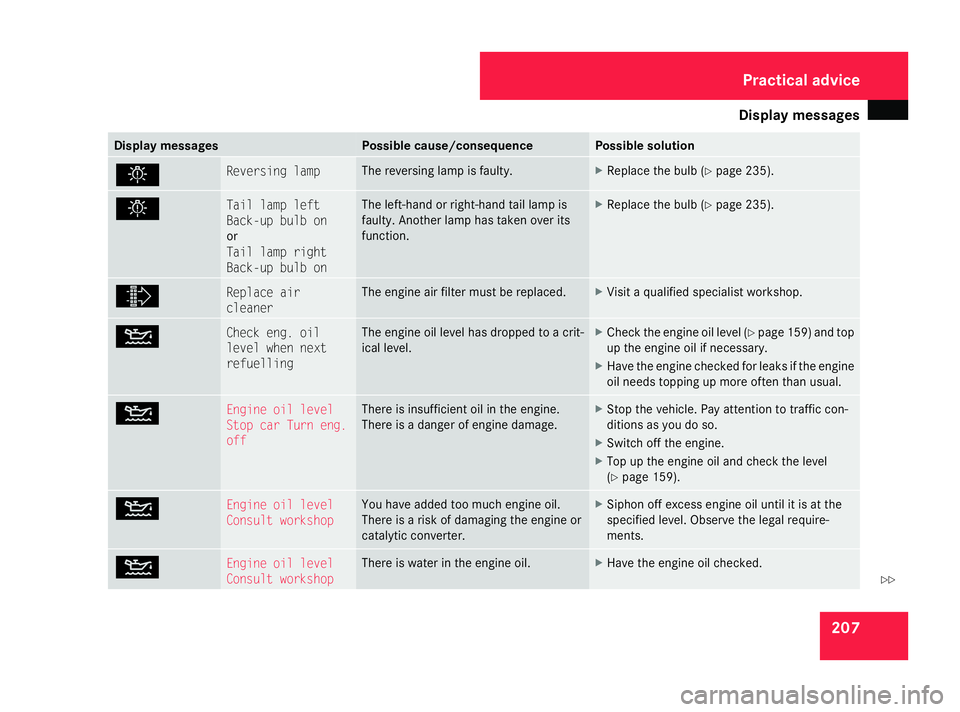

Display
messages 207Display messages Possible cause/consequence Possible solution
. Reversing lamp The reversing lamp is fa
ulty. X
Replace the bulb (Y page 235). . Tail lamp left
Back-up bulb on
or
Tail lamp right
Back-up bulb on The left-hand or right-hand tail lamp is
faulty. Another lamp has taken over its
function. X
Replace the bulb (Y page 235). ò Replace air
cleaner The engine air filter must be replaced. X
Visit a qualified specialist workshop. N Check eng. oil
level when next
refuelling The engine oil level has dropped to a crit-
ical level. X
Check the engine oil level (Y page 159) and top
up the engine oil if necessary.
X Have the engine checked for leaks if the engine
oil needs topping up more often than usual. N Engine oil level
Stop car Turn eng.
off There is insufficient oil in the engine.
There is a danger of engine damage. X
Stop the vehicle. Pay attention to traffic con-
ditions as you do so.
X Switch off the engine.
X Top up the engine oil and check the level
(Y page 159). N Engine oil level
Consult workshop You have added too much engine oil.
There is a risk of damaging the engine or
catalytic converter. X
Siphon off excess engine oil until it is at the
specified level. Observe the legal require-
ments. N Engine oil level
Consult workshop There is water in the engine oil. X
Have the engine oil checked. Practical advice
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 207 ZDateiname: 6515_4091_02_buchblock.pdf; preflight
