MERCEDES-BENZ GL SUV 2012 Owners Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2012, Model line: GL SUV, Model: MERCEDES-BENZ GL SUV 2012Pages: 441, PDF Size: 10.66 MB
Page 141 of 441
=

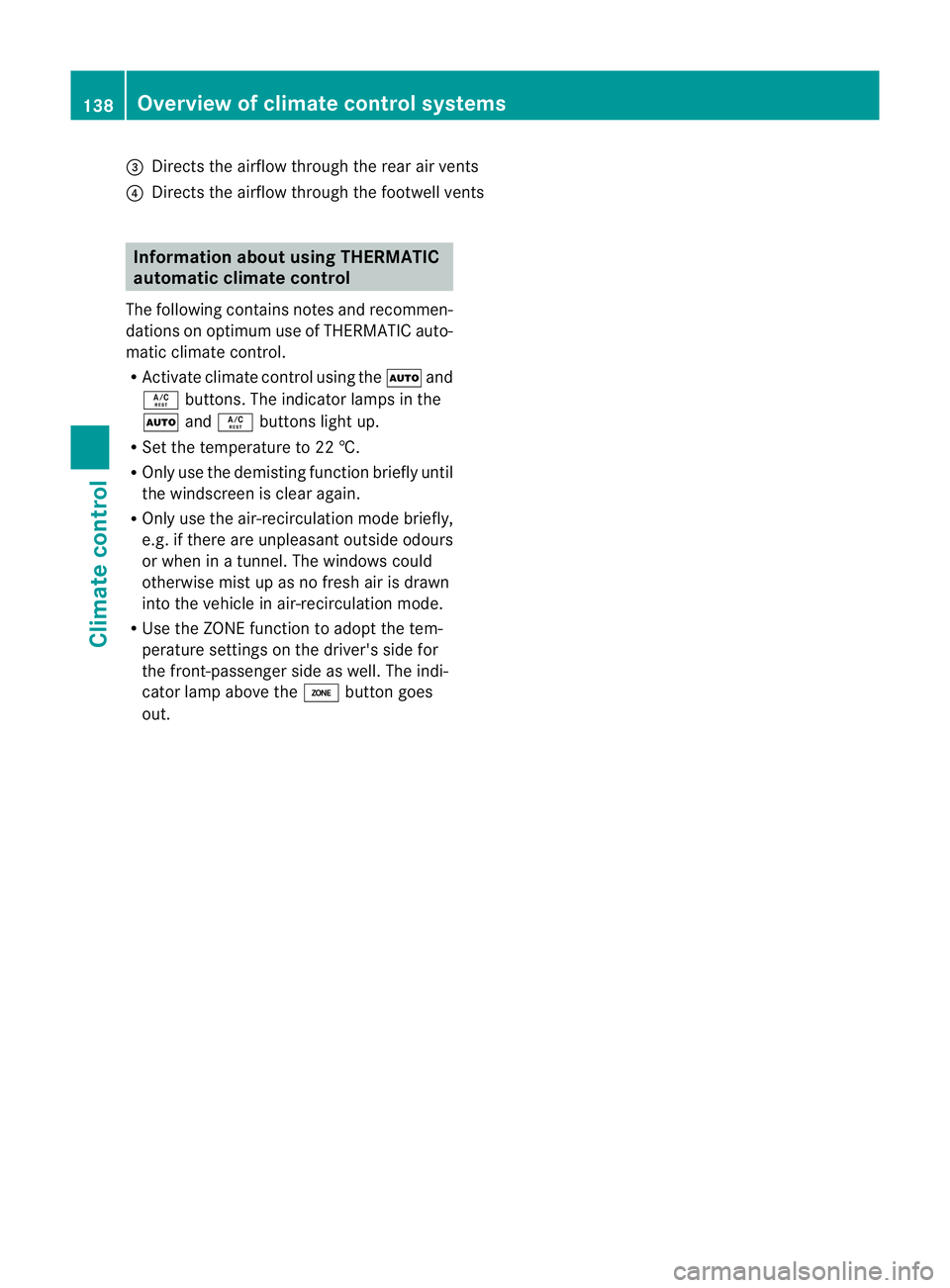

Directs the airflo wthroug hthe rear air vents
? Directs the airflow thr oughthe footwell vents Informatio
nabout using THERMATIC
automatic climate control
The following contains notes and recommen-
dation sonoptimum use of THERMATIC auto-
matic climate control.
R Activat eclimate control using the Ãand
Á buttons. The indicator lamps in the
à andÁ buttons light up.
R Set the temperature to 22 †.
R Only use the demisting func tion briefly until
the windscreen is clea ragain.
R Only use the air-recirculation mode briefly,
e.g. if ther eare unpleas anto utside odours
or when in atunnel. The windows could
otherwis emist up as no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE func tion to adopt the tem-
peratur esettings on the driver' sside for
the front-passenger side as well. The indi-
cator lamp above the ábutton goes
out. 138
Overview of climate control systemsClimat
econtrol
Page 142 of 441

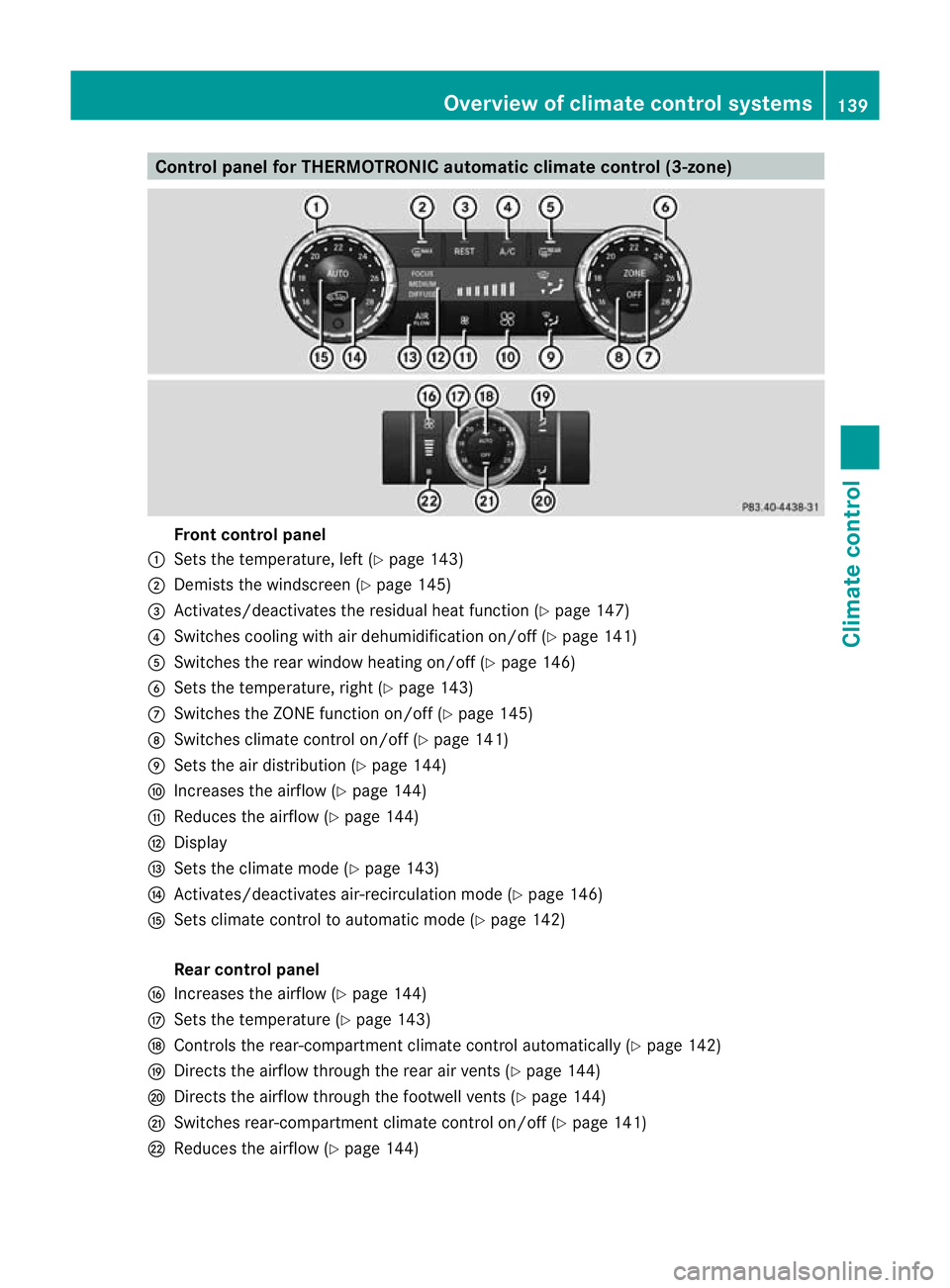

Control panel for THERMOTRONIC automatic climat
econtrol (3-zone) Fron
tcontrol panel
: Setsthe te mperature, left (Y page 143)
; Demist sthe windscree n(Ypage 145)
= Activates/deactivates th eresidual heat function (Y page 147)
? Switche scooling with air dehumidificatio non/off (Y page 141)
A Switche sthe rear windo wheatin gon/off (Y page146)
B Sets the tempera ture,right (Y page 143)
C Switches the ZONE function on/off (Y page 145)
D Switches climate control on/off (Y page 141)
E Setsthe air distribution (Y page 144)
F Increase sthe airflo w(Ypage 14 4)
G Reduces the airflow (Y page 144)
H Display
I Setsthe cli mate mode (Y page 143)
J Activates/deactivates air-recirculation mode (Y page 146)
K Setsclimate control to automatic mode (Y page 142)
Rea rcontrol panel
L Increases the airflow (Y page 144)
M Setsthe temperatur e(Ypage 14 3)
N Controls the rear-compartmen tclimate control automatically (Y page 142)
O Direct sthe airflo wthrough the rea rair vents (Y page 144)
P Direct sthe airflo wthrough the footwell vents (Y page 144)
Q Switches rear-compartment climate control on/off (Y page141)
R Reduce sthe airflo w(Ypage 14 4) Overview of clim
atec ontrol systems
139Climate control Z
Page 143 of 441

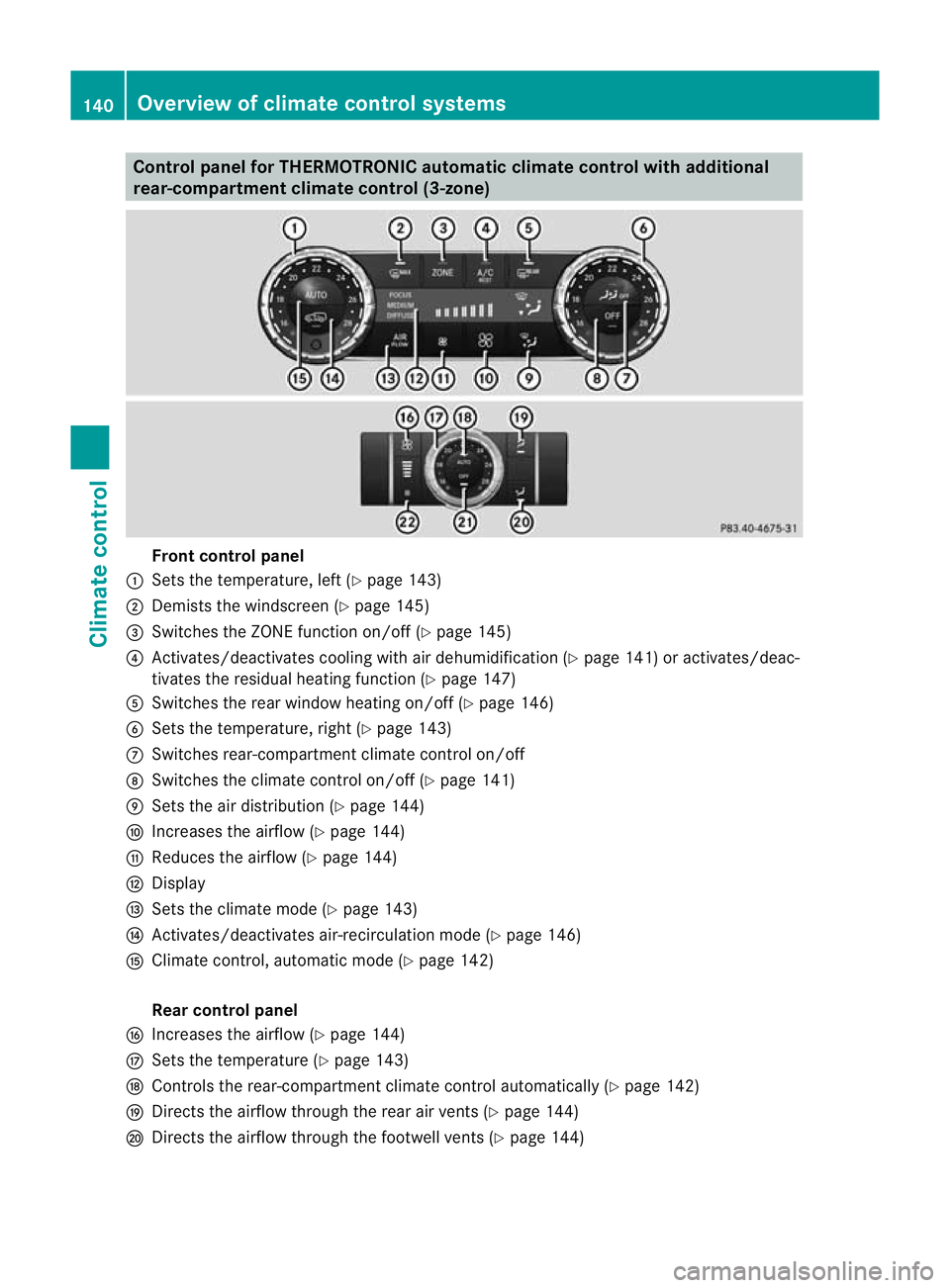

Control panel for THERMOTRONIC automatic clima
tecontrol with additional
rear-compartment clima tecontrol (3-zone) Fron
tcontrol panel
: Setsthe te mperature, left (Y page 143)
; Demist sthe windscree n(Ypage 145)
= Switche sthe ZONE function on/off (Ypage 145)
? Activates/dea ctivates cooling with air dehumidificatio n(Ypage 14 1)or activates/deac-
tivates the residual heatin gfunction (Y page 147)
A Switches the rear window heating on/off (Y page 146)
B Setsthe temperature, right (Y page 143)
C Switches rear-compartment climate contro lon/off
D Switches the climate contro lon/off (Y page141)
E Sets the air dist ribution (Y page 144)
F Increases th eairflow (Y page 144)
G Reduces the airflow ( Ypage 144)
H Display
I Setsthe clima te mode (Y page 14 3)
J Activates/deactivates air-recirculatio nmode (Y page 14 6)
K Climate control, automatic mode (Y page 142)
Rear control panel
L Increases the airflow (Y page 144)
M Setsthe temperature (Y page 143)
N Controls the rear-compartment climat econtr ol automaticall y(Ypage 14 2)
O Directs the airflow through the rear air vent s(Ypage 14 4)
P Directs the airflow through the footwell vent s(Ypage 14 4) 140
Overview of climat
econtrol systemsClimat econtrol
Page 144 of 441

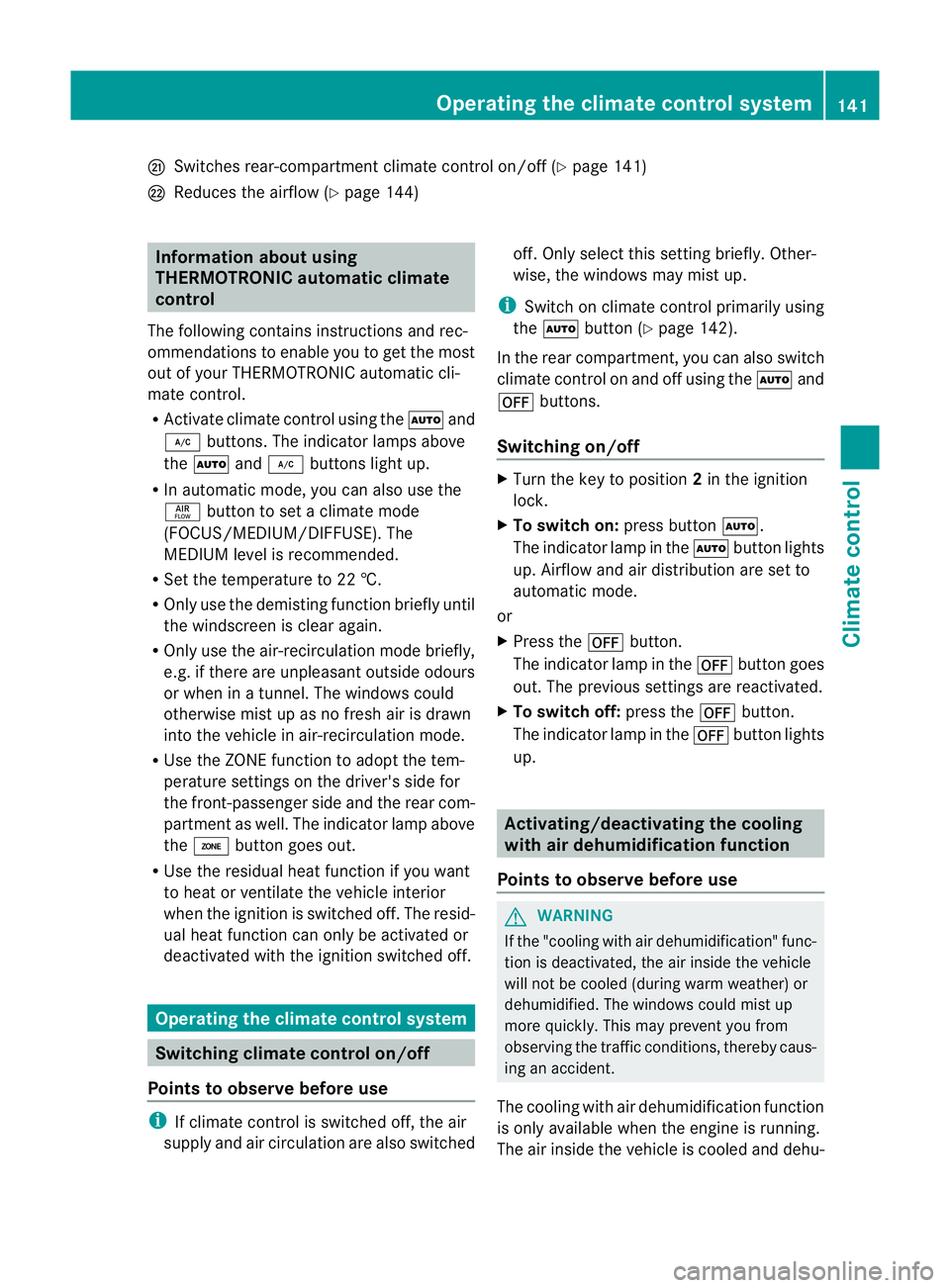

Q
Switche srear-com partment climate contro lon/of f(Y page 141)
R Reduces the airflow (Y page 144)Informat
iona bout using
THERMOTRONIC automatic climate
control
The following contains instructions and rec-
omm endations to enabl eyou to get the most
ou tofy our THERMOTRONIC automatic cli-
mate con trol.
R Activate climate con trol using the Ãand
¿ buttons. The indicator lamps above
the à and¿ button slight up.
R In automatic mode, you can also use the
ñ button to set aclimate mode
(FOCUS/MEDIUM/DIFFUSE). The
MEDIU Mlevel is recommended.
R Set the temperature to 22 †.
R Only use the demisting function briefly until
the windscreen is clear again.
R Only use the air-recir culation mode briefly,
e.g. if there are unpleasant outside odours
or when in atunnel. The windows could
otherwis emist up as no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE func tion to adopt the tem-
peratur esettings on the driver' sside for
the front-passenger side and the rear com-
partmen taswell. The indicator lamp above
the á button goes out.
R Use the residual heat function if you want
to heat or ventilate the vehicl einterior
whe nthe ignition is switched off .The resid-
ual heat func tion can only be activated or
deactivated with the ignition switched off. Operating th
eclimat econtrol system Switching climate control on/off
Points to observe before use i
If climat econtrol is switched off ,the air
supply and air circulation ar ealso switched off. Only select this settin
gbriefly. Other-
wise ,the windows ma ymist up.
i Switch on climate control primarily using
the à button (Y page 142).
In the rear compartment, you can also switch
climate control on and off using the Ãand
^ buttons.
Switching on/off X
Turn the key to position 2in the ignition
lock.
X To switch on: press buttonÃ.
The indicator lamp in the Ãbutton lights
up. Airflow and air distribution are set to
automatic mode.
or
X Press the ^button.
The indicator lamp in the ^button goes
out. The previous settings are reactivated.
X To switch off: press the^button.
The indicator lamp in the ^button lights
up. Activating/deactivating the cooling
with air dehu
midification function
Points to observe before use G
WARNING
If the "cooling with air dehumidification" func-
tion is deactivated, the air inside the vehicle
will not be cooled (during warm weather) or
dehumidified. The windows could mist up
more quickly. This may prevent you from
observing the traffic conditions, thereby caus-
ing an accident.
The cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled and dehu- Operating the climate control system
141Climatecontrol Z
Page 145 of 441

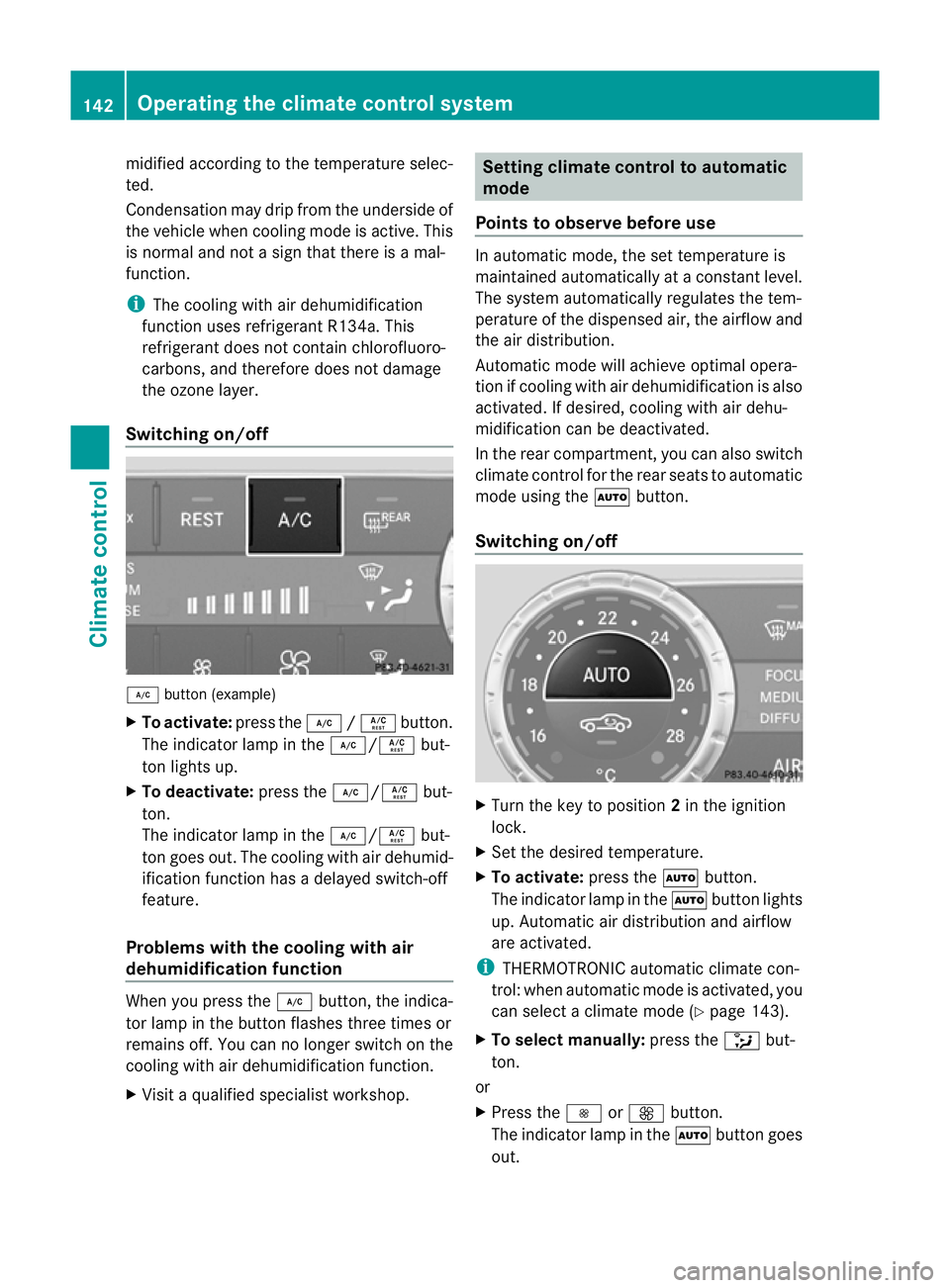

mid
ified according to the temperature selec-
ted.
Condensation may drip from the undersid eof
the vehicl ewhen cooling mode is active .This
is norma land not asign that there is amal-
function.
i The cooling with air dehumidification
function uses refrigerant R134a. This
refrigerant does not contain chlorofluoro-
carbons, and therefore does not damage
the ozone layer.
Switching on/off ¿
button (example)
X To activate: press the¿/Á button.
The indicator lamp in the ¿/Ábut-
ton lights up.
X To deactivate: press the¿/Á but-
ton.
The indicator lamp in the ¿/Ábut-
ton goes out. The cooling with air dehumid-
ificatio nfunction has adelayed switch-off
feature.
Problems with the cooling with air
dehumidification function When you press the
¿button ,the indica-
tor lam pint he button fla shes three times or
remains off .You can no longer switch on the
cooling with air dehumidification function.
X Visit aquali fieds pecialist workshop. Setting clima
tecontrol to automatic
mode
Points to observe before use In automatic mode, the set temperature is
maintained automatically at
aconstan tlevel.
The system automatically regulates the tem-
perature of the dispensed air ,the airflo wand
the air distribution.
Automatic mode will achieve optimal opera-
tion if cooling with air dehumidification is also
activated. If desired, cooling with air dehu-
midification can be deactivated.
In the rear compartment ,you can also switch
climate control for the rea rseats to automatic
mode using the Ãbutton.
Switching on/off X
Turn the key to position 2in the ignition
lock.
X Set the desired temperature.
X To activate: press theÃbutton.
The indicator lam pintheà button lights
up. Automati cair distribution and airflow
are activated.
i THERMOTRONIC automatic climat econ-
trol: when automatic mode is activated, you
can select aclimate mode (Y page 143).
X To select manually: press the_but-
ton.
or
X Press the IorK button.
The indicator lamp in the Ãbutton goes
out. 142
Operating th
eclimat econtrol systemClimat econtrol
Page 146 of 441

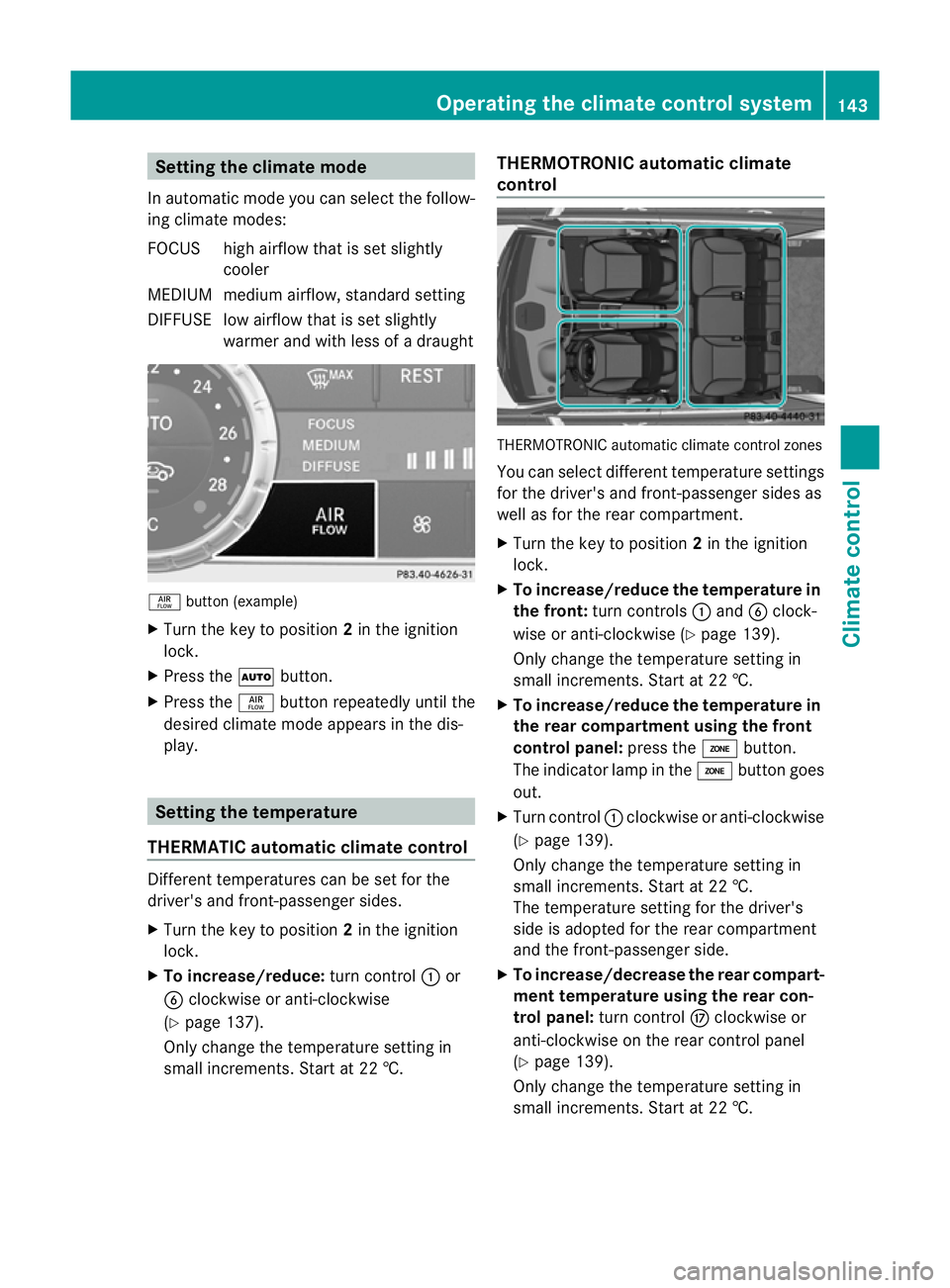

Setting th
eclimat emode
In automatic mode you can select the follow-
ing climat emodes:
FOCU Shigh airflow that is set slightly
cooler
MEDIU Mmedium airflow, standard setting
DIFFUS Elow airflow that is set slightly
warmer and with less of adraught ñ
button (example)
X Turn th ekey to position 2in the igniti on
lock.
X Press the Ãbutton.
X Press the ñbutton repeatedly until the
desired climate mode appears in the dis-
play. Setting the temperature
THERMATIC automatic climate control Different temperatures can be set for the
driver's and front-passenge rsides.
X Turn the key to position 2in the ignition
lock.
X To increase/reduce: turnc ontrol :or
B clockwise or anti-clockwise
(Y page 13 7).
Only cha nget he temperatur esettin gin
small increm ents.Start at 22 †. THERMOTRONIC automatic climate
control
THERMOTRO
NICa utomatic climate control zones
You can sele ctdifferen ttemperatur esettings
for the driver' sand front-passenger sides as
well as for the rear compartment.
X Turn the key to position 2in the ignition
lock.
X To increase/reduce the temperature in
the front: turn controls :and Bclock-
wis eoranti-clockwise (Y page139).
Onl ychange the temperature setting in
small inc rements. Start at 22 †.
X To increase/reduce the tem perature in
the rear compartment using the front
control panel: press theábutton.
The indicator lamp in the ábutton goes
out.
X Turn control :clockwise or anti-clockwise
(Y page 139).
Only change the temperature setting in
small increments. Start at 22 †.
The temperature setting for the driver's
sid eisa dopted for the rear compartment
and the front-passenger side.
X To increase/decrease the rea rcompart-
ment temperature using the rear con-
trol panel: turn control Mclockwise or
anti-clockwise on the rear control panel
(Y page 139).
Only change the temperature setting in
small increments. Start at 22 †. Operating th
eclimat econtrol system
143Climatecontrol Z
Page 147 of 441

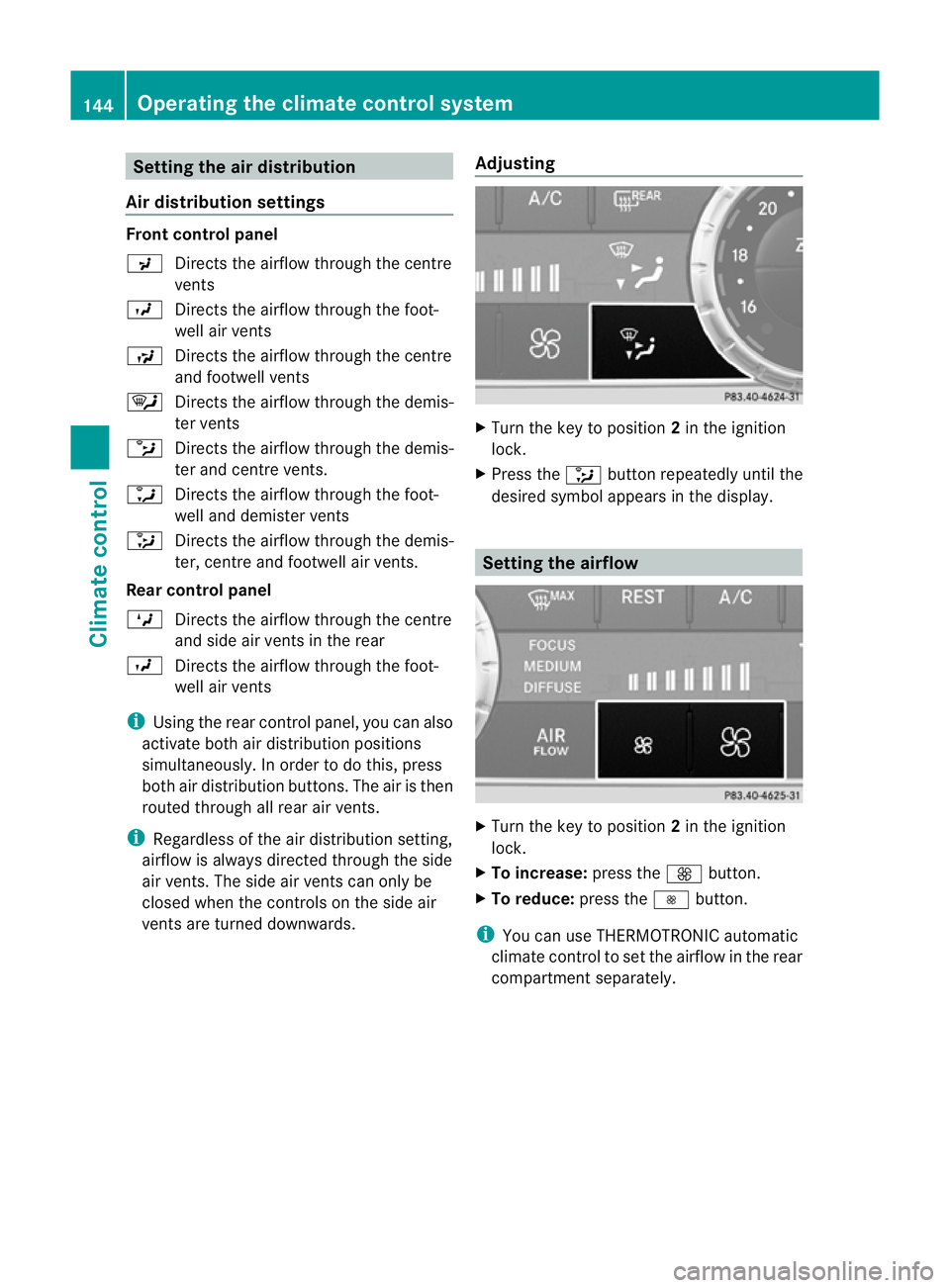

Setting th
eair distribution
Air distribution settings Front contro
lpanel
P Directs the airflow throug hthe cen tre
ve nts
O Directs the airflow throug hthe foot-
well air ven ts
S Directsthe airflo wthrough the cen tre
and footwell vents
¯ Directsthe airflo wthrough the demis-
ter ven ts
b Directsthe airflo wthrough the demis-
ter and cen tre vents.
a Directs the airflow throug hthe foot-
well and demister ven ts
_ Directsthe airflo wthrough the demis-
ter ,centre and footwell air ven ts.
Rear control panel
M Directsthe airflo wthrough the cen tre
and side air vent sinthe rear
O Directsthe airflo wthrough the foot-
well air ven ts
i Using the rear control panel, you can also
activate both air distribution positions
simultaneously .Inordertodot his, press
both air distribution buttons. Th eair is then
routed throug hall rear air vents.
i Regardless of th eair distribution setting,
airflow is always directed throug hthe side
air vents .The side air ven ts canonly be
closed whe nthe con trols on the side air
vent sare turne ddownwards. Adjusting X
Tur nthe key to position 2in the ignition
lock.
X Press the _button repeatedly until the
desired symbol appears in the display. Setting th
eairflow X
Turn the key to position 2in the ignition
lock.
X To increase: press theKbutton.
X To reduce: press theIbutton.
i You can use THERMOTRONIC automatic
climate control to set the airflow in the rear
compartmen tseparately. 144
Operating th
eclimat econtrol systemClimat econtrol
Page 148 of 441

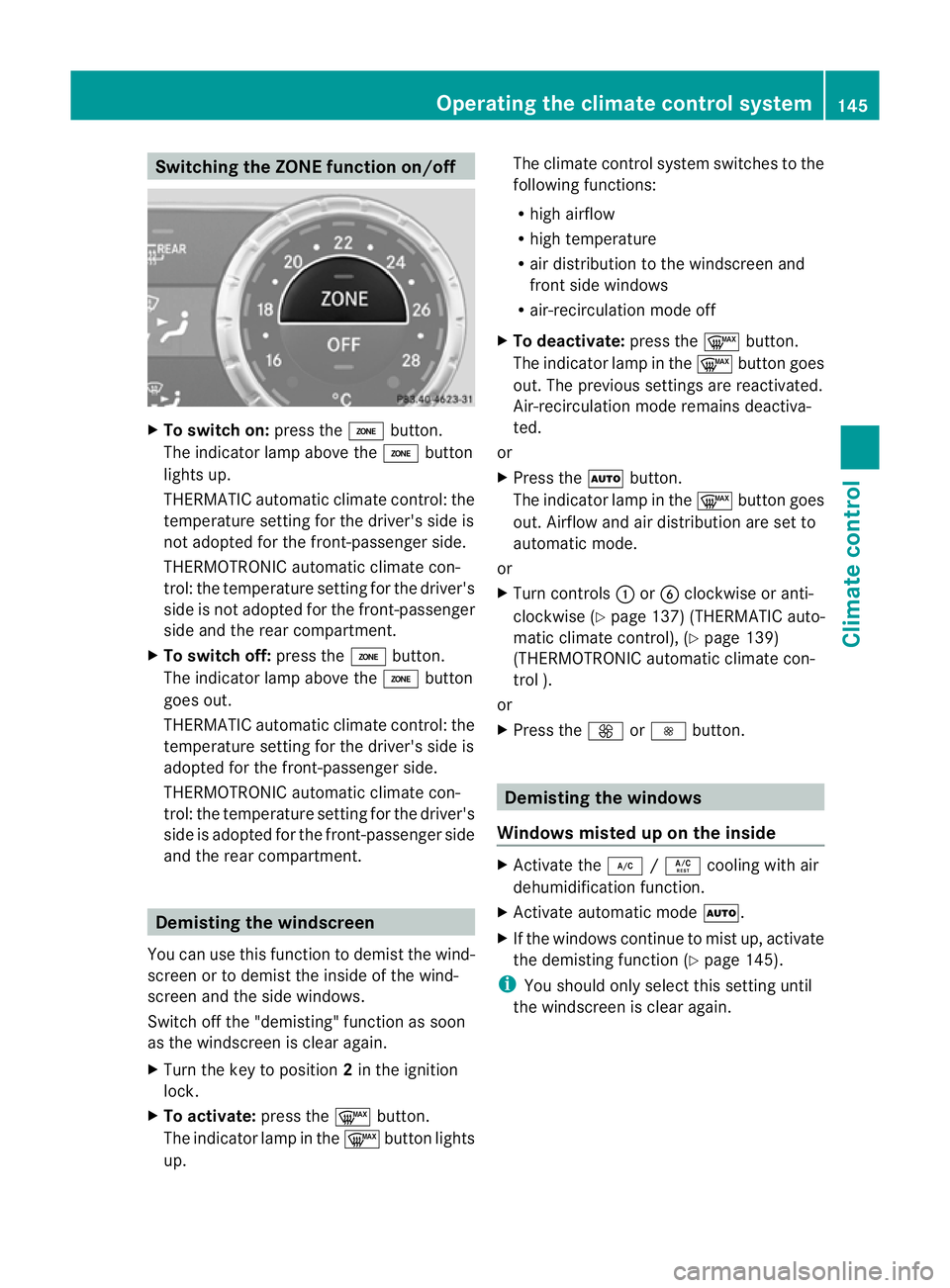

Switching th
eZONE functio non/off X
To switc hon:press the ábutton.
The indicator lam pabove the ábutton
lights up.
THERMATIC automatic climate control: the
temperatur esettin gfor the driver's side is
not adopted for the front-passenger side.
THERMOTRONIC automatic climate con-
trol: the temperatur esettin gfor the driver's
side is not adopted for the front-passenger
side and the rea rcompartment.
X To switch off: press theábutton.
The indicator lam pabove the ábutton
goes out.
THERMATIC automatic climate control: the
temperatur esettin gfor the driver's side is
adopted for the front-passenger side.
THERMOTRONIC automatic climate con-
trol: the temperatur esettin gfor the driver's
side is adopted for the front-passenger side
and the rea rcompartment. Demisting th
ewindscreen
You can use this function to demist the wind-
screen or to demist the inside of the wind-
screen and the side windows.
Switc hoff th e"demisting" function as soon
as the windscreen is clear again.
X Turn the key to position 2in the ignition
lock.
X To activate: press the¬button.
The indicator lamp in the ¬button lights
up. The climate control system switches to the
followin
gfunctions:
R high airflow
R high temperature
R air distributio ntothe windscreen and
front side windows
R air-recirculation mode off
X To deactivate: press the¬button.
The indicator lam pint he ¬ button goes
out. The previous setti ngsa re reactivated.
Air- recirculation mode remains deactiva-
ted.
or
X Pres sthe à button.
The indicator lam pint he ¬ button goes
out. Airflo wand air distributio nare se tto
automatic mode.
or
X Turn controls :orB clockwise or anti-
clockwise (Y page 137)(THERMATI Cauto-
matic climate control), (Y page 139)
(THERMOTRONIC automatic climate con-
trol ).
or
X Press the KorI button. Demisting the windows
Windows misted up on the inside X
Activate the ¿/Á cooling with air
dehumidification function.
X Activate automatic mode Ã.
X If the windows continue to mist up, activate
the demisting function (Y page 145).
i You should only select this setting until
the windscreen is clear again. Operating the climate contro
lsystem
145Clim atec ontrol Z
Page 149 of 441

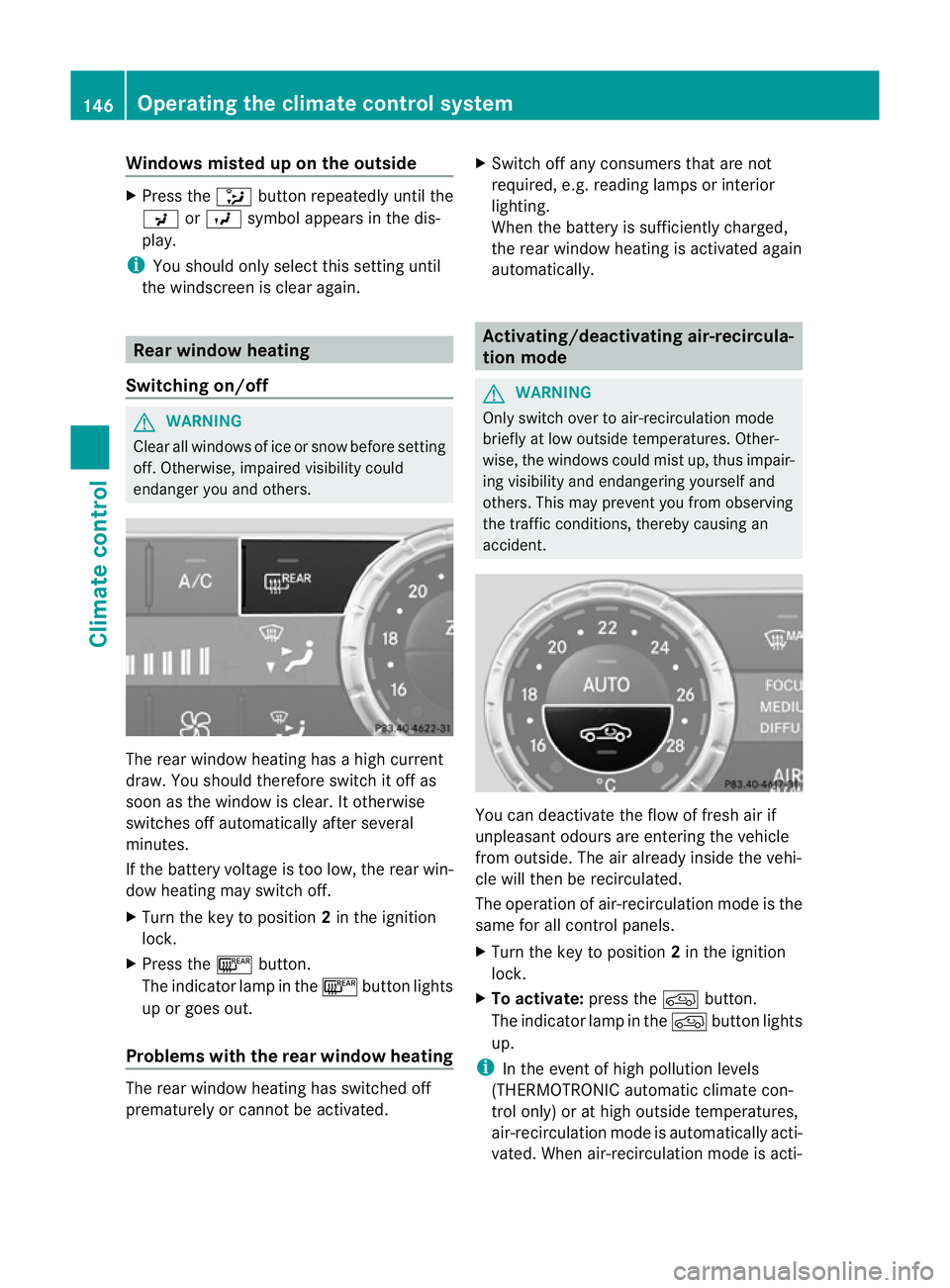

Windows misted up on the outside
X
Press the _button repeatedly unti lthe
P orO symbolappears in the dis-
play.
i You should only select this setting until
the windscreen is clear again. Rear window heating
Switching on/off G
WARNING
Clear all windows of ice or snow before setting
off. Otherwise ,impaire dvisibility could
endanger you and others. The rear window heating has
ahigh cur rent
draw. You should therefore switc hitoff as
soon as th ewindow is clear .Itotherwi se
switches off automaticall yafterseveral
minutes.
If the batter yvoltage is too low, the rear win-
do wh eatin gmay switc hoff.
X Turn th ekey to position 2in the ignition
lock.
X Press the ¤button.
The indicator lam pinthe¤ button lights
up or goes out.
Problems wit hthe rea rwindow hea ting The rea
rwindow heatin ghas switched off
prematurely or cannot be activated. X
Switch off any consumers that are not
required, e.g. readin glamps or interior
lighting.
When the battery is sufficiently charged,
the rear window heatin gisactivated again
automatically. Activating/deactivating air-recircula-
tion mode
G
WARNING
Only switc hover to air- recirculation mode
briefly at low outsid etemperatures. Other-
wise, the windows could mist up, thus impair-
ing visibility and endangerin gyoursel fand
others. Thi smay prevent you from observing
the traffic conditions, thereby causing an
accident. You can deactivate the flow of fresh air if
unpleasant odours are entering the vehicle
from outside. The air already inside the vehi-
cle will then be recirculated.
The operation of air-recirculation mode is the
same for all control panels.
X
Turn the key to position 2in the ignition
lock.
X To activate: press thedbutton.
The indicator lamp in the dbutton lights
up.
i In the event of high pollutio nlevels
(THERMOTRONI Cautomatic climate con-
trol only) or at high outsid etemperatures,
air-recir culation mode is automatically acti-
vated. When air-recirculation mode is acti- 146
Operating the climate control systemClimate control
Page 150 of 441

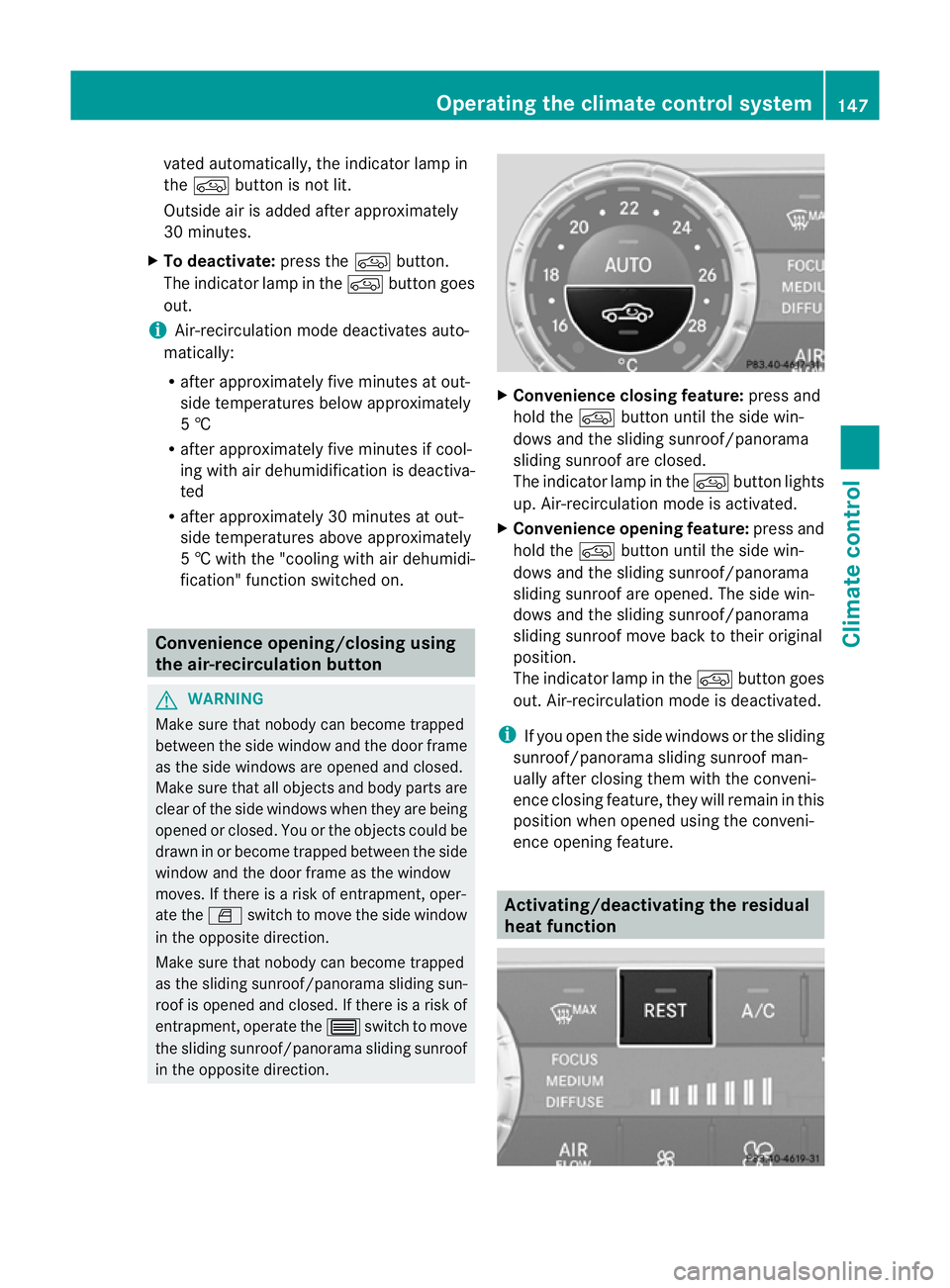

vate
dautom atically ,the indicator lam pin
the d button is not lit.
Outsid eair is added after approximately
30 minutes.
X To deactivate: press thedbutton.
The indicator lamp in the dbutton goes
out.
i Air-recirculation mode deactivates auto-
matically:
R after approximatel yfive minutes at out-
side temperatures below approximately
5†
R after approximatel yfive minutes if cool-
ing with air dehumidification is deactiva-
ted
R after approximately 30 minutes at out-
side temperatures above approximately
5† with the "coolin gwith air dehumidi-
fication" function switche don. Conv
enienc eopening/closing using
the air-recirculatio nbutton G
WARNING
Make sure tha tnobody can becom etrapped
between th eside window and the door frame
as the side windows are opened and closed.
Make sure that all object sand body parts are
clear of the side windows when they are being
opene dorclosed.You or the objec tscoul dbe
drawn in or become trapped between the side
window and the door frame as the window
moves. If there is arisk of entrapment, oper-
ate the Wswitchtom ove the side window
in the opposit edirection.
Make sure that nobody can becom etrapped
as the sliding sunroof/panorama sliding sun-
roof is opened and closed. If there is arisk of
entrapment, operat ethe 3 switchtom ove
the sliding sunroof/panorama sliding sunroof
in the opposit edirection. X
Convenience closing feature: press and
hold the dbutton until the side win-
dows and the sliding sunroof/panorama
sliding sunroof are closed.
The indicator lamp in the dbutton lights
up. Air-recirculation mode is activated.
X Convenience opening feature: press and
hold the dbutton until the side win-
dows and the sliding sunroof/panorama
sliding sunroof are opened. The side win-
dows and the sliding sunroof/panorama
sliding sunroof move back to their original
position.
The indicator lamp in the dbutton goes
out. Air-recirculation mode is deactivated.
i If you open the side windows or the sliding
sunroof/panorama sliding sunroof man-
ually after closin gthemw ith the conveni-
enc eclosing feature, they will remain in this
position when opened using the conveni-
enc eopening feature. Activating/deact
ivatingthe residual
heat function Operating th
eclimate control system
147Climate control Z
