MERCEDES-BENZ GLA 2019 Owners Manual

Inserting an SD card
The SD card slot is located on the controlpanel.
XInsert the SD card into the SD card slot untilthe SD card engages. The side with the con-tacts must face down.
Removing an SD card
XPress the SD card.The SD card is ejected.
XRemove the SD card.
Connecting USB devices
XConnect the USB device to the USB port.
There are two USB ports in the stowagespace under the armrest.
XSelect the media source (Ypage 248).
Operating system249
Multimedia system
Z

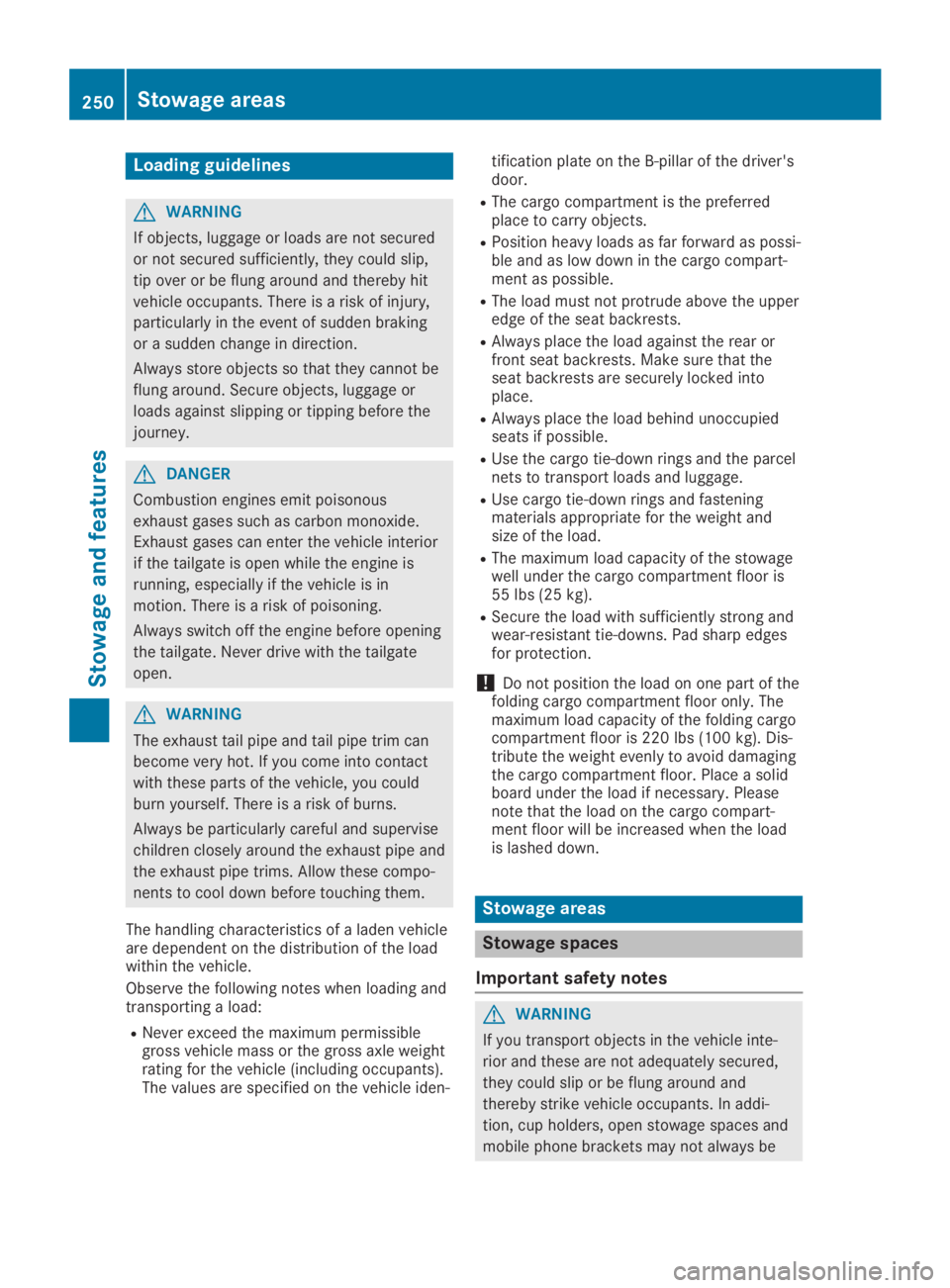

Loading guidelines
GWARNING
If objects, luggage or loads are not secured
or not secured sufficiently, they could slip,
tip over or be flung around and thereby hit
vehicle occupants. There is a risk of injury,
particularly in the event of sudden braking
or a sudden change in direction.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping before the
journey.
GDANGER
Combustion engines emit poisonous
exhaust gases such as carbon monoxide.
Exhaust gases can enter the vehicle interior
if the tailgate is open while the engine is
running, especially if the vehicle is in
motion. There is a risk of poisoning.
Always switch off the engine before opening
the tailgate. Never drive with the tailgate
open.
GWARNING
The exhaust tail pipe and tail pipe trim can
become very hot. If you come into contact
with these parts of the vehicle, you could
burn yourself. There is a risk of burns.
Always be particularly careful and supervise
children closely around the exhaust pipe and
the exhaust pipe trims. Allow these compo-
nents to cool down before touching them.
The handling characteristics of a laden vehicleare dependent on the distribution of the loadwithin the vehicle.
Observe the following notes when loading andtransporting a load:
RNever exceed the maximum permissiblegross vehicle mass or the gross axle weightrating for the vehicle (including occupants).The values are specified on the vehicle iden-
tification plate on the B-pillar of the driver'sdoor.
RThe cargo compartment is the preferredplace to carry objects.
RPosition heavy loads as far forward as possi-ble and as low down in the cargo compart-ment as possible.
RThe load must not protrude above the upperedge of the seat backrests.
RAlways place the load against the rear orfront seat backrests. Make sure that theseat backrests are securely locked intoplace.
RAlways place the load behind unoccupiedseats if possible.
RUse the cargo tie-down rings and the parcelnets to transport loads and luggage.
RUse cargo tie-down rings and fasteningmaterials appropriate for the weight andsize of the load.
RThe maximum load capacity of the stowagewell under the cargo compartment floor is55 lbs(25 kg).
RSecure the load with sufficiently strong andwear-resistant tie-downs. Pad sharp edgesfor protection.
!Do not position the load on one part of thefolding cargo compartment floor only. Themaximum load capacity of the folding cargocompartment floor is 220 lbs(100 kg). Dis-tribute theweight evenly to avoid damagingthe cargo compartment floor. Place a solidboard under the load if necessary. Pleasenote that the load on the cargo compart-ment floor will be increased when the loadis lashed down.
Stowage areas
Stowage spaces
Important safety notes
GWARNING
If you transport objects in the vehicle inte-
rior and these are not adequately secured,
they could slip or be flung around and
thereby strike vehicle occupants. In addi-
tion, cup holders, open stowage spaces and
mobile phone brackets may not always be
250Stowage areas
Stowage and features

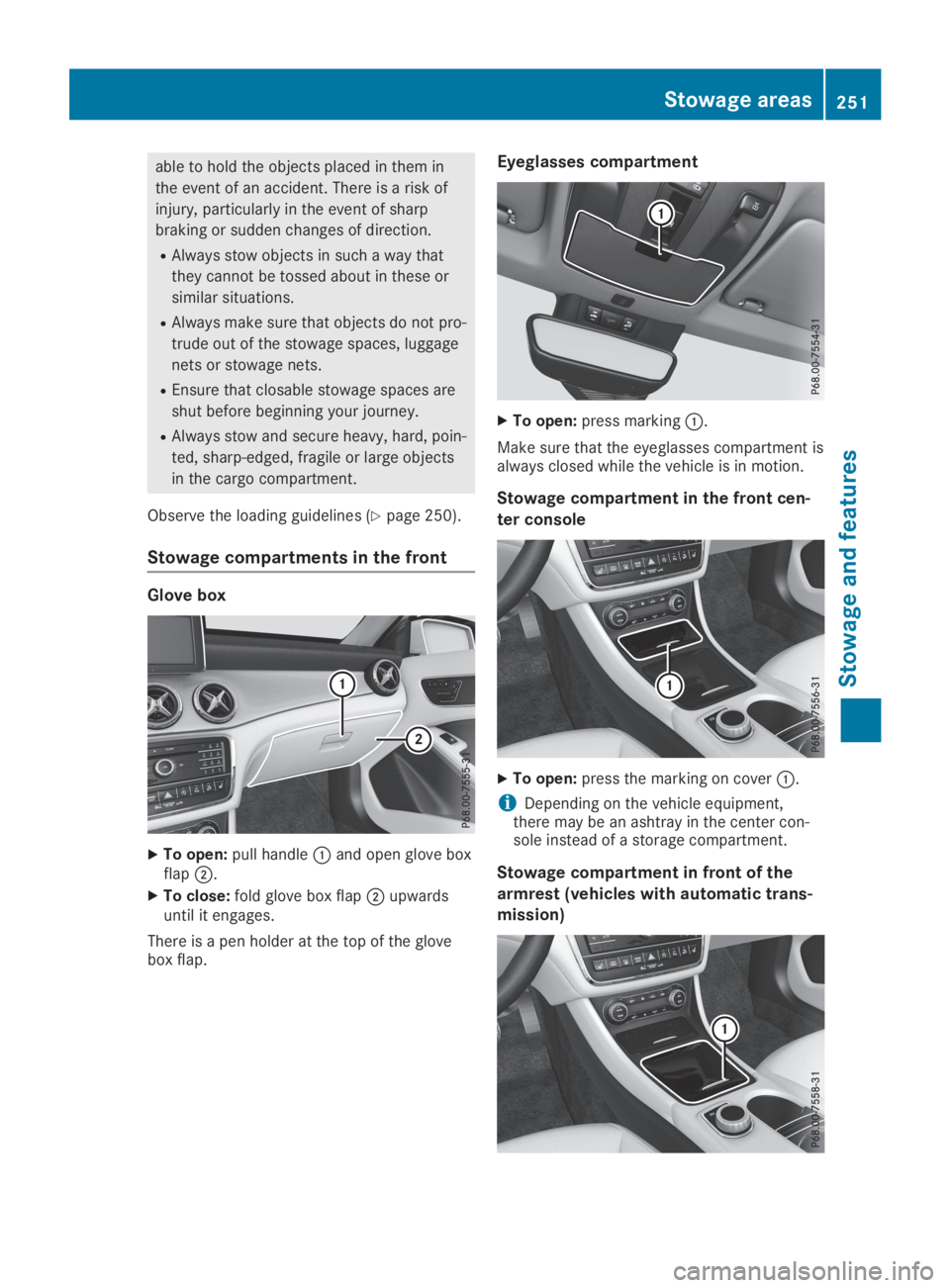

able to hold the objects placed in them in
the event of an accident. There is a risk of
injury, particularly in the event of sharp
braking or sudden changes of direction.
RAlways stow objects in such a way that
they cannot be tossed about in these or
similar situations.
RAlways make sure that objects do not pro-
trude out of the stowage spaces, luggage
nets or stowage nets.
REnsure that closable stowage spaces are
shut before beginning your journey.
RAlways stow and secure heavy, hard, poin-
ted, sharp-edged, fragile or large objects
in the cargo compartment.
Observe the loading guidelines (Ypage 250).
Stowage compartments in the front
Glove box
XTo open:pull handleCand open glove boxflapD.
XTo close:fold glove box flapDupwardsuntil it engages.
There is a pen holder at the top of the glovebox flap.
Eyeglasses compartment
XTo open:press markingC.
Make sure that the eyeglasses compartment isalways closed while the vehicle is in motion.
Stowage compartment in the front cen-
ter console
XTo open:press the marking on coverC.
iDepending on the vehicle equipment,there may be an ashtray in the center con-sole instead of a storage compartment.
Stowage compartment in front of the
armrest (vehicles with automatic trans-
mission)
Stowage areas251
Stowage and features
Z

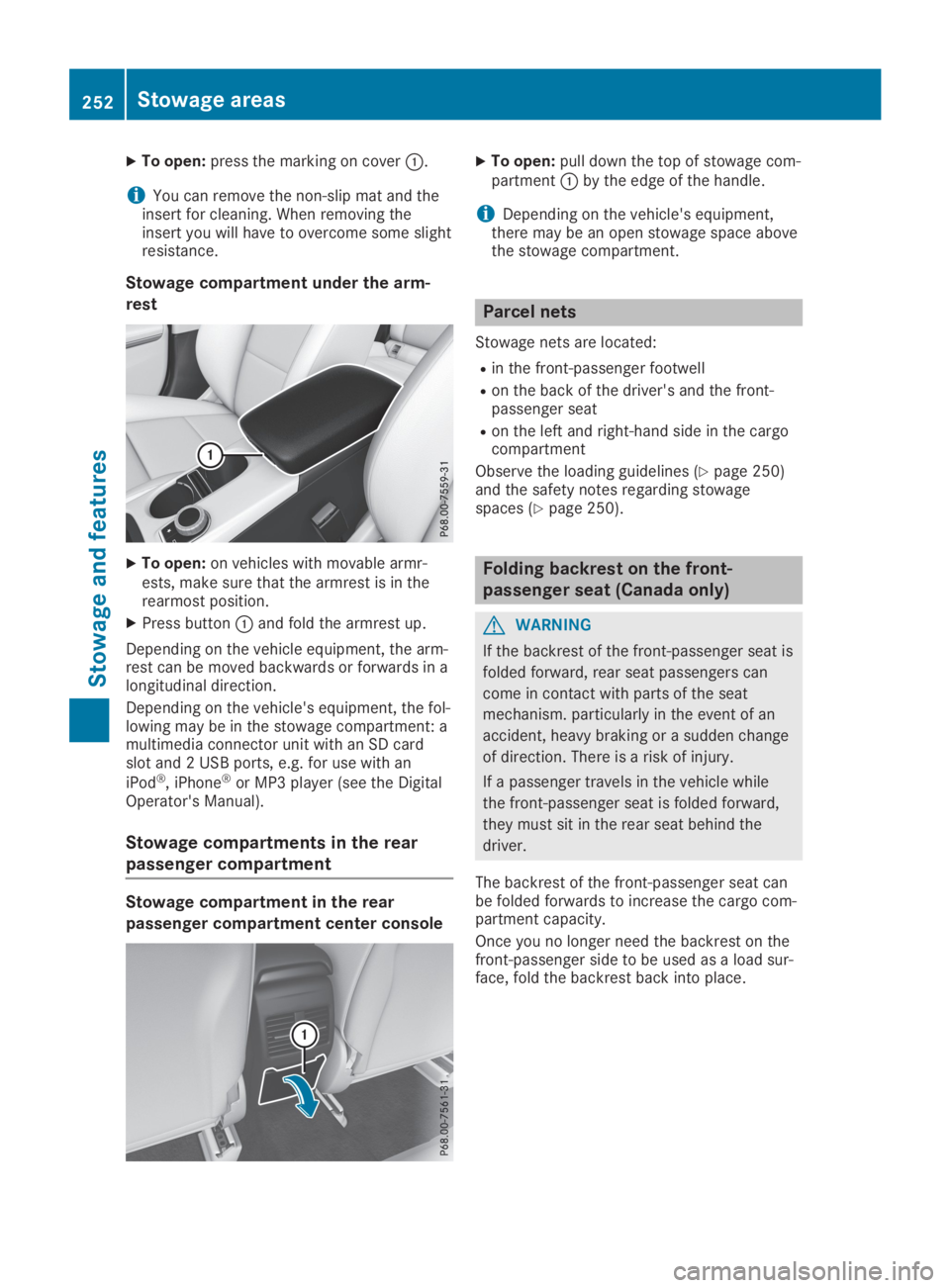

XTo open:press the marking on coverC.
iYou can remove the non-slip mat and theinsert for cleaning. When removing theinsert you will have to overcome some slightresistance.
Stowage compartment under the arm-
rest
XTo open:on vehicles with movable armr-ests, make sure that the armrest is in therearmost position.
XPress buttonCand fold the armrest up.
Depending on the vehicle equipment, the arm-rest can be moved backwards or forwards in alongitudinal direction.
Depending on the vehicle's equipment, the fol-lowing may be in the stowage compartment: amultimedia connector unit with an SD cardslot and 2 USB ports, e.g. for use with an
iPod®, iPhone®or MP3 player (see the DigitalOperator's Manual).
Stowage compartments in the rear
passenger compartment
Stowage compartment in the rear
passenger compartment center console
XTo open:pull down the top of stowage com-partmentCby the edge of the handle.
iDepending on the vehicle's equipment,there may be an open stowage space abovethe stowage compartment.
Parcel nets
Stowage nets are located:
Rin the front-passenger footwell
Ron the back of the driver's and the front-passenger seat
Ron the left and right-hand side in the cargocompartment
Observe the loading guidelines (Ypage 250)and the safety notes regarding stowagespaces (Ypage 250).
Folding backrest on the front-
passenger seat (Canada only)
GWARNING
If the backrest of the front-passenger seat is
folded forward, rear seat passengers can
come in contact with parts of the seat
mechanism. particularly in the event of an
accident, heavy braking or a sudden change
of direction. There is a risk of injury.
If a passenger travels in the vehicle while
the front-passenger seat is folded forward,
they must sit in the rear seat behind the
driver.
The backrest of the front-passenger seat canbe folded forwards to increase the cargo com-partment capacity.
Once you no longer need the backrest on thefront-passenger side to be used as a load sur-face, fold the backrest back into place.
252Stowage areas
Sto wage an d features

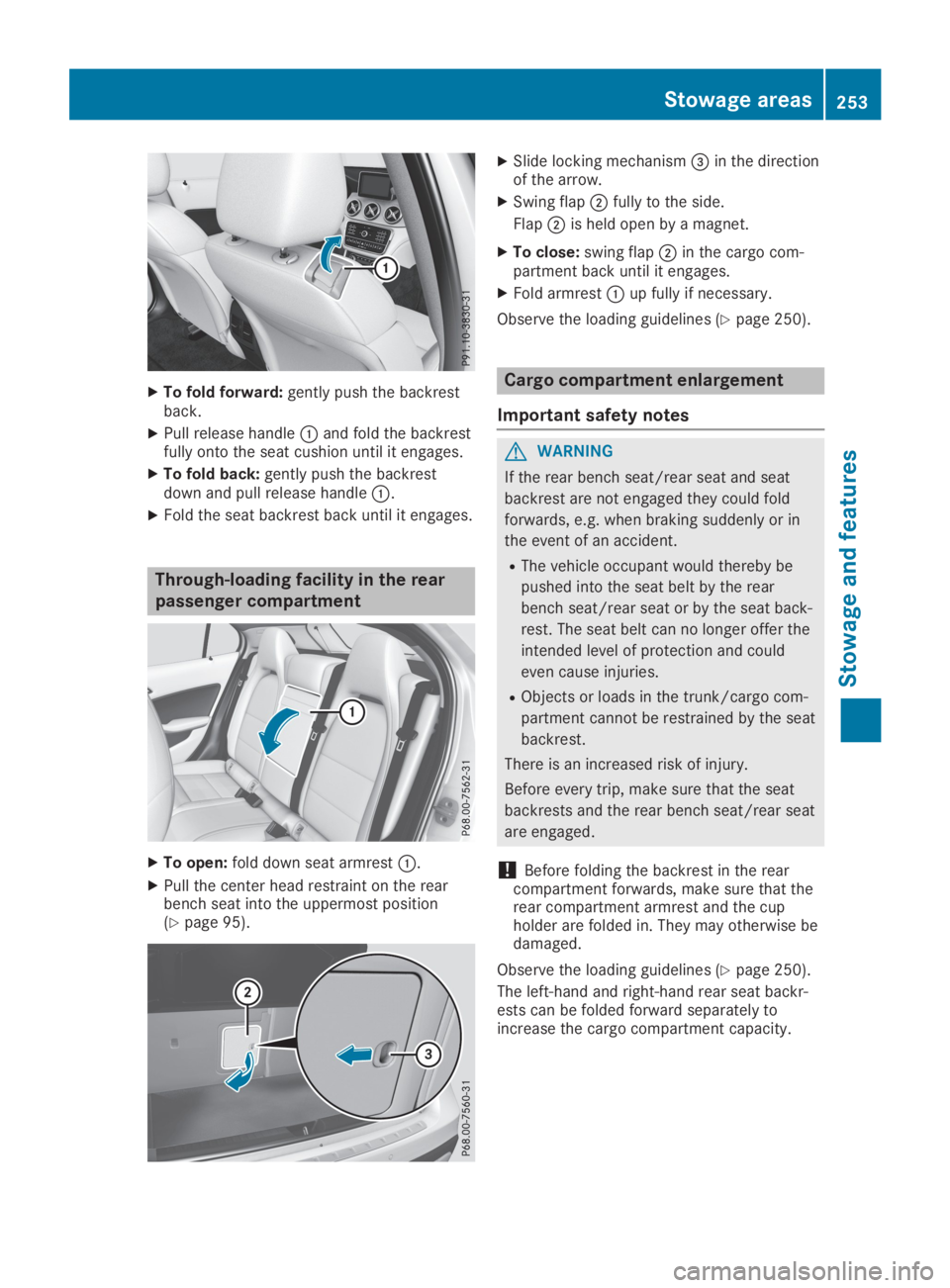

XTo fold forward:gently push the backrestback.
XPull release handleCand fold the backrestfully onto the seat cushion until it engages.
XTo fold back:gently push the backrestdown and pull release handleC.
XFold the seat backrest back until it engages.
Through-loading facility in the rear
passenger compartment
XTo open:fold down seat armrestC.
XPull the center head restraint on the rearbench seat into the uppermost position(Ypage 95).
XSlide locking mechanism

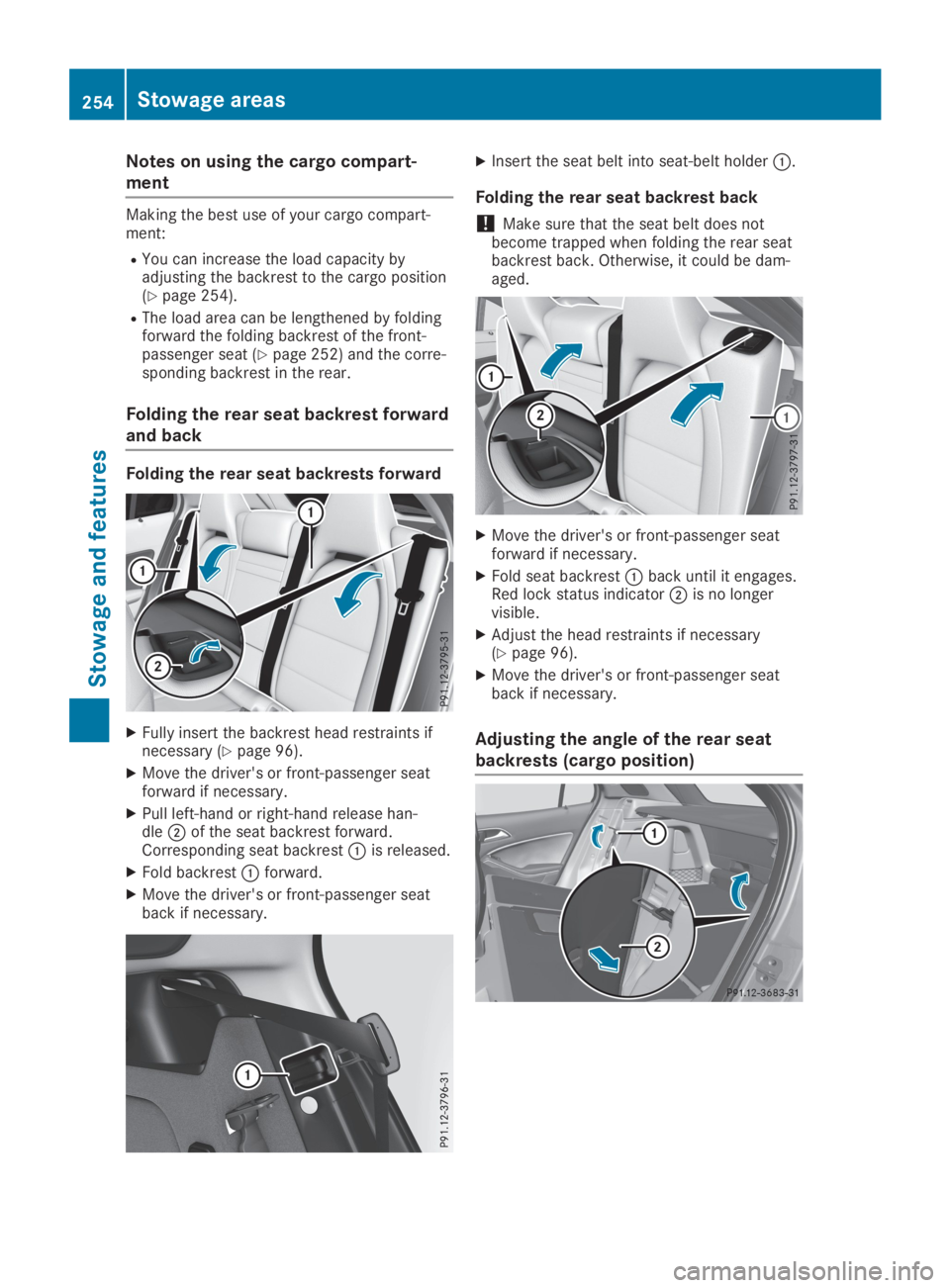

Notes on using the cargo compart-
ment
Making the best use of your cargo compart-ment:
RYou can increase the load capacity byadjusting the backrest to the cargo position(Ypage 254).
RThe load area can be lengthened by foldingforward the folding backrest of the front-passenger seat (Ypage 252) and the corre-sponding backrest in the rear.
Folding the rear seat backrest forward
and back
Folding the rear seat backrests forward
XFully insert the backrest head restraints ifnecessary (Ypage 96).
XMove the driver's or front-passenger seatforward if necessary.
XPull left-hand or right-hand release han-dleDof the seat backrest forward.Corresponding seat backrestCis released.
XFold backrestCforward.
XMove the driver's or front-passenger seatback if necessary.
XInsert the seat belt into seat-belt holderC.
Folding the rear seat backrest back
!Make sure that the seat belt does notbecome trapped when folding the rear seatbackrest back. Otherwise, it could be dam-aged.
XMove the driver's or front-passenger seatforward if necessary.
XFold seat backrestCback until it engages.Red lock status indicatorDis no longervisible.
XAdjust the head restraints if necessary(Ypage 96).
XMove the driver's or front-passenger seatback if necessary.
Adjusting the angle of the rear seat
backrests (cargo position)
254Stowage areas
Stowage an d features

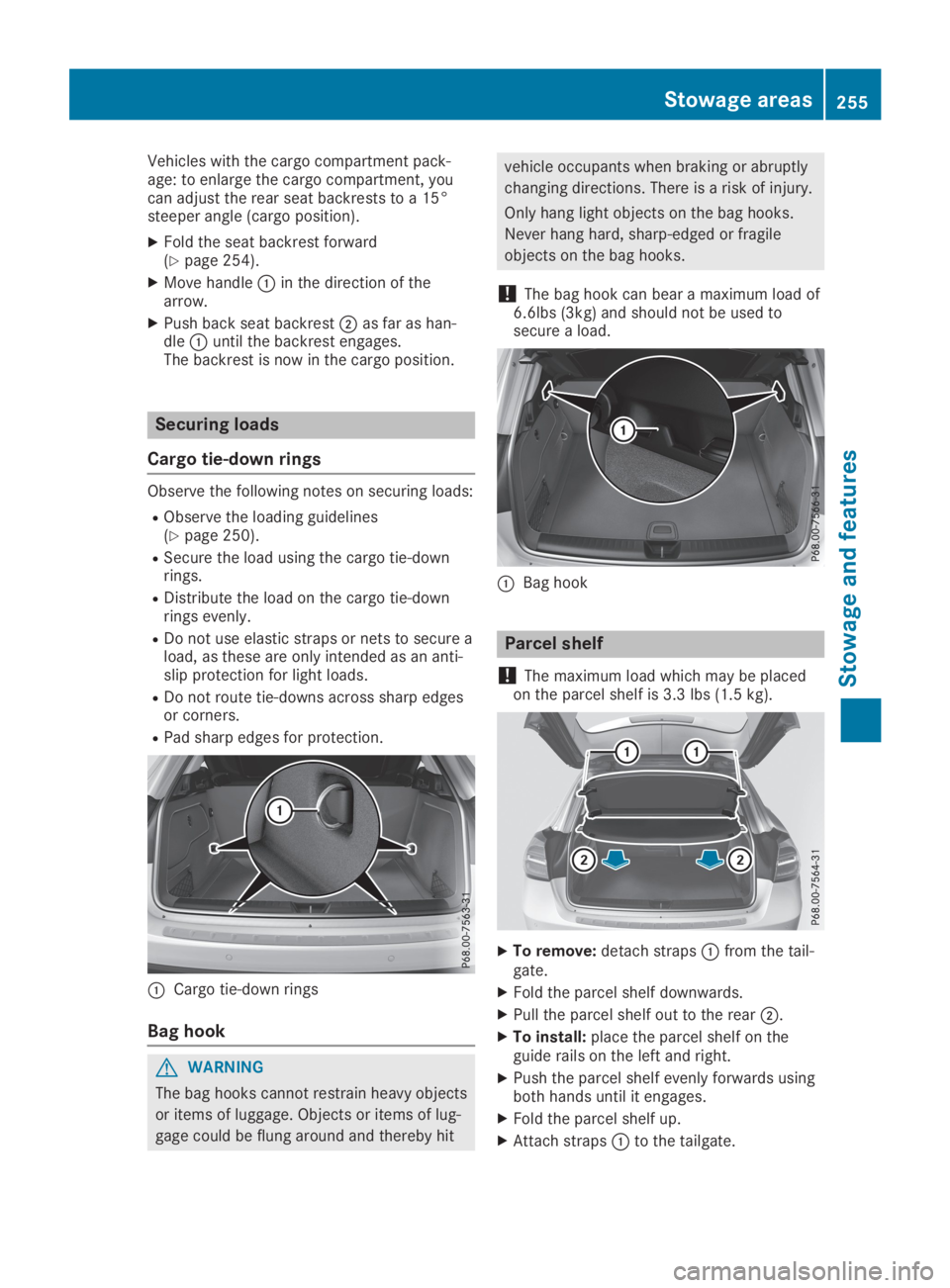

Vehicles with the cargo compartment pack-age: to enlarge the cargo compartment, youcan adjust the rear seat backrests to a 15°steeper angle (cargo position).
XFold the seat backrest forward(Ypage 254).
XMove handleCin the direction of thearrow.
XPush back seat backrestDas far as han-dleCuntil the backrest engages.The backrest is now in the cargo position.
Securing loads
Cargo tie-down rings
Observe the following notes on securing loads:
RObserve the loading guidelines(Ypage 250).
RSecure the load using the cargo tie-downrings.
RDistribute the load on the cargo tie-downrings evenly.
RDo not use elastic straps or nets to secure aload, as these are only intended as an anti-slip protection for light loads.
RDo not route tie-downs across sharp edgesor corners.
RPad sharp edges for protection.
CCargo tie-down rings
Bag hook
GWARNING
The bag hooks cannot restrain heavy objects
or items of luggage. Objects or items of lug-
gage could be flung around and thereby hit
vehicle occupants when braking or abruptly
changing directions. There is a risk of injury.
Only hang light objects on the bag hooks.
Never hang hard, sharp-edged or fragile
objects on the bag hooks.
!The bag hook can bear a maximum load of6.6lbs (3kg) and should not be used tosecure a load.
CBag hook
Parcel shelf
!The maximum load which may be placedon the parcel shelf is 3.3 lbs (1.5 kg).
XTo remove:detach strapsCfrom the tail-gate.
XFold the parcel shelf downwards.
XPull the parcel shelf out to the rearD.
XTo install:place the parcel shelf on theguide rails on the left and right.
XPush the parcel shelf evenly forwards usingboth hands until it engages.
XFold the parcel shelf up.
XAttach strapsCto the tailgate.
Stowage areas255
Stowage and features
Z

Stowage well under the cargo com-
partment floor
Important safety notes
GWARNING
If you drive when the cargo compartment
floor is open, objects could be flung around,
thus striking vehicle occupants. There is a
risk of injury, particularly in the event of sud-
den braking or a sudden change in direction.
Always close the cargo compartment floor
before a journey.
!The maximum load capacity of the stow-age well under the cargo compartment flooris 55 lbs (25 kg).
There is a stowage area for TIREFIT, the vehi-cle tool kit, a folding box, etc. underneath thecargo compartment floor.
Opening/closing the cargo compart-
ment floor
XTo open:open the tailgate.
XUnlock the cargo compartment floor.
XHolding ribbingD, press handleCdown-wards.HandleCfolds up.
XUsing handleC, swing the cargo compart-ment floor upwards as far as side flaps

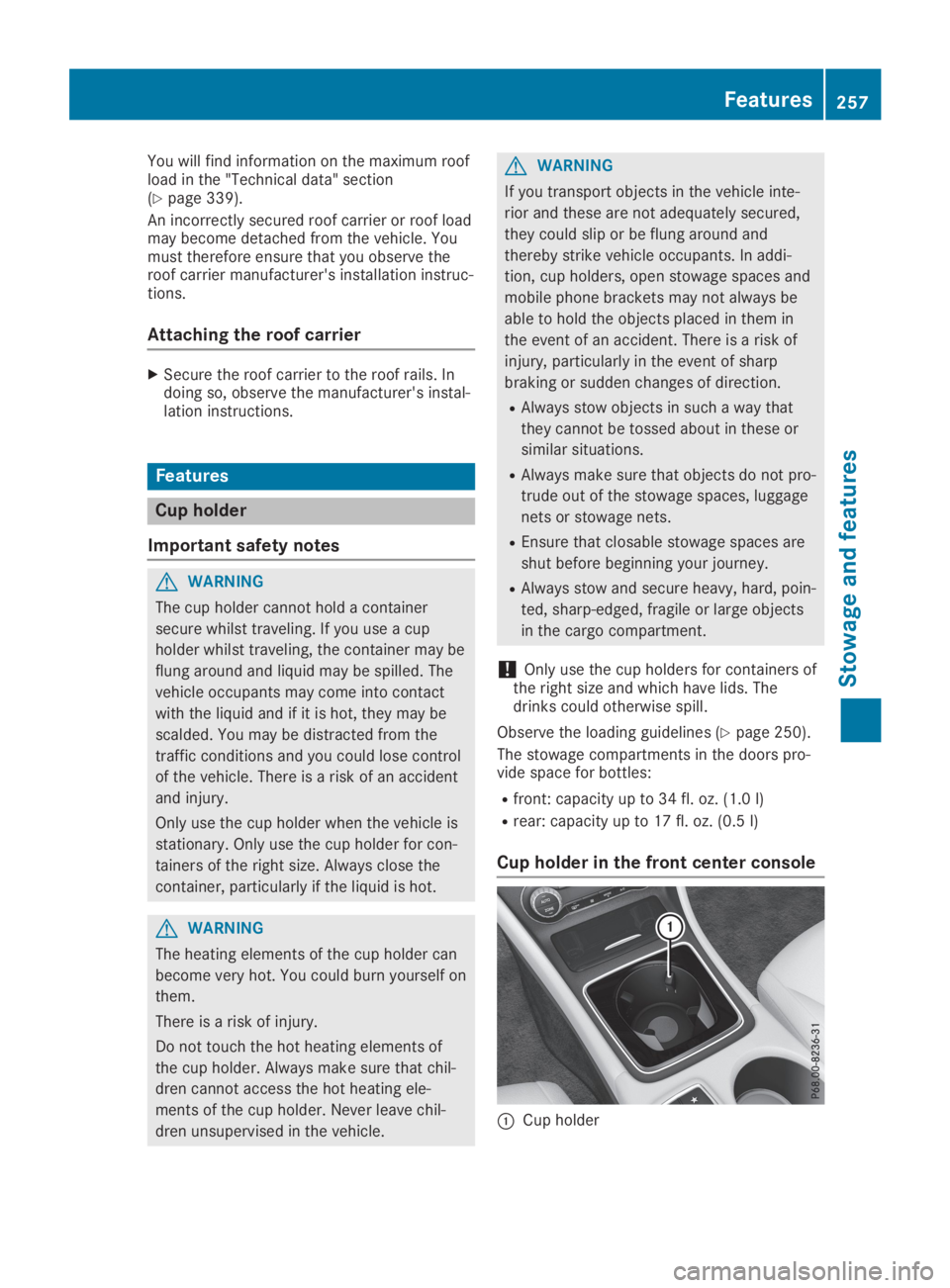

You will find information on the maximum roofload in the "Technical data" section(Ypage 339).
An incorrectly secured roof carrier or roof loadmay become detached from the vehicle. Youmust therefore ensure that you observe theroof carrier manufacturer's installation instruc-tions.
Attaching the roof carrier
XSecure the roof carrier to the roof rails. Indoing so, observe the manufacturer's instal-lation instructions.
Features
Cup holder
Important safety notes
GWARNING
The cup holder cannot hold a container
secure whilst traveling. If you use a cup
holder whilst traveling, the container may be
flung around and liquid may be spilled. The
vehicle occupants may come into contact
with the liquid and if it is hot, they may be
scalded. You may be distracted from the
traffic conditions and you could lose control
of the vehicle. There is a risk of an accident
and injury.
Only use the cup holder when the vehicle is
stationary. Only use the cup holder for con-
tainers of the right size. Always close the
container, particularly if the liquid is hot.
GWARNING
The heating elements of the cup holder can
become very hot. You could burn yourself on
them.
There is a risk of injury.
Do not touch the hot heating elements of
the cup holder. Always make sure that chil-
dren cannot access the hot heating ele-
ments of the cup holder. Never leave chil-
dren unsupervised in the vehicle.
GWARNING
If you transport objects in the vehicle inte-
rior and these are not adequately secured,
they could slip or be flung around and
thereby strike vehicle occupants. In addi-
tion, cup holders, open stowage spaces and
mobile phone brackets may not always be
able to hold the objects placed in them in
the event of an accident. There is a risk of
injury, particularly in the event of sharp
braking or sudden changes of direction.
RAlways stow objects in such a way that
they cannot be tossed about in these or
similar situations.
RAlways make sure that objects do not pro-
trude out of the stowage spaces, luggage
nets or stowage nets.
REnsure that closable stowage spaces are
shut before beginning your journey.
RAlways stow and secure heavy, hard, poin-
ted, sharp-edged, fragile or large objects
in the cargo compartment.
!Only use the cup holders for containers ofthe right size and which have lids. Thedrinks could otherwise spill.
Observe the loading guidelines (Ypage 250).
The stowage compartments in the doors pro-vide space for bottles:
Rfront: capacity up to 34 fl. oz. (1.0 l)
Rrear: capacity up to 17 fl. oz. (0.5 l)
Cup holder in the front center console
CCup holder
Features257
Stowage and features
Z

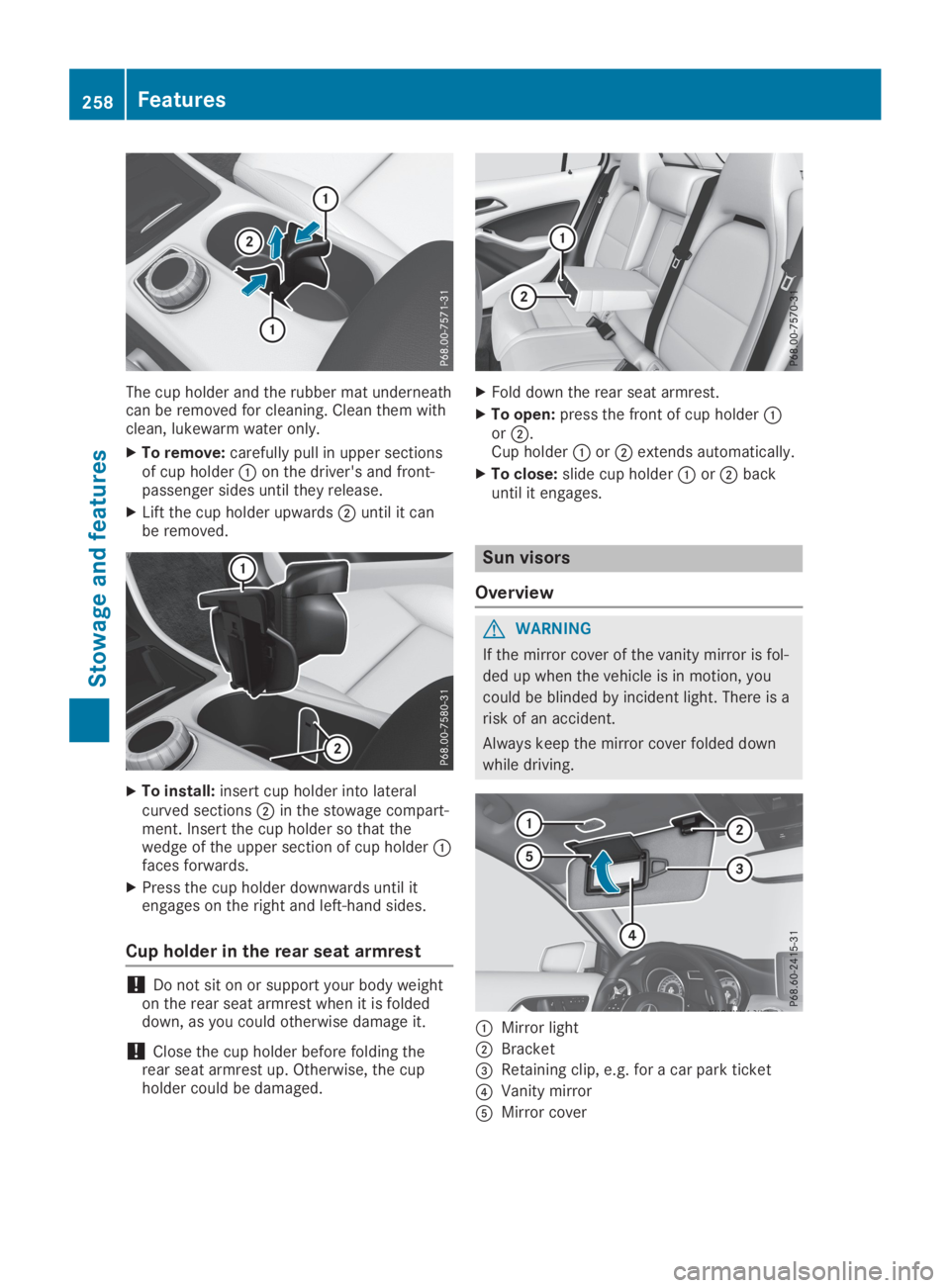

The cup holder and the rubber mat underneathcan be removed for cleaning. Clean them withclean, lukewarm water only.
XTo remove:carefully pull in upper sectionsof cup holderCon the driver's and front-passenger sides until they release.
XLift the cup holder upwardsDuntil it canbe removed.
XTo install:insert cup holder into lateralcurved sectionsDin the stowage compart-ment. Insert the cup holder so that thewedge of the upper section of cup holderCfaces forwards.
XPress the cup holder downwards until itengages on the right and left-hand sides.
Cup holder in the rear seat armrest
!Do not sit on or support your body weighton the rear seat armrest when it is foldeddown, as you could otherwise damage it.
!Close the cup holder before folding therear seat armrest up. Otherwise, the cupholder could be damaged.
XFold down the rear seat armrest.
XTo open:press the front of cup holderCorD.Cup holderCorDextends automatically.
XTo close:slide cup holderCorDbackuntil it engages.
Sun visors
Overview
GWARNING
If the mirror cover of the vanity mirror is fol-
ded up when the vehicle is in motion, you
could be blinded by incident light. There is a
risk of an accident.
Always keep the mirror cover folded down
while driving.
CMirror light
DBracket
