MERCEDES-BENZ GLC 2019 Owners Manual

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

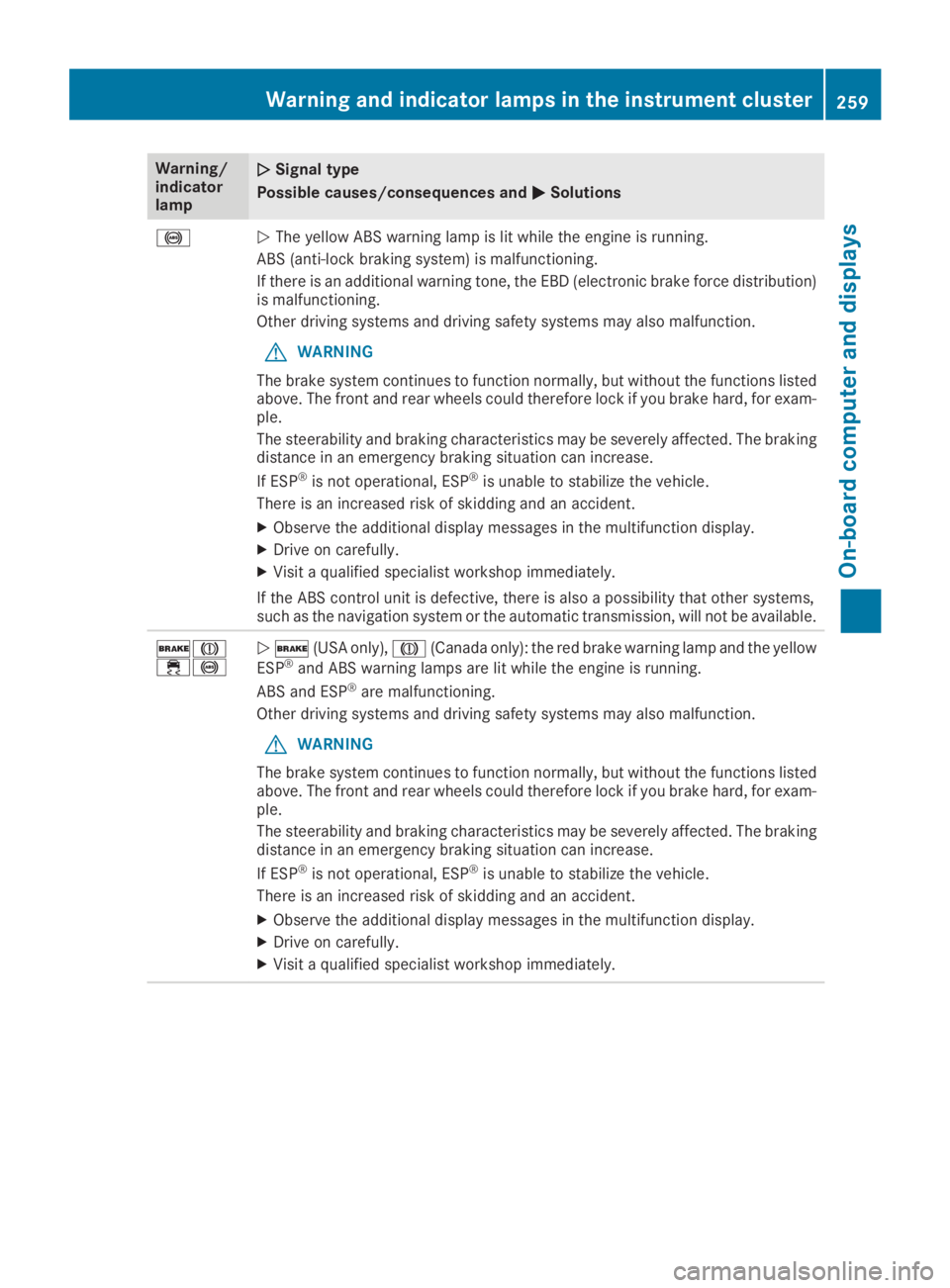

%QThe yellow ABS warning lamp is lit while the engine is running.
ABS (anti-lock braking system) is malfunctioning.
If there is an additional warning tone, the EBD (electronic brake force distribution)is malfunctioning.
Other driving systems and driving safety systems may also malfunction.
GWARNING
The brake system continues to function normally, but without the functions listedabove. The front and rear wheels could therefore lock if you brake hard, for exam-ple.
The steerability and braking characteristics may be severely affected. The brakingdistance in an emergency braking situation can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction display.
XDrive on carefully.
XVisit a qualified specialist workshop immediately.
If the ABS control unit is defective, there is also a possibility that other systems,such as the navigation system or the automatic transmission, will not be available.
'M

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

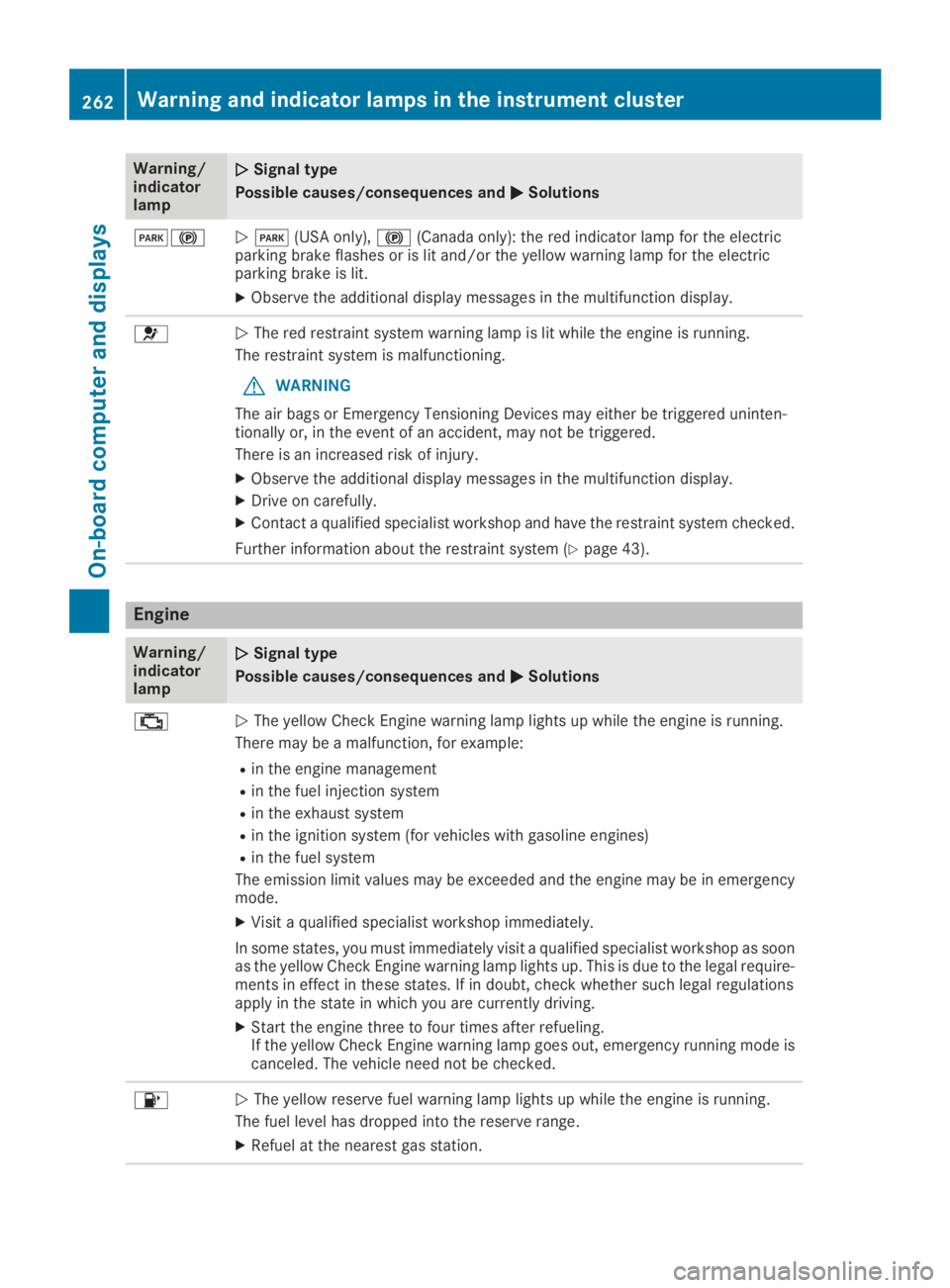

I$QI(USA only),$(Canada only): the red indicator lamp for the electricparking brake flashes or is lit and/or the yellow warning lamp for the electricparking brake is lit.
XObserve the additional display messages in the multifunction display.
uQThe red restraint system warning lamp is lit while the engine is running.
The restraint system is malfunctioning.
GWARNING
The air bags or Emergency Tensioning Devices may either be triggered uninten-tionally or, in the event of an accident, may not be triggered.
There is an increased risk of injury.
XObserve the additional display messages in the multifunction display.
XDrive on carefully.
XContact a qualified specialist workshop and have the restraint system checked.
Further information about the restraint system (Ypage 43).
Engine
Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

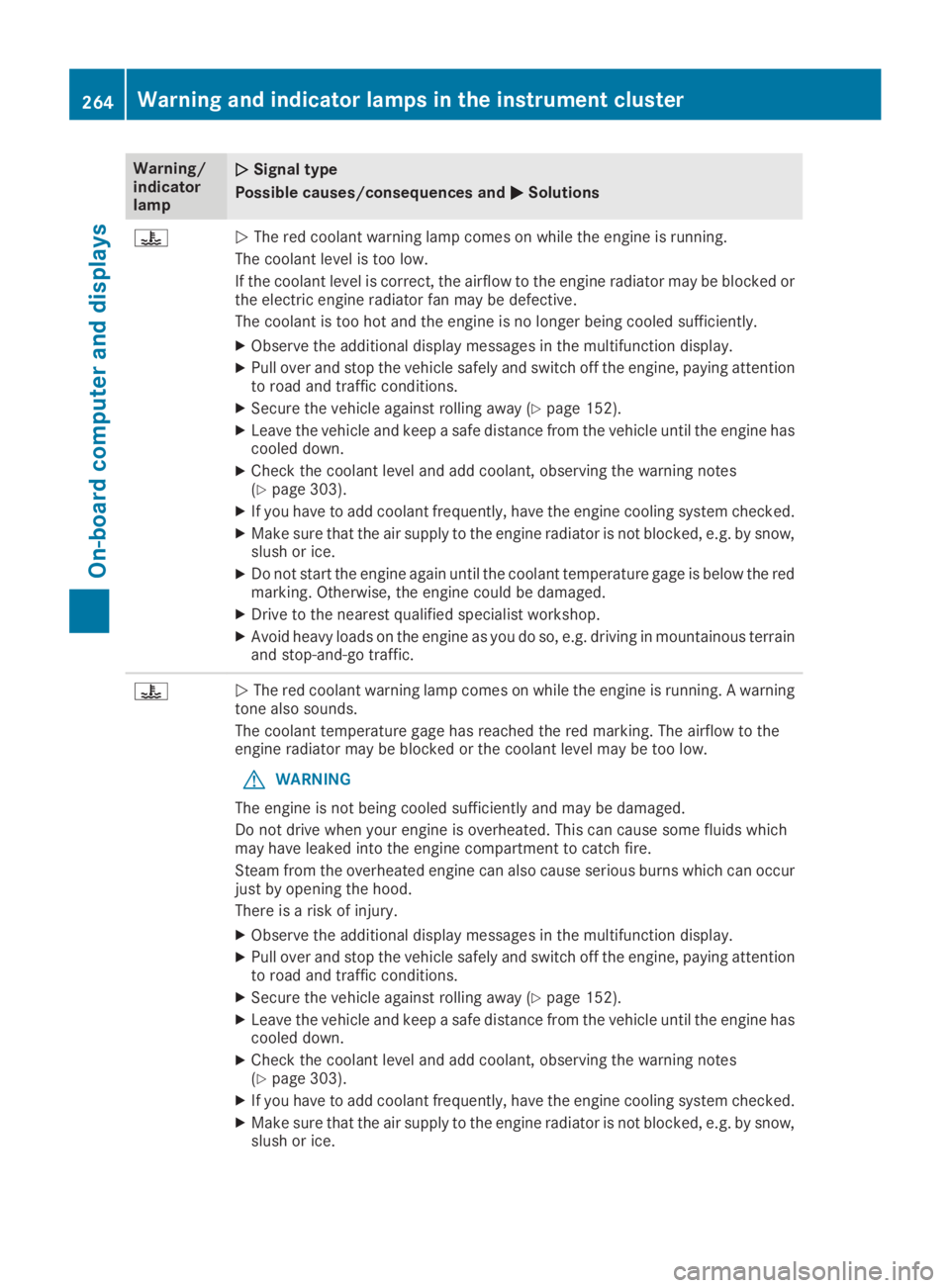

XIf the coolant temperature is below the red marking, drive to the nearest quali-fied specialist workshop.
XAvoid heavy loads on the engine as you do so, e.g. driving in mountainous terrainand stop-and-go traffic.
Driving systems
Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

Tires
Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

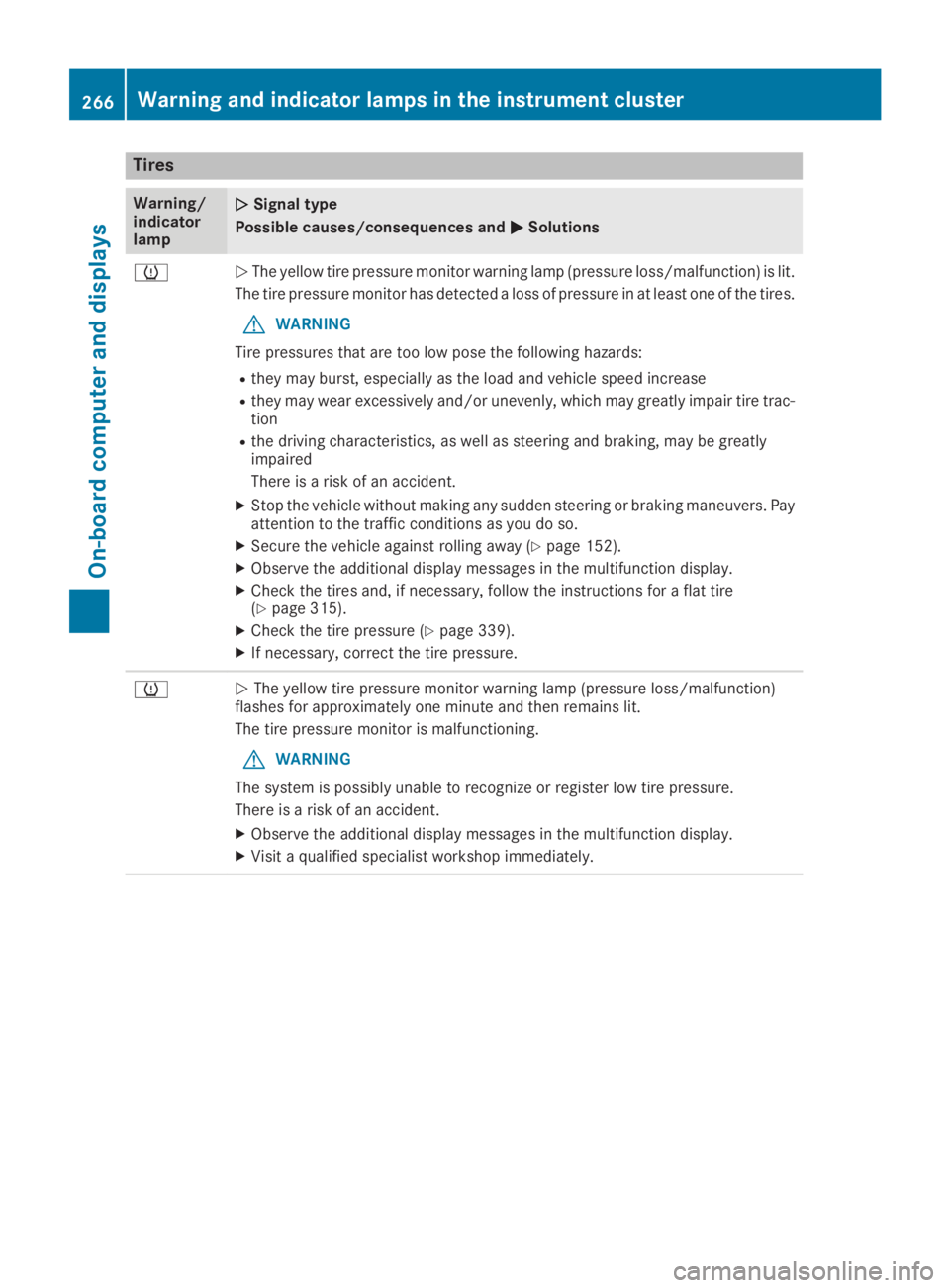

wQThe yellow tire pressure monitor warning lamp (pressure loss/malfunction) is lit.
The tire pressure monitor has detected a loss of pressure in at least one of the tires.
GWARNING
Tire pressures that are too low pose the following hazards:
Rthey may burst, especially as the load and vehicle speed increase
Rthey may wear excessively and/or unevenly, which may greatly impair tire trac-tion
Rthe driving characteristics, as well as steering and braking, may be greatlyimpaired
There is a risk of an accident.
XStop the vehicle without making any sudden steering or braking maneuvers. Payattention to the traffic conditions as you do so.
XSecure the vehicle against rolling away (Ypage 152).
XObserve the additional display messages in the multifunction display.
XCheck the tires and, if necessary, follow the instructions for a flat tire(Ypage 315).
XCheck the tire pressure (Ypage 339).
XIf necessary, correct the tire pressure.
wQThe yellow tire pressure monitor warning lamp (pressure loss/malfunction)flashes for approximately one minute and then remains lit.
The tire pressure monitor is malfunctioning.
GWARNING
The system is possibly unable to recognize or register low tire pressure.
There is a risk of an accident.
XObserve the additional display messages in the multifunction display.
XVisit a qualified specialist workshop immediately.
266Warning and indicator lamps in the instrument cluster
On-board computer and displays

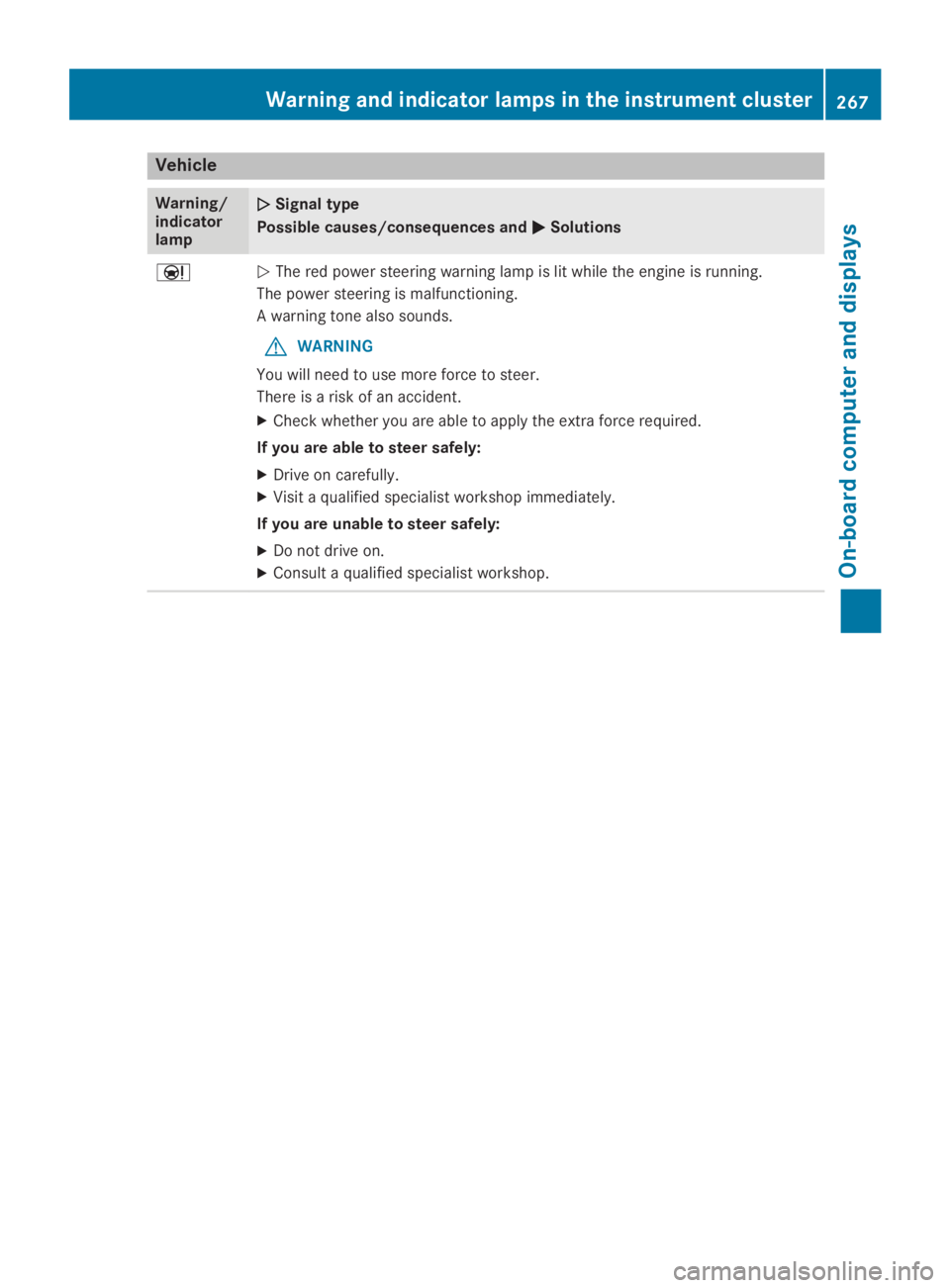

Vehicle
Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

General notes
The multimedia system section in this Opera-tor's Manual describes the basic principles foroperation. More information can be found in theDigital Operator's Manual.
Important safety notes
GWARNING
If you operate information systems and com-
munication equipment integrated in the vehi-
cle when driving, you may be distracted from
the traffic situation. You could also lose con-
trol of the vehicle. There is a risk of an acci-
dent.
Only operate this equipment when the traffic
situation permits. If you are not sure that this
is possible, park the vehicle paying attention
to traffic conditions and operate the equip-
ment when the vehicle is stationary.
You must observe the legal requirements for thecountry in which you are currently driving whenoperating the multimedia system.
The multimedia system calculates the route tothe destination without taking the following intoaccount, for example:
Rtraffic lights
Rstop and yield signs
Rparking or stopping restrictions
Rroad narrowing
Rother road and traffic rules and regulations
The multimedia system may give incorrect nav-igation recommendations if the actual street/traffic situation does not correspond with thedigital map's data.
For example:
Ra diverted route
Rthe road layout or the direction of a one-waystreet has been changed
For this reason, you must always observe roadand traffic rules and regulations during yourjourney. Road and traffic rules and regulationsalways have priority over multimedia systemdriving recommendations.
Navigation announcements are intended todirect you while driving without diverting yourattention from the road and driving.
Please always use this feature instead of con-sulting the map display for directions. Lookingat the icons or map display can distract you fromtraffic conditions and driving, and increase therisk of an accident.
This equipment complies with FCC radiationexposure limits set forth for uncontrolled equip-ment and meets the FCC radio frequency (RF)Exposure Guidelines in Supplement C to OET65.
This equipment has very low levels of RF energythat is deemed to comply without maximumpermissive exposure evaluation (MPE). How-ever, it is recommended to install it at a distanceof at least 8 inches (approx. 20 cm) between theradiation source and a person's body (notincluding limbs such as hands, wrists, feet andlegs).
GWARNING
Modifications to electronic components, their
software as well as wiring can impair their
function and/or the function of other net-
worked components. In particular, systems
relevant to safety could also be affected. As a
result, these may no longer function as inten-
ded and/or jeopardize the operating safety of
the vehicle. There is an increased risk of an
accident and injury.
Never tamper with the wiring as well as elec-
tronic components or their software. You
should have all work to electrical and elec-
tronic equipment carried out at a qualified
specialist workshop.
Function restrictions
For safety reasons, some functions are restric-ted or unavailable while the vehicle is in motion.You will notice this, for example, because eitheryou will not be able to select certain menu itemsor a message will appear to this effect.
268Function restrictions
Multimedia system
