MERCEDES-BENZ M-Class 2001 W163 Comand Manual

139
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
To save the setting, select “Return” with the joystick and
press .Setting map screen orientation
The map display can be selected so that north is always
referenced towards the top of the display or the vehicle’s
direction is headed towards the top of the display.
Press .
Select “Setup” with the joystick and press .
The Setup Select menu appears. Select “Display Setup”
with the joystick and press .P82.85-5068-26
P82.85-5066-26
Navigation settings

140
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
The Display Setup menu appears.
Select the “Map” section with the joystick and press .Select one of the following Map modes with the joystick.
After selection press .
• “Heading Up”: The Map display will rotate such that
the Present Vehicle Position icon is always pointing
toward the top of the screen.
• “North Up”: The Map display will always show the
map with north facing toward the top of the screen.
The Present Vehicle Position icon will rotate on the
map.P82.85-5071-26
P82.85-5072-26
Navigation settings

141
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
To save the setting, select “Return” with the joystick and
press .
You also can toggle between “Heading Up“ and “North
Up“ modes by pressing and holding the key for
longer then 2 seconds.Setting points of interest icon options
The MCS allows you to choose any 3 of 6 different Point
of Interest icons for display on the detail Map Display.
Press .
Select “Setup“ with the joystick and press .
The Setup Select menu appears. Select “Display Setup”
with the joystick and press .P82.85-5032-26
P82.85-5065-26
Navigation settings

142
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
The Display Setup menu appears.
Select the “POI Icon” section with the joystick and press
.Select one of the 3 modes: “Show”, “Hide”, “Edit” with
the joystick and press .
If you select “Show” in the Setup mode, selected icons
will be shown.
If you select “Hide” no icons will be shown.P82.85-5071-26
P82.85-5075-26
Navigation settings

143
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
If you select “Edit” a list of 6 icons will appear. Select up
to any 3 of the following icon types with the joystick.
After selecting each icon type press .
•ATM
•Bank
• Gas station
•Hotel
•Parking
• Restaurant and type of restaurantTo save the setting, select “Return” with the joystick and
press .
The Display Setup menu will appear indicating your 3
POI icon selections. To return to the Detailed Map Dis-
play, select “Return” with the joystick and press .
Move the Present Vehicle Position icon to any of the vis-
ible POI icons, press , and the name and address will
appear on the display for that icon.
Navigation settings

144
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s

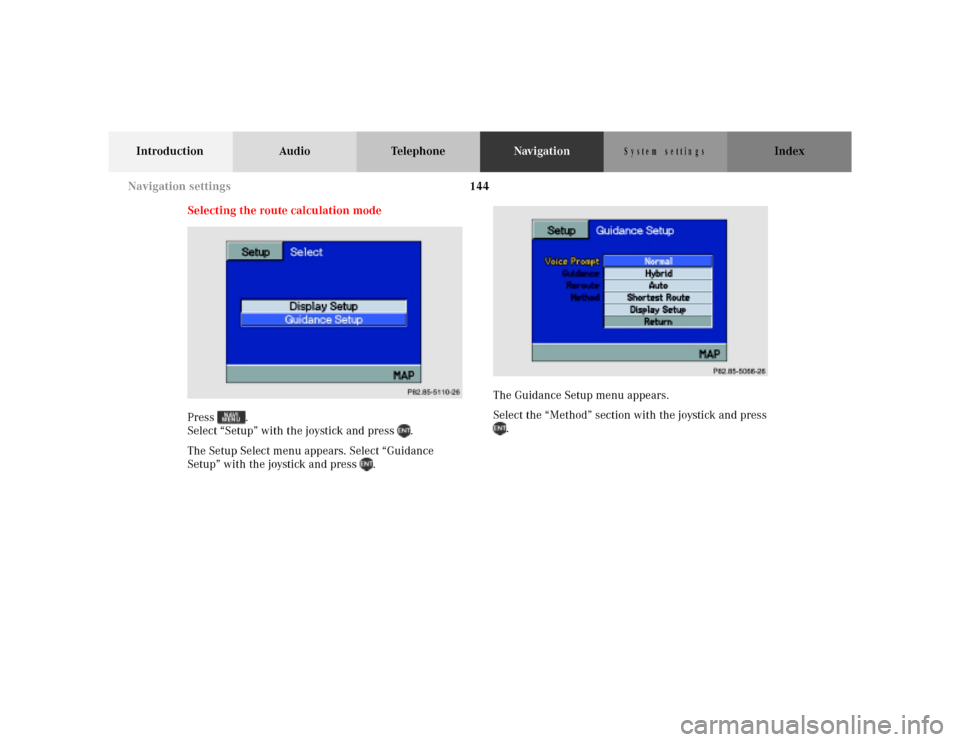

Selecting the route calculation mode
Press .
Select “Setup” with the joystick and press .
The Setup Select menu appears. Select “Guidance
Setup” with the joystick and press .The Guidance Setup menu appears.
Select the “Method” section with the joystick and press
.
P82.85-5110-26
P82.85-5066-26
Navigation settings

145
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s

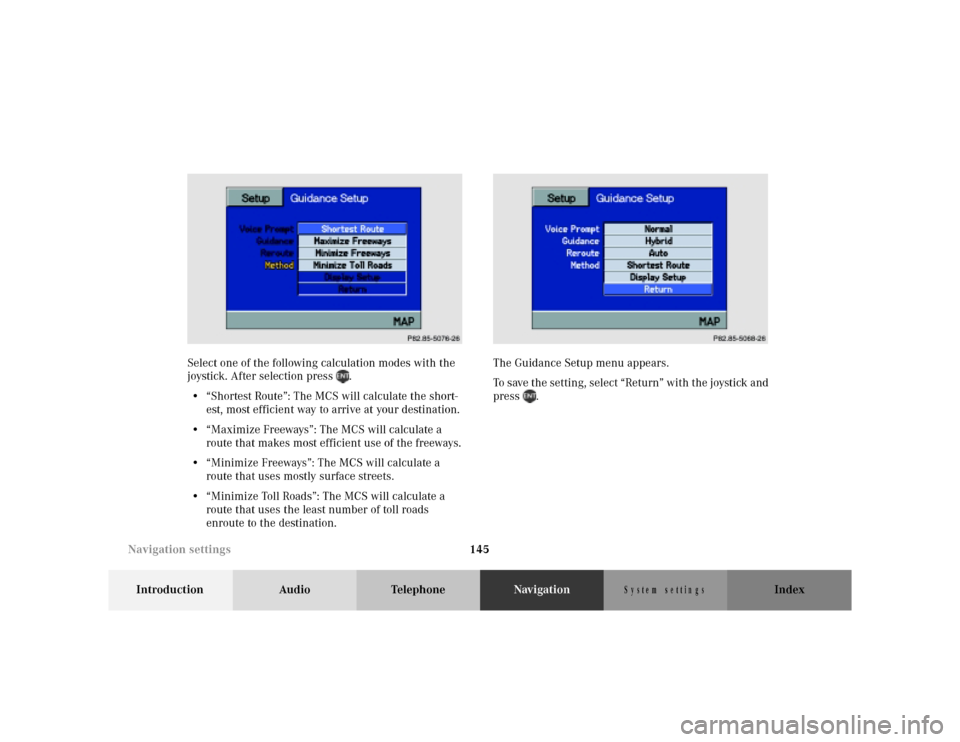

Select one of the following calculation modes with the
joystick. After selection press .
• “Shortest Route”: The MCS will calculate the short-
est, most efficient way to arrive at your destination.
• “Maximize Freeways”: The MCS will calculate a
route that makes most efficient use of the freeways.
• “Minimize Freeways”: The MCS will calculate a
route that uses mostly surface streets.
• “Minimize Toll Roads”: The MCS will calculate a
route that uses the least number of toll roads
enroute to the destination.The Guidance Setup menu appears.
To save the setting, select “Return” with the joystick and
press .P82.85-5076-26
P82.85-5068-26
Navigation settings

146
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
Selecting the off-route recalculation mode
Press .
Select “Setup” with the joystick and press .
The Setup Select menu appears. Select “Guidance
Setup” with the joystick and press .Select the “Reroute” section with the joystick and press
.
P82.85-5110-26
P82.85-5066-26
Navigation settings

147
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
Select “Manual” or “Auto” with the joystick. After selec-
tion press .
• If you selected “Manual” the MCS will after deviat-
ing from the suggested route prompt you to press
“ENT” before continuing to recalculate the route.
• If you selected “Auto” the MCS will after deviating
from the suggested route automatically recalculate
the route.
To save the setting, select “Return” with the joystick and
press .Selecting the language
Only for Canada
Press .
Select “Setup” with the joystick and press .
The Setup Select menu appears. Select “Guidance
Setup” with the joystick and press .P82-85-5077-26
P82.85-5110-26
Navigation settings

148
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s

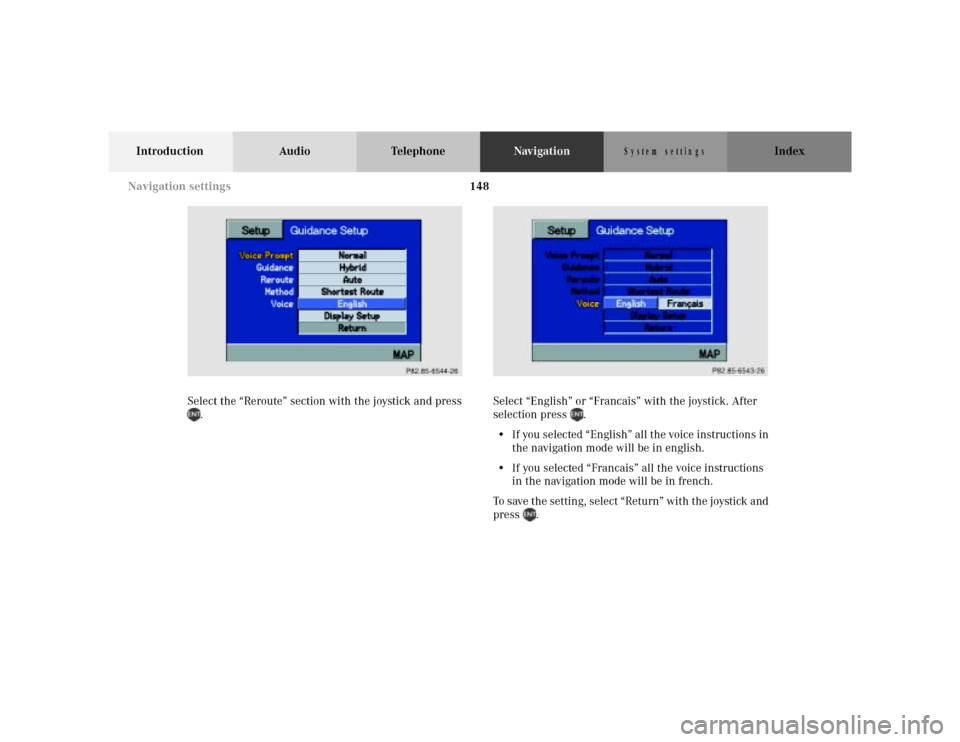

Select the “Reroute” section with the joystick and press
.Select “English” or “Francais” with the joystick. After
selection press .
• If you selected “English” all the voice instructions in
the navigation mode will be in english.
• If you selected “Francais” all the voice instructions
in the navigation mode will be in french.
To save the setting, select “Return” with the joystick and
press .P82.85-6544-26
P82-85-6543-26
Navigation settings
