MERCEDES-BENZ M-Class 2001 W163 Comand Manual

119
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
Today’s Plan editing
If you wish to delete a destination from Today’s Plan,
you may use this feature.
Press .
Select “Option” with the joystick and press .
The Option Select menu appears. Select “Edit Today’s
Plan” with the joystick and press .The Select Address menu appears.
Select the address to be deleted and press .
P82.85-5106-26
P82.85-5044-26
Destination input

120
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
The Confirm Address menu appears. After selection
press .
• “Delete from Today’s Plan”: The address will be
deleted. A confirmation window will appear. Press
if you are certain you want to delete the address.
Press if you do not want to delete the address.
• “Delete All”: All addresses will be deleted.
• “Don’t Delete”: The selected address will not be
deleted or changed. You will return to the Option
menu.Recent Route editing
Whenever a route is calculated, the address of the desti-
nation is stored into the Recent Route list. The list holds
the twenty most recently input destinations. Any of the
twenty previous destinations can be deleted from this
list.
Press .
Select “Option” with the joystick and press .
The Option Select menu appears. Select “Edit Recent
Route” with the joystick and press .P82.85-5045-26
P82.85-5107-26
Destination input

121
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
The Select Address menu appears.
Select the address to be deleted and press .The Confirm Address menu appears. After selection
press .
• “Delete from Recent Route”: The address will be
deleted.
• “Delete All”: All addresses will be deleted.
• “Don’t Delete”: The selected address will not be
deleted or changed. You will return to the Option
menu.P82.85-5044-26
P82.85-5046-26
Destination input

122
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s

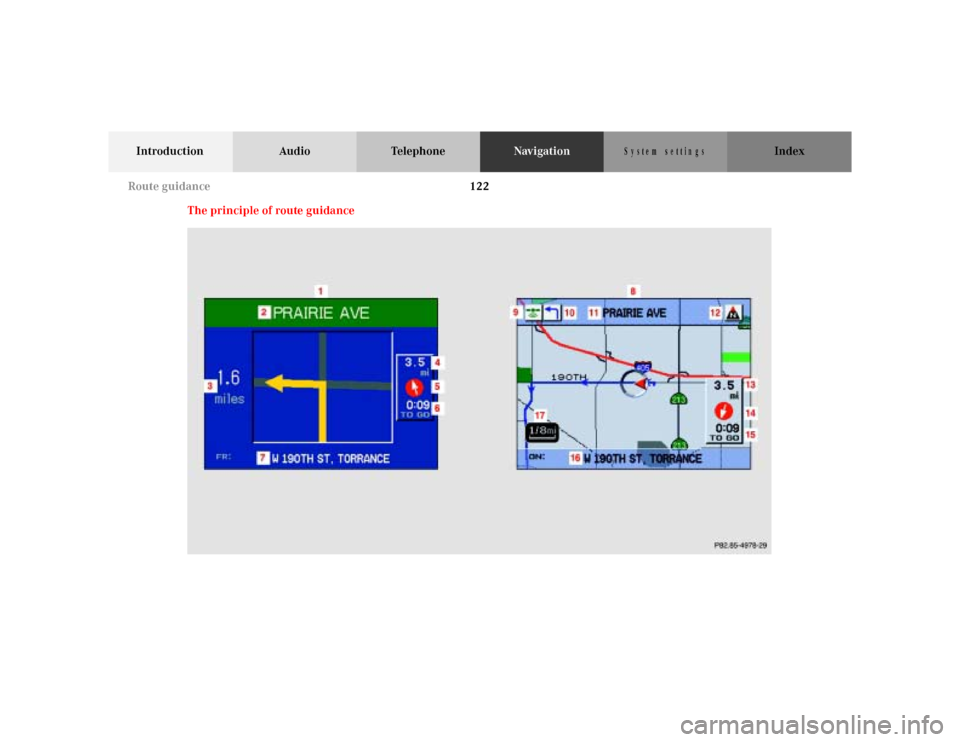

The principle of route guidance
P82.85-4978-29
Route guidance

123
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
1Maneuver screen
2Name of the street onto which you should turn
3Distance to the next maneuver
4Distance to the destination
5Direction to destination
6Estimated remaining driving time to the destination
7Current road and city name8Detailed map display
9GPS signal strength icon
10Next maneuver icon
11Name of the street onto which you should turn
12Compass Icon indicates the direction North
13Distance to the destination
14Direction to destination
15Estimated remaining driving time to the destination
16Current road and city name
17Zoom scale
Route guidance

124
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
Route guidance
After the destination is selected and the route is calcu-
lated, the navigation system will guide you to the desti-
nation using both pictorial displays and voice prompts.When the route is calculated, the display switches to the
map mode.
The system announces “Proceed to the highlighted
Route” and the display shows “Please Proceed”. The
route is now in progress.
Note:
After entering the destination, you can change to an
audio source. If you have selected the Hybrid or Arrow
mode (see page 139), the Guidance Display comes up
when a maneuver is started and simulaneously the
voice instructions are announced.
P82.85-5047-26
P82.85-5048-26
Route guidance

125
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
While the system is guiding you on your route, the dis-
play can be manually changed between modes. The
Guidance Display mode shows an arrow indicating the
next maneuver.
By pressing the joystick to the right the next maneuver
can be previewed. Press the joystick to the left to return
to the current maneuver.The Detailed Map display shows a moving map with the
recommended route highlighted in blue.
The display is changed by pressing the softkey
“MAP”. To activate the softkeys press any softkey. P882.85-5049-26
P82.85-5050-26
Route guidance

126
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
All maneuvers are announced by voice instructions. The
instructions start a short while before the maneuver is
required. You will, for example, hear an annoucement,
“In one half mile, make a right turn”.
When it is time to perform the maneuver you will hear,
for example, an annoucement, “Right turn ahead“.
To repeat the verbal announcement press the key.
To set the volume, see page 11.
To mute the voice instructions, see page 127.
The maneuver list can be displayed by pressing the soft-
key “LIST”. To activate the softkeys press any soft-
key.
To preview the arrow guidance screen for a particular
maneuver, scroll down the list and select a maneuver
with the joystick and press .
After 10 seconds the display automatically returns to
the original guidance screen or by pressing the softkey
“MAP”.
P82.85-6548-26
Route guidance

127
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
Once you reach your final destination, the screen will
switch to the Detailed Map display and show the
address and the name, if programmed, of your final des-
tination.Mute voice instructions
To mute the voice instructions press the softkey
“MUTE”. To activate the softkeys press any softkey. The
softkey “MUTE” will be highlighted.
To delete the mute function press the highlighted soft-
key “MUTE”. To activate the softkeys press any
softkey.
If you press the key the system will give the cur-
rent voice instruction regardless whether mute is on or
off.P82.85-5052-26
Route guidance

128
Introduction Audio TelephoneNavigationIndex
S y s te m s e ttin g s
Altering the map scale
In map mode you can zoom the map in or out for more
or less detail.
Press to zoom in.
Press to zoom out.Break off route guidance
To activate the softkeys press any softkey.
Press softkey “STOP”.
A window appears confirming the stop request. To con-
tinue press . If you don’t wish to continue, press
or wait 10 seconds and the stop request will be
cancelled.
The current destination is cancelled.
P82.85-5097-26
Route guidance
