MERCEDES-BENZ M-Class 2001 W163 Comand Manual

9
IntroductionAudio Telephone Navigation Index
S y s te m s e ttin g s
Screen display
1Information/status line,
displays active system
2Icon for inserted cassette in the head unit
3Icon for inserted audio- or navigation CD in
the head unit4Icon for inserted magazine in the CD-changer
5Tel ep hone:
S: Signal
R: Roaming
R (highlighted): Roaming on non-home type system
6Signal meter for telephone
7Displays system settings and functions
8Menu field for the softkey functions
The information/status line (1) indicates the active sys-
tem (e.g.: FM for radio). The current system settings and
functions displayed appear in the middle of the screen
(7). The menu field for the softkey functions (8) appears
at the bottom of the screen. The functions can be acti-
vated by pressing the softkeys below the icon.
P68.20-2110-27
Introductions

10
IntroductionAudio Telephone Navigation Index
S y s te m s e ttin g s
Switching the MCS operating unit on and off
Switch on:
Press rotary/push-button (1). The MCS operating unit is
switched on.
The MCS will also switch on when the electronic key in
the steering lock is turned to position 1 or 2 if the MCS
has been switched off by turning the electronic key in
the steering lock to position 0 or removed.The MCS can also be switched on if the electronic key is
not inserted in the steering lock, but it will switch itself
off automatically after one hour.
MCS switches on the system which was last active and
displays the corresponding menu.
Press the button marked for the component you would
like to switch on (e.g. the ).
Switch off:
Press the rotary/push-button (1). The MCS operating
unit will switch off.
The MCS also will be switched off if the electronic key
in the steering lock is turned to position 0 or removed.
P68.20-2110-27
Introductions

11
IntroductionAudio Telephone Navigation Index
S y s te m s e ttin g s

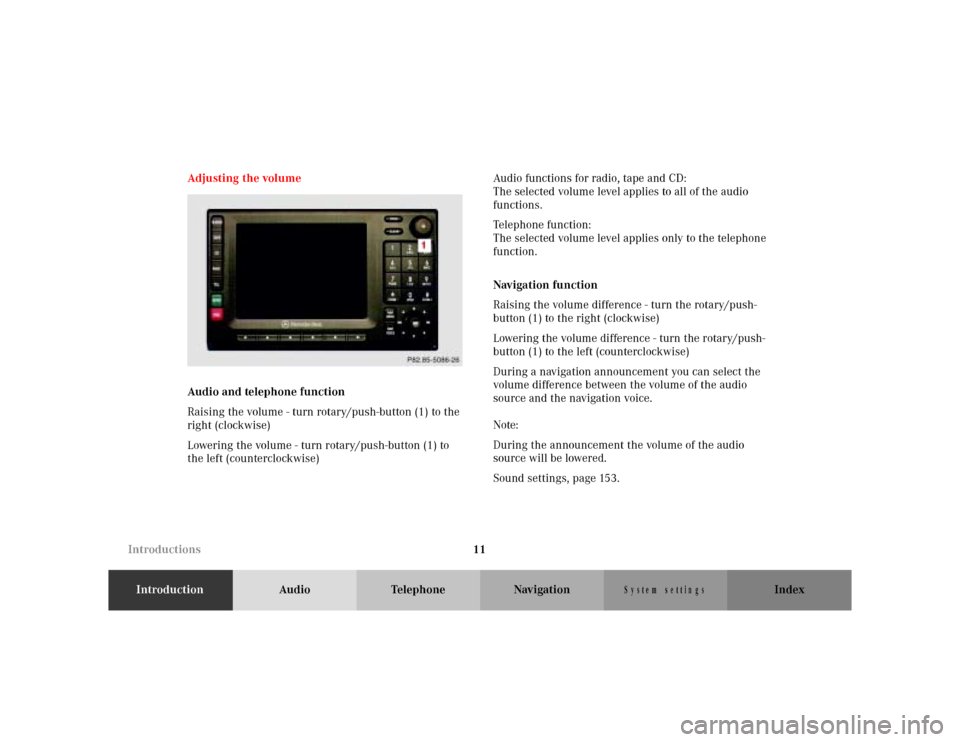

Adjusting the volume
Audio and telephone function
Raising the volume - turn rotary/push-button (1) to the
right (clockwise)
Lowering the volume - turn rotary/push-button (1) to
the left (counterclockwise)Audio functions for radio, tape and CD:
The selected volume level applies to all of the audio
functions.
Telephone function:
The selected volume level applies only to the telephone
function.
Navigation function
Raising the volume difference - turn the rotary/push-
button (1) to the right (clockwise)
Lowering the volume difference - turn the rotary/push-
button (1) to the left (counterclockwise)
During a navigation announcement you can select the
volume difference between the volume of the audio
source and the navigation voice.
Note:
During the announcement the volume of the audio
source will be lowered.
Sound settings, page 153.
P68.20-2110-27
Introductions

12
IntroductionAudio Telephone Navigation Index
S y s te m s e ttin g s

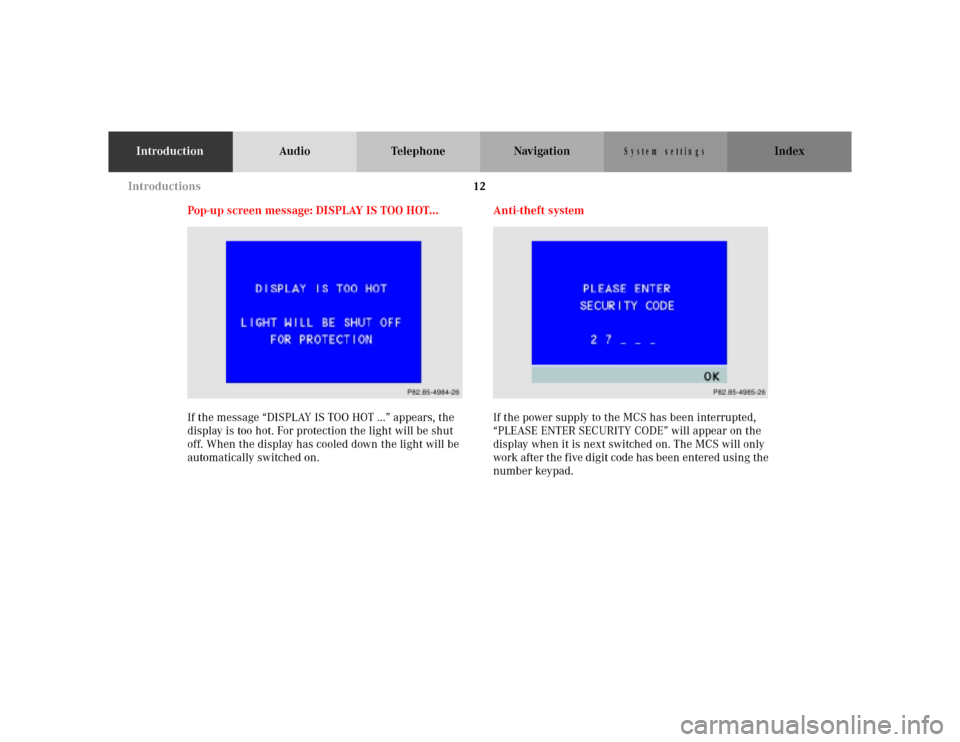

Pop-up screen message: DISPLAY IS TOO HOT...
If the message “DISPLAY IS TOO HOT ...” appears, the
display is too hot. For protection the light will be shut
off. When the display has cooled down the light will be
automatically switched on.Anti-theft system
If the power supply to the MCS has been interrupted,
“PLEASE ENTER SECURITY CODE” will appear on the
display when it is next switched on. The MCS will only
work after the five digit code has been entered using the
number keypad.
P68.20-2110-27
P68.20-2110-27
Introductions

13
IntroductionAudio Telephone Navigation Index
S y s te m s e ttin g s
The code number is printed on the RADIO CODE CARD
in the owner’s portfolio. Keep the RADIO CODE CARD in
a safe place.
Entering the code number
Switch the MCS on, see page 10. “PLEASE ENTER SECU-
RITY CODE” will appear on the display. Use the number
keys to enter the desired security code, e.g.
for 27001.
After entering the correct numerical code press the soft-
key “OK”, the MCS starts. If a wrong number is
entered you have to enter the complete numerical code
again.If an incorrect numerical code has been entered and
confirmed, “PLEASE ENTER SECURITY CODE” will
reappear on the display. The correct code must be
entered once again. If an incorrect code is entered three
times, “WAIT” will appear on the display and the MCS
will be locked out for about 10 minutes. If after 10 min-
utes an incorrect code is entered again, “WAIT” will
appear again and the MCS will be locked out for about
10 minutes. After that you have to wait 1 hour to re-
enter the code.
Note:
The lockout time will only elapse if the MCS remains
switched on.
Introductions

14
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
Audio
Operating and display elements - Radio .........................15
Menu overview - Radio.......................................................16
Switching radio operation on and off ..............................18
Changing the radio band ...................................................19
Selecting a station
(FM or AM mode) ............................................................19
Memory functions
(FM or AM mode) ........................................................... 25
Weather band ..................................................................... 28
Operating and display elements - Tape deck................. 30
Inserting or ejecting a tape .............................................. 31
Menu overview - Tape deck .............................................. 32
Switching tape operation on and off ............................... 33
Changing sides................................................................... 34
Fast forward/rewinding .................................................... 35
Music search....................................................................... 36
Scanning ............................................................................. 37
Skip blanks ......................................................................... 38
Dolby B (noise reduction) ................................................. 39Pause .................................................................................... 40
Operating and display elements -
Single CD player (optional) and
CD changer (optional).................................................... 41
General information on CD playback.............................. 42
Inserting or ejecting a CD (Single CD player) ............... 42
Loading CDs in the CD changer....................................... 43
Menu overview - Single CD player (optional)
and CD changer (optional) ............................................ 48
Switching CD operation on and off ................................. 50
Selecting CDs (MCS with CD changer)........................... 53
Track select ......................................................................... 54
Music seek .......................................................................... 55
Scanning .............................................................................. 56
CD track repeat .................................................................. 56
Play CD tracks in random order ...................................... 57
Pause .................................................................................... 58
Select time display ............................................................. 59 Contents - Audio

15
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s

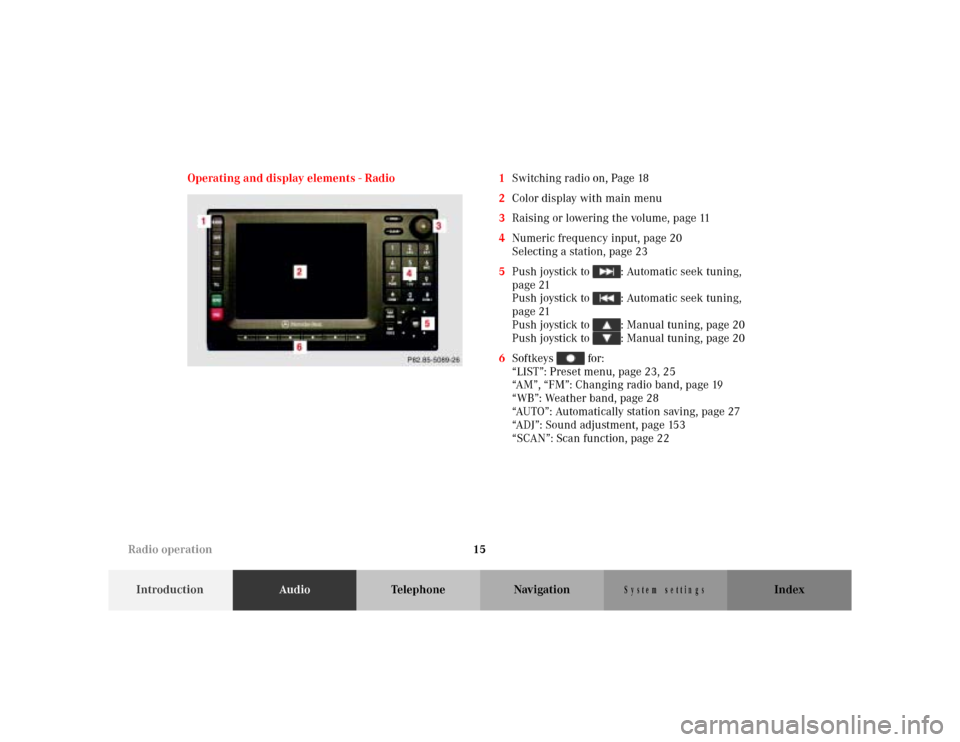

Operating and display elements - Radio 1Switching radio on, Page 18
2Color display with main menu
3Raising or lowering the volume, page 11
4Numeric frequency input, page 20
Selecting a station, page 23
5Push joystick to : Automatic seek tuning,
page 21
Push joystick to : Automatic seek tuning,
page 21
Push joystick to : Manual tuning, page 20
Push joystick to : Manual tuning, page 20
6Softkeys for:
“LIST”: Preset menu, page 23, 25
“AM”, “FM”: Changing radio band, page 19
“WB”: Weather band, page 28
“AUTO”: Automatically station saving, page 27
“ADJ”: Sound adjustment, page 153
“SCAN”: Scan function, page 22
Radio operation

16
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s

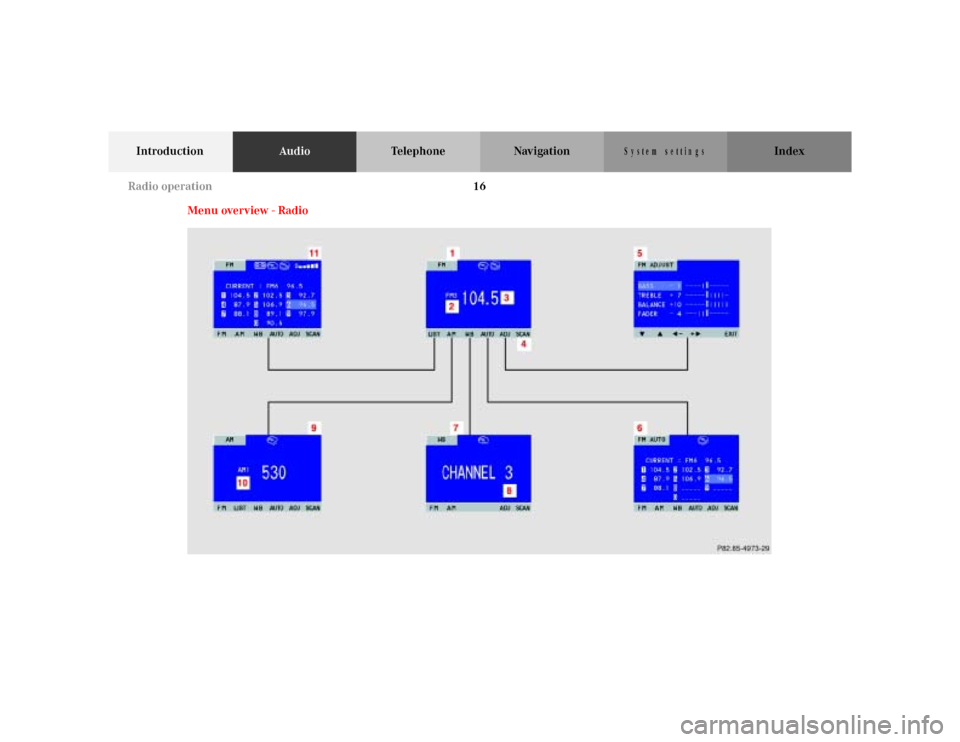

Menu overview - Radio
XXX
Radio operation

17
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
1Main FM radio menu, page 19
2Current band (FM) and memory preset selected are
displayed
3Current frequency
4Scan function, scanning radio stations, page 22
5Main sound settings menu,
Adjust sound settings, page 153
6Auto store menu, save and select stations automati-
cally, page 277Weather band, page 28
8Current weather band
9Main AM radio menu, page 19
10Current band (FM) and memory preset selected are
displayed
11Preset menu, save and select stations, page 25
Radio operation

18
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s

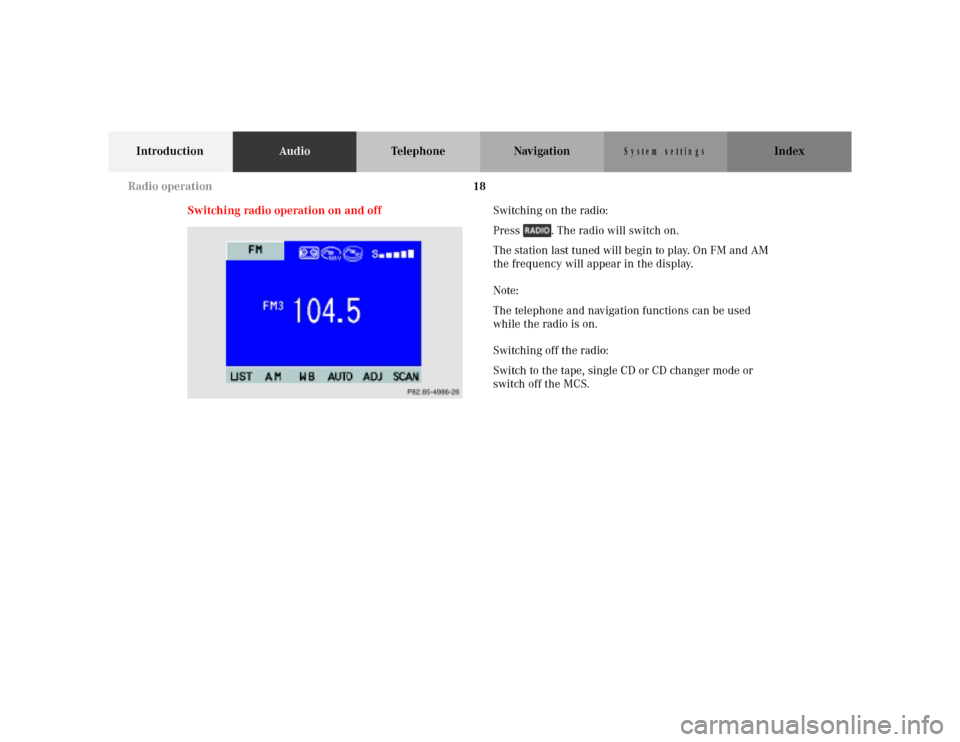

Switching radio operation on and offSwitching on the radio:
Press . The radio will switch on.
The station last tuned will begin to play. On FM and AM
the frequency will appear in the display.
Note:
The telephone and navigation functions can be used
while the radio is on.
Switching off the radio:
Switch to the tape, single CD or CD changer mode or
switch off the MCS.
P68.20-2110-27
Radio operation
