MERCEDES-BENZ M-Class 2001 W163 Comand Manual

39
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
Dolby B (noise reduction)
This function provides the optimum playback of tapes
recorded with Dolby B.
The Dolby noise reduction system is manufactured
under licence by Dolby Laboratories Licensing Corpora-
tion. The word Dolby and the double-D symbol are
trademarks of Dolby Laboratories Licensing Corpora-
tion.To start the function:
Press the softkey “ ”. The activated Dolby B
function is shown by a negative on the display.
To stop the function:
Press the highlighted softkey “ ”.
P82.85-5000-26
Tape operation

40
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
PausePress the softkey “II”. The tape will stop playing.
On the display will appear “PAUSE”. The tape will also
stop if you send or receive a phone call.
To c a n c e l PAU S E :
Press the softkey “PLAY”.
P85.25-5001-26
Tape operation

41
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
Operating and display elements -
Single CD player (optional) and CD changer (optional)1Switching CD operation on, page 50
2Color display with main menu
3Lower the front of the control panel, behind the
front panel is the single CD slot with the but-
ton, page 42
4Raising or lowering the volume, page 11
5Selecting a CD (MCS with CD changer), page 53
Selecting a track, page 54
6Push joystick to : Track select, the next track
starts, page 54
Push joystick to : Track select, the previous
track starts, page 54
Push joystick to : Music seek forward, page 55
Push joystick to : Music seek reverse, page 55
7Softkeys for:
“II”: Pause function, page 58
“RDM”: Random play function, page 57
“RPT”: Repeat function, page 56
“TIME”: Select time display, page 59
“ADJ”: Sound adjustment, page 153
“SCAN”: Scan function, Page 56
Tape operation

42
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
General information on CD playbackLoad the single CD player and the CD changer with 12-
cm CDs only, do not use 8-cm CDs.
Note:
An 8-cm CD adapter may cause damage to the single CD
player or the CD changer and should not be used.G
Wa r n i n g !
The single CD player and CD changer are Class 1
laser products. There is a danger of invisible laser
radiation if the cover is opened or damaged.
Do not remove the cover. The single CD player and
the CD changer do not contain any parts which can
be serviced by the user. For safety reasons, have
any service work which may be necessary per-
formed only by qualified personnel. CD operation

43
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
Inserting or ejecting a CD (Single CD player)
Inserting:
Press to lower the front of the control panel.
The CD should be inserted with the label side up into
the CD slot. After 2 seconds the control panel will close
automatically.
Note:
In the radio and tape mode there will be an audio CD
symbol on the display if an audio CD is inserted.Ejecting:
Press to lower the front of the control panel.
Press to eject the CD.
Press to raise the front of the control panel.
If the display is in the down position for more than 20
seconds , 2 successive beeps will be heard. This will
continue at 5 second intervals until the display is
returned to its normal position. Press the key to
return the control panel to its closed position.
CD operation

44
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
Note:
After ejecting the CD the MCS will switch to the radio
mode.Loading CDs in the CD changer
The CD changer is located behind the trim panel on the
right side of the cargo area. It can accommodate up to 6
CDs.
Open the sliding door by pushing in the direction of the
arrow indicated in the picture. Push the door completely
open.G
Wa r n i n g !
A lowered control panel can easily be damaged, so
as soon as the CD is ejected close the control panel.
Do not place anything on the lowered control panel.
P82.85-6536-26
CD operation

45
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
Press the eject button. The magazine will slide upwards.
Note:
The magazine can be ejected even if the MCS is
switched off. However, the eject button will not function
if the battery is not connected or drained.Pull the disk tray forward until it stops.
Note:
Do not attempt to remove the tray from the magazine.P82.85-2087-26
P82.85-2088-26
CD operation

46
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s
Place the CD in the tray. The CD should be inserted with
the label side up.Push the CD tray into the magazine completely.P82.85-2890-26
P82.85-2891-26
CD operation

47
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s

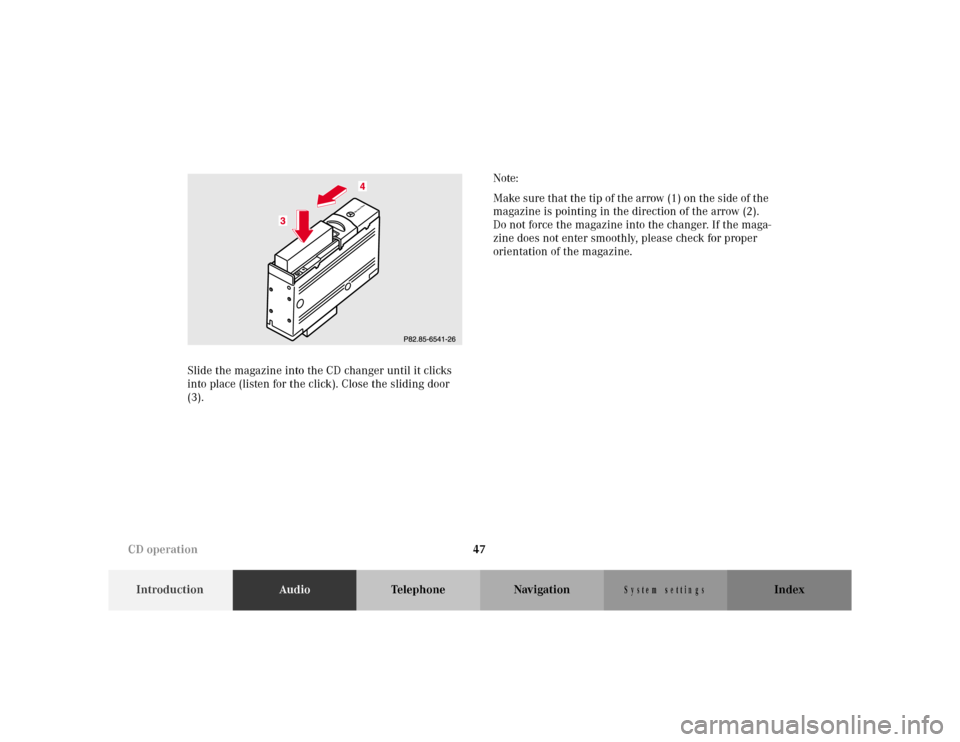

Slide the magazine into the CD changer until it clicks
into place (listen for the click). Close the sliding door
(3).Note:
Make sure that the tip of the arrow (1) on the side of the
magazine is pointing in the direction of the arrow (2).
Do not force the magazine into the changer. If the maga-
zine does not enter smoothly, please check for proper
orientation of the magazine.P82.85-2892-26
Mersedes-Benz
CD operation

48
IntroductionAudioTelephone Navigation Index
S y s te m s e ttin g s

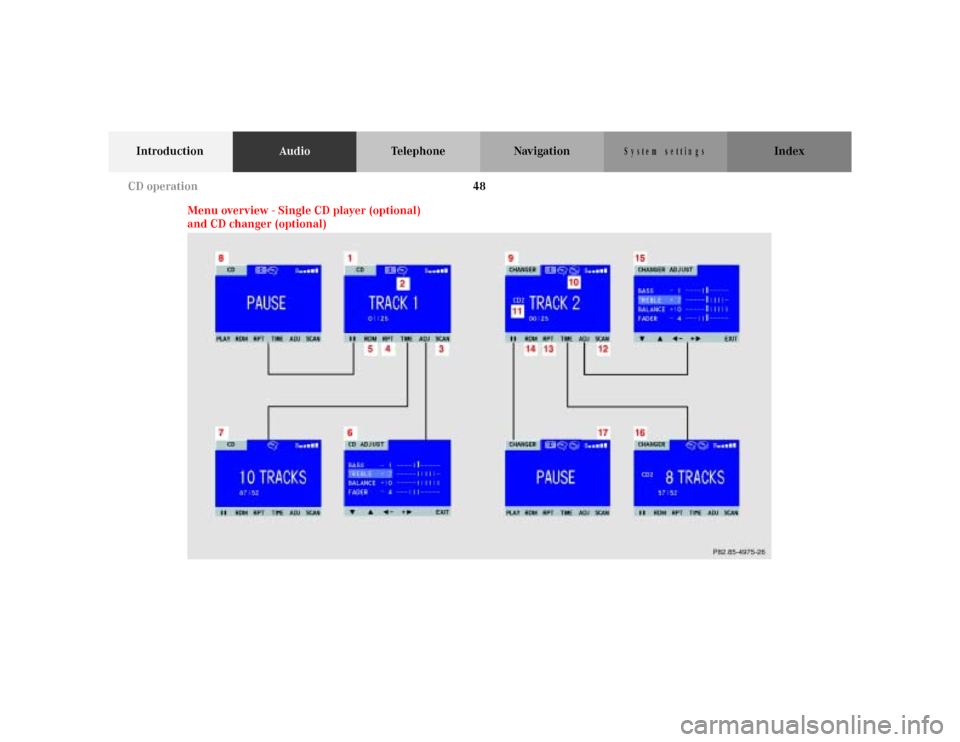

Menu overview - Single CD player (optional)
and CD changer (optional)
XXX
CD operation
