MERCEDES-BENZ M-Class 2002 W163 Comand Manual

117
Introduction Audio TelephoneNavigationIndex
System settings
Using Today’s Plan
Press .
Select “Dest” with the joystick and press .
The Find Destination menu appears. Select “Today’s
Plan” with the joystick and press .The Confirm Destination menu appears.
If you would like to visit this destination, first select “OK
to Proceed” with the joystick and then press .
To view the travel order, select “Today’s Plan List” and
press . If you are satisfied with the destination order,
press .
P82.85-5018-26
P82.85-6547-26
Destination input

118
Introduction Audio TelephoneNavigationIndex
System settings
If you wish to change the order of destinations, select
“Today’s Plan List” again and press .
The Today’s Plan List menu appears once again. Select
the first destination you would like to visit with the joy-
stick and press .
The system will recalculate the route and displays the
Destination Confirmation menu.The MCS calculates the new destination order and dis-
plays the confirmation screen.
If the new route is acceptable, select “OK to Proceed”
with the joystick and press .
If you wish to change the destination order again, select
“Today’s Plan list” with the joystick and press .P82.85-5115-26
P82-85-6547-26
Destination input

119
Introduction Audio TelephoneNavigationIndex
System settings
Today’s Plan editing
If you wish to delete a destination from Today’s Plan,
you may use this feature.
Press .
Select “Option” with the joystick and press .
The Option Select menu appears. Select “Edit Today’s
Plan” with the joystick and press .The Select Address menu appears.
Select the address to be deleted and press .
P82.85-5106-26
P82.85-5044-26
Destination input

120
Introduction Audio TelephoneNavigationIndex
System settings
The Confirm Address menu appears. After selection
press .
• “Delete from Today’s Plan”: The address will be
deleted. A confirmation window will appear. Press
if you are certain you want to delete the address.
Press if you do not want to delete the address.
• “Delete All”: All addresses will be deleted.
• “Don’t Delete”: The selected address will not be
deleted or changed. You will return to the Option
menu.Recent Route editing
Whenever a route is calculated or the current position is
saved, the address of the destination is stored into the
Recent Route list. The list holds the twenty most
recently input destinations. Any of the twenty previous
destinations can be deleted from this list.
Press .
Select “Option” with the joystick and press .
The Option Select menu appears. Select “Edit Recent
Route” with the joystick and press .P82.85-5045-26
P82.85-5107-26
Destination input

121
Introduction Audio TelephoneNavigationIndex
System settings
The Select Address menu appears.
Select the address to be deleted and press .The Confirm Address menu appears. After selection
press .
• “Delete from Recent Route”: The address will be
deleted.
• “Delete All”: All addresses will be deleted.
• “Don’t Delete”: The selected address will not be
deleted or changed. You will return to the Option
menu.P82.85-5044-26
P82.85-5046-26
Destination input

122
Introduction Audio TelephoneNavigationIndex
System settings

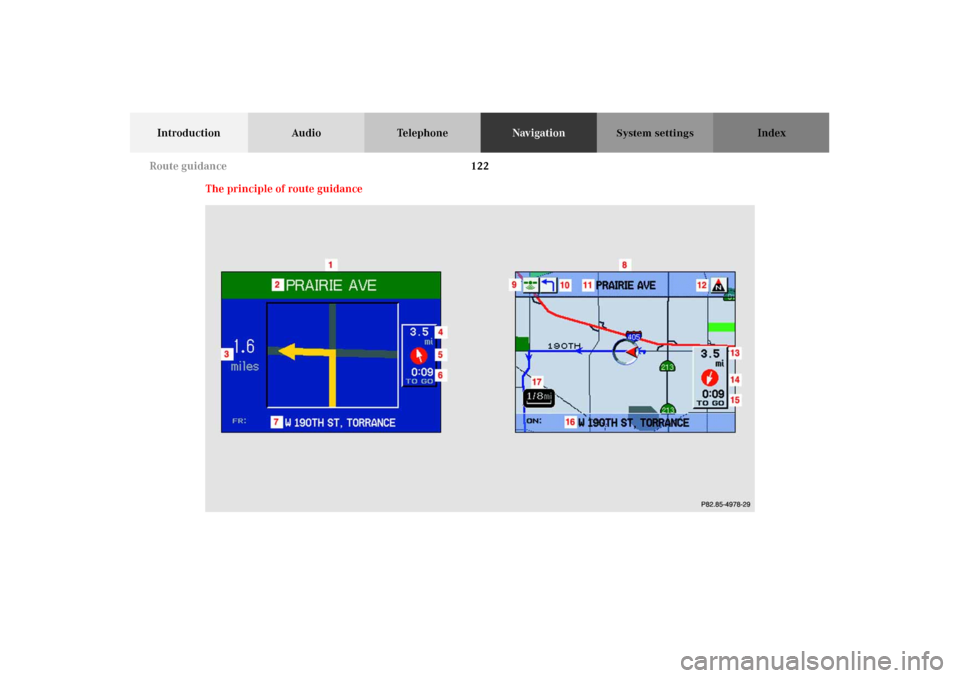

The principle of route guidance
P82.85-4978-29
Route guidance

123
Introduction Audio TelephoneNavigationIndex
System settings
1Maneuver screen
2Name of the street onto which you should turn
3Distance to the next maneuver
4Distance to t he destination
5Direction to destination
6Estimated remaining driving time to the destination
7Current road and city name8Detailed map display
9GPS signal strength icon
10Next maneuver icon
11Name of the street onto which you should turn
12Compass Icon indicates the direction North
13Distance to the destination
14Direction to destination
15Estimated remaining driving time to the destination
16Current road and city name
17Zoom scale
Route guidance

124
Introduction Audio TelephoneNavigationIndex
System settings

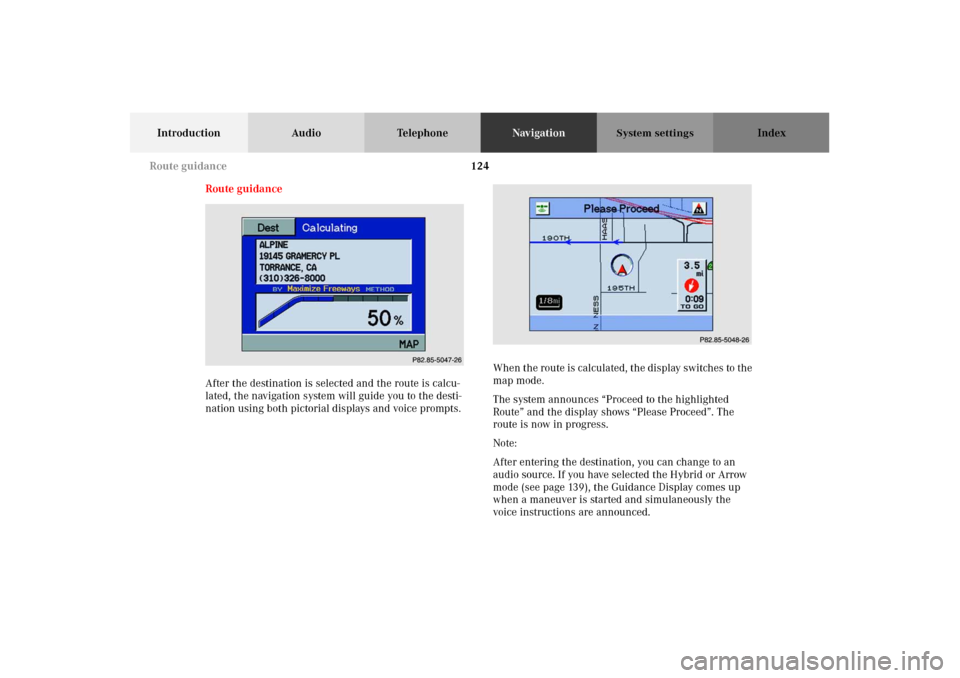

Route guidance
After the destination is selected and the route is calcu-
lated, the navigation system will guide you to the desti-
nation using both pictorial displays and voice prompts.When the route is calculated, the display switches to the
map mode.
The system announces “Proceed to the highlighted
Route” and the display shows “Please Proceed”. The
route is now in progress.
Note:
After entering the destination, you can change to an
audio source. If you have selected the Hybrid or Arrow
mode (see page 139), the Guidance Display comes up
when a maneuver is started and simulaneously the
voice instructions are announced.
P82.85-5047-26
P82.85-5048-26
Route guidance

125
Introduction Audio TelephoneNavigationIndex
System settings

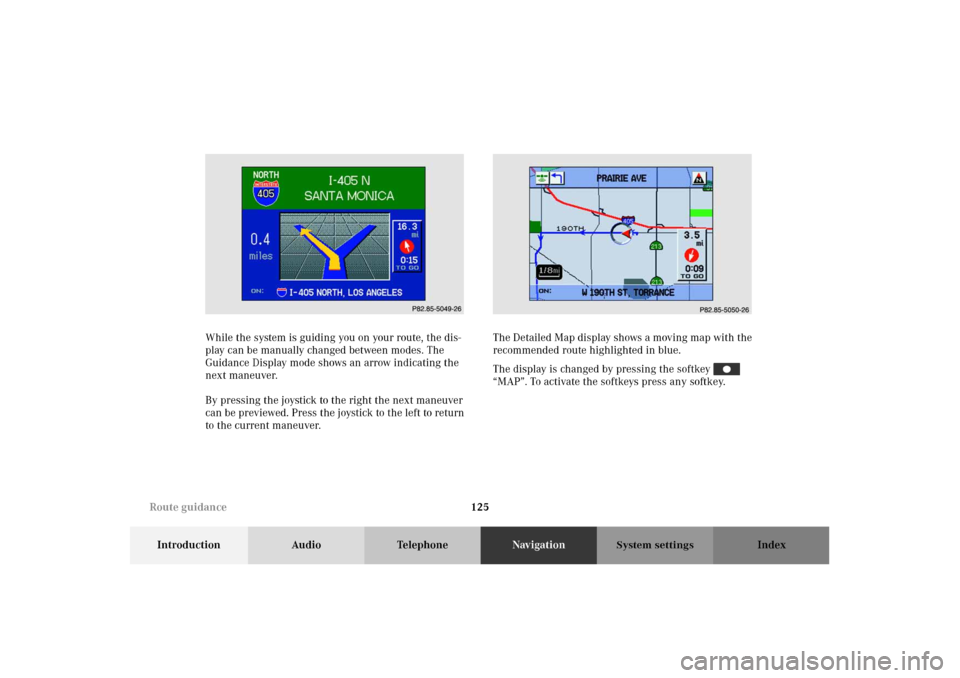

While the system is guiding you on your route, the dis-
play can be manually changed between modes. The
Guidance Display mode shows an arrow indicating the
next maneuver.
By pressing the joystick to the right the next maneuver
can be previewed. Press the joystick to the left to return
to the current maneuver.The Detailed Map display shows a moving map with the
recommended route highlighted in blue.
The display is changed by pressing the softkey
“MAP”. To activate the softkeys press any softkey. P882.85-5049-26
P82.85-5050-26
Route guidance

126
Introduction Audio TelephoneNavigationIndex
System settings
All maneuvers are announced by voice instructions. The
instructions start a short while before the maneuver is
required. You will, for example, hear an annoucement,
“In one half mile, make a right turn”.
When it is time to perform the maneuver you will hear,
for example, an annoucement, “Right turn ahead“.
To repeat the verbal announcement press the key.
To set the volume, see page 11.
To mute the voice instructions, see page 127.

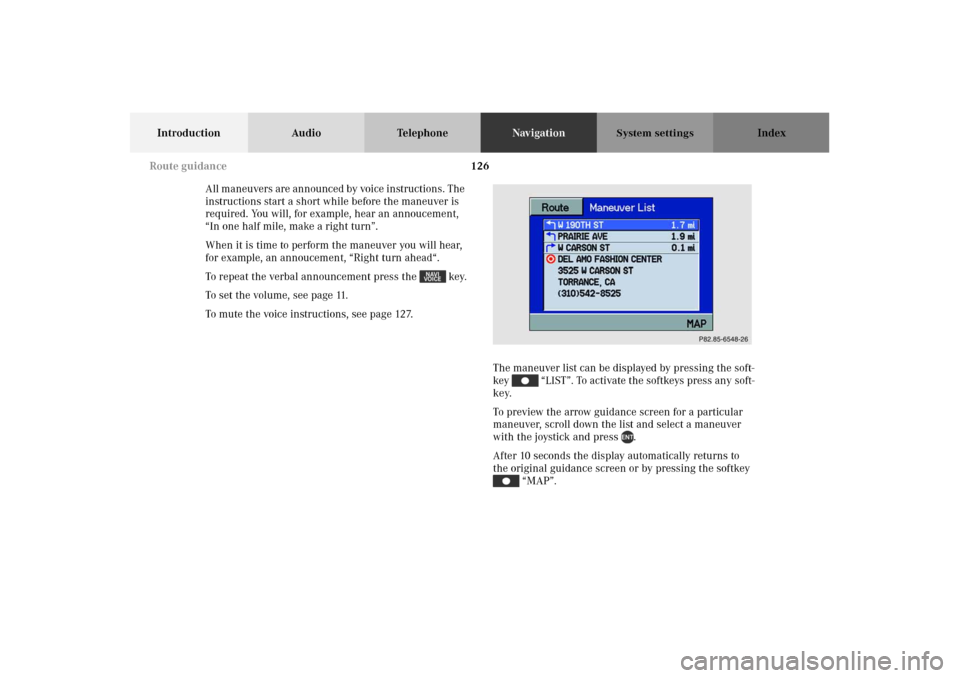

The maneuver list can be displayed by pressing the soft-
key “LIST”. To activate the softkeys press any soft-
key.
To preview the arrow guidance screen for a particular
maneuver, scroll down the list and select a maneuver
with the joystick and press .
After 10 seconds the display automatically returns to
the original guidance screen or by pressing the softkey
“MAP”.
P82.85-6548-26
Route guidance
