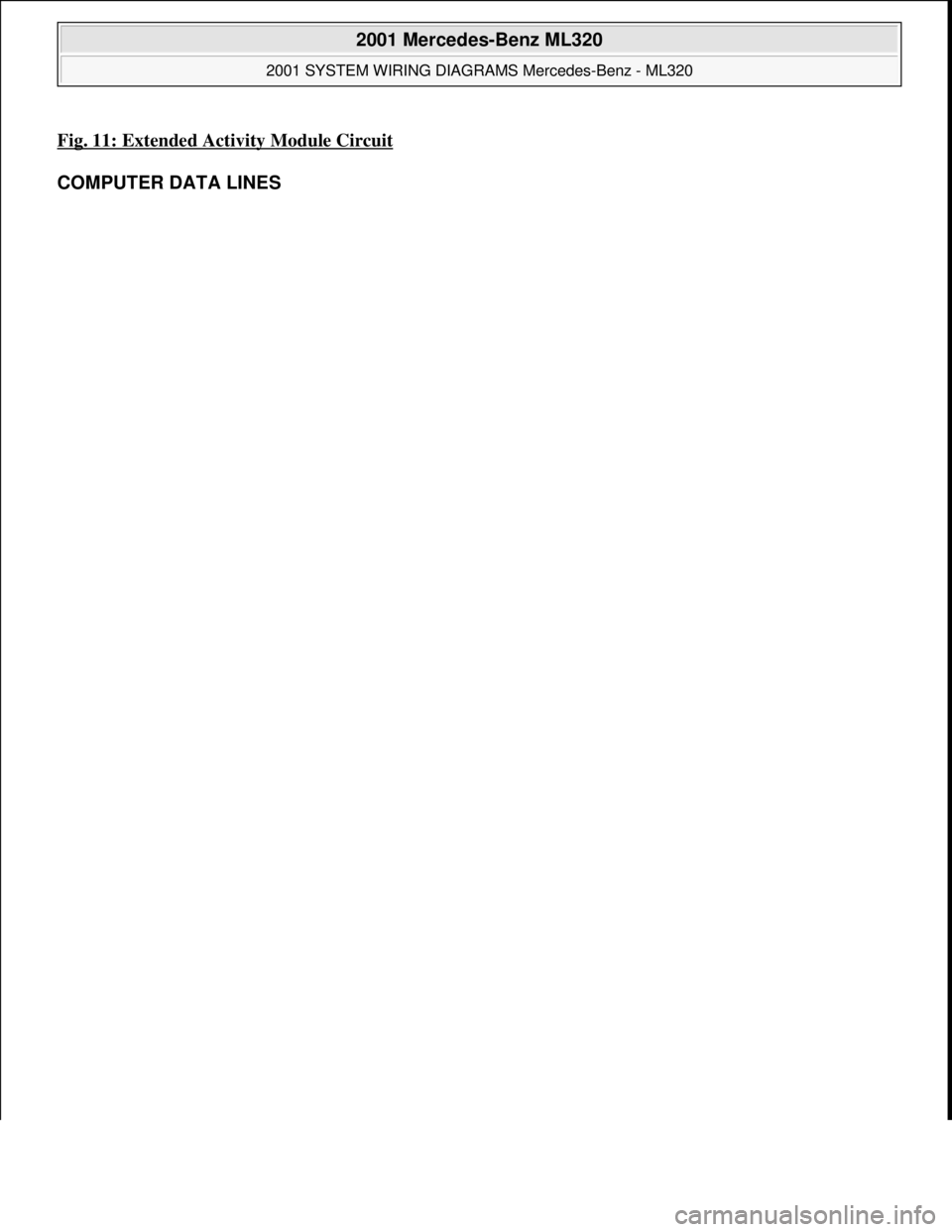

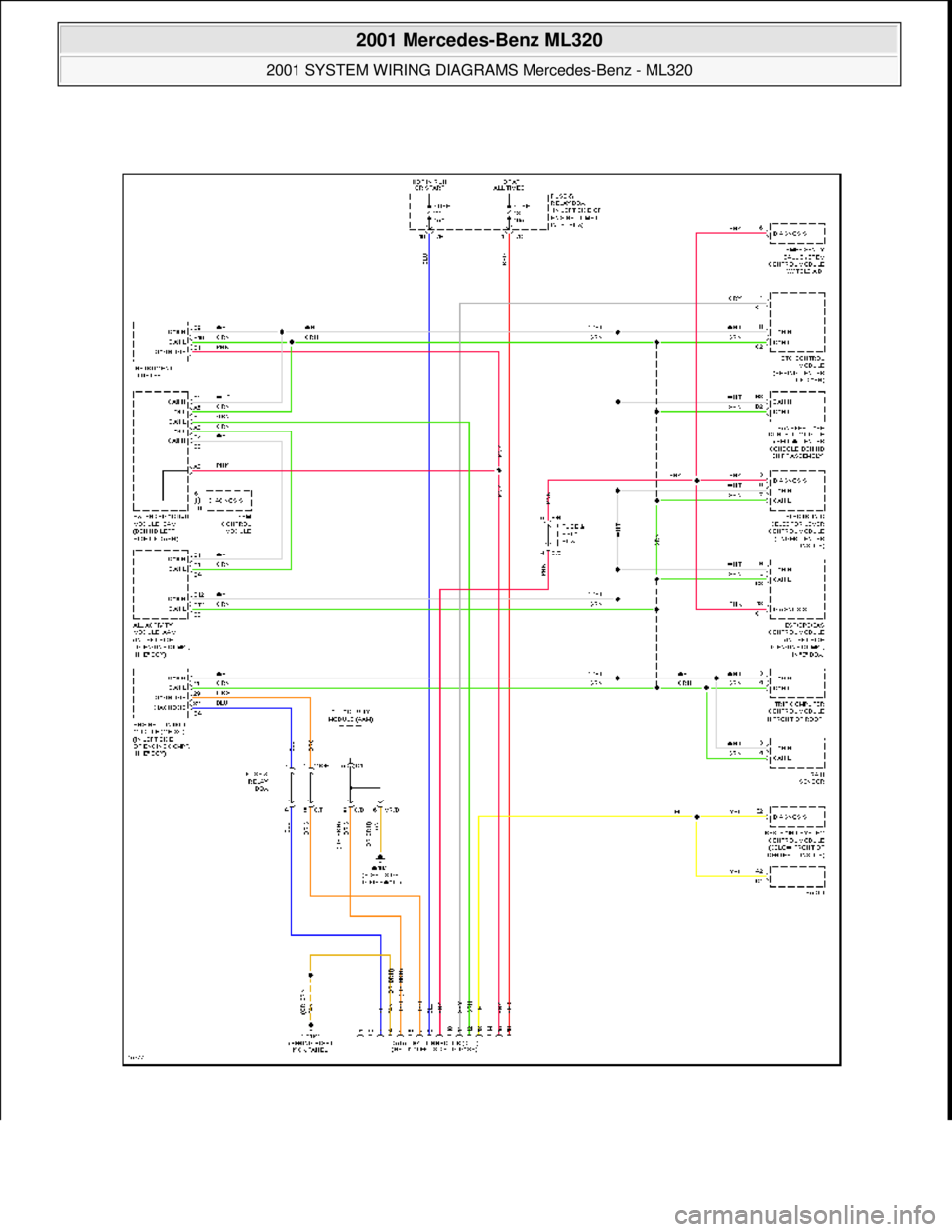

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 11: Extended Activity Module Circuit COMPUTER DATA LINES 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 23 © 2006

Page 4022 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 24 © 2006 Mitchell Repair Information Company, LLC.

Page 4023 of 4133

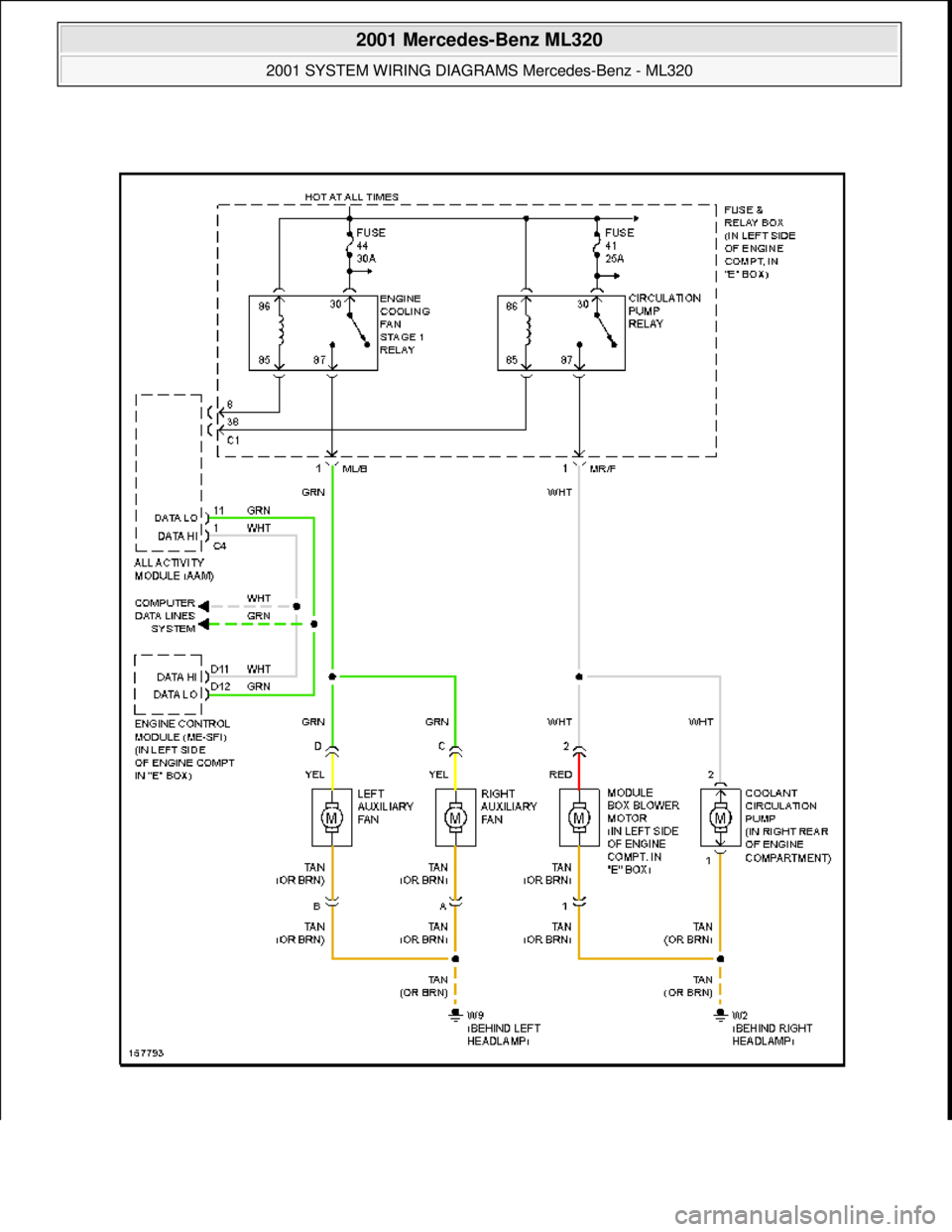

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 12: Computer Data Lines Circuit COOLING FAN 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 25 © 2006 Mitchell Re

Page 4024 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 26 © 2006 Mitchell Repair Information Company, LLC.

Page 4025 of 4133

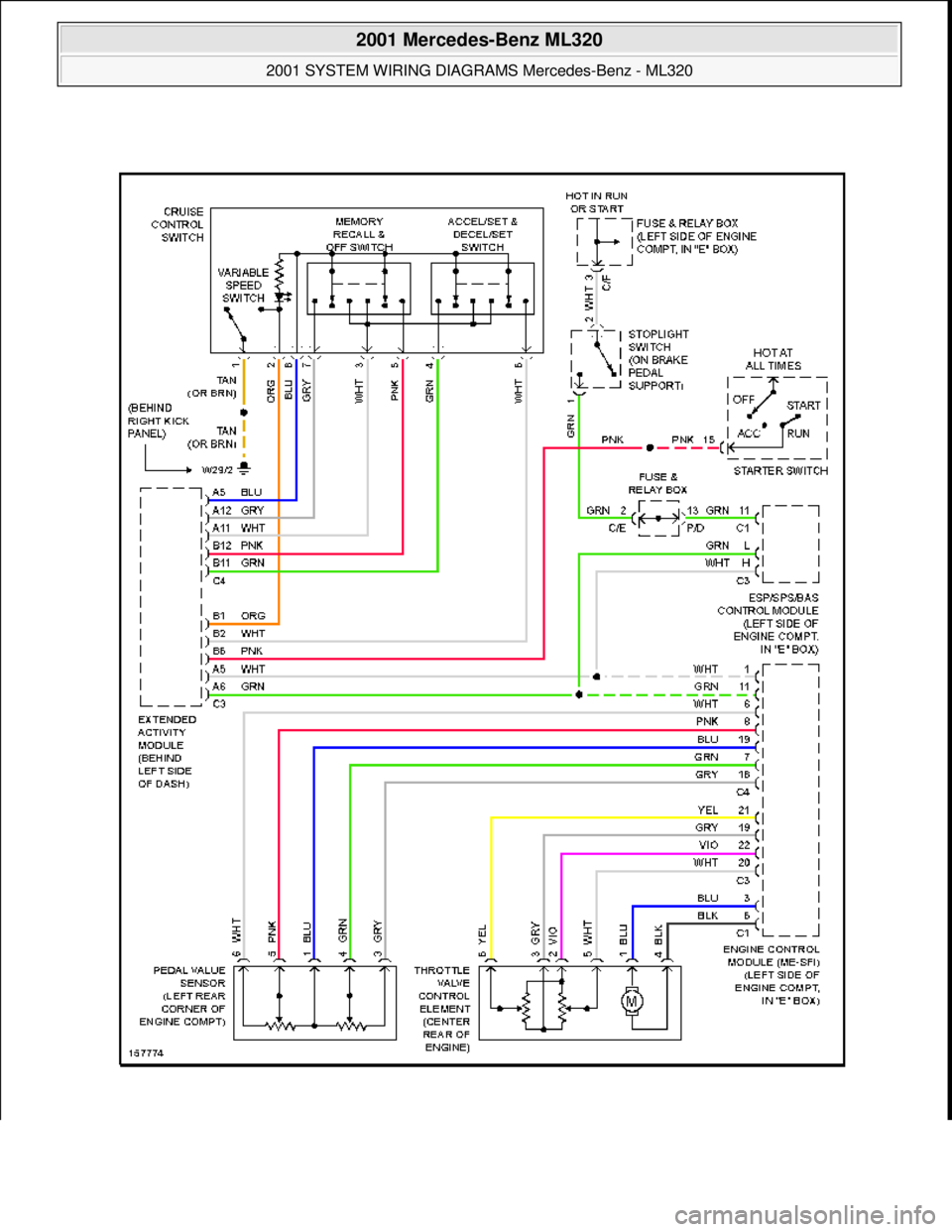

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 13: Cooling Fan Circuit CRUISE CONTROL 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 27 © 2006 Mitchell Repair

Page 4026 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 28 © 2006 Mitchell Repair Information Company, LLC.

Page 4027 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 14: Cruise Control Circuit DEFOGGERS 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 29 © 2006 Mitchell Repair In

Page 4028 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 30 © 2006 Mitchell Repair Information Company, LLC.

Page 4029 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 15: Defoggers Circuit ENGINE PERFORMANCE 3.2L 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 31 © 2006 Mitchell

Page 4030 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 32 © 2006 Mitchell Repair Information Company, LLC.
