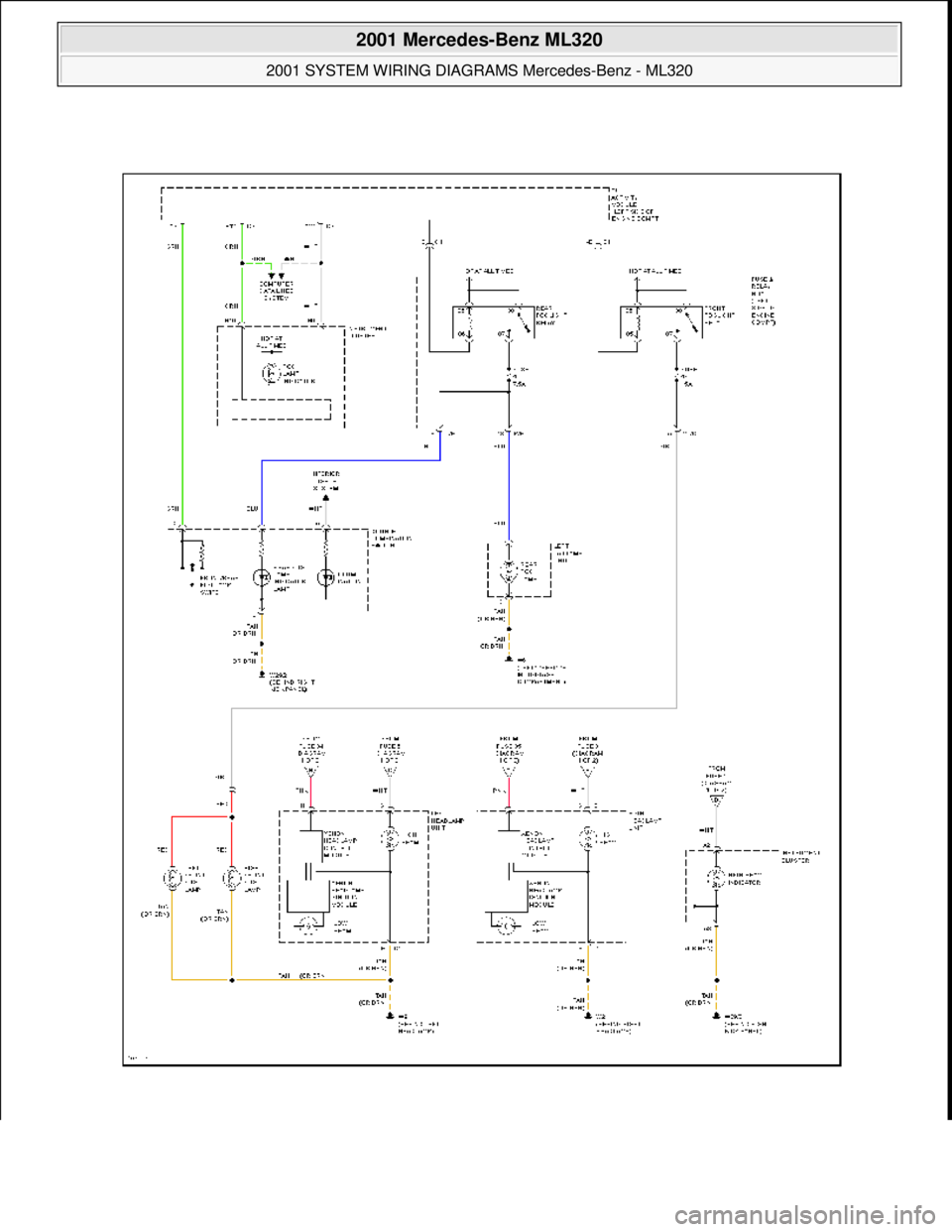

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 26: Headlights Circuit, W/ Xenon Lamps (1 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 53 © 2006 Mitchell

Page 4052 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 54 © 2006 Mitchell Repair Information Company, LLC.

Page 4053 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 27: Headlights Circuit, W/ Xenon Lamps (2 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 55 © 2006 Mitchell

Page 4054 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 56 © 2006 Mitchell Repair Information Company, LLC.

Page 4055 of 4133

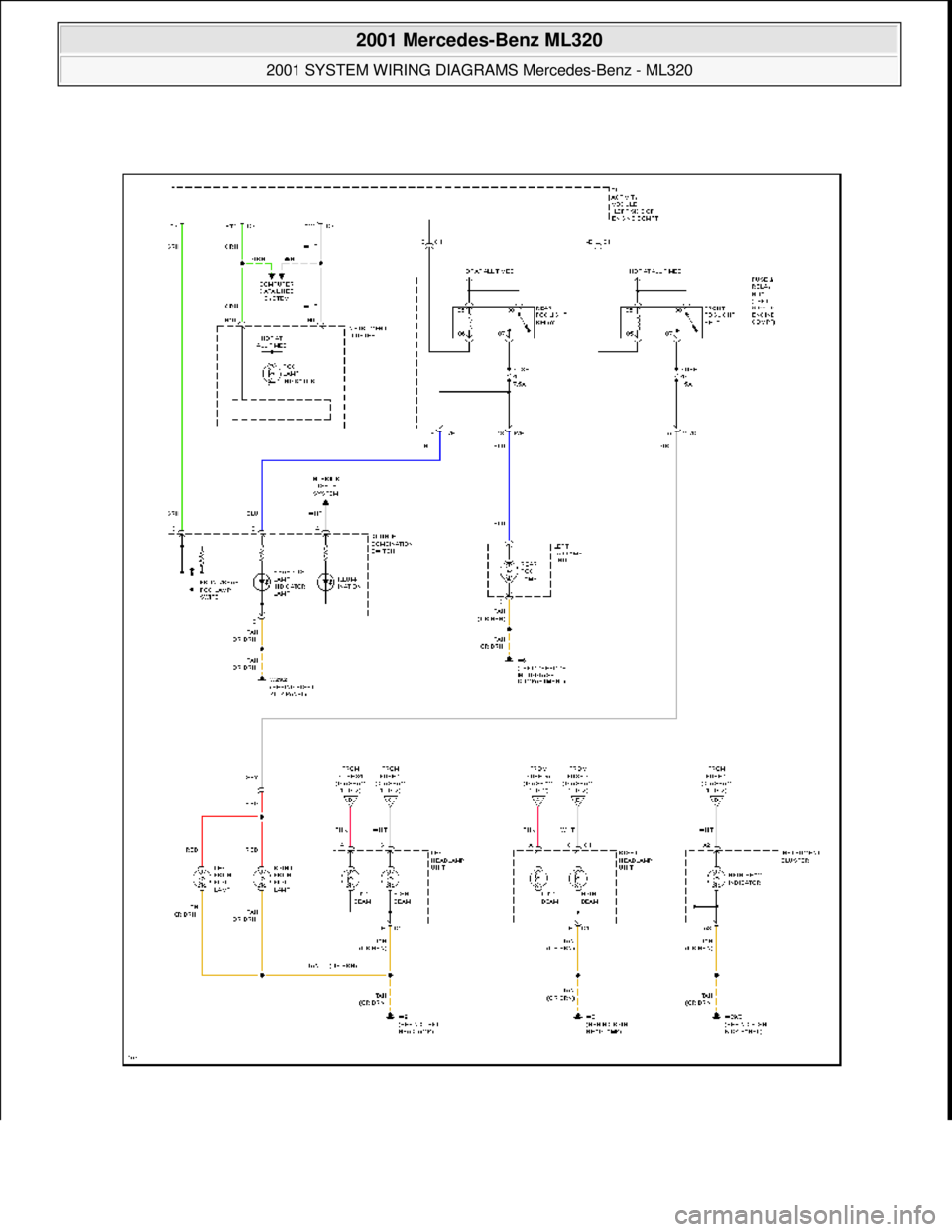

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 28: Headlights Circuit, W/O Xenon Lamps (1 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 57 © 2006 Mitchell

Page 4056 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 58 © 2006 Mitchell Repair Information Company, LLC.

Page 4057 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 29: Headlights Circuit, W/O Xenon Lamps (2 of 2) HORN 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 59 © 2006 Mi

Page 4058 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 60 © 2006 Mitchell Repair Information Company, LLC.

Page 4059 of 4133

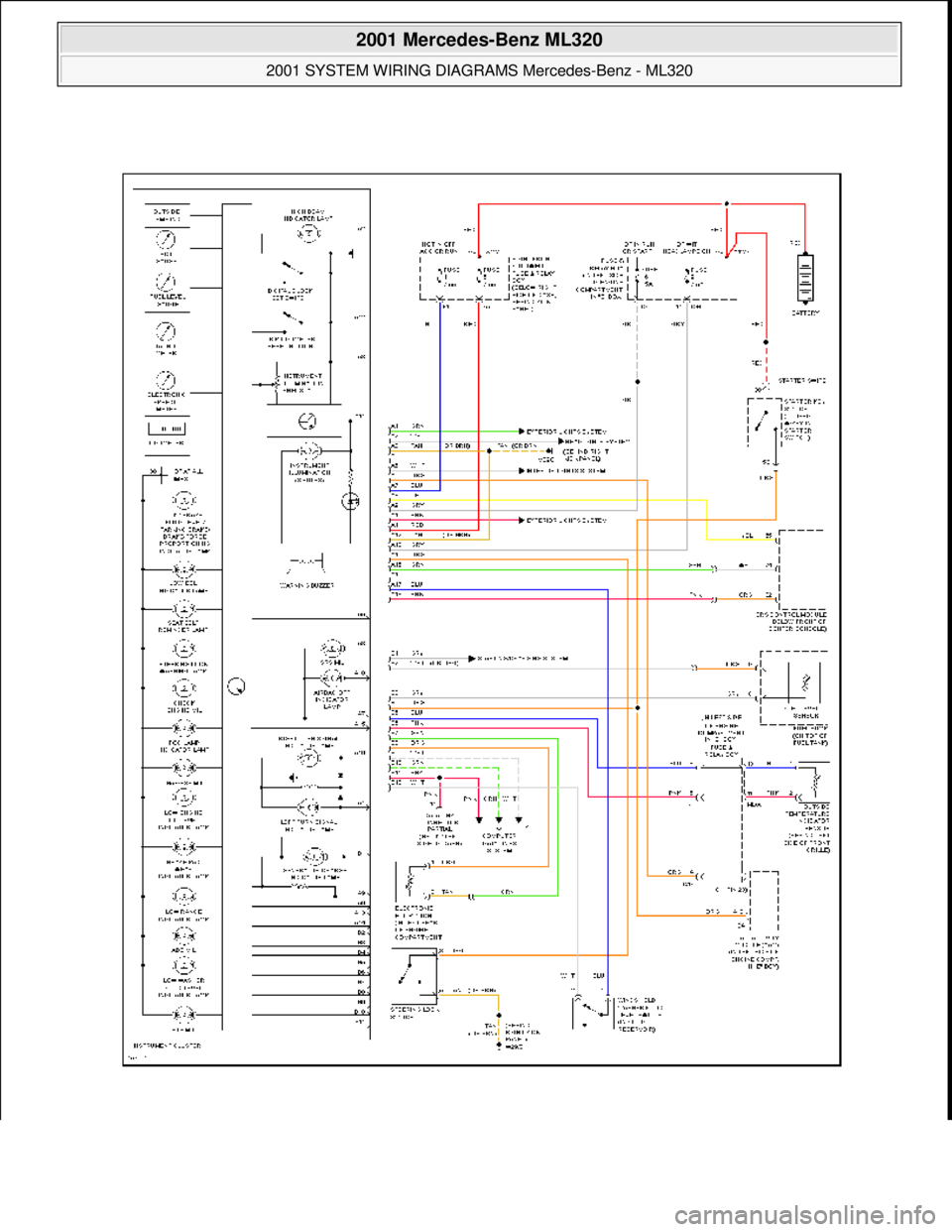

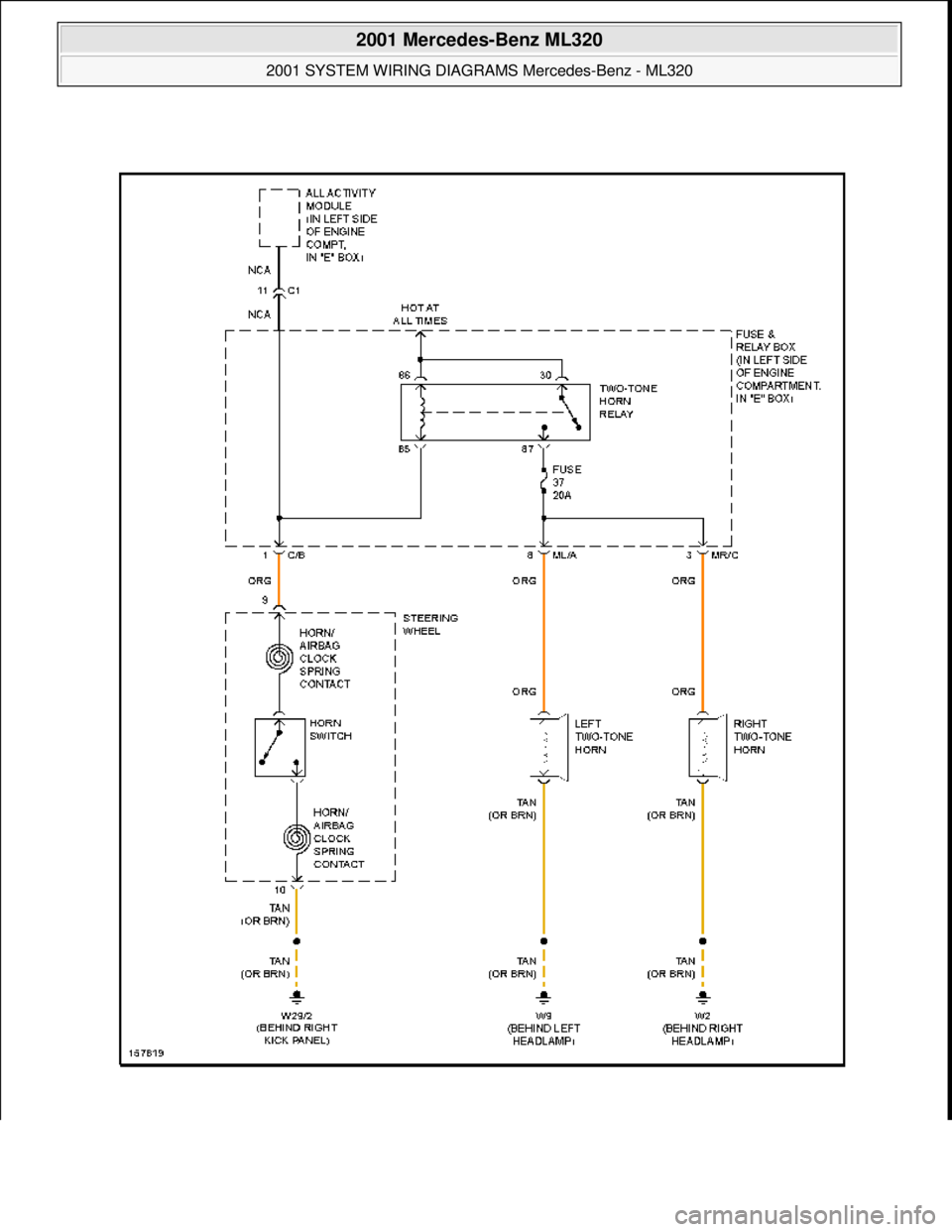

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 30: Horn Circuit INSTRUMENT CLUSTER 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 61 © 2006 Mitchell Repair Inf

Page 4060 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 62 © 2006 Mitchell Repair Information Company, LLC.
