MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 16: 3.2L, Engine Performance Circuit (1 of 3) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 33 © 2006 Mitchell Re

Page 4032 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 34 © 2006 Mitchell Repair Information Company, LLC.

Page 4033 of 4133

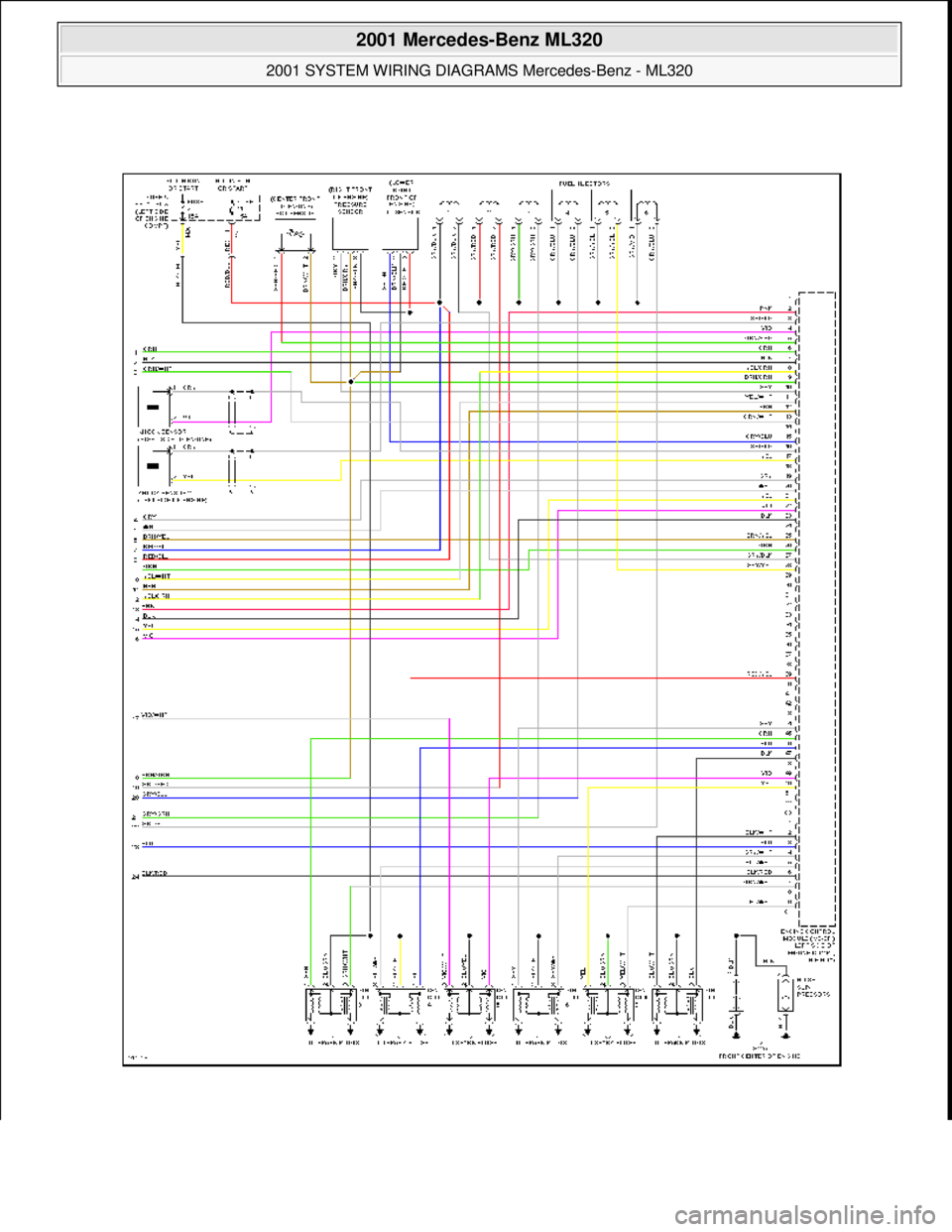

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 17: 3.2L, Engine Performance Circuit (2 of 3) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 35 © 2006 Mitchell Re

Page 4034 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 36 © 2006 Mitchell Repair Information Company, LLC.

Page 4035 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 18: 3.2L, Engine Performance Circuit (3 of 3) EXTERIOR LIGHTS 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 37 ©

Page 4036 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 38 © 2006 Mitchell Repair Information Company, LLC.

Page 4037 of 4133

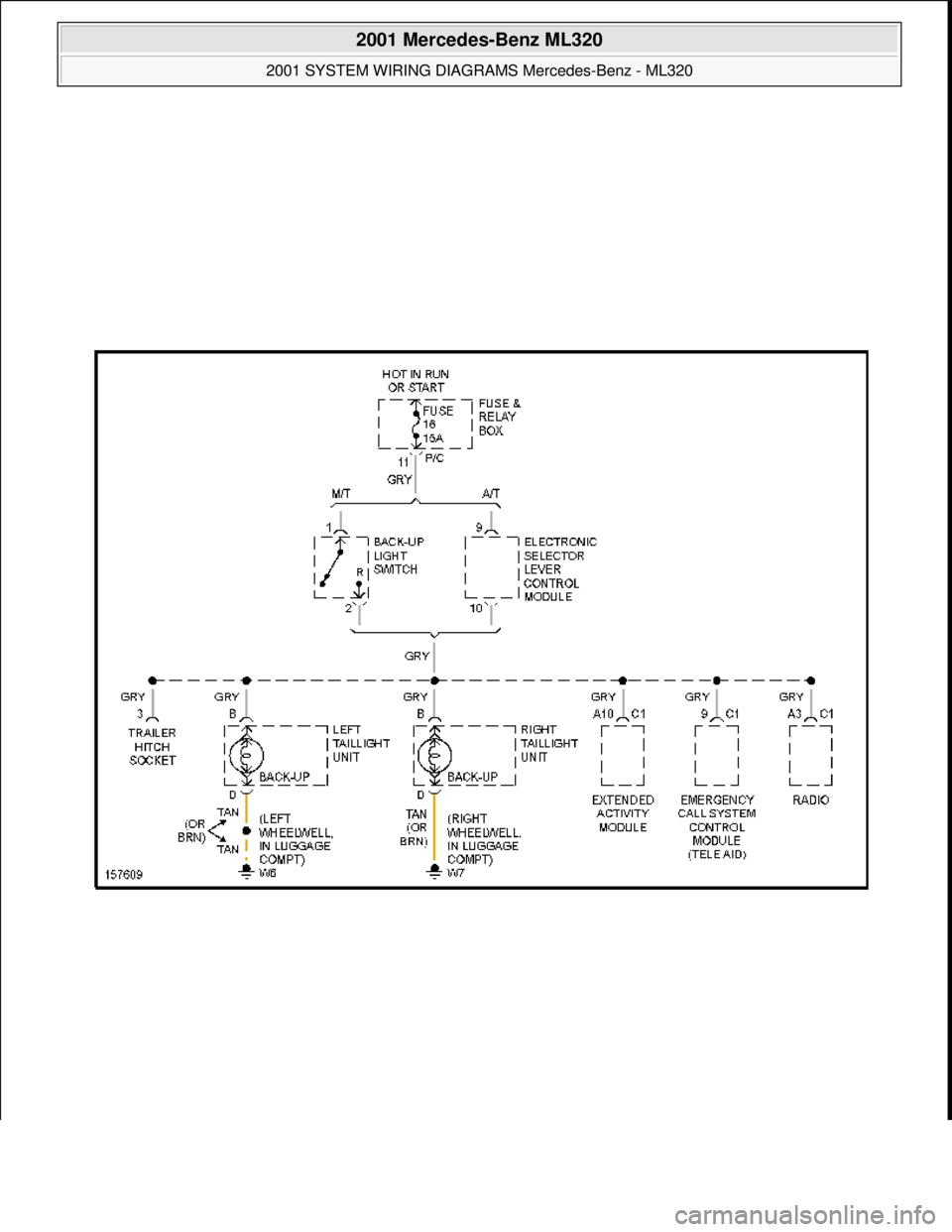

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 19: Back-up Lamps Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 39 © 2006 Mitchell Repair Information Co

Page 4038 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 40 © 2006 Mitchell Repair Information Company, LLC.

Page 4039 of 4133

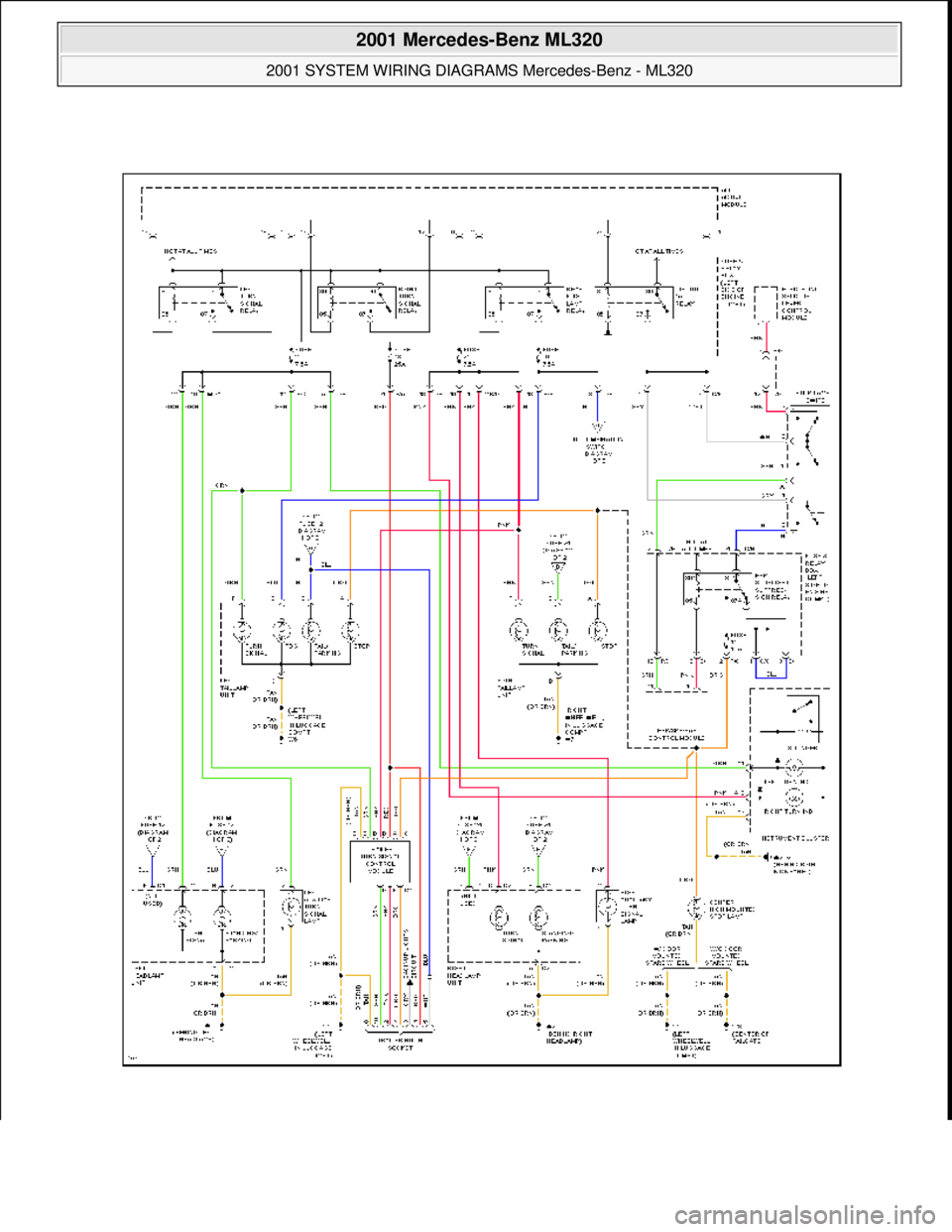

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 20: Exterior Lights Circuit (1 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 41 © 2006 Mitchell Repair Inf

Page 4040 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 42 © 2006 Mitchell Repair Information Company, LLC.
