358 Controls in detailLocking and unlockingSmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks,
when set to factory settings (
page 359):
the doors
the trunk
the fuel filler flap
SmartKey with remote control1‹ Lock button
2ŠOpening button for trunk
(
page 511)
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6ÂPanic button (
page 66)
!
To prevent possible malfunction, avoid ex-
posing the SmartKey to high levels of electro-
magnetic radiation.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s un-
supervised access to a vehicle could result
in an accident and/or serious personal inju-
ry.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
or trunk lid opening when closing a door or
the trunk. Be especially careful when small
children are around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Page 362 of 801
361 Controls in detail
Locking and unlocking
Restoring to factory setting: Press
and hold buttonsŒ and‹ si-
multaneously for about 5 seconds until
battery check lamp5 (
page 358)
flashes twice.
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you grasp an outside
door handle.
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch.The SmartKey with KEYLESS-GO centrally
locks and unlocks, when set to factory set-
tings (
page 364):
the doors
the trunk
the fuel filler flap
SmartKey with KEYLESS-GO1‹ Lock button
2ŠOpening button for trunk
(
page 511)
3Locking tab for mechanical key
4Œ Unlock button
5Battery check lamp
6ÂPanic button (
page 66)
i
When any outside door handle other than
the driver’s outside door handle is grasped, the
vehicle is centrally unlocked.
!
To prevent possible malfunction, avoid ex-
posing the SmartKey with KEYLESS-GO to high
levels of electromagnetic radiation.
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
Children could start the vehicle with a valid
SmartKey with KEYLESS-GO left in the vehi-
cle or with the KEYLESS-GO button on the
starter switch, or could release the electron-
ic parking brake, thereby putting them-
selves and others in danger. Switch off the
engine and take the SmartKey with
KEYLESS-GO with you even if you are only
leaving the vehicle for a short while.
Page 515 of 801
514 Controls in detailTrunkIn vehicles with trunk opening/closing sys-
tem* you can close the trunk separately
from the outside using the trunk closing
switch.

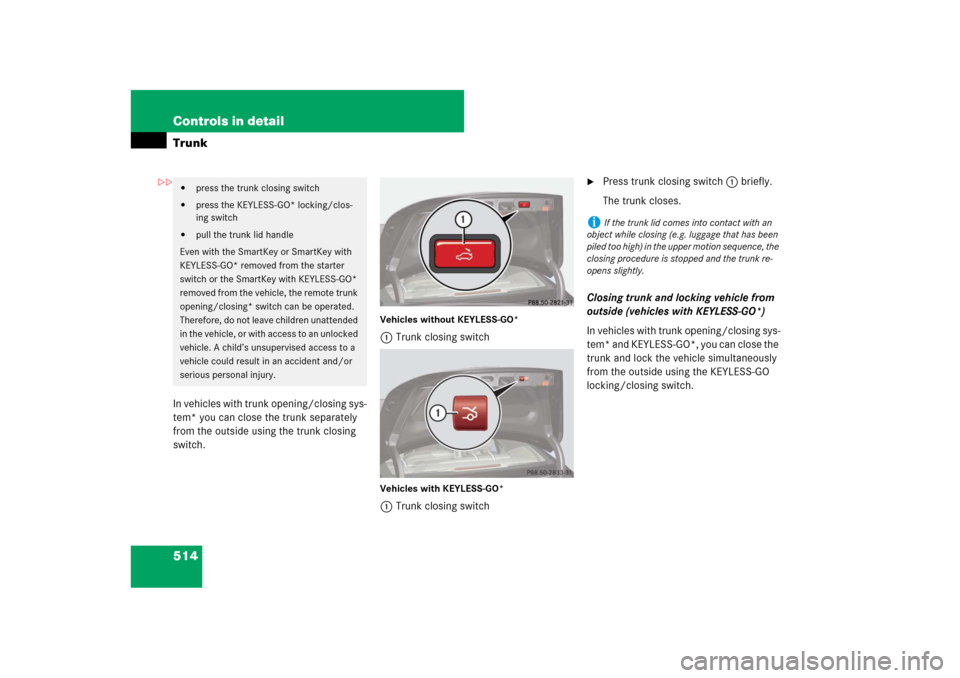

Vehicles without KEYLESS-GO*1Trunk closing switchVehicles with KEYLESS-GO*1Trunk closing switch
Press trunk closing switch1 briefly.
The trunk closes.
Closing trunk and locking vehicle from
outside (vehicles with KEYLESS-GO*)
In vehicles with trunk opening/closing sys-
tem* and KEYLESS-GO*, you can close the
trunk and lock the vehicle simultaneously
from the outside using the KEYLESS-GO
locking/closing switch.
press the trunk closing switch
press the KEYLESS-GO* locking/clos-
ing switch
pull the trunk lid handle
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the remote trunk
opening/closing* switch can be operated.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. A child’s unsupervised access to a
vehicle could result in an accident and/or
serious personal injury.
i
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has been
piled too high) in the upper motion sequence, the
closing procedure is stopped and the trunk re-
opens slightly.
Page 516 of 801
515 Controls in detailTrunk

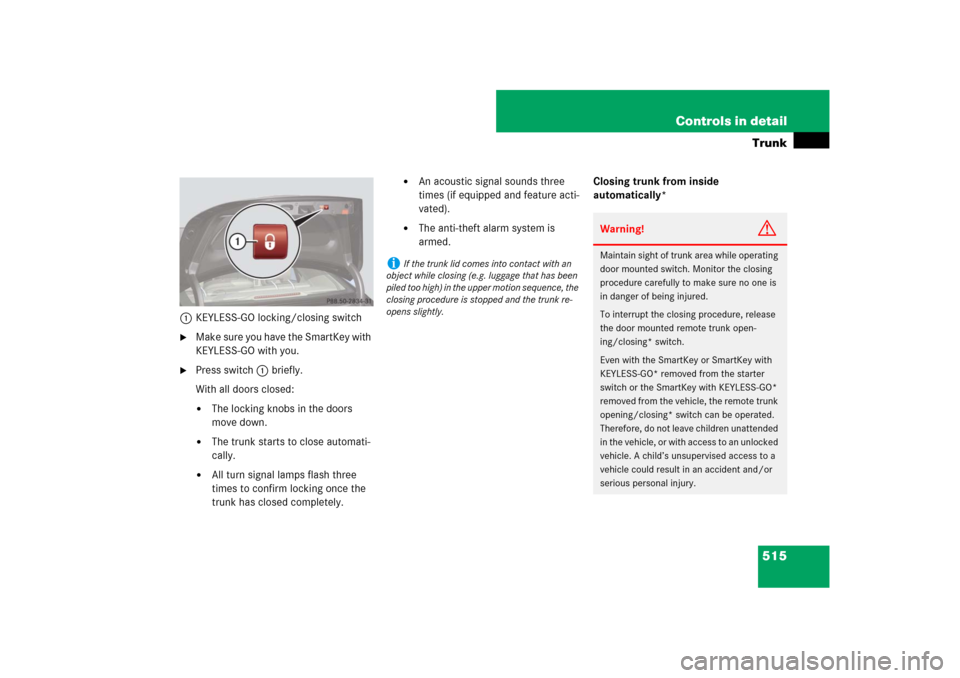

1KEYLESS-GO locking/closing switch
Make sure you have the SmartKey with
KEYLESS-GO with you.
Press switch1 briefly.
With all doors closed:
The locking knobs in the doors
move down.
The trunk starts to close automati-
cally.
All turn signal lamps flash three
times to confirm locking once the
trunk has closed completely.
An acoustic signal sounds three
times (if equipped and feature acti-
vated).
The anti-theft alarm system is
armed.Closing trunk from inside
automatically*
i
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has been
piled too high) in the upper motion sequence, the
closing procedure is stopped and the trunk re-
opens slightly.
Warning!
G
Maintain sight of trunk area while operating
door mounted switch. Monitor the closing
procedure carefully to make sure no one is
in danger of being injured.
To interrupt the closing procedure, release
the door mounted remote trunk open-
ing/closing* switch.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the remote trunk
opening/closing* switch can be operated.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. A child’s unsupervised access to a
vehicle could result in an accident and/or
serious personal injury.
Page 553 of 801
552 Controls in detailUseful featuresProgramming integrated remote
control
Step 1:
Switch on the ignition (
page 370).
Step 2:
If you have previously programmed a
signal transmitter button and wish to
retain its programming, proceed to
step 3.
If you are programming the integrated
remote control for the first time, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when indicator lamp1 be-
gins to flash after approximately
20 seconds (do not hold the button for longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory.
If you later wish to program a second
and/or third hand-held transmitter to
the remaining two signal transmitter
buttons, do not repeat this step and be-
gin directly with step 3.
Step 3:
Hold the end of hand-held remote
control5 of the device you wish to
train approximately 2 to 5 in
(5 to12 cm) away from the signal trans-
mitter button (2, 3 or4) to be pro-
grammed, while keeping indicator
lamp1 in view.
Step 4:
Using both hands, simultaneously
press hand-held remote control
button6 and the desired signal trans-
mitter button (2, 3 or4). Do not
release the buttons until step 5 is com-
pleted.Indicator lamp1 will flash, first slowly
and then rapidly.
Step 5:
After indicator lamp1 changes from a
slow to a rapidly flashing light, release
the hand-held remote control button
and the signal transmitter button.
Step 6:
Press and hold the just-trained signal
transmitter button (2, 3 or4) and
observe indicator lamp1.
If indicator lamp1 stays on
constantly, programming is complete
and your device should activate when
the respective signal transmitter
button (2, 3 or4) is pressed and re-
leased.
Do not run the engine while programming
the integrated remote control. Inhalation of
exhaust gas is hazardous to your health.
All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause
unconsciousness and possible death.
i
Indicator lamp1 flashes immediately the
first time the signal transmitter button is pro-
grammed. If this button has already been pro-
grammed, the indicator lamp will only start
flashing after 20 seconds.
Page 555 of 801
554 Controls in detailUseful featuresIf you live in Canada or if you are having
difficulties programming a gate operator
(regardless of where you live) by using the
programming procedures, replace step 4
with the following:
Step 4:
Press and hold the signal transmitter
button (2, 3 or4). Do not release
this button until it has been successful-
ly trained.
While still holding down the signal
transmitter button (2, 3 or4),
“cycle” your hand-held remote control
button6 as follows: Press and hold
button6 for 2 seconds, then release
it for 2 seconds, and again press and
hold it for 2 seconds. Repeat this se-
quence on the hand-held remote con-
trol until the frequency signal has been
learned. Upon successful training, indi-
cator lamp1 will flash slowly and then
rapidly after several seconds.
Proceed with programming step 5 and
step 6 to complete.Reprogramming a single signal trans-
mitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:
Switch on the ignition (
page 370).
Press and hold the desired signal
transmitter button (2, 3 or4).
Do not release the button.
Indicator lamp1 will begin to flash af-
ter 20 seconds. Without releasing the
signal transmitter button, proceed with
programming starting with step 3.Operation of integrated remote control
Switch on the ignition (
page 370).
Select and press the appropriate inte-
grated signal transmitter button (2,
3 or4) to activate the remote con-
trolled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
Erasing integrated remote control
memory
Switch on the ignition (
page 370).
Simultaneously press and hold outer
signal transmitter buttons2 and 4,
for approximately 20 seconds, until
indicator lamp1 flashes rapidly. Do
not hold for longer than 30 seconds.
The codes of all three channels are
erased.
i
Upon completion of programming the inte-
grated remote control, make sure you retain the
hand-held remote control that came with the ga-
rage door opener, gate operator or other device.
You may need it for use in other vehicles, for fu-
ture programming of an integrated remote con-
trol, or simply for continued use as a hand-held
remote control to operate the respective device
in other situations.
i
If you sell your vehicle, erase the codes of all
three channels.
Page 782 of 801
781 Index
Setting the audio format
(COMAND) 128
Video (COMAND) 132
E
Easy-entry/exit feature 384
COMAND menu 268
EBP 72
Electrical fuses see Fuses
Electrical outlet see Power outlet
Electrical system, Technical Data 760
Electronic Brake Proportioning see EBP
Electronic parking brake 422
Indicator lamp 29, 630
Messages in display 667
Warning lamp 29, 630
Electronic Stability Program see ESP
®
Electronic traction system 73
Emergency call system 542
Emergency calls, Tele Aid 544
Emergency engine shut-down 744
Emergency operation
(Limp-Home Mode) 443
Emergency operations
Locking the vehicle 708
Releasing from inside 516
Remote door lock 550Remote door unlock 549
Unlocking the trunk 709
Unlocking the vehicle 708
Emergency tensioning device see ETD
Emergency, In case of
Battery, Jump starting 734
First aid kit 705
Flat tire 723
Fuses 741
Roadside Assistance 15
Roadside Assistance (Tele Aid) 546
Towing the vehicle 737
Emission control 568
Emission control information label 749
Emission control system warranties 14
Engine
Belt layout 750
Cleaning 617
Compartment 573
Coolant 579, 767, 771
Malfunction indicator lamp 29, 632
Number 748, 749
Oil 578, 765, 769
Oils 575
Residual heat and ventilation 509
Starting 416Technical data 751
Turning off 424
Engine coolant see Coolant
Engine oil 575
Adding 578
Additives 769
Checking level 575
Checking level (Dipstick) 577
Checking level (Instrument cluster
control system) 575
Consumption 575
Dipstick 577
Filler neck 577, 578
Messages in display 576, 694
Recommended engine oils and
oil filters 765
ESP
®Four wheel electronic traction system
with ESP
®
76
ESP
®
72
Messages in display 662, 673
Warning lamp 29, 629, 634
ETD 55
Safety guidelines 44
Page 786 of 801
785 Index
K
Key, Mechanical 708
Loss of 366
Key, SmartKey 358
Battery check lamp 358, 360
Factory setting 359
Global locking and unlocking 359
Lock button 358
Locking and unlocking 358
Loss of 366
Messages in display 685
Opening button for trunk 358
Panic button 66
Remote control 358
Restoring to factory setting 361
Selective setting 360
Starting the engine 417
Switching on ignition with 370
Turning off engine 425
Unlock button 358Key, SmartKey with KEYLESS-GO* 361
Battery check lamp 361, 365
Closing, Trunk 511
Factory setting 364
Global locking and unlocking 364
Important notes on using
KEYLESS-GO* 362
Lock button 361
Locking and unlocking 361
Loss of 366
Messages in display 684
Opening button for trunk 361
Panic button 66
Remote control 361
Restoring to factory setting 366
Selective setting 365
Starting the engine 417
Switching on ignition with 372
Turning off engine 425
Unlock button 361
Kickdown 433
Kilopascal 607L
Labels 748
Certification 748
Emission control information 749
Tire and Loading Information 586
Vacuum line routing diagram 749
Lamp bulbs, exterior 714
Lamps, exterior
Front 715
Light sensor 688
Rear 715
Lamps, indicator and warning
ABS 29, 67, 628
Air bag Off 46
Battery check lamp (SmartKey with
KEYLESS-GO*) 365
Battery check lamp (SmartKey) 360
Brake warning lamp 29
Brakes 629
Combination low tire pressure* mal-
function telltale 29, 638
Distance warning lamp* 29, 634
DISTRONIC Plus* 29, 454, 634
Electronic parking brake 29, 630
Engine diagnostics 29, 632
Engine malfunction 29, 632
