MERCEDES-BENZ S-Class 2014 W222 Comand Manual

Telephone basic menu (Bluetooth
®
interface)
Basic menu display Telephone basic menu (Bluetooth
®
interface)
0043 Telephone keypad display
0044 To display the COMAND phone book
0087 Character bar
0085 Network provider's name (depends on the connected phone)
0083 Signal strength of mobile phone network Ä
0084 Receiver icon 0071or0075
006B Bluetooth ®
name of the currently connected mobile phone
X Press 002B.
When the connected mobile phone is ready for use, the telephone basic menu appears.
i Displays 0085and 0083are shown, depending on the mobile phone connected.
Display 0044may vary, depending on the mobile phone connected.
Bars 0083show the current signal strength of the mobile phone network. If all bars are filled,
you have optimum reception.
If no bars are shown, reception is either very poor or there is none at all.
Receiver icon shows whether a call is active/being connected 0075or not 0071.
Displaying messages in the telephone basic menu Only if the Bluetooth
®
phone supports the MAP Bluetooth ®
profile (Message AccessProfile)
is the 0082menu item available. The downloading of messages from the Bluetooth ®
phone
must have been completed. The menu item is otherwise grayed out. Further information on
text messages and e-mail (Y page 142).
If you have an unread text message or e-mail, the 0083mail symbol is displayed in the status
bar. The symbol disappears once you have read the text message or e-mail. The úsymbol Telephony via the Bluetooth
®
interface 129Telephone Z

is displayed as soon as the message memory is full. The symbol disappears once you delete
at least one message. Reception and transmission volume
Once the mobile phone has been authorized,
you can optimize the transmission and
reception volume settings. Find out more
about the optimum settings for your mobile
phone online at
http://www.mbusa-mobile.com . Or call
the Mercedes-Benz Customer Assistance
center at
1-800-FOR-MERCedes(1-800-367-6372)
(USA) or Customer Relations at
1-800-387-010 0(Canada). X
To call up the basic telephone menu: press
the 002B button one or more times.
X To switch to the menu bar: slide 00520064the
controller.
X To select Connect Device
Connect Device: turn the
controller and press to confirm.
The telephone list appears.
X To select an authorized mobile phone from
the list: turn the controller.
X To select the list symbol to the right of the
entry: slide 00520096the controller and press to
confirm.
X To select Reception Volume
Reception Volume or
Transmission Transmission Volume
Volume: turn the controller
and press to confirm. X
To select a volume setting: turn the
controller.
X To close the setting scale: press or slide
009500520096 the controller.
i Incorrect settings may have an impact on
the quality of calls. Using the telephone
Incoming call
Accepting a call X
To select Accept Accept: press the controller.
or
X Press the 0061button on COMAND or on
the multifunction steering wheel.
i You can also accept the call by voice
command using the Voice Control System
(see the separate operating instructions).
Once you have accepted the call, you can use
hands-free mode.
The call volume can be adjusted (Y page 23).
Other functions during a call (Y page 132).
If the phone number of the caller is
transferred, it appears in the display.
If there is an entry for the caller in the phone
book, you will also see the name.
If the phone number is not transferred,
Unknown
Unknown appears in the display. 130
Using the telephoneTelephone

i
You can also accept a call as described
above when another main function is
switched on in COMAND. Once you have
accepted the call, the display switches to
the telephone display. After the call is
finished, you see the display of the previous
main application again.
The display does not switch to telephone
mode if you:
R accept the call via the Voice Control
System (see the separate operating
instructions).
R accept the call using the 0061button on
the multifunction steering wheel
Rejecting a call X
Press the 0076button on COMAND or on
the multifunction steering wheel. Making a call
Using the number keypad X
Call up the telephone basic menu
(Y page 129).
X Enter the digits using the number keypad.
i As soon as one of the numbers is touched,
the corresponding button is highlighted in
the display.
X To connect the call: press the0061
button on COMAND or on the multifunction
steering wheel.
Using the telephone basic menu X
Call up the telephone basic menu
(Y page 129).
X To select all numbers one after the other:
turn and press the controller each time.
Dialing a number:
X Press the 0061button on COMAND or on
the multifunction steering wheel. Redial X
Call up the telephone basic menu
(Y page 129).
X To select °from the character list: turn
the controller and press to confirm.
or
X If the telephone basic menu is displayed,
press the 0061button on COMAND.
The list of dialed numbers appears. The
most recently dialed number is at the top.
X To select a call: turn the controller.
X To make a call: press the controller.
Using the call list or COMAND phone
book X
Open a call list and select an entry
(Y page 138).
or
X Call up the COMAND phone book and
select an entry (Y page 135).
X To make a call: press the controller or the
0061 button.
Making a call via speed dial You can save entries from the phone book in
the speed dial list and call them using speed
dial numbers (Y
page 141).
Option 1:
X Hold down one of the number keys for
longer than two seconds.
The telephone basic menu displays the
selected entry. This initiates dialing.
Option 2:
X To select a digit from the digit bar in the
basic telephone menu: turn the controller.
X Press the controller for longer than two
seconds.
The telephone basic menu displays the
selected entry. This initiates dialing. Using the telephone
131Telephone Z

Option 3:
X
Call up the telephone basic menu
(Y page 129).
X To switch to the menu bar: slide 00520064the
controller.
X To select Call Lists Call Lists: turn and press the
controller.
A menu appears.
X Select Speed Dial Preset List
Speed Dial Preset List.
The speed dial list appears.
X Select a preset.
The telephone basic menu displays the
selected entry. This initiates dialing. Functions available during a call
Overview 0043
Person you are calling
0044 Symbol for active telephone connection
0087 To end a call
0085 To switch the microphone on/off
(Ypage 132)
0083 To send DTMF tones (not possible with all
mobile phones) (Y page 132)
0084 Call to Rear Call to Rear
Available functions:
R Accepting a waiting call (Y page 133)
R Making a second call (Y page 133)
R Toggling (Y page 134)
Availability depends on the network (only
possible in the GSM network) and on the
Bluetooth ®
mobile phone. Switching the hands-free microphone
on/off This function is also available during an active
phone call.
X
Call up the telephone basic menu
(Y page 129).
Deactivating:
X To switch to the menu bar: slide 00520064the
controller.
X To select Microphone Off Microphone Off: turn the
controller and press to confirm.
If the microphone is switched off, the
display shows the 004Dicon, and the The The
microphone
microphone is
isoff
off message appears for
a short period.
Activating:
X Select Microphone On Microphone On.
The 004Dsymbol disappears. You will briefly
see the The
Themicrophone
microphone is
ison
onmessage.
Sending DTMF tones This function is not supported by all mobile
phones.
Answering machines or other devices can be
controlled by DTMF tones, e.g. for remote
query functions.
X
If you would like to listen to the messages
on your answering machine, for example,
dial the corresponding number.
Transmitting individual characters:
X Once a connection has been established to
the answer phone, select the desired
characters in the character bar: turning and
pressing the controller each time.
or
X Press the corresponding key on the
COMAND number keypad.
Every character selected will be
transmitted immediately.
i You can also send DTMF tones using the
Voice Control system; see the separate
operating instructions. 132
Using the telephoneTelephone

Putting a call through to the rear
compartment and retrieving it
You can put a call through to the Rear Seat
Entertainment System. The call is output
through the rear loudspeakers and the rear
microphones are used.
X To switch to the menu bar: slide 00520064the
controller.
X To select Send Call to Rear
Send Call to Rear: turn and
press the controller.
In the bottom menu bar, the Call to
Call to
COMAND
COMAND entry is now visible.
Retrieving the call:
X Select Call to COMAND Call to COMAND. Calls with several participants
Rejecting or accepting a waiting call The mobile phone network provider must
support and activate the call-waiting function.
Depending on the mobile phone used, the
system behavior differs when accepting a
call.
If you have a call in progress and receive
another call, a new window appears in the
display. You also hear a tone. You can accept
or reject the call.
Rejecting:
X To select Reject
Reject: turn the controller and
press to confirm.
or
X Press the 0076button on COMAND or on
the multifunction steering wheel.
Accepting:
X Press the 0061button on COMAND or on
the multifunction steering wheel.
The system behavior after accepting the
incoming call depends on your mobile phone.
R The mobile phone supports the call waiting
function (via Bluetooth ®
) when: The previously active call is held. You can
then switch back and forth between both
calls (toggling) (Y
page 134).
R The mobile phone does not support the call
waiting function (via Bluetooth ®
) when:
The previously active call is ended.
This is also the case if you accept the
waiting call using the Voice Control System
(see the separate operating instructions).
The COMAND display changes. If you
continue to operate functions on the mobile
phone, the COMAND display may differ from
that of the mobile phone.
Making a second call If the following requirements are met, you can
make another call while on the phone with
someone else. This action puts the previous
call on hold.
R
The function has to be supported by the
mobile phone network.
R The mobile phone has to support the
connection of a further call via Bluetooth ®
.
R The appropriate setting has to be activated
on the mobile phone. 0043
Making a second call
X To select °
2: turn and press the controller.
or
X Press the 0061button on COMAND.
X Enter the phone number:
R
manually (Y page 131)
R using the phone book (Y page 135) Using the telephone
133Telephone Z

R
using the call lists ( Ypage 138)
R using speed dial (Y page 141)
Toggling You can switch back and forth between calls
with this function. The function is available if
your mobile phone supports the toggling
function (via Bluetooth ®
).
You can use the function if you are answering
a second call or making a second call. Both
discussions are marked with 1 or 2. The active
call is highlighted.
X To select °
1or
°
2: turn and press the
controller.
or
X Press the 0061button on COMAND or on
the multifunction steering wheel.
The previous call on hold is activated.
Ending the active call:
X Press the 0076button on COMAND or on
the multifunction steering wheel.
A prompt appears asking whether you
would like to continue the call on hold.
X Select Continue
Continue.
The call on hold is activated. If you select
Hang Up
Hang Up, the call on hold is also ended.
i On some mobile phones, the call on hold
is activated as soon as the active call is
ended.
Conference call You can interconnect calls (active and on
hold) on COMAND. This permits several
parties to hear one another and speak with
one another.
X Make a second call ( Ypage 133).
X To switch to the menu bar: slide 00520064the
controller.
X To select Conference
Conference: turn and press the
controller.
The new participant is included in the
conference call. Using the phone book
Introduction
The phone book displays the names and
phone numbers of all address book entries
saved in the COMAND address book. If an
address book entry does not have a
telephone number, it does not appear in the
phone book.
The mobile phone's telephone book is
automatically downloaded into COMAND on
connection (default setting). You can
deactivate automatic downloading
(Y page 153).
In the telephone book, you can:
R save phone numbers (Y page 137)
R search for entries (Y page 135)
R delete entries (Y page 136)
R import contacts (Y page 153)
R delete contacts (Y page 154)
R receive vCards ( Ypage 154)
i The stored phone book and the vCards
remain in COMAND even if you use
COMAND with another mobile phone. The
entries can be viewed without a mobile
phone. For this reason, you should delete
any phone book entries before handing
over or selling the vehicle. Calling up the phone book
Opening the phone book X
To call up the basic telephone menu: press
the 002B button one or more times.
X To select Name Namefrom the telephone basic
menu: turn the controller and press to
confirm.
If the phone book contains entries, they will
be displayed in alphabetical order. The
character bar at the bottom of the display
is active.
The character bar is used for fast selection
of an entry. 134
Using the phone bookTelephone

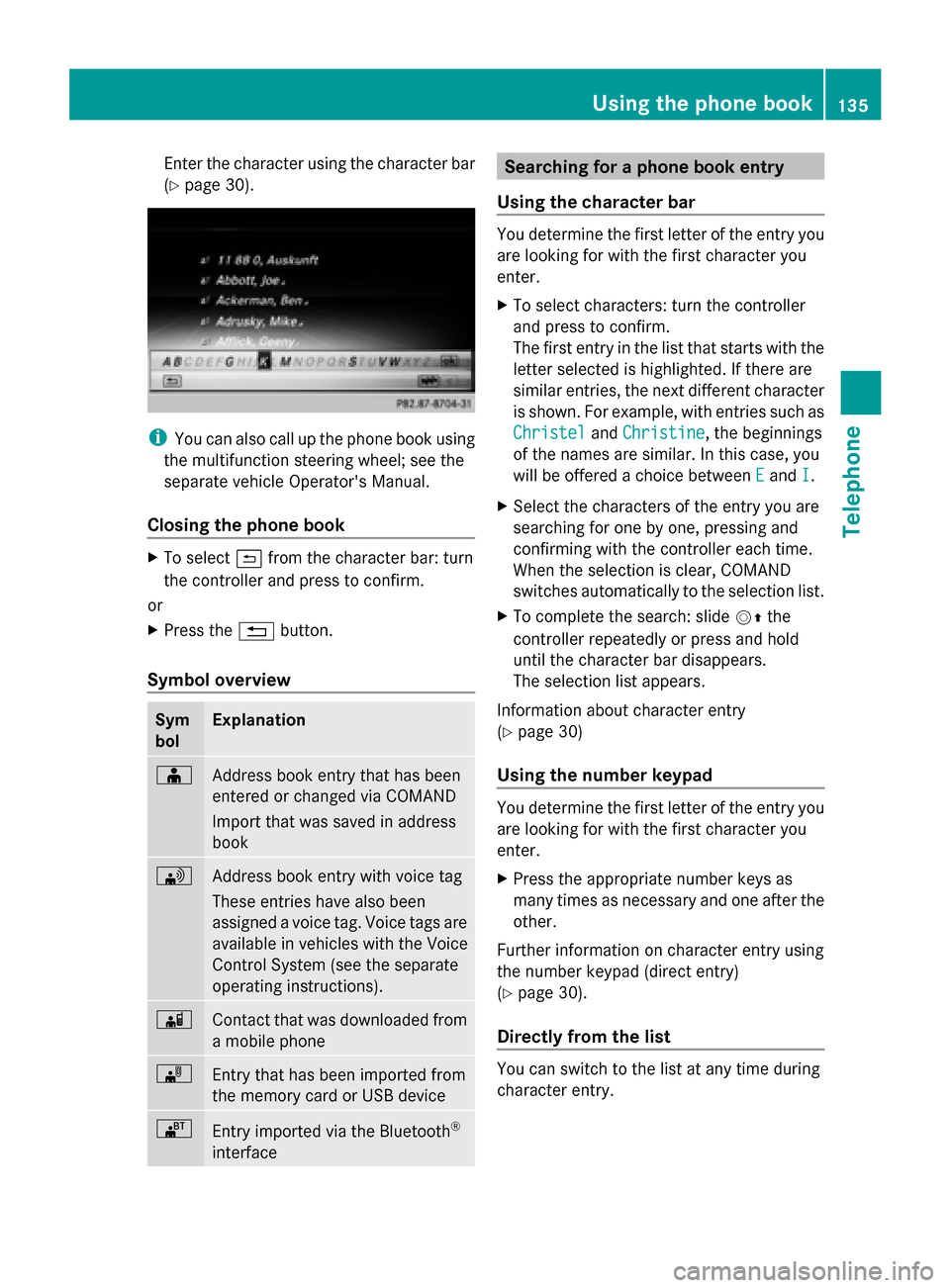

Enter the character using the character bar
(Y
page 30). i
You can also call up the phone book using
the multifunction steering wheel; see the
separate vehicle Operator's Manual.
Closing the phone book X
To select 0039from the character bar: turn
the controller and press to confirm.
or
X Press the 0038button.
Symbol overview Sym
bol Explanation
00D8
Address book entry that has been
entered or changed via COMAND
Import that was saved in address
book 0094
Address book entry with voice tag
These entries have also been
assigned a voice tag. Voice tags are
available in vehicles with the Voice
Control System (see the separate
operating instructions).
00D7
Contact that was downloaded from
a mobile phone
00BB
Entry that has been imported from
the memory card or USB device
00BA
Entry imported via the Bluetooth
®
interface Searching for a phone book entry
Using the character bar You determine the first letter of the entry you
are looking for with the first character you
enter.
X
To select characters: turn the controller
and press to confirm.
The first entry in the list that starts with the
letter selected is highlighted. If there are
similar entries, the next different character
is shown. For example, with entries such as
Christel Christel andChristine
Christine , the beginnings
of the names are similar. In this case, you
will be offered a choice between E
Eand I
I.
X Select the characters of the entry you are
searching for one by one, pressing and
confirming with the controller each time.
When the selection is clear, COMAND
switches automatically to the selection list.
X To complete the search: slide 00520097the
controller repeatedly or press and hold
until the character bar disappears.
The selection list appears.
Information about character entry
(Y page 30)
Using the number keypad You determine the first letter of the entry you
are looking for with the first character you
enter.
X
Press the appropriate number keys as
many times as necessary and one after the
other.
Further information on character entry using
the number keypad (direct entry)
(Y page 30).
Directly from the list You can switch to the list at any time during
character entry. Using the phone book
135Telephone Z

X
Slide 00520097the controller repeatedly or press
and hold until the character bar disappears.
or
X To select 0054: turn the controller and
press to confirm.
X Select an entry: turn and press the
controller.
The 0043symbol indicates that an entry
contains more than one phone number.
X To select a telephone book entry with the
0043 symbol: turn the controller and press to
confirm.
The sub-entries appear. The 0043symbol
changes to 0045. X
To select a sub-entry: turn the controller
and press to confirm.
Returning to the telephone book with
character bar:
X Press the 0038button. Displaying details for an entry
X To select an entry from the selection list:
turn the controller.
X To select the list symbol to the right of the
entry: slide 00520096the controller and press to
confirm.
X To select Details
Details: turn and press the
controller.
The detailed view appears. Closing the detailed display:
X
Slide 009500520096 the controller until the entry is
highlighted once again.
or
X Press the 0038button. Deleting an entry from the phone
book
If the entry contains only phone numbers, it
is deleted from the phone book and address
book.
If it contains additional data, such as a
navigable destination, the entry is deleted in
the phone book. However, the entry is
retained in the address book.
X To select an entry from the selection list:
turn the controller and press to confirm.
X To select the list symbol to the right of the
entry: slide 00520096the controller and press to
confirm.
X To select Delete
Delete : turn the controller and
press to confirm.
A prompt appears asking whether the entry
should be deleted.
X To select Yes YesorNo
No: turn or press the
controller.
If you select Yes
Yes , the entry is deleted in
accordance with the rules described above.
If you select No No, the process will be
canceled. 136
Using the phone bookTelephone

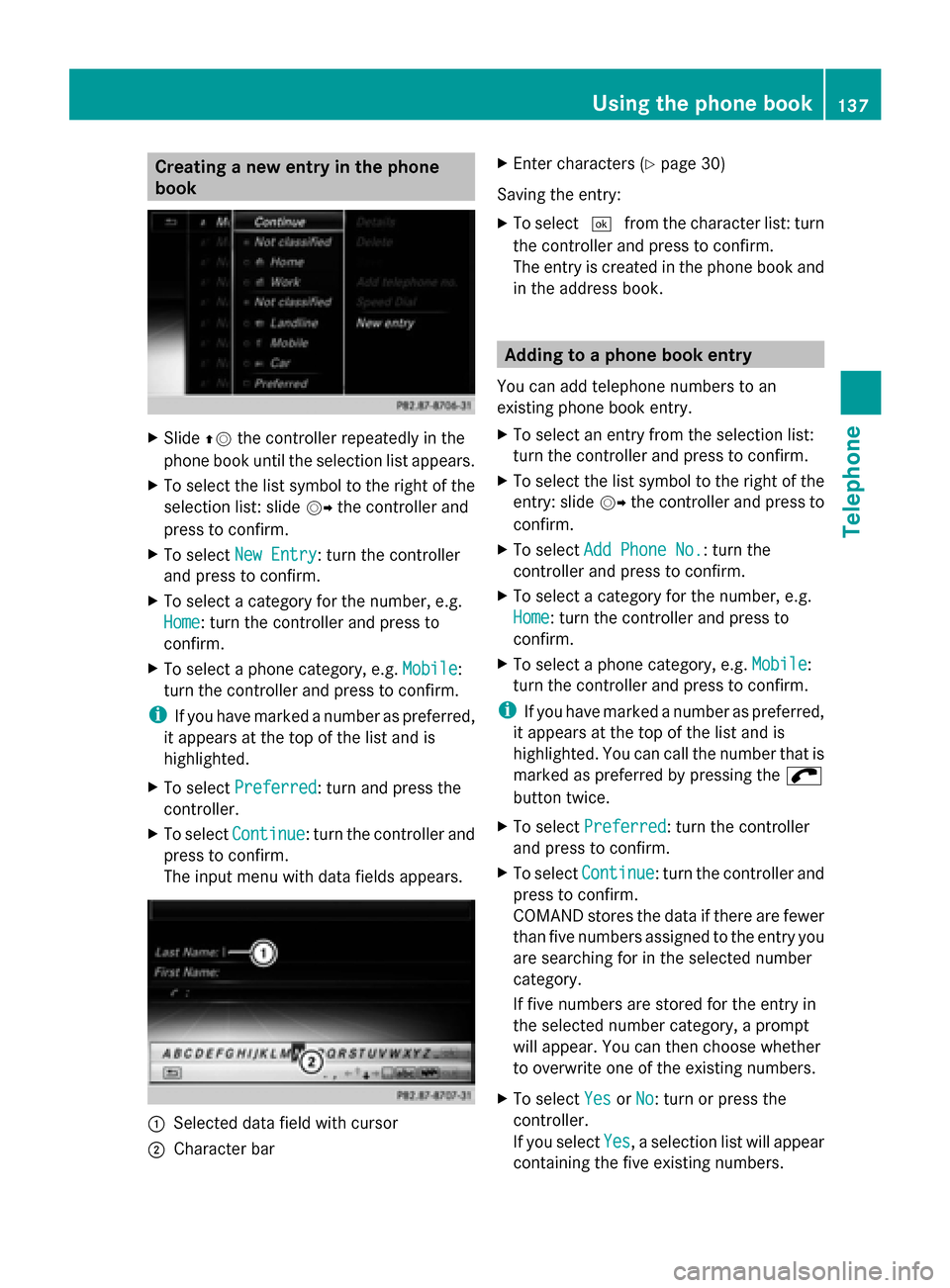

Creating a new entry in the phone
book X
Slide 00970052the controller repeatedly in the
phone book until the selection list appears.
X To select the list symbol to the right of the
selection list: slide 00520096the controller and
press to confirm.
X To select New Entry
New Entry: turn the controller
and press to confirm.
X To select a category for the number, e.g.
Home
Home: turn the controller and press to
confirm.
X To select a phone category, e.g. Mobile Mobile:
turn the controller and press to confirm.
i If you have marked a number as preferred,
it appears at the top of the list and is
highlighted.
X To select Preferred
Preferred : turn and press the
controller.
X To select Continue
Continue: turn the controller and
press to confirm.
The input menu with data fields appears. 0043
Selected data field with cursor
0044 Character bar X
Enter characters (Y page 30)
Saving the entry:
X To select 0054from the character list: turn
the controller and press to confirm.
The entry is created in the phone book and
in the address book. Adding to a phone book entry
You can add telephone numbers to an
existing phone book entry.
X To select an entry from the selection list:
turn the controller and press to confirm.
X To select the list symbol to the right of the
entry: slide 00520096the controller and press to
confirm.
X To select Add Phone No. Add Phone No. : turn the
controller and press to confirm.
X To select a category for the number, e.g.
Home
Home: turn the controller and press to
confirm.
X To select a phone category, e.g. Mobile Mobile:
turn the controller and press to confirm.
i If you have marked a number as preferred,
it appears at the top of the list and is
highlighted. You can call the number that is
marked as preferred by pressing the 0066
button twice.
X To select Preferred Preferred : turn the controller
and press to confirm.
X To select Continue
Continue: turn the controller and
press to confirm.
COMAND stores the data if there are fewer
than five numbers assigned to the entry you
are searching for in the selected number
category.
If five numbers are stored for the entry in
the selected number category, a prompt
will appear. You can then choose whether
to overwrite one of the existing numbers.
X To select Yes YesorNo
No: turn or press the
controller.
If you select Yes
Yes, a selection list will appear
containing the five existing numbers. Using the phone book
137Telephone Z

If you select
No
No, the process will be
canceled.
X To select the number to be overwritten:
turn the controller and press to confirm.
An input menu appears. The data field for
entering the new phone number is
highlighted.
X Enter characters and save the entry
(Y page 30). Storing the phone number as a speed
dial number
You can assign a speed dial to an existing
phone number.
X To select an entry from the selection list:
turn the controller and press to confirm.
X To select the desired telephone number:
turn the controller.
X To select the list symbol to the right of the
entry: slide 00520096the controller and press to
confirm.
X To select Speed Dial
Speed Dial: turn the controller
and press to confirm.
You can now store the number in one of the
ten speed dial presets (Y page 141).Using call lists
Introduction
When making calls using COMAND, incoming
and outgoing calls (including missed calls) are
stored in separate lists. Call lists are not
available unless a mobile phone is connected
to COMAND.
COMAND supports the PBAP Bluetooth ®
profile. The system behavior differs as
follows:
R Bluetooth ®
telephone with PBAP
Bluetooth ®
profile:
The call lists are downloaded automatically
from the mobile phone by COMAND as soon as the mobile phone is connected to
COMAND.
R Bluetooth ®
telephone without PBAP
Bluetooth ®
profile:
The call lists are created, displayed and
stored by COMAND.
i For Bluetooth ®
telephones without the
PBAP Bluetooth ®
profile, the call lists in
COMAND are not synchronized with those
on your mobile phone. These calls may or
may not be listed on your mobile phone,
depending on the model.
i If no mobile phone is connected, then the
Call Lists
Call Lists menu item is grayed out and
cannot be selected. If you connect a mobile
phone other than the previous one to
COMAND the previously available call lists
will be deleted automatically. The call lists
are still available on the mobile phone itself.
i If COMAND has not saved any call lists for
the phone connected: you cannot select
the respective menu items until calls have
been received or made.
Displaying missed calls in the COMAND
display is not supported by all mobile
phones. Opening the call list and selecting an
entry
X To call up the basic telephone menu: press
the 002B button one or more times.
X To switch to the menu bar: slide 00520064the
controller.
X To select Call Lists Call Lists: turn and press the
controller.
A menu appears.
X To select Entered EnteredorSelected
Selected: turn the
controller and press to confirm.
The corresponding list appears. 138
Using call listsTelephone
