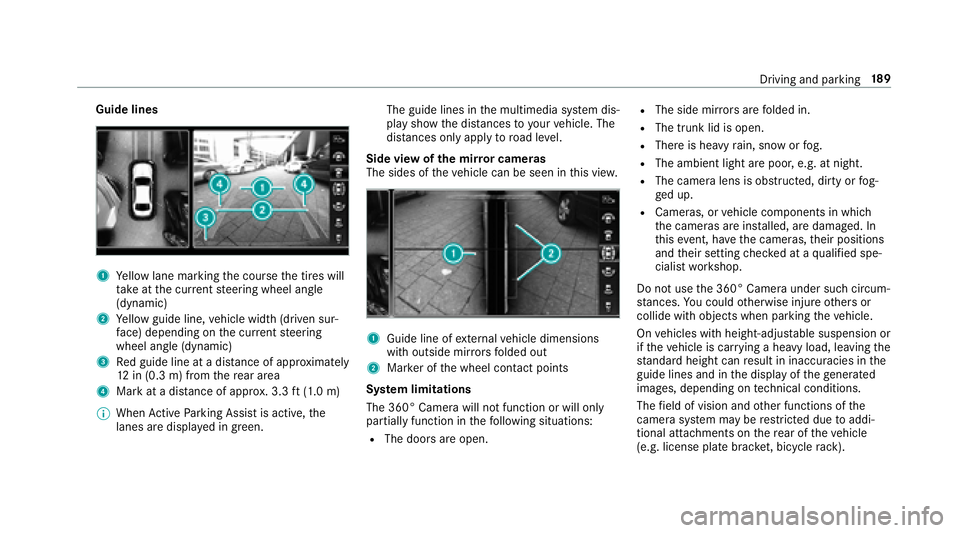

Guide lines
1Yellow lane marking the course the tires will
ta ke atthe cur rent steering wheel angle
(dynamic)
2Ye llow guide line, vehicle width (driven sur‐
fa ce) depending on the cur rent steering
wheel angle (dynamic)
3Re d guide line at a dis tance of appr oximately
12 in (0.3 m) from there ar area
4Mark at a distance of appr ox. 3.3 ft(1.0 m)
% When Active Parking Assist is active, the
lanes are displa yed in green. The guide lines in
the multimedia sy stem dis‐
play show the dis tances toyour vehicle. The
dis tances only apply toroad le vel.
Side view of the mir ror cameras
The sides of theve hicle can be seen in this vie w.
1Guide line of extern al vehicle dimensions
with outside mir rors folded out
2Mar ker of the wheel conta ct points
Sy stem limitations
The 360° Camera will not function or will only
partially function in thefo llowing situations:
RThe doors are open.
RThe side mir rors are folded in.
RThe trunk lid is open.
RThere is heavy rain, snow or fog.
RThe ambient light are poor, e.g. at night.
RThe camera lens is obstructed, dirty or fog‐
ge d up.
RCameras, or vehicle components in which
th e cameras are ins talled, are damaged. In
th is eve nt, ha vethe cameras, their positions
and their setting checked at a qualified spe‐
cialist workshop.
Do not use the 360° Camera under such circum‐
st ances. You could otherwise injure others or
collide with objects when parking theve hicle.
On vehicles with height-adjus table suspension or
if th eve hicle is car rying a heavy load, leaving the
st andard height can result in inaccuracies in the
guide lines and in the display of thege nerated
ima ges, depending on tech nical conditions.
The field of vision and other functions of the
came rasystem may be restricted due toaddi‐
tional attachments on there ar of theve hicle
(e.g. license plate brac ket, bicycle rack ).
Driving and parking 18
9

Seethe no tes on cleaning the 360° Camera
(→page 338).

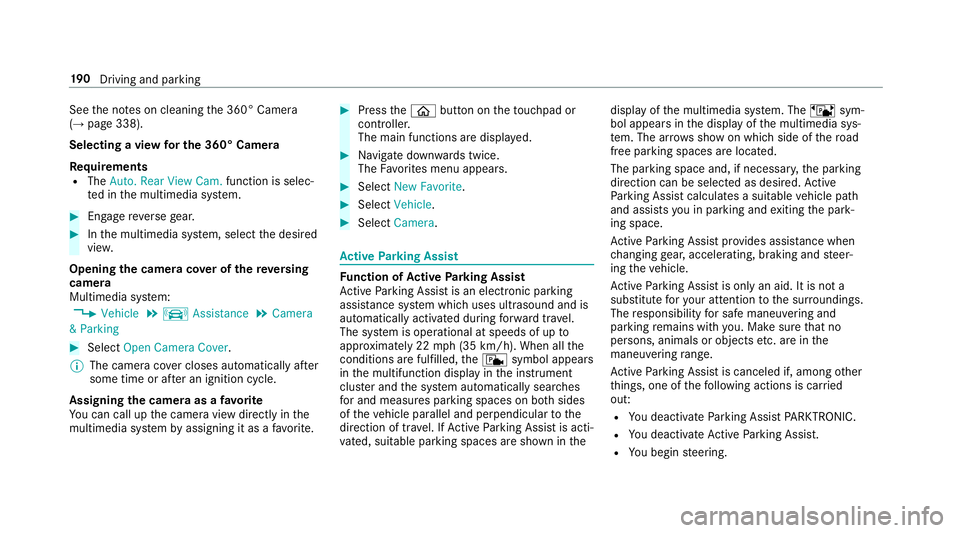

Selecting a view for the 360° Camera
Re quirements
RThe Auto. Rear View Cam. function is selec‐
te d in the multimedia sy stem.
#En gage reve rsege ar.
#In the multimedia sy stem, select the desired
vie w.
Opening the camera co ver of the reve rsing
camera
Multimedia sy stem:
,Vehicle.k Assistance.Camera
& Parking
#Select Open Camera Cover .
% The camera co ver closes au tomatical lyafte r
some time or af ter an ignition cycle.
Assigning the camera as a favo rite
Yo u can call up the camera view directly in the
multimedia sy stem byassigning it as a favo rite .
#Press theò button on theto uchpad or
cont roller.
The main functions are displa yed.
#Na vigate down wards twice.
The Favorite s menu appears .
#SelectNew Favorite .
#SelectVehicle .
#SelectCamera .
Active Parking Assist
Fu nction of Active Parking Assist
Ac tive Parking Assist is an elect ronic pa rking
assis tance sy stem which uses ultrasound and is
automatically activated during forw ard tra vel.
The sy stem is operational at speeds of up to
appr oximately 22 mph (35 km/h). When all the
conditions are ful filled, thec symbol appears
in the multifunction display in the instrument
clus ter and the sy stem automatically sear ches
fo r and measu res parking spaces on bo thsides
of theve hicle parallel and perpendicular tothe
direction of tr avel. If Active Parking Assist is acti‐
va ted, suitable parking spaces are shown in the display of
the multimedia sy stem. The ësym‐
bol appears in the display of the multimedia sys‐
te m. The ar rowsshow on which side of thero ad
free parking spaces are located.
The parking space and, if necessar y,the parking
direction can be selected as desired. Active
Pa rking Assist calculates a suitable vehicle path
and assists you in parking and exiting the park‐
ing space.
Ac tive Parking Assist pr ovides assis tance when
ch anging gear, accelerating, braking and steer‐
ing theve hicle.
Ac tive Parking Assist is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe maneu vering and
pa rking remains with yo
u. Make sure that n
o
persons, animals or objects etc. are in the
maneu vering range.
Ac tive Parking Assist is canceled if, among other
th ings, one of thefo llowing actions is car ried
out:
RYo u deactivate Parking Assist PARKTRONIC.
RYou deactivate Active Parking Assist.
RYo u begin steering.
19 0
Driving and pa rking

RYouappl yth e parking brake.
RYo u enga getransmission position j.
RESP®intervenes.
RYo u open the trunk lid.
Sy stem limitations
Objects located abo veor below the de tection
ra nge of Active Parking Assist are not de tected
when the parking space is being measured.
These are also not take n into account when the
parking maneuver is calculated, e.g. overhanging
loads, overhangs or loading ramp s of truc ksor
th e boundaries of parking spaces. In some cir‐
cums tances, Active Parking Assist may therefore
guide you into the parking space prematurely.
&
WARNING Risk of accident due to
objects located abo veor below the
de tection range of Active Parking Assist
If th ere are objects abo veor below the
de tection range, thefo llowing situations may
arise:
RAc tive Parking Assist may steer too early.
RVe hicles with automatic transmis‐
sion: Thevehicle may not stop in front of
th ese objects.
This could cause a collision.
#In these situations, do not use Active
Pa rking Assist.
Sn owfa ll or heavy rain may lead toa parking
space being measured inaccuratel y.Pa rking
spaces that are partial lyoccupied bytrailer
dr aw bars might not be identified as such or be
measured incor rectly. Only use Active Parking
Assist on le vel, high-grip ground.
Do no t useActive Parking Assist in thefo llowing
situations:
RIn extreme weather conditions such as ice,
pac ked snow or in heavy rain.
RIfyo u are transporting a load that pr otru des
be yond theve hicle.
RIfth e parking space is on a steep downhill or
uphill gradient.
RIf yo u ha veinstalled snow chains. Ac
tive Parking Assist may also display parking
spaces that are not suitable for parking, e.g.:
RPa rking spaces where parking is prohibited.
RPa rking spaces on unsuitable sur faces.
Ac tive Parking Assist will not assist youwit h
parking spaces at right angles tothe direction of
tr ave l in thefo llowing situations:
RIf two parking spaces are located immedi‐
ately next toeach other.
RIfth e parking space is directly next toa low
obs tacle such as a low curb.
Ac tive Parking Assist will not assist you with
parking spaces at right angles tothe direction of
tr ave l in thefo llowing situat ions:
RIf
th e parking space is on a curb.
RIfth e parking space is bordered byan obs ta‐
cle, e.g. a tree, a post or a traile r.
Driving and parking 19
1

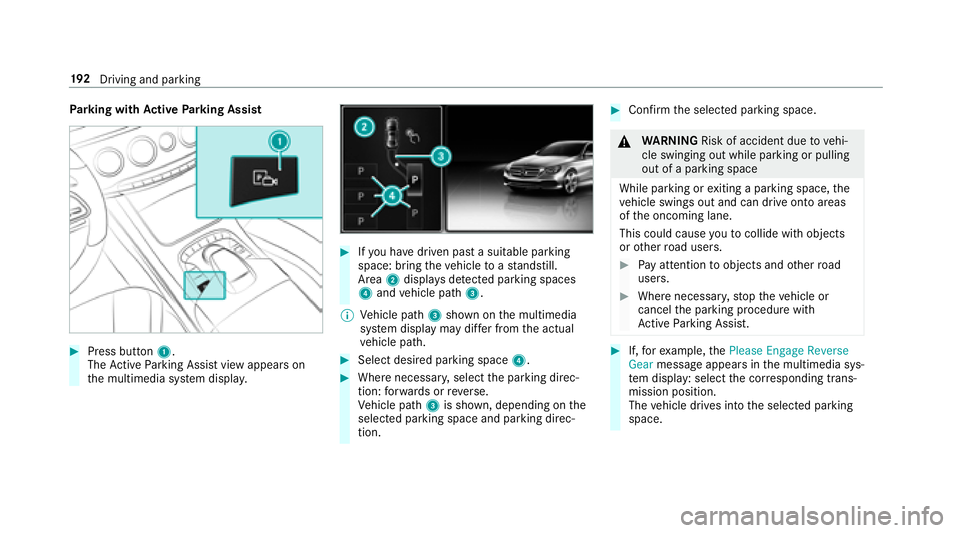

Parking with Active Parking Assist
#Press button 1.
The Active Parking Assist view appears on
th e multimedia sy stem displa y.
#Ifyo u ha vedriven past a suitable parking
space: bring theve hicle toast andstill.
Area 2displa ysdetected park ing spaces
4 and vehicle path 3.
% Vehicle path 3shown on the multimedia
sy stem display may dif fer from the actual
ve hicle path.
#Select desired parking space 4.
#Where necessary,select the parking direc‐
tion: forw ards or reve rse.
Ve hicle path 3is shown, depending on the
selected parking space and parking direc‐
tion.
#Confirm the selected parking space.
&
WARNING Risk of accident due tovehi‐
cle swinging out while parking or pulling
out of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas
of the oncoming lane.
This could cause youto collide wi thobjects
or other road users.
#Pa yattention toobjects and other road
users.
#Where necessar y,stop theve hicle or
cancel the parking procedure with
Ac tive Parking Assist.
#If, forex ample, thePlease Engage Reverse
Gear message appears in the multimedia sys‐
te m display: select the cor responding trans‐
mission position.
The vehicle drives into the selected parking
space.
19 2
Driving and pa rking

On completion ofthe parking procedure, the
Parking Assist Finished, Take Control of Vehicle
display message appears. Further maneuvering
may still be necessar y.
#After completion of the parking procedure,
safeguard theve hicle against rolling away.
When requ ired bylegal requirements or local
conditions: turn the wheels towa rdsth e curb.
% You can stop theve hicle and change the
transmission position du ring the parking pro‐
cedure. The sy stem then calculates a new
ve hicle path. The parking procedure can
th en be continued. If no new vehicle path is
av ailable, the transmission position will be
ch anged again. If theve hicle has not yet
re ached the parking space, the parking pro‐
cedure will be canceled, should a gear be
ch anged.
Exiting a pa rking space with Active Parking
Assist
Re quirements:
Yo u can only exit a parking space with Active
Pa rking Assist if you ha veprev iously par kedth e
ve hicle with Active Parking Assist. Please no
tethat you are responsible forth eve hi‐
cle and sur roundings during the entire parking
procedure.
#St art theve hicle.
#Press button 1.
The Active Parking Assist view appears on
th e multimedia sy stem displa y.
#Ifth eve hicle has been par ked at right angles
to the direction of tra vel: in area 2, select
direction of tra vel3.
% The vehicle path shown on the multimedia
sy stem display may dif fer from the actual
ve hicle path.
#Confirm direction of exit3 todrive out of
th e parking space.
Driving and parking 19
3

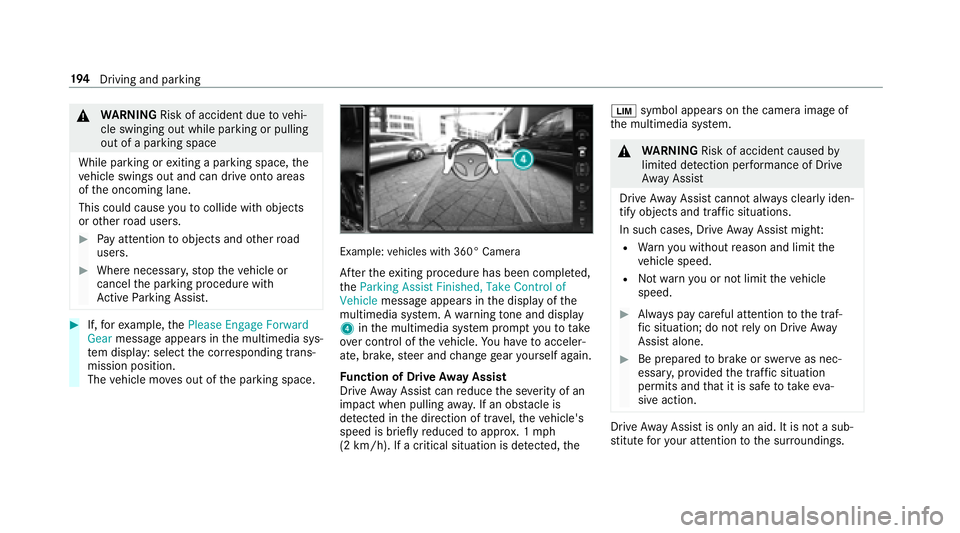

&WARNING Risk of accident due tovehi‐
cle swinging out while parking or pulling
out of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas
of the oncoming lane.
This could cause youto collide wi thobjects
or other road users.
#Pa yattention toobjects and other road
users.
#Where necessar y,stop theve hicle or
cancel the parking procedure with
Ac tive Parking Assist.
#If, forex ample, thePlease Engage Forward
Gear message appears in the multimedia sys‐
te m display: select the cor responding trans‐
mission position.
The vehicle mo ves out of the parking space.
Example: vehicles with 360° Camera
Afterth eex iting procedure has been comple ted,
th eParking Assist Finished, Take Control of
Vehicle message appears in the display of the
multimedia sy stem. A warning tone and displ ay
4 inthe multimedia sy stem prom ptyouto take
ove r control of theve hicle. You ha vetoacceler‐
ate, brake, steer and change gear yourself again.
Fu nction of Drive Away Assist
Drive AwayAssist canreduce the se verity of an
impact when pulling away. If an obs tacle is
de tected in the direction of tra vel,th eve hicle's
speed is briefly reduced toappr ox. 1 mph
(2 km/h). If a critical situation is de tected, the È
symbol appears onthe camera image of
th e multimedia sy stem.
&
WARNING Risk of accident caused by
limited de tection per form ance of Drive
Aw ayAssist
Drive AwayAssist cannot al ways clearly iden‐
tify objects and traf fic situations.
In such cases, Drive AwayAssist might:
RWarnyouwit hout reason and limit the
ve hicle speed.
RNot warnyou or not limit theve hicle
speed.
#Alw ays pay careful attention tothe traf‐
fi c situation; do not rely on Driv eAw ay
Assist alone.
#Be prepared tobrake or swer veas nec‐
essar y,prov ided the tra ffic situation
permits and that it is safe totake eva‐
sive action.
Drive AwayAssist is only an aid. It is not a sub‐
st itute foryo ur attention tothe sur roundings.
19 4
Driving and pa rking

Theresponsibility for safe maneu vering and
pa rking remains with you. Make sure that no
persons, animals or objects etc. are in the
maneu vering range.
A risk of a collision may arise in thefo llowing sit‐
uations, forex ample:
RIfth e driver mixes up the accelera tor and
brake pedals.
RIf th e wrong gear is selecte d.
The Drive AwayAssist function is active under
th efo llowing conditions:
RIf Pa rking Assist PARKTRONI Cis activated.
REver ytime thege ar is changed tok orh
when theve hicle is at a standstill.
RIf th e de tected obs tacle is less than appr ox.
3.3 ft(1.0 m) away.
RIfth e maneuvering assis tance function is
acti vated in the multimedia sy stem.
Sy stem limitations
Drive AwayAssist is notavailable on inclines. Fu
nction of Cross Traf fic Alert
% Also read the instructions on Blind Spot
Assist (
→page 202) (→page 203)
(→page 202).
Ve hicles with Blind Spot Assis t:Dr ivers can
also be warned of any crossing tra ffic when
backing up out of a parking space. If a critical
situation is de tected, a symbol appea rsinthe
multimedia sy stem displa y.Ifth e driver does not
re spond tothewa rning, theve hicle's brakes can
be applied automatically. Todo this, thefunct
ion
uses thera dar sensors in the bumper. The area
adjacent totheve hicle is continually monitored.
If th era dar sensors are obstructed byvehicles
or other objects, de tection is not possible.
The Cross Traf fic Alert function is acti veunder
th efo llowing conditions:
RIf Blind Spot Assist is activated.
RIf th eve hicle is backing up at walking pace.
RIfth e maneuvering assis tance function is
acti vated in the multimedia sy stem. Sy
stem limitations
The Cross Traf fic Alert function is not available
on inclines.
Deactivating/activating the maneuvering
assistant
Multimedia sy stem:
,Vehicle.k Assistance.Camera
& Parking.Maneuvering Assist.
#Switch the function on Oor off ª.
ATTENTION ASSIST
Fu nction of ATTENTION ASSIST
AT TENTION ASSIST assists you on long, mon oto‐
nous journe ys, e.g. on highw ays and trunk roads.
If AT TENTION ASSIST de tects indicators of fati‐
gue or increasing lapses in concentration on the
part of the driver, it suggests taking a brea k.
AT TENTION ASSIST is only an aid. It cann ot
alw ays de tect fatigue or lapses in concentration
in time. The sy stem is not a substitute for a well-
re sted and attentive driver. On long journe ys,
ta ke regular breaks in good time that allow for
adequate recuperation.
Driving and park ing19
5

You can choose between two settings.
RStandard: normal sy stem sensitivity.
RSensitive: higher system sensitivity. The
driver is warned earlier and the attention
le ve l de tected byATTENTION ASSIST is adap‐
te d according ly.
If dr owsiness or increasing lapses in concentra‐
tion are de tected, theATTENTION ASSIST: Take
a Break! warning appears in the Instrument Dis‐
pla y.Yo u can ackn owledge the message and
tak e a break where necessar y.Ifyo udo not take
a break and ATTENTION ASSIST continues to
de tect increasing lapses in concentration, you
will be warned again af ter a minimum of
15 minutes.
You can ha vethefo llowing status information for
AT TENTION ASSIST displa yed in the assis tance
menu of the on-board computer:
RThe length of the journey since the last
break.
RThe attention le vel de term ined byATTENTION
ASSIS T.
If AT TENTION ASSIST is unable tocalculate the
attention le vel and cannot issue a warning, the
System Suspended messageappears.
If a warning is given in the Instrument Displa y,
th e multimedia sy stem of fers to sear chfor a rest
area. You can select a rest area and start naviga‐ tion
tothis rest area. This function can be activa‐
te d and deactivated in the multimedia sy stem.
If AT TENTION ASSIST is deactivated, theé
symbol appears in the assis tance graphic in the
Instrument Display when the engine is running.
AT TENTION ASSIST is activated automatically
when the engine is re-sta rted. The last selected
sensitivity le velre mains stored.
Sy stem limitations
AT TENTION ASSIST is active in the37 mph
(60 km/h) to124mp h (200 km/h) speed range.
The functionality of ATTENTION ASSIST is
re stricted, and warnings may be dela yed or not
occur at all in thefo llowing situations:RIf yo u ha vebeen driving for less than 30
minutes.
RIf th ero ad condition is poor (une venro ad
sur face or po tholes).
RIfth ere is a strong side wind.
RIfyo u adopt a sporty driving style (high cor‐
nering speeds or high rates of acceleration).
RIfth eSt eering Assist function of Active Dis‐
ta nce Assist DISTRONIC is acti ve.
19 6
Driving and pa rking

RIfth e time has been set incor rectly.
RIn acti vedriving situations, if youch ange
lanes and vary your speed frequentl y.
The ATTENTION ASSIST tiredness or alertness
assessment is dele ted and restar ted when con‐
tinuing the journey in thefo llowing situations:
RIf yo uswit choff the engine.
RIfyo u unfas tenyo ur seat beltand open the
driver's door (e.g. changing drivers or taking
a break).
Setting ATTENTION ASSIST
Multimedia sy stem:
,Vehicle.k Assistance.ATTEN-
TION ASSIST
Setting options
#Select Standard, SensitiveorOff.
Suggesting a rest area
#Select Suggest Rest Area .
#Activate Oor deacti vate the function ª.
If AT TENTION ASSIST de tects fatigue or
increasing la ckof attention, it suggests a
re st area in the vicinity.
#Select a sugges tedre st area.
Yo u are guided tothe selected rest area.
Traf fic Sign Assist
Fu nction of Traf fic Sign Assist
Tr af fic Sign Assist is only an aid. It cannot alw ays
re liably de tect the maximum permissible speed
and the applicable traf fic signs. The driver is
re sponsible for complying with the applicable
tra ffic regulations.
Driving and parking 19
7

Traf fic Sign Assist detects traf fic signs wi thmul‐
tifunction camera 1and assist syo uby display‐
ing de tected speed limits and overtaking restric‐
tions in the instrument clus ter.The camera also
de tects traf fic signs wi thare striction indicated
by an additional sign (e.g. in wet conditions).
Wa rning when the maximum permissible
speed is exceeded
The sy stem can warnyouif yo u unin tentional ly
exc eed the maximum permissible speed. Todo
th is, you can specify inthe multimedia sy stem
by how much the maximum permissible speed
can be exceeded before a warning is issued. You
can specify whe ther thewa rning is tobe just a
visual warning or an acoustic one as well. If the
automatic speed accep tance forAc tive Dis tance
Assist DISTRONIC is acti vated, thewa rnings are
suppressed. Display in
the Instrument Display
1Pe rm issible speed
2Perm issible speed when there is a restriction
3Ad ditional sign with restriction
% Display of speed restriction signs has priority
ove rot her recognized traf fic signs, e.g. over‐
ta king restriction signs.
Since Traf fic Sign Assist also usesthe data
st ored in the navigation sy stem, it can update
th e display in thefo llowing situations without
de tecting traf fic signs:
RWhen theve hicle changes roads, e.g. for a
free wayentr yor exit lane.
RWhen a village or city boundary is passed
which is stored in the digital map.
Traf fic Sign Assist is notavailable in all coun‐
tries. If it is una vailable, display 1is shown in
th e speedome ter.
Sy stem limitations
The sy stem may be impaired or may not function
in thefo llowing situations:
RIf yo u are driving in conditions of poor visibil‐
ity, e.g. due toinsuf ficient illumination of the
ro ad, highly variable shade conditions, or due
to rain, sno w,fog or heavy spr ay.
19 8
Driving and pa rking
