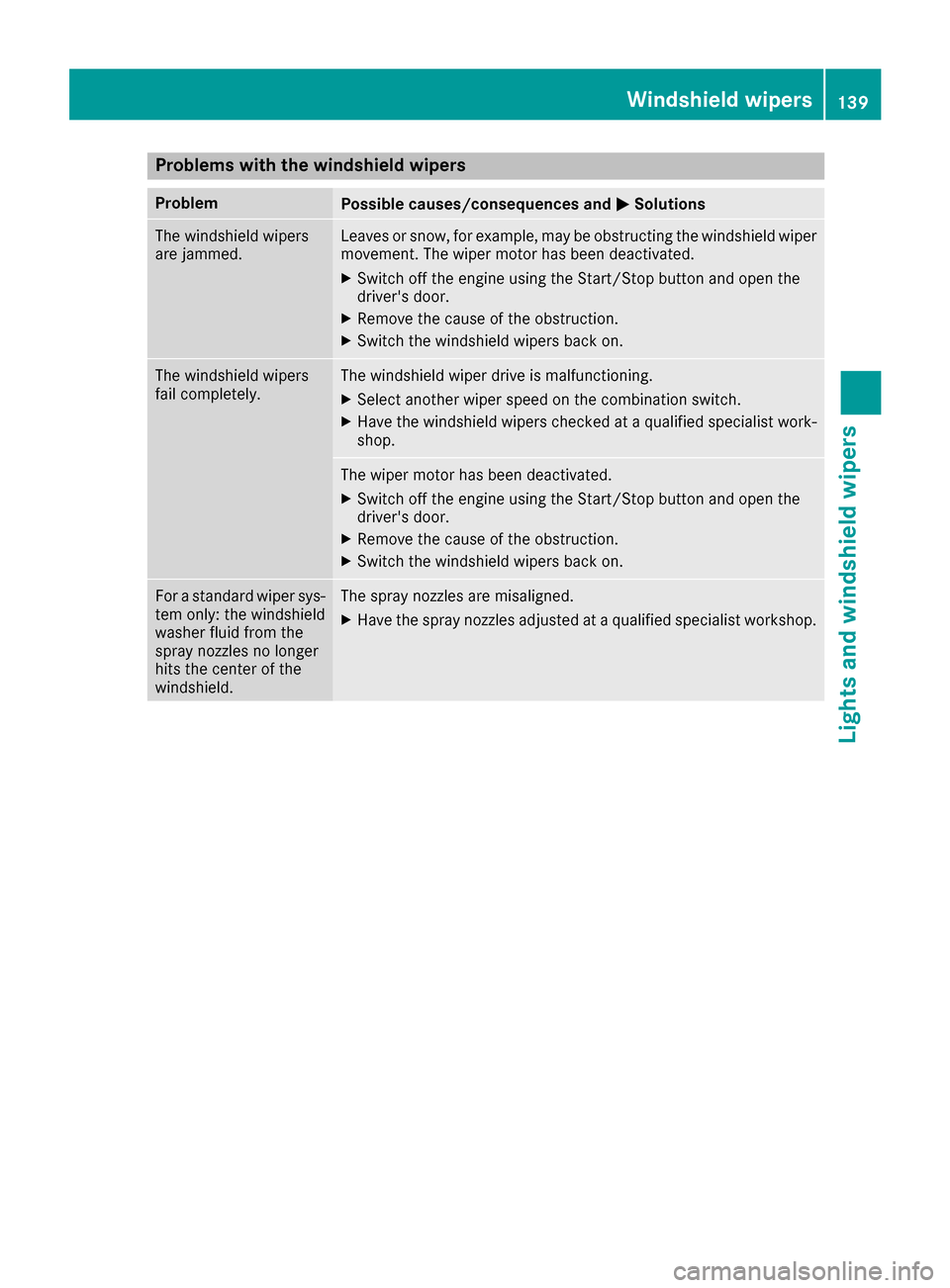

Problems with the windshield wipers
ProblemPossible causes/consequences andMSolutions
The windshield wipers
are jammed.Leaves or snow, for example, may be obstructing the windshield wiper
movement. The wiper motor has been deactivated.
XSwitch off the engine using the Start/Stop button and open the
driver's door.
XRemove the cause of the obstruction.
XSwitch the windshield wipers back on.
The windshield wipers
fail completely.The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the combination switch.
XHave the windshield wipers checked at a qualified specialist work-
shop.
The wiper motor has been deactivated.
XSwitch off the engine using the Start/Stop button and open the
driver's door.
XRemove the cause of the obstruction.
XSwitch the windshield wipers back on.
For a standard wiper sys-
tem only: the windshield
washer fluid from the
spray nozzles no longer
hits the center of the
windshield.The spray nozzles are misaligned.
XHave the spray nozzles adjusted at a qualified specialist workshop.
Windshield wipers139
Lights and windshield wipers
Z

Useful information
i
This Operator's Manual describes all models
and all standard and optional equipment of
your vehicle available at the time of publica-
tion of the Operator's Manual. Country-spe-
cific differences are possible. Please note
that your vehicle may not be equipped with all
features described. This also applies to
safety-related systems and functions.
iRead the information on qualified specialist
workshops (Ypage 28).
Overview of climate control systems
General notes
Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To prevent the windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only briefly
Rswitch on the cooling with air dehumidifica-
tion function
Rswitch on the defrost windshield function
briefly, if required
Climate control regulates the temperature and
air humidity in the vehicle interior. The air filter
cleans the air, thus improving the interior cli-
mate.
For vehicles with a combustion engine, the
"Cooling with air dehumidification" function is
only available when the engine is running. For
hybrid vehicles, the "Cooling with air dehumidi-
fication" function is also available via the elec-
tric refrigerant compressor when the engine is
not running. Optimum climate control is only
achieved with the side windows and roof closed.
If you start the engine using your smartphone,
the last selected climate control setting is reac-
tivated (
Ypage 164).
The residual heat function can only be activated
or deactivated with the ignition switched off
(
Ypage 152).
iVentilate the vehicle for a brief period during
warm weather, e.g. using the convenience
opening feature (
Ypage 95). This will speed
up the cooling process and the desired inte- rior temperature will be reached more
quickly.
iThe integrated filter filters out most parti-
cles of dust and soot and completely filters
out pollen. It also reduces gaseous pollutants
and odors. A clogged filter reduces the
amount of air supplied to the vehicle interior.
For this reason, you should always observe
the interval for replacing the filter, which is
specified in the Maintenance Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance Book- let.
iIt is possible that the blower may be activa-
ted automatically 60 minutes after the Smart-
Key has been removed depending on various
factors, e.g. the outside temperature. The
vehicle is then ventilated for 30 minutes to dry
the climate control system.
140Overview of climate control systems
Climate control

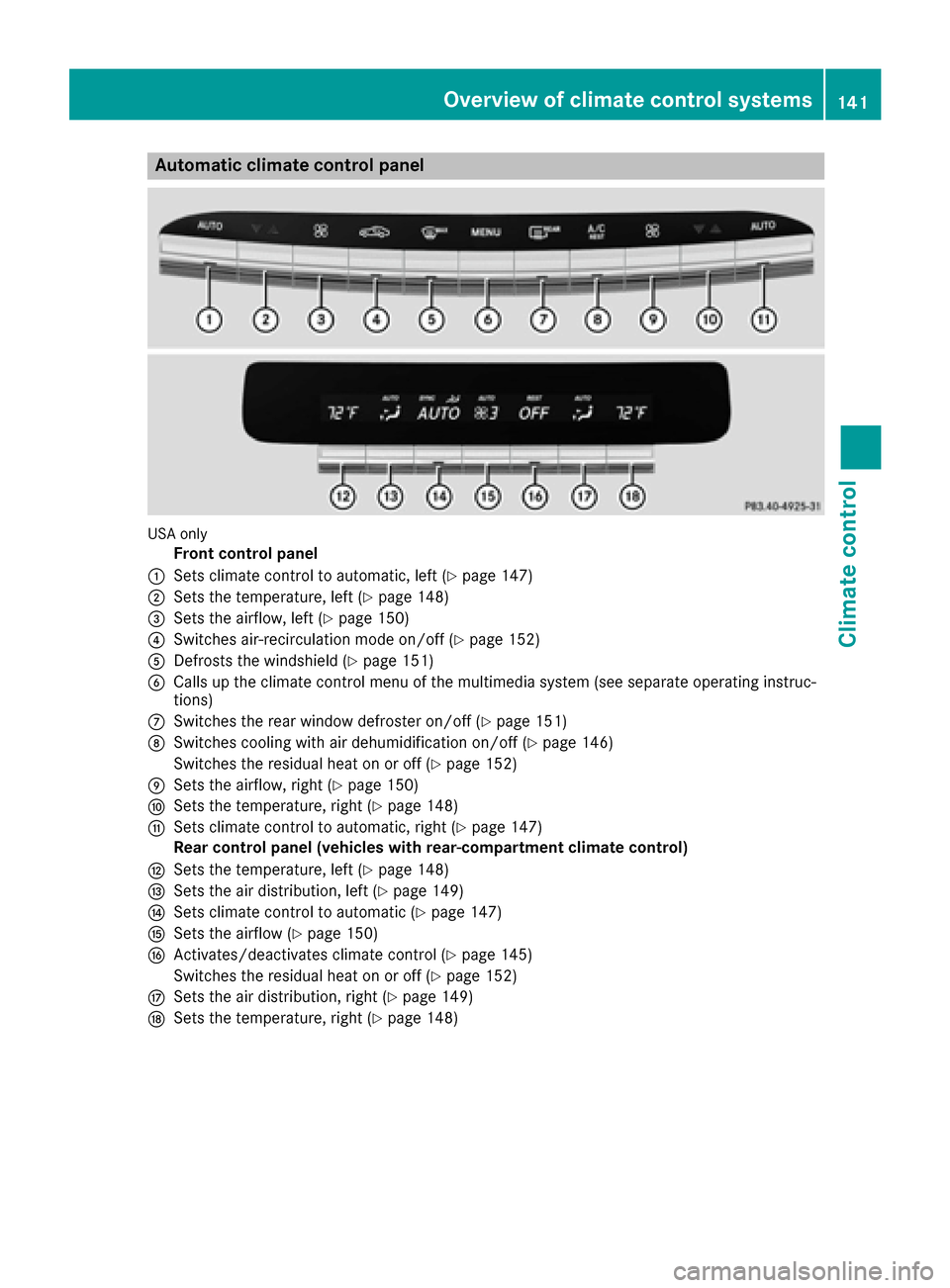

Automa tic climate control panel
USAonly
Front control panel
:Sets climat econtrol to automatic, lef t (Ypage 147)
;Sets thetemperature, lef t (Ypage 148)
=Sets theairflow, lef t (Ypage 150)
?Switches air-recirculation mod eon/off (Ypage 152)
ADefrost sth ewindshield (Ypage 151)
BCalls up theclimat econtrol men uof th emultimedia system (see separat eoperating instruc-
tions)
CSwitches th erear window defroste ron/off (Ypage 151)
DSwitches coolin gwit hair dehumidification on/off (Ypage 146)
Switches th eresidual heat on or off (
Ypage 152)
ESets theairflow, right (Ypage 150)
FSets thetemperature, right (Ypage 148)
GSets climatecontrol to automatic, right (Ypage 147)
Rea rcontrol panel (vehicles wit hrear-compartmen tclimat econtrol )
HSets thetemperature, lef t (Ypage 148)
ISets theair distribution ,lef t (Ypage 149)
JSets climat econtrol to automatic (Ypage 147)
KSets theairflow (Ypage 150)
LActivates/deactivates climat econtrol (Ypage 145)
Switches th eresidual heat on or off (
Ypage 152)
MSets theair distribution ,right (Ypage 149)
NSets th etemperature, right (Ypage 148)
Overview of climate control systems141
Climate control

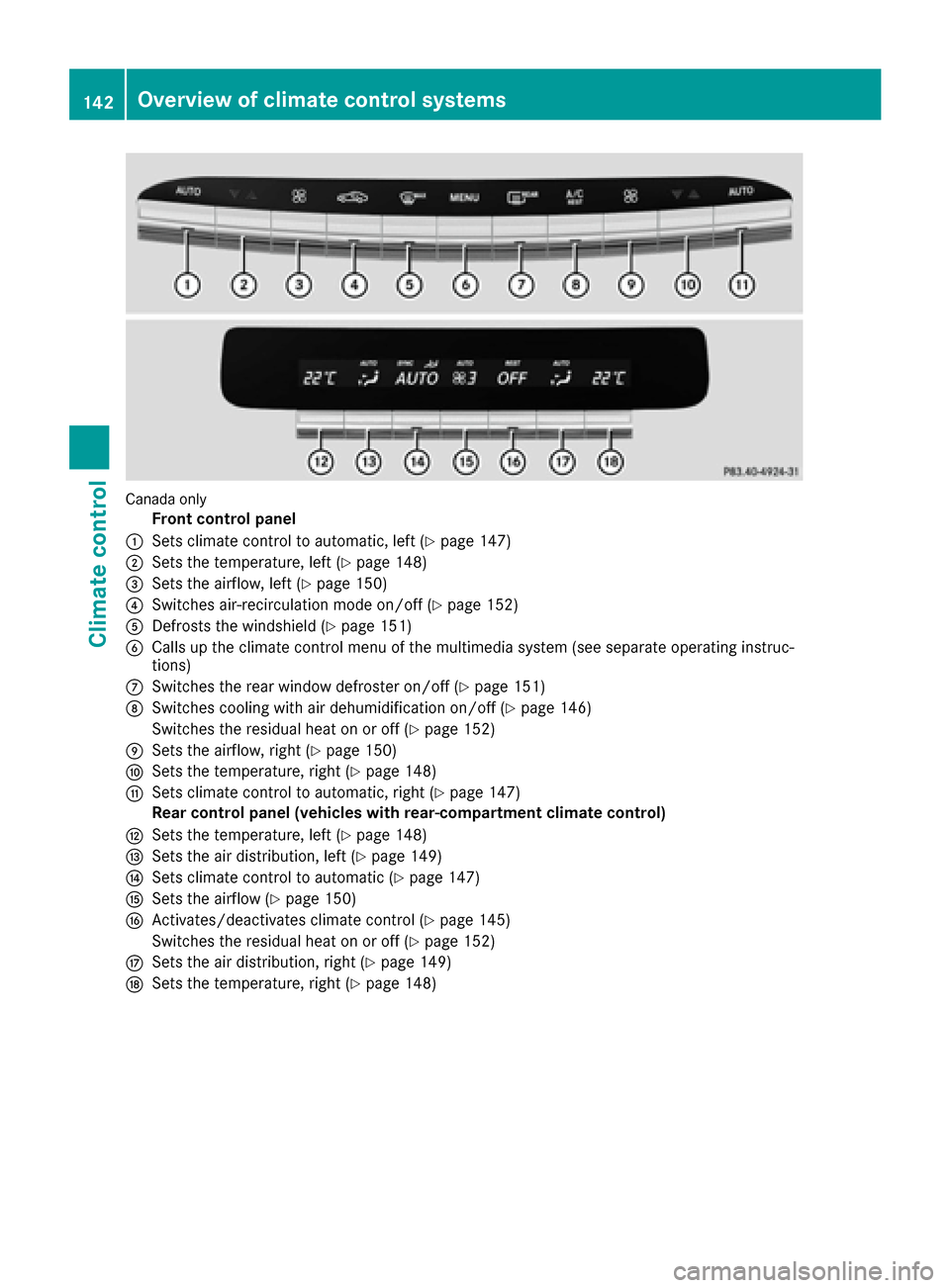

Canada only
Front control panel
:Sets climate control to automatic, left (Ypage 147)
;Sets the temperature, left (Ypage 148)
=Sets the airflow, left (Ypage 150)
?Switches air-recirculation mode on/off (Ypage 152)
ADefrosts the windshield (Ypage 151)
BCalls up the climate control menu of the multimedia system (see separate operating instruc-
tions)
CSwitches the rear window defroster on/off (Ypage 151)
DSwitches cooling with air dehumidification on/off (Ypage 146)
Switches the residual heat on or off (
Ypage 152)
ESets the airflow, right (Ypage 150)
FSets the temperature, right (Ypage 148)
GSets climate control to automatic, right (Ypage 147)
Rear control panel (vehicles with rear-compartment climate control)
HSets the temperature, left (Ypage 148)
ISets the air distribution, left (Ypage 149)
JSets climate control to automatic (Ypage 147)
KSets the airflow (Ypage 150)
LActivates/deactivates climate control (Ypage 145)
Switches the residual heat on or off (
Ypage 152)
MSets the air distribution, right (Ypage 149)
NSets the temperature, right (Ypage 148)
142Overview of climate control systems
Climate control

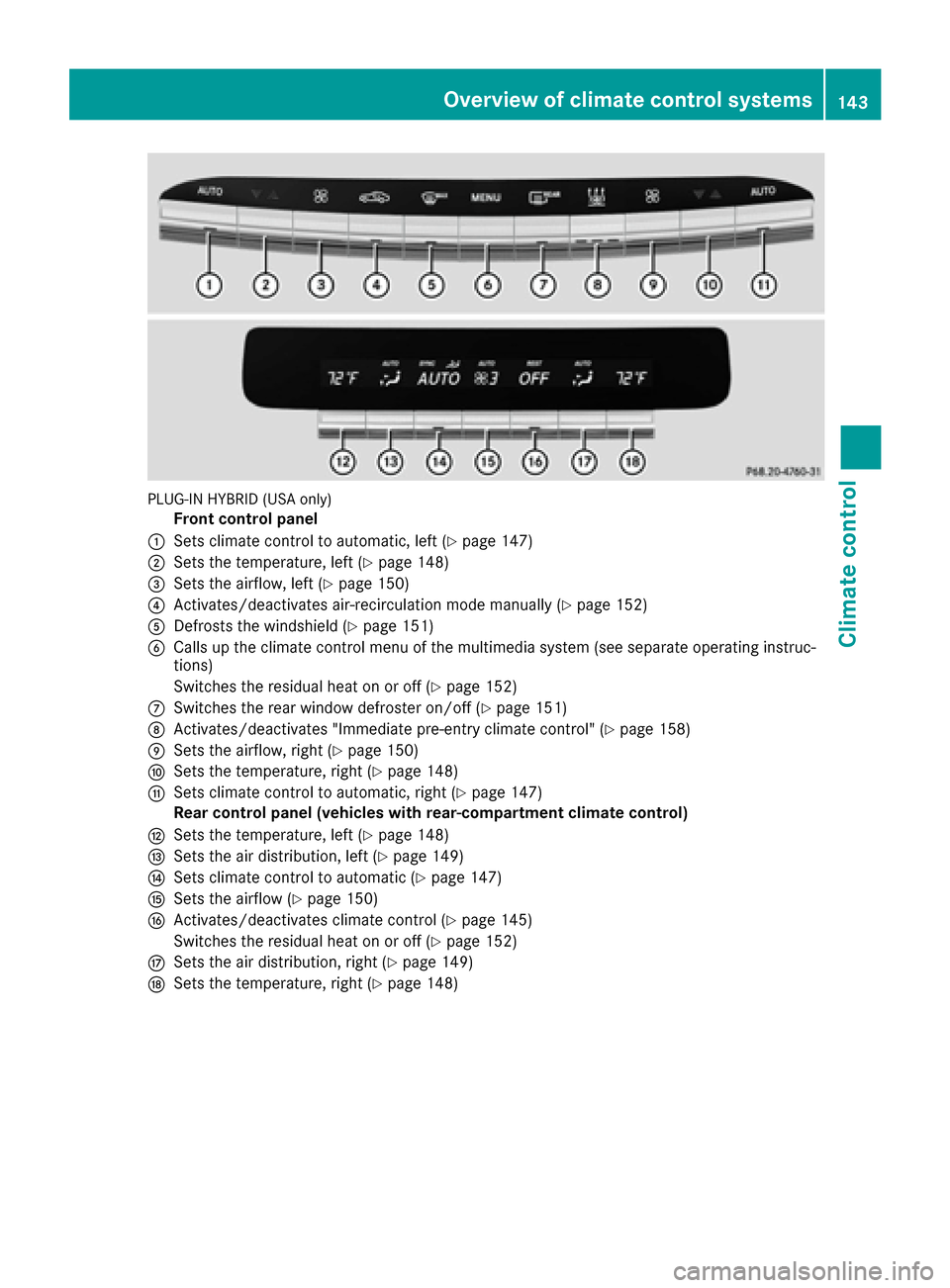

PLUG-IN HYBRID (USA only)
Front control panel
:Sets climate control to automatic, left (Ypage 147)
;Sets the temperature, left (Ypage 148)
=Sets the airflow, left (Ypage 150)
?Activates/deactivates air-recirculation mode manually (Ypage 152)
ADefrosts the windshield (Ypage 151)
BCalls up the climate control menu of the multimedia system (see separate operating instruc-
tions)
Switches the residual heat on or off (
Ypage 152)
CSwitches the rear window defroster on/off (Ypage 151)
DActivates/deactivates "Immediate pre-entry climate control" (Ypage 158)
ESets the airflow, right (Ypage 150)
FSets the temperature, right (Ypage 148)
GSets climate control to automatic, right (Ypage 147)
Rear control panel (vehicles with rear-compartment climate control)
HSets the temperature, left (Ypage 148)
ISets the air distribution, left (Ypage 149)
JSets climate control to automatic (Ypage 147)
KSets the airflow (Ypage 150)
LActivates/deactivates climate control (Ypage 145)
Switches the residual heat on or off (
Ypage 152)
MSets the air distribution, right (Ypage 149)
NSets the temperature, right (Ypage 148)
Overview of climate control systems143
Climate control

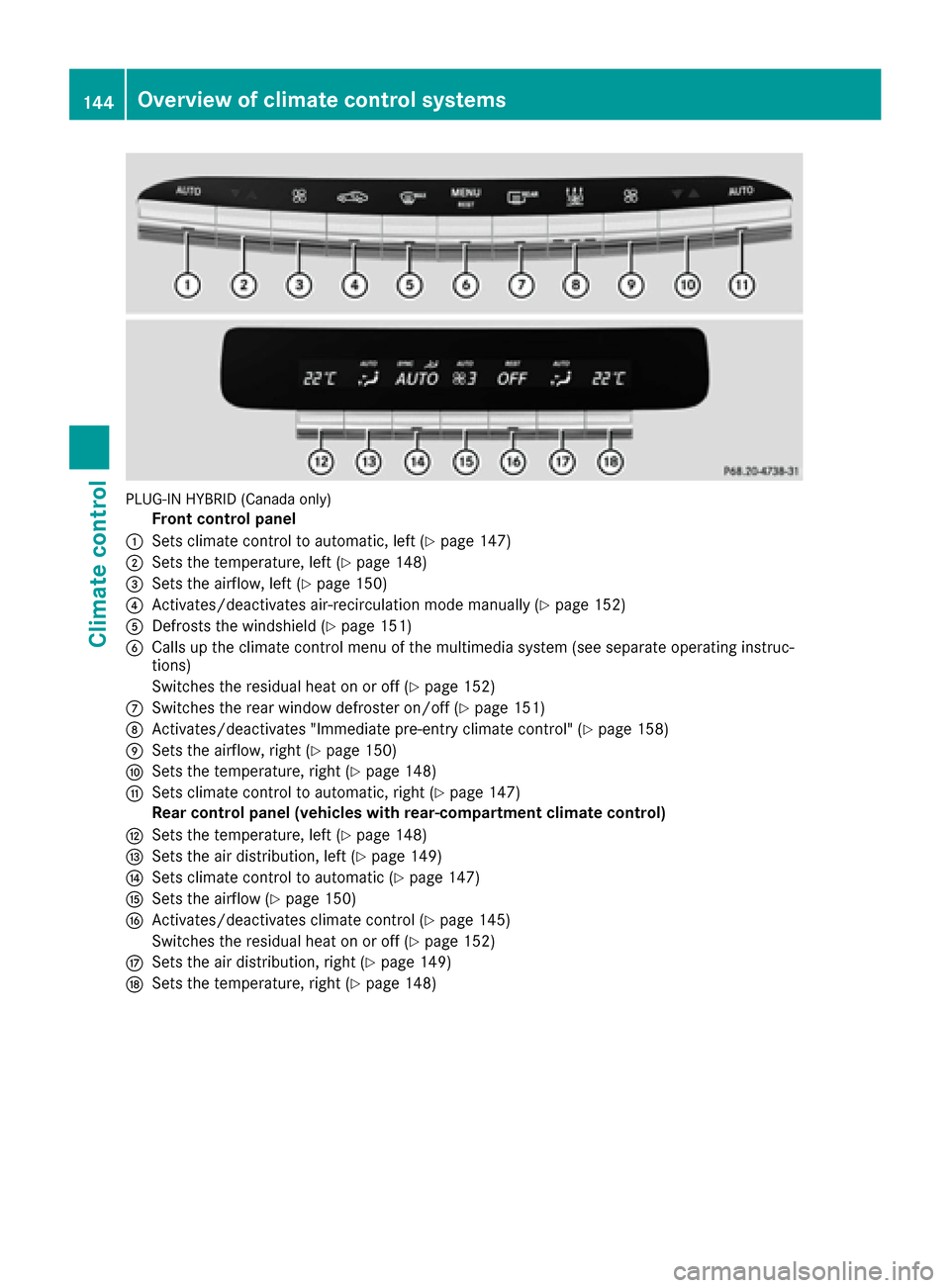

PLUG-IN HYBRID (Canada only)
Front control panel
:Sets climate control to automatic, left (Ypage 147)
;Sets the temperature, left (Ypage 148)
=Sets the airflow, left (Ypage 150)
?Activates/deactivates air-recirculation mode manually (Ypage 152)
ADefrosts the windshield (Ypage 151)
BCalls up the climate control menu of the multimedia system (see separate operating instruc-
tions)
Switches the residual heat on or off (
Ypage 152)
CSwitches the rear window defroster on/off (Ypage 151)
DActivates/deactivates "Immediate pre-entry climate control" (Ypage 158)
ESets the airflow, right (Ypage 150)
FSets the temperature, right (Ypage 148)
GSets climate control to automatic, right (Ypage 147)
Rear control panel (vehicles with rear-compartment climate control)
HSets the temperature, left (Ypage 148)
ISets the air distribution, left (Ypage 149)
JSets climate control to automatic (Ypage 147)
KSets the airflow (Ypage 150)
LActivates/deactivates climate control (Ypage 145)
Switches the residual heat on or off (
Ypage 152)
MSets the air distribution, right (Ypage 149)
NSets the temperature, right (Ypage 148)
144Overview of climate control systems
Climate control

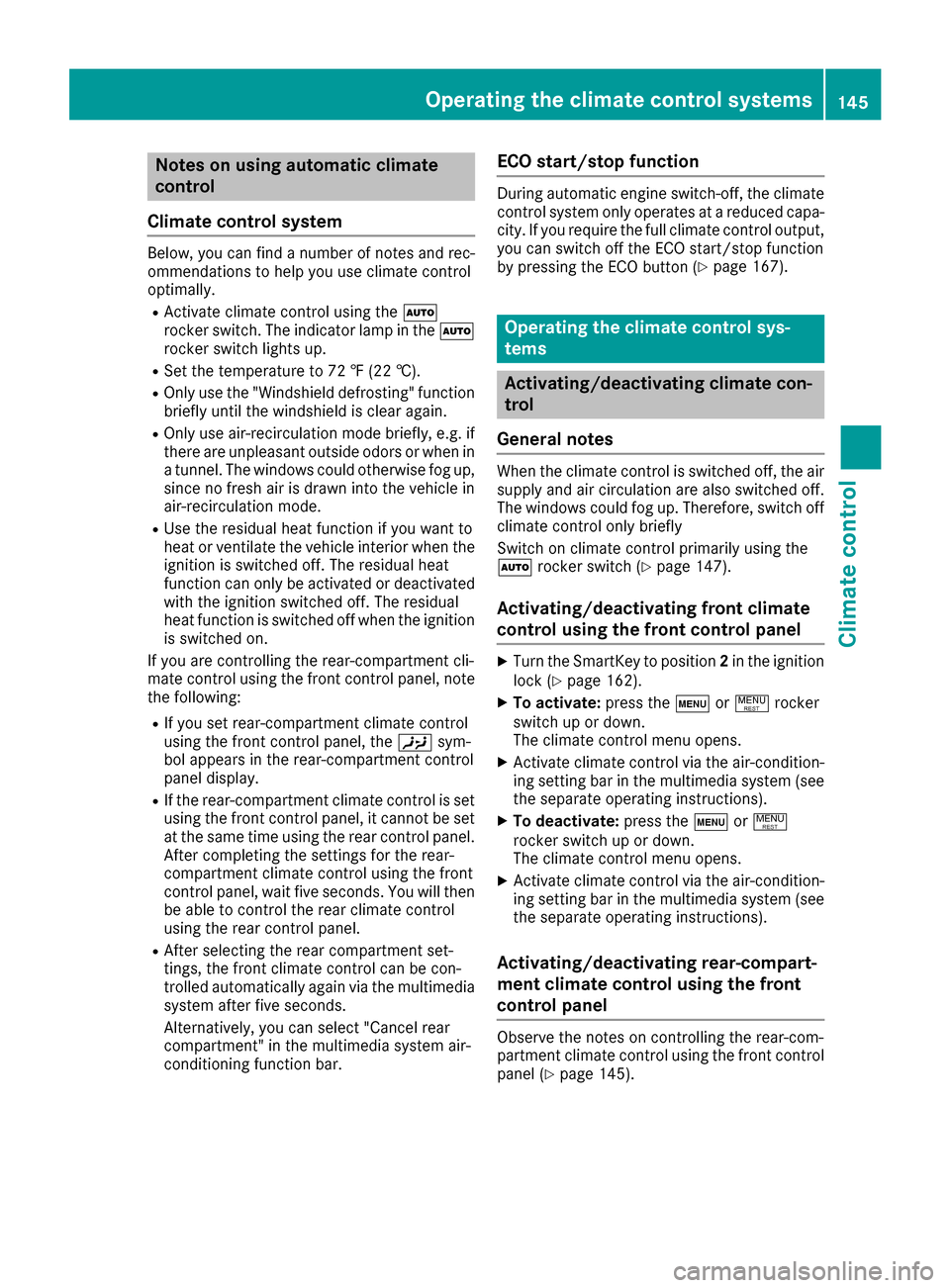

Notes on using automatic climate
control
Climate control system
Below, you can find a number of notes and rec-
ommendations to help you use climate control
optimally.
RActivate climate control using the Ã
rocker switch. The indicator lamp in the Ã
rocker switch lights up.
RSet the temperature to 72 ‡ (22 †).
ROnly use the "Windshield defrosting" function
briefly until the windshield is clear again.
ROnly use air-recirculation mode briefly, e.g. if
there are unpleasant outside odors or when in
a tunnel. The windows could otherwise fog up, since no fresh air is drawn into the vehicle in
air-recirculation mode.
RUse the residual heat function if you want to
heat or ventilate the vehicle interior when the
ignition is switched off. The residual heat
function can only be activated or deactivated
with the ignition switched off. The residual
heat function is switched off when the ignition
is switched on.
If you are controlling the rear-compartment cli-
mate control using the front control panel, note
the following:
RIf you set rear-compartment climate control
using the front control panel, the Ysym-
bol appears in the rear-compartment control
panel display.
RIf the rear-compartment climate control is set
using the front control panel, it cannot be set
at the same time using the rear control panel. After completing the settings for the rear-
compartment climate control using the front
control panel, wait five seconds. You will then
be able to control the rear climate control
using the rear control panel.
RAfter selecting the rear compartment set-
tings, the front climate control can be con-
trolled automatically again via the multimedia
system after five seconds.
Alternatively, you can select "Cancel rear
compartment" in the multimedia system air-
conditioning function bar.
ECO start/stop function
During automatic engine switch-off, the climate
control system only operates at a reduced capa-
city. If you require the full climate control output,
you can switch off the ECO start/stop function
by pressing the ECO button (
Ypage 167).
Operating the climate control sys-
tems
Activating/deactivating climate con-
trol
General notes
When the climate control is switched off, the air
supply and air circulation are also switched off.
The windows could fog up. Therefore, switch off
climate control only briefly
Switch on climate control primarily using the
à rocker switch (
Ypage 147).
Activating/deactivating front climate
control using the front control panel
XTurn the SmartKey to position 2in the ignition
lock (Ypage 162).
XTo activate: press thetor! rocker
switch up or down.
The climate control menu opens.
XActivate climate control via the air-condition-
ing setting bar in the multimedia system (see
the separate operating instructions).
XTo deactivate: press thetor!
rocker switch up or down.
The climate control menu opens.
XActivate climate control via the air-condition-
ing setting bar in the multimedia system (see
the separate operating instructions).
Activating/deactivating rear-compart-
ment climate control using the front
control panel
Observe the notes on controlling the rear-com-
partment climate control using the front control
panel (
Ypage 145).
Operating the climate control systems145
Climate control

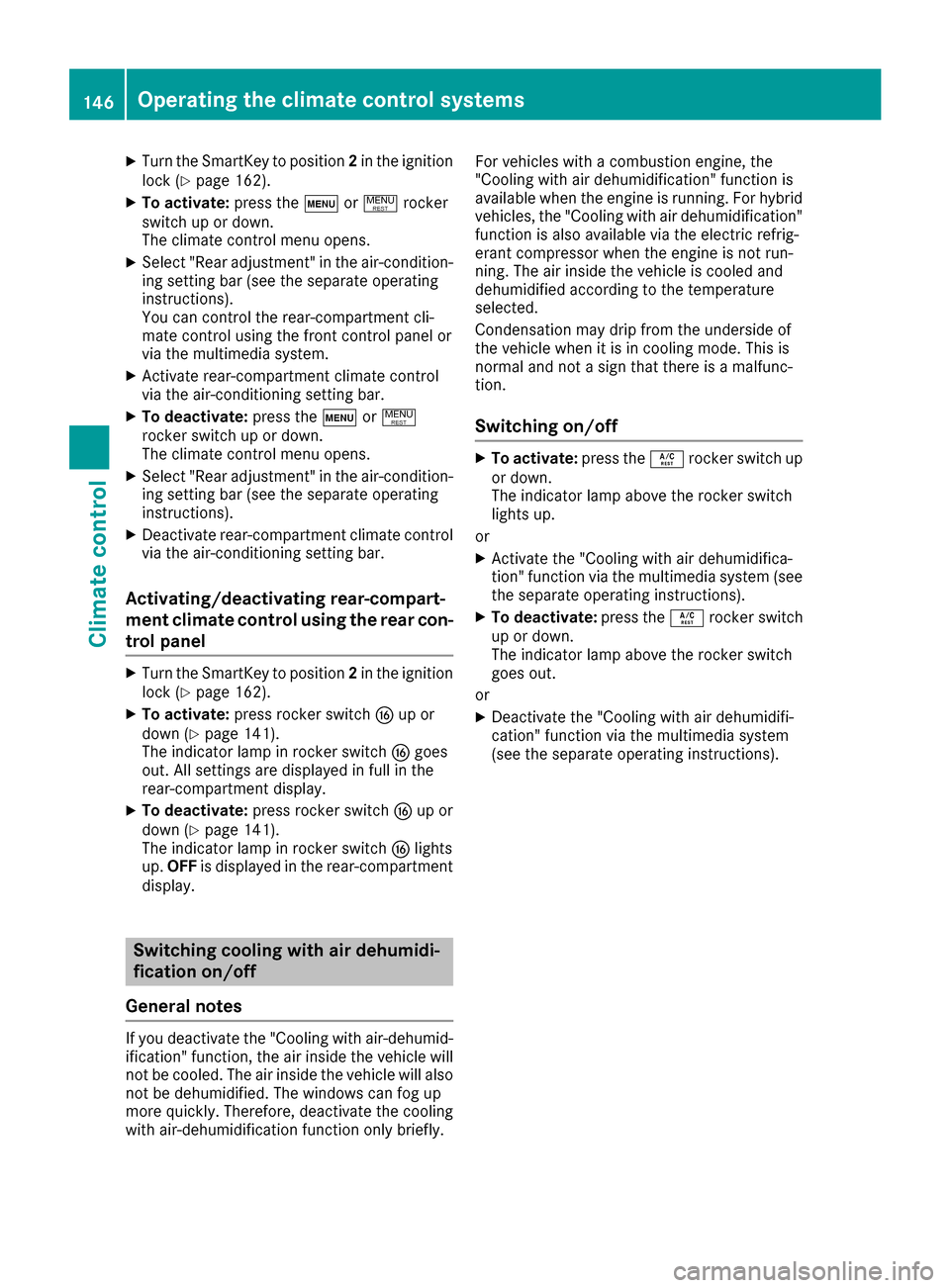

XTurn the SmartKey to position2in the ignition
lock (Ypage 162).
XTo activate: press thetor! rocker
switch up or down.
The climate control menu opens.
XSelect "Rear adjustment" in the air-condition-
ing setting bar (see the separate operating
instructions).
You can control the rear-compartment cli-
mate control using the front control panel or
via the multimedia system.
XActivate rear-compartment climate control
via the air-conditioning setting bar.
XTo deactivate: press thetor!
rocker switch up or down.
The climate control menu opens.
XSelect "Rear adjustment" in the air-condition- ing setting bar (see the separate operating
instructions).
XDeactivate rear-compartment climate control
via the air-conditioning setting bar.
Activating/deactivating rear-compart-
ment climate control using the rear con-
trol panel
XTurn the SmartKey to position 2in the ignition
lock (Ypage 162).
XTo activate: press rocker switch Lup or
down (Ypage 141).
The indicator lamp in rocker switch Lgoes
out. All settings are displayed in full in the
rear-compartment display.
XTo deactivate: press rocker switch Lup or
down (Ypage 141).
The indicator lamp in rocker switch Llights
up. OFF is displayed in the rear-compartment
display.
Switching cooling with air dehumidi-
fication on/off
General notes
If you deactivate the "Cooling with air-dehumid-
ification" function, the air inside the vehicle will
not be cooled. The air inside the vehicle will also
not be dehumidified. The windows can fog up
more quickly. Therefore, deactivate the cooling
with air-dehumidification function only briefly. For vehicles with a combustion engine, the
"Cooling with air dehumidification" function is
available when the engine is running. For hybrid
vehicles, the "Cooling with air dehumidification"
function is also available via the electric refrig-
erant compressor when the engine is not run-
ning. The air inside the vehicle is cooled and
dehumidified according to the temperature
selected.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a malfunc-
tion.
Switching on/off
XTo activate: press theÁrocker switch up
or down.
The indicator lamp above the rocker switch
lights up.
or
XActivate the "Cooling with air dehumidifica-
tion" function via the multimedia system (see
the separate operating instructions).
XTo deactivate: press theÁrocker switch
up or down.
The indicator lamp above the rocker switch
goes out.
or
XDeactivate the "Cooling with air dehumidifi-
cation" function via the multimedia system
(see the separate operating instructions).
146Operating the climate control systems
Climate control

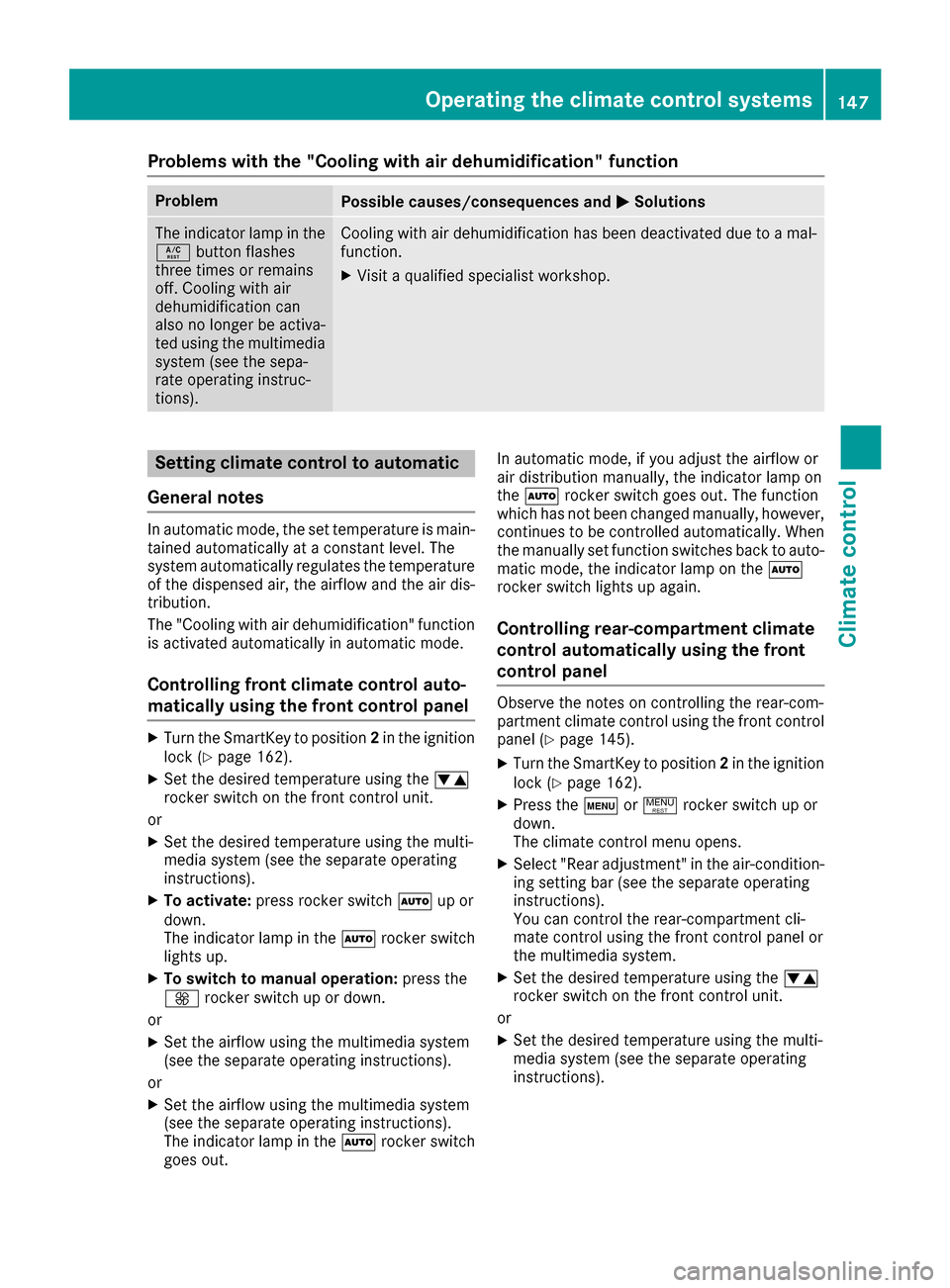

Problems with the "Cooling with air dehumidification" function
ProblemPossible causes/consequences andMSolutions
The indicator lamp in the
Ábutton flashes
three times or remains
off. Cooling with air
dehumidification can
also no longer be activa-
ted using the multimedia
system (see the sepa-
rate operating instruc-
tions).Cooling with air dehumidification has been deactivated due to a mal-
function.
XVisit a qualified specialist workshop.
Setting climate control to automatic
General notes
In automatic mode, the set temperature is main-
tained automatically at a constant level. The
system automatically regulates the temperature
of the dispensed air, the airflow and the air dis-
tribution.
The "Cooling with air dehumidification" function
is activated automatically in automatic mode.
Controlling front climate control auto-
matically using the front control panel
XTurn the SmartKey to position 2in the ignition
lock (Ypage 162).
XSet the desired temperature using the w
rocker switch on the front control unit.
or
XSet the desired temperature using the multi-
media system (see the separate operating
instructions).
XTo activate: press rocker switch Ãup or
down.
The indicator lamp in the Ãrocker switch
lights up.
XTo switch to manual operation: press the
K rocker switch up or down.
or
XSet the airflow using the multimedia system
(see the separate operating instructions).
or
XSet the airflow using the multimedia system
(see the separate operating instructions).
The indicator lamp in the Ãrocker switch
goes out. In automatic mode, if you adjust the airflow or
air distribution manually, the indicator lamp on
the
à rocker switch goes out. The function
which has not been changed manually, however, continues to be controlled automatically. When
the manually set function switches back to auto-
matic mode, the indicator lamp on the Ã
rocker switch lights up again.
Controlling rear-compartment climate
control automatically using the front
control panel
Observe the notes on controlling the rear-com-
partment climate control using the front control
panel (
Ypage 145).
XTurn the SmartKey to position 2in the ignition
lock (Ypage 162).
XPress the tor! rocker switch up or
down.
The climate control menu opens.
XSelect "Rear adjustment" in the air-condition-
ing setting bar (see the separate operating
instructions).
You can control the rear-compartment cli-
mate control using the front control panel or
the multimedia system.
XSet the desired temperature using the w
rocker switch on the front control unit.
or
XSet the desired temperature using the multi-
media system (see the separate operating
instructions).
Operating the climate control systems147
Climate control

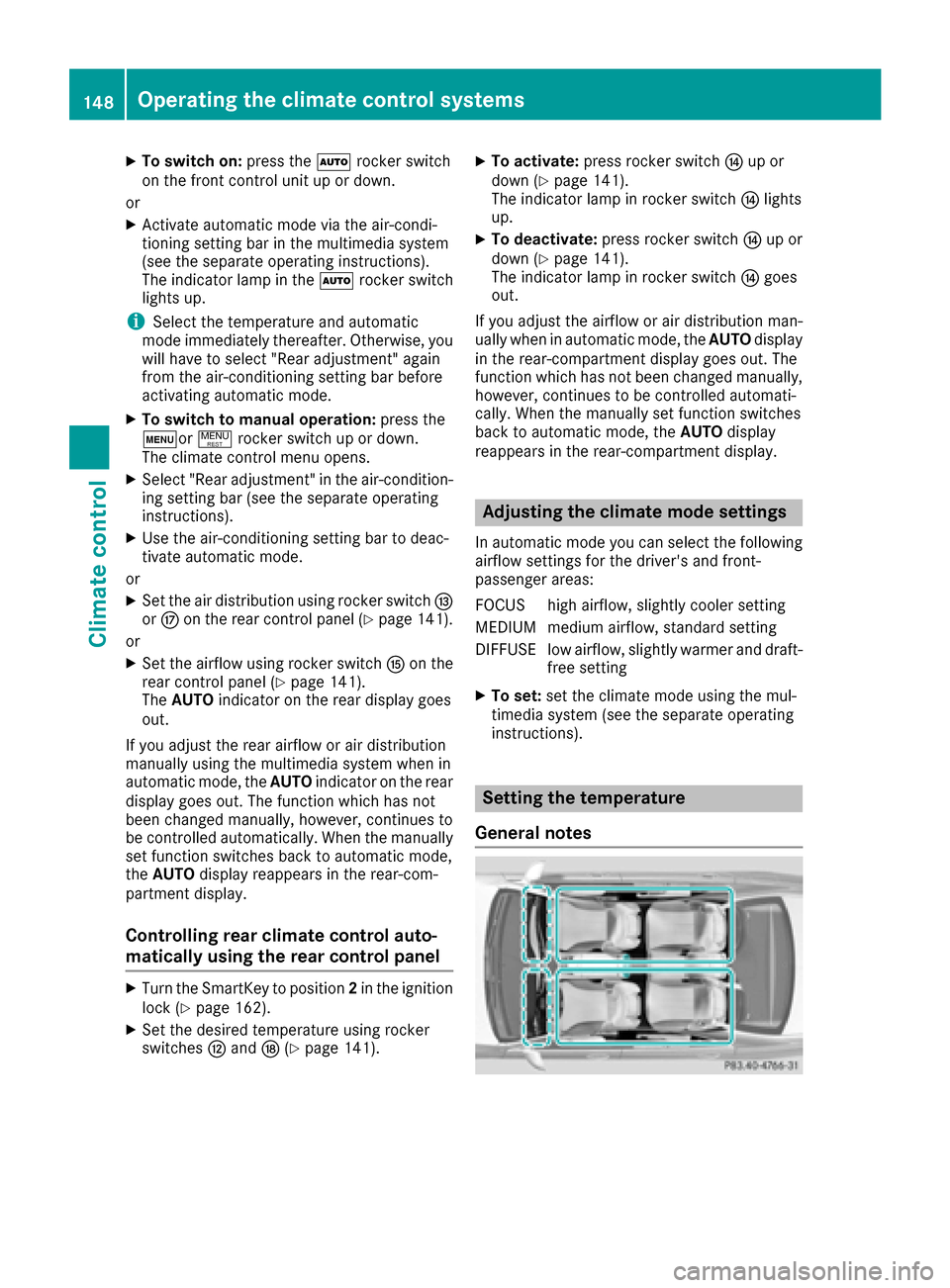

XTo switch on:press theÃrocker switch
on the front control unit up or down.
or
XActivate automatic mode via the air-condi-
tioning setting bar in the multimedia system
(see the separate operating instructions).
The indicator lamp in the Ãrocker switch
lights up.
iSelect the temperature and automatic
mode immediately thereafter. Otherwise, you
will have to select "Rear adjustment" again
from the air-conditioning setting bar before
activating automatic mode.
XTo switch to manual operation: press the
tor !rocker switch up or down.
The climate control menu opens.
XSelect "Rear adjustment" in the air-condition-
ing setting bar (see the separate operating
instructions).
XUse the air-conditioning setting bar to deac-
tivate automatic mode.
or
XSet the air distribution using rocker switch I
or M on the rear control panel (Ypage 141).
or
XSet the airflow using rocker switch Kon the
rear control panel (Ypage 141).
The AUTO indicator on the rear display goes
out.
If you adjust the rear airflow or air distribution
manually using the multimedia system when in
automatic mode, the AUTOindicator on the rear
display goes out. The function which has not
been changed manually, however, continues to
be controll ed a
utomatically. When the manually
set function switches back to automatic mode,
the AUTO display reappears in the rear-com-
partment display.
Controlling rear climate control auto-
matically using the rear control panel
XTurn the SmartKey to position 2in the ignition
lock (Ypage 162).
XSet the desired temperature using rocker
switches Hand N(Ypage 141).
XTo activate: press rocker switch Jup or
down (Ypage 141).
The indicator lamp in rocker switch Jlights
up.
XTo deactivate: press rocker switch Jup or
down (Ypage 141).
The indicator lamp in rocker switch Jgoes
out.
If you adjust the airflow or air distribution man-
ually when in automatic mode, the AUTOdisplay
in the rear-compartment display goes out. The
function which has not been changed manually,
however, continues to be controlled automati-
cally. When the manually set function switches
back to automatic mode, the AUTOdisplay
reappears in the rear-compartment display.
Adjusting the climate mode settings
In automatic mode you can select the following
airflow settings for the driver's and front-
passenger areas:
FOCUS high airflow, slightly cooler setting
MEDIU Mmedium airflow, standard setting
DIFFUSEl ow airflow, slightly warmer and draft-
free setting
XTo set: set the climate mode using the mul-
timedia system (see the separate operating
instructions).
Setting the temperature
General notes
148Operating the climate control systems
Climate control
